Page 181 of 434

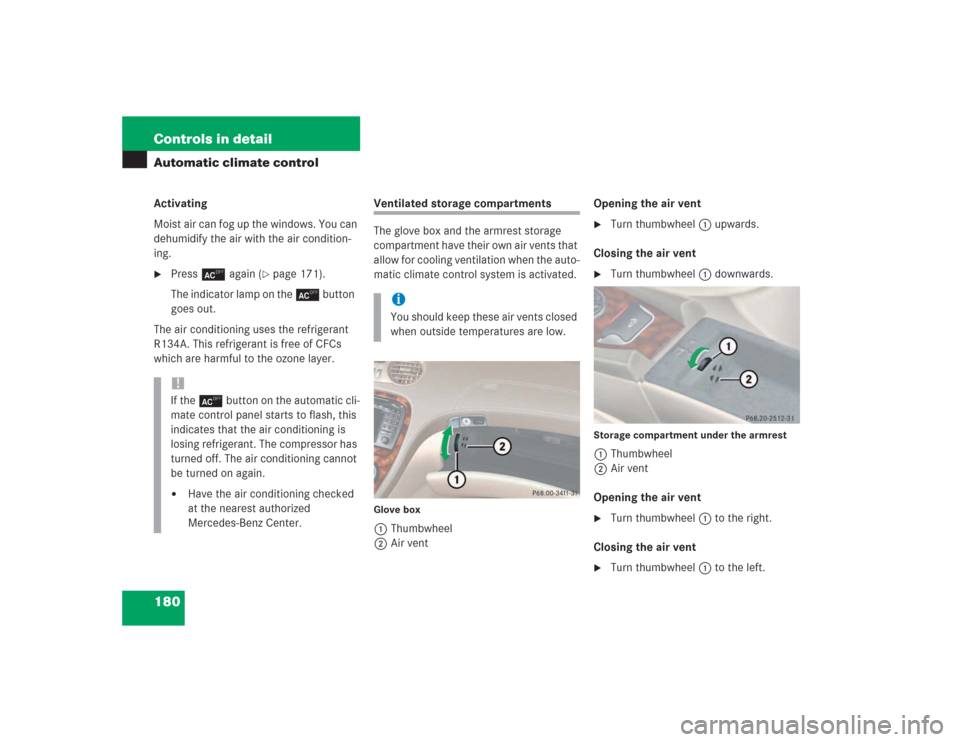

180 Controls in detailAutomatic climate controlActivating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.
Press ± again (
page 171).
The indicator lamp on the ± button
goes out.
The air conditioning uses the refrigerant
R134A. This refrigerant is free of CFCs
which are harmful to the ozone layer.
Ventilated storage compartments
The glove box and the armrest storage
compartment have their own air vents that
allow for cooling ventilation when the auto-
matic climate control system is activated.Glove box1Thumbwheel
2Air ventOpening the air vent
Turn thumbwheel1 upwards.
Closing the air vent
Turn thumbwheel1 downwards.
Storage compartment under the armrest1Thumbwheel
2Air vent
Opening the air vent
Turn thumbwheel1 to the right.
Closing the air vent
Turn thumbwheel1 to the left.
!If the ± button on the automatic cli-
mate control panel starts to flash, this
indicates that the air conditioning is
losing refrigerant. The compressor has
turned off. The air conditioning cannot
be turned on again.
Have the air conditioning checked
at the nearest authorized
Mercedes-Benz Center.
iYou should keep these air vents closed
when outside temperatures are low.
Page 182 of 434
181 Controls in detail
Power windows
Power windows
Opening and closing the windows
The side windows can be opened and
closed electrically. The switches for all the
side windows are on the driver’s door. The
switch for the passenger side is on the pas-
senger door.
1Left front and rear windows
2Right front and rear windows
Switch on ignition.
Warning!
G
When closing the windows, make sure that
there is no danger of anyone being injured
by the closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if the switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you pulled the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling and
holding the switch, by pressing and holding
button
‹
on the SmartKey,
or by pressing and holding the lock button
(vehicles with KEYLESS-GO*) on the door
handle, the automatic reversal function will
not operate.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.iYou can also open or close the win-
dows using the , button on the
control panel of the automatic climate
control (
page 175).
Page 183 of 434

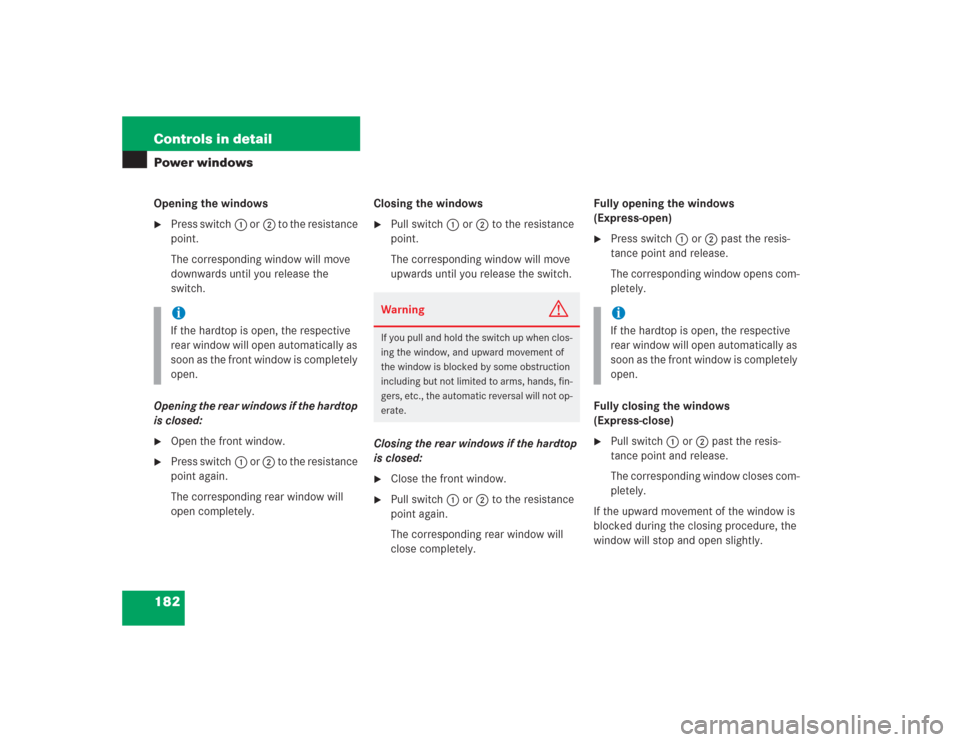

182 Controls in detailPower windowsOpening the windows
Press switch1 or2 to the resistance
point.
The corresponding window will move
downwards until you release the
switch.
Opening the rear windows if the hardtop
is closed:
Open the front window.
Press switch1 or 2 to the resistance
point again.
The corresponding rear window will
open completely.Closing the windows
Pull switch1 or2 to the resistance
point.
The corresponding window will move
upwards until you release the switch.
Closing the rear windows if the hardtop
is closed:
Close the front window.
Pull switch1 or 2 to the resistance
point again.
The corresponding rear window will
close completely.Fully opening the windows
(Express-open)
Press switch1 or2 past the resis-
tance point and release.
The corresponding window opens com-
pletely.
Fully closing the windows
(Express-close)
Pull switch1 or2 past the resis-
tance point and release.
The corresponding window closes com-
pletely.
If the upward movement of the window is
blocked during the closing procedure, the
window will stop and open slightly.
iIf the hardtop is open, the respective
rear window will open automatically as
soon as the front window is completely
open.
Warning
G
If you pull and hold the switch up when clos-
ing the window, and upward movement of
the window is blocked by some obstruction
including but not limited to arms, hands, fin-
gers, etc., the automatic reversal will not op-
erate.
iIf the hardtop is open, the respective
rear window will open automatically as
soon as the front window is completely
open.
Page 184 of 434

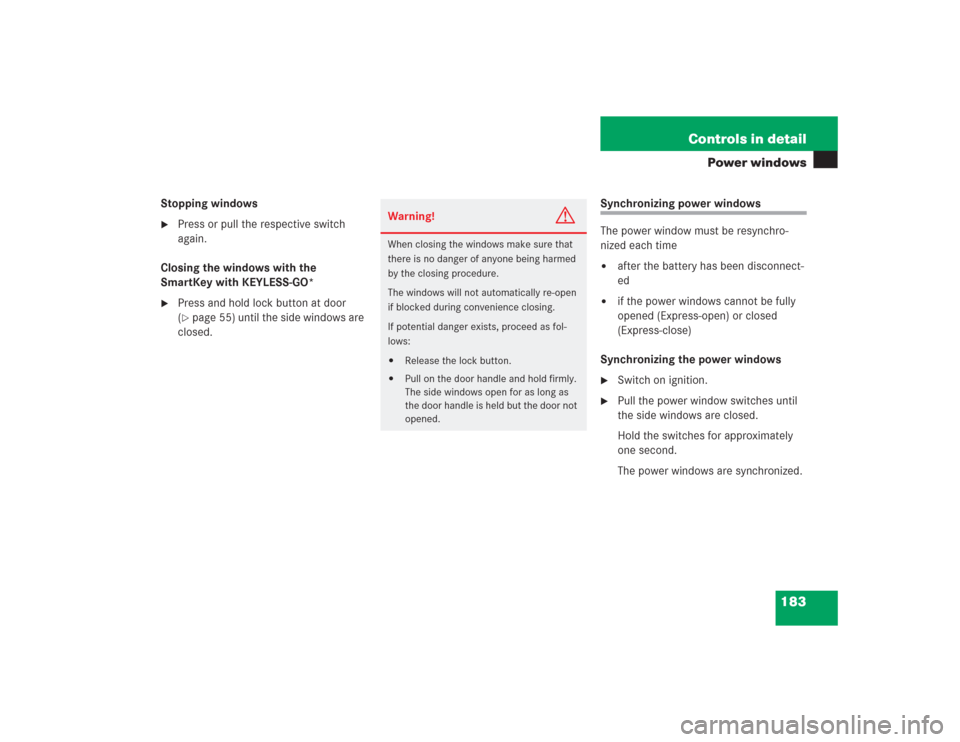

183 Controls in detail
Power windows
Stopping windows
Press or pull the respective switch
again.
Closing the windows with the
SmartKey with KEYLESS-GO*
Press and hold lock button at door
(page 55) until the side windows are
closed.
Synchronizing power windows
The power window must be resynchro-
nized each time
after the battery has been disconnect-
ed
if the power windows cannot be fully
opened (Express-open) or closed
(Express-close)
Synchronizing the power windows
Switch on ignition.
Pull the power window switches until
the side windows are closed.
Hold the switches for approximately
one second.
The power windows are synchronized.
Warning!
G
When closing the windows make sure that
there is no danger of anyone being harmed
by the closing procedure.
The windows will not automatically re-open
if blocked during convenience closing.
If potential danger exists, proceed as fol-
lows:
Release the lock button.
Pull on the door handle and hold firmly.
The side windows open for as long as
the door handle is held but the door not
opened.
Page 185 of 434

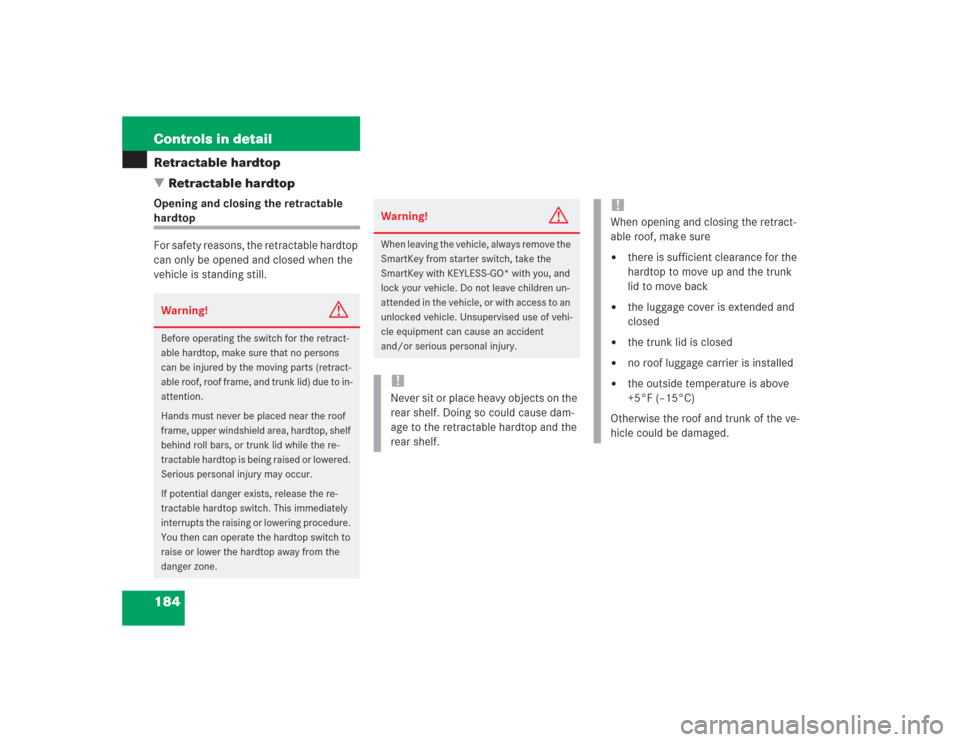

184 Controls in detailRetractable hardtop
Retractable hardtopOpening and closing the retractable hardtop
For safety reasons, the retractable hardtop
can only be opened and closed when the
vehicle is standing still.Warning!
G
Before operating the switch for the retract-
able hardtop, make sure that no persons
can be injured by the moving parts (retract-
able roof, roof frame, and trunk lid) due to in-
attention.
Hands must never be placed near the roof
frame, upper windshield area, hardtop, shelf
behind roll bars, or trunk lid while the re-
tractable hardtop is being raised or lowered.
Serious personal injury may occur.
If potential danger exists, release the re-
tractable hardtop switch. This immediately
interrupts the raising or lowering procedure.
You then can operate the hardtop switch to
raise or lower the hardtop away from the
danger zone.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.!Never sit or place heavy objects on the
rear shelf. Doing so could cause dam-
age to the retractable hardtop and the
rear shelf.
!When opening and closing the retract-
able roof, make sure
there is sufficient clearance for the
hardtop to move up and the trunk
lid to move back
the luggage cover is extended and
closed
the trunk lid is closed
no roof luggage carrier is installed
the outside temperature is above
+5°F (–15°C)
Otherwise the roof and trunk of the ve-
hicle could be damaged.
Page 186 of 434

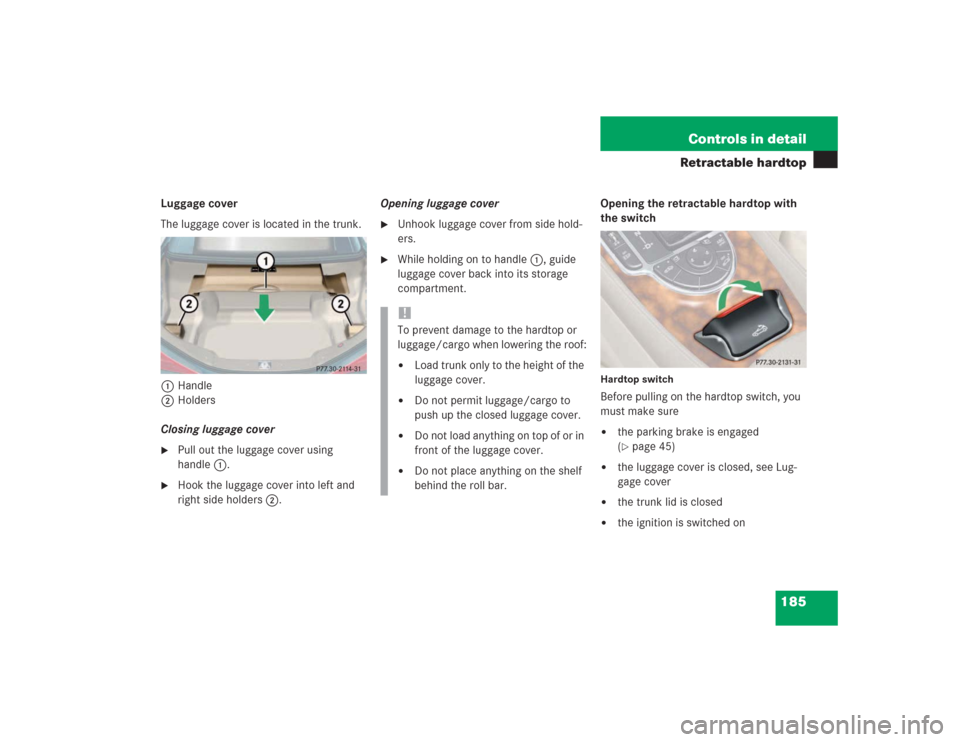

185 Controls in detail
Retractable hardtop
Luggage cover
The luggage cover is located in the trunk.
1Handle
2Holders
Closing luggage cover
Pull out the luggage cover using
handle1.
Hook the luggage cover into left and
right side holders2.Opening luggage cover
Unhook luggage cover from side hold-
ers.
While holding on to handle1, guide
luggage cover back into its storage
compartment. Opening the retractable hardtop with
the switch
Hardtop switchBefore pulling on the hardtop switch, you
must make sure
the parking brake is engaged
(page 45)
the luggage cover is closed, see Lug-
gage cover
the trunk lid is closed
the ignition is switched on
!To prevent damage to the hardtop or
luggage/cargo when lowering the roof:
Load trunk only to the height of the
luggage cover.
Do not permit luggage/cargo to
push up the closed luggage cover.
Do not load anything on top of or in
front of the luggage cover.
Do not place anything on the shelf
behind the roll bar.
Page 187 of 434

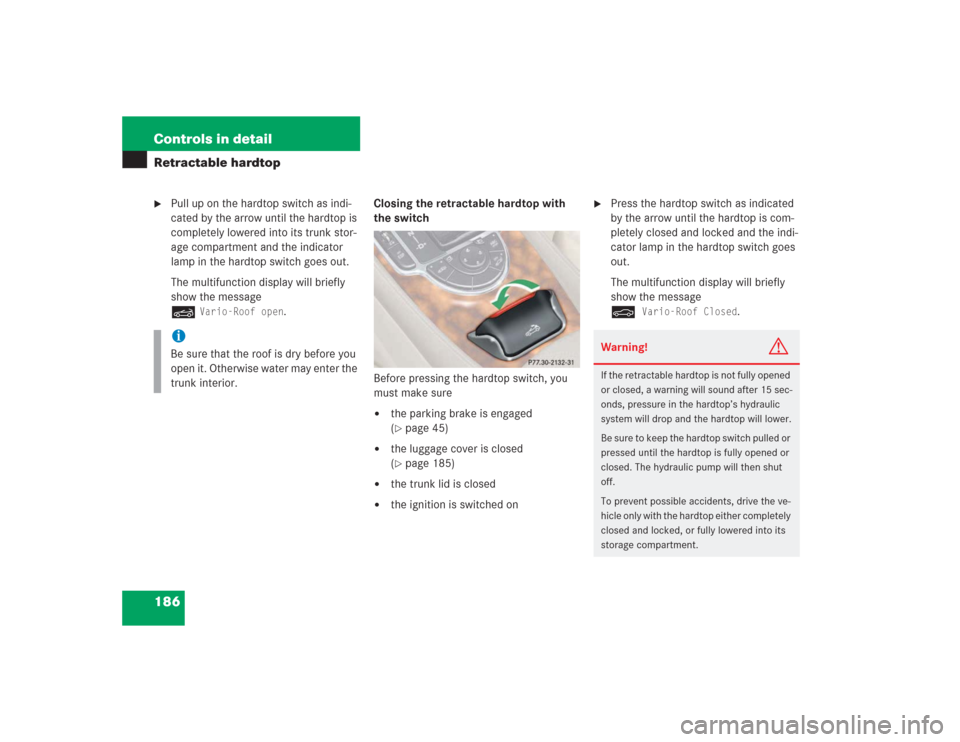

186 Controls in detailRetractable hardtop
Pull up on the hardtop switch as indi-
cated by the arrow until the hardtop is
completely lowered into its trunk stor-
age compartment and the indicator
lamp in the hardtop switch goes out.
The multifunction display will briefly
show the message
K
Vario-Roof open
.Closing the retractable hardtop with
the switch
Before pressing the hardtop switch, you
must make sure
the parking brake is engaged
(page 45)
the luggage cover is closed
(page 185)
the trunk lid is closed
the ignition is switched on
Press the hardtop switch as indicated
by the arrow until the hardtop is com-
pletely closed and locked and the indi-
cator lamp in the hardtop switch goes
out.
The multifunction display will briefly
show the message
+
Vario-Roof Closed
.
iBe sure that the roof is dry before you
open it. Otherwise water may enter the
trunk interior.
Warning!
G
If the retractable hardtop is not fully opened
or closed, a warning will sound after 15 sec-
onds, pressure in the hardtop’s hydraulic
system will drop and the hardtop will lower.
Be sure to keep the hardtop switch pulled or
pressed until the hardtop is fully opened or
closed. The hydraulic pump will then shut
off.
To prevent possible accidents, drive the ve-
hicle only with the hardtop either completely
closed and locked, or fully lowered into its
storage compartment.
Page 188 of 434

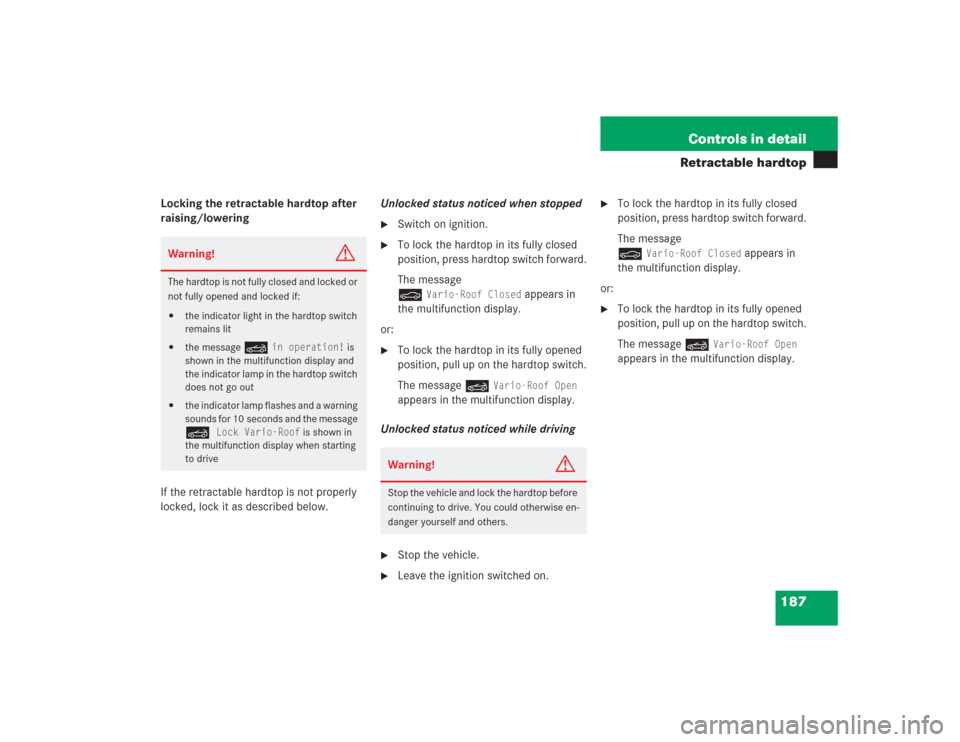

187 Controls in detail
Retractable hardtop
Locking the retractable hardtop after
raising/lowering
If the retractable hardtop is not properly
locked, lock it as described below.Unlocked status noticed when stopped
Switch on ignition.
To lock the hardtop in its fully closed
position, press hardtop switch forward.
The message
+
Vario-Roof Closed
appears in
the multifunction display.
or:
To lock the hardtop in its fully opened
position, pull up on the hardtop switch.
The message K
Vario-Roof Open
appears in the multifunction display.
Unlocked status noticed while driving
Stop the vehicle.
Leave the ignition switched on.
To lock the hardtop in its fully closed
position, press hardtop switch forward.
The message
+
Vario-Roof Closed
appears in
the multifunction display.
or:
To lock the hardtop in its fully opened
position, pull up on the hardtop switch.
The message K
Vario-Roof Open
appears in the multifunction display.
Warning!
G
The hardtop is not fully closed and locked or
not fully opened and locked if:
the indicator light in the hardtop switch
remains lit
the message
K
in operation!
is
shown in the multifunction display and
the indicator lamp in the hardtop switch
does not go out
the indicator lamp flashes and a warning
sounds for 10 seconds and the message K
Lock Vario-Roof
is shown in
the multifunction display when starting
to drive
Warning!
G
Stop the vehicle and lock the hardtop before
continuing to drive. You could otherwise en-
danger yourself and others.
Page 189 of 434

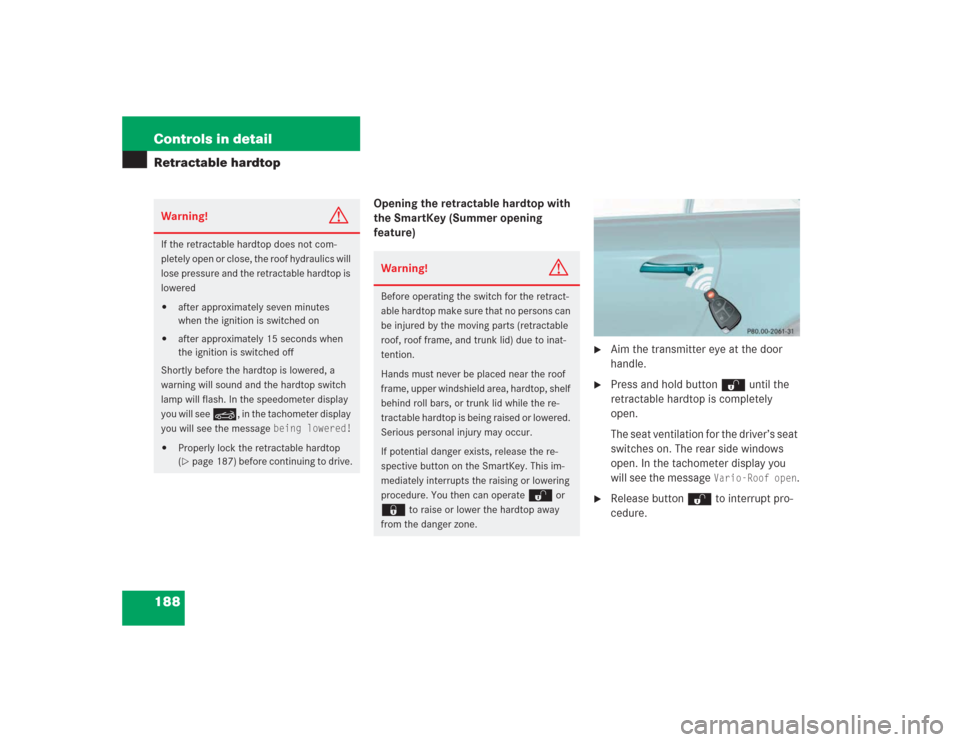

188 Controls in detailRetractable hardtop
Opening the retractable hardtop with
the SmartKey (Summer opening
feature)
Aim the transmitter eye at the door
handle.
Press and hold button Πuntil the
retractable hardtop is completely
open.
The seat ventilation for the driver’s seat
switches on. The rear side windows
open. In the tachometer display you
will see the message
Vario-Roof open
.
Release button Πto interrupt pro-
cedure.
Warning!
G
If the retractable hardtop does not com-
pletely open or close, the roof hydraulics will
lose pressure and the retractable hardtop is
lowered
after approximately seven minutes
when the ignition is switched on
after approximately 15 seconds when
the ignition is switched off
Shortly before the hardtop is lowered, a
warning will sound and the hardtop switch
lamp will flash. In the speedometer display
you will see
K
, in the tachometer display
you will see the message
being lowered!
Properly lock the retractable hardtop
(page 187) before continuing to drive.
Warning!
G
Before operating the switch for the retract-
able hardtop make sure that no persons can
be injured by the moving parts (retractable
roof, roof frame, and trunk lid) due to inat-
tention.
Hands must never be placed near the roof
frame, upper windshield area, hardtop, shelf
behind roll bars, or trunk lid while the re-
tractable hardtop is being raised or lowered.
Serious personal injury may occur.
If potential danger exists, release the re-
spective button on the SmartKey. This im-
mediately interrupts the raising or lowering
procedure. You then can operate
Œ
or
‹
to raise or lower the hardtop away
from the danger zone.
Page 190 of 434

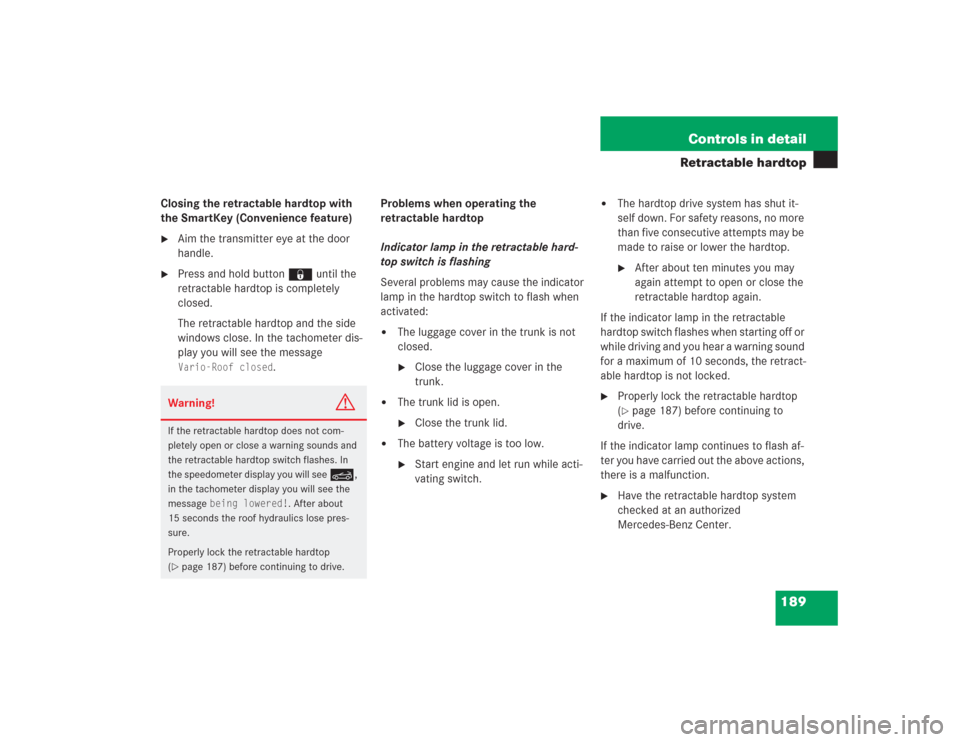

189 Controls in detail
Retractable hardtop
Closing the retractable hardtop with
the SmartKey (Convenience feature)
Aim the transmitter eye at the door
handle.
Press and hold button ‹ until the
retractable hardtop is completely
closed.
The retractable hardtop and the side
windows close. In the tachometer dis-
play you will see the message Vario-Roof closed
.Problems when operating the
retractable hardtop
Indicator lamp in the retractable hard-
top switch is flashing
Several problems may cause the indicator
lamp in the hardtop switch to flash when
activated:
The luggage cover in the trunk is not
closed.
Close the luggage cover in the
trunk.
The trunk lid is open.
Close the trunk lid.
The battery voltage is too low.
Start engine and let run while acti-
vating switch.
The hardtop drive system has shut it-
self down. For safety reasons, no more
than five consecutive attempts may be
made to raise or lower the hardtop.
After about ten minutes you may
again attempt to open or close the
retractable hardtop again.
If the indicator lamp in the retractable
hardtop switch flashes when starting off or
while driving and you hear a warning sound
for a maximum of 10 seconds, the retract-
able hardtop is not locked.
Properly lock the retractable hardtop
(page 187) before continuing to
drive.
If the indicator lamp continues to flash af-
ter you have carried out the above actions,
there is a malfunction.
Have the retractable hardtop system
checked at an authorized
Mercedes-Benz Center.
Warning!
G
If the retractable hardtop does not com-
pletely open or close a warning sounds and
the retractable hardtop switch flashes. In
the speedometer display you will see
K
,
in the tachometer display you will see the
message
being lowered!
. After about
15 seconds the roof hydraulics lose pres-
sure.
Properly lock the retractable hardtop
(
page 187) before continuing to drive.
