Getting started................................... 29
Unlocking ............................................. 30
Unlocking with the SmartKey......... 30
Unlocking with KEYLESS-GO*......... 32
Adjusting .............................................. 34
Seats .............................................. 34
Steering wheel ................................ 37
Mirrors ............................................ 38
Driving .................................................. 40
Fastening the seat belts ................. 40
Starting the engine......................... 43
Switching on headlamps ................. 46
Turn signals and high beam ............ 47
Windshield wipers........................... 47
Problems while driving .................... 49
Parking and locking .............................. 51
Parking brake ................................. 52
Switching off headlamps................. 52
Turning off the engine..................... 53
Emergency engine shut-down ......... 55

Contents
Control system .................................. 127
Multifunction display .................... 127
Multifunction steering wheel ........ 128
Menus .......................................... 130
Standard display menu ................ 132
AUDIO menu ................................ 132
NAVI menu ................................... 134
Distronic* menu........................... 135
Malfunction memory menu .......... 136
Settings menu .............................. 137
Trip computer menu..................... 150
TEL menu* ................................... 152
Automatic transmission ..................... 155
One-touch gearshifting................. 156
Gear ranges ................................. 157
Gear selector lever position ......... 158
Steering wheel gearshift control
(Speedshift) SL 55 AMG ............... 160
Program mode selector switch..... 161
Accelerator position ..................... 162
Manual shift program SL 55 AMG 163
Emergency operation
(Limp Home Mode) ...................... 165Good visibility ..................................... 166
Rear view mirrors .......................... 166
Windshield wipers ......................... 168
Headlamp cleaning system ........... 168
Rear window defroster .................. 169
Sun visors ..................................... 169
Automatic climate control .................. 170
Setting the temperature................ 172
Adjusting air volume ..................... 173
Adjusting air distribution............... 174
Maximum cooling MAXCOOL ........ 174
Defrosting ..................................... 175
Air recirculation mode .................. 175
Rear window defroster .................. 177
Residual heat and ventilation ........ 178
Deactivating the automatic
climate control system ................. 179
Air conditioning............................. 179
Ventilated storage compartments. 180
Power windows .................................. 181
Opening and closing the windows. 181
Synchronizing power windows ...... 183Retractable hardtop ........................... 184
Opening and closing the
retractable hardtop ....................... 184
Driving systems .................................. 193
Cruise control ............................... 193
Distronic* ..................................... 196
Active Body Control (ABC) ............ 207
Parktronic* (Parking assist) .......... 210
Useful features ................................... 214
Storage compartments ................. 214
Ashtray ......................................... 219
Cigarette lighter............................ 219
Heated steering wheel*
(SL 500, SL 600)........................... 220
Load assist in the trunk ................ 221
Electrical outlet............................. 222
Telephone* ................................... 222
Tele Aid......................................... 223
Garage door opener ...................... 231

ContentsOperation......................................... 237
The first 1000 miles (1500 km) ......... 238
Driving instructions ............................ 239
Drive sensibly – save fuel ............. 239
Drinking and driving ..................... 239
Pedals .......................................... 239
Power assistance ......................... 240
Brakes .......................................... 240
Driving off..................................... 242
Parking ......................................... 242
Tires ............................................. 243
Hydroplaning ................................ 243
Tire traction .................................. 244
Tire speed rating .......................... 244
Winter driving instructions ........... 245
Standing water ............................. 246
Passenger compartment .............. 246
Driving abroad .............................. 246Control and operation of radio
transmitters ................................. 247
Catalytic converter ....................... 247
Emission control .......................... 248
Coolant temperature .................... 249
At the gas station .............................. 250
Refuelling ..................................... 250
Check regularly and before
a long trip ..................................... 252
Engine compartment ......................... 253
Hood ............................................ 253
Engine oil ..................................... 255
Transmission fluid level ................ 258
Oil level in the ABC system .......... 258
Coolant ........................................ 258
Battery ......................................... 260
Windshield washer system and
headlamp cleaning system ........... 261Tires and wheels................................ 262
Important guidelines .................... 262
Life of tires................................... 263
Direction of rotation..................... 263
Checking tire inflation pressure ... 263
Rotating wheels ........................... 267
Winter driving .................................... 268
Winter tires .................................. 268
Block heater (Canada only) .......... 269
Snow chains................................. 269
Maintenance...................................... 271
Clearing the service indicator ...... 271
Service term exceeded ................ 272
Calling up the service indicator .... 272
Resetting the service indicator .... 272
Vehicle care....................................... 274
Cleaning and care of the vehicle .. 274

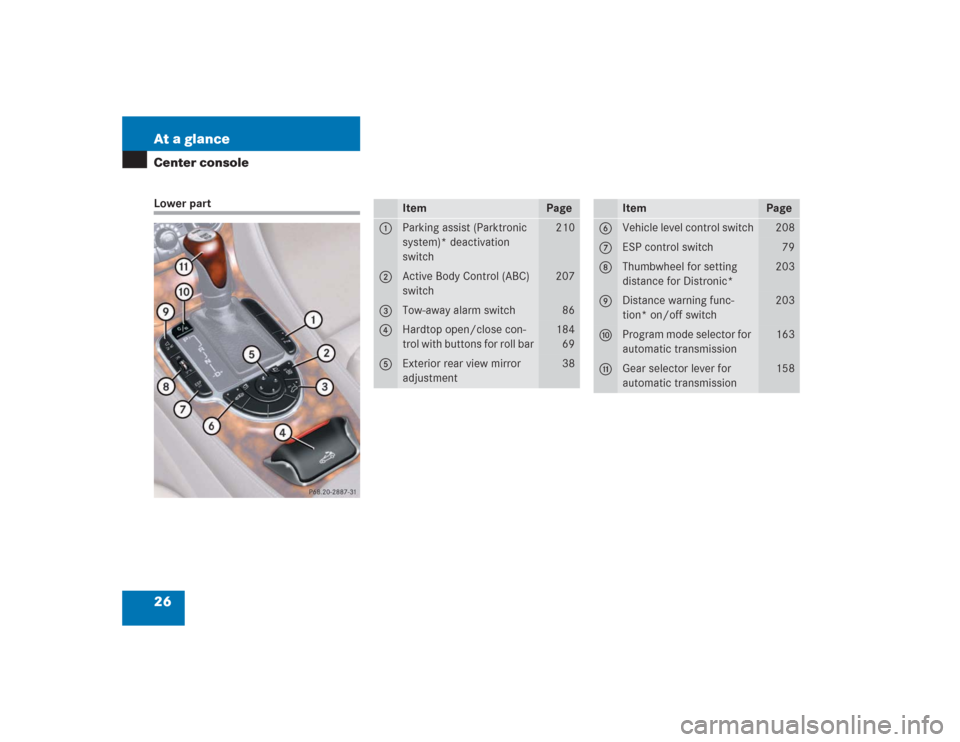

26 At a glanceCenter consoleLower part
Item
Page
1
Parking assist (Parktronic
system)* deactivation
switch
210
2
Active Body Control (ABC)
switch
207
3
Tow-away alarm switch
86
4
Hardtop open/close con-
trol with buttons for roll bar
184
69
5
Exterior rear view mirror
adjustment
38
Item
Page
6
Vehicle level control switch
208
7
ESP control switch
79
8
Thumbwheel for setting
distance for Distronic*
203
9
Distance warning func-
tion* on/off switch
203
a
Program mode selector for
automatic transmission
163
b
Gear selector lever for
automatic transmission
158

51 Getting started

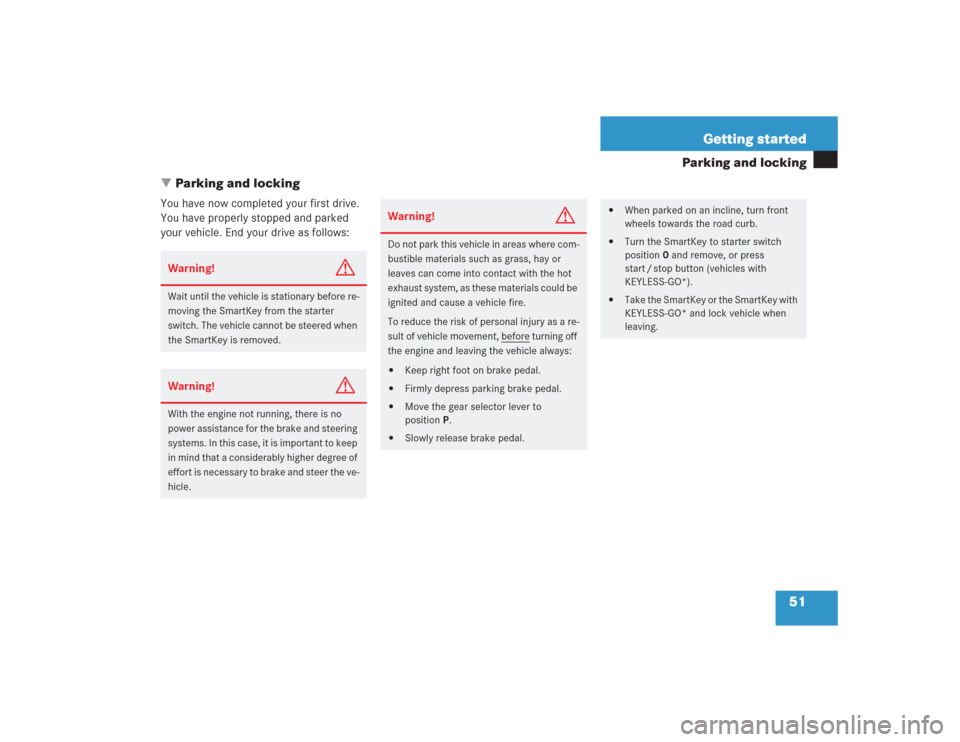

Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows:Warning!
G
Wait until the vehicle is stationary before re-
moving the SmartKey from the starter
switch. The vehicle cannot be steered when
the SmartKey is removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before
turning off
the engine and leaving the vehicle always:


Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


Turn the SmartKey to starter switch
position0 and remove, or press
start / stop button (vehicles with
KEYLESS-GO*).


Take the SmartKey or the SmartKey with
KEYLESS-GO* and lock vehicle when
leaving.

83 Safety and Security

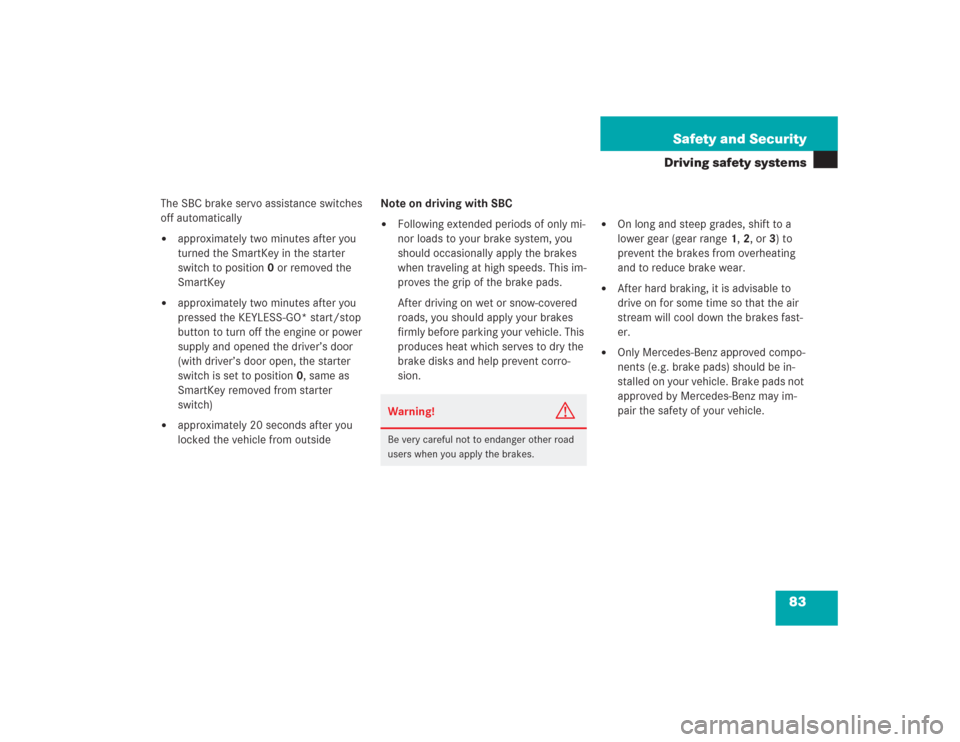

Driving safety systems
The SBC brake servo assistance switches
off automatically

approximately two minutes after you
turned the SmartKey in the starter
switch to position0 or removed the
SmartKey


approximately two minutes after you
pressed the KEYLESS-GO* start/stop
button to turn off the engine or power
supply and opened the driver’s door
(with driver’s door open, the starter
switch is set to position 0, same as
SmartKey removed from starter
switch)


approximately 20 seconds after you
locked the vehicle from outside Note on driving with SBC


Following extended periods of only mi-
nor loads to your brake system, you
should occasionally apply the brakes
when traveling at high speeds. This im-
proves the grip of the brake pads.
After driving on wet or snow-covered
roads, you should apply your brakes
firmly before parking your vehicle. This
produces heat which serves to dry the
brake disks and help prevent corro-
sion.


On long and steep grades, shift to a
lower gear (gear range1, 2, or 3) to
prevent the brakes from overheating
and to reduce brake wear.


After hard braking, it is advisable to
drive on for some time so that the air
stream will cool down the brakes fast-
er.


Only Mercedes-Benz approved compo-
nents (e.g. brake pads) should be in-
stalled on your vehicle. Brake pads not
approved by Mercedes-Benz may im-
pair the safety of your vehicle.
Warning!
G
Be very careful not to endanger other road
users when you apply the brakes.

193 Controls in detail
Driving systems
Driving systems

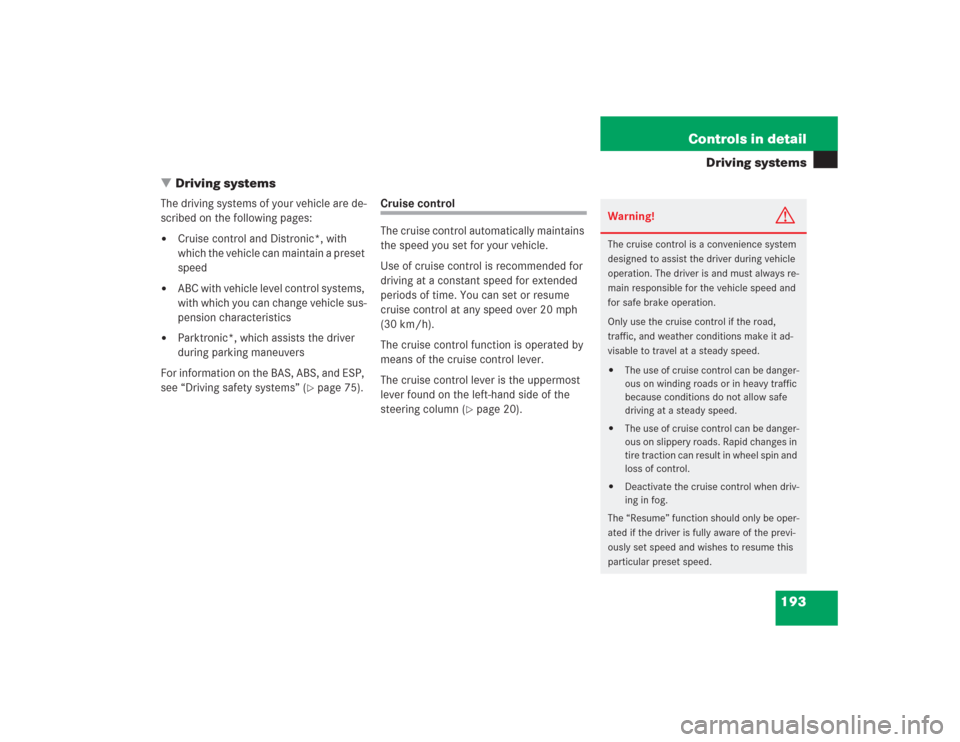

The driving systems of your vehicle are de-
scribed on the following pages:

Cruise control and Distronic*, with
which the vehicle can maintain a preset
speed


ABC with vehicle level control systems,
with which you can change vehicle sus-
pension characteristics


Parktronic*, which assists the driver
during parking maneuvers
For information on the BAS, ABS, and ESP,
see “Driving safety systems” (
page 75).
Cruise control
The cruise control automatically maintains
the speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set or resume
cruise control at any speed over 20 mph
(30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever found on the left-hand side of the
steering column (
page 20).
Warning!
G
The cruise control is a convenience system
designed to assist the driver during vehicle
operation. The driver is and must always re-
main responsible for the vehicle speed and
for safe brake operation.
Only use the cruise control if the road,
traffic, and weather conditions make it ad-
visable to travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate the cruise control when driv-
ing in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

210 Controls in detailDriving systemsParktronic* (Parking assist)

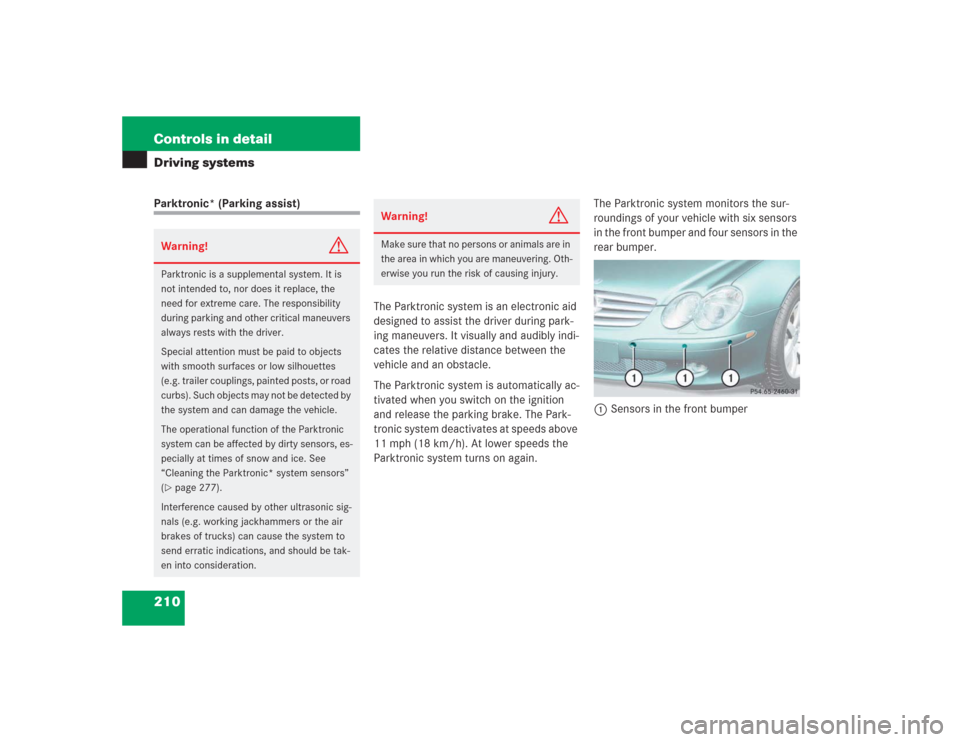

The Parktronic system is an electronic aid
designed to assist the driver during park-
ing maneuvers. It visually and audibly indi-
cates the relative distance between the
vehicle and an obstacle.
The Parktronic system is automatically ac-
tivated when you switch on the ignition
and release the parking brake. The Park-
tronic system deactivates at speeds above
11 mph (18 km/h). At lower speeds the
Parktronic system turns on again.The Parktronic system monitors the sur-
roundings of your vehicle with six sensors
in the front bumper and four sensors in the
rear bumper.
1Sensors in the front bumperWarning!
G
Parktronic is a supplemental system. It is
not intended to, nor does it replace, the
need for extreme care. The responsibility
during parking and other critical maneuvers
always rests with the driver.
Special attention must be paid to objects
with smooth surfaces or low silhouettes
(e.g. trailer couplings, painted posts, or road
curbs). Such objects may not be detected by
the system and can damage the vehicle.
The operational function of the Parktronic
system can be affected by dirty sensors, es-
pecially at times of snow and ice. See
“Cleaning the Parktronic* system sensors”
(page 277).
Interference caused by other ultrasonic sig-
nals (e.g. working jackhammers or the air
brakes of trucks) can cause the system to
send erratic indications, and should be tak-
en into consideration.
Warning!
G
Make sure that no persons or animals are in
the area in which you are maneuvering. Oth-
erwise you run the risk of causing injury.

241 Operation
Driving instructions
To help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only sub-
jected to moderate loads, you should occa-
sionally test the effectiveness of the
brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads.
If the parking brake is released and the
brake warning lamp in the instrument clus-
ter stays on, there is a malfunction in the
SBC brake system (
page 81) or the
brake fluid level in the reservoir is too low.Brake pad wear or a leak in the system may
be the reason for low brake fluid in the res-
ervoir.
Have the brake system inspected immedi-
ately.
All checks and service work on the brake
system should be carried out by qualified
technicians only. Contact an authorized
Mercedes-Benz Center.
Only install brake pads and brake fluid rec-
ommended by Mercedes-Benz.After hard braking, it is advisable to drive
on for some time, rather than immediately
parking, so the air stream will cool down
the brakes faster.
!Be very careful not to endanger other
road users when you apply the brakes.
Refer to the description of the Brake
Assist System (BAS) (
page 77).
Warning!
G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.
Be certain to read and observe the warning
notices on brake pad replacement
(page 82).
!When driving down long and steep
grades, relieve the load on the brakes
by shifting into a lower gear to use the
engine’s braking power. This helps pre-
vent overheating of the brakes and re-
duces brake pad wear.

340 Practical hintsFlat tireSealing tires with TIREFIT kit 1
Small tire punctures, particularly those in
the tread, can be sealed with TIREFIT.
TIREFIT can be used in ambient tempera-
tures down to -4°F (-20°C).The TIREFIT kit stored in the trunk contains
the TIREFIT container, a filler hose, a valve
stem tool, a valve, and a sticker.

Foreign objects (e.g. screws or nails)
should not be removed from the tire.

Attach the sticker where it will be easily
seen by the driver on the instrument
cluster.
1Filler hose
2TIREFIT container
Warning!
G
Keep TIREFIT away from sparks, open flame
or heat source.
Do not smoke.
Warning!
G
TIREFIT is a limited repair device. TIREFIT
cannot be used for cuts or punctures larger
than approx. 0.16 in (4 mm) and tire dam-
age caused by driving with extremely low
tire pressure, or on a flat tire, or a damaged
wheel.
Do not drive the vehicle under such circum-
stances.
Contact your nearest Mercedes-Benz
Center for assistance or call Roadside
Assistance.
