Page 140 of 474

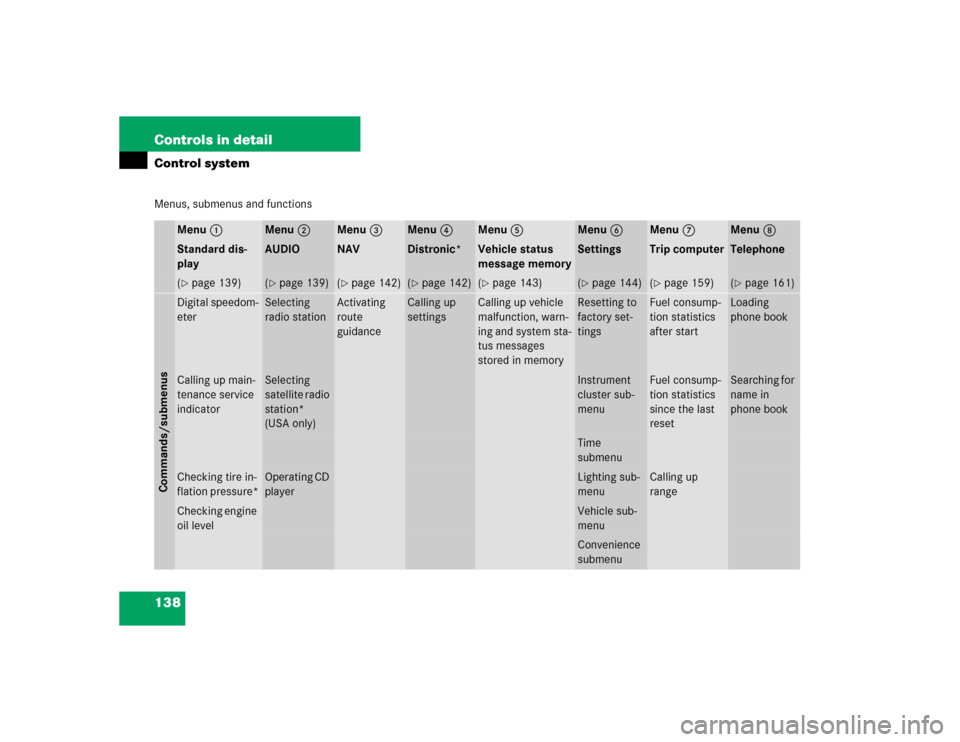

138 Controls in detailControl systemMenus, submenus and functions
Menu 1
Menu 2
Menu 3
Menu 4
Menu 5
Menu 6
Menu 7
Menu 8
Standard dis-
play
AUDIO
NAV
Distronic*
Vehicle status
message memory
Settings
Trip computer
Telephone
(page 139)
(page 139)
(page 142)
(page 142)
(page 143)
(page 144)
(page 159)
(page 161)
Commands/submenusDigital speedom-
eter
Selecting
radio station
Activating
route
guidance
Calling up
settings
Calling up vehicle
malfunction, warn-
ing and system sta-
tus messages
stored in memory
Resetting to
factory set-
tings
Fuel consump-
tion statistics
after start
Loading
phone book
Calling up main-
tenance service
indicator
Selecting
satellite radio
station*
(USA only)
Instrument
cluster sub-
menu
Fuel consump-
tion statistics
since the last
reset
Searching for
name in
phone book
Time
submenu
Checking tire in-
flation pressure*
Operating CD
player
Lighting sub-
menu
Calling up
range
Checking engine
oil level
Vehicle sub-
menuConvenience
submenu
Page 271 of 474
269 Operation
At the gas station
Check regularly and before a long trip
For information on quantities and require-
ments of operating agents, see “Fuels,
coolants, lubricants, etc.” (
page 431).
Open the hood (
page 270).
1Windshield washer and headlamp
cleaning system
2Brake fluid
3Coolant levelWindshield washer and headlamp
cleaning system
For information on refilling the reservoir,
see “Windshield washer system and
headlamp cleaning system” (
page 278).
Brake fluid
For information on brake fluid, see “Fuels,
coolants, lubricants, etc.” (
page 431).Coolant level
For information on checking the coolant
level, see “Coolant” (
page 276).
Engine oil level
For more information on checking the en-
gine oil level, see “Checking engine oil lev-
el with the control system” (
page 272).
Vehicle lighting
Check function and cleanliness. For more
information, see “Replacing bulbs”
(
page 380).
Exterior lamp switch see “Switching on
headlamps” (
page 51).
Tire inflation pressure
For information on checking the tire infla-
tion pressure, see “Checking tire inflation
pressure” (
page 290).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately. Noti-
fy an authorized Mercedes-Benz Center
immediately. Do not add brake fluid as
this will not solve the problem. For
more information, see the “Practical
hints” section (
page 349).
Page 409 of 474
407 Practical hints
Jump starting
The starter battery is located on the right
side of the engine compartment.
Make sure the two vehicles do not
touch.
Turn off all electrical consumers.
Apply parking brake.
Shift gear selector lever to positionP.
Remove the red cover from positive ter-
minal on both vehicles (
page 401).1Negative terminal of charged battery
2Negative terminal of discharged
battery
3Positive terminal of discharged battery
4Positive terminal of charged battery
Connect positive terminals 3 and 4
of the batteries with the jumper cables.
Clamp cable to charged battery 4
first.
Start the engine of the vehicle with the
charged battery and run at idle speed.
Connect negative terminals 1 and 2
of the batteries with the jumper cables.
Clamp cable to charged battery 1
first.
Start the engine of the disabled vehi-
cle.
You can now turn on the electrical con-
sumers. Do not turn on the lights under
any circumstances.
Remove the jumper cables first from
negative terminals 1 and 2 and then
from positive terminals 3 and 4.
You can now turn on the lights.
Have the battery checked at the near-
est Mercedes-Benz Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 277).
!Never invert the terminal connections.
!Do not tow-start the vehicle.
Page 450 of 474
448 IndexCenter air vents 29
Center console
Lower part 30
Upper part 29
Centigrade
Setting temperature units 148
Central locking
Automatic 110
Central locking switch 111
Switching on/off (control
system) 156
Unlocking from inside 111
Central locking switch 29
Central unlocking switch 29
Changing
Batteries (SmartKey with
KEYLESS-GO*) 378
Batteries (SmartKey) 377
SmartKey setting 96
SmartKey with KEYLESS-GO*
settings 103
Vehicle level 222Charging
Vehicle batteries 404
CHECK ENGINE
Messages in display 351
CHECK ENGINE malfunction indicator
lamp 27, 327, 328
Checking
Coolant level 276
Oil level 269, 272
Tire inflate pressure 269
Vehicle lighting 269
Child safety
Airbags 64
Automatic child seat recognition 76
Infant and child restraint systems 62
Cigarette lighter 29, 233
Cleaning
Cup holder 320
Gear selector lever 320
Hard plastic trim items 320
Headlamps 178Headliner 320
Leather upholstery 321
Plastic and rubber parts 321
Seat belts 320
Steering wheel 320
Upholstery 321
Windshield 53
Wood trims 321
Cleaning tires 281
Clock 23
Closing
Hood 271
Power window with
KEYLESS-GO* 195
Retractable hardtop (SmartKey) 201
Retractable hardtop (switch) 198
Side windows 194, 195
Sunshade 204
Trunk lid 109
Windows 193
Windows with KEYLESS-GO* 195
Page 457 of 474
455 Index
Light sensor 361
Replacing bulbs for rear 381, 385
Switching off 123
Switching on 123
Lamps, indicator and warning
ABS 27, 325
ABS/ESP 324
AIRBAG OFF 334
Airbag Off 68
Brakes 326
CHECK ENGINE 327, 328
Coolant 328
DTR* 210
Engine diagnostics 327, 328
ESP 82
Fuel reserve 330
SBC 85
Seat belts 332
SRS 63, 332
Turn signals 25Language
Multifunction display 149
Leather upholstery
Cleaning 321
License plate lamps 153, 381
Replacing bulbs 385
Light sensor 361
Lighter see Cigarette lighter
Lighting
Instruments 131
Interior 129
Settings (control system) 152
Trunk 130
Limiting the gear range 167
Limp Home Mode 177
Load assist 235
Lowering manually 376
Loading terminology 305
Loading the vehicle 282
Lock buttons 34
Door handle (KEYLESS-GO*) 60
Trunk (KEYLESS-GO*) 104Locking 56
Automatic while driving 110
Centrally from inside 111
Fuel filler flap 267
Global (SmartKey with
KEYLESS-GO*) 102
Global (SmartKey) 96
Storage compartments 230
Vehicle in an emergency 376
Low beam headlamps 51, 123, 381
Replacing bulbs 383
Lowering
Load assist manually 376
Roll bar 74
Luggage compartment, rear 232
Luggage cover 197
Messages in display 371
Opening/closing 197
Lumbar support adjustment 115
Page 468 of 474
466 IndexTurn signals 23, 52
Additional in mirrors 381
Front bulbs 381
Indicator lamps 25
Rear bulbs 381
Turning off the engine 58
U
Uniform Tire Quality Grading
Standards 307
Units
Setting speedometer units 148
Setting temperature units 148
Setting tire inflation pressure
units 156
Unlocking 34
Centrally from inside 111
Driver’s door in an emergency 374
Fuel filler flap 267
Storage compartments 231, 375
Trunk 98, 108
Trunk (KEYLESS-GO*) 105
Trunk in an emergency 375
Vehicle in an emergency 374
With the SmartKey 34With the SmartKey with
KEYLESS-GO* 35, 99
Uphill driving
Cruise control 206
Upholstery
Cleaning 321
Upshifting 166
V
Vehicle
Individual settings 144
Locking 29
Locking in an emergency 376
Minimum distance (Parktronic*) 225
Towing 408
Unlocking 29
Unlocking in an emergency 374
Vehicle capacity weight 307
Vehicle care
Cup holder 320
Gear selector lever 320
Hard plastic trim items 320Headliner 320
Leather upholstery 321
Plastic and rubber parts 321
Seat belts 320
Steering wheel 320
Upholstery 321
Wood trims 321
Vehicle level 221, 444
Changing 222
Setting 222
Vehicle level control 444
Vehicle level control switch 30
Vehicle lighting
Checking 269
Vehicle loading terminology 305
Vehicle maximum load on the tire 307
Vehicle status messages 335
Vehicle tool kit 372
Ventilation and residual heat 190
VIN (vehicle identification number) 418,
444
Voice control system* 23, 444
Hands-free microphone 31
