charging MERCEDES-BENZ SL55AMG 2003 R230 Owner's Manual

ContentsPractical hints.................................. 249
What to do if … .................................. 250
Lamps in instrument cluster ......... 250
Messages in the display ............... 257
Where will I find ...?............................ 288
First aid kit ................................... 288
Vehicle tool kit ............................. 288
Locking/unlocking in an emergency.. 290
Unlocking the vehicle ................... 290
Locking the vehicle ...................... 292
Lowering the Easy Pack feature
manually ....................................... 292
Changing batteries ....................... 293
Replacing bulbs ................................. 295
Bulbs ............................................ 295
Replacing bulbs for front lamps.... 298
Replacing bulbs for rear lamps ..... 299
Replacing wiper blades ...................... 301
Removing ..................................... 301
Installing....................................... 301
Flat tire .............................................. 302
Preparing the vehicle.................... 302
Sealing tires with TIREFIT kit 1 ..... 302
Sealing tires with TIREFIT kit 2 ..... 308
Mounting the spare wheel ............ 312Batteries ............................................ 319
Disconnecting the batteries ......... 320
Removing the batteries ................ 321
Charging and reinstalling
batteries....................................... 321
Reconnecting the batteries .......... 321
Jump starting ..................................... 323
Towing the vehicle ............................. 325
Installing towing eye bolt ............. 327
Fuses ................................................. 329
Main fuse box............................... 329
Technical data................................. 331
Spare parts service ............................ 332
Warranty coverage............................. 333
Loss of Service and Warranty
Information Booklet ..................... 333
Identification labels ........................... 334
Layout of poly-V-belt drive ................. 335
SL 500 ......................................... 335
SL 55 AMG ................................... 335
Engine................................................ 336
Rims and tires.................................... 337
Same size tires ............................. 337
Mixed size tires ............................ 338Spare wheel ................................. 338
Electrical system ............................... 339
Main dimensions ............................... 340
Weights ............................................. 341
Fuels, coolants, lubricants, etc. ......... 342
Capacities .................................... 342
Engine oils ................................... 343
Engine oil additives ...................... 343
Air conditioner refrigerant............ 343
Brake fluid.................................... 343
Premium unleaded gasoline ......... 344
Fuel requirements ........................ 344
Gasoline additives ........................ 344
Coolants ...................................... 345
Windshield and headlamp washer
system ......................................... 347
Consumer information ....................... 348
Uniform tire quality grading ......... 348
Technical terms............................... 351Index................................................. 357

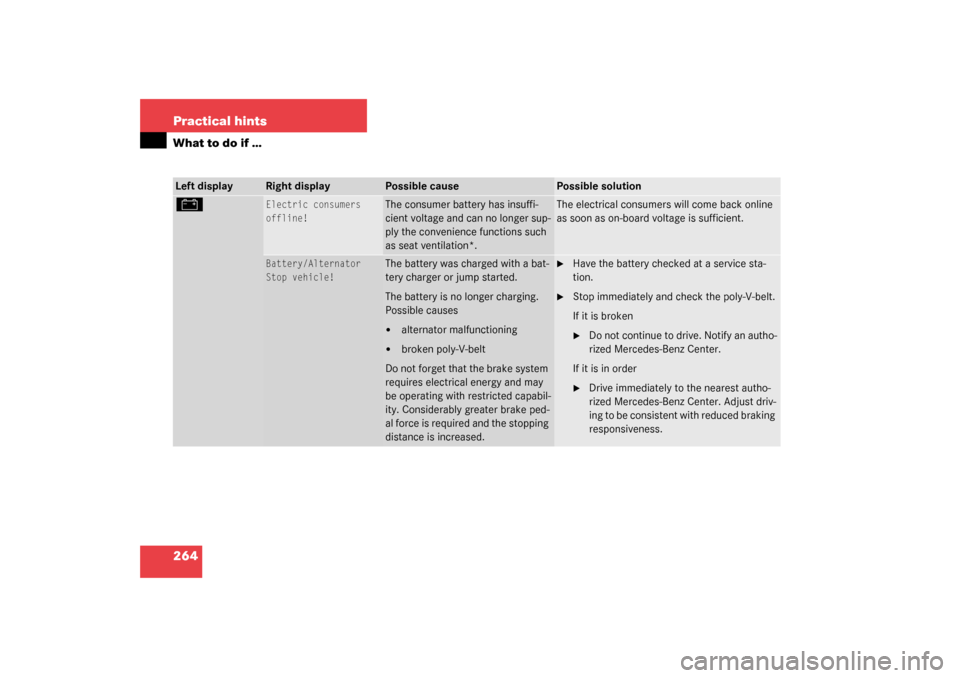

264 Practical hintsWhat to do if …Left display
Right display
Possible cause
Possible solution
#
Electric consumers
offline!
The consumer battery has insuffi-
cient voltage and can no longer sup-
ply the convenience functions such
as seat ventilation*.
The electrical consumers will come back online
as soon as on-board voltage is sufficient.
Battery/Alternator
Stop vehicle!
The battery was charged with a bat-
tery charger or jump started.
The battery is no longer charging.
Possible causes

alternator malfunctioning


broken poly-V-belt
Do not forget that the brake system
requires electrical energy and may
be operating with restricted capabil-
ity. Considerably greater brake ped-
al force is required and the stopping
distance is increased.

Have the battery checked at a service sta-
tion.

Stop immediately and check the poly-V-belt.
If it is broken
Do not continue to drive. Notify an autho-
rized Mercedes-Benz Center.
If it is in order

Drive immediately to the nearest autho-
rized Mercedes-Benz Center. Adjust driv-
ing to be consistent with reduced braking
responsiveness.

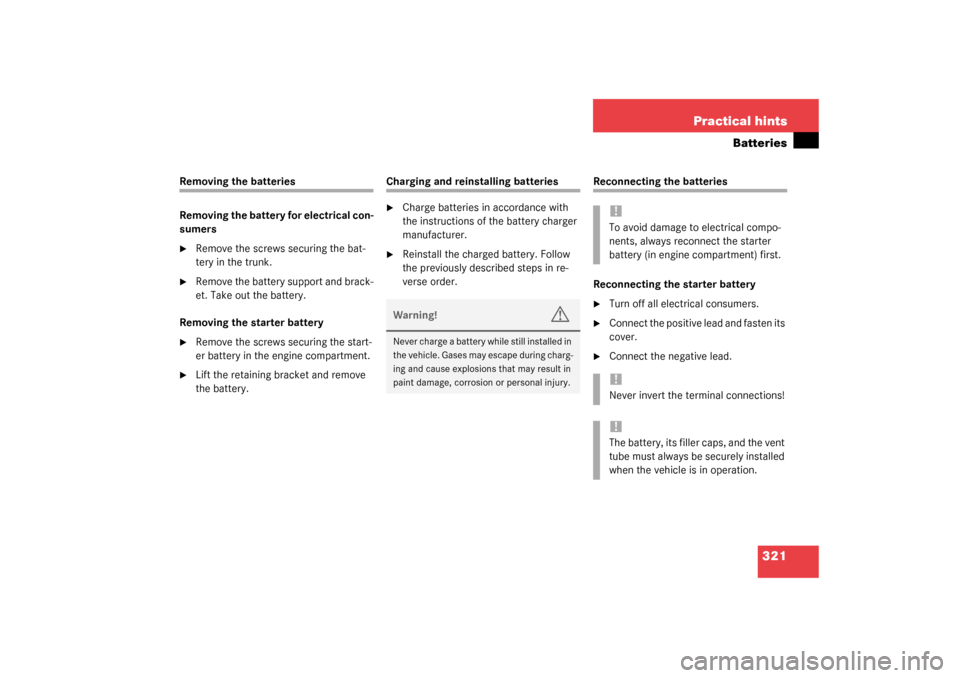

321 Practical hints
Batteries
Removing the batteries
Removing the battery for electrical con-
sumers
Remove the screws securing the bat-
tery in the trunk.

Remove the battery support and brack-
et. Take out the battery.
Removing the starter battery

Remove the screws securing the start-
er battery in the engine compartment.

Lift the retaining bracket and remove
the battery.
Charging and reinstalling batteries
Charge batteries in accordance with
the instructions of the battery charger
manufacturer.

Reinstall the charged battery. Follow
the previously described steps in re-
verse order.
Reconnecting the batteries
Reconnecting the starter battery
Turn off all electrical consumers.

Connect the positive lead and fasten its
cover.

Connect the negative lead.
Warning!
G
Never charge a battery while still installed in
the vehicle. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.
!To avoid damage to electrical compo-
nents, always reconnect the starter
battery (in engine compartment) first. !Never invert the terminal connections!!The battery, its filler caps, and the vent
tube must always be securely installed
when the vehicle is in operation.

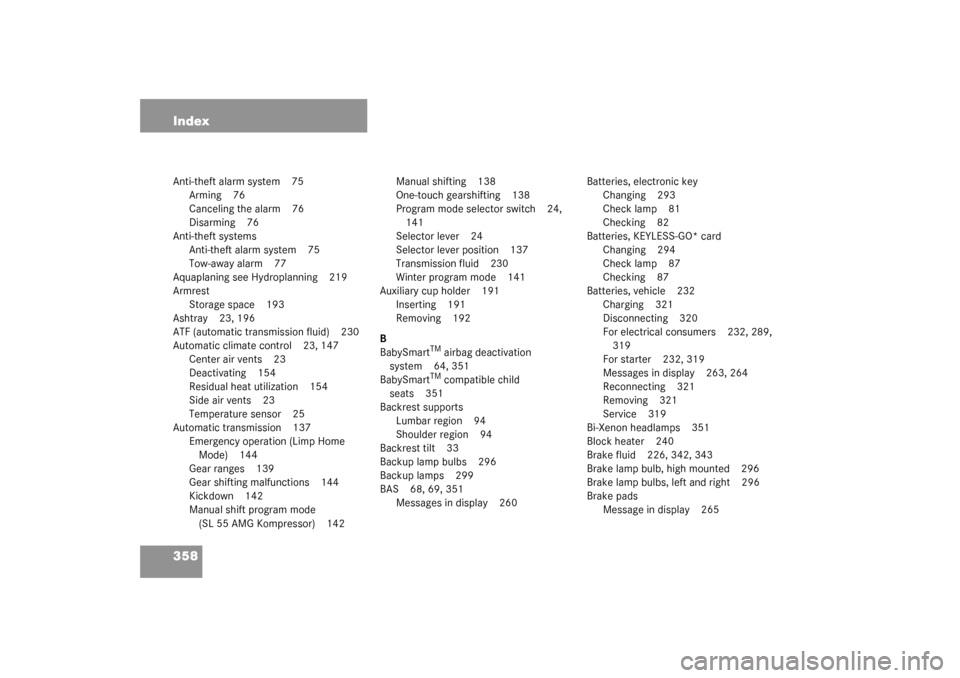

358 IndexAnti-theft alarm system 75
Arming 76
Canceling the alarm 76
Disarming 76
Anti-theft systems
Anti-theft alarm system 75
Tow-away alarm 77
Aquaplaning see Hydroplanning 219
Armrest
Storage space 193
Ashtray 23, 196
ATF (automatic transmission fluid) 230
Automatic climate control 23, 147
Center air vents 23
Deactivating 154
Residual heat utilization 154
Side air vents 23
Temperature sensor 25
Automatic transmission 137
Emergency operation (Limp Home
Mode) 144
Gear ranges 139
Gear shifting malfunctions 144
Kickdown 142
Manual shift program mode
(SL 55 AMG Kompressor) 142Manual shifting 138
One-touch gearshifting 138
Program mode selector switch 24,
141
Selector lever 24
Selector lever position 137
Transmission fluid 230
Winter program mode 141
Auxiliary cup holder 191
Inserting 191
Removing 192
B
BabySmart
TM airbag deactivation
system 64, 351
BabySmartTM compatible child
seats 351
Backrest supports
Lumbar region 94
Shoulder region 94
Backrest tilt 33
Backup lamp bulbs 296
Backup lamps 299
BAS 68, 69, 351
Messages in display 260Batteries, electronic key
Changing 293
Check lamp 81
Checking 82
Batteries, KEYLESS-GO* card
Changing 294
Check lamp 87
Checking 87
Batteries, vehicle 232
Charging 321
Disconnecting 320
For electrical consumers 232, 289,
319
For starter 232, 319
Messages in display 263, 264
Reconnecting 321
Removing 321
Service 319
Bi-Xenon headlamps 351
Block heater 240
Brake fluid 226, 342, 343
Brake lamp bulb, high mounted 296
Brake lamp bulbs, left and right 296
Brake pads
Message in display 265

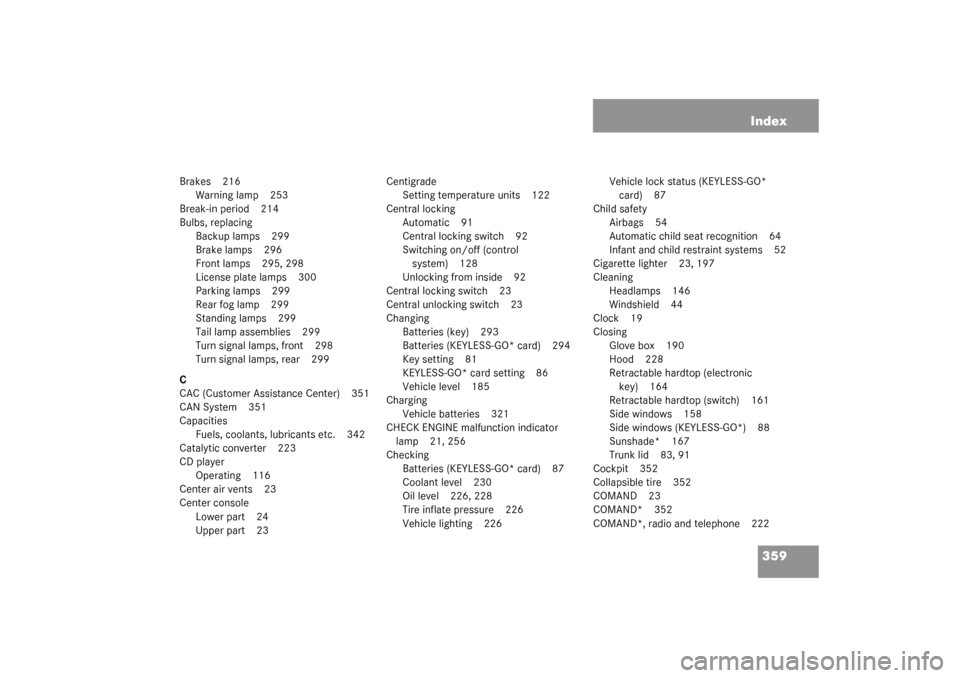

359 Index
Brakes 216
Warning lamp 253
Break-in period 214
Bulbs, replacing
Backup lamps 299
Brake lamps 296
Front lamps 295, 298
License plate lamps 300
Parking lamps 299
Rear fog lamp 299
Standing lamps 299
Tail lamp assemblies 299
Turn signal lamps, front 298
Turn signal lamps, rear 299
C
CAC (Customer Assistance Center) 351
CAN System 351
Capacities
Fuels, coolants, lubricants etc. 342
Catalytic converter 223
CD player
Operating 116
Center air vents 23
Center console
Lower part 24
Upper part 23Centigrade
Setting temperature units 122
Central locking
Automatic 91
Central locking switch 92
Switching on/off (control
system) 128
Unlocking from inside 92
Central locking switch 23
Central unlocking switch 23
Changing
Batteries (key) 293
Batteries (KEYLESS-GO* card) 294
Key setting 81
KEYLESS-GO* card setting 86
Vehicle level 185
Charging
Vehicle batteries 321
CHECK ENGINE malfunction indicator
lamp 21, 256
Checking
Batteries (KEYLESS-GO* card) 87
Coolant level 230
Oil level 226, 228
Tire inflate pressure 226
Vehicle lighting 226Vehicle lock status (KEYLESS-GO*
card) 87
Child safety
Airbags 54
Automatic child seat recognition 64
Infant and child restraint systems 52
Cigarette lighter 23, 197
Cleaning
Headlamps 146
Windshield 44
Clock 19
Closing
Glove box 190
Hood 228
Retractable hardtop (electronic
key) 164
Retractable hardtop (switch) 161
Side windows 158
Side windows (KEYLESS-GO*) 88
Sunshade* 167
Trunk lid 83, 91
Cockpit 352
Collapsible tire 352
COMAND 23
COMAND* 352
COMAND*, radio and telephone 222
