MERCEDES-BENZ SL55AMG 2007 R230 Owner's Manual

230 Controls in detailDriving systemsMinimum distance
If the system detects an obstacle in this
range, all the distance warning segments
illuminate and you hear a warning signal. If
the obstacle is closer than the minimum
distance, the actual distance may no long-
er be indicated by the system.Warning indicators
Visual signals indicate to the driver the rel-
ative distance between the sensors and an
obstacle.
The warning indicator for the front area is
located above the center air vents in the
dashboard. The warning indicator for the
rear area is integrated in the rear trim.
Front area warning indicator1Left side of the vehicle
2Right side of the vehicleEach warning indicator is divided into six
yellow and two red distance segments for
either side of the vehicle. The Parktronic
system is ready when the border around
the indicator is illuminated.
The position of the gear selector lever de-
termines which warning indicators will be
activated.
Center
approx. 8 in (20 cm)
Corners
approx. 6 in (15 cm)
Gear selector
lever position
Warning indicator
D
Front area activated
R or N
Front and rear area
activated
P
Neither activated

231 Controls in detail
Driving systems
As your vehicle approaches an object, one
or more distance segments will illuminate,
depending on the distance. When the
eighth distance segment illuminates, you
have reached the minimum distance.

Front area: An intermittent acoustic
warning will sound as the first red dis-
tance segment illuminates and a con-
stant acoustic warning lasting a
maximum of 2 seconds will sound for
the second distance segment. The sig-
nal is canceled when the gear selector
lever is placed in position P or the park-
ing brake is set.


Rear area: An intermittent acoustic
warning will sound when the first dis-
tance segment illuminates. This signal
quickens with each additional distance
segment lit. When the eighth distance
segment illuminates, the acoustic
warning becomes a constant signal.
The signal is canceled when the gear
selector lever is placed in positionD
orP or the parking brake is set.Switching the Parktronic system
on/off
You can switch off the Parktronic system
manually.
The Parktronic switch is located in the low-
er part of the center console (
page 32).
1Parktronic switch
2Indicator lamp
Switching off

Press Parktronic switch1.
Indicator lamp2 comes on.Switching on

Press Parktronic switch1 once more.
Indicator lamp2 goes out.
Parktronic system malfunction
If only the red distance segments illumi-
nate and an acoustic warning sounds,
there is a malfunction in the Parktronic
system. The Parktronic system will auto-
matically switch off after 20 seconds and
the indicator lamp in the Parktronic switch
comes on.

Have the Parktronic system checked
by an authorized Mercedes-Benz
Center as soon as possible.
i
The Parktronic system switches on automat-
ically when you switch on the ignition
(
page 39).

232 Controls in detailDriving systemsIf only the red distance segments illumi-
nate and no acoustic warning sounds, the
Parktronic system sensors are dirty or
there is an interference from other radio or
ultrasonic signals. The Parktronic system
will automatically switch off after
20 seconds and the indicator lamp in the
Parktronic switch comes on.
Switch off the ignition (
page 39).

Clean the Parktronic system sensors
(page 326).

Switch on the ignition (
page 39).
or

Check the Parktronic system operation
at another location to rule out interfer-
ence from outside radio or ultrasonic
signals.

233 Controls in detail
Useful features
Useful features
Storage compartments Glove box
1Glove box lid release
2Glove box lid
Opening glove box

Press glove box lid release1.
Glove box lid 2 opens downward.
Closing glove box

Push glove box lid 2 up to close.Door storage compartments
1Release button
2Storage compartment lid
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when storing objects in the vehicle. Put lug-
gage or cargo in the trunk if possible. Do not
pile luggage or cargo higher than the seat
backs. Do not place anything on shelf be-
hind roll bar.
Parcel nets cannot secure hard or heavy ob-
jects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.
Warning!
G
Keep the door storage compartments
closed while vehicle is in motion. Failure to
do so may cause the seat belt to catch at the
rear and prevent proper positioning of the
seat belt.

234 Controls in detailUseful featuresOpening
Press release button 1.
Storage compartment lid 2 lid opens
upwards.
Armrest storage compartments
The release buttons are located under the
cushion of the armrest.
1Storage tray release
2Storage compartment releaseOpening storage tray

Press button1 and lift the armrest.
Opening storage compartment

Press button2 and lift the armrest.Seat storage compartments
Storage compartments are located in the
seat base of each seat and are intended for
storing small, light weight items.
Passenger seat storage compartment1Handle
2Storage compartment lid
Pull handle 1 up.

Fold lid 2 down.
i
The Roadside Assistance button•
(
page 247) and the Information button¡
(page 248) are located in the storage tray.
i
The driver’s seat storage compartment con-
tains the first-aid kit, (
page 388).

235 Controls in detail
Useful features
Rear storage compartments
The CD changer is located in the driver’s
side storage compartment.
For instructions on the CD changer, see
separate COMAND Operator’s Manual.Driver’s side rear storage compartment1Release button
2Storage compartment lid
Press release button 1.
Storage compartment lid 2 lid opens
upwards.Locking storage compartments
The storage compartments are centrally
locked when you lock the vehicle from the
outside.
You can also lock the storage compart-
ments separately, see “Locking the stor-
age compartments separately”
(
page 235).Locking the storage compartments
separately
You can lock the storage compartments
separately, e.g. when the vehicle is in the
shop for service.
1Separately unlocking storage compart-
ments
2Separately locking storage compart-
ments

Remove the mechanical key from the
SmartKey (
page 391).


236 Controls in detailUseful features
Insert the mechanical key into the
glove box lock.

Turn the mechanical key to
position2.
The following storage compartments
will be locked. They remain locked,
even when the vehicle is unlocked with
the SmartKey or with the SmartKey
with KEYLESS-GO*:

Glove box


Armrest storage compartments


Rear storage compartmentsUnlocking the storage compartments
separately

Insert the mechanical key into the
glove box lock.

Turn the mechanical key to
position1.
You can now open the storage com-
partments.Parcel net in passenger footwell
A small convenience parcel net is located
in the passenger footwell. It is for small
and light items, such as road maps, mail,
etc.
i
The separate locking status of these storage
compartments can only be canceled with the
mechanical key.
The storage compartments in the doors cannot
be locked.
i
If the glove box cannot be unlocked using
the SmartKey or SmartKey with KEYLESS-GO*,
see “Unlocking the glove box” (
page 392).
Warning!
G
The parcel net is intended for storing
light-weight items only.
Heavy objects, objects with sharp edges or
fragile objects may not be transported in the
parcel net. In an accident, during hard brak-
ing, or sudden maneuvers, they could be
thrown around inside the vehicle and cause
injury to vehicle occupants.
The parcel net cannot protect transported
goods in the event of an accident.


237 Controls in detail
Useful features
Parcel nets in trunk
There are three nets available in the trunk
to secure loads:

a pocket net on each side of the right
and left trunk side walls


a trunk floor net

Pull the trunk floor net from the trunk
back wall towards the front over the
luggage.

Hang the hooks of the net on the eyes

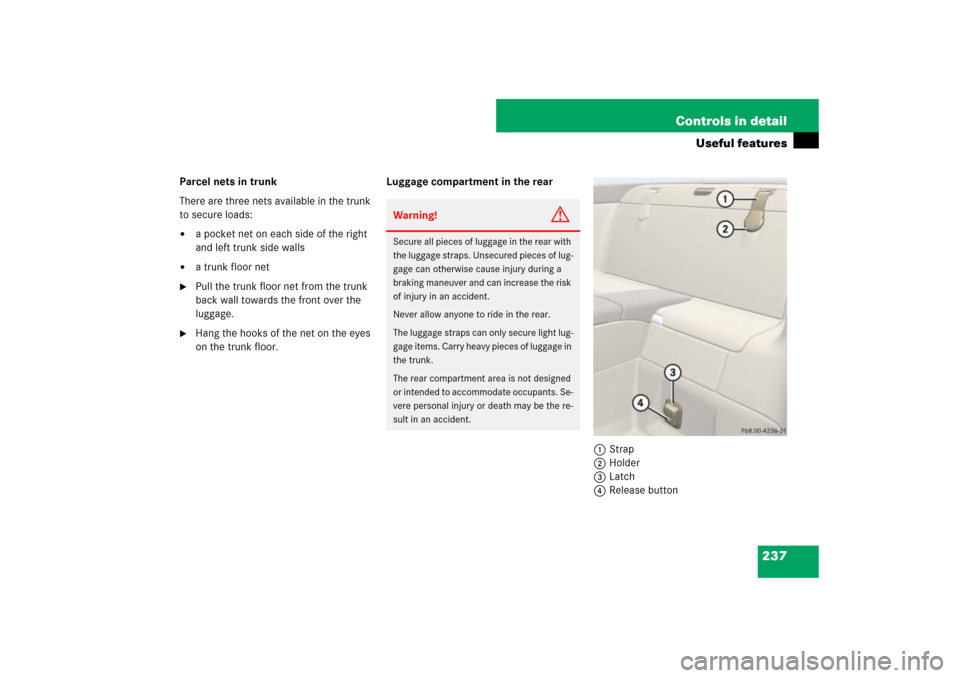

on the trunk floor.Luggage compartment in the rear
1Strap
2Holder
3Latch
4Release button
Warning!
G
Secure all pieces of luggage in the rear with
the luggage straps. Unsecured pieces of lug-
gage can otherwise cause injury during a
braking maneuver and can increase the risk
of injury in an accident.
Never allow anyone to ride in the rear.
The luggage straps can only secure light lug-
gage items. Carry heavy pieces of luggage in
the trunk.
The rear compartment area is not designed
or intended to accommodate occupants. Se-
vere personal injury or death may be the re-
sult in an accident.

238 Controls in detailUseful features
Pull strap1 out of holder2.

Secure the luggage with the strap so
that it cannot move.

Insert strap1 into latch3.
Releasing strap

Press release button4 and guide
strap1 back to holder2.

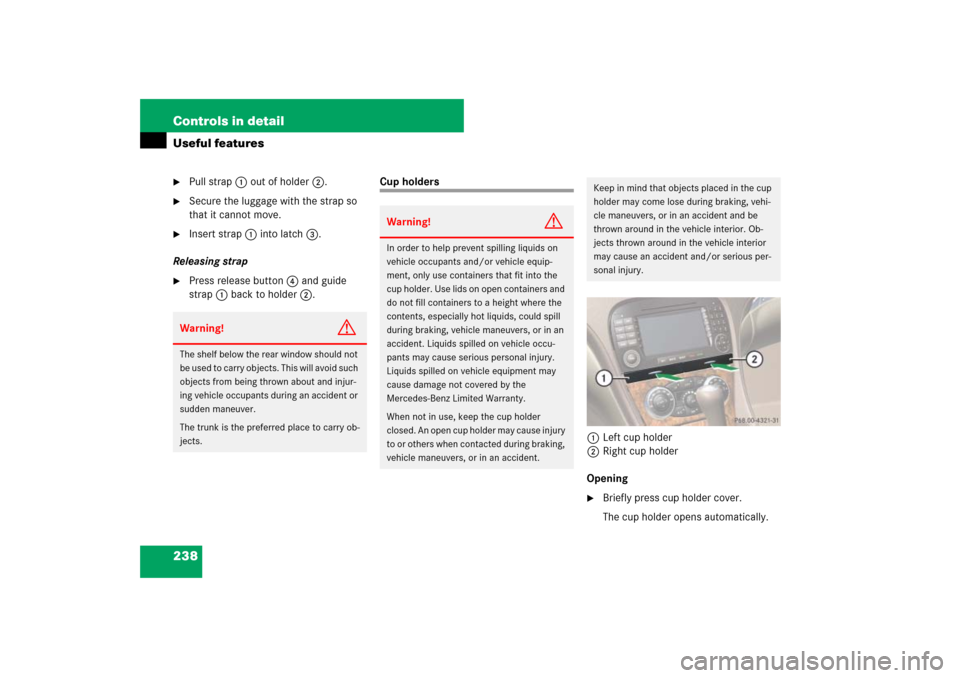

Cup holders
1Left cup holder
2Right cup holder
Opening

Briefly press cup holder cover.
The cup holder opens automatically.
Warning!
G
The shelf below the rear window should not
be used to carry objects. This will avoid such
objects from being thrown about and injur-
ing vehicle occupants during an accident or
sudden maneuver.
The trunk is the preferred place to carry ob-
jects.
Warning!
G
In order to help prevent spilling liquids on
vehicle occupants and/or vehicle equip-
ment, only use containers that fit into the
cup holder. Use lids on open containers and
do not fill containers to a height where the
contents, especially hot liquids, could spill
during braking, vehicle maneuvers, or in an
accident. Liquids spilled on vehicle occu-
pants may cause serious personal injury.
Liquids spilled on vehicle equipment may
cause damage not covered by the
Mercedes-Benz Limited Warranty.
When not in use, keep the cup holder
closed. An open cup holder may cause injury
to or others when contacted during braking,
vehicle maneuvers, or in an accident.
Keep in mind that objects placed in the cup
holder may come lose during braking, vehi-
cle maneuvers, or in an accident and be
thrown around in the vehicle interior. Ob-
jects thrown around in the vehicle interior
may cause an accident and/or serious per-
sonal injury.

239 Controls in detail
Useful features

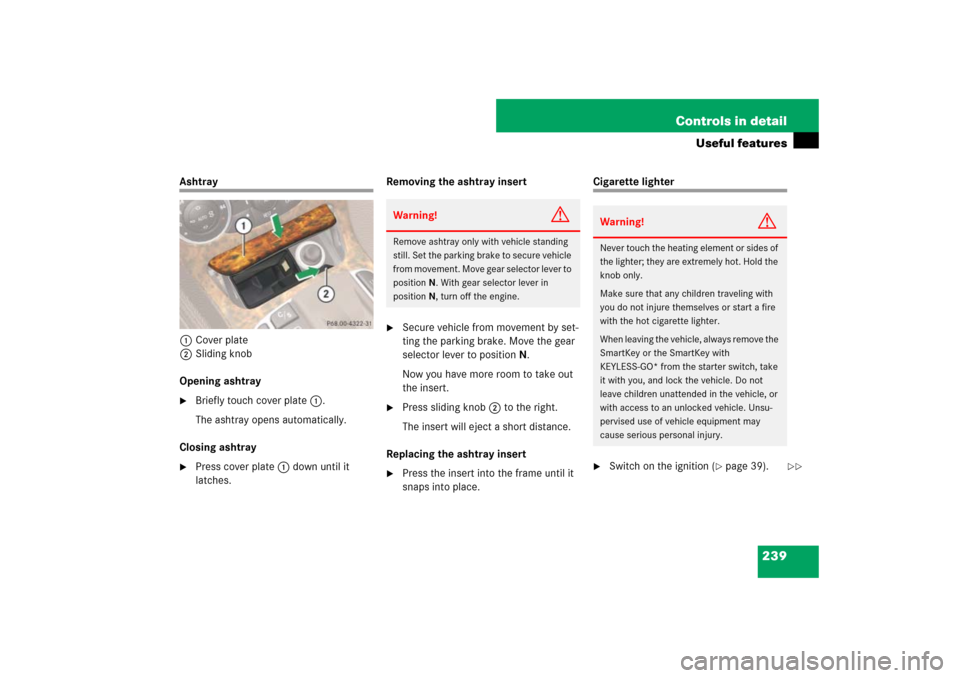

Ashtray
1Cover plate
2Sliding knob
Opening ashtray
Briefly touch cover plate1.
The ashtray opens automatically.
Closing ashtray

Press cover plate1 down until it
latches.Removing the ashtray insert

Secure vehicle from movement by set-
ting the parking brake. Move the gear
selector lever to positionN.
Now you have more room to take out
the insert.

Press sliding knob2 to the right.
The insert will eject a short distance.
Replacing the ashtray insert

Press the insert into the frame until it
snaps into place.
Cigarette lighter
Switch on the ignition (
page 39).
Warning!
G
Remove ashtray only with vehicle standing
still. Set the parking brake to secure vehicle
from movement. Move gear selector lever to
positionN. With gear selector lever in
positionN, turn off the engine.
Warning!
G
Never touch the heating element or sides of
the lighter; they are extremely hot. Hold the
knob only.
Make sure that any children traveling with
you do not injure themselves or start a fire
with the hot cigarette lighter.
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause serious personal injury.
