400 Practical hintsReplacing bulbs4High beam bulbs
5Locking mechanism
6Parking and standing lampsFront turn signal bulb

Turn bulb socket 1 counterclockwise
and pull it out.

Push the bulb into socket 1, turn
socket 1 counterclockwise and re-
move it.

Insert the new bulb in socket 1, push
and turn bulb socket 1 clockwise.

Reinsert bulb socket 1 in lamp and
turn bulb socket 1 clockwise.High beam/ high beam flasher bulbs

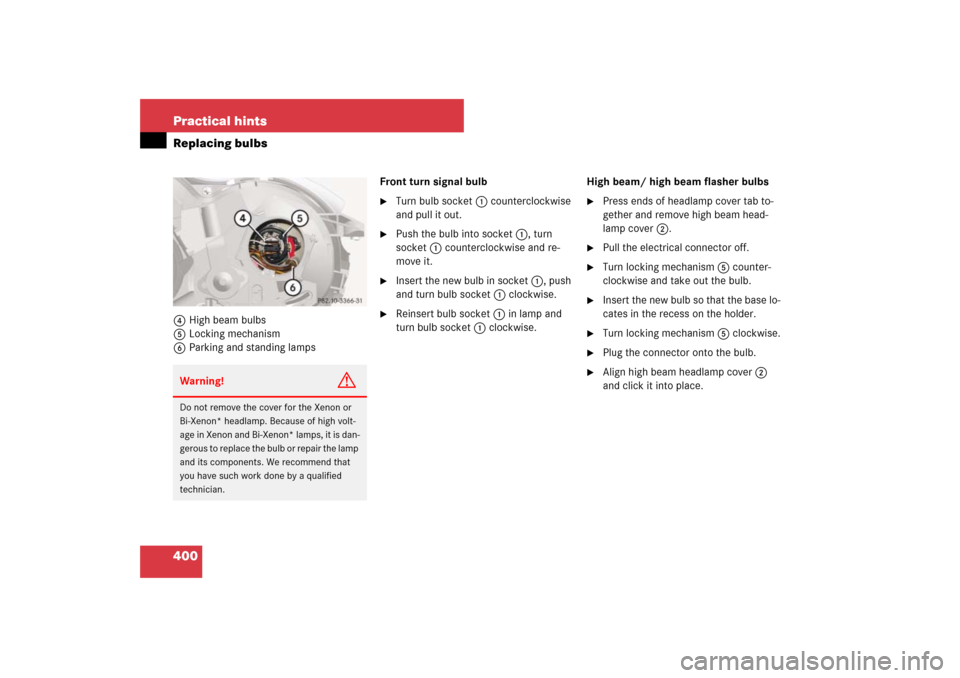

Press ends of headlamp cover tab to-
gether and remove high beam head-
lamp cover 2.

Pull the electrical connector off.

Turn locking mechanism 5 counter-
clockwise and take out the bulb.

Insert the new bulb so that the base lo-
cates in the recess on the holder.

Turn locking mechanism 5 clockwise.

Plug the connector onto the bulb.

Align high beam headlamp cover 2
and click it into place.
Warning!
G
Do not remove the cover for the Xenon or
Bi-Xenon* headlamp. Because of high volt-
age in Xenon and Bi-Xenon* lamps, it is dan-
gerous to replace the bulb or repair the lamp
and its components. We recommend that
you have such work done by a qualified
technician.

401 Practical hints
Replacing bulbs
Parking and standing lamp bulbs
Press ends of cover tab together and
remove high beam headlamp cover 2.

Pull out bulb socket 6 with the bulb.

Pull the bulb out of bulb socket 6.

Insert a new bulb in bulb socket 6.

Reinstall bulb socket 6.

Align high beam headlamp cover 2
and click it into place.Additional turn signal lamp bulbs
The additional turn signal lamps in the
exterior rear view mirrors have LEDs.
If a malfunction occurs or LEDs fail to func-
tion, the entire turn signal unit must be re-
placed. Have the turn signal unit replaced
by an authorized Mercedes-Benz Center.Front side marker lamp bulbs
Since replacing the side marker lamp bulbs
is a technically highly demanding process,
we recommend you have the side marker
lamp bulbs replaced by an authorized
Mercedes-Benz Center.

402 Practical hintsReplacing bulbsReplacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to posi-
tion M (
page 128).

Open the trunk (
page 111).

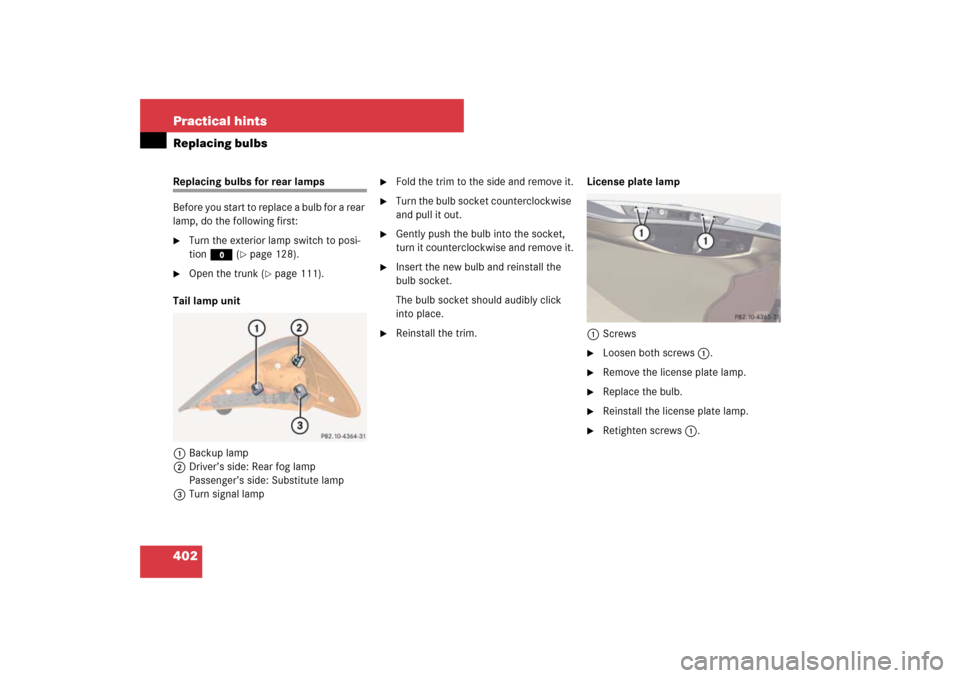

Tail lamp unit
1Backup lamp
2Driver’s side: Rear fog lamp
Passenger’s side: Substitute lamp
3Turn signal lamp

Fold the trim to the side and remove it.

Turn the bulb socket counterclockwise
and pull it out.

Gently push the bulb into the socket,
turn it counterclockwise and remove it.

Insert the new bulb and reinstall the
bulb socket.
The bulb socket should audibly click
into place.

Reinstall the trim.License plate lamp
1Screws

Loosen both screws 1.

Remove the license plate lamp.

Replace the bulb.

Reinstall the license plate lamp.

Retighten screws 1.

403 Practical hints
Replacing wiper blades
Replacing wiper blades

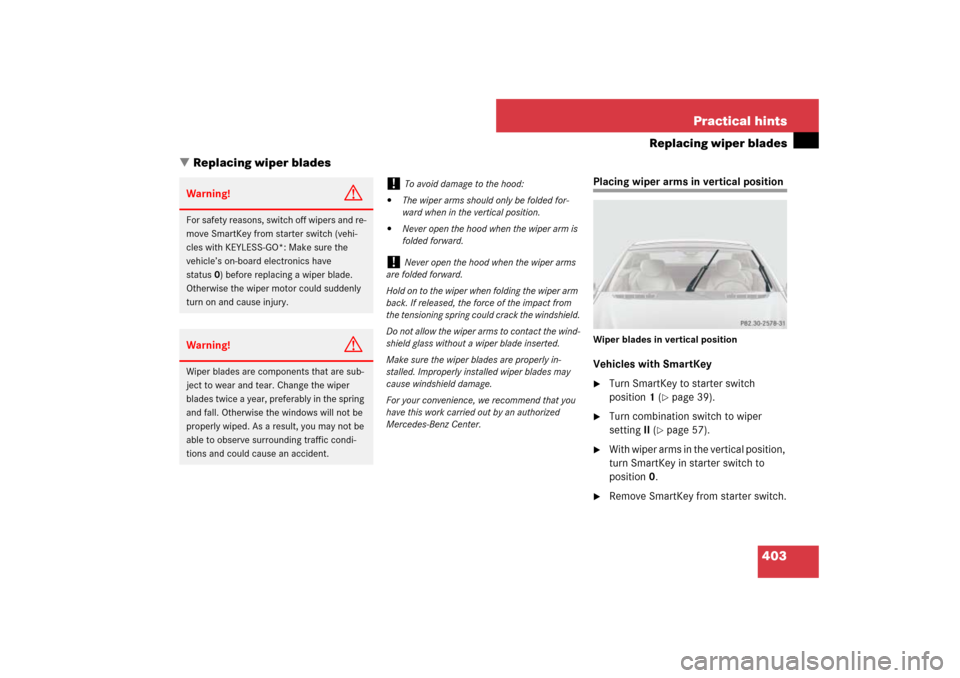

Placing wiper arms in vertical positionWiper blades in vertical positionVehicles with SmartKey
Turn SmartKey to starter switch
position1 (
page 39).

Turn combination switch to wiper
settingII (
page 57).

With wiper arms in the vertical position,
turn SmartKey in starter switch to
position0.

Remove SmartKey from starter switch.
Warning!
G
For safety reasons, switch off wipers and re-
move SmartKey from starter switch (vehi-
cles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status0) before replacing a wiper blade.
Otherwise the wiper motor could suddenly
turn on and cause injury. Warning!
G
Wiper blades are components that are sub-
ject to wear and tear. Change the wiper
blades twice a year, preferably in the spring
and fall. Otherwise the windows will not be
properly wiped. As a result, you may not be
able to observe surrounding traffic condi-
tions and could cause an accident.
!
To avoid damage to the hood:


The wiper arms should only be folded for-
ward when in the vertical position.


Never open the hood when the wiper arm is
folded forward.
!
Never open the hood when the wiper arms
are folded forward.
Hold on to the wiper when folding the wiper arm
back. If released, the force of the impact from
the tensioning spring could crack the windshield.
Do not allow the wiper arms to contact the wind-
shield glass without a wiper blade inserted.
Make sure the wiper blades are properly in-
stalled. Improperly installed wiper blades may
cause windshield damage.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Center.

404 Practical hintsReplacing wiper bladesVehicles with KEYLESS-GO*
Turn off the engine (
page 62).
With the driver’s door closed, the start-
er switch is now in position1.

Turn combination switch to wiper
settingII (
page 57).

With wiper arms in the vertical position,
open the driver’s door.
The starter switch is set to position0,
same as SmartKey removed from start-
er switch.

Turn combination switch to wiper
setting0 (
page 57).

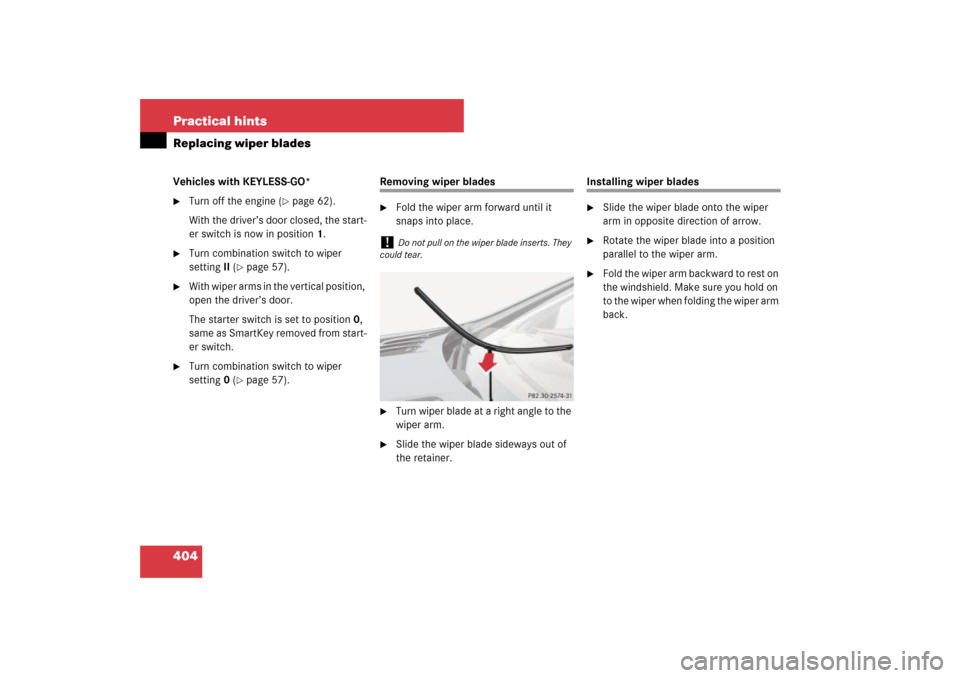

Removing wiper blades
Fold the wiper arm forward until it
snaps into place.

Turn wiper blade at a right angle to the
wiper arm.

Slide the wiper blade sideways out of
the retainer.
Installing wiper blades
Slide the wiper blade onto the wiper
arm in opposite direction of arrow.

Rotate the wiper blade into a position
parallel to the wiper arm.

Fold the wiper arm backward to rest on
the windshield. Make sure you hold on
to the wiper when folding the wiper arm
back.
!
Do not pull on the wiper blade inserts. They
could tear.

405 Practical hints
Flat tire
Flat tire
Preparing the vehicle
Park the vehicle in a safe distance from
moving traffic on a hard, flat surface
when possible.

Turn on the hazard warning flashers.

Turn the steering wheel so that the
front wheels are in a straight ahead po-
sition.

Set the parking brake.

Move the gear selector lever to P.
Vehicles with SmartKey:

Turn off the engine (
page 62).

Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Turn off the engine by pressing the
KEYLESS-GO* button on the gear
selector lever once (
page 62).

Open the driver’s door (this puts
the starter switch in position 0,
same as with the SmartKey re-
moved from the starter switch). The
driver’s door then can be closed
again.

Have any passenger exit the vehicle at
a safe distance from the roadway.

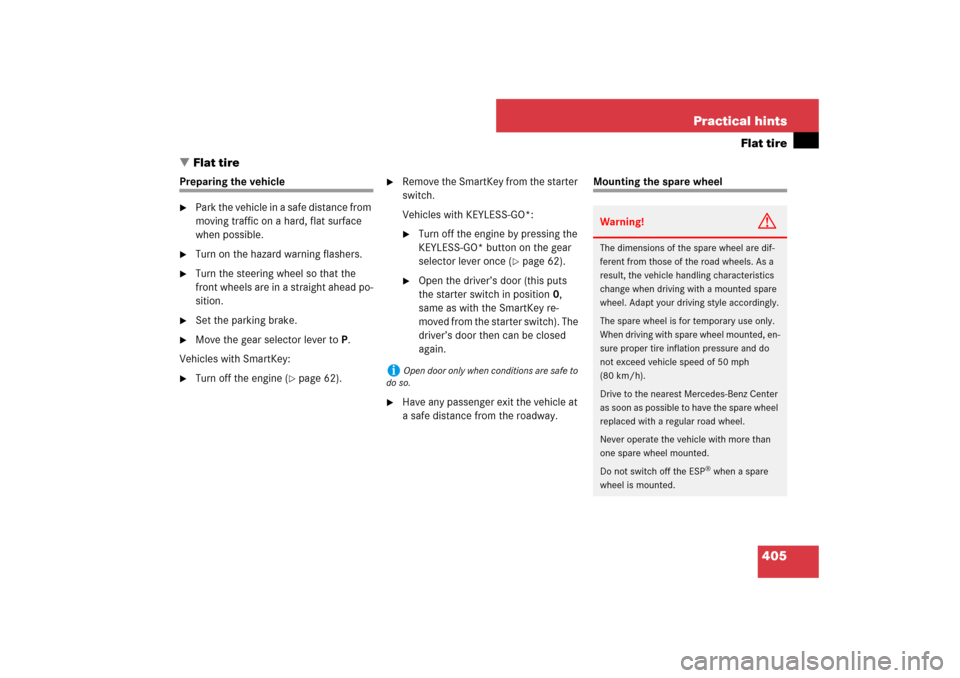

Mounting the spare wheel
i
Open door only when conditions are safe to
do so.
Warning!
G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a mounted spare
wheel. Adapt your driving style accordingly.
The spare wheel is for temporary use only.
When driving with spare wheel mounted, en-
sure proper tire inflation pressure and do
not exceed vehicle speed of 50 mph
(80 km/h).
Drive to the nearest Mercedes-Benz Center
as soon as possible to have the spare wheel
replaced with a regular road wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Do not switch off the ESP
® when a spare
wheel is mounted.

406 Practical hintsFlat tirePreparing the vehicle
Prepare the vehicle as described
(page 405).

Turn spare wheel bracket counter-
clockwise to loosen.

Take the spare wheel out of the trunk
(page 389).
Removing tensioning straps
(vehicles with 19" spare wheel only)

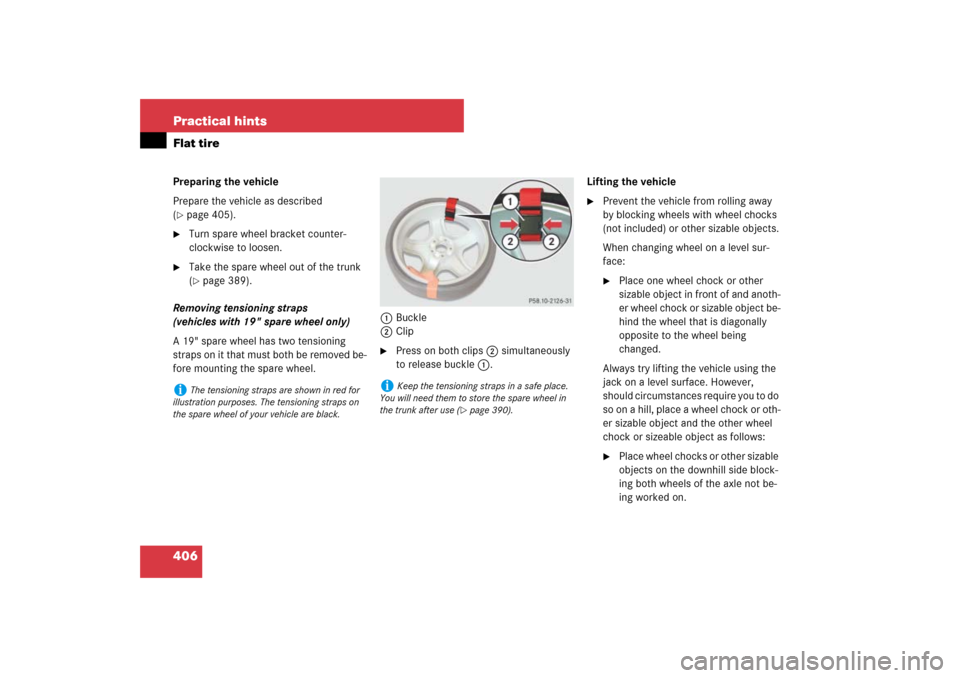

A 19" spare wheel has two tensioning
straps on it that must both be removed be-
fore mounting the spare wheel.1Buckle
2Clip

Press on both clips 2 simultaneously
to release buckle 1.Lifting the vehicle

Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
(not included) or other sizable objects.
When changing wheel on a level sur-
face:
Place one wheel chock or other
sizable object in front of and anoth-
er wheel chock or sizable object be-
hind the wheel that is diagonally
opposite to the wheel being
changed.
Always try lifting the vehicle using the
jack on a level surface. However,
should circumstances require you to do
so on a hill, place a wheel chock or oth-
er sizable object and the other wheel
chock or sizeable object as follows:

Place wheel chocks or other sizable
objects on the downhill side block-
ing both wheels of the axle not be-
ing worked on.
i
The tensioning straps are shown in red for
illustration purposes. The tensioning straps on
the spare wheel of your vehicle are black.
i
Keep the tensioning straps in a safe place.
You will need them to store the spare wheel in
the trunk after use (
page 390).

407 Practical hints
Flat tire

Take the vehicle tool kit and the jack
out of the storage compartment under
the trunk floor (
page 388).

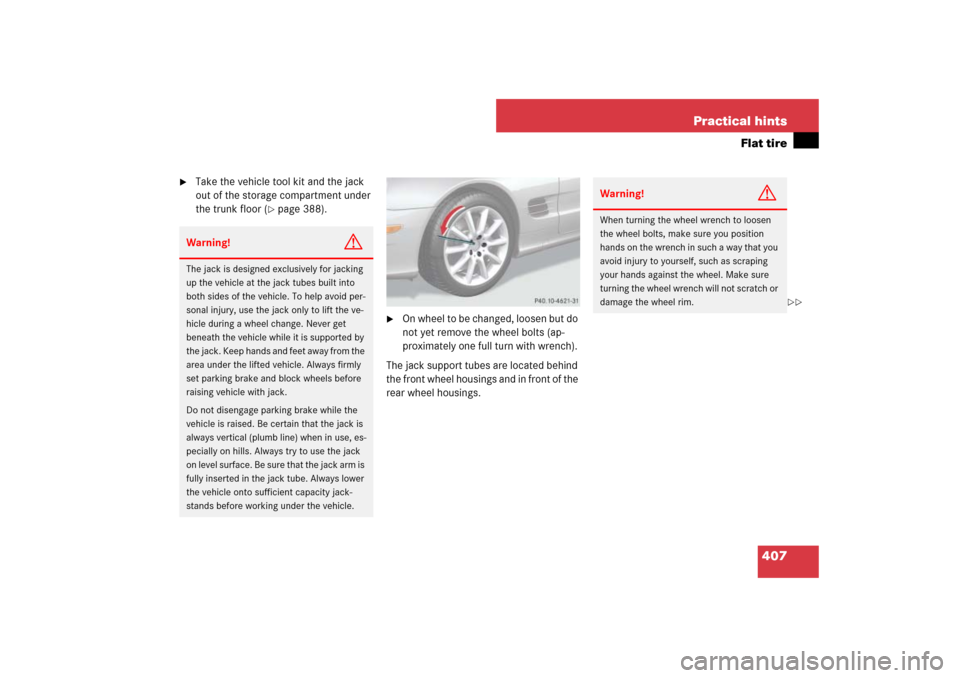

On wheel to be changed, loosen but do
not yet remove the wheel bolts (ap-
proximately one full turn with wrench).
The jack support tubes are located behind
the front wheel housings and in front of the
rear wheel housings.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack tubes built into
both sides of the vehicle. To help avoid per-
sonal injury, use the jack only to lift the ve-
hicle during a wheel change. Never get
beneath the vehicle while it is supported by
the jack. Keep hands and feet away from the
area under the lifted vehicle. Always firmly
set parking brake and block wheels before
raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Be sure that the jack arm is
fully inserted in the jack tube. Always lower
the vehicle onto sufficient capacity jack-
stands before working under the vehicle.
Warning!
G
When turning the wheel wrench to loosen
the wheel bolts, make sure you position
hands on the wrench in such a way that you
avoid injury to yourself, such as scraping
your hands against the wheel. Make sure
turning the wheel wrench will not scratch or
damage the wheel rim.


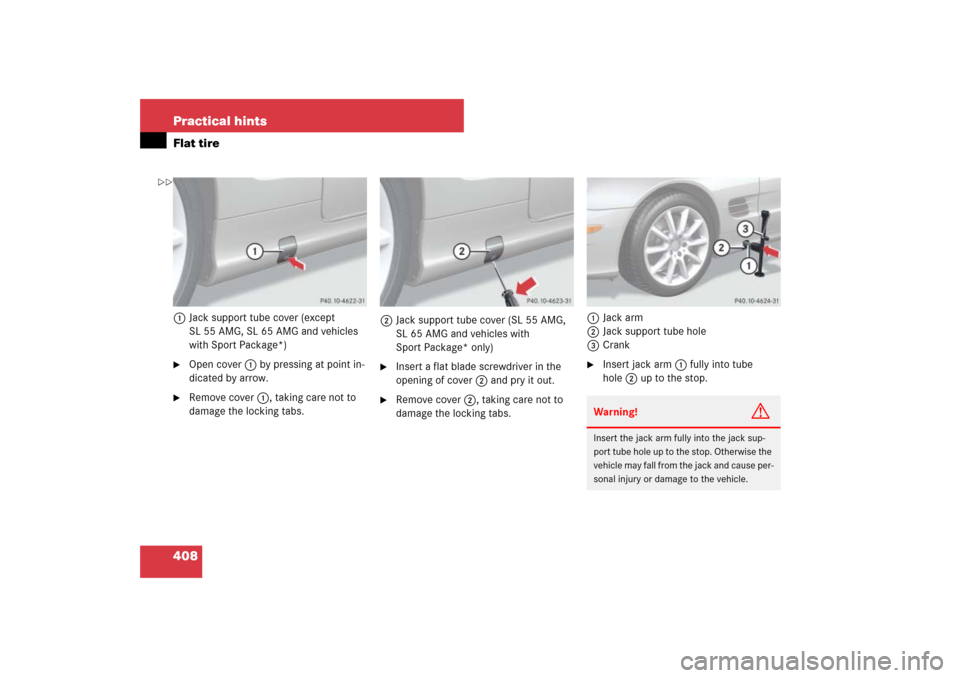

408 Practical hintsFlat tire1Jack support tube cover (except
SL 55 AMG, SL 65 AMG and vehicles
with Sport Package*)
Open cover1 by pressing at point in-
dicated by arrow.

Remove cover1, taking care not to
damage the locking tabs.2Jack support tube cover (SL 55 AMG,
SL 65 AMG and vehicles with
Sport Package* only)

Insert a flat blade screwdriver in the
opening of cover2 and pry it out.

Remove cover2, taking care not to
damage the locking tabs.1Jack arm
2Jack support tube hole
3Crank

Insert jack arm1 fully into tube
hole2 up to the stop.Warning!
G
Insert the jack arm fully into the jack sup-
port tube hole up to the stop. Otherwise the
vehicle may fall from the jack and cause per-
sonal injury or damage to the vehicle.


409 Practical hints
Flat tire

Keeping jack in this position, turn
crank3 clockwise until the jack base
meets the ground. Make sure the jack
is vertical (plumb line).

Continue to turn the crank until the tire
is a maximum of 1.2 in (3 cm) from the

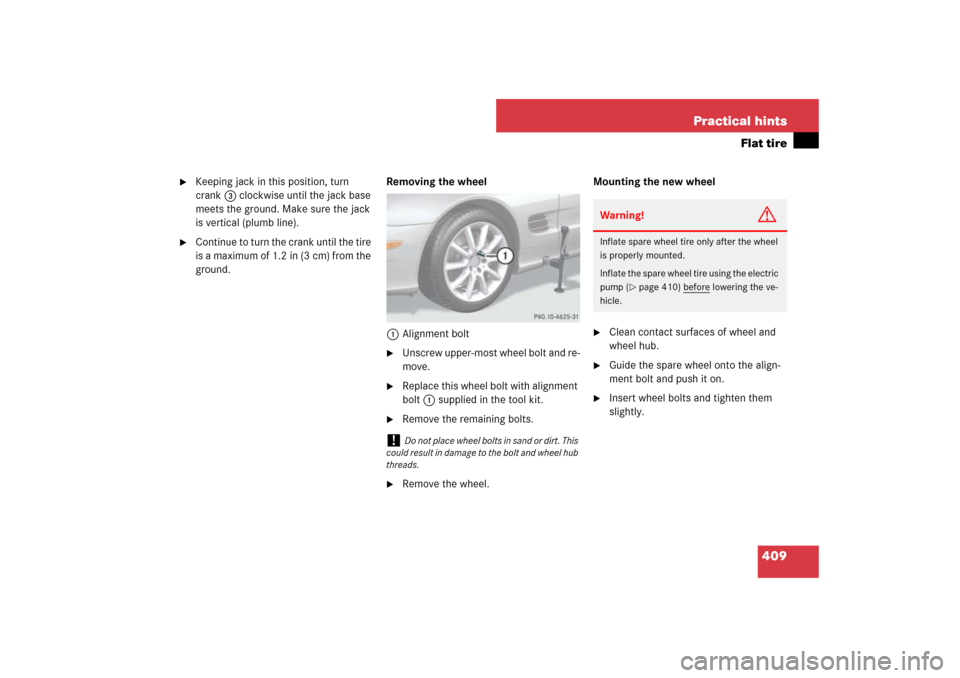

ground.Removing the wheel
1Alignment bolt

Unscrew upper-most wheel bolt and re-
move.

Replace this wheel bolt with alignment
bolt1 supplied in the tool kit.

Remove the remaining bolts.

Remove the wheel.Mounting the new wheel

Clean contact surfaces of wheel and
wheel hub.

Guide the spare wheel onto the align-
ment bolt and push it on.

Insert wheel bolts and tighten them
slightly.
!
Do not place wheel bolts in sand or dirt. This
could result in damage to the bolt and wheel hub
threads.
Warning!
G
Inflate spare wheel tire only after the wheel
is properly mounted.
Inflate the spare wheel tire using the electric
pump (
page 410) before
lowering the ve-
hicle.
