door lock MERCEDES-BENZ SL600 2005 R230 Owner's Manual

Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside the
USA or Canada............................... 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18
Vehicle data recording......................... 19
Information regarding electronic
recording devices........................... 19
At a glance.......................................... 21
Cockpit ................................................. 22
Instrument cluster ................................ 24
Multifunction steering wheel ................ 28
Center console ..................................... 29
Upper part ...................................... 29
Lower part ...................................... 30
Overhead control panel ........................ 31
Door control panel................................ 32
Getting started................................... 33
Unlocking ............................................. 34
Unlocking with the SmartKey ......... 34
Unlocking with KEYLESS-GO*......... 35
Starter switch positions .................. 36
Adjusting .............................................. 39
Seats .............................................. 39
Steering wheel ................................ 42
Mirrors ............................................ 43
Driving .................................................. 45
Fastening the seat belts ................. 45
Starting the engine ......................... 48
Switching on headlamps ................. 51
Turn signals .................................... 52
Windshield wipers ........................... 53
Problems while driving.................... 55
Parking and locking .............................. 56
Parking brake ................................. 57
Switching off headlamps................. 57
Turning off the engine ..................... 58
Emergency engine shut-down ......... 60

ContentsSafety and Security........................... 61
Occupant safety................................... 62
Airbags ........................................... 63
Seat belts ....................................... 69
Roll bar ........................................... 73
Children in the vehicle .................... 74
Panic alarm .......................................... 78
Activating ....................................... 78
Deactivating ................................... 78
Driving safety systems ......................... 79
ABS ................................................ 80
BAS ................................................ 81
ESP ................................................. 82
SBC brake system .......................... 85
Anti-theft systems................................ 88
Immobilizer..................................... 88
Anti-theft alarm system .................. 88
Tow-away alarm ............................. 90
Controls in detail............................... 93
Locking and unlocking ......................... 94
SmartKey ....................................... 94
SmartKey with KEYLESS-GO* ........ 98
Opening the doors from the inside 106
Opening the trunk ........................ 107
Closing the trunk.......................... 109
Trunk lid emergency release ........ 109
Automatic central locking ............ 110
Locking and unlocking from the
inside ........................................... 111
Seats ................................................. 113
Easy-entry / exit feature ............... 113
Moving the seats forward and
backward ..................................... 115
Lumbar support............................ 115
Multicontour backrest*
(standard on SL 600, SL 55 AMG,
and SL 65 AMG) ........................... 116
Seat heating ................................. 117
Seat ventilation*
(standard on SL 600 and
SL 65 AMG) .................................. 119Memory function ............................... 120
Storing positions into memory ..... 121
Recalling positions from memory . 121
Storing exterior rear view mirror
parking position ........................... 121
Lighting ............................................ 123
Exterior lamp switch .................... 123
Combination switch ..................... 128
Hazard warning flasher ................ 128
Interior lighting ............................ 129
Courtesy lighting .......................... 130
Instrument cluster ............................. 131
Instrument cluster illumination .... 131
Coolant temperature gauge ......... 131
Trip odometer .............................. 132
Tachometer .................................. 132
Outside temperature indicator ..... 133
Control system .................................. 134
Multifunction display.................... 134
Multifunction steering wheel........ 135
Menus .......................................... 137
Standard display menu ................ 139
AUDIO menu ................................ 139
NAV menu .................................... 142
Distronic* menu .......................... 142

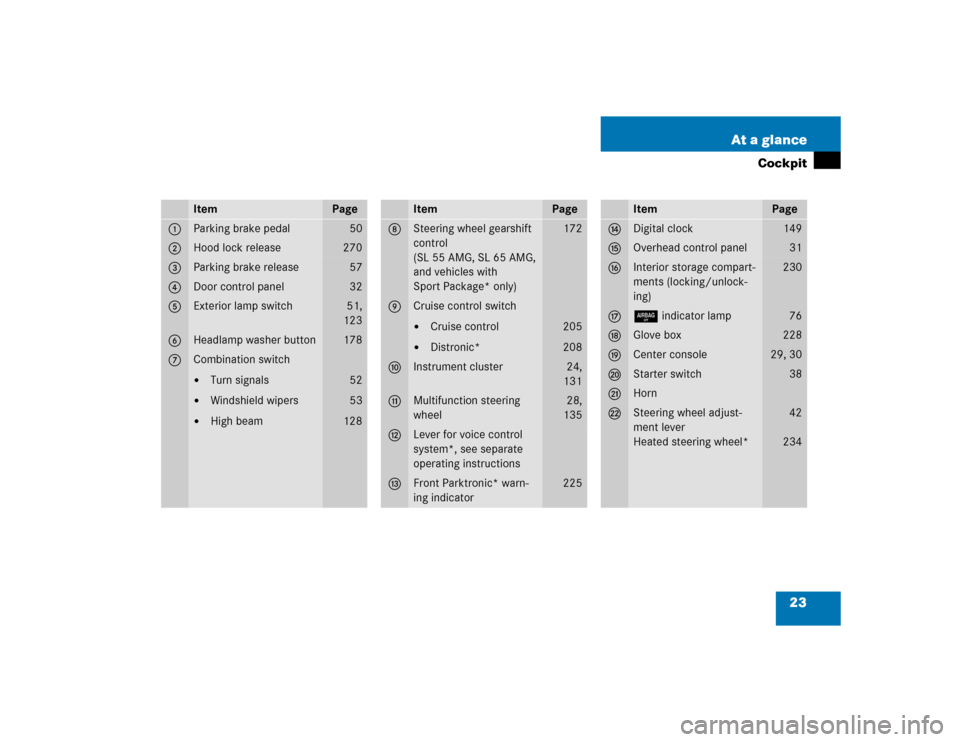

23 At a glance
Cockpit
Item
Page
1
Parking brake pedal
50
2
Hood lock release
270
3
Parking brake release
57
4
Door control panel
32
5
Exterior lamp switch
51,
123
6
Headlamp washer button
178
7
Combination switch

Turn signals


Windshield wipers


High beam
52
53
128
Item
Page
8
Steering wheel gearshift
control
(SL55AMG,SL65AMG,
and vehicles with
Sport Package* only)
172
9
Cruise control switch

Cruise control


Distronic*
205
208
a
Instrument cluster
24,
131
b
Multifunction steering
wheel
28,
135
c
Lever for voice control
system*, see separate
operating instructions
d
Front Parktronic* warn-
ing indicator
225
Item
Page
e
Digital clock
149
f
Overhead control panel
31
g
Interior storage compart-
ments (locking/unlock-
ing)
230
h
7 indicator lamp
76
j
Glove box
228
k
Center console
29, 30
l
Starter switch
38
m
Horn
n
Steering wheel adjust-
ment lever
Heated steering wheel*
42
234

34 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.Unlocking
Unlocking with the SmartKeySmartKey with remote control1‹Lock button
2ŠUnlock button for trunk lid
3ŒUnlock button
4ÂPanic button
Press unlock button Πon the
SmartKey.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
The SBC brake system is activated.

Enter the vehicle and insert the
SmartKey in the starter switch.
For more information, see “SmartKey”
(
page 94).Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up-position when
the door is closed.

35 Getting started
Unlocking
Unlocking with KEYLESS-GO*
If your vehicle is equipped with the
KEYLESS-GO function, your vehicle checks
whether the SmartKey with KEYLESS-GO is
valid when you grasp the door handle. If
your SmartKey with KEYLESS-GO is valid,
the doors will unlock and you can open
them.
The function of the SmartKey overrules the
KEYLESS-GO function.

Grasp the door handle.
The turn signal lamps flash once. The
locking knobs on the doors move up.
The anti-theft alarm system is dis-
armed.
The SBC brake system is activated.If the SmartKey with KEYLESS-GO is inside
the vehicle, pressing the KEYLESS-GO
start/stop button on the gear selector le-
ver corresponds to turning the SmartKey
to the various starter switch positions
(
page 37).
For more information, see “SmartKey with
KEYLESS-GO*” (
page 98).
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approx. 3 feet
(1 meter) away from the door. iIf the vehicle has been parked for more
than 72 hours, you must pull the out-
side door handle in order to activate
the KEYLESS-GO function.
iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up-position when
the door is closed.

39 Getting started
Adjusting
Adjusting
Seats
Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.
Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat backrest and seat
belts provide the best restraint when the
wearer is in a nearly upright position and
belts are properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 45).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the start-
er switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the power seats can be operated when the
respective door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.

42 Getting startedAdjustingSteering wheel Steering wheel adjustment
The stalk for steering wheel adjustment is
located on the lower left of the steering
column.
1Adjusting steering column, in or out
2Adjusting steering column, up or down

Switch on the ignition (
page 36).
or

Open the driver’s door.Adjusting steering column in or out

Move stalk forward or back in direction
of arrow1 until a comfortable steer-
ing wheel position is reached with your
arms slightly bent at the elbow.
Adjusting steering column up or down

Move stalk up or down in direction of
arrow2.
Make sure your legs can move freely
and that you have a good view on all
the displays (including malfunction and
indicator lamps) on the instrument
cluster.
For more information, see “Heated steer-
ing wheel* (SL 500, SL 600)”
(
page 234).
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the steering wheel adjustment feature can
be operated when the driver’s door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
iThe memory function (
page 120) lets
you store the setting for the steering
wheel together with the settings for the
seat position and the exterior rear view
mirrors.

49 Getting started
Driving
Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button on the
gear selector lever.KEYLESS-GO start/stop button1USA only
2Canada only
M a k e s u r e t h e g e a r s e l e c t o r l e v e r i s s e t
to P.

Depress the brake pedal during the
starting procedure. Do not depress ac-
celerator.
The selector lever lock is released.

Press KEYLESS-GO start/stop
button1 once.
The engine starts automatically if the
SmartKey with KEYLESS-GO is in the
vehicle.
For information on turning off the engine
with KEYLESS-GO, see “Turning off with
KEYLESS-GO*” (
page 59).
Starting difficulties
If the engine does not start as described,
carry out the following steps:

If you are starting the engine with the
SmartKey: Turn SmartKey in starter
switch to position0 and repeat starting
procedure.

If you are starting the engine with
KEYLESS-GO*: Close any doors that
may be open to allow for better detec-
tion of the SmartKey with
KEYLESS-GO.
Or:
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO*.

Repeat the starting procedure
(page 48). Remember that extended
starting attempts can drain the battery.

Get a jump start (
page 406).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Center.

51 Getting started
Driving
Once the vehicle is in motion, the automat-
ic central locking system engages and the
locking knobs drop down.
After a cold start, the transmission engag-
es at a higher revolution. This allows the
catalytic converter to reach its operating
temperature earlier.
Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Off
2Low beam headlamps on
Turn the exterior lamp switch to
position B.
The low beam headlamps come on.
!If you hear a warning signal when driv-
ing off, you have forgotten to release
the parking brake.
Release the parking brake.!Do not run cold engine at high engine
speed. Running a cold engine at high
engine speed may shorten the service
life of the engine.
!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
You can deactivate the automatic lock-
ing using the control system
(page 156).

54 Getting startedDrivingSingle wipe
Press the combination switch briefly in
direction of arrow1.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid

Push the combination switch in direc-
tion of arrow1 past the resistance
point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 278).
!If anything blocks the windshield
wipers (leaves, snow, etc.), switch
them off immediately.

For safety reasons,

turn off the engine by turning
the SmartKey to position 0 and
withdraw the SmartKey from
the starter switch
or


turn off the engine by pressing
the KEYLESS-GO* start/stop
button and open the driver’s
door (with the driver’s door
open, the starter switch is in po-
sition 0, same as with the
SmartKey removed from the
starter switch)
before attempting to remove any
blockage.


Remove blockage.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,


set the combination switch to the
next higher wiper speed


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center
