tire pressure reset MERCEDES-BENZ SL63AMG 2012 R230 Owner's Manual

Clock ..................................................... 28
Cockpit ................................................. 28
Cold tire inflation pressure .............. 205
Collapsible tire (spare wheel) .......... 303
COMAND system see separate COMAND system
operating instructions
Combination switch ............................ 92
Control system .................................. 113
Multifunction display .....................114
Multifunction steering wheel .........113
Resetting to factory settings ..........121
Control system menus ...................... 115
AMG ............................................... 116
Audio/DVD .................................... 119
Distronic ........................................ 120
Navigation ..................................... 120
Settings ......................................... 121
Standard display ............................ 116
Telephone ...................................... 129
Trip computer ................................ 128
Vehicle status message memory ...120
Control system submenus
Convenience .................................. 127
Instrument cluster .........................122
Lighting .......................................... 124
Vehicle ........................................... 126
Convenience submenu
Easy-entry/exit feature .................. 127
Fold-in function for exterior rear
view mirrors ................................... 127
Coolant
Anticorrosion/antifreeze ...............308
Capacities ...................................... 304
Checking level ............................... 184
Messages in the multifunction
display ........................................... 244
Temperature gauge ........................ 112
Warning lamp ................................. 263
Corner-illuminating lamps .................. 93
Replacing bulbs ............................. 272
Cruise control .................................... 130
Activating ....................................... 131
Canceling ....................................... 132
Changing the set speed .................132
Last stored speed ..........................132
Lever .............................................. 131Messages in the multifunction
display ........................................... 232
Resume function ............................ 132
Setting current speed ....................131
Cup holders ........................................ 164
Curb weight ....................................... 205
Customer Assistance Center (CAC) ... 22
Customer Relations Department ....... 22
D
Dashboard see Instrument cluster
Data recording ..................................... 22
Daytime running lamp mode .............. 90
Switching on or off ......................... 124
Deep water
see Standing water
Defogging (windshield) ..................... 153
Defroster
Front (Climate control system) ......153
Rear window .................................. 155
Delayed shut-off
Exterior lamps ................................ 125
Interior lighting .............................. 126
Department of Transportation
see DOT
Difficulties
While driving .................................. 101
With starting .................................... 99
Digital clock
see Clock
Digital speedometer ......................... 116
Dimensions (vehicle) see Vehicle specification
Direction of rotation (tires) .............. 197
Displays
Digital speedometer ......................116
Distronic ........................................ 135
Maintenance service indicator .......214
Messages in the multifunction
display ........................................... 226
Multifunction display .....................114
Outside temperature ...................... 116
Symbol messages ..........................237
Text messages ............................... 227
Trip computer ................................ 128
6Index230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 6

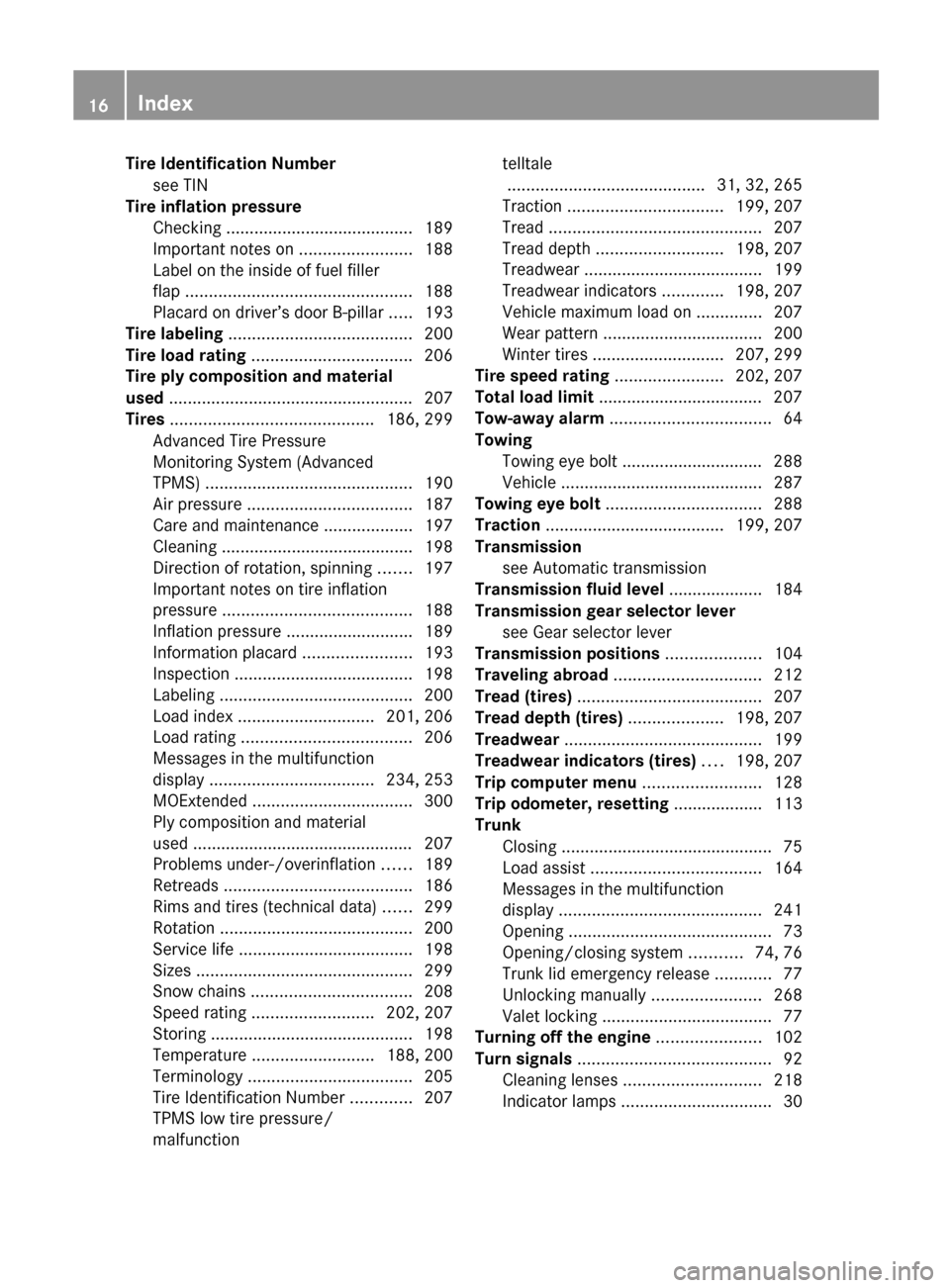

Tire Identification Numbersee TIN
Tire inflation pressure
Checking ........................................ 189
Important notes on ........................188
Label on the inside of fuel filler
flap ................................................ 188
Placard on driver’s door B-pillar .....193
Tire labeling ....................................... 200
Tire load rating .................................. 206
Tire ply composition and material
used .................................................... 207
Tires ........................................... 186, 299
Advanced Tire Pressure
Monitoring System (Advanced
TPMS) ............................................ 190
Air pressure ................................... 187
Care and maintenance ...................197
Cleaning ......................................... 198
Direction of rotation, spinning .......197
Important notes on tire inflation
pressure ........................................ 188
Inflation pressure ........................... 189
Information placard .......................193
Inspection ...................................... 198
Labeling ......................................... 200
Load index ............................. 201, 206
Load rating .................................... 206
Messages in the multifunction
display ................................... 234, 253
MOExtended .................................. 300
Ply composition and material
used ............................................... 207
Problems under-/overinflation ......189
Retreads ........................................ 186
Rims and tires (technical data) ......299
Rotation ......................................... 200
Service life ..................................... 198
Sizes .............................................. 299
Snow chains .................................. 208
Speed rating .......................... 202, 207
Storing ........................................... 198
Temperature .......................... 188, 200
Terminology ................................... 205
Tire Identification Number .............207
TPMS low tire pressure/
malfunctiontelltale
.......................................... 31, 32, 265
Traction ................................. 199, 207
Tread ............................................. 207
Tread depth ........................... 198, 207
Treadwear ...................................... 199
Treadwear indicators .............198, 207
Vehicle maximum load on ..............207
Wear pattern .................................. 200
Winter tires ............................ 207, 299
Tire speed rating ....................... 202, 207
Total load limit ................................... 207
Tow-away alarm .................................. 64
Towing
Towing eye bolt .............................. 288
Vehicle ........................................... 287
Towing eye bolt ................................. 288
Traction ...................................... 199, 207
Transmission see Automatic transmission
Transmission fluid level .................... 184
Transmission gear selector lever see Gear selector lever
Transmission positions .................... 104
Traveling abroad ............................... 212
Tread (tires) ....................................... 207
Tread depth (tires) .................... 198, 207
Treadwear .......................................... 199
Treadwear indicators (tires) .... 198, 207
Trip computer menu ......................... 128
Trip odometer, resetting ................... 113
Trunk
Closing ............................................. 75
Load assist .................................... 164
Messages in the multifunction
display ........................................... 241
Opening ........................................... 73
Opening/closing system ...........74, 76
Trunk lid emergency release ............77
Unlocking manually .......................268
Valet locking .................................... 77
Turning off the engine ...................... 102
Turn signals ......................................... 92
Cleaning lenses ............................. 218
Indicator lamps ................................ 3016Index230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 16

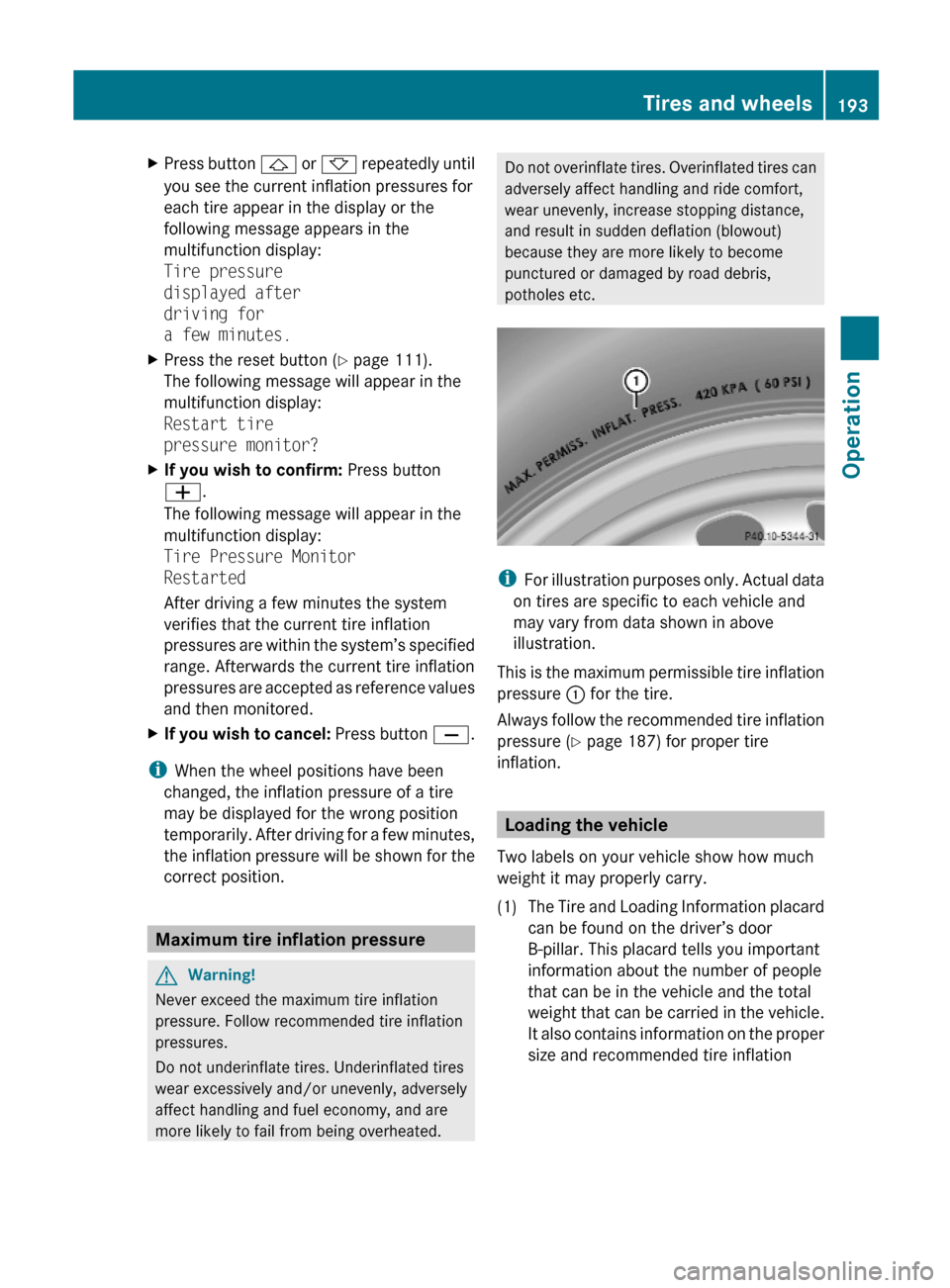

XPress button & or * repeatedly until
you see the current inflation pressures for
each tire appear in the display or the
following message appears in the
multifunction display:
Tire pressure
displayed after
driving for
a few minutes.
XPress the reset button (Y page 111).
The following message will appear in the
multifunction display:
Restart tire
pressure monitor?
XIf you wish to confirm: Press button
W.
The following message will appear in the
multifunction display:
Tire Pressure Monitor
Restarted
After driving a few minutes the system
verifies that the current tire inflation
pressures are within the system’s specified
range. Afterwards the current tire inflation
pressures are accepted as reference values
and then monitored.
XIf you wish to cancel: Press button X.
iWhen the wheel positions have been
changed, the inflation pressure of a tire
may be displayed for the wrong position
temporarily. After driving for a few minutes,
the inflation pressure will be shown for the
correct position.
Maximum tire inflation pressure
GWarning!
Never exceed the maximum tire inflation
pressure. Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly, adversely
affect handling and fuel economy, and are
more likely to fail from being overheated.
Do not overinflate tires. Overinflated tires can
adversely affect handling and ride comfort,
wear unevenly, increase stopping distance,
and result in sudden deflation (blowout)
because they are more likely to become
punctured or damaged by road debris,
potholes etc.
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and
may vary from data shown in above
illustration.
This is the maximum permissible tire inflation
pressure : for the tire.
Always follow the recommended tire inflation
pressure (Y page 187) for proper tire
inflation.
Loading the vehicle
Two labels on your vehicle show how much
weight it may properly carry.
(1)The Tire and Loading Information placard
can be found on the driver’s door
B-pillar. This placard tells you important
information about the number of people
that can be in the vehicle and the total
weight that can be carried in the vehicle.
It also contains information on the proper
size and recommended tire inflation
Tires and wheels193Operation230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 193Z
