MERCEDES-BENZ SL65AMG 2006 R230 Owner's Manual

430 Technical dataIdentification labels1Certification label
(includes Paintwork code)2Storage compartment lid
3Trim
4Vehicle Identification Number (VIN)
(below right rear storage compart-
ment)

Open storage compartment lid 2.

Remove storage compartment trim 3.
The VIN is located on the metal strap
above the floor carpet.5Engine number (engraved on engine)
6VIN, visible (lower edge of windshield)
7Emission control information label,
includes both federal and California
certification exhaust emission stan-
dards
8Vacuum line routing diagram label
iWhen ordering parts, please specify ve-
hicle identification and engine num-
bers.

431 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
SL 500
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
SL 55 AMGThe SL 55 AMG has two poly-V-belts (belt
one shown in purple/belt two shown in
black).1Idler pulley
2Automatic belt tensioner
3ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSupercharger
SL 600, SL 65 AMG
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
8Idler pulley
9Idler pulley

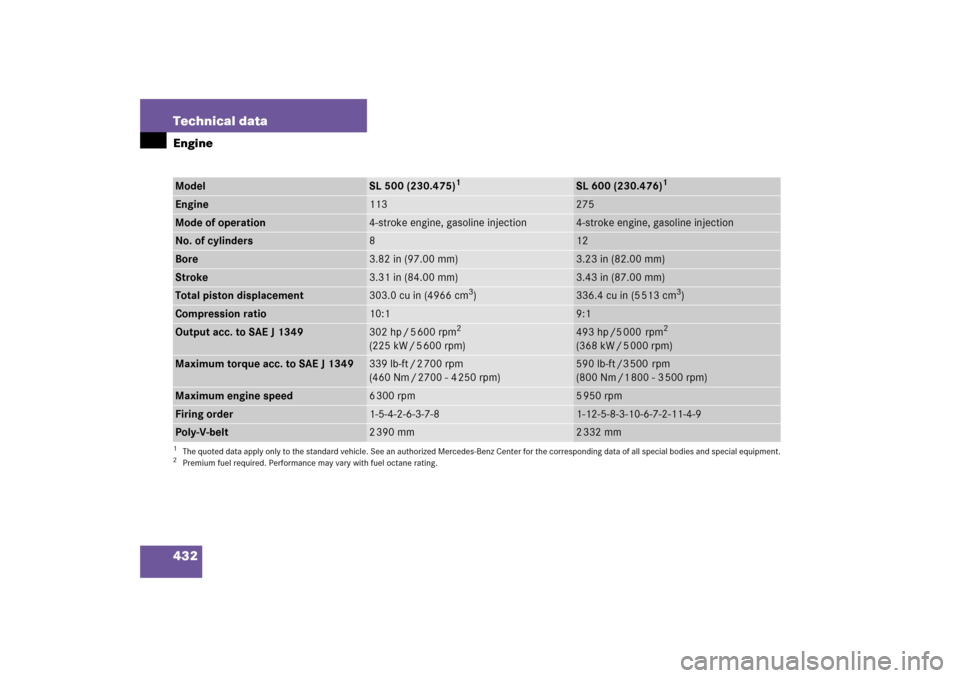

432 Technical dataEngineModel
SL 500 (230.475)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
SL 600 (230.476)
1
Engine
113
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
3.82 in (97.00 mm)
3.23 in (82.00 mm)
Stroke
3.31 in (84.00 mm)
3.43 in (87.00 mm)
Total piston displacement
303.0 cu in (4966 cm
3)
336.4 cu in (5 513 cm
3)
Compression ratio
10:1
9:1
Output acc. to SAE J 1349
302 hp / 5 600 rpm
2
(225 kW / 5 600 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
493 hp /5 000 rpm
2
(368 kW / 5 000 rpm)
Maximum torque acc. to SAE J 1349
339 lb-ft / 2 700 rpm
(460 Nm / 2700 - 4 250 rpm)
590 lb-ft /3 500 rpm
(800 Nm /1 800 - 3 500 rpm)
Maximum engine speed
6300 rpm
5950 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
2390 mm
2332 mm

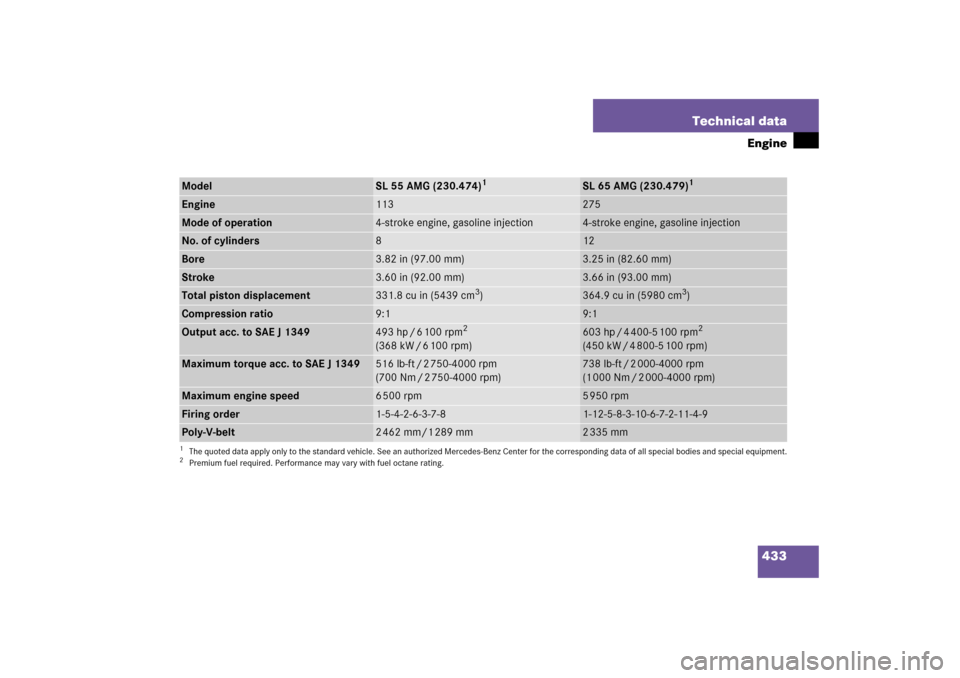

433 Technical data
Engine
Model
SL 55 AMG (230.474)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
SL 65 AMG (230.479)
1
Engine
113
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
3.82 in (97.00 mm)
3.25 in (82.60 mm)
Stroke
3.60 in (92.00 mm)
3.66 in (93.00 mm)
Total piston displacement
331.8 cu in (5439 cm
3)
364.9 cu in (5980 cm
3)
Compression ratio
9:1
9:1
Output acc. to SAE J 1349
493 hp / 6 100 rpm
2
(368 kW / 6 100 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
603 hp / 4 400-5 100 rpm
2
(450 kW / 4 800-5 100 rpm)
Maximum torque acc. to SAE J 1349
516 lb-ft / 2 750-4000 rpm
(700 Nm / 2 750-4000 rpm)
738 lb-ft / 2 000-4000 rpm
(1 000 Nm / 2 000-4000 rpm)
Maximum engine speed
6 500 rpm
5 950 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
2 462 mm/1 289 mm
2 335 mm

434 Technical dataRims and tires
!
Only use tires which have been tested
and approved by Mercedes-Benz. Tires
approved by Mercedes-Benz are devel-
oped to provide best possible perfor-
mance in conjunction with the driving
safety systems on your vehicle such as
ABS or ESP
®. Tires specially developed
for your vehicle and tested and ap-
proved by Mercedes-Benz can be iden-
tified by finding the following on the
tire’s sidewall:


MO = M
ercedes-Benz O
riginal
equipment tires
AMG vehicles:
Does not apply to all approved tires
on AMG vehicles. For information
on tested and approved tires for
AMG vehicles, contact an autho-
rized Mercedes-Benz Center.


MOE = M
ercedes-Benz O
riginal
E
xtended (tires with limited run-flat
characteristics) original equipment
tires
Using tires other than those approved
by Mercedes-Benz may result in dam-
age that is not covered by the
Mercedes-Benz Limited Warranty.iFor information on driving with
MOExtended tires, see “MOExtended
system*” (
page 300).
!Using tires other than those approved
by Mercedes-Benz can have detrimen-
tal effects, such as

poor handling characteristics


increased noise


increased fuel consumption
Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.

435 Technical data
Rims and tires
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the driver’s door
B-pillar. Some vehicles may have sup-
plemental tire inflation pressure infor-
mation for driving at high speeds
(page 292) or for vehicle loads less
than the maximum loaded vehicle con-
dition (
page 292). If such information
is provided, it can be found on the plac-
ard located on the inside of the fuel fill-
er flap. The tire inflation pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.
iThe following pages also list the ap-
proved wheel rim and tire sizes for
equipping your vehicles with winter
tires. Winter tires are not available as
standard or optional factory equip-
ment, but can be purchased from an
authorized Mercedes-Benz Center.
Depending on vehicle model and the
standard or optional factory-equipped
wheel rim/tire configuration on your
vehicle (Performance Package, Sport
Package etc.), equipping your vehicle
with winter tires approved for your ve-
hicle model may also require the pur-
chase of two or four wheel rims of the
recommended size for use with these
winter tires. See an authorized
Mercedes-Benz Center for more infor-
mation.

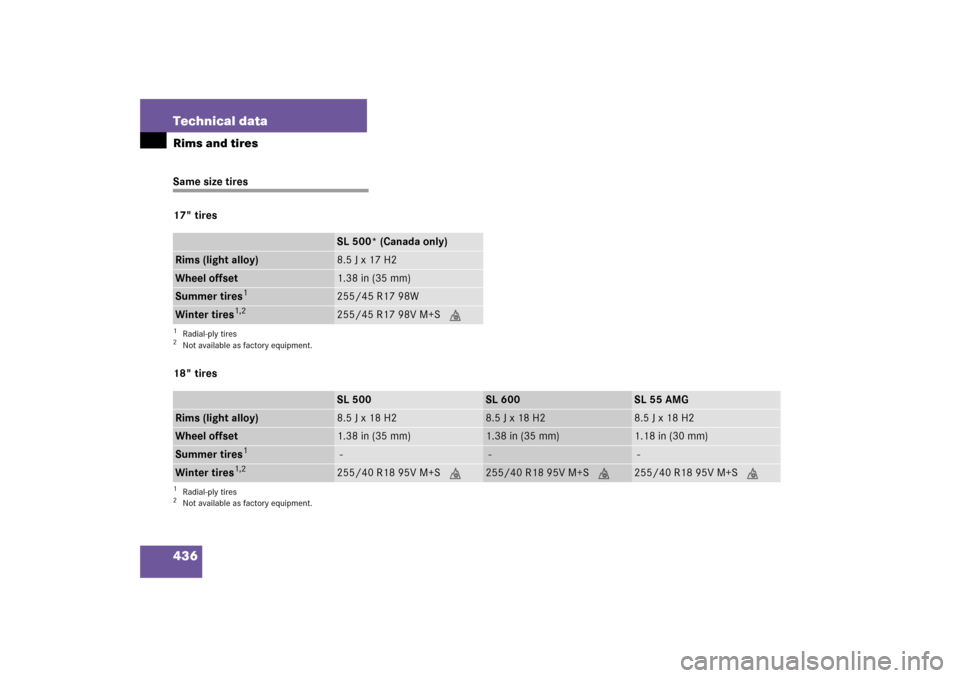

436 Technical dataRims and tiresSame size tires
17" tires
18" tires
SL 500* (Canada only)
Rims (light alloy)
8.5 J x 17 H2
Wheel offset
1.38 in (35 mm)
Summer tires
1
1Radial-ply tires
255/45 R17 98W
Winter tires
1,2
2Not available as factory equipment.
255/45 R17 98V M+S .SL 500
SL 600
SL 55 AMG
Rims (light alloy)
8.5 J x 18 H2
8.5 J x 18 H2
8.5 J x 18 H2
Wheel offset
1.38 in (35 mm)
1.38 in (35 mm)
1.18 in (30 mm)
Summer tires
1
1Radial-ply tires
-
-
-
Winter tires
1,2
2Not available as factory equipment.
255/40 R18 95V M+S .
255/40 R18 95V M+S .
255/40 R18 95V M+S .

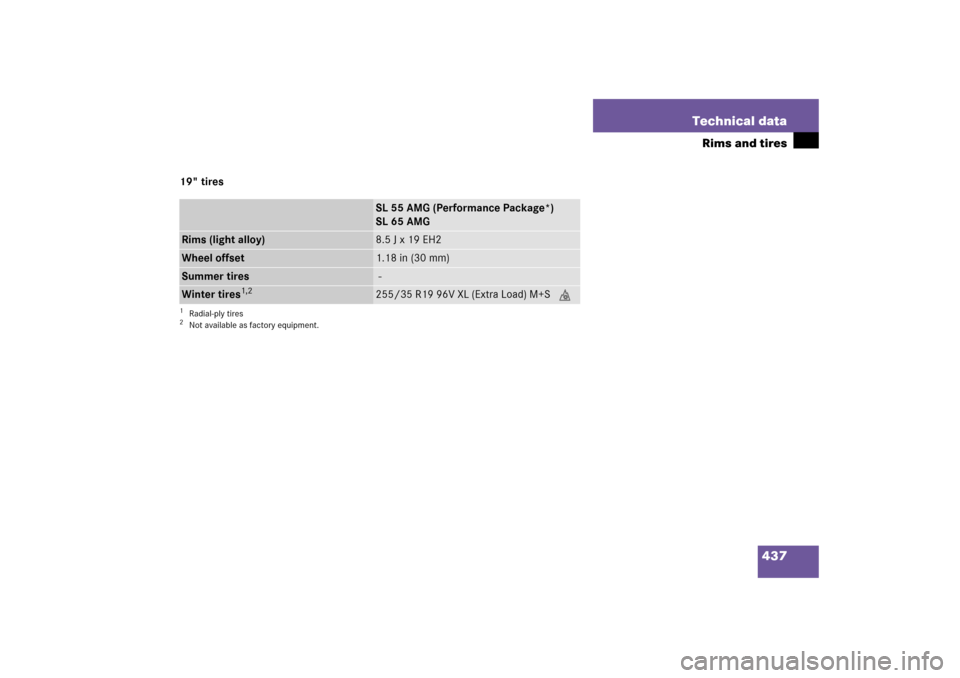

437 Technical data
Rims and tires
19" tires
SL 55 AMG (Performance Package*)
SL 65 AMG
Rims (light alloy)
8.5 J x 19 EH2
Wheel offset
1.18 in (30 mm)
Summer tires
-
Winter tires
1,2
1Radial-ply tires2Not available as factory equipment.
255/35 R19 96V XL (Extra Load) M+S .

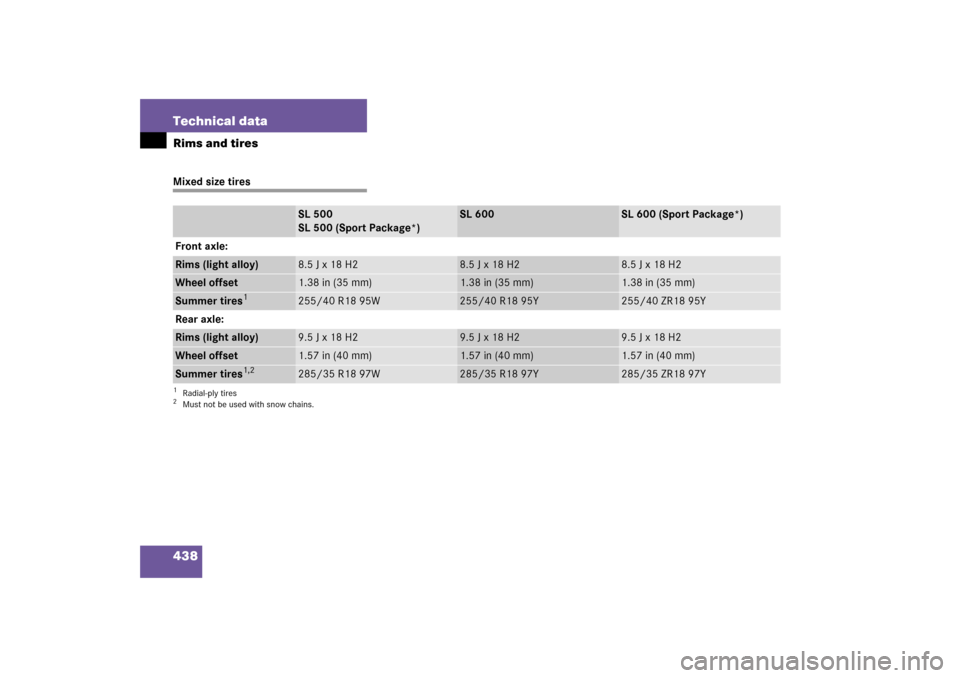

438 Technical dataRims and tiresMixed size tires
SL 500
SL 500 (Sport Package*)
SL 600
SL 600 (Sport Package*)
Front axle:
Rims (light alloy)
8.5 J x 18 H2
8.5 J x 18 H2
8.5 J x 18 H2
Wheel offset
1.38 in (35 mm)
1.38 in (35 mm)
1.38 in (35 mm)
Summer tires
1
1Radial-ply tires
255/40 R18 95W
255/40 R18 95Y
255/40 ZR18 95Y
Rear axle:
Rims (light alloy)
9.5 J x 18 H2
9.5 J x 18 H2
9.5 J x 18 H2
Wheel offset
1.57 in (40 mm)
1.57 in (40 mm)
1.57 in (40 mm)
Summer tires
1,2
2Must not be used with snow chains.
285/35 R18 97W
285/35 R18 97Y
285/35 ZR18 97Y

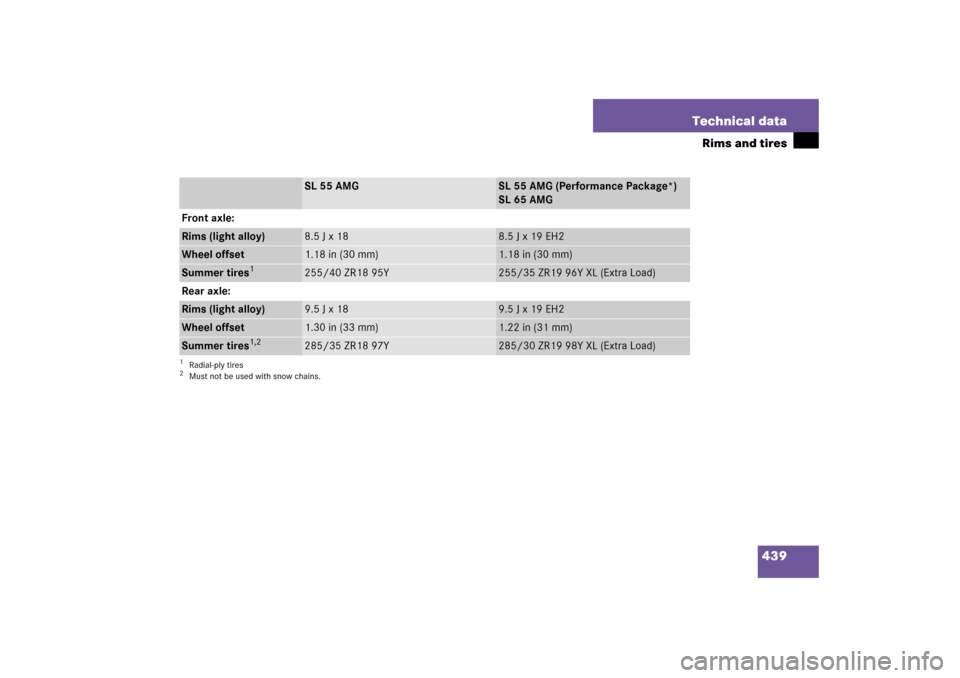

439 Technical data
Rims and tires
SL 55 AMG
SL 55 AMG (Performance Package*)
SL 65 AMG
Front axle:
Rims (light alloy)
8.5 J x 18
8.5 J x 19 EH2
Wheel offset
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires
1
1Radial-ply tires
255/40 ZR18 95Y
255/35 ZR19 96Y XL (Extra Load)
Rear axle:
Rims (light alloy)
9.5 J x 18
9.5 J x 19 EH2
Wheel offset
1.30 in (33 mm)
1.22 in (31 mm)
Summer tires
1,2
2Must not be used with snow chains.
285/35 ZR18 97Y
285/30 ZR19 98Y XL (Extra Load)
