50 Getting startedDrivingStarting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button on the
gear selector lever.KEYLESS-GO start/stop button1USA only
2Canada only
Make sure the gear selector lever is set
to P.

Depress the brake pedal during the
starting procedure. Do not depress ac-
celerator.
The selector lever lock is released.

Press KEYLESS-GO start/stop
button1 once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.
For information on turning off the engine
with KEYLESS-GO, see “Turning off with
KEYLESS-GO*” (
page 60).
Starting difficulties
If the engine does not start as described,
carry out the following steps:

If you are starting the engine with the
SmartKey: Turn SmartKey in starter
switch to position0 and repeat starting
procedure.

If you are starting the engine with
KEYLESS-GO*: Close any doors that
may be open to allow for better detec-
tion of the SmartKey with
KEYLESS-GO.
Or:
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO*.

Repeat the starting procedure
(page 49). Remember that extended
starting attempts can drain the battery.

Get a jump start (
page 419).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Center.

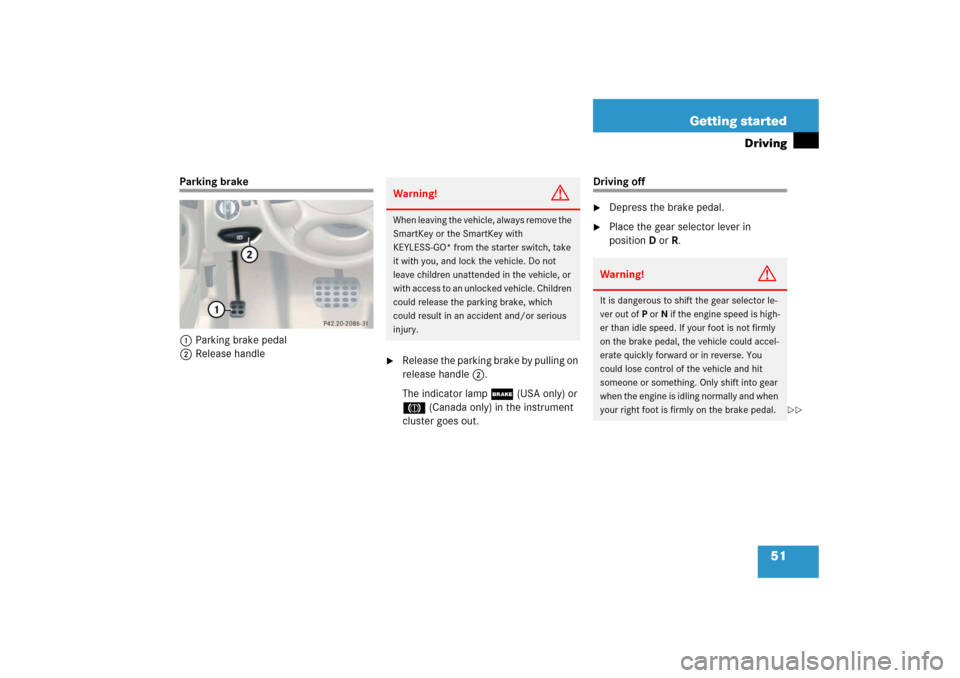

51 Getting started
Driving
Parking brake
1Parking brake pedal
2Release handle

Release the parking brake by pulling on
release handle2.
The indicator lamp;(USA only) or
3 (Canada only) in the instrument
cluster goes out.
Driving off
Depress the brake pedal.

Place the gear selector lever in
positionD orR.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Children
could release the parking brake, which
could result in an accident and/or serious
injury.
Warning!
G
It is dangerous to shift the gear selector le-
ver out ofP orN if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.


52 Getting startedDriving
Release the brake pedal.

Carefully depress the accelerator
pedal.Once the vehicle is in motion, the automat-
ic central locking system engages and the
locking knobs drop down.
After a cold start, the transmission engag-
es at a higher revolution. This allows the
catalytic converter to reach its operating
temperature earlier.Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.!In order to avoid damage to the trans-
mission:

Wait for the gear selection process
to complete before setting the vehi-
cle in motion.


Place the gear selector lever in
positionD orR only when the vehi-
cle is stopped.
!If you hear a warning signal and the
message
Release parking brake

appears in the multifunction display
when driving off, you have forgotten to
release the parking brake.
Release the parking brake.
!Do not run cold engine at high engine
speed. Running a cold engine at high
engine speed may shorten the service
life of the engine.
!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
You can deactivate the automatic lock-
ing using the control system
(page 155).


53 Getting started
Driving
Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Off
2Low beam headlamps on
Turn the exterior lamp switch to
position B.
The low beam headlamps come on.High beam
The combination switch is located on the
left of the steering column.
Combination switch1High beam
2High beam flasher
Push the combination switch in direc-
tion of arrow 1.
The high beam headlamps come on.
The high beam headlamp indicator
A in the instrument cluster comes
on (
page 27).
For more information, see “Lighting”
(
page 123).
Turn signals
The combination switch is located on the
left of the steering column.Combination switch1Turn signals, right
2Turn signals, left
Press the combination switch in direc-
tion of arrow1 or2.
The corresponding turn signal indicator
lampKorLin the instrument
cluster flashes (
page 25).

54 Getting startedDrivingThe combination switch resets automati-
cally after major steering wheel move-
ments.
Windshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
Wiping with windshield washer fluid
2Switching on windshield wipers
Switch on the ignition (
page 36).Switching on windshield wipers

Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speed
iTo signal minor directional changes
such as changing lanes, press combi-
nation switch only to point of resis-
tance and release. The corresponding
turn signals will flash three times.
!Do not operate the windshield wipers
when the windshield is dry. Dust that
accumulates on a windshield might
scratch the glass and/or damage the
wiper blades when wiping occurs on a
dry windshield. If it is necessary to op-
erate the windshield wipers in dry
weather conditions, always operate the
windshield wipers with windshield
washer fluid (
page 55).

55 Getting started
Driving
Intermittent wiping
The intermittent wiping interval is depen-
dent on the wetness of the windshield.
Turn the combination switch to
positionI.
After the initial wipe, pauses between
wipes are controlled by the rain sensor.Single wipe

Press the combination switch briefly in
direction of arrow1 to the resistance
point.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid

Push the combination switch in direc-
tion of arrow1 past the resistance
point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 280).
!Do not leave windshield wipers in inter-
mittent setting when vehicle is taken to
an automatic car wash or during wind-
shield cleaning. Windshield wipers will
operate in the presence of water
sprayed on the windshield, and wind-
shield wipers may be damaged as a re-
sult.
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened. This protects persons
getting into or out of the vehicle from
being sprayed.
Intermittent wiping will be continued
when

all doors are closed
and


the clutch pedal is depressed (vehi-
cles with manual transmission)
or


the gear selector lever is in
positionD or R
or


the wiper setting is changed using
the combination switch
iTo prevent smears on the windshield,
wipe with windshield washer fluid every
now and then even when it is raining.


56 Getting startedDriving
Problems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.
!If anything blocks the windshield
wipers (leaves, snow, etc.), switch
them off immediately.

For safety reasons, stop the vehicle
in a safe location and

remove the SmartKey from the
starter switch
or


turn off the engine by pressing
the KEYLESS-GO* start/stop
button and open the driver’s
door (with the driver’s door
open, the starter switch is in po-
sition 0, same as with the
SmartKey removed from the
starter switch)
before attempting to remove any
blockage.


Remove blockage.


Turn the windshield wipers on
again.
If the windshield wipers fail to function
at all in switch positionI,


set the combination switch to the
next higher wiper speed


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center


57 Getting started
Driving
The coolant temperature gauge is
above 248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.
Stop the vehicle as soon as possible in
a safe location and turn off the engine.
Allow engine and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 278).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.

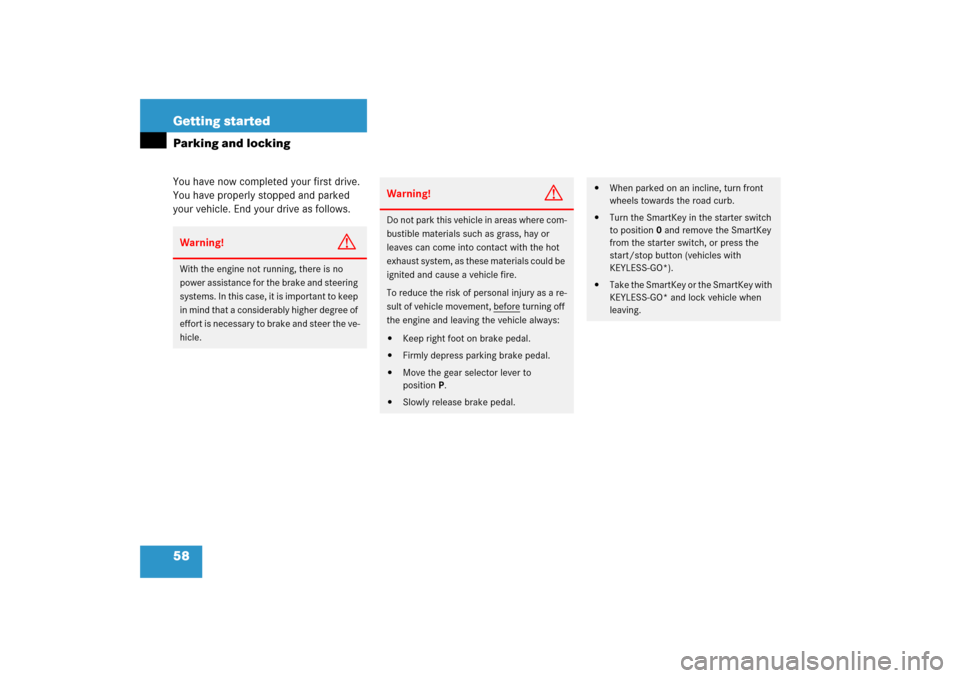

58 Getting startedParking and lockingYou have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before
turning off
the engine and leaving the vehicle always:


Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch, or press the
start/stop button (vehicles with
KEYLESS-GO*).


Take the SmartKey or the SmartKey with
KEYLESS-GO* and lock vehicle when
leaving.

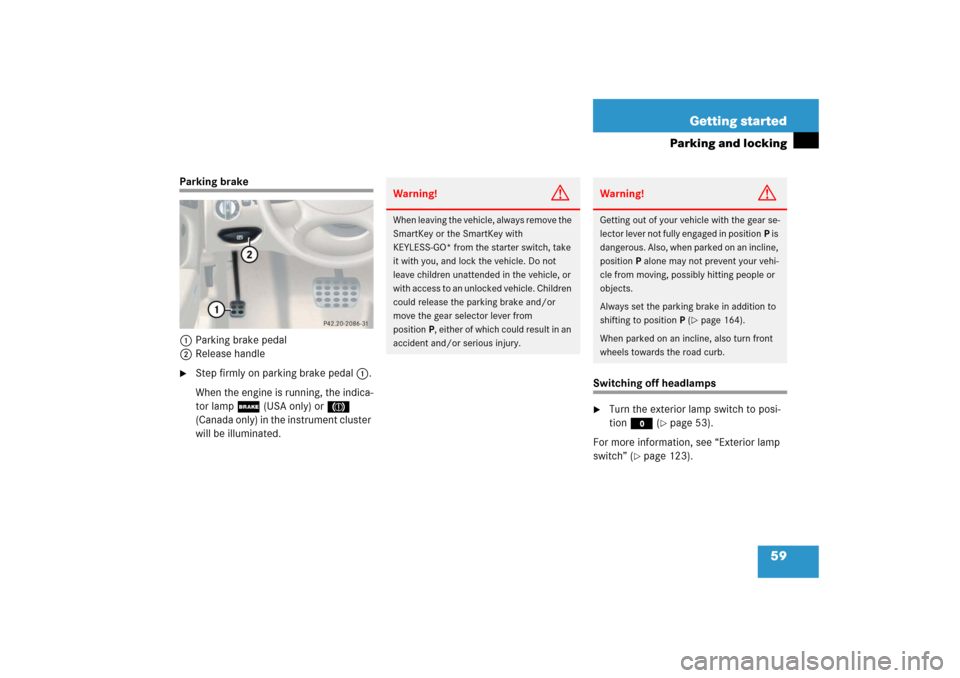

59 Getting started
Parking and locking
Parking brake
1Parking brake pedal
2Release handle
Step firmly on parking brake pedal1.
When the engine is running, the indica-
tor lamp;(USA only) or3
(Canada only) in the instrument cluster
will be illuminated.
Switching off headlamps
Turn the exterior lamp switch to posi-
tion M (
page 53).
For more information, see “Exterior lamp
switch” (
page 123).
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from
positionP, either of which could result in an
accident and/or serious injury.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP (
page 164).
When parked on an incline, also turn front
wheels towards the road curb.
