Page 281 of 489

MERCEDES-BENZ SL65AMG 2008 R230 Owners Manual 280 Operation
At the gas station
Insert fuel cap 2 into fuel filler neck
and turn fuel cap clockwise until it au-
dibly engages.
Close fuel filler flap 1.
You should hear the latch close shut.
Ch

Page 282 of 489

MERCEDES-BENZ SL65AMG 2008 R230 Owners Manual 281 Operation
At the gas station
Windshield washer and headlamp
cleaning system
For information on refilling the reservoir,
see “Windshield washer system and
headlamp cleaning system” (
page 2

Page 283 of 489

MERCEDES-BENZ SL65AMG 2008 R230 Owners Manual 282 Operation
Engine compartment
Hood
Opening
1Hood release
Warning!G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
This

Page 284 of 489

MERCEDES-BENZ SL65AMG 2008 R230 Owners Manual 283 Operation
Engine compartment
Pull hood release1.
The hood is unlocked.
2Lever for opening the hood
Push lever2 on the hood upwards.
Pull up on the hood and then release it.
The hood will be a

Page 285 of 489

MERCEDES-BENZ SL65AMG 2008 R230 Owners Manual 284 Operation
Engine compartment
Checking engine oil level with the
control system* (except SL 550)
When checking the oil level
the vehicle must be parked on level
ground
with the engine at operat

Page 286 of 489

MERCEDES-BENZ SL65AMG 2008 R230 Owners Manual 285 Operation
Engine compartment
If necessary, add engine oil.
For information on adding engine oil, see
(
page 286).
For more information on engine oil, see the
“Technical data” section (
pa

Page 287 of 489

MERCEDES-BENZ SL65AMG 2008 R230 Owners Manual 286 Operation
Engine compartment
Checking engine oil level with the oil
dipstick (SL 550 only)
When checking the oil level
the vehicle must be parked on level
ground
the vehicle must have been sta

Page 288 of 489

MERCEDES-BENZ SL65AMG 2008 R230 Owners Manual 287 Operation
Engine compartment
Example illustration SL 550
1Filler cap
Example illustration SL 55 AMG
1Filler cap
Unscrew filler cap1 from filler neck.
Add engine oil as required. Be careful
not

Page 289 of 489

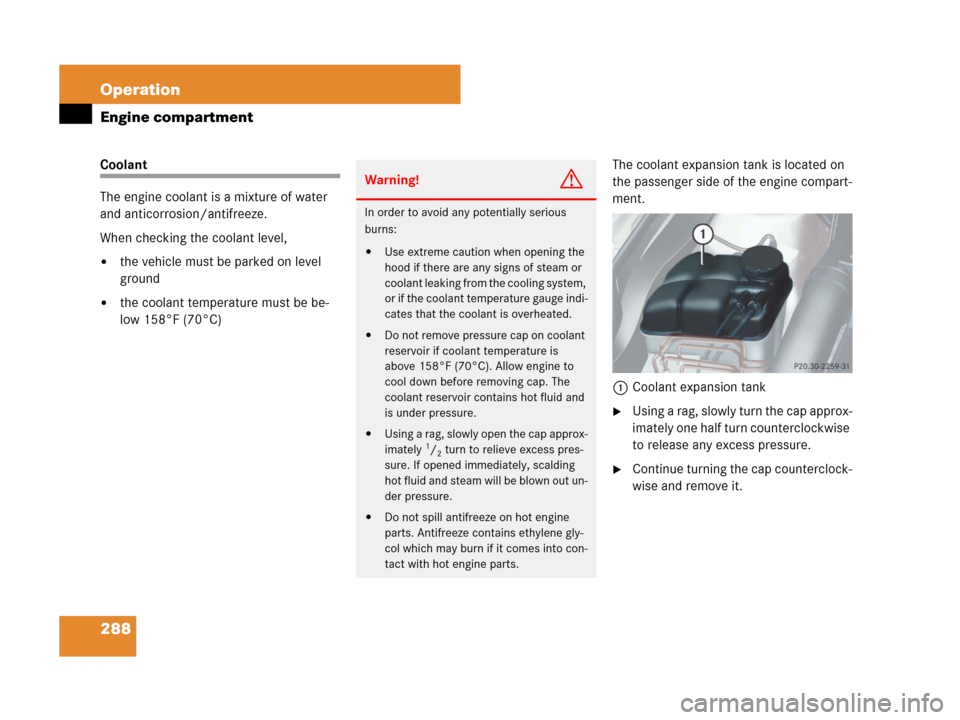

MERCEDES-BENZ SL65AMG 2008 R230 Owners Manual 288 Operation
Engine compartment
Coolant
The engine coolant is a mixture of water
and anticorrosion/antifreeze.
When checking the coolant level,
the vehicle must be parked on level
ground
the cool

Page 290 of 489

MERCEDES-BENZ SL65AMG 2008 R230 Owners Manual 289 Operation
Engine compartment
The coolant level is correct if the level
for cold coolant:
is up to the upper mark on the
bracing rib of the coolant expansion
tank (translucent)
for warm coola
