MERCEDES-BENZ SL65AMG 2008 R230 Owner's Manual

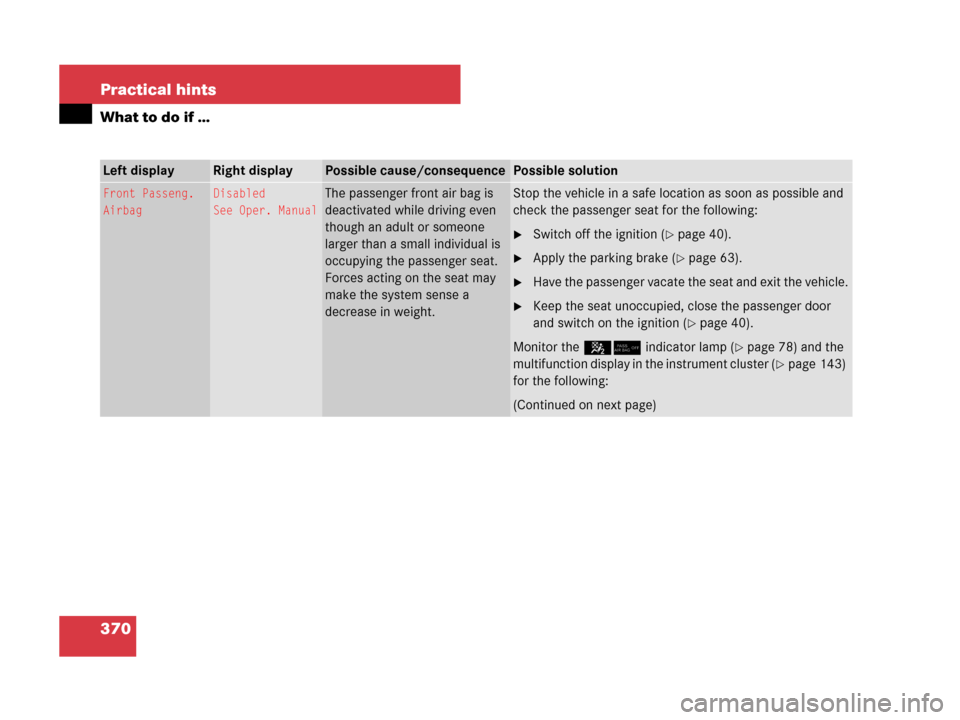

370 Practical hints
What to do if …
Left display Right display Possible cause/consequencePossible solution
Front Passeng.
AirbagDisabled
See Oper. ManualThe passenger front air bag is
deactivated while driving even
though an adult or someone
larger than a small individual is
occupying the passenger seat.
Forces acting on the seat may
make the system sense a
decrease in weight.Stop the vehicle in a safe location as soon as possible and
check the passenger seat for the following:
Switch off the ignition (page 40).
Apply the parking brake (page 63).
Have the passenger vacate the seat and exit the vehicle.
Keep the seat unoccupied, close the passenger door
and switch on the ignition (
page 40).
Monitor the 5/indicator lamp (
page 78) and the
multifunction display in the instrument cluster (
page 143)
for the following:
(Continued on next page)

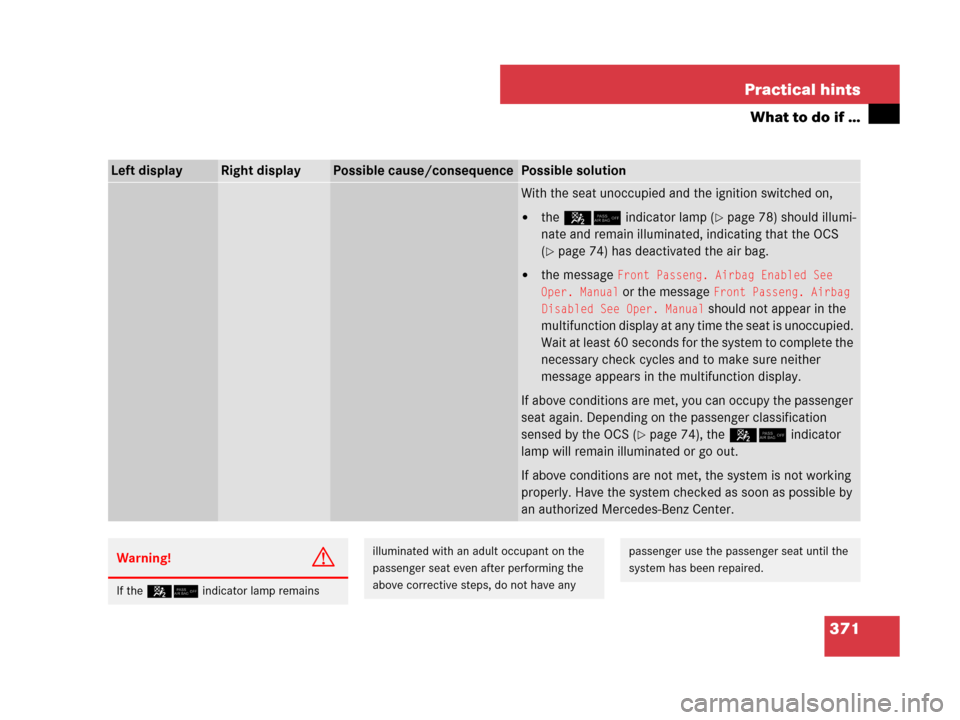

371 Practical hints
What to do if …
Left display Right display Possible cause/consequencePossible solution
With the seat unoccupied and the ignition switched on,

the 5/indicator lamp (page 78) should illumi-
nate and remain illuminated, indicating that the OCS
(
page 74) has deactivated the air bag.

the message Front Passeng. Airbag Enabled See
Oper. Manual
or the message Front Passeng. Airbag
Disabled See Oper. Manual
should not appear in the
multifunction display at any time the seat is unoccupied.
Wait at least 60 seconds for the system to complete the
necessary check cycles and to make sure neither
message appears in the multifunction display.
If above conditions are met, you can occupy the passenger
seat again. Depending on the passenger classification
sensed by the OCS (
page 74), the 5/indicator
lamp will remain illuminated or go out.
If above conditions are not met, the system is not working
properly. Have the system checked as soon as possible by
an authorized Mercedes-Benz Center.
Warning!G
If the 5/indicator lamp remains
illuminated with an adult occupant on the
passenger seat even after performing the
above corrective steps, do not have anypassenger use the passenger seat until the
system has been repaired.

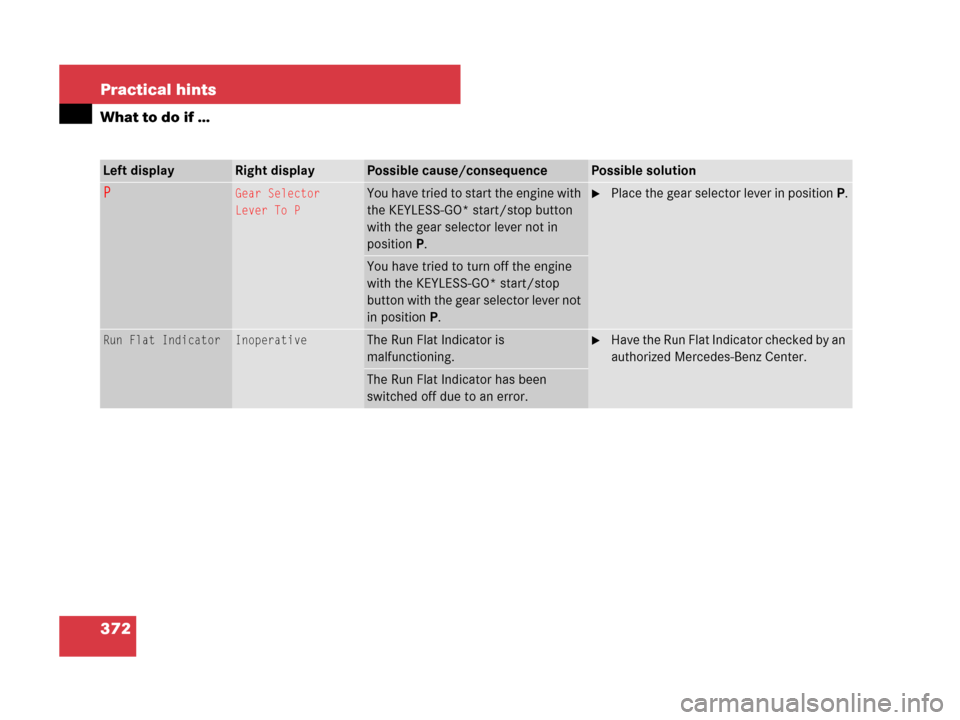

372 Practical hints
What to do if …
Left displayRight displayPossible cause/consequencePossible solution
PGear Selector
Lever To PYou have tried to start the engine with
the KEYLESS-GO* start/stop button
with the gear selector lever not in
position P.Place the gear selector lever in position P.
You have tried to turn off the engine
with the KEYLESS-GO* start/stop
button with the gear selector lever not
in position P.
Run Flat IndicatorInoperativeThe Run Flat Indicator is
malfunctioning.Have the Run Flat Indicator checked by an
authorized Mercedes-Benz Center.
The Run Flat Indicator has been
switched off due to an error.

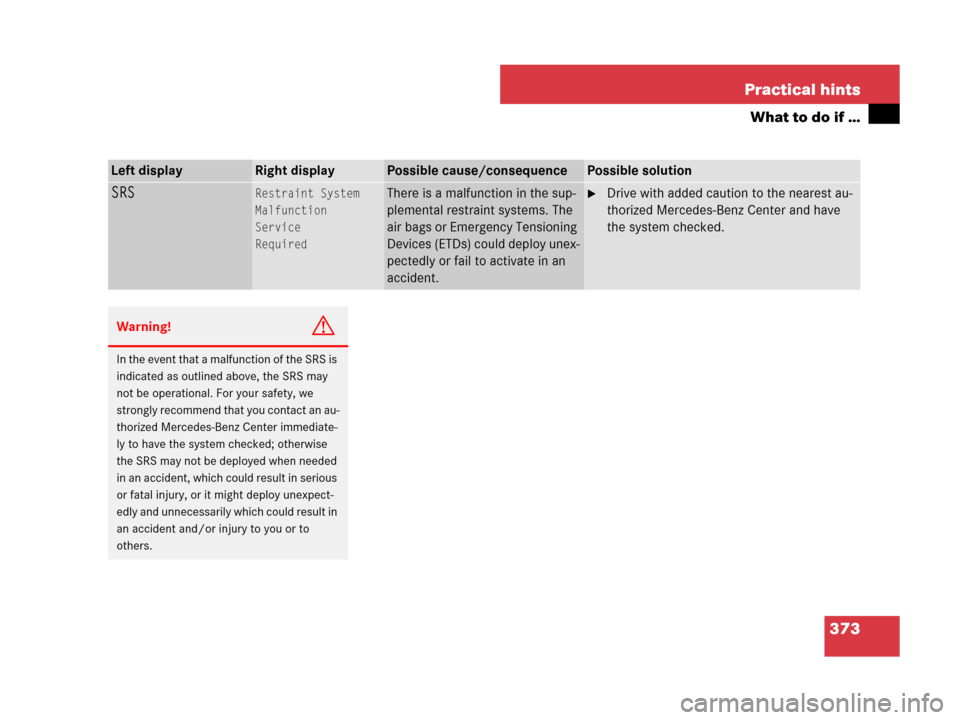

373 Practical hints
What to do if …
Left displayRight displayPossible cause/consequencePossible solution
SRSRestraint System
Malfunction

Service
Required
There is a malfunction in the sup-
plemental restraint systems. The
air bags or Emergency Tensioning
Devices (ETDs) could deploy unex-
pectedly or fail to activate in an
accident.Drive with added caution to the nearest au-
thorized Mercedes-Benz Center and have
the system checked.
Warning!G
In the event that a malfunction of the SRS is
indicated as outlined above, the SRS may
not be operational. For your safety, we
strongly recommend that you contact an au-
thorized Mercedes-Benz Center immediate-
ly to have the system checked; otherwise
the SRS may not be deployed when needed
in an accident, which could result in serious
or fatal injury, or it might deploy unexpect-
edly and unnecessarily which could result in
an accident and/or injury to you or to
others.

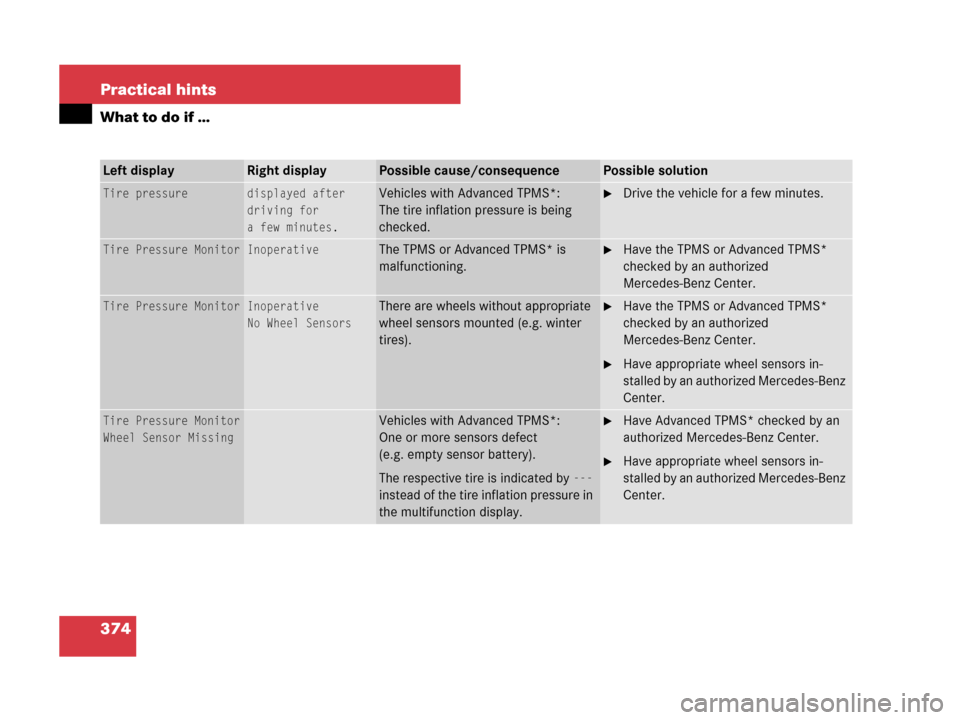

374 Practical hints
What to do if …
Left displayRight displayPossible cause/consequencePossible solution
Tire pressuredisplayed after
driving for
a few minutes.Vehicles with Advanced TPMS*:
The tire inflation pressure is being
checked.Drive the vehicle for a few minutes.
Tire Pressure MonitorInoperativeThe TPMS or Advanced TPMS* is
malfunctioning.Have the TPMS or Advanced TPMS*
checked by an authorized
Mercedes-Benz Center.
Tire Pressure MonitorInoperative
No Wheel SensorsThere are wheels without appropriate
wheel sensors mounted (e.g. winter
tires).Have the TPMS or Advanced TPMS*
checked by an authorized
Mercedes-Benz Center.
Have appropriate wheel sensors in-
stalled by an authorized Mercedes-Benz
Center.
Tire Pressure Monitor
Wheel Sensor MissingVehicles with Advanced TPMS*:
One or more sensors defect
(e.g. empty sensor battery).
The respective tire is indicated by
---
instead of the tire inflation pressure in
the multifunction display.
Have Advanced TPMS* checked by an
authorized Mercedes-Benz Center.
Have appropriate wheel sensors in-
stalled by an authorized Mercedes-Benz
Center.

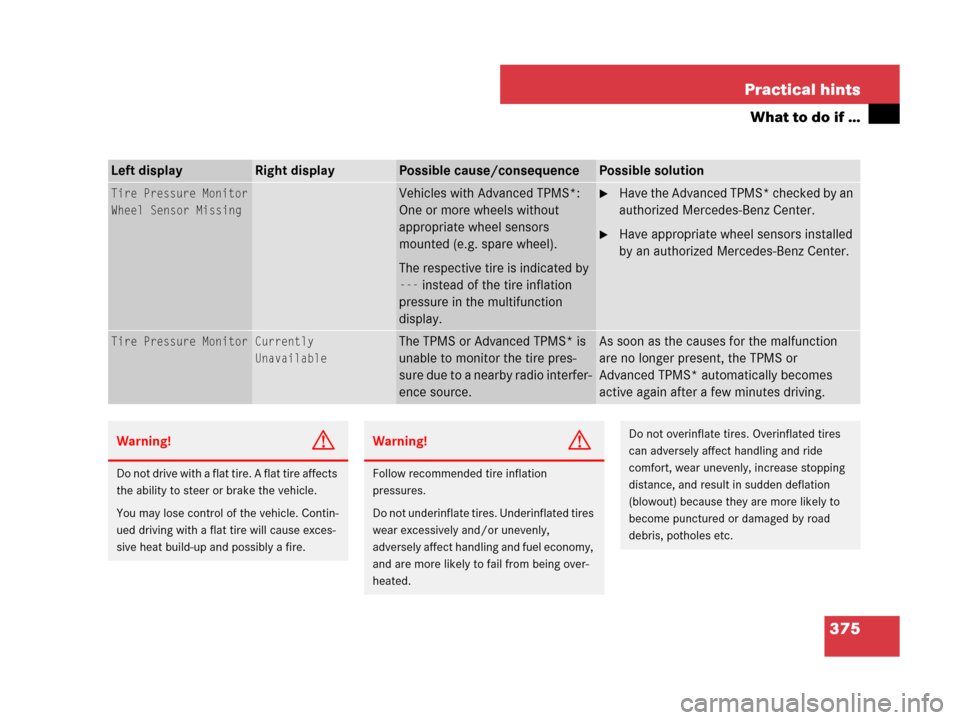

375 Practical hints
What to do if …
Left displayRight displayPossible cause/consequencePossible solution
Tire Pressure Monitor
Wheel Sensor MissingVehicles with Advanced TPMS*:
One or more wheels without
appropriate wheel sensors
mounted (e.g. spare wheel).
The respective tire is indicated by
--- instead of the tire inflation
pressure in the multifunction
display.
Have the Advanced TPMS* checked by an
authorized Mercedes-Benz Center.
Have appropriate wheel sensors installed
by an authorized Mercedes-Benz Center.
Tire Pressure MonitorCurrently
UnavailableThe TPMS or Advanced TPMS* is
unable to monitor the tire pres-
sure due to a nearby radio interfer-
ence source.As soon as the causes for the malfunction
are no longer present, the TPMS or
Advanced TPMS* automatically becomes
active again after a few minutes driving.
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.
Warning!G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.

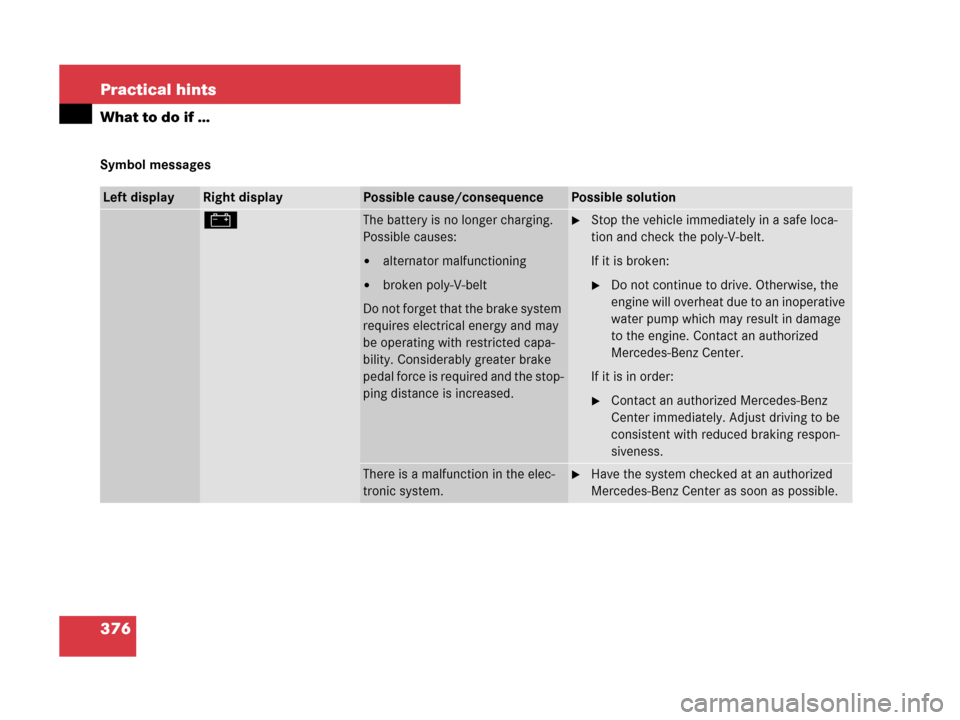

376 Practical hints
What to do if …
Symbol messages
Left displayRight displayPossible cause/consequencePossible solution
# The battery is no longer charging.
Possible causes:

alternator malfunctioning

broken poly-V-belt
Do not forget that the brake system
requires electrical energy and may
be operating with restricted capa-
bility. Considerably greater brake
pedal force is required and the stop-
ping distance is increased.
Stop the vehicle immediately in a safe loca-
tion and check the poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise, the
engine will overheat due to an inoperative
water pump which may result in damage
to the engine. Contact an authorized
Mercedes-Benz Center.
If it is in order:
Contact an authorized Mercedes-Benz
Center immediately. Adjust driving to be
consistent with reduced braking respon-
siveness.
There is a malfunction in the elec-
tronic system.Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.

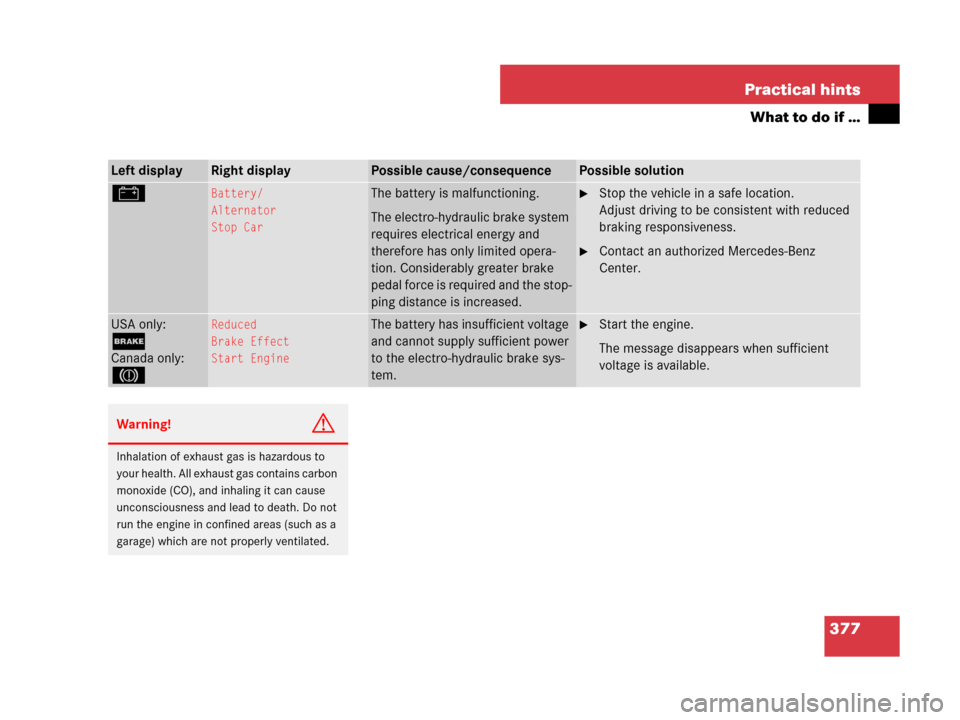

377 Practical hints
What to do if …
Left displayRight displayPossible cause/consequencePossible solution
# Battery/
Alternator
Stop CarThe battery is malfunctioning.
The electro-hydraulic brake system
requires electrical energy and
therefore has only limited opera-
tion. Considerably greater brake
pedal force is required and the stop-
ping distance is increased.Stop the vehicle in a safe location.
Adjust driving to be consistent with reduced
braking responsiveness.
Contact an authorized Mercedes-Benz
Center.
USA only:
;
Canada only:
3
Reduced
Brake Effect
Start EngineThe battery has insufficient voltage
and cannot supply sufficient power
to the electro-hydraulic brake sys-
tem.Start the engine.
The message disappears when sufficient
voltage is available.
Warning!G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause
unconsciousness and lead to death. Do not
run the engine in confined areas (such as a
garage) which are not properly ventilated.

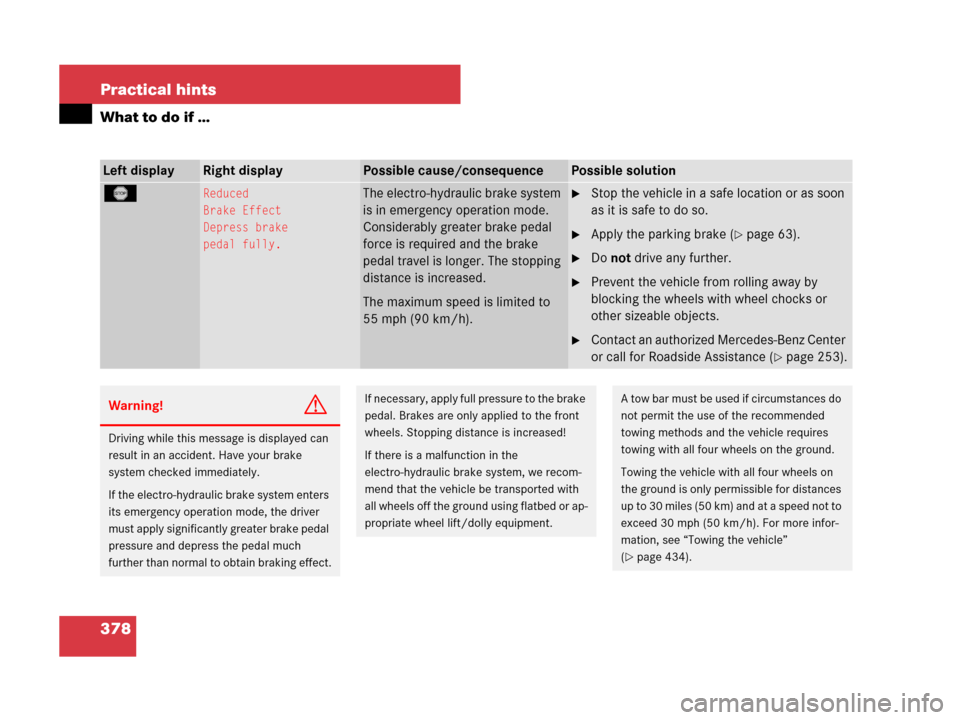

378 Practical hints
What to do if …
Left displayRight displayPossible cause/consequencePossible solution
TReduced
Brake Effect
Depress brake
pedal fully.The electro-hydraulic brake system
is in emergency operation mode.
Considerably greater brake pedal
force is required and the brake
pedal travel is longer. The stopping
distance is increased.
The maximum speed is limited to
55 mph (90 km/h).Stop the vehicle in a safe location or as soon
as it is safe to do so.
Apply the parking brake (page 63).
Do not drive any further.
Prevent the vehicle from rolling away by
blocking the wheels with wheel chocks or
other sizeable objects.
Contact an authorized Mercedes-Benz Center
or call for Roadside Assistance (
page 253).
Warning!G
Driving while this message is displayed can
result in an accident. Have your brake
system checked immediately.
If the electro-hydraulic brake system enters
its emergency operation mode, the driver
must apply significantly greater brake pedal
pressure and depress the pedal much
further than normal to obtain braking effect.
If necessary, apply full pressure to the brake
pedal. Brakes are only applied to the front
wheels. Stopping distance is increased!
If there is a malfunction in the
electro-hydraulic brake system, we recom-
mend that the vehicle be transported with
all wheels off the ground using flatbed or ap-
propriate wheel lift/dolly equipment.A tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
up to 30 miles (50 km) and at a speed not to
exceed 30 mph (50 km/h). For more infor-
mation, see “Towing the vehicle”
(
page 434).

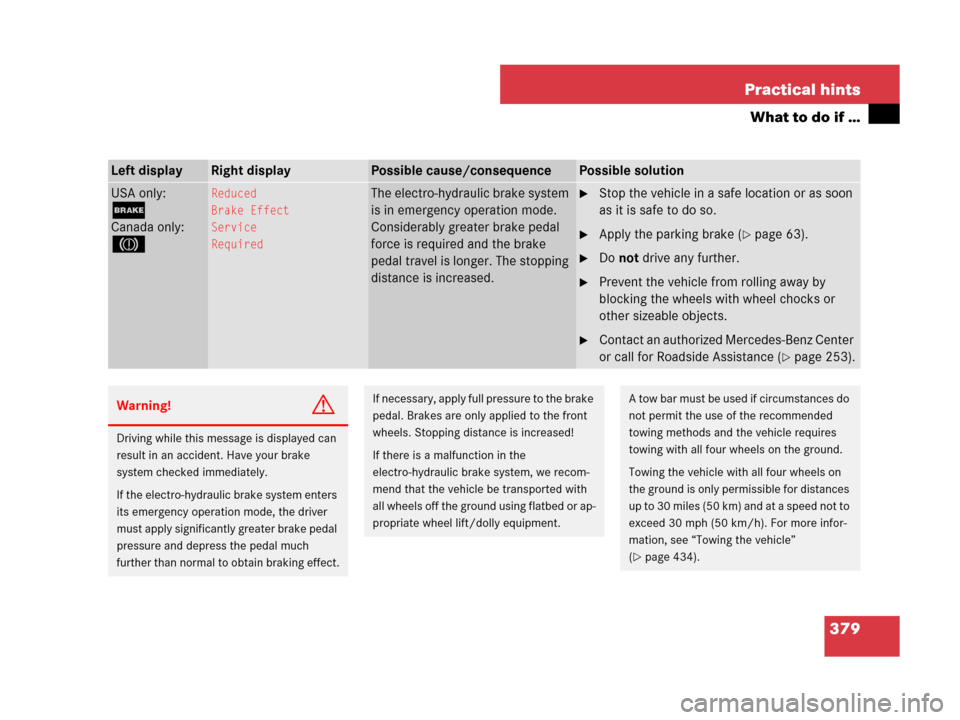

379 Practical hints
What to do if …
Left displayRight displayPossible cause/consequencePossible solution
USA only:
;
Canada only:
3
Reduced
Brake Effect
Service
RequiredThe electro-hydraulic brake system
is in emergency operation mode.
Considerably greater brake pedal
force is required and the brake
pedal travel is longer. The stopping
distance is increased.Stop the vehicle in a safe location or as soon
as it is safe to do so.
Apply the parking brake (page 63).
Do not drive any further.
Prevent the vehicle from rolling away by
blocking the wheels with wheel chocks or
other sizeable objects.
Contact an authorized Mercedes-Benz Center
or call for Roadside Assistance (
page 253).
Warning!G
Driving while this message is displayed can
result in an accident. Have your brake
system checked immediately.
If the electro-hydraulic brake system enters
its emergency operation mode, the driver
must apply significantly greater brake pedal
pressure and depress the pedal much
further than normal to obtain braking effect.
If necessary, apply full pressure to the brake
pedal. Brakes are only applied to the front
wheels. Stopping distance is increased!
If there is a malfunction in the
electro-hydraulic brake system, we recom-
mend that the vehicle be transported with
all wheels off the ground using flatbed or ap-
propriate wheel lift/dolly equipment.A tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
up to 30 miles (50 km) and at a speed not to
exceed 30 mph (50 km/h). For more infor-
mation, see “Towing the vehicle”
(
page 434).
