MERCEDES-BENZ SL65AMG 2008 R230 Workshop Manual

51 Getting started
Driving

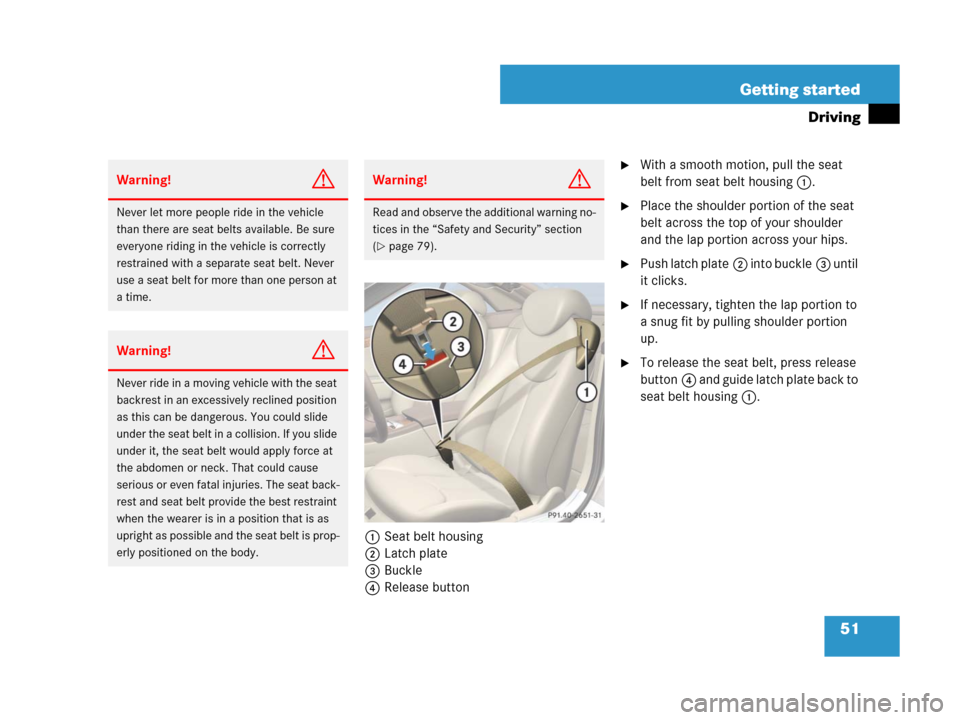

1Seat belt housing
2Latch plate
3Buckle
4Release button
With a smooth motion, pull the seat
belt from seat belt housing1.
Place the shoulder portion of the seat
belt across the top of your shoulder
and the lap portion across your hips.
Push latch plate2 into buckle3 until
it clicks.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
To release the seat belt, press release
button4 and guide latch plate back to
seat belt housing1.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the seat belt would apply force at
the abdomen or neck. That could cause
serious or even fatal injuries. The seat back-
rest and seat belt provide the best restraint
when the wearer is in a position that is as
upright as possible and the seat belt is prop-
erly positioned on the body.
Warning!G
Read and observe the additional warning no-
tices in the “Safety and Security” section
(
page 79).

52 Getting started
Driving
Proper use of seat belts

Do not twist the seat belt when fasten-
ing.

Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the seat belt under
your arm.

Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.

Place the seat backrest in a position
that is as upright as possible.

Never use a seat belt for more than one
person at a time.

Do not fasten a seat belt around a per-
son and another object at the same
time. When using a seat belt to secure
infant restraints, toddler restraints or
children in booster seats, always follow
the child seat manufacturer’s instruc-
tions.

Check your seat belt during travel to
make sure that it is properly
positioned.

Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.
Warning!G
Do not pass seat belts over sharp edges.
They could tear.
Do not allow the seat belt to get caught in
the door or in the seat adjustment
mechanism. This could damage the
seat belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the seat belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or seat belts that were
highly stressed in an accident must be
replaced. Contact an authorized
Mercedes-Benz Center.

53 Getting started
Driving

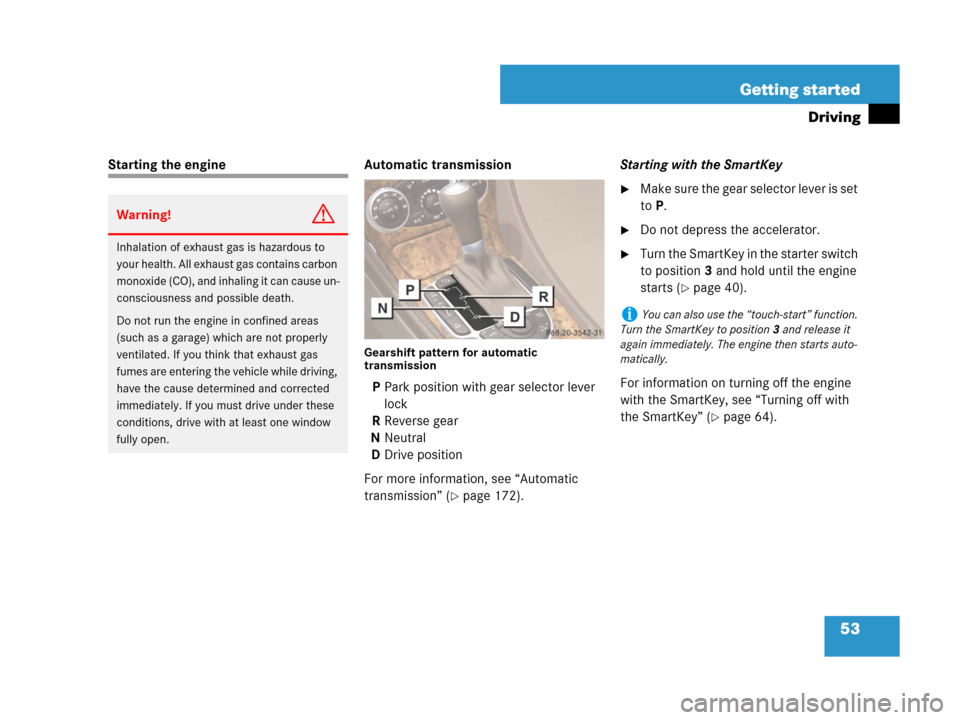

Starting the engine Automatic transmission
Gearshift pattern for automatic
transmission
P Park position with gear selector lever
lock
R Reverse gear
N Neutral
D Drive position
For more information, see “Automatic
transmission” (
page 172).Starting with the SmartKey
Make sure the gear selector lever is set
to P.
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 40).
For information on turning off the engine
with the SmartKey, see “Turning off with
the SmartKey” (
page 64).
Warning!G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open.
iYou can also use the “touch-start” function.
Turn the SmartKey to position3 and release it
again immediately. The engine then starts auto-
matically.

54 Getting started
Driving
Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button on the
gear selector lever.
The SmartKey with KEYLESS-GO must be
located in the vehicle.

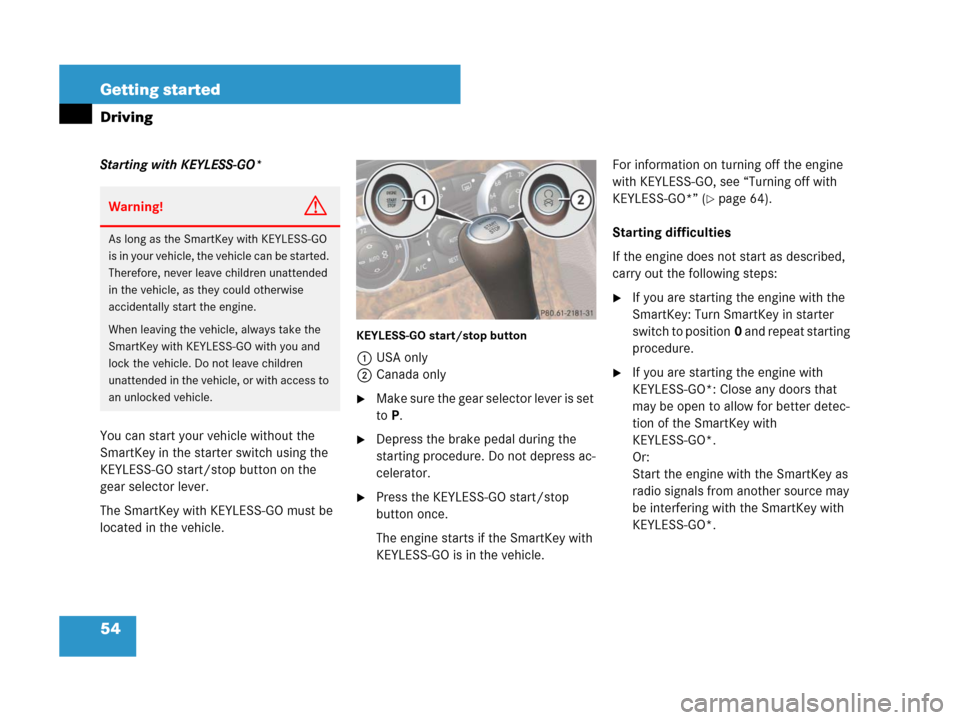

KEYLESS-GO start/stop button
1USA only
2Canada only
Make sure the gear selector lever is set
to P.
Depress the brake pedal during the
starting procedure. Do not depress ac-
celerator.
Press the KEYLESS-GO start/stop
button once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.For information on turning off the engine
with KEYLESS-GO, see “Turning off with
KEYLESS-GO*” (
page 64).
Starting difficulties
If the engine does not start as described,
carry out the following steps:
If you are starting the engine with the
SmartKey: Turn SmartKey in starter
switch to position0 and repeat starting
procedure.
If you are starting the engine with
KEYLESS-GO*: Close any doors that
may be open to allow for better detec-
tion of the SmartKey with
KEYLESS-GO*.
Or:
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO*.
Warning!G
As long as the SmartKey with KEYLESS-GO
is in your vehicle, the vehicle can be started.
Therefore, never leave children unattended
in the vehicle, as they could otherwise
accidentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle.

55 Getting started
Driving
Repeat the starting procedure
(
page 53). Remember that extended
starting attempts can drain the battery.
Get a jump start (page 432).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.
Contact an authorized Mercedes-Benz
Center or call Roadside Assistance.

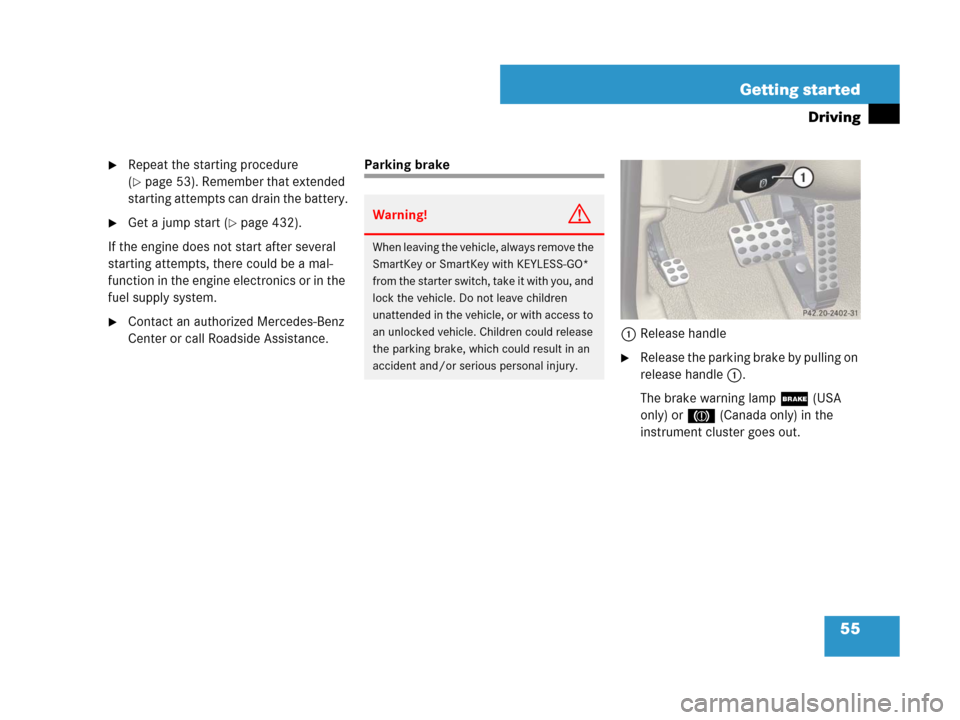

Parking brake
1Release handle
Release the parking brake by pulling on
release handle1.
The brake warning lamp;(USA
only) or3 (Canada only) in the
instrument cluster goes out.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Children could release
the parking brake, which could result in an
accident and/or serious personal injury.

56 Getting started
Driving
Driving off
Depress the brake pedal.
Place the gear selector lever in
positionD orR.
Release the brake pedal.
Carefully depress the accelerator
pedal.After a cold start, the transmission en-
gages at a higher revolution. This allows
the catalytic converter to reach its operat-
ing temperature earlier.
Warning!G
It is dangerous to shift the gear selector le-
ver out ofP orN if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
Warning!G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.
!In order to avoid damage to the
transmission:

Wait for the gear selection process to com-
plete before setting the vehicle in motion.

Place the gear selector lever in positionP
orR only when the vehicle is stopped.
!If you hear a warning signal and the
message
Release Parking Brake appears in
the multifunction display when driving off, you
have forgotten to release the parking brake.
Release the parking brake (
page 55).
iOnce the vehicle is in motion, the automatic
central locking system engages and the locking
knobs drop down.
You can deactivate the automatic locking using
the control system (
page 166).
You can open a locked door from the inside.
Open door only when conditions are safe to do
so.
!Do not run cold engine at high engine speed.
Running a cold engine at high engine speed may
shorten the service life of the engine.
!Simultaneously depressing the accelerator
pedal and applying the brakes reduces engine
performance and causes premature brake and
drivetrain wear.

57 Getting started
Driving
Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.

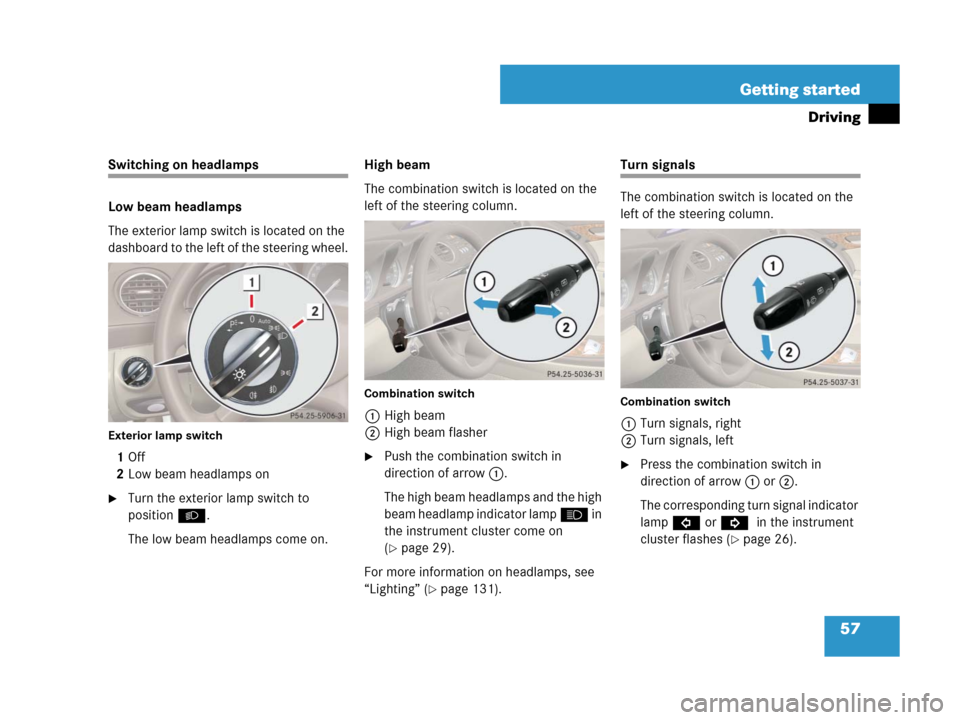

Exterior lamp switch
1Off
2Low beam headlamps on
Turn the exterior lamp switch to
position B.
The low beam headlamps come on.High beam
The combination switch is located on the
left of the steering column.
Combination switch
1High beam
2High beam flasher
Push the combination switch in
direction of arrow 1.
The high beam headlamps and the high
beam headlamp indicator lamp A in
the instrument cluster come on
(
page 29).
For more information on headlamps, see
“Lighting” (
page 131).
Turn signals
The combination switch is located on the
left of the steering column.
Combination switch
1Turn signals, right
2Turn signals, left
Press the combination switch in
direction of arrow1 or2.
The corresponding turn signal indicator
lampLorKin the instrument
cluster flashes (
page 26).

58 Getting started
Driving
The combination switch resets automati-
cally after major steering wheel move-
ments.Windshield wipers
The combination switch is located on the
left of the steering column.
Combination switch
1Switching on windshield wipers
2Single wipe
Wiping with windshield washer fluid
Switch on the ignition (page 40).
iTo signal minor directional changes such as
changing lanes, press combination switch only
to point of resistance and release.
The corresponding turn signals will flash three
times.
!Do not operate the windshield wipers when
the windshield is dry. Dust that accumulates on
a windshield might scratch the glass and/or
damage the wiper blades when wiping occurs on
a dry windshield. If it is necessary to operate the
windshield wipers in dry weather conditions,
always operate the windshield wipers with
windshield washer fluid (
page 60).
!If anything blocks the windshield wipers
(leaves, snow, etc.), switch them off imme-
diately.

For safety reasons, stop the vehicle in a safe
location and

remove the SmartKey from the starter
switch
or

turn off the engine by pressing the
KEYLESS-GO* start/stop button and
open the driver’s door (with the driver’s
door open, the starter switch is in
position 0, same as with the SmartKey
removed from the starter switch)
before attempting to remove any blockage.

Remove blockage.

Turn the windshield wipers on again.

59 Getting started
Driving
Switching on windshield wipers
Turn the combination switch in
direction of arrow 1 to the desired
position, depending on the intensity of
the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speedIntermittent wiping
Only switch on intermittent wiping under
wet weather conditions or in the presence
of precipitation.
Turn the combination switch in
direction of arrow 1 to positionI.
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor.Single wipe
Press the combination switch briefly in
direction of arrow2 (
page 58) to
the resistance point.
The windshield wipers wipe one time
without washer fluid.
If the windshield wipers fail to function at all with
the combination switch in positionI,

set the combination switch to the next
higher wiper speed

have the windshield wipers checked at the
nearest authorized Mercedes-Benz Center
!Do not leave windshield wipers on an inter-
mittent setting when the vehicle is taken to an
automatic car wash or during windshield clean-
ing. Windshield wipers will operate in the pres-
ence of water sprayed on the windshield, and
windshield wipers may be damaged as a result.
!If you have set intermittent wiping, dirt on
the surface of the rain sensor or optical effects
may cause the windshield wipers to wipe in an
undesired fashion. This could then damage the
windshield wiper blades or scratch the wind-
shield. You should therefore switch off the wind-
shield wipers when weather conditions are dry.
iIntermittent wiping is interrupted when the
vehicle is at a standstill and a door is opened.
This protects persons getting into or out of the
vehicle from being sprayed.
Intermittent wiping will be continued when

all doors are closed
and

the gear selector lever is in positionDorR
or

the wiper setting is changed using the
combination switch

60 Getting started
Driving
Wiping with windshield washer fluid
Press the combination switch in
direction of arrow2 (
page 58) past
the resistance point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 289).
Problems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.

The engine electronics may not be
operating properly.

Unburned gasoline may have entered
the catalytic converter and damaged it.
Give very little gas.
Have the problem repaired by an
authorized Mercedes-Benz Center
as soon as possible.The coolant temperature gauge is
above 248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.
Stop the vehicle as soon as possible in
a safe location and turn off the engine.
Allow engine and coolant to cool off.
Check the coolant level and add cool-
ant if necessary (
page 288).
iTo prevent smears on the windshield or
noisy/chattering wiper blades, wipe with wind-
shield washer fluid every now and then even
when it is raining.
