XTurn housing cover:counter-clockwise and
pull it out.
XAt the bulb holder, push the bulb upwards,
disconnect it and pull it out of bulb holder ;.
XInsert the new bulb into bulb holder;at the
top, push it down and secure it in place.
XAttach housing cover :and turn it clockwise
until it engages.
Side marker lamp s(halogen head-
lamps)
Due to their location, have the bulbs in the side
marker lamp changed at aqualified specialist
workshop.
Windshield wipers
Switching the windshield wipers
on/off
!
Do not operate the windshield wipers when
the windshield is dry, as this could damage
the wiper blades. Moreover, dust that has col-
lected on the windshield can scratc hthe glass
if wiping takes place when the windshield is
dry.
If it is necessary to switch on the windshield
wipers in dry weather conditions, alwaysu se
washer fluid when operating the windshield
wipers.
!If the windshield wipers leave smears on the
windshield after the vehicle has been washed
in an automatic car wash, wax or other resi-
dues may be the reason for this. Clean the
windshield using washer fluid after washing
the vehicle in an automatic car wash.
!Intermittent wiping with rain sensor: due to
optical influences and the windshield becom-
ing dirty in dry weather conditions, the wind-
shield wipers may be activated inadvertently.
This could then damage the windshield wiper
blades or scratc hthe windshield.
For this reason, you should alwayss witch off
the windshield wipers in dry weather.
Combination switch
1
$ Windshield wiper off
2ÄIntermittent wipe, low (rain sensor set
to low sensitivity)
3Å Intermittent wipe, high (rain sensor
set to high sensitivity)
4° Continuous wipe, slow
5¯Continuous wipe, fast
BíSingle wipe/î Wipes the wind-
shield using washer fluid
If the wiper blades are worn, the windshield will
no longer be wiped properly. This could prevent
you from observing the traffic conditions.
Replacing the wiper blades
Important safety notes
GWARNING
If the windshield wipers begin to move while
you are changing the wiper blades, you could be trapped by the wiper arm. There is arisk of
injury.
Always switch off the windshield wipers and
ignition before changing the wiper blades.
!To avoid damaging the wiper blades, make
sure that you touch only the wiper arm of the
wiper.
!Never open the hood if awindshield wiper
arm has been folded away from the wind-
shield.
Never fold awindshield wiper arm without a
wiper blade back ontot he windshield.
Hold the windshield wiper arm firmly when
you change the wiper blade. If you release the
windshield wiper arm without awiper blade
Windshield wipers99
Lights and windshield wipers
Z
Page 102 of 294
and it falls onto thewindshield, th ewindshield
may be damage dbytheforce of th eimpact.
Mercedes-Ben zrecommend sthaty ou have
th ew iper blades changed at aqualified spe-
cialis tworkshop.
!Always position th ewindshield wiper arms
vertically before folding them away from the
windshield. By doings o, you will avoid dam-
age to th ehood.
Replacing th ewiper blades
Removing th ewiper blades
XTurn th eSmartKey to position 1or 2in the
ignition lock(Ypage 115).
XSet th ewindshield wiper to position °.
XWhen thewiper arm shave reached th everti-
cal position,t urnt he SmartKey to position 0
and remove it from th eignition lock
(
Ypage 115).
XFol dthe windshield wiper arm saway from the
windshield.
XPres sbothr elease clips ;.
XFoldw iper blade :in th edirection of
arrow =away from wiper arm ?.
XRemovewiper blade :in th edirection of
arrow A.
Installin gthe wiper blades
XPositio nnew wiper blade :with recess B
on lug A.
XFoldw iper blade :in th edirection of
arrow =onto th ewiper arm ,until retaining
clips ;engage in bracket ?.
XMakesure that wiper blade :is seated cor-
rectly.
XFol dthe wiper arm back onto th ewindshield.
100Windshield wipers
Lightsa nd windshield wipers
Page 103 of 294
Problems with the windshield wipers
ProblemPossible causes/consequences andMSolutions
The windshield wipers
are jammed.Leaves or snow, for example, may be obstructing the windshield wiper
movement.The wiper motor has been deactivated.
XFor safety reasons, you should remove the SmartKey from the igni-
tion lock.
or
XSwitch off the engine using the Start/Stop button and open the
driver's door.
XRemove the cause of the obstruction.
XSwitch the windshield wipers back on.
The windshield wipers
fail completely.The windshield wiper drive is malfunctioning.
XSelect another wiper speed on the combination switch.
XHave the windshield wipers checked at aqualified specialist work-
shop.
The windshield washer
fluid from the spray noz-
zles no longer hits the
center of the windshield.The spray nozzles are misaligned.
XHave the spray nozzles adjusted at aqualified specialist workshop.
Windshield wipers101
Lights and windshieldw ipers
Z
Page 104 of 294
Overview of climatecontrol systems
General notes
Observe the settings recommended on the fol-
lowing pages. The windows could otherwise fog
up.
To preventt he windows from fogging up:
Rswitch off climate control only briefly
Rswitch on air-recirculation mode only briefly
Rswitch on the cooling with air dehumidifica-
tion function
Rswitch on the defrost windshield function
briefly, if required
Climate control regulates the temperature and
the humidity in the vehicle interior and filters
undesirable substances out of the air.
Climate control can only be operated when the
engin eisrunning. Optimum operation is only
achieved with the side windows and roof closed.
iWhen the weather is warm, ventilate the
vehicle for abrief period. This will speed up
the cooling process and the desired vehicle
interior temperature will be reached more
quickly.
iThe integrated filter filters out most parti-
cles of dust and soot and completely filters
out pollen. It also reduces gaseous pollutants
and odors. Aclogged filter reduces the
amount of air supplied to the vehicle interior.
For this reason, you should alwayso bserve
the interval for replacing the filter, which is
specified in the Maintenance Booklet. As it
depends on environmental conditions ,e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance Book- let.
102Overview of climatec ontrol systems
Climatecontrol
Page 105 of 294
Air-conditioningsystem controlpanel
Canada only
:
Sets thetem perature (Ypage 108)
;Switches th eresidual heat on or off (Ypage 111)
=Sets theair distribution (Ypage 109)
?Defroststhe windshield (Ypage 109)
ASwitches coolin gwitha ir dehumidification on/off (Ypage 107)
BSwitches air-recirculation mod eon/of f(Ypage 111)
CSets th eairflow (Ypage 109)
DSwitches th erear window defroste ron/of f(Ypage 110)
USAo nly
:
Sets th etem perature (Ypage 108)
;Switches th emaximum coolin gMAXCOOL on or off (Ypage 110)
=Sets theair distribution (Ypage 109)
?Defroststhe windshield (Ypage 109)
Overview of climat econtro lsystems103
Climatec ontrol
Page 106 of 294
ASwitches cooling with airdehumidification on/off (Ypage 107)
BSwitches air-recirculation mod eon/off (Ypage 111)
CSets the airflo w(Ypage 109)
DSwitches the rea rwindow defroste ron/off (Ypage 110)
Notesonu sing the air-conditioning
system
Air-conditioning system
Below,y oucan find anumber of notes and rec-
ommendations to hel pyou uset he air-condi-
tioning system optimally.
RSwitch on cooling with ai rdehumidification
using the ¿button. The indicator lamp in
the ¿ button lights up.
RSet the temperature to 72 ‡(22 †).
RRecommendation for air distributio nin
winter: set theOand¯ settings.
Recommendation for air distributio nin
summer: set thePsetting.
ROnly us ethe "Windshieldd efrosting" function
briefl yuntilthe windshield is clear again.
ROnly us eair-recirculation mod ebriefly, e.g. if
there are unpleasant outsid eodors or when in
at unnel .The window scould otherwise fog up,
since no fres hairis drawn into the vehicl ein
air-recirculation mode.
EC Os tart/stop function
During automatic engine switch-off, the climate
control system only operate satareducedcapa-
city .Ify ourequire ful lclimate control capacity,
the ECO start/stop function can be deactivated by pressing the ECO button (
Ypage 119).
104Overvie wofclimate control systems
Climate control
Page 107 of 294
Control panel for dual-zone automatic climatecontrol
Canad aonly
:
Set sthe temperature, left (Ypage 108)
;Defrostst hewindshield (Ypage 109)
=Switches th eZONE function on/of f(Ypage 109)
?Switches coolingwithair dehumidification on/of f(Ypage 107)
Switches th eresidual heat on or off (
Ypage 111)
ASwitches th erear window defroste ron/off(Ypage 110)
BSet sthe temperature, righ t(Ypage 108)
CSwitches air-recirculation mod eon/off(Ypage 111)
DSet sthe air distribution (Ypage 109)
EIncreases th eairflow (Ypage 109)
FReduces th eairflow (Ypage 109)
GActivates/deactivate sclimate control (Ypage 107)
HSet sclimate control to automatic (Ypage 108)
Overview of climatec ontrol systems105
Climate control
Page 108 of 294
USA only
:
Sets the temperature, left (Ypage 108)
;Defrosts the windshield(Ypage 109)
=Switches the maximum cooling MAX COOL on or off (Ypage 110)
?Switches cooling with air dehumidification on/off (Ypage 107)
ASwitches the rear window defroster on/off (Ypage 110)
BSets the temperature, right (Ypage 108)
CSwitches air-recirculation mode on/off (Ypage 111)
DSets the air distribution (Ypage 109)
EIncreases the airflow (Ypage 109)
FReduces the airflow (Ypage 109)
GActivates/deactivates climate control (Ypage 107)
HSets climate control to automatic (Ypage 108)
Optimumuse of 3-zone automatic cli-
matec ontrol
Climate control system
The following contains instructionsa nd recom-
mendations to enable you to get the most out of
your 3-zonea utomatic climate control.
RActivate climate control using the Ãand
¿ buttons or the Ábutton on the con-
trol panel of the climate control. The indicator
lamps in the Ãand¿ buttons or the
Á button light up.
RSet the temperature to 72 ‡(22 †).
ROnly use the "Windshield defrosting" function
briefly until the windshieldisc lear again.
ROnly use air-recirculation mode briefly,e .g. if
there are unpleasant outside odors or when in
at unnel. The windows could otherwise fog up, since no fresh air is drawn into the vehicle in
air-recirculation mode.
RUse the ZONE function to adopt the temper-
ature settings on the driver's side for the
front-passenger side as well.T
he indicator
lamp in the ábutton goes out.
RUse the residualh eat function if you want to
heat or ventilate the vehicle interior when the
ignition is switched off. The residualh eat
function can only be activated or deactivated with the ignition switched off.
RVehicles with COMAND: if you change the
settings of the climate control system, the
climate status displaya ppears for three sec-
onds at the bottom of the screen in the
COMAND display. You will see the current
settings of the various climate control func-
tions.
106Overview of climatec ontrol systems
Climatecontrol
Page 109 of 294

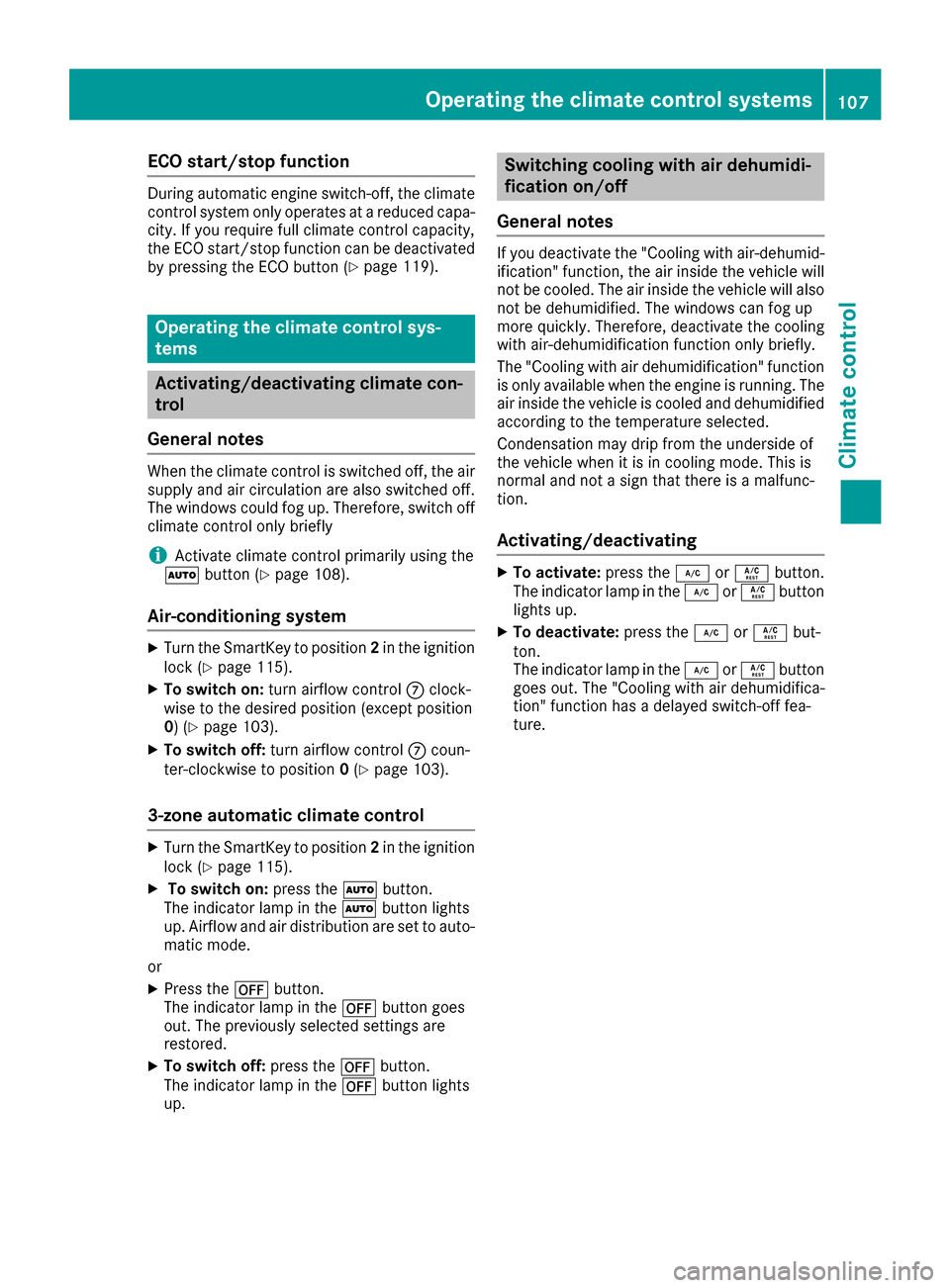

ECO start/stop function
During automatic engine switch-off,the climate
control system only operate satareduced capa-
city. If you require full climate control capacity,
th eE CO start/sto pfunction can be deactivated
by pressingt heECO button (
Ypage 119).
Operating th eclimat econtrol sys-
tems
Activating/deactivatin gclimat econ-
trol
General notes
When th eclimate control is switched off ,the air
supply and air circulation are also switched off.
The windows coul dfog up. Therefore, switch off
climate control only briefly
iActivate climate control primarily usingt he
à button(Ypage 108).
Air-conditioning system
XTurn th eSma rtKey to position 2in th eignition
lock(Ypage 115).
XTo switch on: turna irflow control Cclock-
wise to th edesired position (excep tposition
0)(
Ypage 103).
XTo switch off: turna irflow control Ccoun-
ter-clockwise to position 0(Ypage 103).
3-zone automatic climat econtrol
XTurn th eSma rtKey to position 2in th eignition
lock(Ypage 115).
XTo switch on: pressthe à button.
The indicator lamp in the Ãbutton lights
up. Airflow and air distribution are set to auto-
matic mode.
or
XPress the ^button.
The indicator lamp in the ^button goes
out.T he previously selecte dsettings are
restored.
XTo switch off: pressthe ^ button.
The indicator lamp in the ^button lights
up.
Switching cooling with air dehumidi-
fication on/off
General notes
If you deactivate th e"Coolingw ith air-dehumid-
ification" function,t heair inside th evehicle will
no tbec ooled. The air inside th evehicle will also
no tbed ehumidified. The windows can fog up
mor equickly. Therefore, deactivate th ecooling
with air-dehumidification function only briefly.
The "Coolingw ith air dehumidification"f unction
is only availabl ewhen th eengine is running. The
air inside th evehicle is cooled and dehumidified
according to th etem peratur eselected.
Condensation may drip from th eundersid eof
th ev ehicle when it is in cooling mode. This is
normal and no tasign that there is amalfunc-
tion.
Activating/deactivating
XTo activate: pressthe ¿ orÁ button.
The indicator lamp in the ¿orÁ button
lightsu p.
XTo deactivate: pressthe ¿ orÁ but-
ton.
The indicator lamp in the ¿orÁ button
goes out.T he "Coolingw ith air dehumidifica-
tion" function has adelayed switch-off fea-
ture.
Operating th eclimate control systems107
Climate control
Page 110 of 294
Problems with the "Cooling with air dehumidification" function
ProblemPossible causes/consequences andMSolutions
The indicator lamp in the
¿orÁ button
flashes three times or
remains off. The "Cool-
ing with air dehumidifi-
cation" function cannot
be switched on.Cooling with air dehumidification has been deactivated due to amal-
function.
XVisit aqualified specialist workshop.
Setting climate control to automatic
General notes
Automatic mode is only available with dual-zone
automatic air conditioning.
In automatic mode, the set temperature is main-
tained automatically at aconstant level. The
system automatically regulates the temperature
of the dispensed air, the airflow and the air dis-
tribution.
The automatic mode functions optimally when
the "Cooling with air dehumidification" function
is activated. If necessary, cooling with air dehu-
midification can be deactivated.
If you deactivate the "Cooling with air-dehumid- ification" function, the air inside the vehicle will
not be cooled. The air inside the vehicle will also
not be dehumidified.T he windows can fog up
more quickly. Therefore, deactivate the cooling
with air-dehumidification function only briefly.
Automatic control
XTurn the SmartKey to position 2in the ignition
lock (Ypage 115).
XSet the desired temperature.
XTo activate: press theÃbutton.
The indicator lamp in the Ãbutton lights
up. Automatic air distribution and airflow are
activated.
XTo switch to manualm ode:press the _
button.
or
XPress the IorK button.
The indicator lamp in the Ãbutton goes
out.
Setting the temperature
Air-conditioning system
XTurn the SmartKey to position 2in the ignition
lock (Ypage 115).
XTo increase or reduce: turn control:
clockwise or counter-clockwise (Ypage 103).
Only change the temperature settingins mall
increments. Start at 72 ‡(22 †).
iIf you turn control :counter-clockwise to
the lowest temperature setting, air-recircula-
tion mode may activate automatically,
depending on the outside temperature.
3-zone automatic climate control
Differentt emperatures can be set for the driv-
er's and front-passenger sides.
XTurn the SmartKey to position 2in the ignition
lock (Ypage 115).
XTo increase or decrease: turn control:or
B clockwise or counter-clockwise
(
Ypage 105).
Only change the temperature settingins mall
increments. Start at 72 ‡(22 †).
iIf you turn controls :and Bcounter-
clockwise to the lowest temperature setting,
air-recirculation mode may activate automat-
ically, depending on the outside temperature.
108Operating the climate control systems
Climatec ontrol
