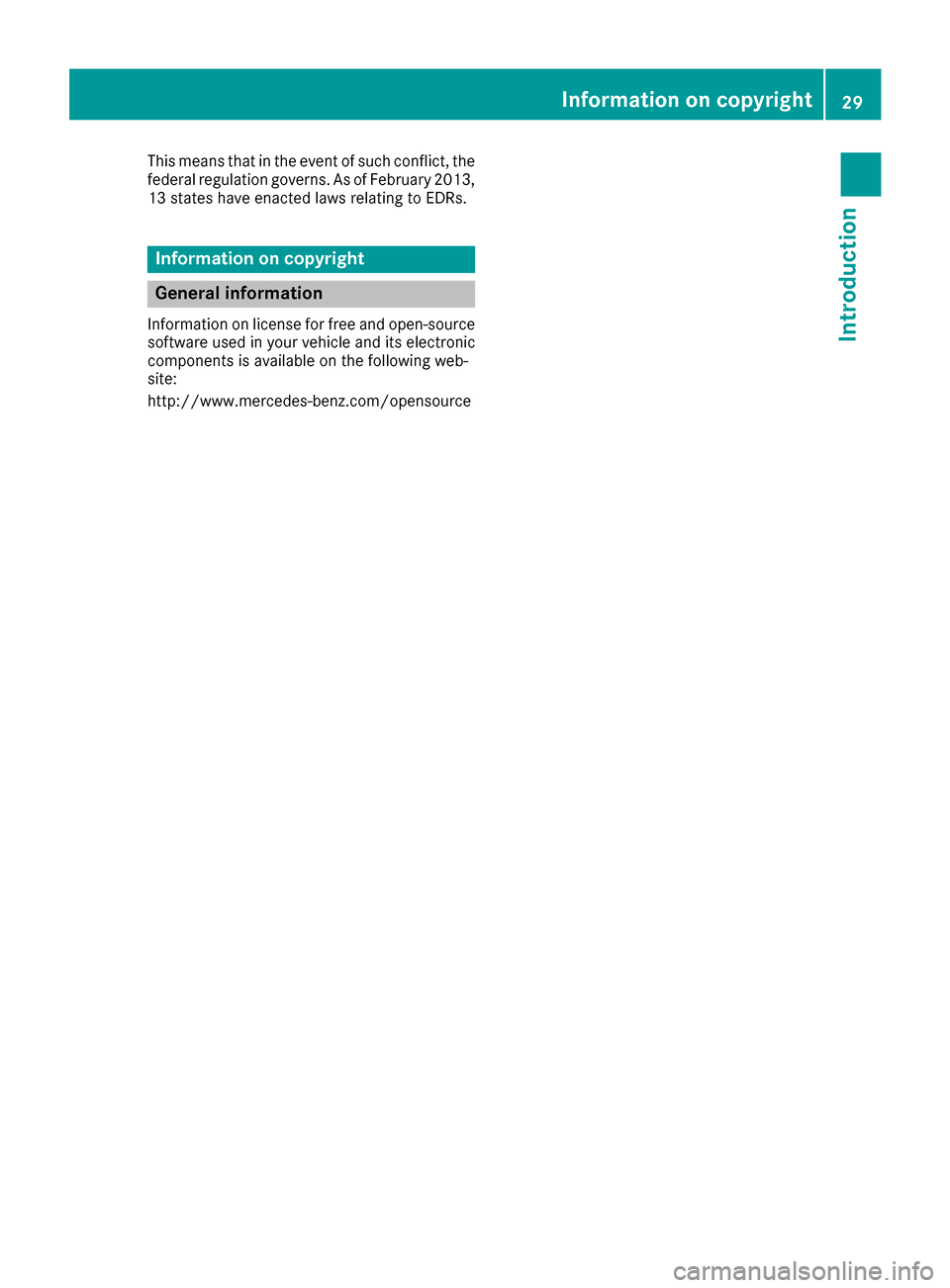

This means that in the event of such conflict, the
federal regulation governs.AsofFebruary 2013,
13 states have enacted laws relating to EDRs.
Information on copyright
General information
Information on license for free and open-source
software used in your vehicle and its electronic
components is availableont he following web-
site:
http://www.mercedes-benz.com/opensource
Information on copyright29
Introduction
Z
Page 32 of 294

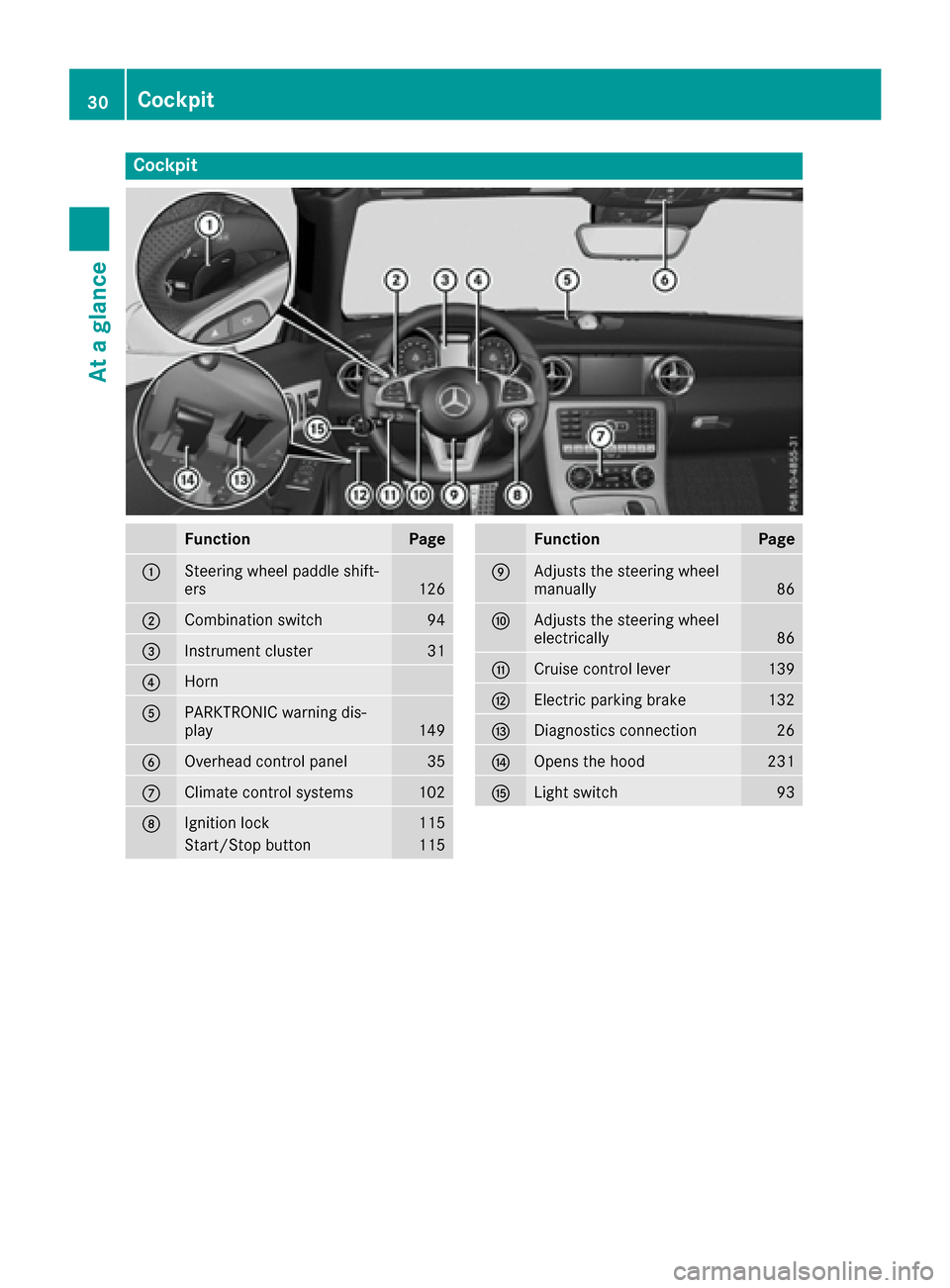

Cockpit
FunctionPage
:Steering wheel paddle shift-
ers126
;Combination switch94
=Instrumentcluster31
?Horn
APARKTRONIC warning dis-
play149
BOverhead control panel35
CClimatecontrol systems102
DIgnition lock115
Start/Sto pbutton115
FunctionPage
EAdjusts th esteering wheel
manually86
FAdjusts th esteering wheel
electrically86
GCruis econtrol lever139
HElectric parking brake132
IDiagnostics connection26
JOpenst hehood231
KLights witch93
30Cockpit
Atag lance
Page 33 of 294

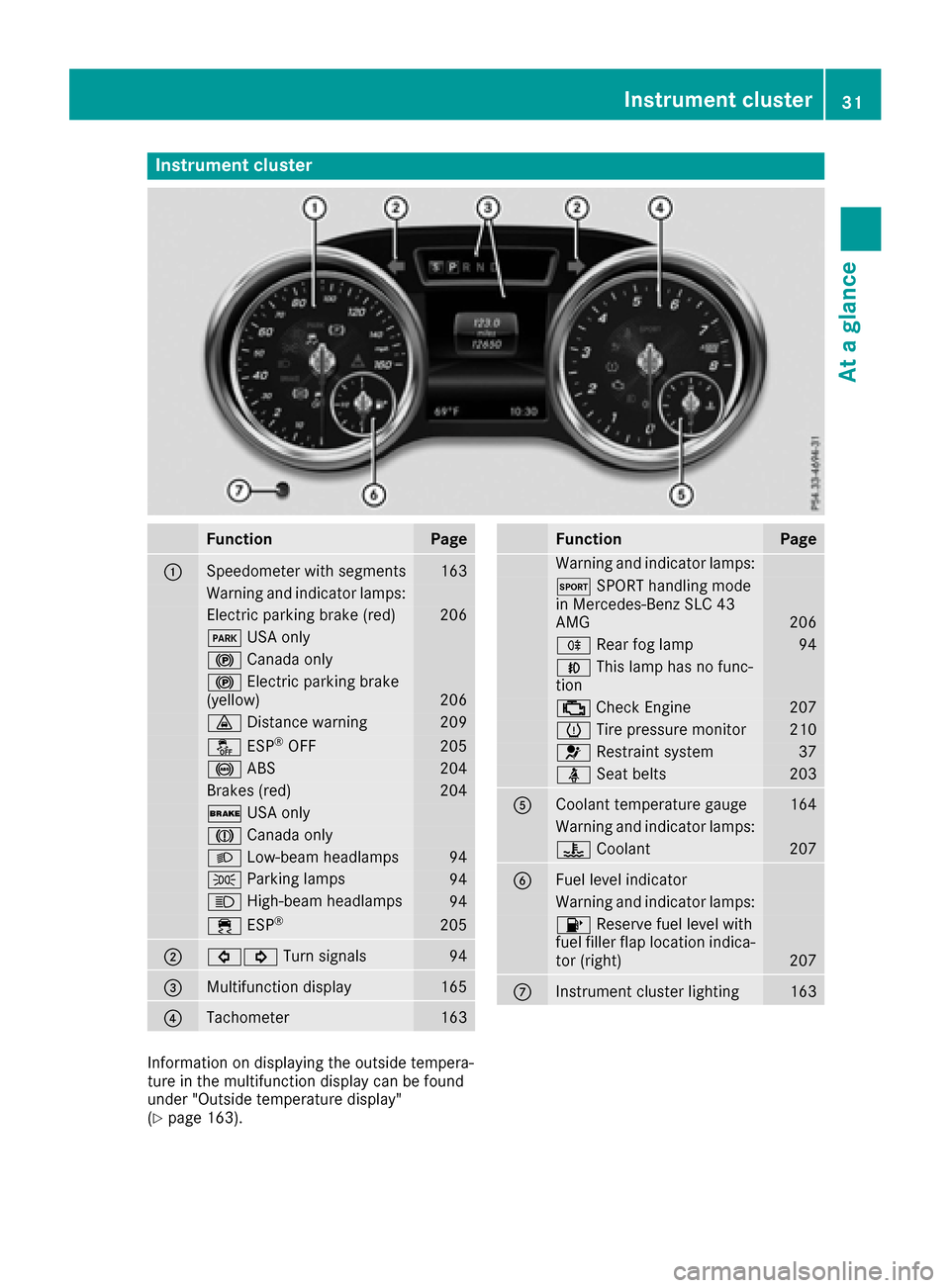

Instrumentcluster
FunctionPag e
:Speedometer wit hsegments163
Warning and indicator lamps:
Electric parking brak e(red)20 6
F USAo nly
! Canad aonly
! Electric parking brak e
(yellow)20 6
· Distanc ewarning209
å ESP®OF F205
! ABS204
Brake s(red)20 4
$ USAo nly
J Canad aonly
L Low-beam headlamps94
TParking lamp s94
KHigh-beam headlamps94
÷ESP®20 5
;#! Turn signals94
=Multifunction display165
?Tachometer163
FunctionPag e
Warning and indicator lamps:
M SPORT handlin gmode
in Mercedes-Ben zSLC 43
AM G
206
R Rear fog lamp94
NThis lamp has no func-
tion
; CheckEngine20 7
h Tirep ressur emonitor210
6 Restrain tsystem37
ü Seat belt s203
ACoolan ttem perature gauge164
Warning and indicator lamps:
? Coolan t207
BFue llevel indicator
Warning and indicator lamps:
8 Reserve fuel level wit h
fuel filler flap location indica-
to r( right )
207
CInstrumen tcluste rlighting16 3
Information on displayin gthe outside tempera-
tur eint hemultifunction display can be foun d
under "Outside temperature display"
(
Ypage 163).
Instrument cluster31
At ag lance
Page 34 of 294

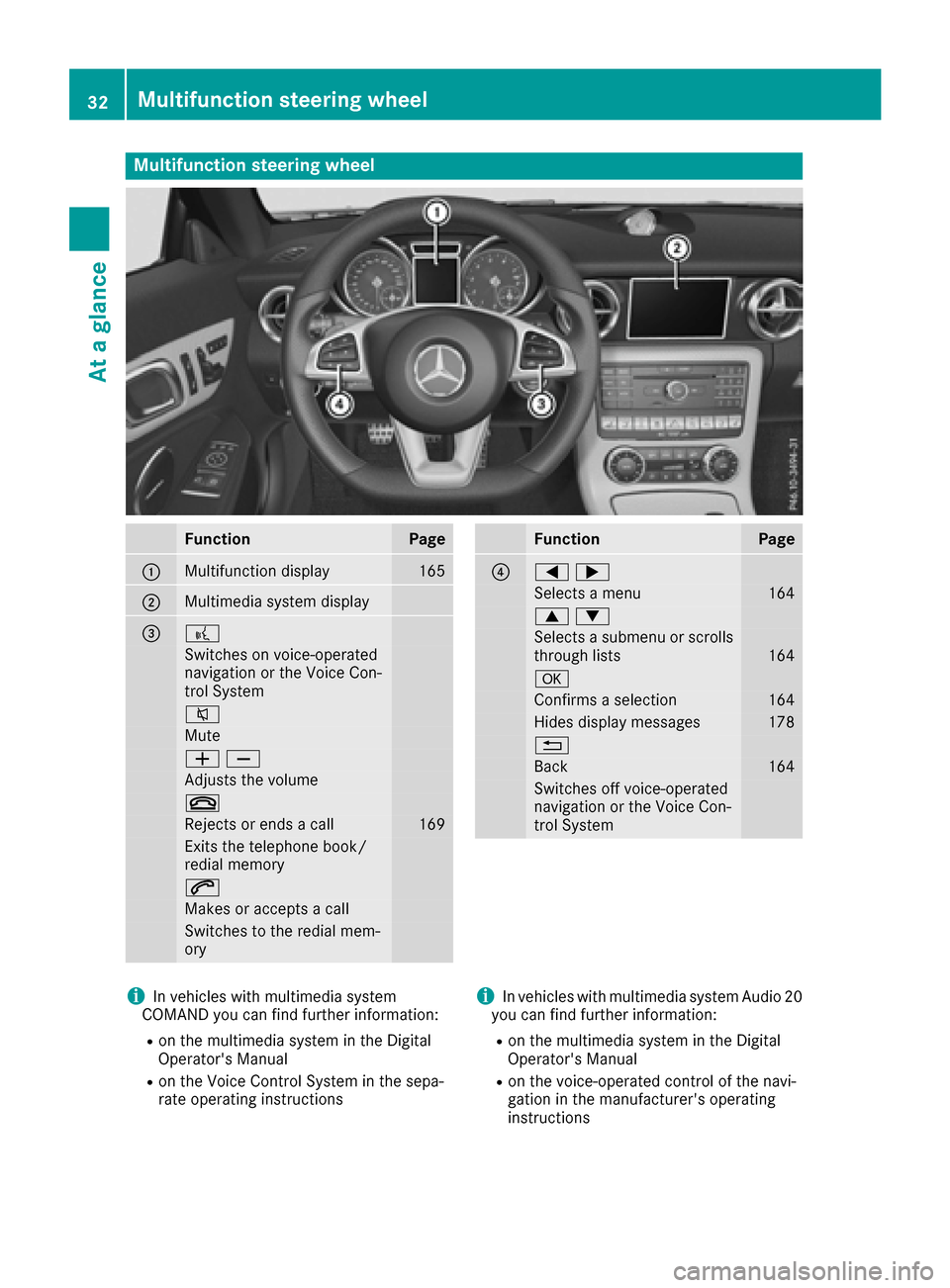

Multifunction steering wheel
FunctionPage
:Multifunction display165
;Multimediasystem display
=?
Switches on voice-operated
navigation or the Voice Con-
trol System
8
Mute
WX
Adjusts the volume
~
Rejects or end sacall169
Exits the telephone book/
redia lmemory
6
Makes or accepts acall
Switchestot he redialmem-
ory
FunctionPage
?=;
Selects amenu164
9:
Selects asubmenu or scrolls
through lists164
a
Confirm saselection164
Hides display messages178
%
Back164
Switches off voice-operated
navigation or the Voice Con-
trol System
iIn vehicles with multimedi asystem
COMAND yo ucan find further information:
Ron the multimedi asystem in the Digital
Operator's Manual
Ron the Voice Control System in the sepa-
rate operating instructions
iIn vehicles with multimedi asystem Audio 20
yo uc an find further information:
Ron the multimedi asystem in the Digital
Operator's Manual
Ron the voice-operated control of the navi-
gation in the manufacturer' soperating
instructions
32Multifunctions teering wheel
Atag lance
Page 35 of 294

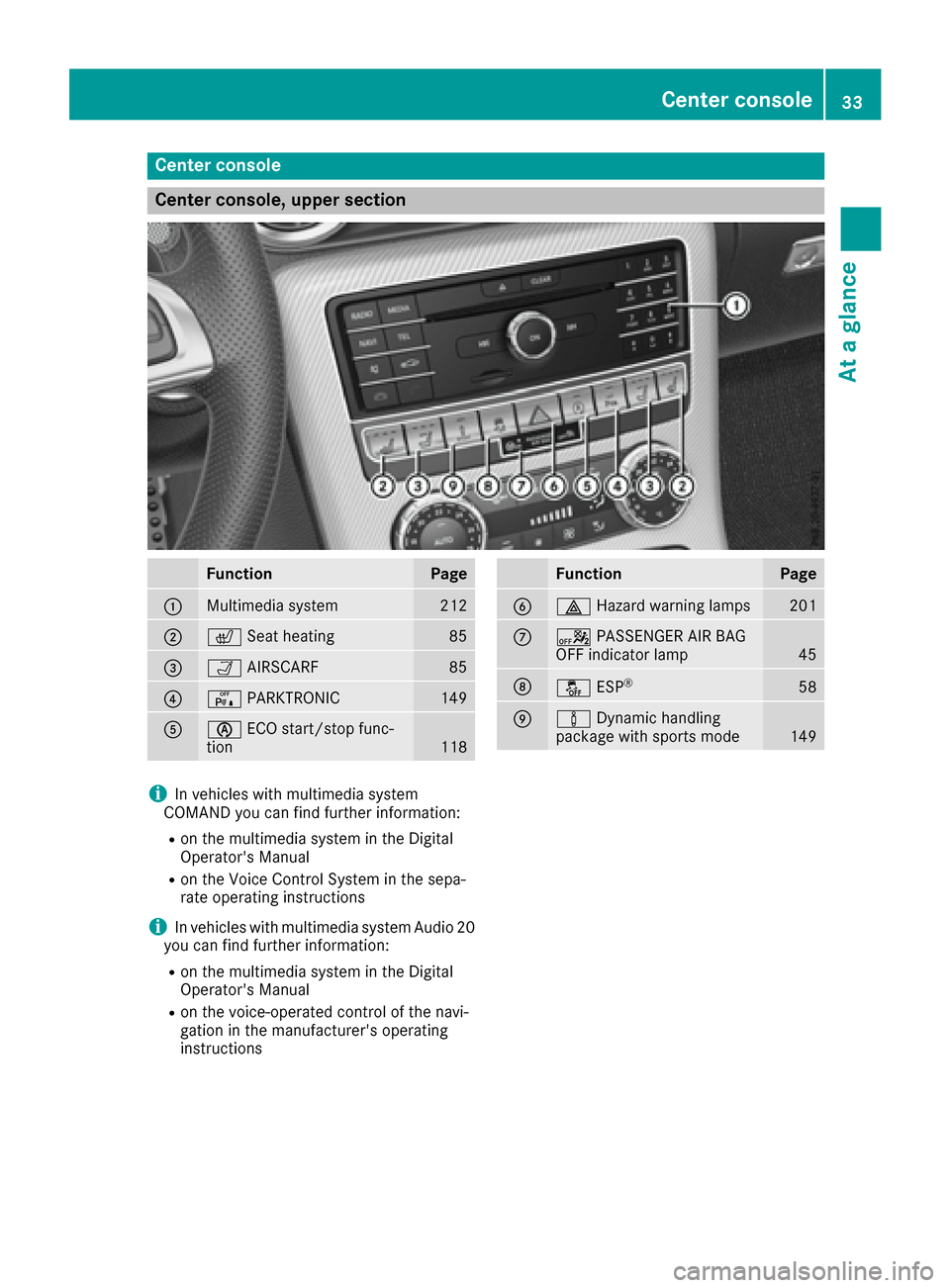

Center console
Center console, upper section
FunctionPage
:Multimedia system212
;cSeat heating85
=ÒAIRSCARF85
?cPARKTRONIC149
AèECO start/sto pfunc-
tion118
FunctionPage
B£ Hazard warning lamps201
CaPASSENGER AI RBAG
OFFi ndicator lamp45
Då ESP®58
EàDynamic handling
package withs ports mode149
iIn vehicleswithm ultimedia system
COMAND you can fin dfurther information:
Ron th emultimedia system in th eDigital
Operator's Manual
Ron th eVoiceC ontrol Syste minthesepa-
rat eo peratin ginstructions
iIn vehicle swithm ultimedia system Audi o20
you can fin dfurther information:
Ron th emultimedia system in th eDigital
Operator's Manual
Ron th evoice-operate dcontrol of th enavi-
gation in th emanufacturer'so perating
instructions
Center console33
At ag lance
Page 36 of 294

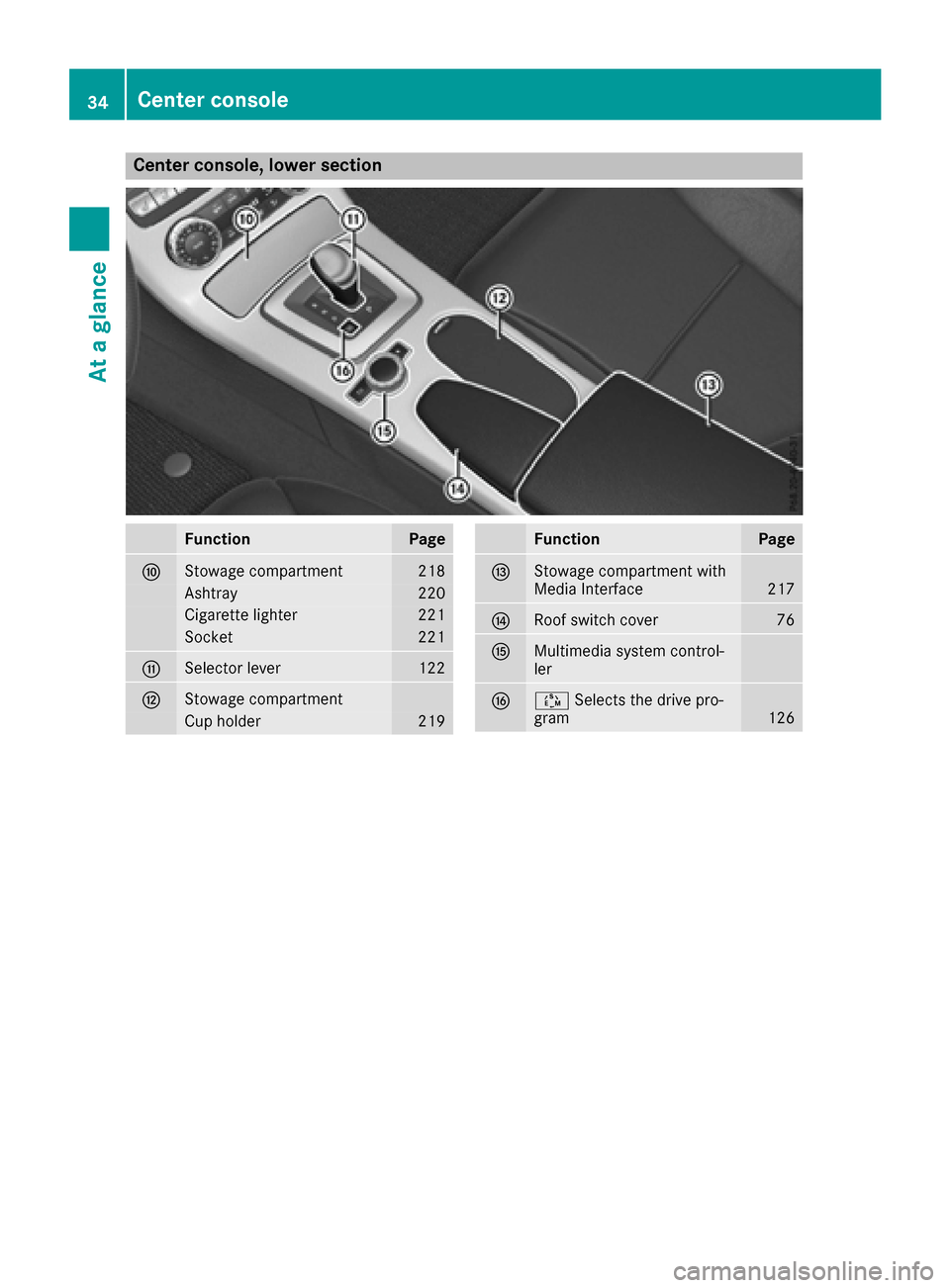

Center console, lower section
FunctionPage
FStowage compartment218
Ashtray220
Cigarettelighter221
Socket221
GSelector lever122
HStowage compartment
Cup holder219
FunctionPage
IStowage compartmen twith
Media Interface217
JRoof switch cover76
KMultimedia system control-
ler
LÚ Select sthe driv epro-
gram126
34Center console
At ag lance
Page 37 of 294

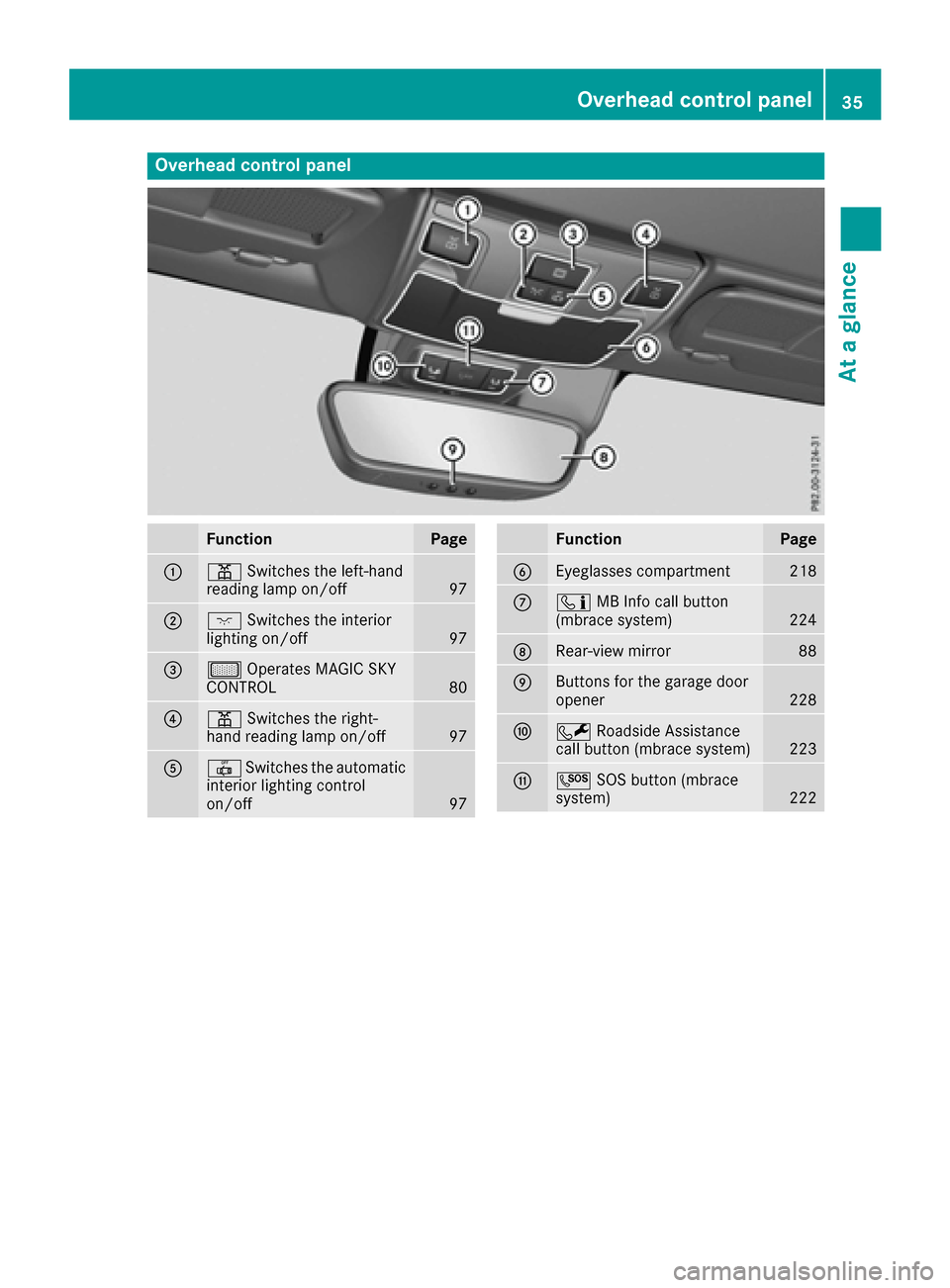

Overheadcontrol panel
FunctionPage
:p Switches the left-hand
reading lamp on/off97
;c Switches the interior
lighting on/off97
=µ Operates MAGIC SKY
CONTROL80
?p Switches the right-
hand reading lamp on/off97
A| Switches the automatic
interior lighting control
on/off
97
FunctionPage
BEyeglasses compartment218
Cï MB Inf ocall button
(mbrace system)224
DRear-view mirror88
EButtons for the garage door
opener228
FF Roadside Assistance
call button (mbrace system)223
GG SOS button (mbrace
system)222
Overhea dcontrol panel35
Atag lance
Page 38 of 294

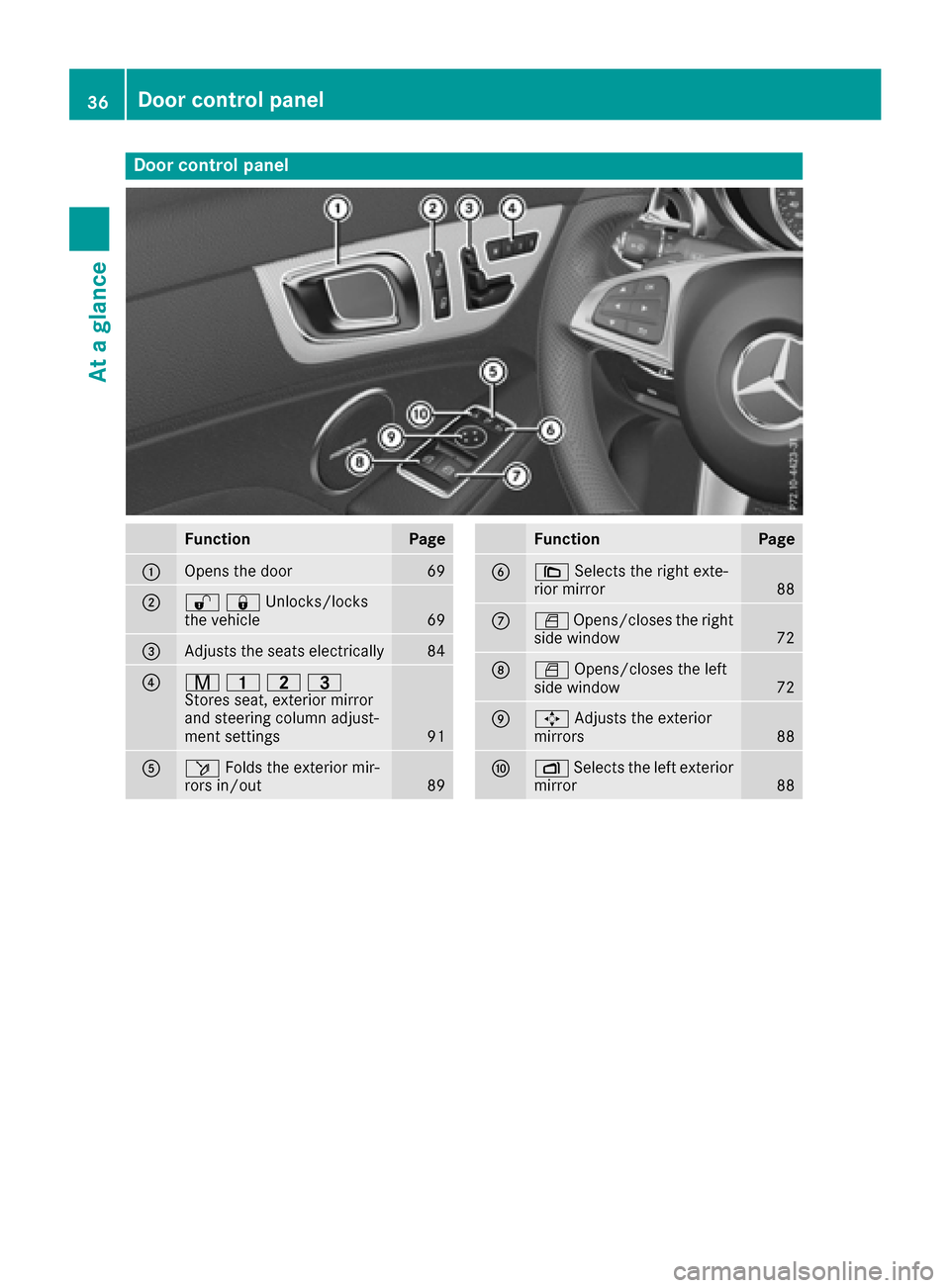

Door controlpanel
FunctionPage
:Opens th edoor69
;%&Unlocks/locks
the vehicle69
=Adjusts the seats electrically84
?r 45=
Stores seat, exterior mirror
and steering column adjust-
ment settings
91
Aö Folds the exterior mir-
rors in/out89
FunctionPage
B\ Selects the right exte-
rio rm irror88
CW Opens/closes the right
sid ew indow72
DW Opens/closes the left
sid ew indow72
E7 Adjusts the exterior
mirrors88
FZ Selects the left exterior
mirror88
36Door control panel
At ag lance

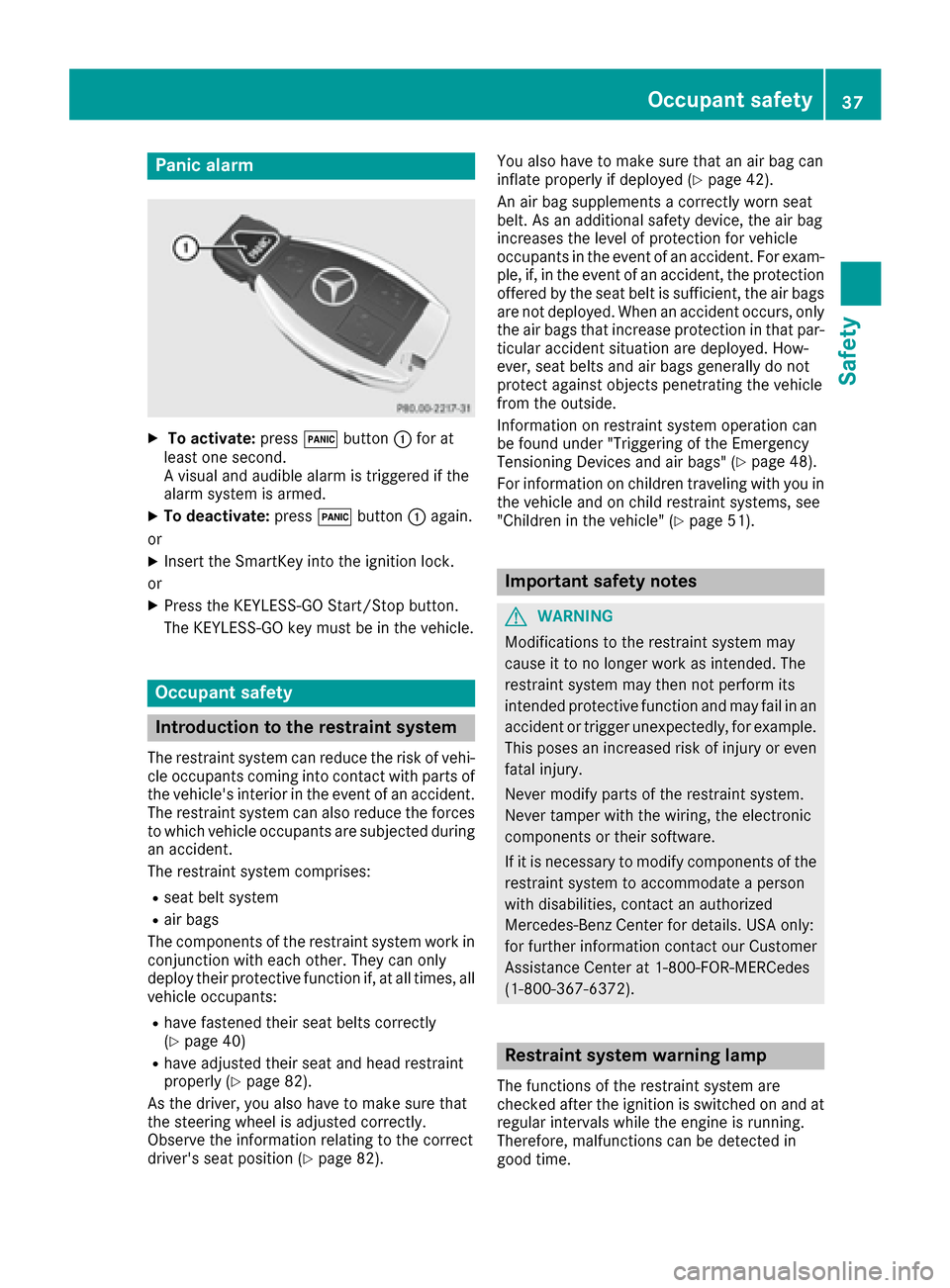

Page 39 of 294
Panic alarm
XTo activate:press!button :for at
least one second.
Av isual and audible alarm is triggered if the
alarm system is armed.
XTo deactivate: press!button :again.
or
XInsert the SmartKey into the ignition lock.
or
XPress the KEYLESS-GO Start/Stop button.
The KEYLESS-GO key must be in the vehicle.
Occupant safety
Introduction to the restraint system
The restraint system can reduce the risk of vehi- cle occupants coming into contact with parts of
the vehicle's interior in the event of an accident.
The restraint system can also reduce the forces to which vehicle occupants are subjected during
an accident.
The restraint system comprises:
Rseat belt system
Rair bags
The components of the restraint system work in
conjunction with each other. They can only
deploy their protective function if, at all times, all vehicle occupants:
Rhave fastened their seat belts correctly
(Ypage 40)
Rhave adjusted their seat and head restraint
properly (Ypage 82).
As the driver, you also have to make sure that
the steering wheel is adjusted correctly.
Observe the information relating to the correct
driver's seat position (
Ypage 82). You also have to make sure that an air bag can
inflate properly if deploye
d(
Ypage 42).
An air bag supplements acorrectly worn seat
belt. As an additional safety device, the air bag
increases the level of protection for vehicle
occupants in the event of an accident. For exam-
ple, if, in the event of an accident, the protection
offered by the seat belt is sufficient, the air bags
are not deployed. When an accident occurs, only
the air bags that increase protection in that par- ticular accident situation are deployed. How-
ever, seat belts and air bags generally do not
protect against object spenetrating the vehicle
from the outside.
Information on restraint system operation can
be found under "Triggering of the Emergency
Tensioning Devices and air bags" (
Ypage 48).
For information on children traveling with you in
the vehicle and on child restraint systems, see
"Children in the vehicle" (
Ypage 51).
Important safety notes
GWARNING
Modifications to the restraint system may
cause it to no longer work as intended. The
restraint system may then not perform its
intended protective function and may fail in an
accident or trigger unexpectedly, for example.
This poses an increased risk of injury or even fatal injury.
Never modify parts of the restraint system.
Never tamper with the wiring, the electronic
components or their software.
If it is necessary to modify components of the
restraint system to accommodate aperson
with disabilities, contact an authorized
Mercedes-Benz Center for details. USA only:
for further information contact our Customer
AssistanceC enter at 1-800-FOR-MERCedes
(1‑800‑36 7‑6372).
Restraint system warning lamp
The functions of the restraint system are
checked after the ignition is switched on and at
regular intervals while the engine is running.
Therefore, malfunction scan be detected in
good time.
Occupant safety37
Safety
Z

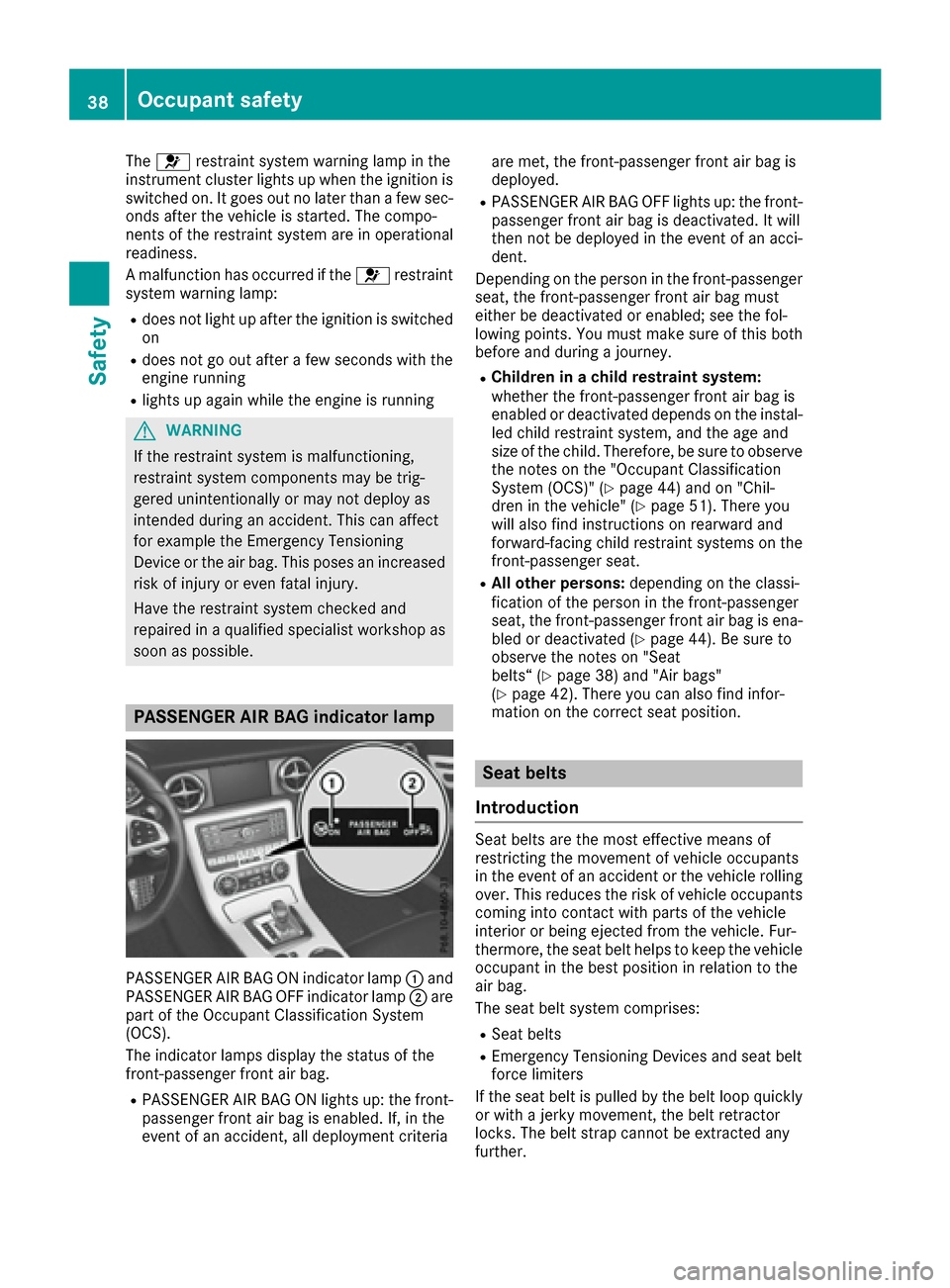

Page 40 of 294
The6 restraint system warning lamp in the
instrument cluster lights up when the ignition is
switched on. It goes out no later than afew sec-
onds after the vehicle is started. The compo-
nentsoft he restraint system are in operational
readiness.
Am alfunction has occurred if the 6restraint
system warning lamp:
Rdoes not light up after the ignition is switched
on
Rdoes not go out after afew seconds with the
engine running
Rlights up again while the engine is running
GWARNING
If the restraint system is malfunctioning,
restraint system components may be trig-
gered unintentionally or may not deploy as
intended during an accident .This can affect
for example the Emergency Tensioning
Device or the air bag. This poses an increased
risk of injury or even fatal injury.
Have the restraint system checked and
repaired in aqualified specialist workshop as
soon as possible.
PASSENGER AIR BAG indicator lamp
PASSENGER AIR BAG ON indicator lamp :and
PASSENGER AIR BAG OFF indicator lamp ;are
part of the Occupant Classification System
(OCS).
The indicator lamps display the status of the
front-passenger front air bag.
RPASSENGER AIR BAG ON lights up: the front-
passenger front air bag is enabled. If, in the
event of an accident ,all deployment criteria are met, the front-passenger front air bag is
deployed.
RPASSENGER AIR BAG OFF lights up: the front-
passenger front air bag is deactivated. It will
then not be deployed in the event of an acci-
dent.
Dependin gonthe person in the front-passenger
seat, the front-passenger front air bag must
either be deactivated or enabled; see the fol-
lowing points. You must make sure of this both
before and during ajourney.
RChildren in achild restraint system:
whether the front-passenger front air bag is
enabled or deactivated depends on the instal-
led child restraint system, and the age and
size of the child. Therefore, be sure to observe
the notes on the "Occupant Classification
System (OCS)" (
Ypage 44) and on "Chil-
dren in the vehicle" (Ypage 51). There you
will also find instructions on rearward and
forward-facing child restraint systems on the
front-passenger seat.
RAll other persons: depending on the classi-
fication of the person in the front-passenger
seat, the front-passenger front air bag is ena-
bled or deactivated (
Ypage 44). Be sure to
observe the notes on "Seat
belts“ (
Ypage 38) and "Air bags"
(Ypage 42). There you can also find infor-
mation on the corrects eat position.
Seat belts
Introduction
Seat belts are the most effective means of
restrictingt he movementofv ehicle occupants
in the event of an accident or the vehicle rolling
over. This reduces the risk of vehicle occupants
coming into contact with parts of the vehicle
interior or being ejected from the vehicle. Fur-
thermore, the seat belt helps to keep the vehicle
occupant in the best position in relation to the
air bag.
The seat belt system comprises:
RSeat belts
REmergency Tensionin gDevices and seat belt
force limiters
If the seat belt is pulled by the belt loop quickly
or with ajerk ym ovement, the belt retractor
locks. The belt strap cannot be extracted any
further.
38Occupant safety
Safety
