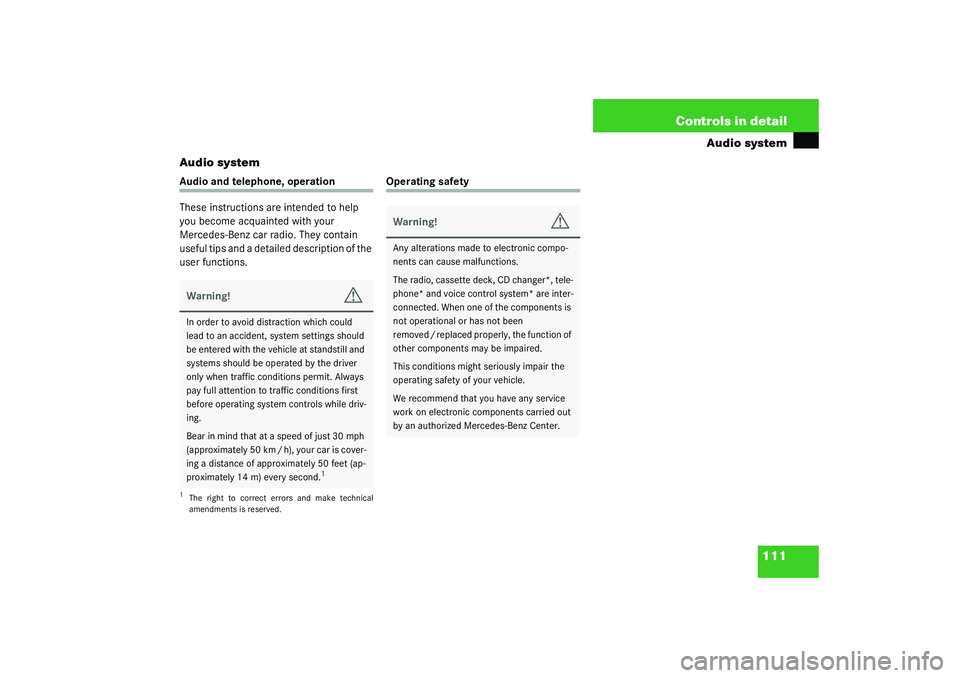

Page 111 of 304

MERCEDES-BENZ SLK CLASS 2003  Owners Manual 111 Controls in detail
Audio system
Audio system
Audio and telephone, operation
These instructions are intended to help
you become acquainted with your
Mercedes-Benz car radio. They contain
useful

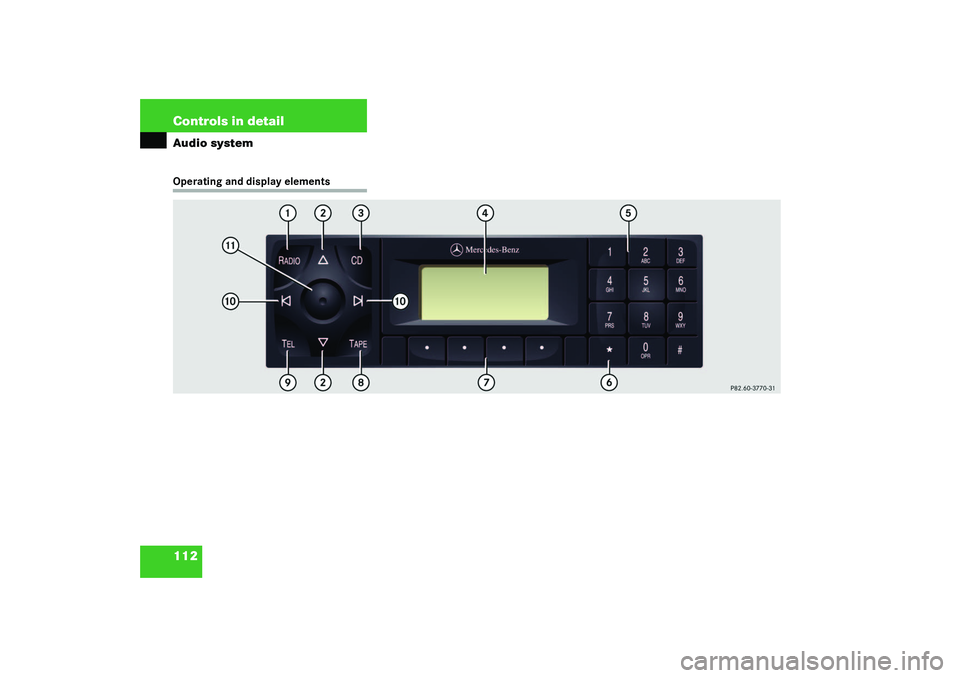

Page 112 of 304

MERCEDES-BENZ SLK CLASS 2003  Owners Manual 112 Controls in detailAudio systemOperating and display elements

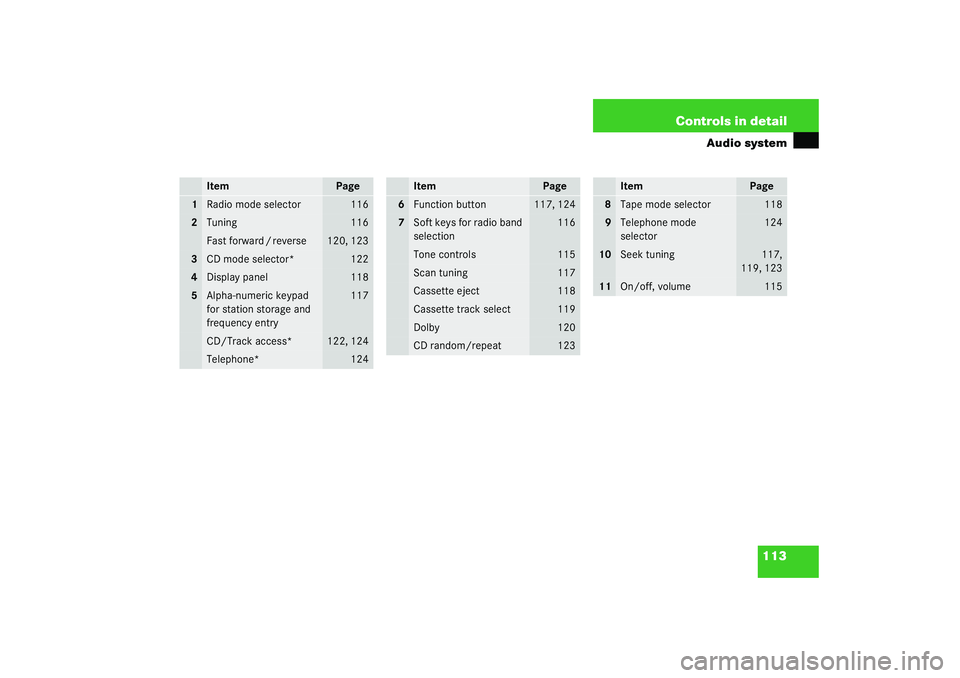

Page 113 of 304

MERCEDES-BENZ SLK CLASS 2003  Owners Manual 113 Controls in detail
Audio system
Item
Page
1
Radio mode selector
116
2
Tuning
116
Fast forward / reverse
120, 123
3
CD mode selector*
122
4
Display panel
118
5
Alpha-numeric keypad
for station sto

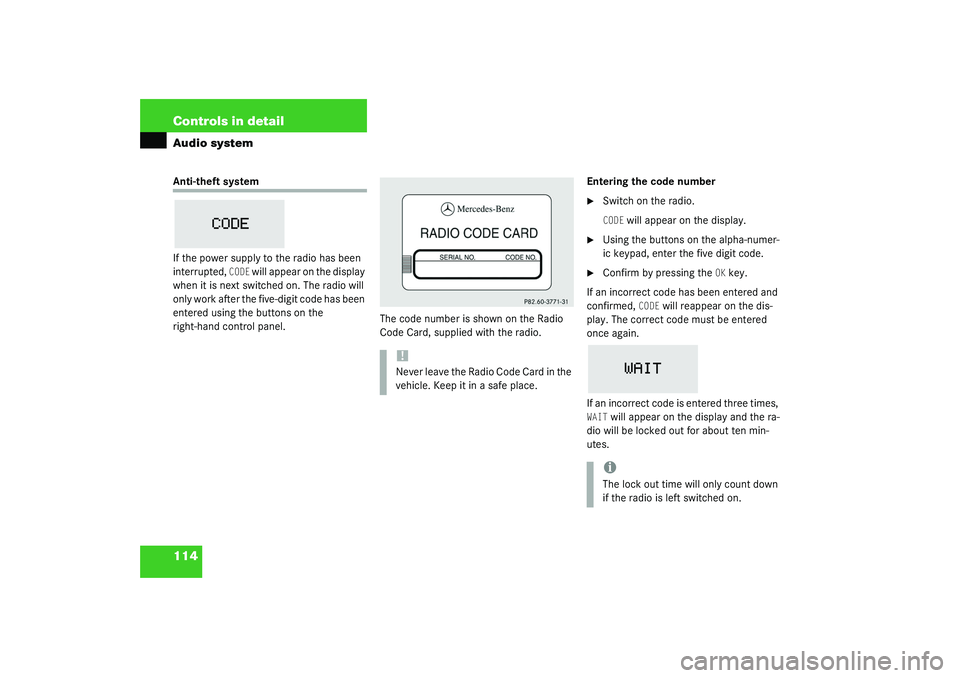

Page 114 of 304

MERCEDES-BENZ SLK CLASS 2003  Owners Manual 114 Controls in detailAudio systemAnti-theft system
If the power supply to the radio has been
interrupted,
CODE
 will appear on the display
when it is next switched on. The radio will
only work af

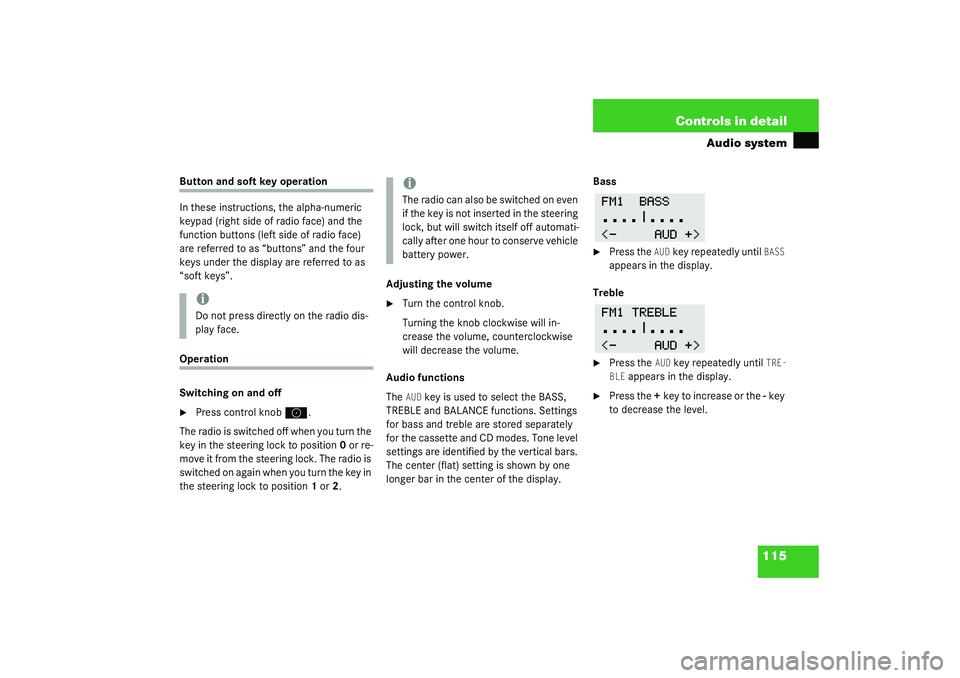

Page 115 of 304

MERCEDES-BENZ SLK CLASS 2003  Owners Manual 115 Controls in detail
Audio system
Button and soft key operation
In these instructions, the alpha-numeric
keypad (right side of radio face) and the
function buttons (left side of radio face)
are r

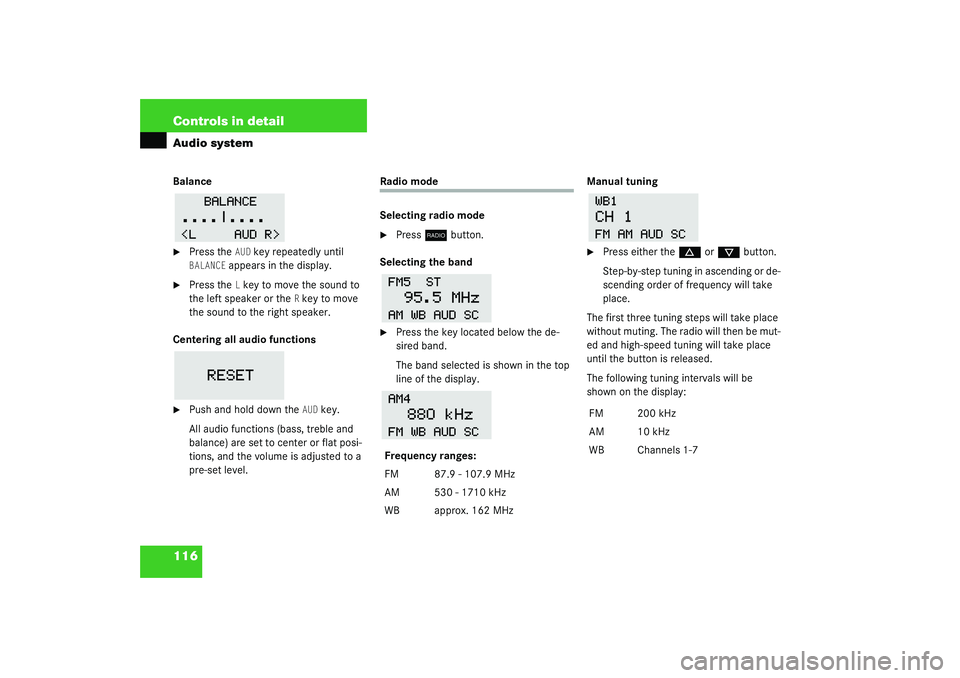

Page 116 of 304

MERCEDES-BENZ SLK CLASS 2003  Owners Manual 116 Controls in detailAudio systemBalance
Press the
AUD
key repeatedly until
BALANCE
 appears in the display.

Press the
Lkey to move the sound to
the left speaker or the
Rkey to move
the soun

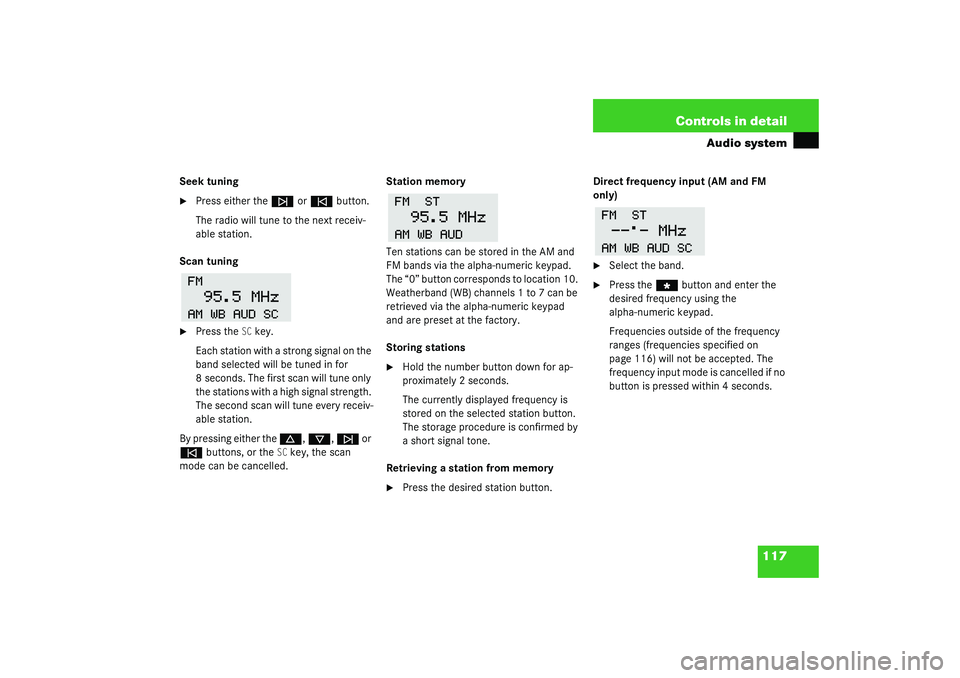

Page 117 of 304

MERCEDES-BENZ SLK CLASS 2003  Owners Manual 117 Controls in detail
Audio system
Seek tuning
Press either the
f
 or
e
 button.
The radio will tune to the next receiv-
able station.
Scan tuning

Press the
SC
key.
Each station with a strong s

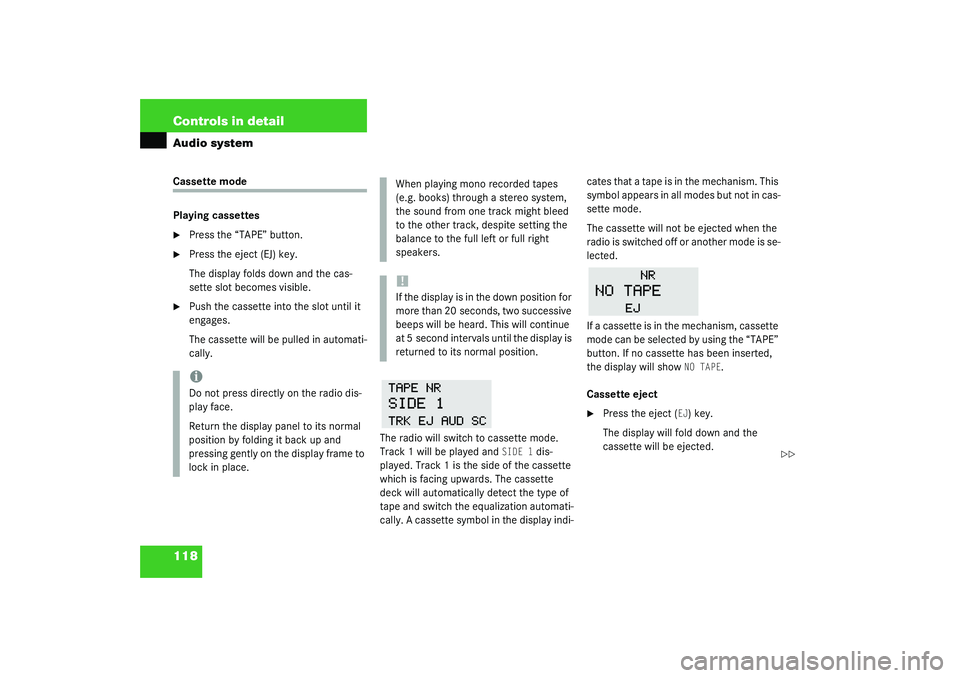

Page 118 of 304

MERCEDES-BENZ SLK CLASS 2003  Owners Manual 118 Controls in detailAudio systemCassette mode
Playing cassettes
Press the “TAPE” button.

Press the eject (EJ) key.
The display folds down and the cas-
sette slot becomes visible.

Push the c

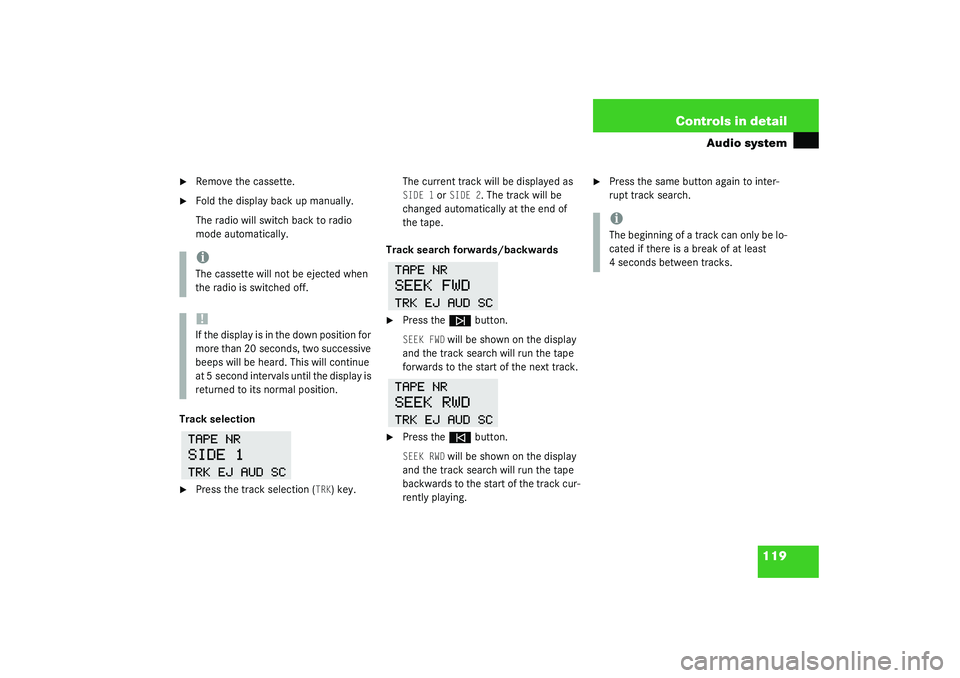

Page 119 of 304

MERCEDES-BENZ SLK CLASS 2003  Owners Manual 119 Controls in detail
Audio system

Remove the cassette.

Fold the display back up manually.
The radio will switch back to radio
mode automatically.
Track selection

Press the track selection (
T

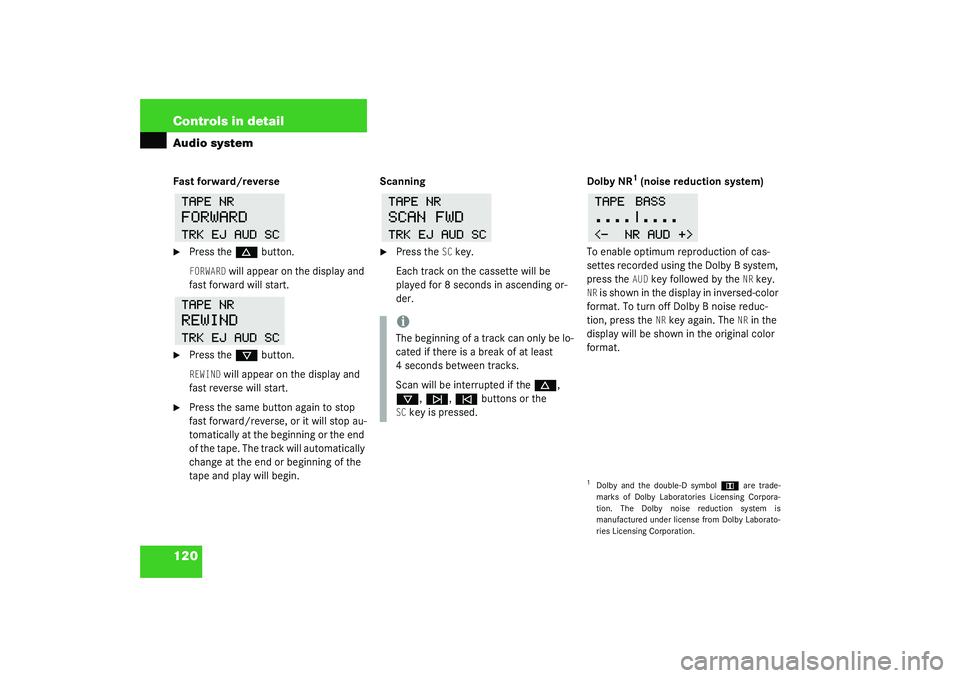

Page 120 of 304

MERCEDES-BENZ SLK CLASS 2003  Owners Manual 120 Controls in detailAudio systemFast forward/reverse
Press the
d
 button.
FORWARD
 will appear on the display and
fast forward will start.

Press the
c
 button.
REWIND
 will appear on the displ
