technical data MERCEDES-BENZ SLK CLASS 2003 User Guide

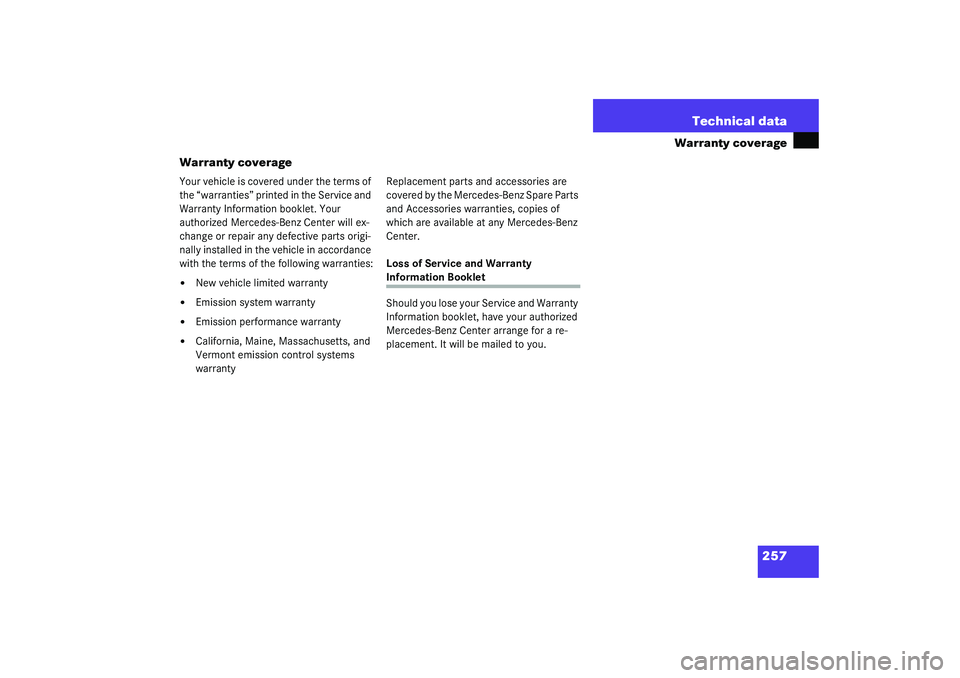

257 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the “warranties” printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New vehicle limited warranty


Emission system warranty


Emission performance warranty


California, Maine, Massachusetts, and
Vermont emission control systems
warrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any Mercedes-Benz
Center.
Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

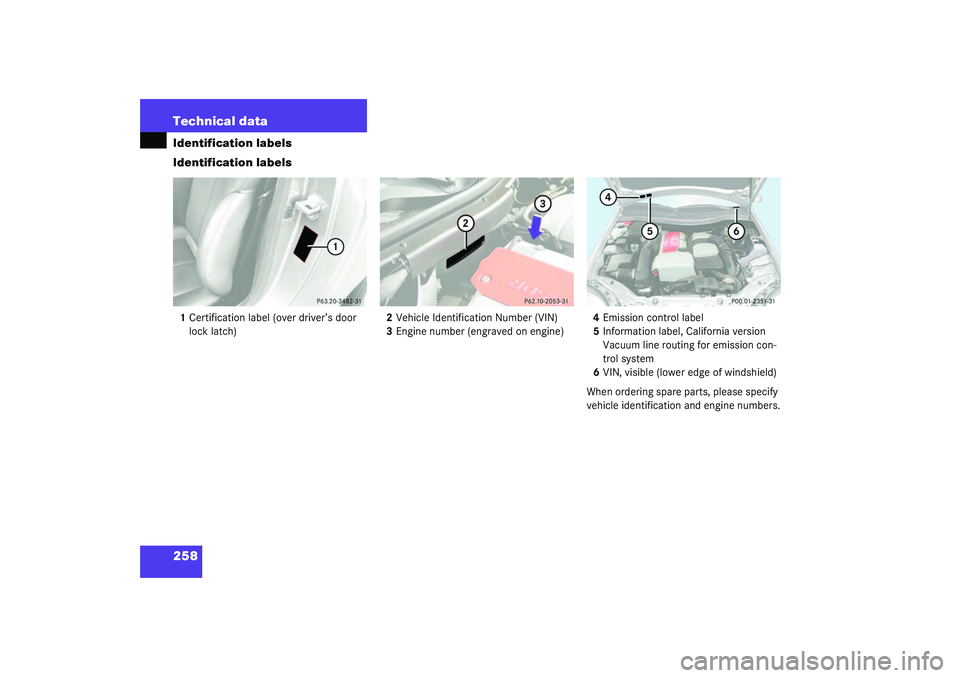

258 Technical dataIdentification labels
Identification labels1Certification label (over driver’s door
lock latch)2Vehicle Identification Number (VIN)
3Engine number (engraved on engine)4Emission control label
5Information label, California version
Vacuum line routing for emission con-
trol system
6VIN, visible (lower edge of windshield)
When ordering spare parts, please specify
vehicle identification and engine numbers.

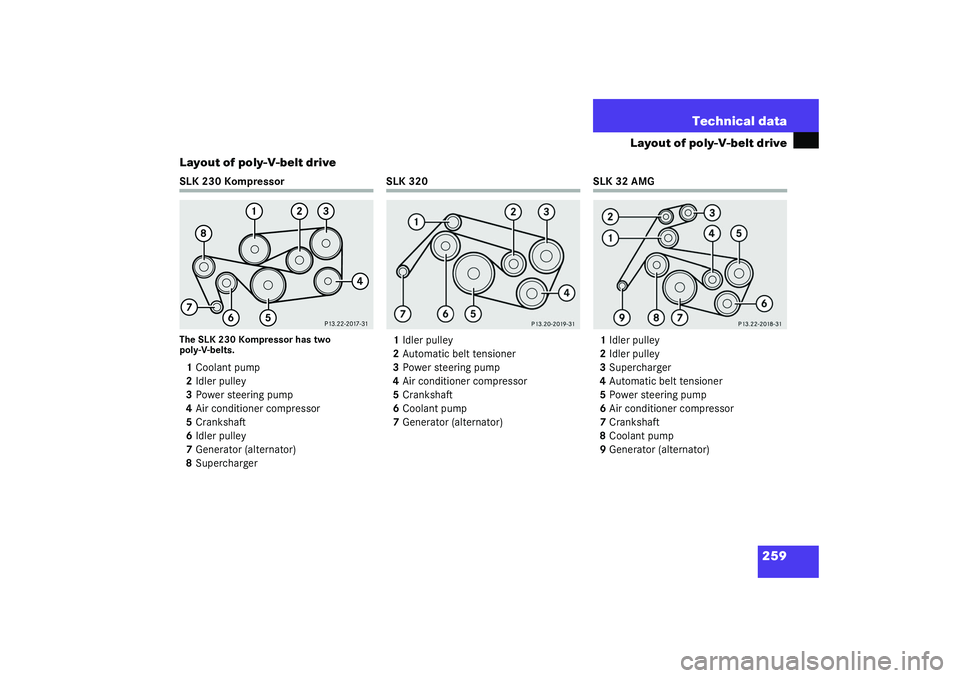

259 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
SLK 230 KompressorThe SLK 230 Kompressor has two
poly-V-belts.1Coolant pump
2Idler pulley
3Power steering pump
4Air conditioner compressor
5Crankshaft
6Idler pulley
7Generator (alternator)
8Supercharger
SLK 320
1Idler pulley
2Automatic belt tensioner
3Power steering pump
4Air conditioner compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
SLK 32 AMG
1Idler pulley
2Idler pulley
3Supercharger
4Automatic belt tensioner
5Power steering pump
6Air conditioner compressor
7Crankshaft
8Coolant pump
9Generator (alternator)

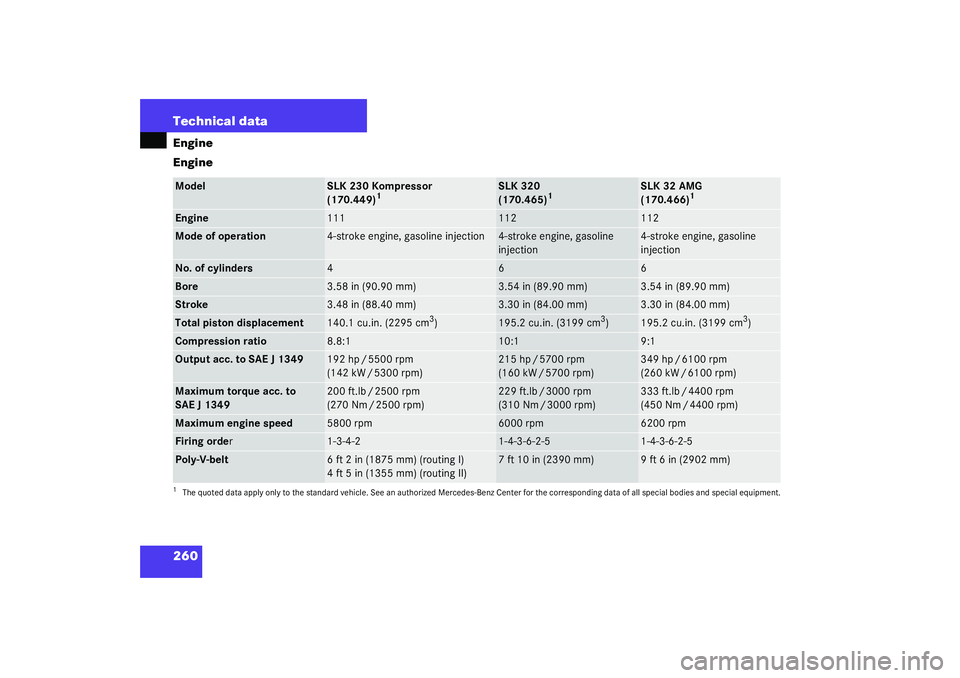

260 Technical dataEngine
EngineModel
SLK 230 Kompressor
(170.449)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
SLK 320
(170.465)
1
SLK 32 AMG
(170.466)
1
Engine
111
112
112
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline
injection
4-stroke engine, gasoline
injection
No. of cylinders
4
6
6
Bore
3.58 in (90.90 mm)
3.54 in (89.90 mm)
3.54 in (89.90 mm)
Stroke
3.48 in (88.40 mm)
3.30 in (84.00 mm)
3.30 in (84.00 mm)
Total piston displacement
140.1 cu.in. (2295 cm
3)
195.2 cu.in. (3199 cm
3)
195.2 cu.in. (3199 cm
3)
Compression ratio
8.8:1
10:1
9:1
Output acc. to SAE J 1349
192 hp / 5500 rpm
(142 kW / 5300 rpm)
215 hp / 5700 rpm
(160 kW / 5700 rpm)
349 hp / 6100 rpm
(260 kW / 6100 rpm)
Maximum torque acc. to
SAE J 1349
200ft.lb/2500rpm
(270 Nm / 2500 rpm)
229ft.lb/3000rpm
(310 Nm / 3000 rpm)
333ft.lb/4400rpm
(450 Nm / 4400 rpm)
Maximum engine speed
5800 rpm
6000 rpm
6200 rpm
Firing order
1-3-4-2
1-4-3-6-2-5
1-4-3-6-2-5
Poly-V-belt
6ft 2in (1875mm) (routingI)
4ft 5in (1355mm) (routingII)
7ft 10in (2390mm)
9ft 6in (2902mm)

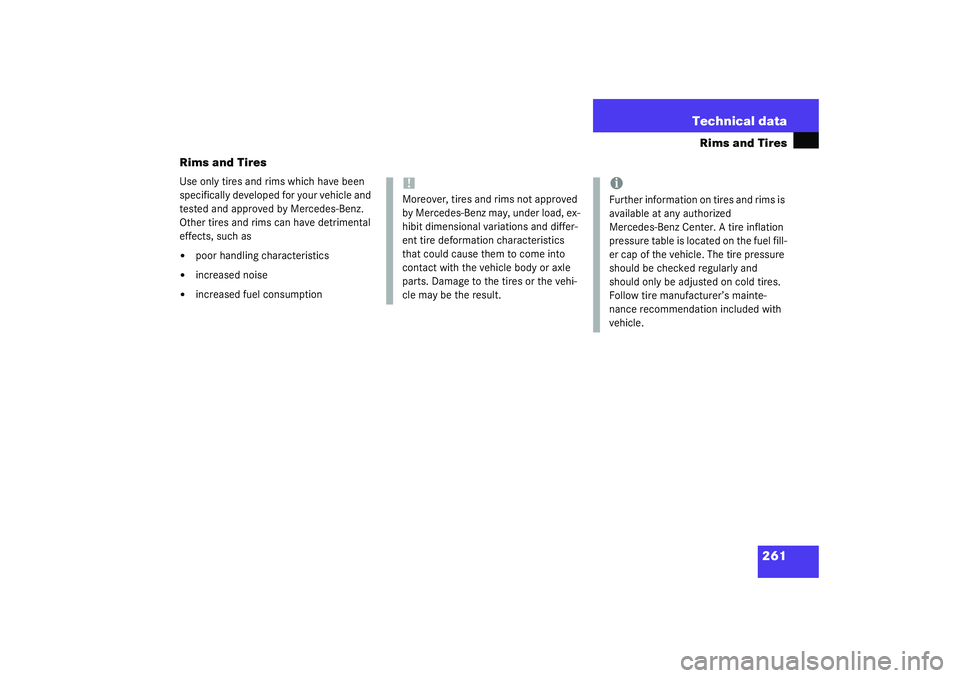

261 Technical data
Rims and Tires
Rims and Tires
Use only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er cap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

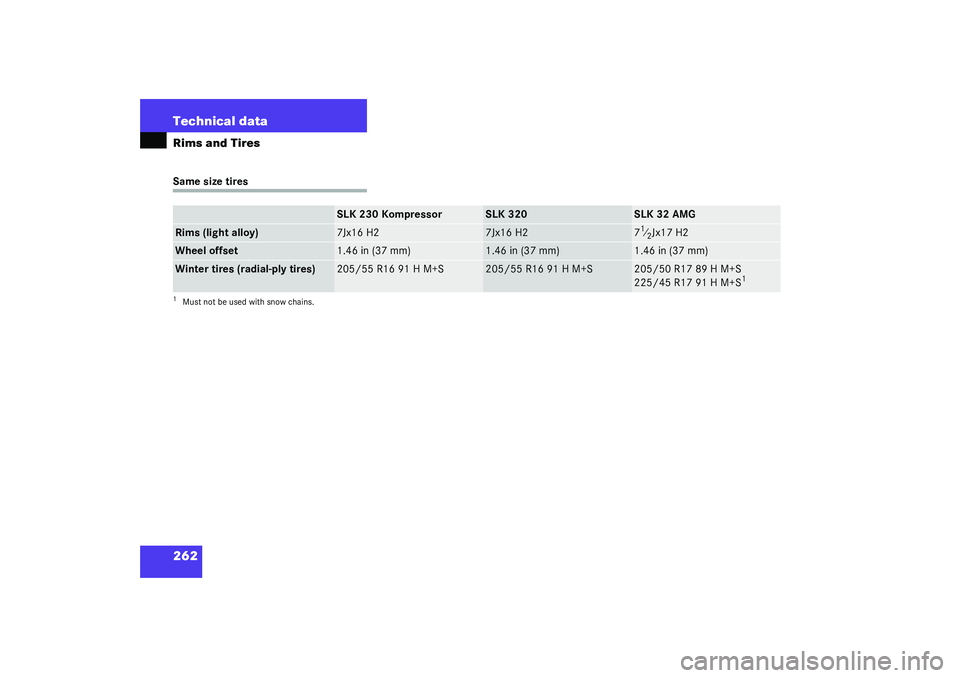

262 Technical dataRims and TiresSame size tires
SLK 230 Kompressor
SLK 320
SLK 32 AMG
Rims (light alloy)
7Jx16 H2
7Jx16 H2
71⁄2Jx17 H2
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)
1.46 in (37 mm)
Winter tires (radial-ply tires)
205/55 R16 91 H M+S
205/55 R16 91 H M+S
205/50 R17 89 H M+S
225/45 R17 91 H M+S
1
1Must not be used with snow chains.

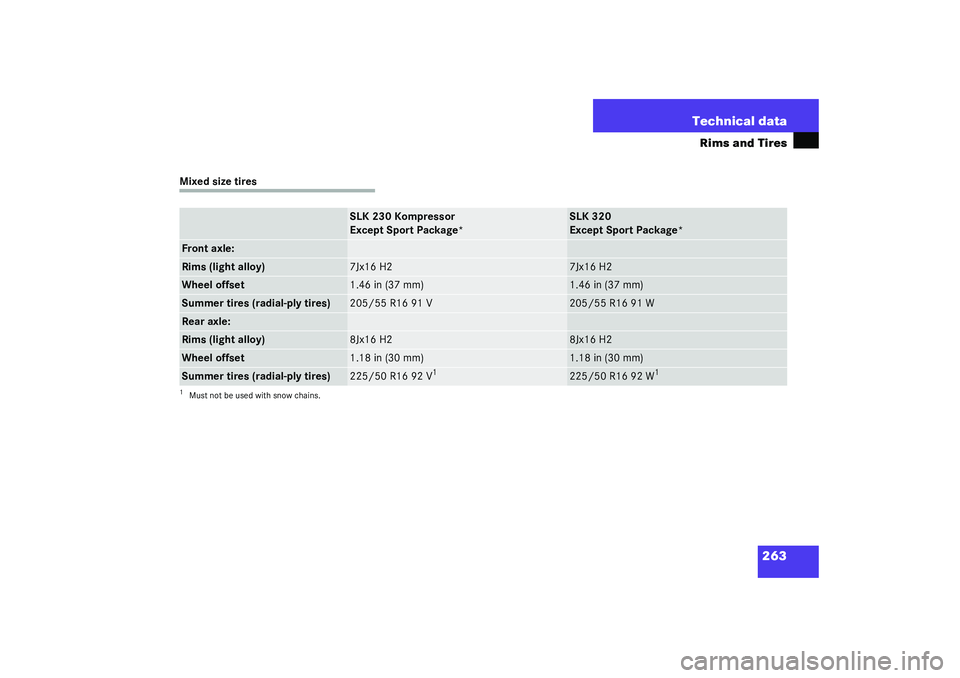

263 Technical data
Rims and Tires
Mixed size tires
SLK 230 Kompressor
Except Sport Package*
SLK 320
Except Sport Package*
Front axle:Rims (light alloy)
7Jx16 H2
7Jx16 H2
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)
Summer tires (radial-ply tires)
205/55 R16 91 V
205/55 R16 91 W
Rear axle:Rims (light alloy)
8Jx16 H2
8Jx16 H2
Wheel offset
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires (radial-ply tires)
225/50 R16 92 V
1
225/50 R16 92 W
1
1Must not be used with snow chains.

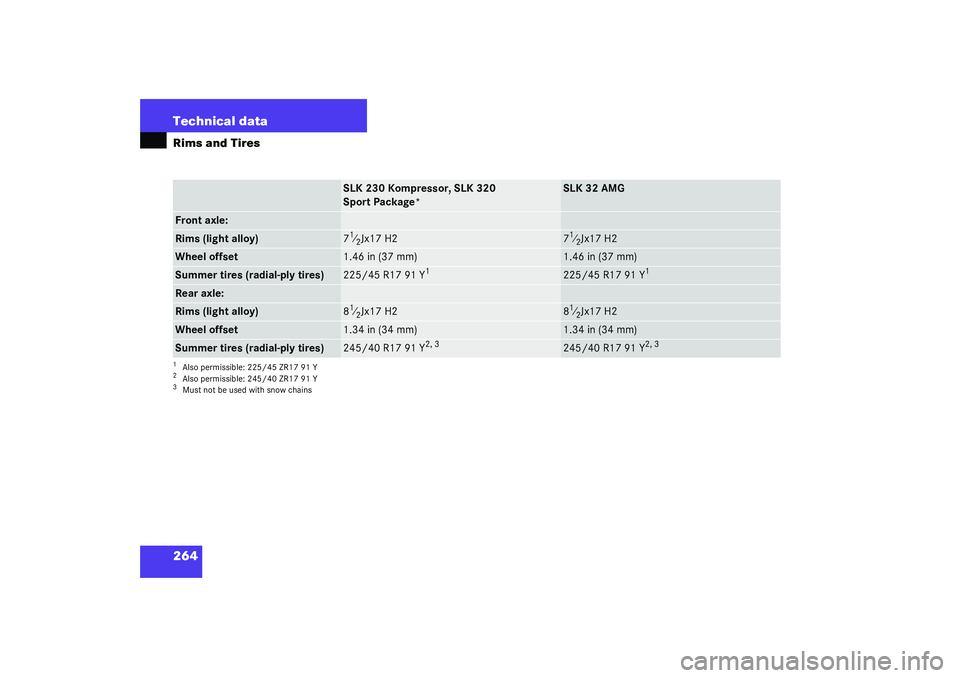

264 Technical dataRims and Tires
SLK 230 Kompressor, SLK 320
Sport Package*
SLK 32 AMG
Front axle:Rims (light alloy)
71⁄2Jx17 H2
71⁄2Jx17 H2
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)
Summer tires (radial-ply tires)
225/45 R17 91 Y
1
225/45 R17 91 Y
1
Rear axle:Rims (light alloy)
81⁄2Jx17 H2
81⁄2Jx17 H2
Wheel offset
1.34 in (34 mm)
1.34 in (34 mm)
Summer tires (radial-ply tires)
245/40 R17 91 Y
2, 3
245/40 R17 91 Y
2, 3
1Also permissible: 225/45 ZR17 91 Y2Also permissible: 245/40 ZR17 91 Y3Must not be used with snow chains

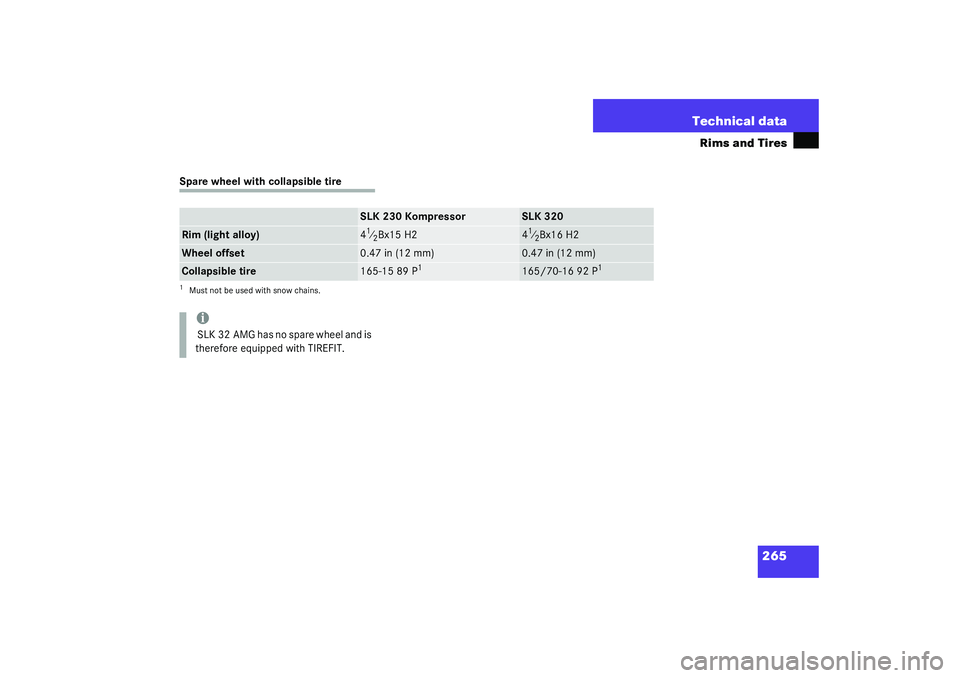

265 Technical data
Rims and Tires
Spare wheel with collapsible tire
SLK 230 Kompressor
SLK 320
Rim (light alloy)
41⁄2Bx15 H2
41⁄2Bx16 H2
Wheel offset
0.47 in (12 mm)
0.47 in (12 mm)
Collapsible tire
165-15 89 P
1
165/70-16 92 P
1
1Must not be used with snow chains.i S L K 3 2 A M G h a s n o s p a r e w h e e l a n d i s
therefore equipped with TIREFIT.

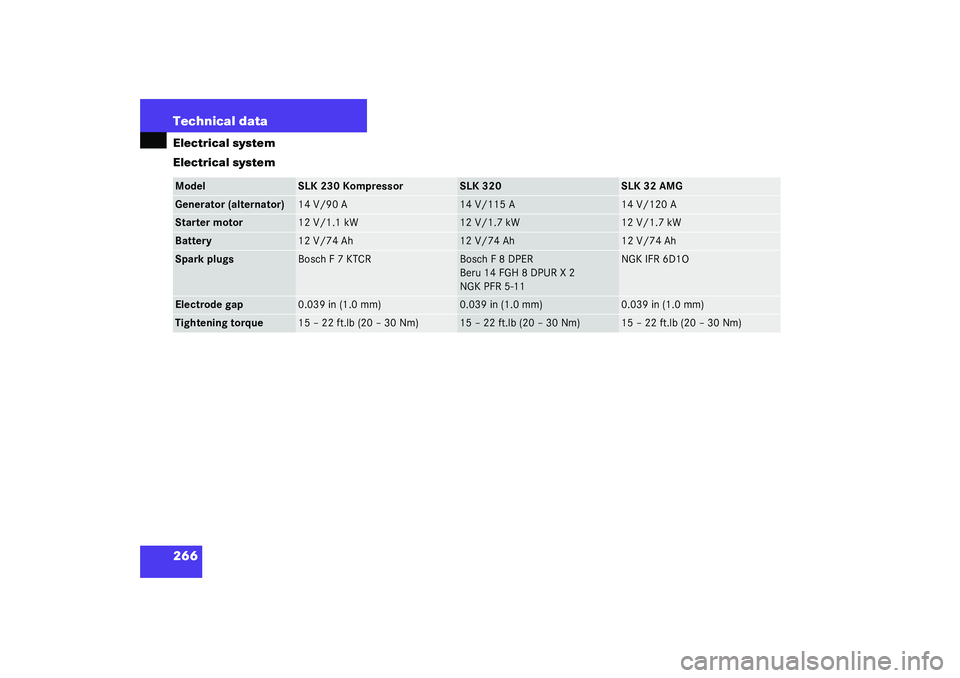

266 Technical dataElectrical system
Electrical systemModel
SLK 230 Kompressor
SLK 320
SLK 32 AMG
Generator (alternator)
14 V/90 A
14 V/115 A
14 V/120 A
Starter motor
12 V/1.1 kW
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/74 Ah
12 V/74 Ah
12 V/74 Ah
Spark plugs
Bosch F 7 KTCR
Bosch F 8 DPER
Beru 14 FGH 8 DPUR X 2
NGK PFR 5-11
NGK IFR 6D1O
Electrode gap
0.039 in (1.0 mm)
0.039 in (1.0 mm)
0.039 in (1.0 mm)
Tightening torque
15 – 22 ft.lb (20 – 30 Nm)
15 – 22 ft.lb (20 – 30 Nm)
15 – 22 ft.lb (20 – 30 Nm)
