MERCEDES-BENZ SLK CLASS 2005 Owners Manual

101 Controls in detailSeats

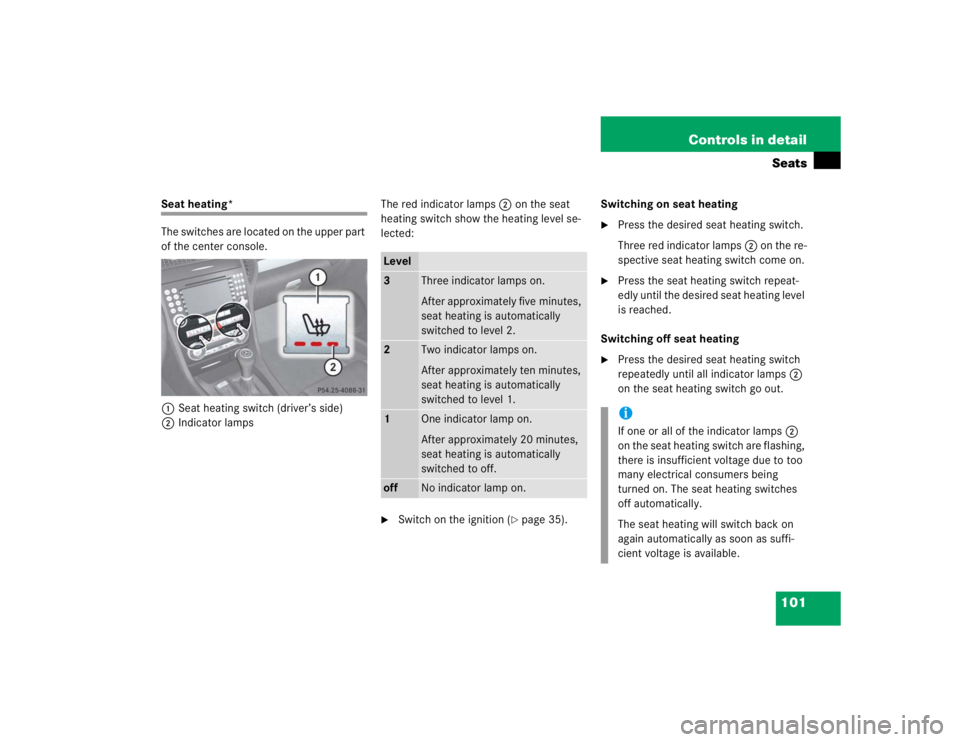

Seat heating*
The switches are located on the upper part
of the center console.
1Seat heating switch (driver’s side)
2Indicator lampsThe red indicator lamps2 on the seat
heating switch show the heating level se-
lected:

Switch on the ignition (
page 35).Switching on seat heating

Press the desired seat heating switch.
Three red indicator lamps2 on the re-
spective seat heating switch come on.

Press the seat heating switch repeat-
edly until the desired seat heating level
is reached.
Switching off seat heating

Press the desired seat heating switch
repeatedly until all indicator lamps2
on the seat heating switch go out.
Level3
Three indicator lamps on.
After approximately five minutes,
seat heating is automatically
switched to level 2.
2
Two indicator lamps on.
After approximately ten minutes,
seat heating is automatically
switched to level 1.
1
One indicator lamp on.
After approximately 20 minutes,
seat heating is automatically
switched to off.
off
No indicator lamp on.
iIf one or all of the indicator lamps2
on the seat heating switch are flashing,
there is insufficient voltage due to too
many electrical consumers being
turned on. The seat heating switches
off automatically.
The seat heating will switch back on
again automatically as soon as suffi-
cient voltage is available.

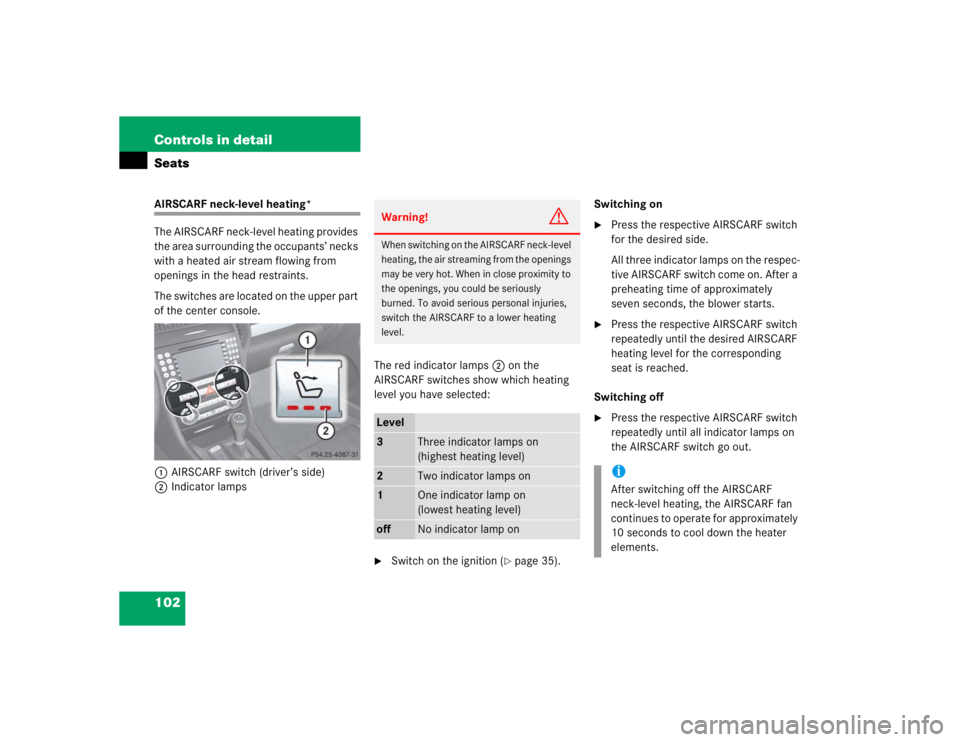

102 Controls in detailSeatsAIRSCARF neck-level heating*
The AIRSCARF neck-level heating provides
the area surrounding the occupants’ necks
with a heated air stream flowing from
openings in the head restraints.
The switches are located on the upper part
of the center console.
1AIRSCARF switch (driver’s side)
2Indicator lampsThe red indicator lamps2 on the
AIRSCARF switches show which heating
level you have selected:

Switch on the ignition (
page 35).Switching on

Press the respective AIRSCARF switch
for the desired side.
All three indicator lamps on the respec-
tive AIRSCARF switch come on. After a
preheating time of approximately
seven seconds, the blower starts.

Press the respective AIRSCARF switch
repeatedly until the desired AIRSCARF
heating level for the corresponding
seat is reached.
Switching off

Press the respective AIRSCARF switch
repeatedly until all indicator lamps on
the AIRSCARF switch go out.
Warning!
G
When switching on the AIRSCARF neck-level
heating, the air streaming from the openings
may be very hot. When in close proximity to
the openings, you could be seriously
burned. To avoid serious personal injuries,
switch the AIRSCARF to a lower heating
level.Level3
Three indicator lamps on
(highest heating level)
2
Two indicator lamps on
1
One indicator lamp on
(lowest heating level)
off
No indicator lamp on
iAfter switching off the AIRSCARF
neck-level heating, the AIRSCARF fan
continues to operate for approximately
10 seconds to cool down the heater
elements.

103 Controls in detail
Memory function*
Memory function*
You can store up to three different settings
for each SmartKey.
The following settings are stored when us-
ing the buttons on the outer side of the
driver’s seat:

Driver’s seat and backrest position


Steering wheel position


Exterior rear view mirror positions
These key-dependent memory settings
can be deactivated if desired. For informa-
tion on key-dependent memory settings,
see “Setting key-dependency”
(
page 143).The following settings are not
key-dependent. They are stored when us-
ing the buttons on the outer side of the
passenger seat:


Passenger seat and backrest position.
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. See also the
section on air bags for proper seat po-
sitioning (
page 63).
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the interior and
exterior rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 255 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

104 Controls in detailMemory function*The memory button and memory position
switch are located on the outer side of
each seat.
1Memory buttonM
2Memory position switch
Switch on the ignition (
page 35).
or

Open the respective door.
Storing positions into memory
Adjust the seat, on the driver’s side
also the steering wheel and exterior
rear view mirrors, to the desired posi-
tions (
page 37).

Press memory buttonM1.

Release memory buttonM1 and
press a memory position switch2
within three seconds.
All settings are stored to the selected
position.
Recalling positions from memory
Press and hold desired memory posi-
tion switch2 until the seat, on the
driver’s side also the steering wheel
and exterior rear view mirrors, have
completely moved to the stored posi-
tions.!Do not operate the power seats using
the memory position switches if the
seat backrest is in an excessively re-
clined position. Doing so could cause
damage to the seats.iReleasing the memory position switch-
es immediately stops movement to the
stored positions.

105 Controls in detail
Memory function*
Storing exterior rear view mirror parking position (parking aid)
For easier parking, you can adjust the
passenger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gearR.
You can switch the parking position fea-
ture on and off via the control system
(page 144).
For information on activating the parking
position feature, see “Activating exterior
rear view mirror parking position (parking
aid)” (
page 169).The switches are located on the lower part
of the center console.
1Driver’s side exterior rear view mirror
switch
2Adjustment switch
3Passenger-side exterior rear view mir-
ror switch

Switch on the ignition (
page 35).

Press switch3 to select the passen-
ger-side exterior rear view mirror.

Adjust the passenger-side exterior rear
view mirror with adjustment switch2
so that you see the rear wheel and the
road curb.

Press memory buttonM (
page 104).

Within three seconds, press adjust-
ment switch2 forward, backward,
left, or right.
The parking position is stored if the
mirror does not move.
iYou can store one parking position for
the passenger-side exterior rear view
mirror for each SmartKey.
iIf the mirror does move, repeat the
above steps. After the setting is stored,
you can move the mirror again.

106 Controls in detailLightingFor information on how to switch on the
headlamps and use the turn signals, see
“Switching on headlamps” (
page 52)
and “Turn signals” (
page 52).
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch
MOff
Daytime running lamp mode
(
page 108)
UAutomatic headlamp mode
Daytime running lamp mode
(page 108)
CParking lamps (also tail lamps, li-
cense plate lamps, side marker
lamps, instrument panel lamps)
BLow beam headlamps (or high
beam headlamps when the combi-
nation switch is pushed forward)
and parking lamps
ˆStanding lamps, right (turn left one
stop)
‚Standing lamps, left (turn left two
stops)
CIndicator lamp for parking lamps
‡Indicator lamp for front fog lamps
†Indicator lamp for rear fog lamp
iIf you drive in countries where vehicles
drive on the other side of the road than
the country in which the vehicle is reg-
istered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at your authorized Mercedes-Benz
Center.

107 Controls in detail
Lighting
Manual headlamp mode
The low beam headlamps and the parking
lamps can be switched on and off with the
exterior lamp switch.
Automatic headlamp mode
The following lamps switch on and off au-
tomatically depending on the brightness of
the ambient light:

Low beam headlamps


Tail and parking lamps


License plate lamps


Side marker lamps

Turn the exterior lamp switch to
positionU.
With the SmartKey in starter switch
position1 only the parking lamps will
switch on and off automatically.
When the engine is running, the low
beam headlamps, the tail and parking
lamps, the license plate lamps, and the
side marker lamps will switch on and
off automatically.
iWith the SmartKey removed from the
starter switch and the driver’s door
open, a warning sounds if the parking
lamps or low beam headlamps are
switched on.
The message
Turn off lights
appears
in the multifunction display.
Warning!
G
If the exterior lamp switch is set toU

the headlamps may switch off unexpect-
edly when the system senses bright am-
bient light, for example light from
oncoming traffic.


the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others, acti-
vate headlamps by turning exterior lamp
switch to
B
when driving or when traffic
and/or ambient lighting conditions require
you to do so.
In low ambient lighting conditions, only
switch from position
U
toB
with
the vehicle at a standstill. Switching
from
U
toB
will briefly switch off
the headlamps. Doing so while driving in low
ambient lighting conditions may result in an
accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle's lights at all
times.

108 Controls in detailLightingDaytime running lamp mode
Turn exterior lamp switch to
positionMorU.
When the engine is running, the low
beam headlamps are switched on.
In low ambient light conditions, the fol-
lowing lamps will switch on additional-
ly:

Tail and parking lamps


License plate lamps


Side marker lamps
For nighttime driving you should turn the
exterior lamp switch to positionB to
permit activation of the high beam head-
lamps.Canada only:
The daytime running lamp mode is manda-
tory and therefore in a constant mode.
Vehicles with automatic transmission*:
When the engine is running, and you shift
from a driving position to positionN orP,
the low beam headlamps will switch off
with a three-minute delay.
When the engine is running, and you


turn the exterior lamp switch to
positionC, the parking lamps
switch on additionally.


turn the exterior lamp switch to
positionB, the manual headlamp
mode has priority over the daytime run-
ning lamp mode.
The corresponding exterior lamps
switch on (
page 106).USA only:
By default, the daytime running lamp mode
is deactivated. Activate the daytime run-
ning lamp mode using the control system,
see “Setting daytime running lamp mode”
(
page 137).
When the engine is running, and you turn
the exterior lamp switch to
positionCorB, the manual head-
lamp mode has priority over the daytime
running lamp mode.
The corresponding exterior lamps switch
on (page 106).
iWith the daytime running lamp mode
and the exterior lamp switch in
positionM you cannot switch on the
high beam headlamps.
The high beam flasher is available at all
times.

109 Controls in detail
Lighting
Locator lighting and night security illu-
mination
The locator lighting and the night security
illumination are described in the “Control
system” section, see (
page 138) and
(
page 139).Fog lamps
Front fog lamps

Switch on the low beam headlamps
(page 106).

Pull out the exterior lamp switch to first
stop.
The front fog lamps switch on.
The green indicator lamp‡ in the
exterior lamp switch comes on
(page 106).

Push in the exterior lamp switch.
The front fog lamps switch off.
The green indicator lamp‡ in the
exterior lamp switch goes out.
Warning!
G
In low ambient lighting or foggy conditions,
only switch from position
U
toB

with the vehicle at a standstill. Switching
from
U
toB
will briefly switch off
the headlamps. Doing so while driving in low
ambient lighting conditions may result in an
accident.
iFog lamps will operate with the parking
lamps and/or low beam headlamps on.
Fog lamps should only be used in con-
junction with low beam headlamps.
Consult your State or Province Motor
Vehicle Regulations regarding allow-
able lamp operation.
iFog lamps cannot be switched on with
the exterior lamp switch in
positionU. To switch on the fog
lamps, turn the exterior lamp switch to
positionB first.

110 Controls in detailLightingRear fog lamp (driver’s side only)
Switch on the front fog lamps
(page 109).

Pull out the exterior lamp switch to sec-
ond stop.
The rear fog lamp switches on.
The yellow indicator lamp† in the
exterior lamp switch comes on
(page 106).

Push in the exterior lamp switch to first
stop.
The rear fog lamp switches off.
The yellow indicator lamp† in the
exterior lamp switch goes out.
The front fog lamps remain lit.
Combination switch
The combination switch is located on the
left of the steering column.
1High beam
2High beam flasherHigh beam

Turn the exterior lamp switch to
positionBorU (
page 106).

Push the combination switch in direc-
tion of arrow1 to switch on the high
beam.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 24).

Pull the combination switch in direction
of arrow2 to its original position to
switch off the high beam.
The high beam headlamp indicator
lampA in the instrument cluster
goes out.
High beam flasher

Pull the combination switch briefly in
direction of arrow2.
