MERCEDES-BENZ SLK CLASS 2005 Owners Manual

381 Practical hints
Replacing bulbs
Front lamps Rear lamps
Lamp
Type
1
Additional turn signal
lamp
LED
2
Turn signal lamp
PY 21 W
3
Halogen headlamp:
Low beam
Bi-Xenon* headlamp:
Low and high beam
1
1Vehicles with Bi-Xenon* headlamps: Low beam
and high beam use the same D2S-35W lamp. Do
not replace the Bi-Xenon* bulbs yourself. See an
authorized Mercedes-Benz Center.
H7 (55 W)
D2S-35W
4
Front fog lamp
HB4 (51 W)
5
Parking and standing
lamp
W5W
6
Halogen headlamp:
High beam/high beam
flasher
Bi-Xenon* headlamp:
High beam flasher
H7 (55 W)
H7 (55 W)
7
Side marker lamp
W5W
Lamp
Type
8
Rear fog lamp (driver’s
side only)
P21W
9
High mounted brake
lamp
LED
a
Tail, parking, standing,
side marker lamp and
brake lamp
LED
b
License plate lamps
C5W
c
Backup lamp
P21W
d
Turn signal lamp
P21W
iVehicles equipped with cornering fog
lamps*:
Front fog lamps use H7 (55 W) lamps.
Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

382 Practical hintsReplacing bulbsNotes on bulb replacement

Only use 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:


Additional turn signal lamps in the
exterior rear view mirrors


Bi-Xenon* lamps


Front fog lamps


High mounted brake lamp


Brake lamps


Front and rear side marker lamps


Parking/standing lamps in the tail
lamp assemblies
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 106).

Open the hood (
page 287) (except
for side marker lamps).
iHave the headlamp adjustment
checked regularly.

383 Practical hints
Replacing bulbs
1Housing cover for low beam (halogen
headlamps only)
Housing cover for Bi-Xenon* head-
lamps. Do not remove.
2Bulb socket for turn signal lamp
3Bulb socket for high beam/high beam
flasher lamp
4Bulb socket for parking and standing
light lamp
5Bulb socket for low beam bulb (Halo-
gen headlamps only)Low beam bulb (Halogen headlamps
only)

Turn housing cover1 counterclock-
wise and remove.

Turn bulb socket5 with the bulb
counterclockwise and remove.

Pull the bulb out of bulb socket5.

Press the new bulb into bulb socket5.

Place bulb socket5 back into the
lamp and turn it clockwise.

Reinstall housing cover1.
Warning!
G
Do not remove the cover1 for the Bi-Xe-
non* headlamp. Because of high voltage in
Bi-Xenon lamps, it is dangerous to replace
the bulb or repair the lamp and its compo-
nents. We recommend that you have such
work done by a qualified technician.

384 Practical hintsReplacing bulbsHigh beam/high beam flasher bulb
(Halogen headlamps) / High beam
flasher bulb (Bi-Xenon* headlamps)
Turn bulb socket3 with the bulb
counterclockwise and remove.

Pull the bulb out of bulb socket3.

Press the new bulb into bulb socket3.

Place bulb socket3 back into the
lamp and turn it clockwise.Front turn signal bulb

Turn bulb socket2 with the bulb
counterclockwise and remove.

Press gently onto the bulb and turn it
counterclockwise out of bulb
socket2.

Press the new bulb gently into bulb
socket2 and turn it clockwise.

Place bulb socket2 back into the
lamp and turn it clockwise.
Parking and standing lamp bulb

Turn bulb socket4 with the bulb
counterclockwise and remove.

Pull the bulb out of bulb socket4.

Press the new bulb into bulb socket4.

Place bulb socket4 back into the
lamp and turn it clockwise.
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 106).

Open the trunk lid (
page 95).
Tail lamp unit
1Bulb socket for rear fog lamp (driver’s
side only)
2Bulb socket for turn signal lamp
3Bulb socket for backup lamp

385 Practical hints
Replacing bulbs

Fold corresponding trim to side.

Turn the respective bulb socket coun-
terclockwise and remove.

Press gently onto the bulb and turn
counterclockwise out of its bulb sock-
et.

Press the new bulb gently into its bulb
socket and turn clockwise.

Reinstall the bulb socket and turn
clockwise until it engages.

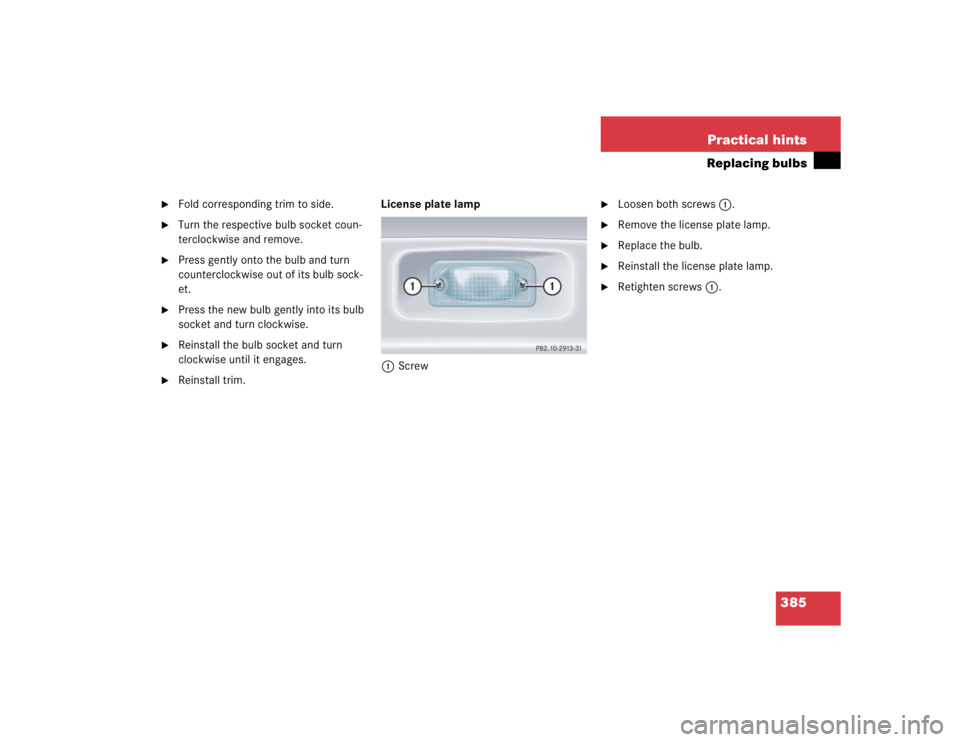

Reinstall trim.License plate lamp
1Screw

Loosen both screws1.

Remove the license plate lamp.

Replace the bulb.

Reinstall the license plate lamp.

Retighten screws1.

386 Practical hintsReplacing wiper bladesRemoving wiper blades

Turn the SmartKey in the starter switch
to position1.

Turn combination switch to wiper
settingII (
page 53).

With wiper arms in vertical position,
turn the SmartKey in the starter switch
to position0.

Fold the wiper arms forward until they
engage.
1Wiper blade
2Cover
3Attachment
4Tab
5Removing

Press tabs4 together and tilt wiper
blade1 to detach tabs4 on both
recesses of attachment3.
Wiper blade1 is released on one end.

Maintaining its tilted position, slide
wiper blade1 out of attachment3 in
direction of arrow5.
Warning!
G
For safety reasons, switch off wipers and
remove the SmartKey from the starter
switch before replacing a wiper blade. Oth-
erwise, the motor could suddenly turn on
and cause injury.!To avoid damage to the hood, the wiper
arms should only be folded forward
when in the vertical position.

387 Practical hints
Replacing wiper blades

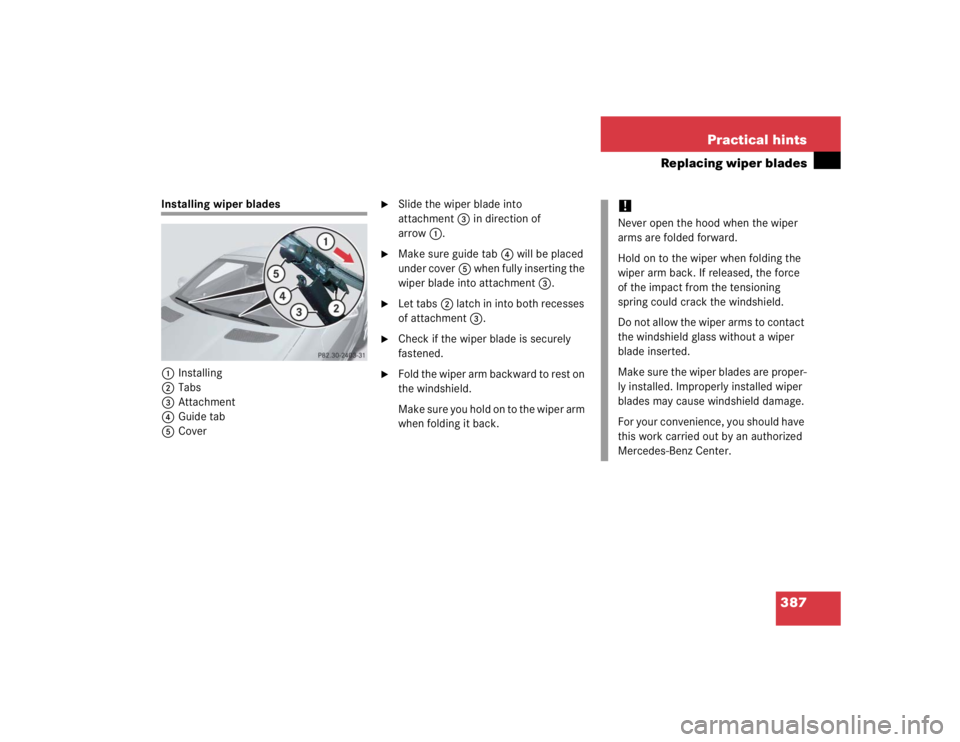

Installing wiper blades
1Installing
2Tabs
3Attachment
4Guide tab
5Cover

Slide the wiper blade into
attachment3 in direction of
arrow1.

Make sure guide tab4 will be placed
under cover5 when fully inserting the
wiper blade into attachment3.

Let tabs2 latch in into both recesses
of attachment3.

Check if the wiper blade is securely
fastened.

Fold the wiper arm backward to rest on
the windshield.
Make sure you hold on to the wiper arm
when folding it back.
!Never open the hood when the wiper
arms are folded forward.
Hold on to the wiper when folding the
wiper arm back. If released, the force
of the impact from the tensioning
spring could crack the windshield.
Do not allow the wiper arms to contact
the windshield glass without a wiper
blade inserted.
Make sure the wiper blades are proper-
ly installed. Improperly installed wiper
blades may cause windshield damage.
For your convenience, you should have
this work carried out by an authorized
Mercedes-Benz Center.

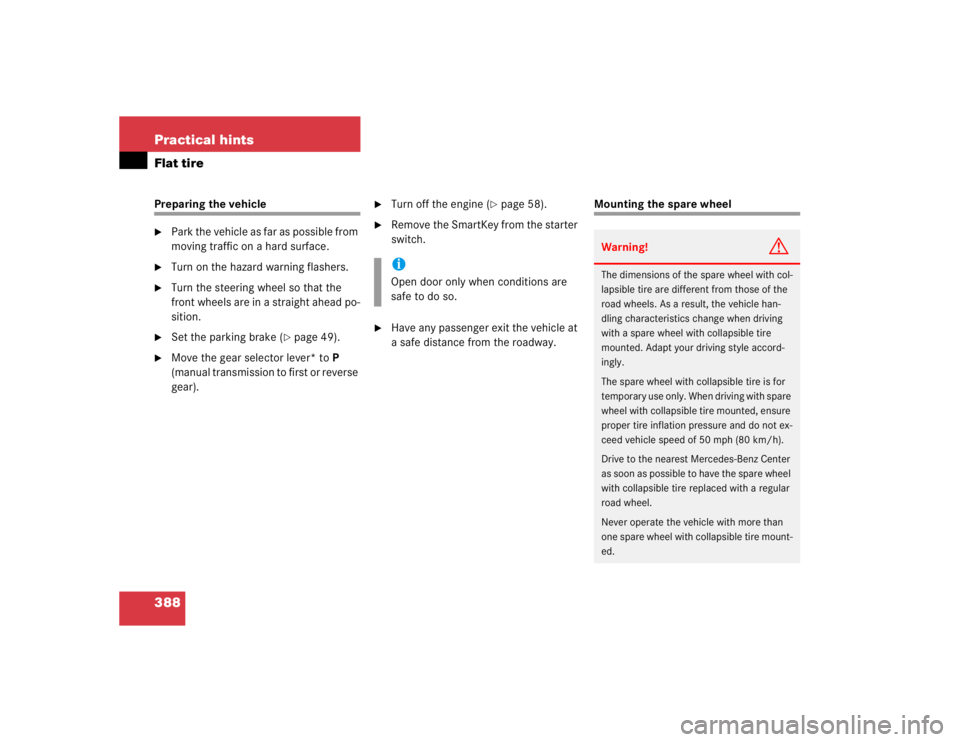

388 Practical hintsFlat tirePreparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Turn the steering wheel so that the
front wheels are in a straight ahead po-
sition.

Set the parking brake (
page 49).

Move the gear selector lever* toP
(manual transmission to first or reverse
gear).

Turn off the engine (
page 58).

Remove the SmartKey from the starter
switch.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Mounting the spare wheel
iOpen door only when conditions are
safe to do so.
Warning!
G
The dimensions of the spare wheel with col-
lapsible tire are different from those of the
road wheels. As a result, the vehicle han-
dling characteristics change when driving
with a spare wheel with collapsible tire
mounted. Adapt your driving style accord-
ingly.
The spare wheel with collapsible tire is for
temporary use only. When driving with spare
wheel with collapsible tire mounted, ensure
proper tire inflation pressure and do not ex-
ceed vehicle speed of 50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Center
as soon as possible to have the spare wheel
with collapsible tire replaced with a regular
road wheel.
Never operate the vehicle with more than
one spare wheel with collapsible tire mount-
ed.

389 Practical hints
Flat tire
Preparing the vehicle
Prepare the vehicle as described
(page 388).

Take the collapsible tire, wheel wrench,
wheel bolts, jack, and electric air pump
out of the trunk (
page 369).Lifting the vehicle

Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
(not included) or other sizeable ob-
jects.
One wheel chock is included with the
vehicle tool kit (
page 369).
When changing wheel on a level sur-
face:

Place the wheel chock in front of
and another sizable object behind
the wheel that is diagonally oppo-
site to the wheel being changed.
When changing wheel on a hill:

Place the wheel chock and another
sizable object on the downhill side
blocking both wheels of the other
axle.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into either side of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Be sure the jack arm is fully
seated in the jack take-up bracket. Always
lower the vehicle onto sufficient capacity
jackstands before working under the vehi-
cle.

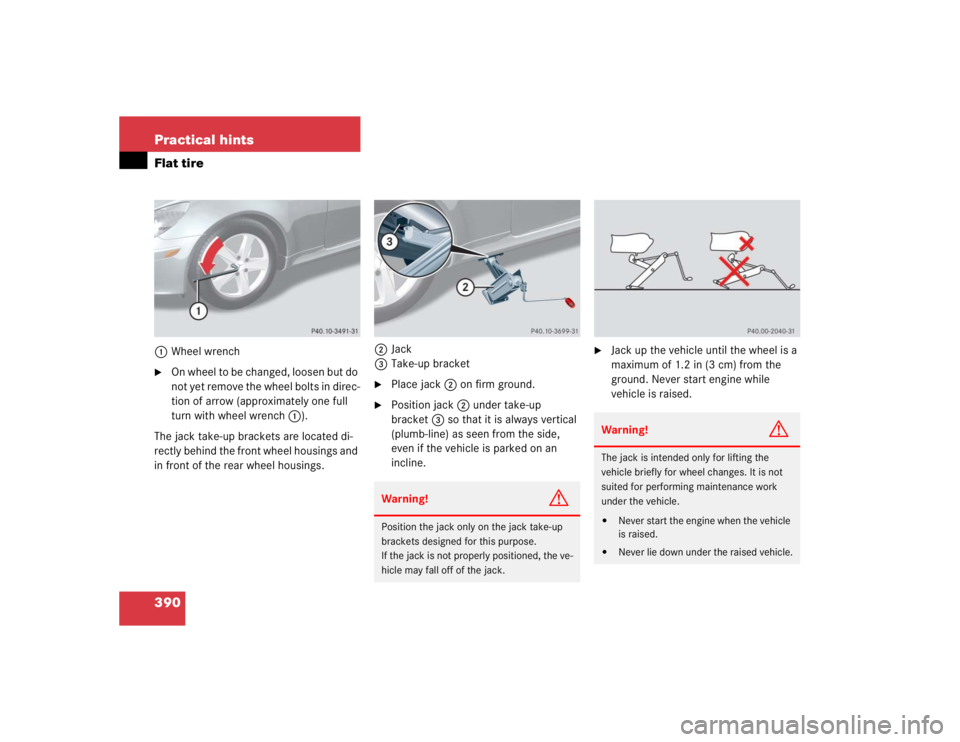

390 Practical hintsFlat tire1Wheel wrench
On wheel to be changed, loosen but do
not yet remove the wheel bolts in direc-
tion of arrow (approximately one full
turn with wheel wrench1).
The jack take-up brackets are located di-
rectly behind the front wheel housings and
in front of the rear wheel housings.2Jack
3Take-up bracket

Place jack2 on firm ground.

Position jack2 under take-up
bracket3 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an
incline.

Jack up the vehicle until the wheel is a
maximum of 1.2 in (3 cm) from the
ground. Never start engine while
vehicle is raised.
Warning!
G
Position the jack only on the jack take-up
brackets designed for this purpose.
If the jack is not properly positioned, the ve-
hicle may fall off of the jack.
Warning!
G
The jack is intended only for lifting the
vehicle briefly for wheel changes. It is not
suited for performing maintenance work
under the vehicle.

Never start the engine when the vehicle
is raised.


Never lie down under the raised vehicle.
