349 Practical hints
What to do if …
On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may ap-
pear in the multifunction display.
For your convenience the messages are
divided into two sections:

Text messages (
page 350)


Symbol messages (
page 355)
Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative.
Contact your nearest authorized
Mercedes-Benz Center.
iSwitching on ignition (
page 35)
causes all instrument cluster lamps
(except high beam headlamp indicator
lamp and turn signal indicator lamps
unless activated) as well as the multi-
function display to come on. Make sure
the lamps and multifunction display are
in working order before starting your
journey.

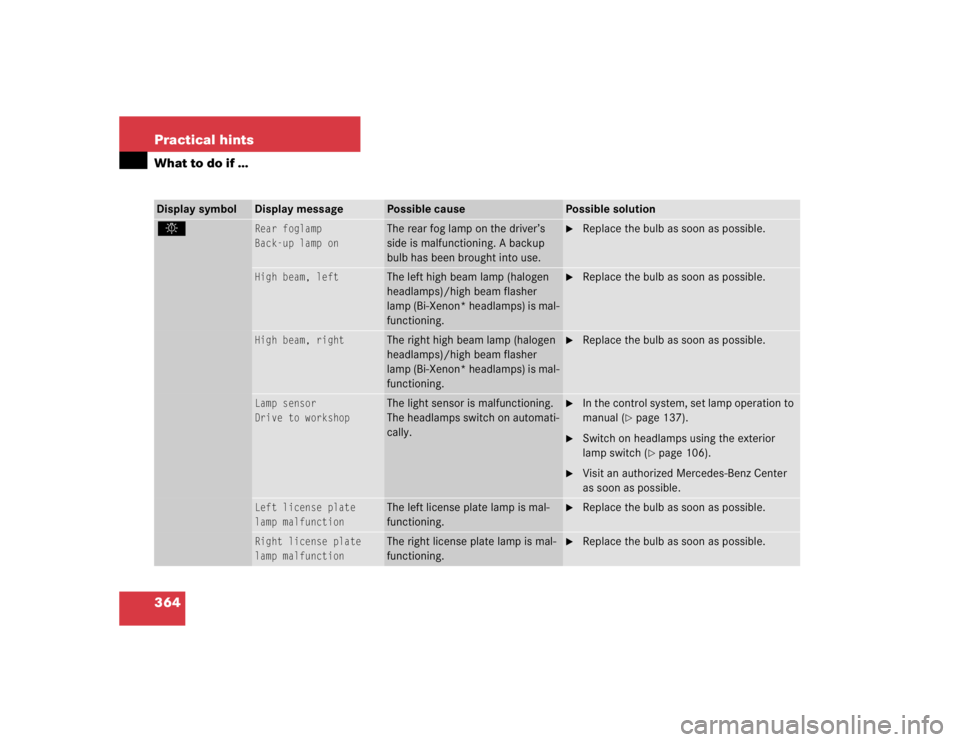

364 Practical hintsWhat to do if ….
Rear foglamp
Back-up lamp on
The rear fog lamp on the driver’s
side is malfunctioning. A backup
bulb has been brought into use.

Replace the bulb as soon as possible.
High beam, left
The left high beam lamp (halogen
headlamps)/high beam flasher
lamp (Bi-Xenon* headlamps) is mal-
functioning.

Replace the bulb as soon as possible.
High beam, right
The right high beam lamp (halogen
headlamps)/high beam flasher
lamp (Bi-Xenon* headlamps) is mal-
functioning.

Replace the bulb as soon as possible.
Lamp sensor
Drive to workshop
The light sensor is malfunctioning.
The headlamps switch on automati-
cally.

In the control system, set lamp operation to
manual (
page 137).

Switch on headlamps using the exterior
lamp switch (
page 106).

Visit an authorized Mercedes-Benz Center
as soon as possible.
Left license plate
lamp malfunction
The left license plate lamp is mal-
functioning.

Replace the bulb as soon as possible.
Right license plate
lamp malfunction
The right license plate lamp is mal-
functioning.

Replace the bulb as soon as possible.
Display symbol
Display message
Possible cause
Possible solution

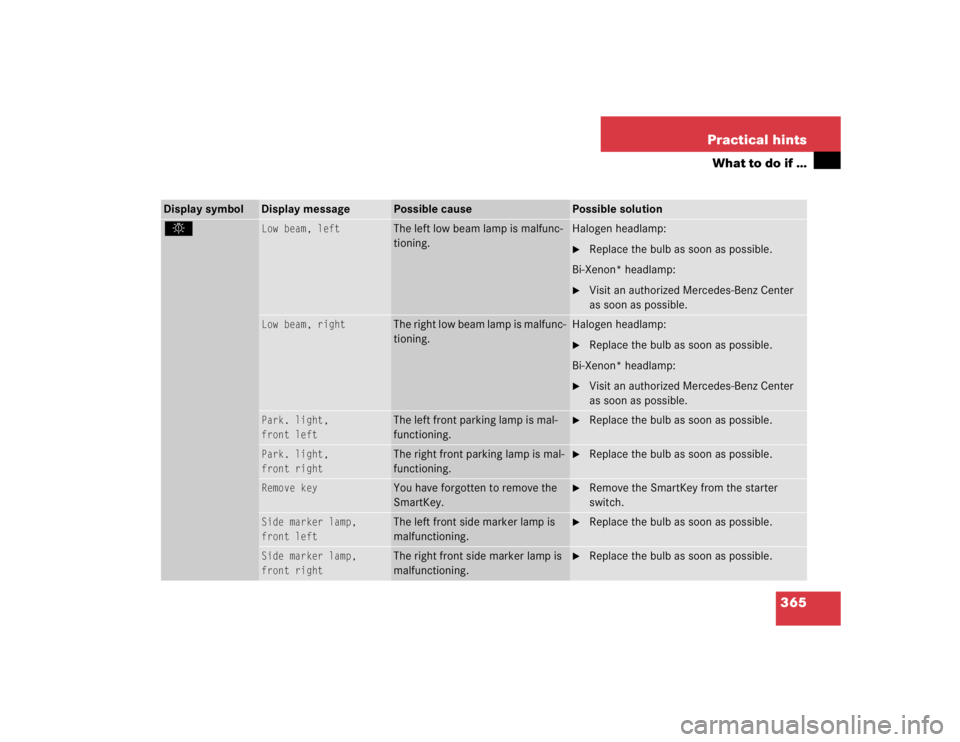

365 Practical hints
What to do if …
.
Low beam, left
The left low beam lamp is malfunc-
tioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz Center
as soon as possible.
Low beam, right
The right low beam lamp is malfunc-
tioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz Center
as soon as possible.
Park. light,
front left
The left front parking lamp is mal-
functioning.

Replace the bulb as soon as possible.
Park. light,
front right
The right front parking lamp is mal-
functioning.

Replace the bulb as soon as possible.
Remove key
You have forgotten to remove the
SmartKey.

Remove the SmartKey from the starter
switch.
Side marker lamp,
front left
The left front side marker lamp is
malfunctioning.

Replace the bulb as soon as possible.
Side marker lamp,
front right
The right front side marker lamp is
malfunctioning.

Replace the bulb as soon as possible.
Display symbol
Display message
Possible cause
Possible solution

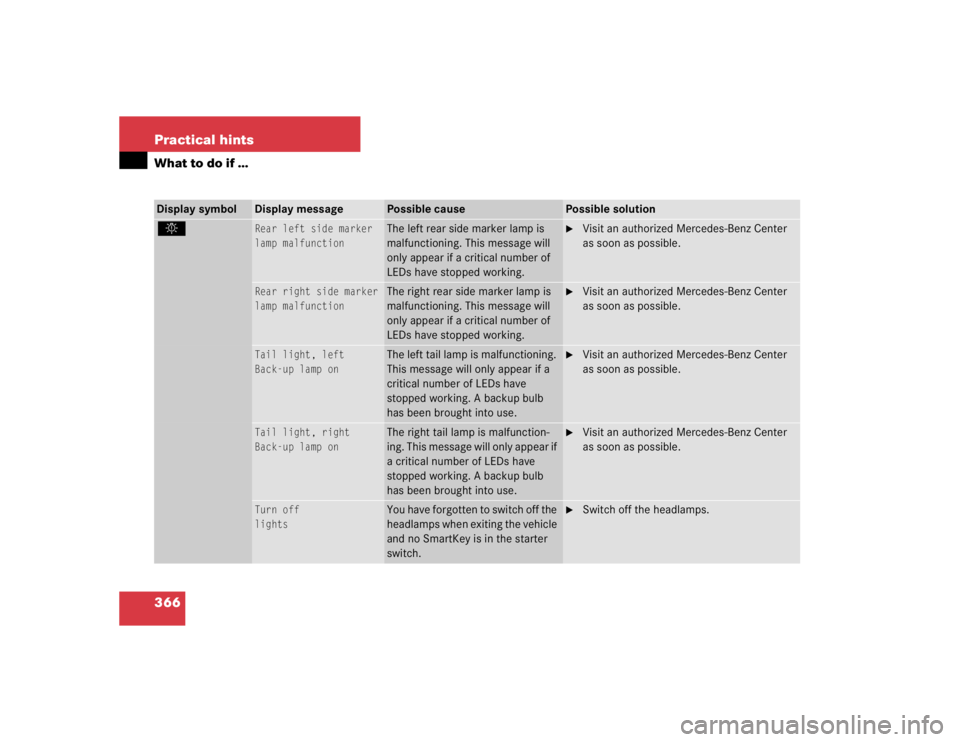

366 Practical hintsWhat to do if ….
Rear left side marker
lamp malfunction
The left rear side marker lamp is
malfunctioning. This message will
only appear if a critical number of
LEDs have stopped working.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Rear right side marker
lamp malfunction
The right rear side marker lamp is
malfunctioning. This message will
only appear if a critical number of
LEDs have stopped working.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Tail light, left
Back-up lamp on
The left tail lamp is malfunctioning.
This message will only appear if a
critical number of LEDs have
stopped working. A backup bulb
has been brought into use.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Tail light, right
Back-up lamp on
The right tail lamp is malfunction-
ing. This message will only appear if
a critical number of LEDs have
stopped working. A backup bulb
has been brought into use.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Turn off
lights
You have forgotten to switch off the
headlamps when exiting the vehicle
and no SmartKey is in the starter
switch.

Switch off the headlamps.
Display symbol
Display message
Possible cause
Possible solution

380 Practical hintsReplacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp ad-
justment.
Bulbs
iIf the headlamps are fogged up on the
inside as a result of high humidity,
driving the vehicle a short distance with
the lights on should clear up the
fogging.iBackup bulbs will be brought into use
when lamps malfunction. Observe the
messages in the multifunction display
(page 363).

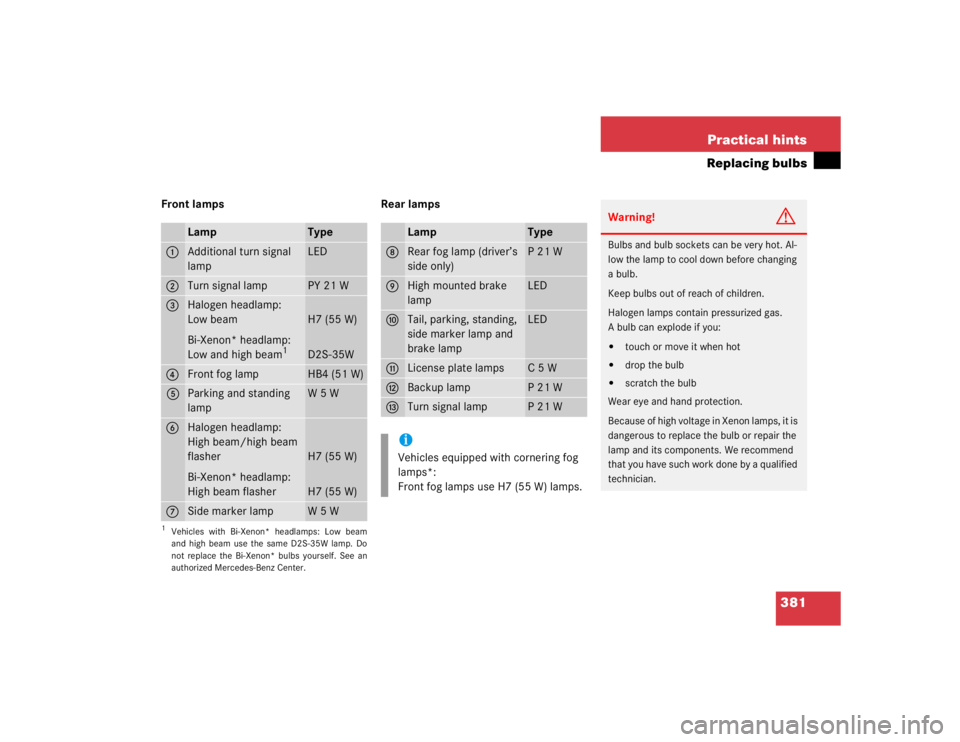

381 Practical hints
Replacing bulbs
Front lamps Rear lamps
Lamp
Type
1
Additional turn signal
lamp
LED
2
Turn signal lamp
PY 21 W
3
Halogen headlamp:
Low beam
Bi-Xenon* headlamp:
Low and high beam
1
1Vehicles with Bi-Xenon* headlamps: Low beam
and high beam use the same D2S-35W lamp. Do
not replace the Bi-Xenon* bulbs yourself. See an
authorized Mercedes-Benz Center.
H7 (55 W)
D2S-35W
4
Front fog lamp
HB4 (51 W)
5
Parking and standing
lamp
W5W
6
Halogen headlamp:
High beam/high beam
flasher
Bi-Xenon* headlamp:
High beam flasher
H7 (55 W)
H7 (55 W)
7
Side marker lamp
W5W
Lamp
Type
8
Rear fog lamp (driver’s
side only)
P21W
9
High mounted brake
lamp
LED
a
Tail, parking, standing,
side marker lamp and
brake lamp
LED
b
License plate lamps
C5W
c
Backup lamp
P21W
d
Turn signal lamp
P21W
iVehicles equipped with cornering fog
lamps*:
Front fog lamps use H7 (55 W) lamps.
Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

382 Practical hintsReplacing bulbsNotes on bulb replacement

Only use 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:


Additional turn signal lamps in the
exterior rear view mirrors


Bi-Xenon* lamps


Front fog lamps


High mounted brake lamp


Brake lamps


Front and rear side marker lamps


Parking/standing lamps in the tail
lamp assemblies
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 106).

Open the hood (
page 287) (except
for side marker lamps).
iHave the headlamp adjustment
checked regularly.

383 Practical hints
Replacing bulbs
1Housing cover for low beam (halogen
headlamps only)
Housing cover for Bi-Xenon* head-
lamps. Do not remove.
2Bulb socket for turn signal lamp
3Bulb socket for high beam/high beam
flasher lamp
4Bulb socket for parking and standing
light lamp
5Bulb socket for low beam bulb (Halo-
gen headlamps only)Low beam bulb (Halogen headlamps
only)

Turn housing cover1 counterclock-
wise and remove.

Turn bulb socket5 with the bulb
counterclockwise and remove.

Pull the bulb out of bulb socket5.

Press the new bulb into bulb socket5.

Place bulb socket5 back into the
lamp and turn it clockwise.

Reinstall housing cover1.
Warning!
G
Do not remove the cover1 for the Bi-Xe-
non* headlamp. Because of high voltage in
Bi-Xenon lamps, it is dangerous to replace
the bulb or repair the lamp and its compo-
nents. We recommend that you have such
work done by a qualified technician.

384 Practical hintsReplacing bulbsHigh beam/high beam flasher bulb
(Halogen headlamps) / High beam
flasher bulb (Bi-Xenon* headlamps)
Turn bulb socket3 with the bulb
counterclockwise and remove.

Pull the bulb out of bulb socket3.

Press the new bulb into bulb socket3.

Place bulb socket3 back into the
lamp and turn it clockwise.Front turn signal bulb

Turn bulb socket2 with the bulb
counterclockwise and remove.

Press gently onto the bulb and turn it
counterclockwise out of bulb
socket2.

Press the new bulb gently into bulb
socket2 and turn it clockwise.

Place bulb socket2 back into the
lamp and turn it clockwise.
Parking and standing lamp bulb

Turn bulb socket4 with the bulb
counterclockwise and remove.

Pull the bulb out of bulb socket4.

Press the new bulb into bulb socket4.

Place bulb socket4 back into the
lamp and turn it clockwise.
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 106).

Open the trunk lid (
page 95).
Tail lamp unit
1Bulb socket for rear fog lamp (driver’s
side only)
2Bulb socket for turn signal lamp
3Bulb socket for backup lamp

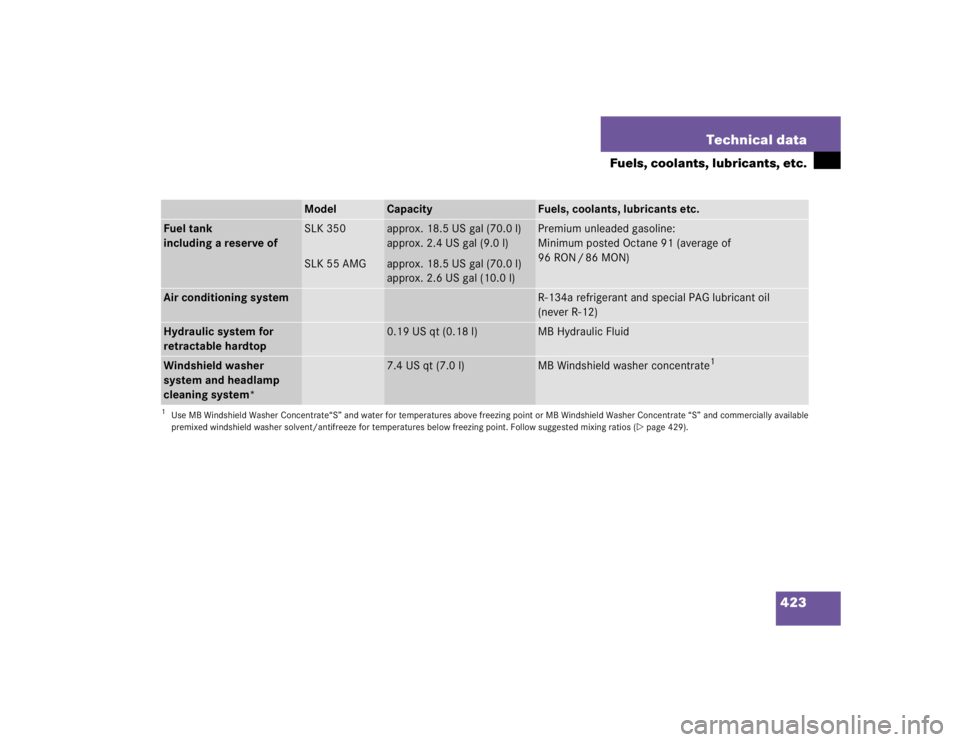

423 Technical data
Fuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants etc.
Fuel tank
including a reserve of
SLK 350
SLK 55 AMG
approx. 18.5 US gal (70.0 l)
approx. 2.4 US gal (9.0 l)
approx. 18.5 US gal (70.0 l)
approx. 2.6 US gal (10.0 l)
Premium unleaded gasoline:
Minimum posted Octane 91 (average of
96 RON / 86 MON)
Air conditioning system
R-134a refrigerant and special PAG lubricant oil
(never R-12)
Hydraulic system for
retractable hardtop
0.19 US qt (0.18 l)
MB Hydraulic Fluid
Windshield washer
system and headlamp
cleaning system*
7.4 US qt (7.0 l)
MB Windshield washer concentrate
1
1Use MB Windshield Washer Concentrate“S” and water for temperatures above freezing point or MB Windshield Washer Concentrate “S” and commercially available
premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 429).
