Contents
Practical hints................................. 341
What to do if … .................................. 342
Lamps in instrument cluster ........ 342
Lamp in center console ................ 347
Vehicle status messages in the
multifunction display .................... 348
Where will I find...? ............................ 369
First aid kit ................................... 369
Vehicle tool kit, vehicle jack......... 369
Spare wheel with collapsible tire.. 371
Spare wheel bolts ........................ 373
Unlocking/locking in an emergency .. 374
Unlocking the vehicle ................... 374
Locking the vehicle ...................... 375
Manually unlocking the gear
selector lever
(automatic transmission*) ........... 376
Opening/closing in an emergency..... 377
Raising retractable hardtop
manually ...................................... 377
Replacing SmartKey batteries ........... 378
SmartKey ..................................... 379Replacing bulbs .................................. 380
Bulbs ............................................. 380
Replacing bulbs for front lamps .... 382
Replacing bulbs for rear lamps ..... 384
Replacing wiper blades....................... 386
Removing wiper blades ................. 386
Installing wiper blades .................. 387
Flat tire ............................................... 388
Preparing the vehicle .................... 388
Mounting the spare wheel ............ 388
Battery................................................ 396
Disconnecting the battery............. 397
Removing the battery.................... 397
Charging and reinstalling battery .. 397
Reconnecting the battery.............. 398
Jump starting ...................................... 399
Towing the vehicle .............................. 401
Installing towing eye bolt .............. 403
Fuses .................................................. 404
Aids for changing fuses................. 404
Main fuse box in passenger
compartment ................................ 405
Fuse box in engine compartment.. 406
Technical data.................................. 407
Parts service ...................................... 408
Warranty coverage ............................. 409
Loss of Service and Warranty
Information Booklet ...................... 409
Identification labels ............................ 410
Layout of poly-V-belt drive.................. 411
SLK 350 ........................................ 411
SLK 55 AMG ................................. 411
Engine ................................................ 412
Rims and tires .................................... 413
Same size tires ............................. 414
Mixed size tires ............................. 416
Spare wheel with collapsible tire .. 418
Electrical system ................................ 419
Main Dimensions................................ 420
Weights .............................................. 421
Page 14 of 464
14 IntroductionWhere to find itThis Operator’s Manual is designed to pro-
vide comprehensive support information
for you, the vehicle operator. Each section
has its own reference color so you can find
information quickly.At a glance
Here you will find an overview of all the
controls that can be operated from the
driver’s seat.Getting started
Here you will find all the information you
need for your first drive. You should read
this section first if this is your first
Mercedes-Benz vehicle or if you are rent-
ing or borrowing this vehicle.Safety and Security
Here you will find descriptions of the safety
and security features of your vehicle.
Controls in detail
Here you will find detailed information
about the equipment installed in your vehi-
cle. This section expands on the “Getting
started” section and also describes techni-
cal innovations. If you are already familiar
with the basic functions of your vehicle,
this section will be of particular interest to
you.Operation
Here you will find all the information you
need for the proper operation of your vehi-
cle.Practical hints
This section provides fast assistance for
dealing with problems you may encounter.
Technical data
All important technical data for your vehi-
cle can be found in this section.Indexes
The glossary provides explanations of the
most important technical terms.
The table of contents and the index are de-
signed to help you find information quickly
and easily.
The following publications are part of your
vehicle documentation:
this Operator’s Manual
the Maintenance Booklet
Separate operating instructions will be
provided as required depending on the
equipment options installed in your vehi-
cle.
Page 16 of 464
16 IntroductionOperating safety
Proper use of the vehicle
Proper use of the vehicle requires that you
are familiar with the following information
and rules:
the safety precautions in this manual
the “Technical data” section
(page 407) in this manual
the traffic rules and regulations
the motor vehicle laws and safety stan-
dards
Warning!
G
Work improperly carried out on electronic
components and associated software could
cause them to cease functioning. Because
the vehicle’s electronic components are in-
terconnected, any modification made may
produce an undesired effect on other sys-
tems.
See an authorized Mercedes-Benz Center
for repairs or modifications to electronic
components.
Other improper work or modifications on the
vehicle could also have a negative impact on
the operating safety of the vehicle.
Some safety systems only function while the
engine is running. You should therefore nev-
er turn off the engine while driving.
Warning!
G
Heavy blows against the vehicle undercar-
riage or tires/wheels, for example when
running over an obstacle, road debris or a
pothole, may cause serious damage and im-
pair the operating safety or your vehicle. If
you feel a sudden significant vibration or
ride disturbance, or you suspect that dam-
age to your vehicle has occurred, you should
turn on your hazard warning flashers, care-
fully slow down, and drive with caution to an
area which is a safe distance from the road.
Inspect the vehicle undercarriage or
tires/wheels for possible damage. If the ve-
hicle appears unsafe, have it towed to the
nearest authorized Mercedes-Benz Center
or other qualified maintenance or repair fa-
cility for further inspection or repairs.
Warning!
G
Various labels are attached to your vehicle.
These warning labels are intended to make
you and others aware of various risks. You
should not remove any of these warning la-
bels unless explicitly instructed to do so by
information on the label itself. Removal of
any of these labels may cause you and oth-
ers to be unaware of certain risks which may
result in an accident and/or personal injury.
Page 292 of 464
292 OperationEngine compartmentAdding engine oil
Only use approved engine oils and oil fil-
ters required for vehicles with Mainte-
nance System (U.S. vehicles) or FSS
(Canada vehicles). For a listing of approved
engine oils and oil filters, refer to the Fac-
tory Approved Service Products pamphlet
in your vehicle literature portfolio, or con-
tact an authorized Mercedes-Benz Center.
Using engine oils and oil filters of specifica-
tion other than those expressly required
for the Maintenance System (U.S. vehi-
cles) or FSS (Canada vehicles), or changing
of oil and oil filter at change intervals long-
er than those called for by the Mainte-
nance System (U.S. vehicles) or FSS
(Canada vehicles) will result in engine dam-
age not covered by the Mercedes-Benz
Limited Warranty.

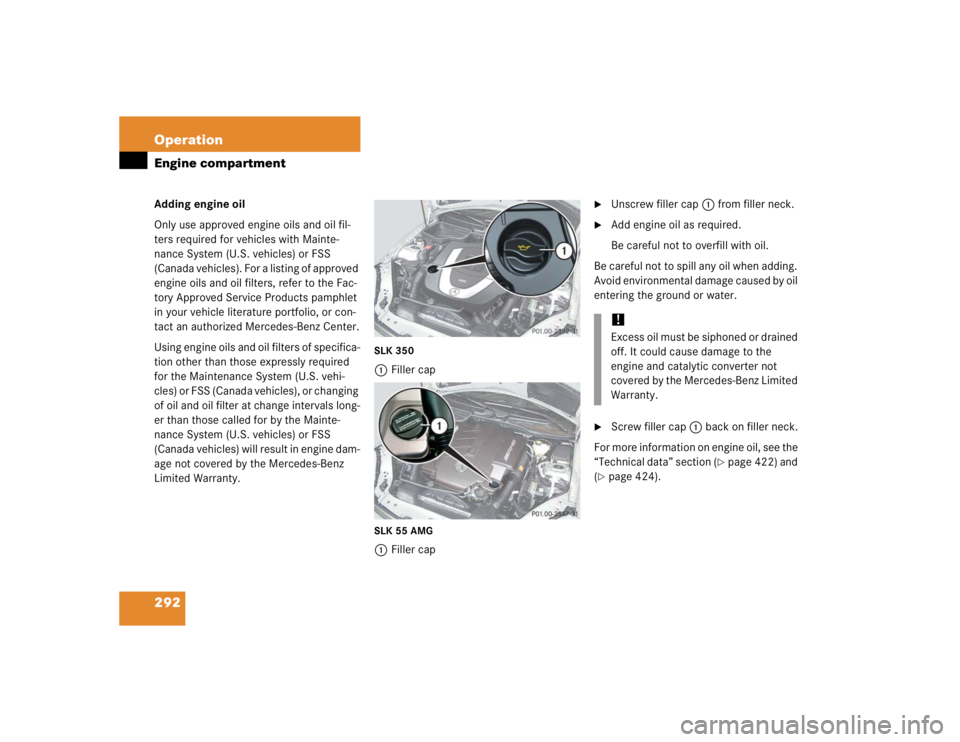

SLK 3501Filler capSLK 55 AMG1Filler cap
Unscrew filler cap1 from filler neck.
Add engine oil as required.
Be careful not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
Screw filler cap1 back on filler neck.
For more information on engine oil, see the
“Technical data” section (
page 422) and
(
page 424).!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
Page 407 of 464
407 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants, etc.
Page 408 of 464
408 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.
Page 409 of 464
409 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:
New Vehicle Limited Warranty
Emission System Warranty
Emission Performance Warranty
California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.
Page 410 of 464

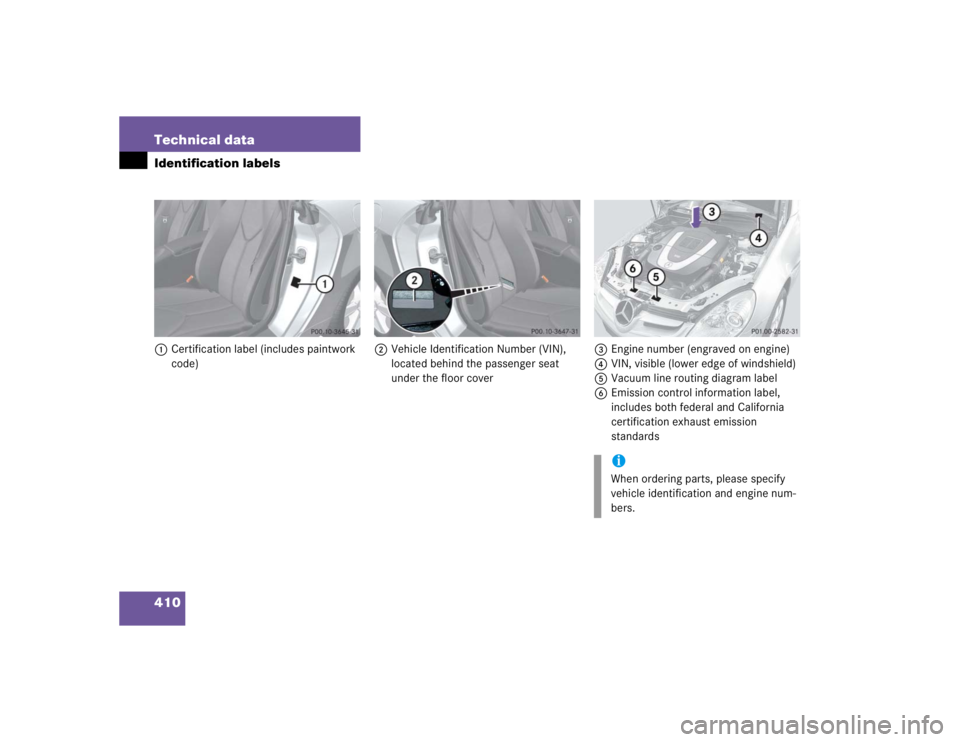

410 Technical dataIdentification labels1Certification label (includes paintwork
code)2Vehicle Identification Number (VIN),
located behind the passenger seat
under the floor cover3Engine number (engraved on engine)
4VIN, visible (lower edge of windshield)
5Vacuum line routing diagram label
6Emission control information label,
includes both federal and California
certification exhaust emission
standards
iWhen ordering parts, please specify
vehicle identification and engine num-
bers.
Page 411 of 464
411 Technical data

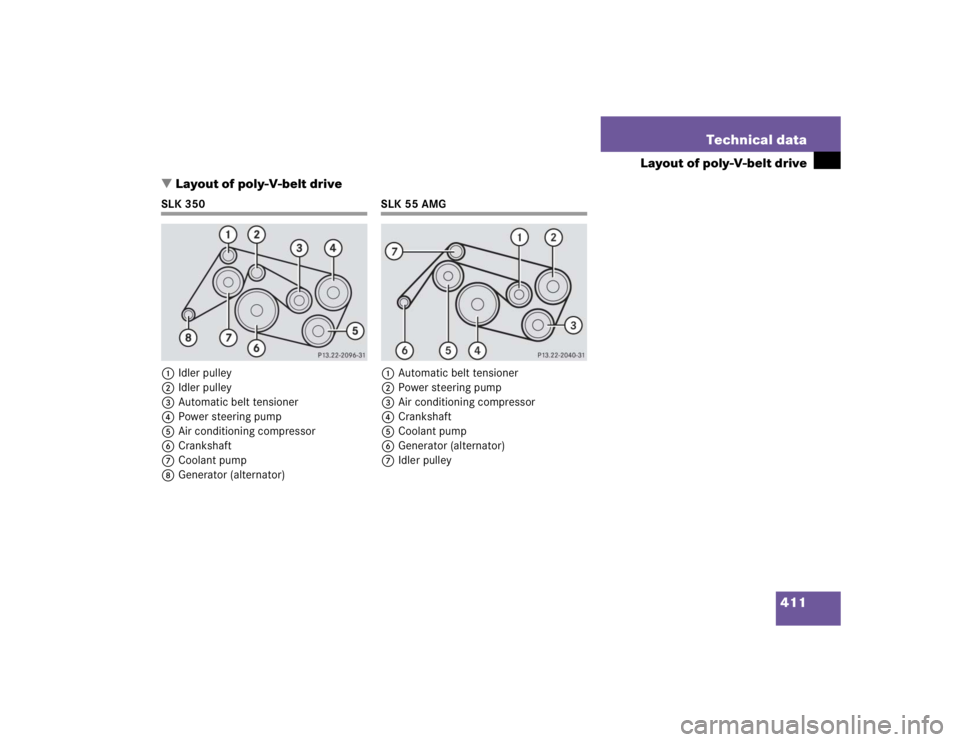

Layout of poly-V-belt drive
Layout of poly-V-belt drive
SLK 350
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4Power steering pump
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)
SLK 55 AMG
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
Page 412 of 464

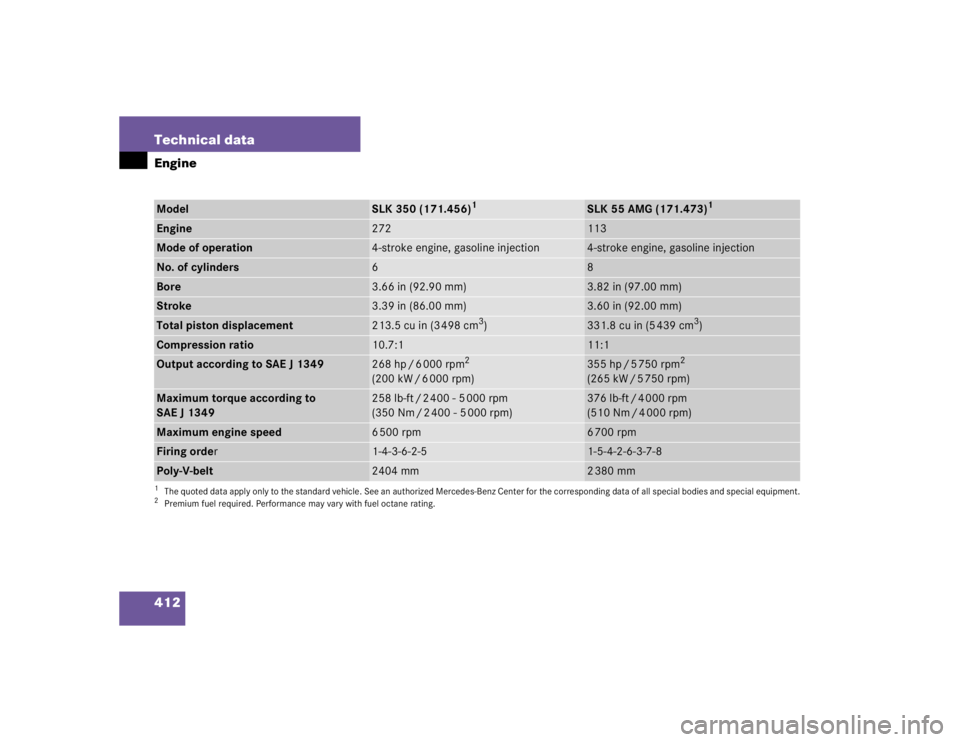

412 Technical dataEngineModel
SLK 350 (171.456)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
SLK 55 AMG (171.473)
1
Engine
272
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
6
8
Bore
3.66 in (92.90 mm)
3.82 in (97.00 mm)
Stroke
3.39 in (86.00 mm)
3.60 in (92.00 mm)
Total piston displacement
213.5 cu in (3 498 cm
3)
331.8cuin (5439cm
3)
Compression ratio
10.7:1
11:1
Output according to SAE J 1349
268 hp / 6 000 rpm
2
(200 kW / 6 000 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
355 hp / 5 750 rpm
2
(265 kW / 5 750 rpm)
Maximum torque according to
SAE J 1349
258 lb-ft / 2 400 - 5 000 rpm
(350 Nm / 2 400 - 5 000 rpm)
376 lb-ft / 4 000 rpm
(510 Nm / 4 000 rpm)
Maximum engine speed
6500 rpm
6 700 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
Poly-V-belt
2404 mm
2 380 mm
