MERCEDES-BENZ SLK CLASS 2007 Owner's Manual

20

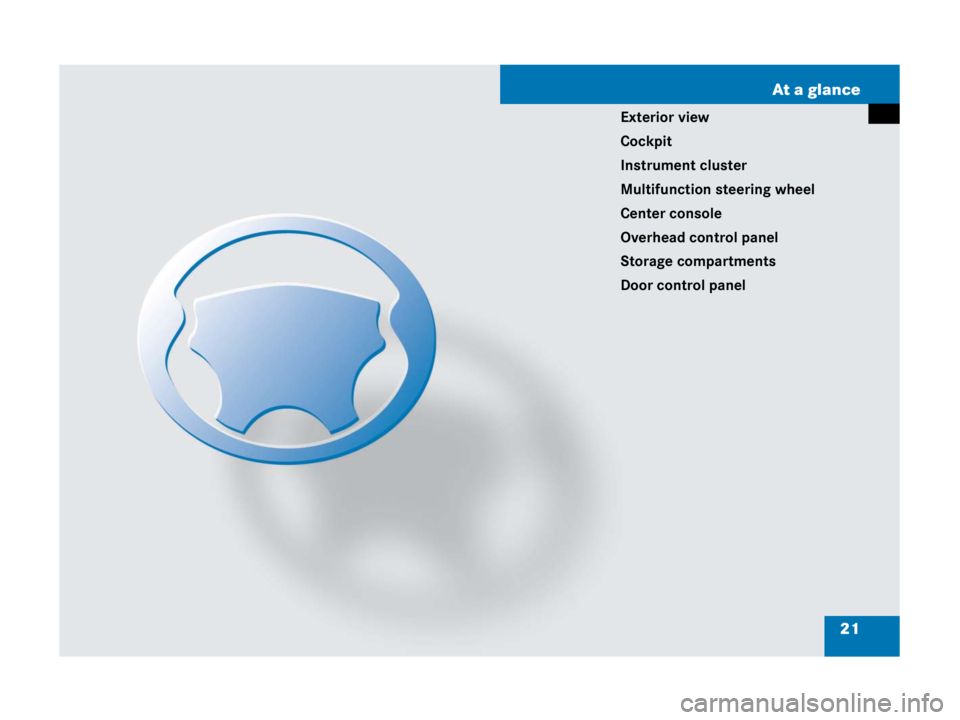

21 At a glance
Exterior view
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Storage compartments
Door control panel

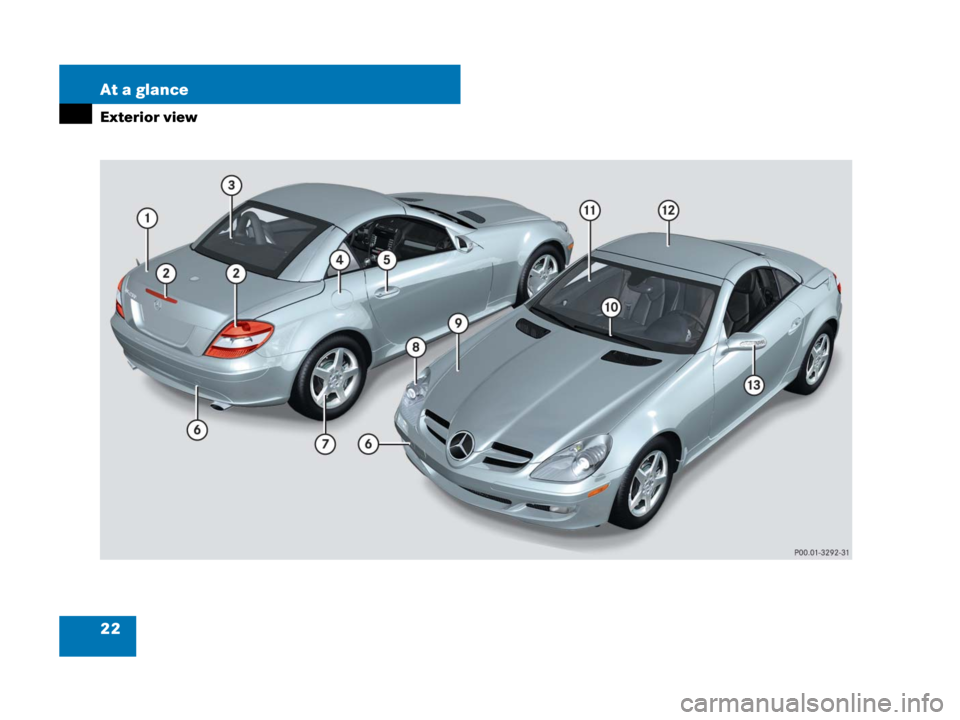

22 At a glance
Exterior view

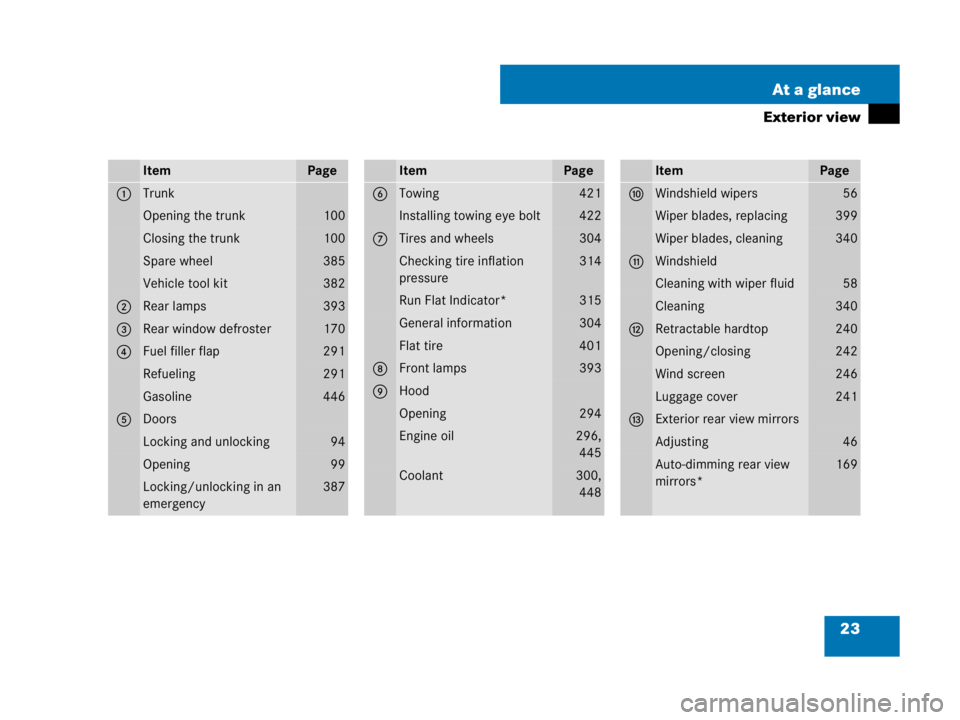

23 At a glance
Exterior view
ItemPage
1Trunk
Opening the trunk100
Closing the trunk100
Spare wheel385
Vehicle tool kit382
2Rear lamps393
3Rear window defroster170
4Fuel filler flap291
Refueling291
Gasoline446
5Doors
Locking and unlocking94
Opening99
Locking/unlocking in an
emergency387
ItemPage
6Towing421
Installing towing eye bolt422
7Tires and wheels304
Checking tire inflation
pressure314
Run Flat Indicator*315
General information304
Flat tire401
8Front lamps393
9Hood
Opening294
Engine oil296,
445
Coolant300,
448
ItemPage
aWindshield wipers56
Wiper blades, replacing399
Wiper blades, cleaning340
bWindshield
Cleaning with wiper fluid58
Cleaning340
cRetractable hardtop240
Opening/closing242
Wind screen246
Luggage cover241
dExterior rear view mirrors
Adjusting46
Auto-dimming rear view
mirrors*169

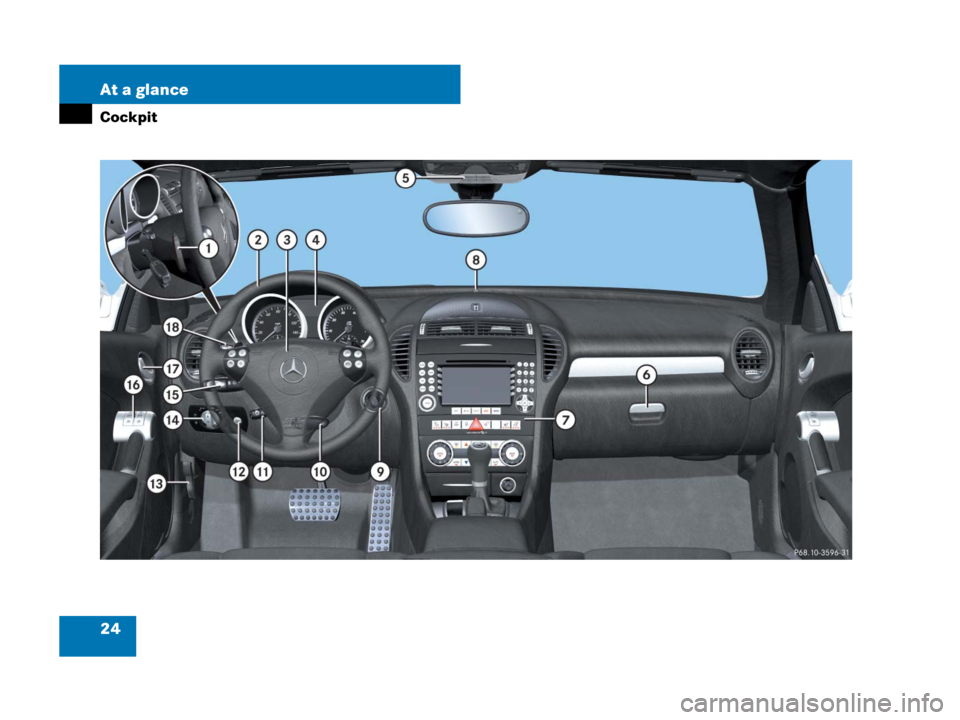

24 At a glance
Cockpit

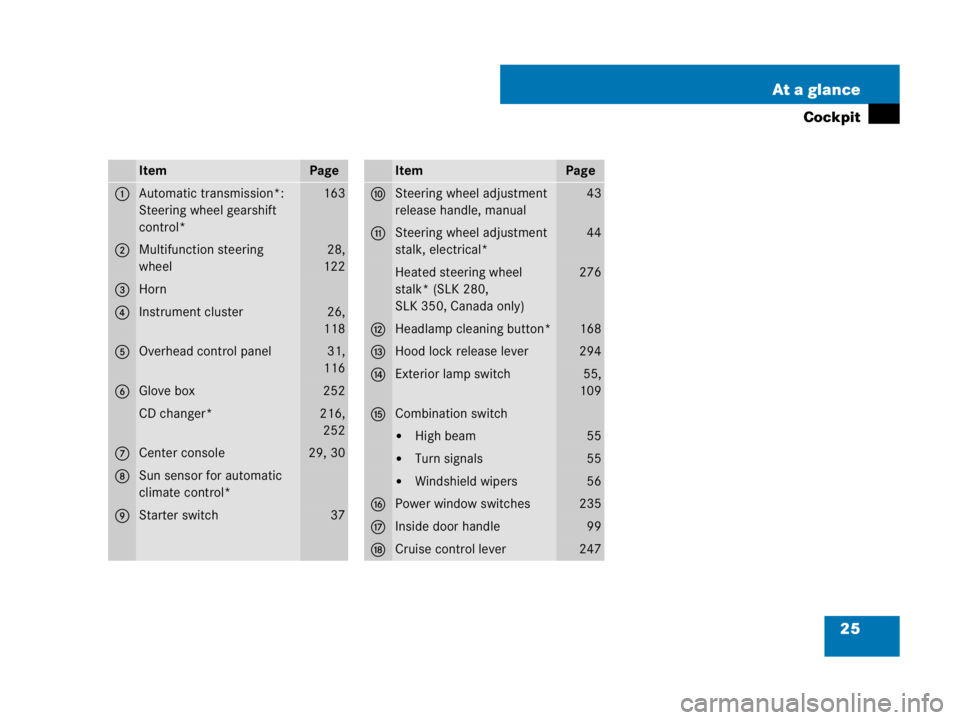

25 At a glance
Cockpit
ItemPage
1Automatic transmission*:
Steering wheel gearshift
control*163
2Multifunction steering
wheel28,
122
3Horn
4Instrument cluster26,
118
5Overhead control panel31,
116
6Glove box252
CD changer*216,
252
7Center console29, 30
8Sun sensor for automatic
climate control*
9Starter switch37
ItemPage
aSteering wheel adjustment
release handle, manual43
bSteering wheel adjustment
stalk, electrical*44
Heated steering wheel
stalk* (SLK 280,
SLK 350, Canada only)276
cHeadlamp cleaning button*168
dHood lock release lever294
eExterior lamp switch55,
109
fCombination switch

High beam55

Turn signals55

Windshield wipers56
gPower window switches235
hInside door handle99
jCruise control lever247

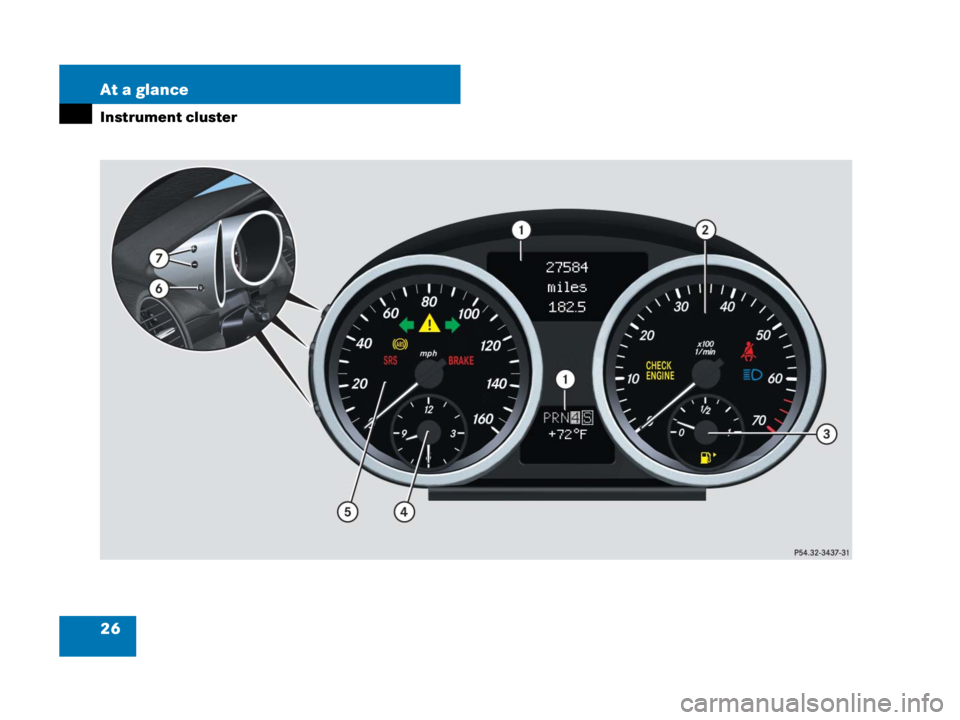

26 At a glance
Instrument cluster

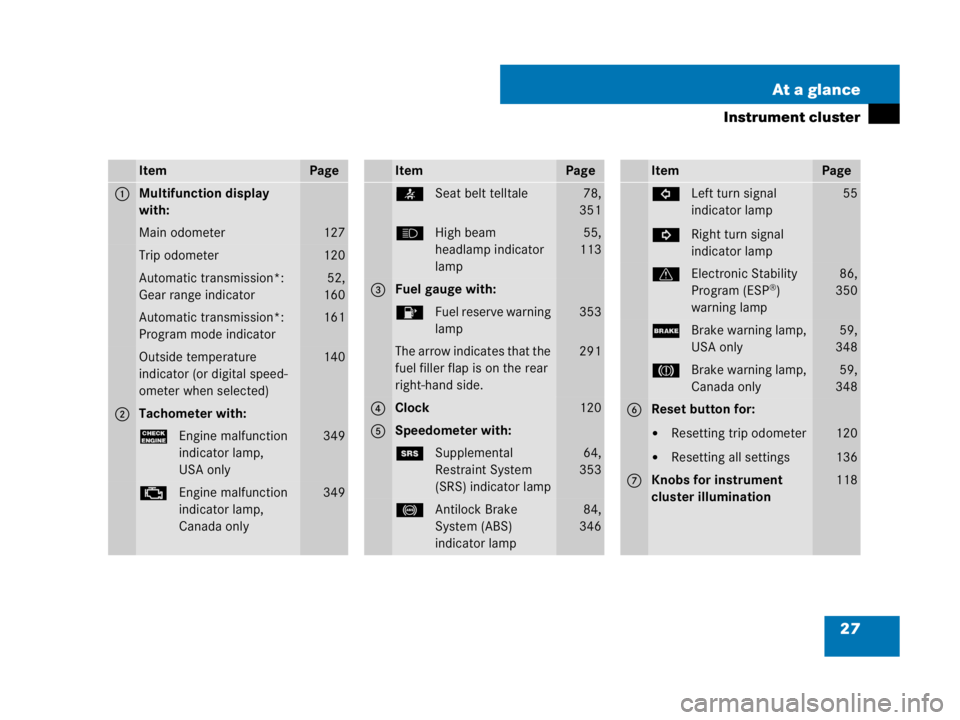

27 At a glance
Instrument cluster
ItemPage
1Multifunction display
with:
Main odometer127
Trip odometer120
Automatic transmission*:
Gear range indicator52,
160
Automatic transmission*:
Program mode indicator161
Outside temperature
indicator (or digital speed-
ometer when selected)140
2Tachometer with:
?Engine malfunction
indicator lamp,
USA only349
±Engine malfunction
indicator lamp,
Canada only349
ItemPage
351
AHigh beam
headlamp indicator
lamp55,
113
3Fuel gauge with:
4Fuel reserve warning
lamp353
The arrow indicates that the
fuel filler flap is on the rear
right-hand side.291
4Clock120
5Speedometer with:
1Supplemental
Restraint System
(SRS) indicator lamp64,
353
-Antilock Brake
System (ABS)
indicator lamp84,
346
ItemPage
LLeft turn signal
indicator lamp
KRight turn signal
indicator lamp55
vElectronic Stability
Program (ESP®)
warning lamp
86,
350
;Brake warning lamp,
USA only59,
348
3Brake warning lamp,
Canada only59,
348
6Reset button for:

Resetting trip odometer

Resetting all settings
120
136
7Knobs for instrument
cluster illumination118

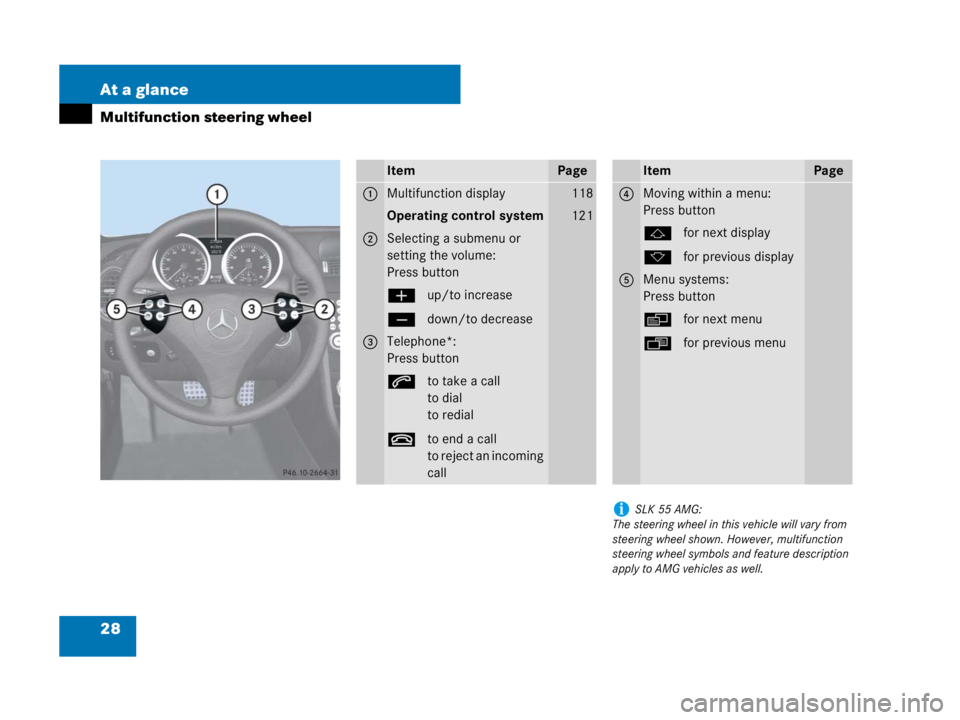

28 At a glance
Multifunction steering wheel
ItemPage
1Multifunction display118
Operating control system121
2Selecting a submenu or
setting the volume:
Press button
æup/to increase
çdown/to decrease
3Telephone*:
Press button
sto take a call
to dial
to redial
tto end a call
to reject an incoming
call
ItemPage
4Moving within a menu:
Press button
jfor next display
kfor previous display
5Menu systems:
Press button
èfor next menu
·for previous menu
iSLK 55 AMG:
The steering wheel in this vehicle will vary from
steering wheel shown. However, multifunction
steering wheel symbols and feature description
apply to AMG vehicles as well.

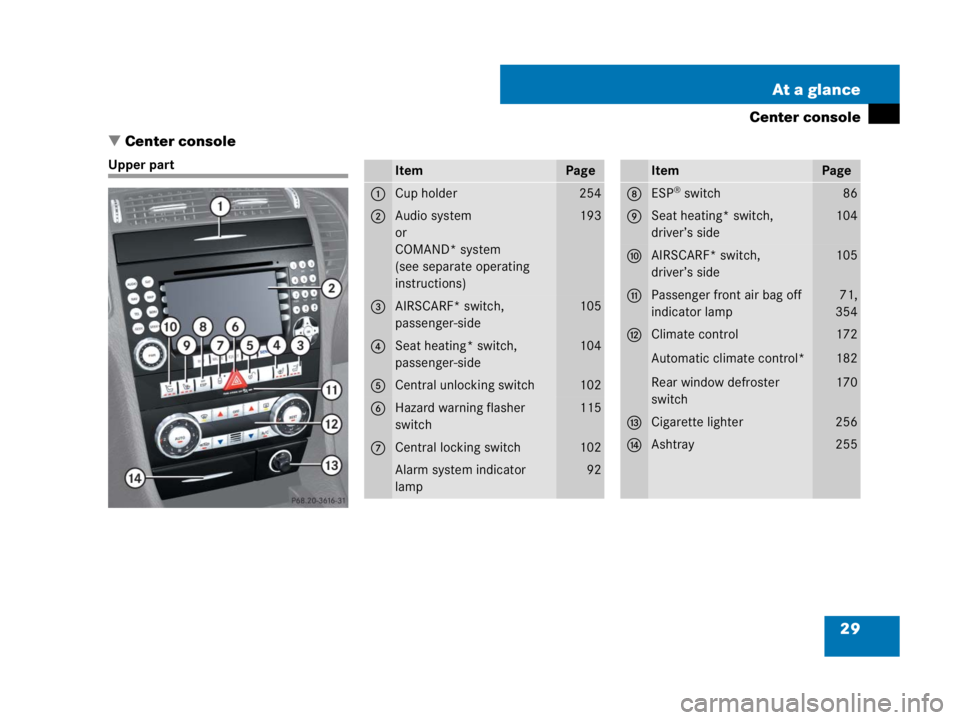

29 At a glance
Center console
Center console
Upper partItemPage
1Cup holder254
2Audio system
or
COMAND* system
(see separate operating
instructions)193
3AIRSCARF* switch,
passenger-side105
4Seat heating* switch,
passenger-side104
5Central unlocking switch102
6Hazard warning flasher
switch115
7Central locking switch102
Alarm system indicator
lamp92
ItemPage
8ESP® switch86
9Seat heating* switch,
driver’s side104
aAIRSCARF* switch,
driver’s side105
bPassenger front air bag off
indicator lamp71,
354
cClimate control
Automatic climate control*
Rear window defroster
switch172
182
170
dCigarette lighter256
eAshtray255
