Jump starting
Make sure the two vehicles do not
touch.
Turn off all electrical consumers.
Apply the parking brake (page 59).
Make sure the gear selector lever* is
set to positionP (manual transmission
to Neutral).
Open the hood (page 294).
Flip up cover from positive under hood
terminal2 in front of water tray1
(

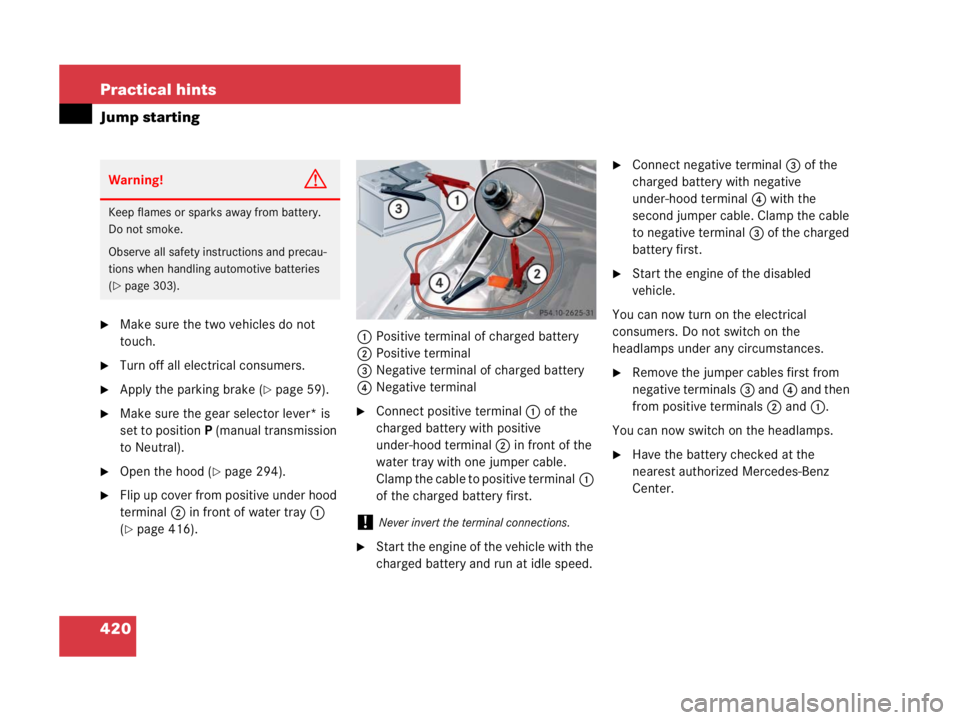

page 416).1Positive terminal of charged battery
2Positive terminal
3Negative terminal of charged battery
4Negative terminal
Connect positive terminal1 of the
charged battery with positive
under-hood terminal2 in front of the
water tray with one jumper cable.
Clamp the cable to positive terminal1
of the charged battery first.
Start the engine of the vehicle with the
charged battery and run at idle speed.
Connect negative terminal3 of the
charged battery with negative
under-hood terminal4 with the
second jumper cable. Clamp the cable
to negative terminal3 of the charged
battery first.
Start the engine of the disabled
vehicle.
You can now turn on the electrical
consumers. Do not switch on the
headlamps under any circumstances.
Remove the jumper cables first from
negative terminals3 and4 and then
from positive terminals2 and1.
You can now switch on the headlamps.
Have the battery checked at the
nearest authorized Mercedes-Benz
Center.
Warning!G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(
page 303).
!Never invert the terminal connections.

421 Practical hints
Towing the vehicle
Towing the vehicle
Mercedes-Benz recommends that the vehi-
cle be transported with all wheels off the
ground using flatbed or appropriate wheel
lift/dolly equipment.
When circumstances do not permit the
recommended towing methods, the vehi-
cle may be towed with all wheels on the
ground or front wheels raised only so far as
necessary to have the vehicle moved to a
safe location where the recommended
towing methods can be employed.
!Vehicles with automatic transmission*: Do
not tow-start vehicle.
!Use flatbed or wheel lift/dolly equipment
with the SmartKey in the starter switch in
position0.
Do not tow with sling-type equipment. Towing
with sling-type equipment over bumpy roads will
damage radiator and supports.
To prevent damage during transport, do not tie
down vehicle by its chassis or suspension parts.
Use the towing eyes.
Switch off the tow-away alarm (
page 91) and
the automatic central locking (
page 102).

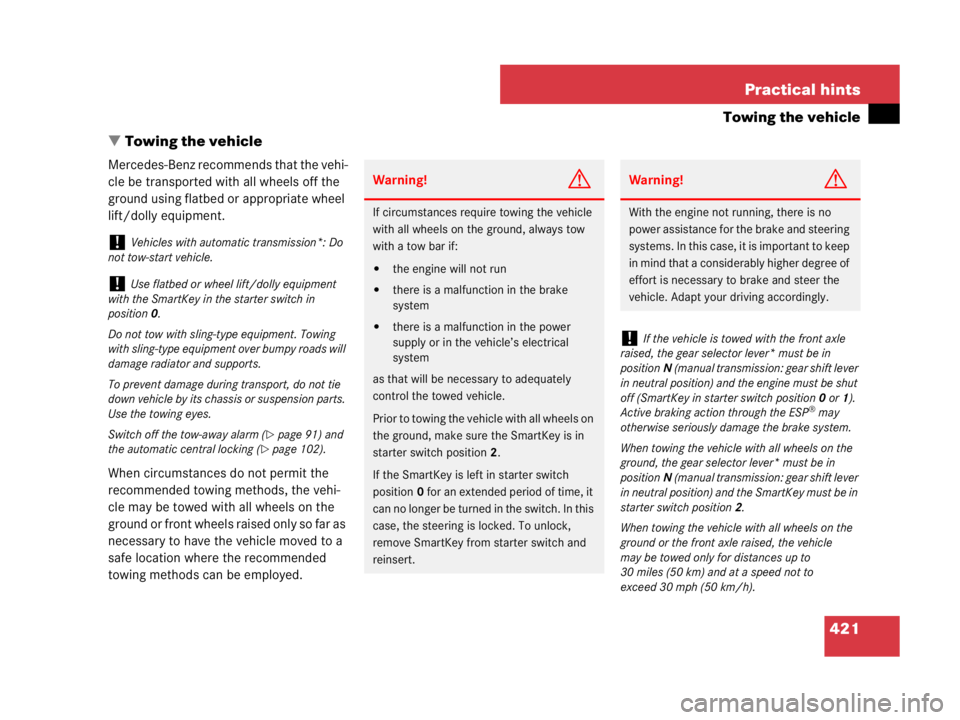

Warning!G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run

there is a malfunction in the brake
system

there is a malfunction in the power
supply or in the vehicle’s electrical
system
as that will be necessary to adequately
control the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make sure the SmartKey is in
starter switch position2.
If the SmartKey is left in starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock,
remove SmartKey from starter switch and
reinsert.
Warning!G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle. Adapt your driving accordingly.
!If the vehicle is towed with the front axle
raised, the gear selector lever* must be in
positionN (manual transmission: gear shift lever
in neutral position) and the engine must be shut
off (SmartKey in starter switch position0or1).
Active braking action through the ESP
® may
otherwise seriously damage the brake system.
When towing the vehicle with all wheels on the
ground, the gear selector lever* must be in
positionN (manual transmission: gear shift lever
in neutral position) and the SmartKey must be in
starter switch position2.
When towing the vehicle with all wheels on the
ground or the front axle raised, the vehicle
may be towed only for distances up to
30 miles (50 km) and at a speed not to
exceed 30 mph (50 km/h).

422 Practical hints
Towing the vehicle
Installing towing eye bolt
The towing eye bolt is supplied with the ve-
hicle tool kit, located in the compartment
underneath the trunk floor (
page 382).
The towing eyes are located on the passen-
ger side in the front and rear bumper.
Take vehicle tool kit out of trunk
(
page 382).

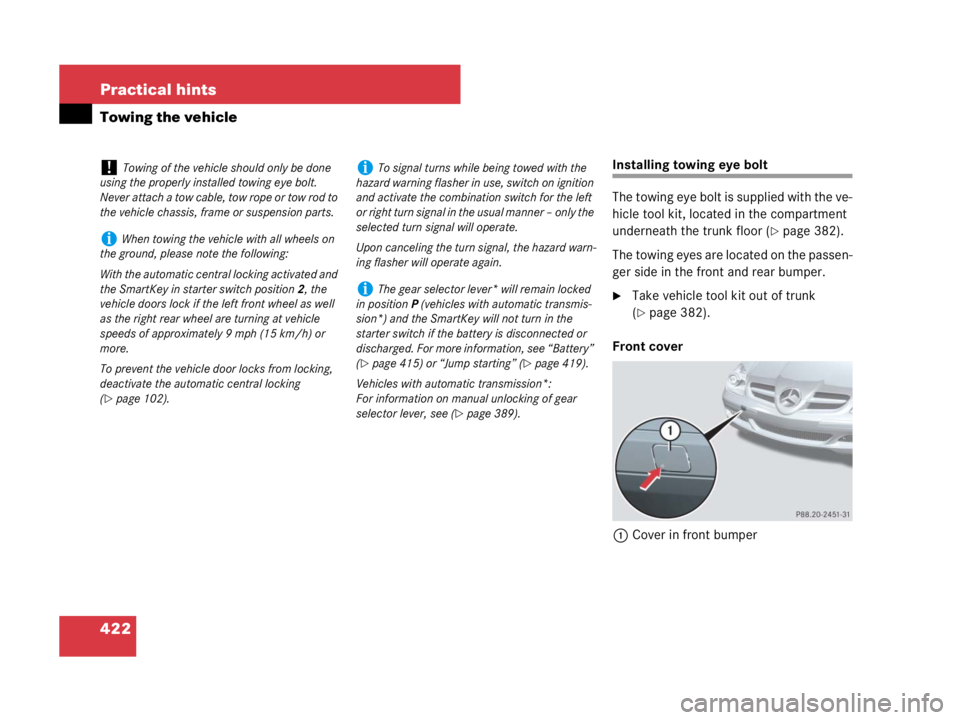

Front cover
1Cover in front bumper
!Towing of the vehicle should only be done
using the properly installed towing eye bolt.
Never attach a tow cable, tow rope or tow rod to
the vehicle chassis, frame or suspension parts.
iWhen towing the vehicle with all wheels on
the ground, please note the following:
With the automatic central locking activated and
the SmartKey in starter switch position2, the
vehicle doors lock if the left front wheel as well
as the right rear wheel are turning at vehicle
speeds of approximately 9 mph (15 km/h) or
more.
To prevent the vehicle door locks from locking,
deactivate the automatic central locking
(
page 102).
iTo signal turns while being towed with the
hazard warning flasher in use, switch on ignition
and activate the combination switch for the left
or right turn signal in the usual manner – only the
selected turn signal will operate.
Upon canceling the turn signal, the hazard warn-
ing flasher will operate again.
iThe gear selector lever* will remain locked
in positionP (vehicles with automatic transmis-
sion*) and the SmartKey will not turn in the
starter switch if the battery is disconnected or
discharged. For more information, see “Battery”
(
page 415) or “Jump starting” (page 419).
Vehicles with automatic transmission*:
For information on manual unlocking of gear
selector lever, see (
page 389).

423 Practical hints
Towing the vehicle
Removing
Press mark on cover1.
Cover1 springs open at the top right
corner.
Pull at the protruding part of cover1
and fold cover down to reveal the
threaded hole for the towing eye bolt.
Do not disconnect cover1 from its
check strap.
Screw towing eye bolt in to its end stop
and tighten with lug wrench.Installing
Unscrew the towing eye bolt using the
lug wrench.
To reinstall cover1, tilt the marked
lower left corner towards the opening.
Maintaining its tilted position, insert
cover1 by applying the latches at the
top left and lower right corner into the
opening.
To close cover1, press on the diago-
nal opposite side of the marked corner

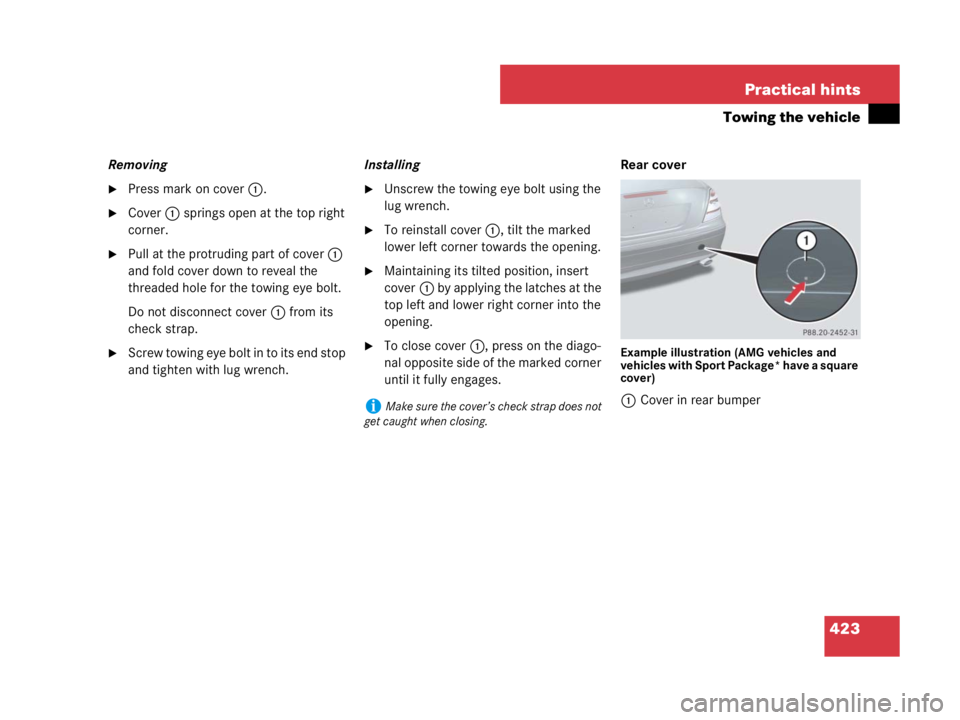

until it fully engages.Rear coverExample illustration (AMG vehicles and
vehicles with Sport Package* have a square
cover)
1Cover in rear bumperiMake sure the cover’s check strap does not
get caught when closing.

424 Practical hints
Towing the vehicle
Removing
Press mark on cover1.
Cover1 springs open at the top.
Pull at the protruding part of cover1
and fold cover down to reveal the
threaded hole for the towing eye bolt.
Do not disconnect cover1 from its
check strap.
Screw towing eye bolt in to its end stop
and tighten with lug wrench.Installing
Unscrew the towing eye bolt using the
lug wrench.
To reinstall cover1, tilt the marked
lower edge towards the opening.
Maintaining its tilted position, insert
cover1 by applying the latches at the
marked lower edge into the opening.
To close cover1, press on the un-
marked top until it fully engages.
iMake sure the cover’s check strap does not
get caught when closing.

425 Practical hints
Fuses
Fuses
The electrical fuses in your vehicle serve to
switch off malfunctioning power circuits.
If a fuse is blown, the components and
systems secured by that fuse will stop
operating.If a newly inserted fuse blows again, have
the cause determined and rectified by an
authorized Mercedes-Benz Center.
The following aids are available to help you
replace fuses. The spare fuses and the fuse
extractor are located in the trunk with the
vehicle tool kit (
page 382) and the fuse
chart is located in the fuse box in the
passenger compartment (
page 425).

Fuse chart
The fuse chart explains the fuse
allocation and fuse amperages.

Spare fuses

Fuse extractor
The electrical fuses are located in different
fuse boxes:

in the passenger compartment on the
driver’s side (
page 425)

on the driver’s side of the engine
compartment (
page 426)Before replacing fuses:
Apply the parking brake (page 59).
Make sure the gear selector lever* is
set to positionP (
page 157) (manual
transmission to Neutral).
Turn off all electrical consumers.
Turn off the engine (page 61).
Remove the SmartKey from the starter
switch.

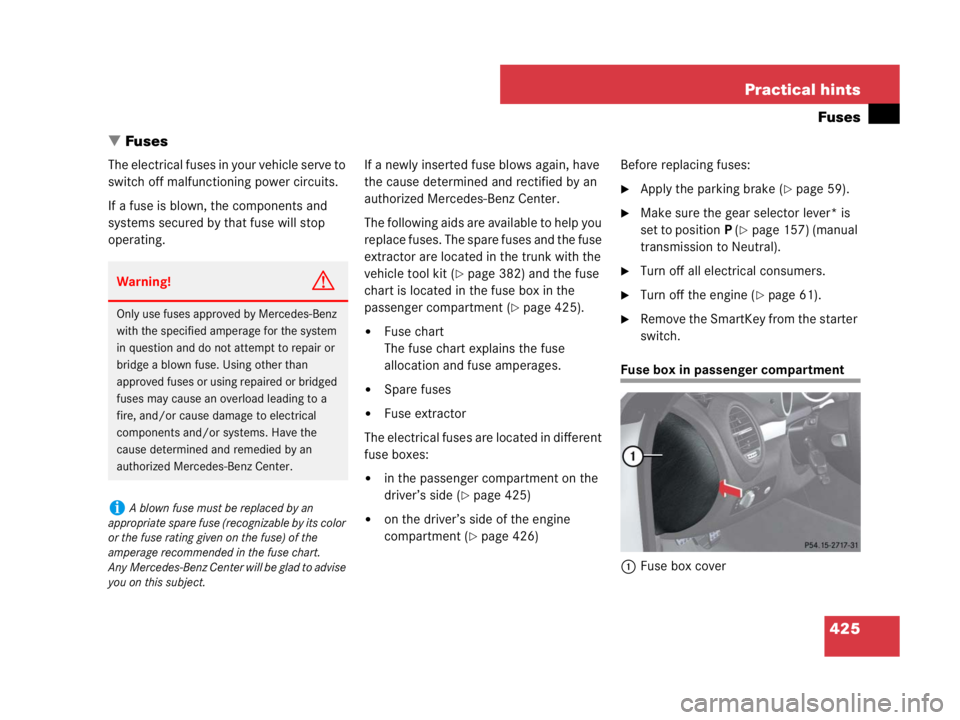

Fuse box in passenger compartment
1Fuse box cover
Warning!G
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system
in question and do not attempt to repair or
bridge a blown fuse. Using other than
approved fuses or using repaired or bridged
fuses may cause an overload leading to a
fire, and/or cause damage to electrical
components and/or systems. Have the
cause determined and remedied by an
authorized Mercedes-Benz Center.
iA blown fuse must be replaced by an
appropriate spare fuse (recognizable by its color
or the fuse rating given on the fuse) of the
amperage recommended in the fuse chart.
Any Mercedes-Benz Center will be glad to advise
you on this subject.

426 Practical hints
Fuses
Opening
Open the driver’s door.
Insert flat, blunt object as a lever into
recess on the edge of cover1 at the
position indicated by the arrow.
Loosen cover1 from dashboard using
the lever.
Pull cover1 out and remove.
Closing
Attach cover1 in the front.
Fold cover1 in until it engages.

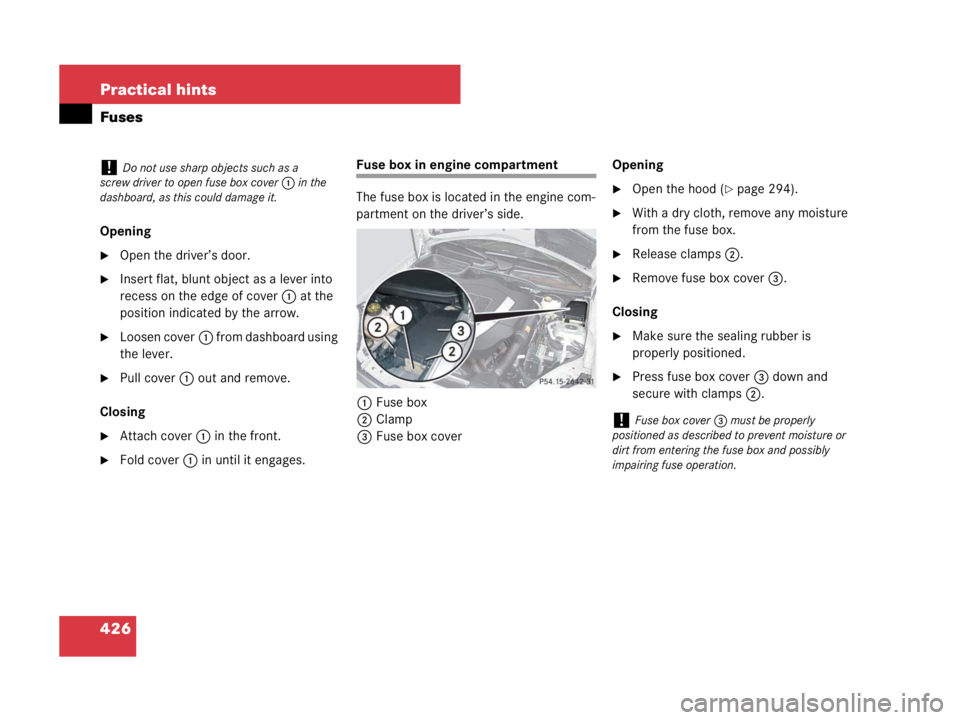

Fuse box in engine compartment
The fuse box is located in the engine com-
partment on the driver’s side.
1Fuse box
2Clamp
3Fuse box coverOpening
Open the hood (page 294).
With a dry cloth, remove any moisture
from the fuse box.
Release clamps2.
Remove fuse box cover3.
Closing
Make sure the sealing rubber is
properly positioned.
Press fuse box cover3 down and
secure with clamps2.
!Do not use sharp objects such as a
screw driver to open fuse box cover1 in the
dashboard, as this could damage it.
!Fuse box cover3 must be properly
positioned as described to prevent moisture or
dirt from entering the fuse box and possibly
impairing fuse operation.

427 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants, etc.

428 Technical data
The “Technical data” section provides the
necessary technical data for your vehicle.
Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz Parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz Parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed,
manufactured or selected for and adapted
to Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz Parts
should be installed.!The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s
durability or safety.

429 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will
exchange or repair any defective parts
originally installed in the vehicle in
accordance with the terms of the following
warranties:

New Vehicle Limited Warranty

Emission System Warranty

Emission Performance Warranty

California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a
replacement. It will be mailed to you.
