Page 10 of 358

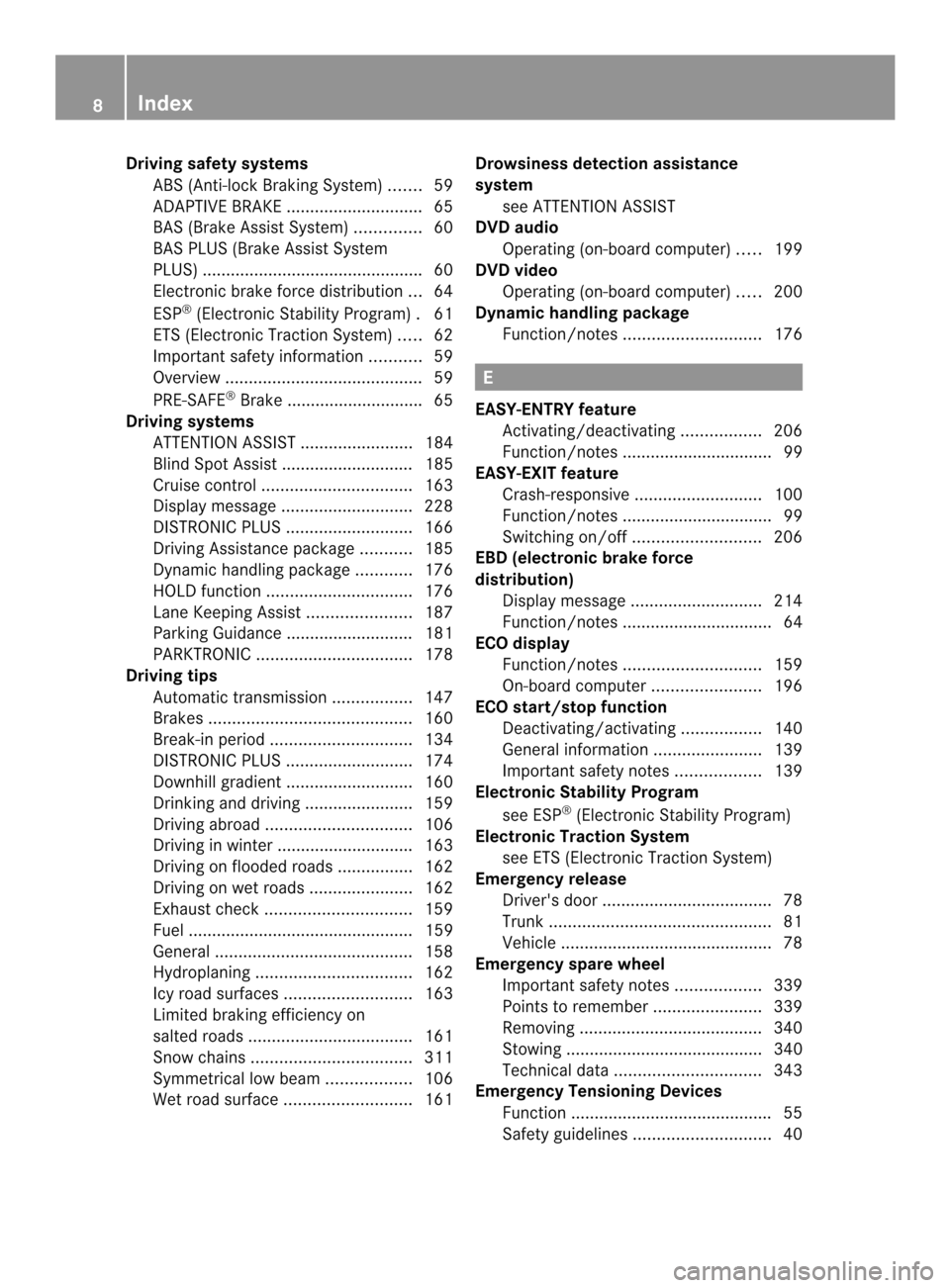

Driving safet
ysystems
ABS (Anti-lock Braking System) .......59
ADAPTIVE BRAKE ............................. 65
BAS (Brake Assist System) ..............60
BAS PLUS (Brake Assist System
PLUS) .............................................. .60
Electroni cbrake force distribution ...64
ESP ®
(Electronic Stability Program) .61
ETS (Electronic Traction System) .....62
Important safety information ...........59
Overview .......................................... 59
PRE-SAFE ®
Brake ............................ .65
Driving systems
ATTENTION ASSIST ........................ 184
Blind Spot Assist ............................ 185
Cruis econtrol ................................ 163
Display message ............................ 228
DISTRONI CPLUS ........................... 166
Driving Assistance package ...........185
Dynami chandling package ............176
HOLD function ............................... 176
Lane Keeping Assist ......................187
Parking Guidance ........................... 181
PARKTRONI C................................. 178
Driving tips
Automatic transmission .................147
Brakes ........................................... 160
Break-in period .............................. 134
DISTRONI CPLUS ........................... 174
Downhill gradient ........................... 160
Drinking and driving .......................159
Driving abroad ............................... 106
Driving in winter ............................ .163
Driving on flooded road s................ 162
Driving on wet road s...................... 162
Exhaus tcheck ............................... 159
Fuel ................................................ 159
General .......................................... 158
Hydroplaning ................................. 162
Icy road surfaces ........................... 163
Limited braking efficiency on
salted road s................................... 161
Snow chains .................................. 311
Symmetrical low bea m.................. 106
Wet road surface ........................... 161Drowsiness detection assistance
system
see ATTENTION ASSIST
DVD audio
Operating (on-board computer) .....199
DVD video
Operating (on-board computer) .....200
Dynamic handling package
Function/notes ............................. 176 E
EASY-ENTRY feature Activating/deactivating .................206
Function/notes ................................ 99
EASY-EXIT feature
Crash-responsive ........................... 100
Function/notes ................................ 99
Switching on/off ........................... 206
EBD (electronic brake force
distribution)
Display message ............................ 214
Function/notes ................................ 64
ECO display
Function/notes ............................. 159
On-board computer .......................196
ECO start/stop function
Deactivating/activating .................140
General information .......................139
Important safety notes ..................139
Electronic Stability Program
see ESP ®
(Electroni cStability Program)
Electronic Traction System
see ETS (Electronic Traction System)
Emergenc yrelease
Driver's door .................................... 78
Trunk ............................................... 81
Vehicle ............................................. 78
Emergency spare wheel
Important safety notes ..................339
Points to remember .......................339
Removing ....................................... 340
Stowing .......................................... 340
Technical data ............................... 343
Emergency Tensioning Devices
Function .......................................... .55
Safety guideline s............................. 408
Index
Page 17 of 358

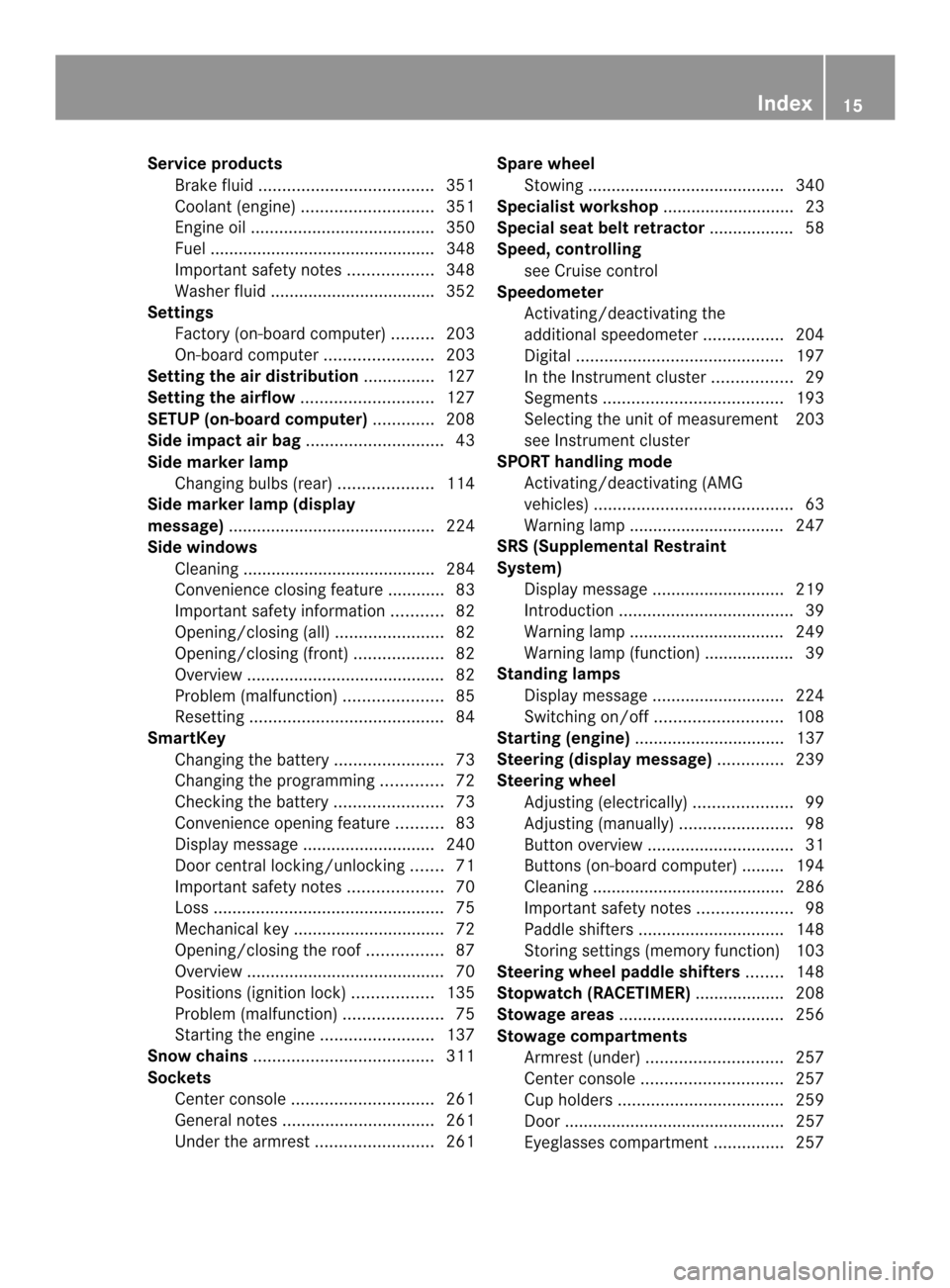

Service products
Brake fluid ..................................... 351
Coolant (engine) ............................ 351
Engine oil ....................................... 350
Fuel ................................................ 348
Important safety notes ..................348
Washer fluid .................................. .352
Settings
Factory (on-board computer) .........203
On-board computer .......................203
Setting the air distribution ...............127
Setting the airflow ............................127
SETUP (on-board computer) .............208
Side impact air bag .............................43
Side marker lamp Changing bulbs (rear) ....................114
Side marker lamp (display
message) ............................................ 224
Side windows Cleaning ......................................... 284
Convenience closing feature ............83
Important safety information ...........82
Opening/closing (all) .......................82
Opening/closing (front) ...................82
Overview .......................................... 82
Problem (malfunction) .....................85
Resetting ......................................... 84
SmartKey
Changing the battery .......................73
Changing the programming .............72
Checking the battery .......................73
Convenience opening feature ..........83
Display message ............................ 240
Door central locking/unlocking .......71
Important safety notes ....................70
Loss ................................................. 75
Mechanical key ................................ 72
Opening/closing the roof ................87
Overview .......................................... 70
Positions (ignition lock) .................135
Problem (malfunction) .....................75
Starting the engine ........................137
Snow chains ...................................... 311
Sockets Center console .............................. 261
General notes ................................ 261
Under the armrest .........................261Spare wheel
Stowing .......................................... 340
Specialist workshop ............................ 23
Special seat bel tretractor .................. 58
Speed ,controlling
see Cruise control
Speedometer
Activating/deactivating the
additional speedometer .................204
Digita l............................................ 197
In the Instrument cluster .................29
Segments ...................................... 193
Selecting the unit of measurement 203
see Instrument cluster
SPORT handling mode
Activating/deactivating (AMG
vehicles) .......................................... 63
Warning lamp ................................. 247
SRS (Supplemental Restraint
System)
Display message ............................ 219
Introduction ..................................... 39
Warning lamp ................................. 249
Warning lamp (function) ................... 39
Standing lamps
Display message ............................ 224
Switching on/off ........................... 108
Starting (engine) ................................ 137
Steering (display message) ..............239
Steering wheel Adjusting (electrically). ....................99
Adjusting (manually )........................ 98
Button overview ............................... 31
Buttons (on-board computer) ......... 194
Cleaning ......................................... 286
Important safety notes ....................98
Paddle shifters ............................... 148
Storing settings (memory function) 103
Steering wheel paddle shifters ........148
Stopwatch (RACETIMER) ................... 208
Stowage areas ................................... 256
Stowage compartments Armrest (under) ............................. 257
Center console .............................. 257
Cuph olders ................................... 259
Door ............................................... 257
Eyeglasses compartment ...............257 Index
15
Page 21 of 358

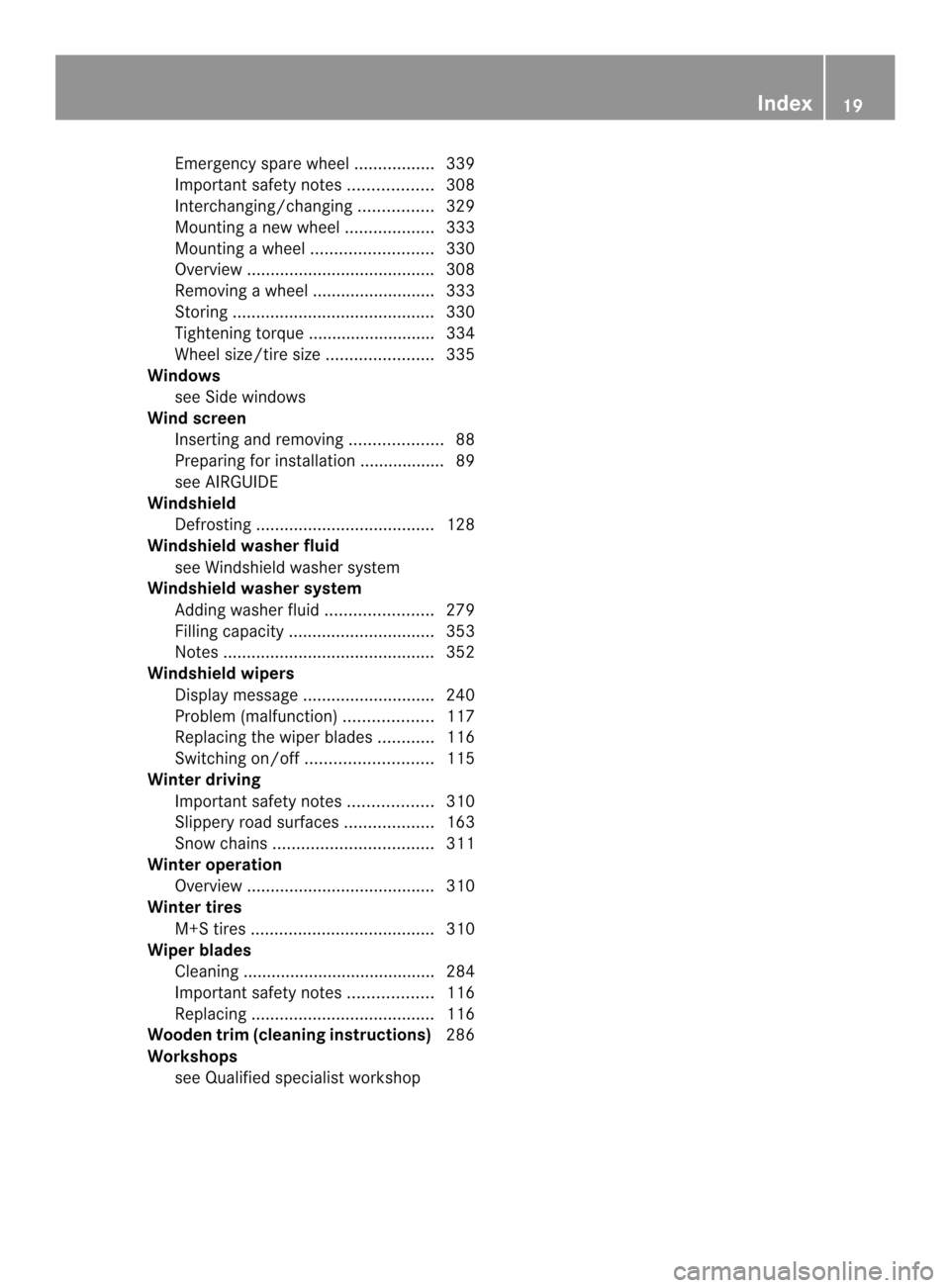

Emergency spar
ewheel ................. 339
Important safety notes ..................308
Interchanging/changing ................329
Mounting anew wheel ................... 333
Mounting awheel .......................... 330
Overview ........................................ 308
Removing awheel .......................... 333
Storing ........................................... 330
Tightening torque ........................... 334
Whee lsize/tir esize ....................... 335
Windows
see Side windows
Wind screen
Inserting and removing ....................88
Preparing for installation .................. 89
see AIRGUIDE
Windshield
Defrosting ...................................... 128
Windshiel dwasher fluid
see Windshield washer system
Windshiel dwasher system
Adding washer fluid .......................279
Filling capacity ............................... 353
Notes ............................................. 352
Windshiel dwipers
Display message ............................ 240
Problem (malfunction) ...................117
Replacing the wiper blades ............116
Switching on/off ........................... 115
Winte rdriving
Important safety note s.................. 310
Slippery road surfaces ...................163
Snow chains .................................. 311
Winter operation
Overview ........................................ 310
Winter tires
M+S tires ....................................... 310
Wiper blades
Cleaning ......................................... 284
Important safety notes ..................116
Replacing ....................................... 116
Wooden trim (cleaning instructions) 286
Workshops see Qualified specialist workshop Index
19
Page 61 of 358

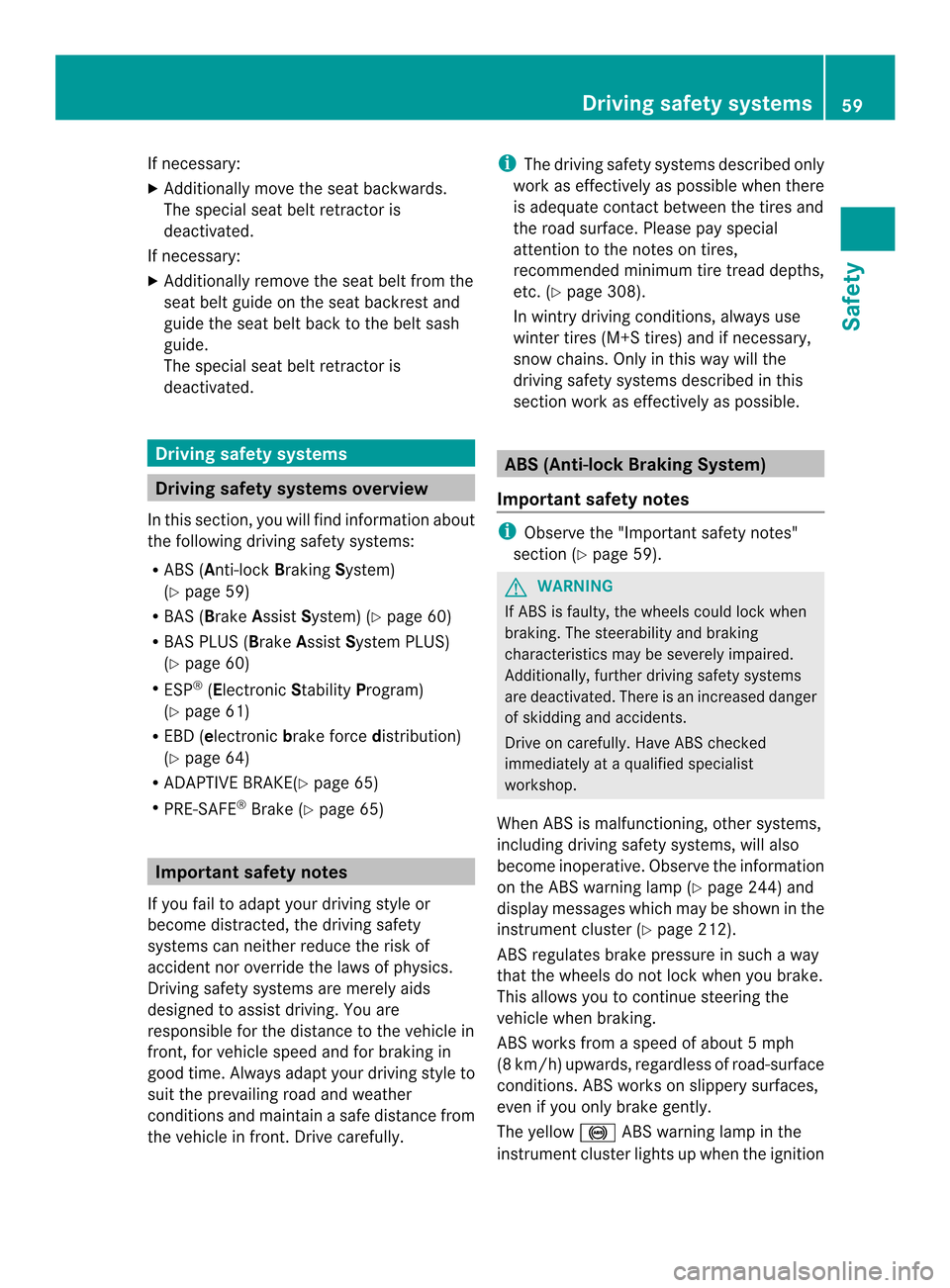

If necessary:
X
Additionally move the seat backwards.
The special seat belt retractor is
deactivated.
If necessary:
X Additionally remove the seat belt from the
seat belt guide on the seat backrest and
guide the seat belt back to the belt sash
guide.
The special seat belt retractor is
deactivated. Driving safety systems
Driving safety systems overview
In this section, you will find information about
the following driving safety systems:
R ABS ( Anti-lock BrakingSystem)
(Y page 59)
R BAS ( Brake Assist System) (Y page 60)
R BAS PLUS ( BrakeAssist System PLUS)
(Y page 60)
R ESP ®
(Electronic StabilityProgram)
(Y page 61)
R EBD ( electronic brake force distribution)
(Y page 64)
R ADAPTIVE BRAKE(Y page 65)
R PRE-SAFE ®
Brake (Y page 65) Important safety notes
If you fail to adapt yourd riving style or
become distracted, the driving safety
systems can neither reduce the risk of
accident nor override the laws of physics.
Driving safety systems are merely aids
designed to assist driving. You are
responsible for the distance to the vehicle in
front, for vehicle speed and for braking in
good time. Always adapt yourd riving style to
suitt he prevailing road and weather
conditions and maintain asafe distance from
the vehicle in front. Drive carefully. i
The driving safety systems described only
work as effectively as possible when there
is adequate contact between the tires and
the road surface. Please pay special
attention to the note son tires,
recommended minimu mtire tread depths,
etc. (Y page 308).
In wintry driving conditions, always use
winter tires (M+S tires) and if necessary,
snow chains. Only in this way will the
driving safety systems described in this
section work as effectively as possible. ABS (Anti-lock Braking System)
Important safety notes i
Observe the "Importan tsafety notes"
sectio n(Ypage 59). G
WARNING
If ABSi s faulty, the wheels could lock when
braking. The steerability and braking
characteristics may be severely impaired.
Additionally, further driving safety systems
are deactivated. There is an increased danger
of skidding and accidents.
Drive on carefully. Have ABS checked
immediately at a qualified specialist
workshop.
When ABS is malfunctioning, other systems,
including driving safety systems, will also
become inoperative. Observe the information
on the ABS warning lamp (Y page 244) and
display messages which may be shown in the
instrument cluster (Y page 212).
ABS regulates brake pressure in such a way
that the wheels do not lock when you brake.
This allows you to continue steering the
vehicle when braking.
ABS works from a speed of about 5 mph
(8 km/h) upwards, regardless of road-surface
conditions. ABS works on slippery surfaces,
even if you only brake gently.
The yellow 0016ABS warning lamp in the
instrument cluster lights up when the ignition Driving safety systems
59Safety Z
Page 64 of 358
If ESP
®
intervenes, the 000CESP®
warning
lamp flashes in the instrument cluster.
If ESP ®
intervenes:
X Do not deactivate ESP ®
under any
circumstances.
X Only depress the accelerator pedal as far
as necessary when pulling away.
X Adapt yourd riving style to suitt he
prevailing road and weather conditions.
i Only use wheels with the recommended
tire sizes. Only then will ESP ®
function
properly.
4ETS (Electronic Traction System) i
Observe the "Important safety notes"
section (Y page 59).
Traction control is part of ESP ®
.
Traction control brakes the drive wheels
individually if they spin. This enables you to
pull away and accelerate on slippery surfaces,
for example if the road surface is slippery on
one side.
Traction control remains active if you
deactivate ESP ®
.
Deactivating/activating ESP ®
(except
AMG vehicles) i
Observe the "Important safety notes"
section (Y page 59). G
WARNING
If you deactivate ESP ®
, ESP ®
no longer
stabilizes the vehicle. There is an increased
risk of skidding and an accident.
Only deactivate ESP ®
in the situations
described in the following.
! Avoid spinning the driven wheels for an
extended period with ESP ®
deactivated.
You could otherwise damage the drivetrain. X
To switch off: press button0003.
The 0014 ESP®
OFF warning lamp in the
instrumentc luster lights up.
X To switch on: press button0003.
The 0014 ESP®
OFF warning lamp in the
instrumen tcluster goes out.
ESP ®
is activated automatically when the
engine is started.
The ECO start/stop function switches the
engine off automatically if the vehicle stops
moving. The engine starts automatically when
the drive rwants to pull away again .ESP ®
remains in its previously selected status.
Example: if ESP ®
was deactivated before the
engine was switched off, ESP ®
remains
deactivated when the engine is switched on
again.
If ESP ®
is deactivated and one or more wheels
star tto spin, the 000CESP®
warning lamp in
the instrument cluster flashes. In such
situations, ESP ®
will not stabilize the vehicle.
It may be best to deactivate ESP ®
in the
following situations:
R when using snow chains
R in deep snow
R on sand or gravel
If you deactivate ESP ®
:
R ESP ®
no longer improves driving stability.
R traction control is still activated. 62
Driving safety systemsSafety
Page 65 of 358
R
ESP ®
still provides support when you
brake.
R engine torque is not limited and the drive
wheels are able to spin. Th espinning
wheels produce a cutting effec tfor better
traction.
Deactivating/activating ESP ®
(AMG
vehicles) Activating/deactivating SPORT handling
mode G
WARNING
When SPORT handling mode is activated,
there is a greater risk of skidding and
accidents.
Only activate SPORT handling mode in the
situations described in the following. X
To activate: briefly press button 0003.
The 0002 SPORT handling mode warning
lamp in the instrument cluster lights up.
The SPORT handling mode message
appears in the multifunction display.
SPORT handling mode is designed for
driving on designated roads when the
vehicle's own oversteering and
understeering characteristics are desired.
Driving in SPORT handling mode requires
an extremely qualified and experienced
driver who is able to cope with these critical
driving conditions.
X To deactivate: briefly press button 0003.
The 0002 SPORT handling mode warning
lamp in the instrument cluster goes out. ESP
®
is activated automatically when the
engine is started.
It may be best to activate SPORT handling
mode in the following situations:
R when using snow chains
R in deep snow
R on sand or gravel
If SPORT handling mode is activated and one
or more wheels start to spin, the 000CESP®
warning lamp in the instrument cluster
flashes. ESP ®
only stabilizes the vehicle to a
limited degree.
When SPORT handling mode is activated:
R ESP ®
only improves driving stability to a
limited degree.
R traction control is still activated.
R ESP ®
still provides support when you brake
firmly.
R engine torque is only restricted to a limited
degree, and the drive wheels are able to
spin. The spinning wheels produce a
cutting effect for better traction.
Vehicles with ECO start/stop function: the
ECO start/stop function switches the engine
off automatically when the vehicle comes to
a stop. The engine starts automatically when
the driver wants to pull away again. ESP ®
remains in its previously selected status.
Example: if ESP ®
was deactivated before the
engine was switched off, ESP ®
remains
deactivated when the engine is switched on
again.
Deactivating/activating ESP ® G
WARNING
If you deactivate ESP ®
, ESP ®
no longer
stabilizes the vehicle. There is an increased
risk of skidding and an accident.
Only deactivate ESP ®
in the situations
described in the following.
! Avoid spinning the driven wheels for an
extended period with ESP ®
deactivated.
You could otherwise damage the drivetrain. Driving safety systems
63Safety Z
Page 66 of 358
X
To deactivate: press button0003until the
0014 ESP®
OFF warning lamp lights up in
the instrument cluster.
The 000COFF message appears in the
multifunctio ndisplay.
Deactivate ESP ®
when driving on
designated roads when the vehicle's own
oversteering and understeering
characteristics are desired. Driving without
ESP ®
requires an extremely qualified and
experienced drive rwho is able to cope with
these critical driving conditions.
X To activate: briefly press button 0003.
The 0014 ESP®
OFF warning lamp in the
instrumentc luster goes out. The 000CONmessage appears in the multifunction
display.
ESP ®
is activated automatically when the
engine is started.
If ESP ®
is deactivated and one or more wheels
start to spin, the ESP ®
000C warning lamp in
the instrumen tcluster does not flash. In such
situations, ESP ®
will not stabilize the vehicle.
It may be best to deactivate ESP ®
in the
following situations:
R when using snow chains
R in deep snow
R on sand or gravel
If you deactivate ESP ®
:
R ESP ®
no longer improves driving stability.
R traction control is still activated. R
PRE-SAFE ®
is no longer available, nor is it
activated if you brake firmly and ESP ®
intervenes.
R PRE-SAFE ®
Brake is no longer available, it
is also not activated if you brake firmly and
ESP ®
intervenes.
R ESP ®
still provides support when you brake
firmly.
R engine torque is no longer limited and the
drive wheels are able to spin .The spinning
wheels produce a cutting effect for better
traction.
Vehicles with ECO start/stop function: the
ECO start/stop function switches the engine
off automatically when the vehicle comes to
a stop. The engine starts automatically when
the driver wants to pull away again. ESP ®
remains in its previously selected status.
Example: if ESP ®
was deactivated before the
engine was switched off, ESP ®
remains
deactivated when the engine is switched on
again. EBD (electronic brake force
distribution)
i Observe the "Important safety notes"
section (Y page 59). G
WARNING
If EBD has malfunctioned, the rear wheels can
still lock, e.g. under full braking. This
increases the risk of skidding and an accident.
You should therefore adapt your driving style
to the different handling characteristics. Have
the brake system checked at a qualified
specialist workshop.
Observe information regarding indicator and
warning lamps (Y page 244) as well as
display messages (Y page 214).
EBD monitors and controls the brake
pressure on the rear wheels to improve
driving stability while braking. 64
Driving safety systemsSafety
Page 165 of 358
by the engine's air suction nozzles and this
can cause engine damage. Winter driving
Important safety notes G
WARNING
If you shift down on a slippery road surface in
an attempt to increase the engine's braking
effect, the drive wheels could lose their grip.
There is an increased danger of skidding and
accidents.
Do not shift down for additional engine
braking on a slippery road surface. G
DANGER
If the exhaust pipe is blocked or adequate
ventilation is not possible, poisonous gases
such as carbon monoxide (CO) may enter the
vehicle. This is the case, e.g. if the vehicle
becomes trapped in snow. There is a risk of
fatal injury.
If you leave the engin eorthe auxiliary heating
running, make sure the exhaust pipe and area
around the vehicle are clear of snow. To
ensure an adequate supply of fresh air, open
a window on the side of the vehicle that is not
facing into the wind.
Have your vehicle winterproofed at a qualified
specialist workshop at the onset of winter.
Observe the notes in the "Winter operation"
section (Y page 310).
Driving with summer tires Observe the notes in the "Winter operation"
section (Y
page 310).
Slippery road surfaces G
WARNING
If you shift down on a slippery road surface in
an attempt to increase the engine's braking
effect, the drive wheels could lose their grip. There is an increased danger of skidding and
accidents.
Do not shift down for additional engine
braking on a slippery road surface.
G
WARNING
The outside temperature indicator is not
designed to serve as an ice-warning device
and is therefore unsuitable for that purpose.
Indicated temperatures just above the
freezing point do not guarantee that the road
surface is free of ice. The road may still be icy,
especially in wooded areas or on bridges.
If the vehicle threatens to skid or cannot be
stopped when moving at low speed:
X Vehicles with manual transmission:
shift to neutral.
X Vehicles with automatic transmission:
shift the transmission to position N.
Drive particularly carefully on slippery road
surfaces. Avoid sudden acceleration, steering
and braking maneuvers. Do not use cruise
control.
i For more information on driving with
snow chains, see (Y page 311). Driving systems
Cruise control
Important safety notes G
WARNING
The cruise control is a convenience system
designed to assist the driver during vehicle
operation. The driver is and must always
remain responsible for the vehicle's speed
and for safe brake operation.
Only use the cruise control if the road, traffic,
and weather conditions make it advisable to
travel at a constant speed.
R The use of the cruise control can be
dangerous on winding roads or in heavy Driving systems
163Driving and parking
Z
Page 184 of 358
collision. For this reason, you should avoid
using Parking Guidance in such situations.
G
WARNING
Make sure that no persons or animals are in
the maneuvering range. Otherwise, they
could be injured.
! Pay particula rattention to low objects or
objects with flat surfaces ,such as trailer
drawbars, posts, cross beams and curbs.
These types of objects canno tbe detected
by Parking Guidance and may damage the
vehicle.
! If unavoidable, you should drive over
obstacles such as curbs slowly and not at
a sharp angle. Otherwise, you may damage
the wheels or tires.
Parking Guidance is an electronic parking aid
with ultrasound. Ultrasound is used to
measure the road on both sides of the vehicle.
As uitable parking space is indicated by the
parking symbol. You receive steering
instructions when parking .You may also use
PARKTRONIC (Y page 178).
When PARKTRONIC is deactivated, Parking
Guidance is also unavailable.
Use Parking Guidance for parking spaces:
R that are parallel to the direction of travel
R that are on straight roads, not bends
R that are on the same level as the road, i.e.
not on the pavement, for example. Parking
Guidance may not detect flat curbs
Parking tips:
R on narrow roads, drive past the parking
space as close as possible.
R parking spaces that are littered, overgrown
or partially occupied by trailer drawbars
might be identified incorrectly or not at all.
R snowfall or heavy rain may lead to a parking
space being measured inaccurately.
R pay attention to the PARKTRONIC
(Y page 179) warning messages during the
parking procedure. R
when transporting a load which protrudes
from your vehicle, you must not use Parking
Guidance.
R never use Parking Guidance with snow
chains or an emergency spare wheel
mounted.
R make sure that the tire pressures are
always correct. This has adirec teffect on
the steering instructions.
R the way you rvehicle is positioned in the
parking space after parkin gis dependent
on various factors. These include the
position and shape of the vehicles parked
in front and behind it and the conditions of
the location. In some cases, Parking
Guidance may guide you too far or not far
enough into a parking space. In some
cases, it may also lead you across or onto
the curb. If necessary, cancel the parking
procedure with Parking Guidance.
Detecting aparking space 0003
Detected parking space on the left
0004 Parking symbol
0024 Detected parking space on the right
Parking Guidance is automatically activated
whe nyou drive forwards. The system is
operational at speeds of up to approximately
22 mph (35 km/h). While in operation, the
system independently locates and measures
parking spaces on both sides of the vehicle.
When driving at speeds below 19 mph
(30km/h), you will see parking symbol 0004as
a status indicator in the instrument cluster. 182
Driving systemsDriving and parking
Page 313 of 358
When you have mounted M+S tires:
X
Check the tire pressures (Y page 315).
X Vehicles for USA: restartthe tire pressure
monitor (Y page 316).
X Vehicles for Canada: restart the tire
pressure loss warning system
(Y page 315).
For more information on driving with the
emergency spare wheel, see (Y page 339).Snow chains
G
WARNING
If snow chains are installed to the front
wheels, they may drag against the vehicle
body or chassis components. This could
cause damage to the vehicle or the tires.
There is a risk of an accident.
To avoid hazardous situations:
R never install snow chains to the front
wheels
R always install snow chains in pairs to the
rear wheels.
! You must drive at raised vehicle level
(level 1) if snow chains have been mounted.
The vehicle may otherwise be damaged.
! On some tire sizes there is not enough
space for snow chains. To avoid damage to
the vehicle or tires, observe the "Wheel and
tire combinations" section under "Tires and
wheels".
! Vehicles with steel wheels: if you wish
to mount snow chains on steel wheels,
make sure that you remove the respective
wheels' hubcaps first. The hubcaps may
otherwise be damaged.
For safety reasons, Mercedes-Benz
recommends that you only use snow chains
that have been specially approved for your
vehicle by Mercedes-Benz, or are of a
corresponding standard of quality. If you intend to mount snow chains, please
bear the following points in mind:
R
Snow chains may not be mounted on all
wheel/tire combinations. Permissible
wheel-tire combinations (Y page 335).
R Only use snow chains when driving on
roads completely covered by snow.
Remove the snow chains as soon as
possible when you come to aroad that is
not snow-covered.
R Local regulations may restrict the use of
snow chains. Observe the appropriate
regulations if you wish to install snow
chains.
R Do not exceed the maximum permissible
speed of 30 mph (50 km/h).
i You may wish to deactivate ESP ®
when
pulling away with snow chains installed
(Y page 61). This way you can allow the
wheels to spin in a controlled manner,
achieving an increased driving force
(cutting action).
For more information on driving with the
emergency spare wheel, see (Y page 339). Tire pressure
Tire pressure specifications
Important safety notes G
WARNING
Tires with tire pressures that are too low or
too high are associated with the following
hazards:
R they can burst, in particular if the vehicle is
heavily laden or when driven at high
speeds.
R the tires can wear excessively and/or
unevenly, which can severely impair tire
traction.
R the driving, steering and braking
characteristics may be severely impaired.
There is a risk of accident. Tire pressure
311Wheels and tires
Z
