X
When the wiper arms have reached a
vertical position, turn the SmartKey to
position 0and remove it from the ignition
lock.
X Fold the windshield wiper arms away from
the windshield. X
Press both release clips 0044.
X Fold wiper blade 0043in the direction of
arrow 0087away from wiper arm 0085.
X Remove wiper blade 0043in the direction of
arrow 0083.
Installing the wiper blades X
Position new wiper blade 0043with
recess 0084on lug 0083.
X Fold wiper blade 0043in the direction of
arrow 0087onto the wiper arm, until retaining
clips 0044engage in bracket 0085.
X Make sure that wiper blade 0043is seated
correctly.
X Fold the wiper arm back onto the
windshield. Windshield wipers
119Lights and windshield wipers Z

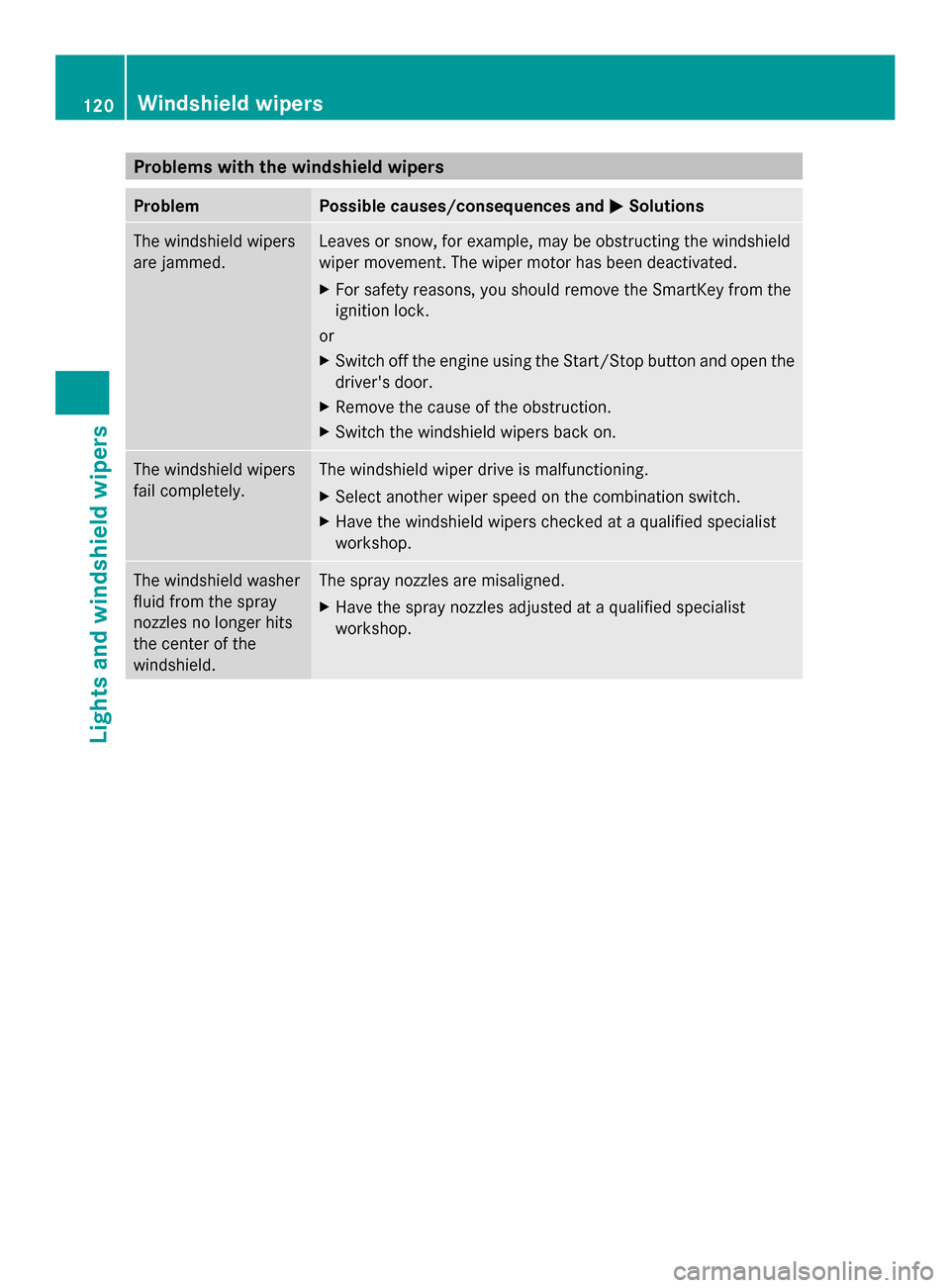

Problems with the windshield wipers
Problem Possible causes/consequences and
0050
0050Solutions The windshield wipers
are jammed. Leaves or snow, for example, may be obstructing the windshield
wiper movement. The wiper motor has been deactivated.
X
For safety reasons, you should remove the SmartKey from the
ignition lock.
or
X Switch off the engine using the Start/Stop button and open the
driver's door.
X Remove the cause of the obstruction.
X Switch the windshield wipers back on. The windshield wipers
fail completely. The windshield wiper drive is malfunctioning.
X
Select another wiper speed on the combination switch.
X Have the windshield wipers checked at a qualified specialist
workshop. The windshield washer
fluid from the spray
nozzles no longer hits
the center of the
windshield. The spray nozzles are misaligned.
X
Have the spray nozzles adjusted at a qualified specialist
workshop. 120
Windshield wipersLights and windshield wipers

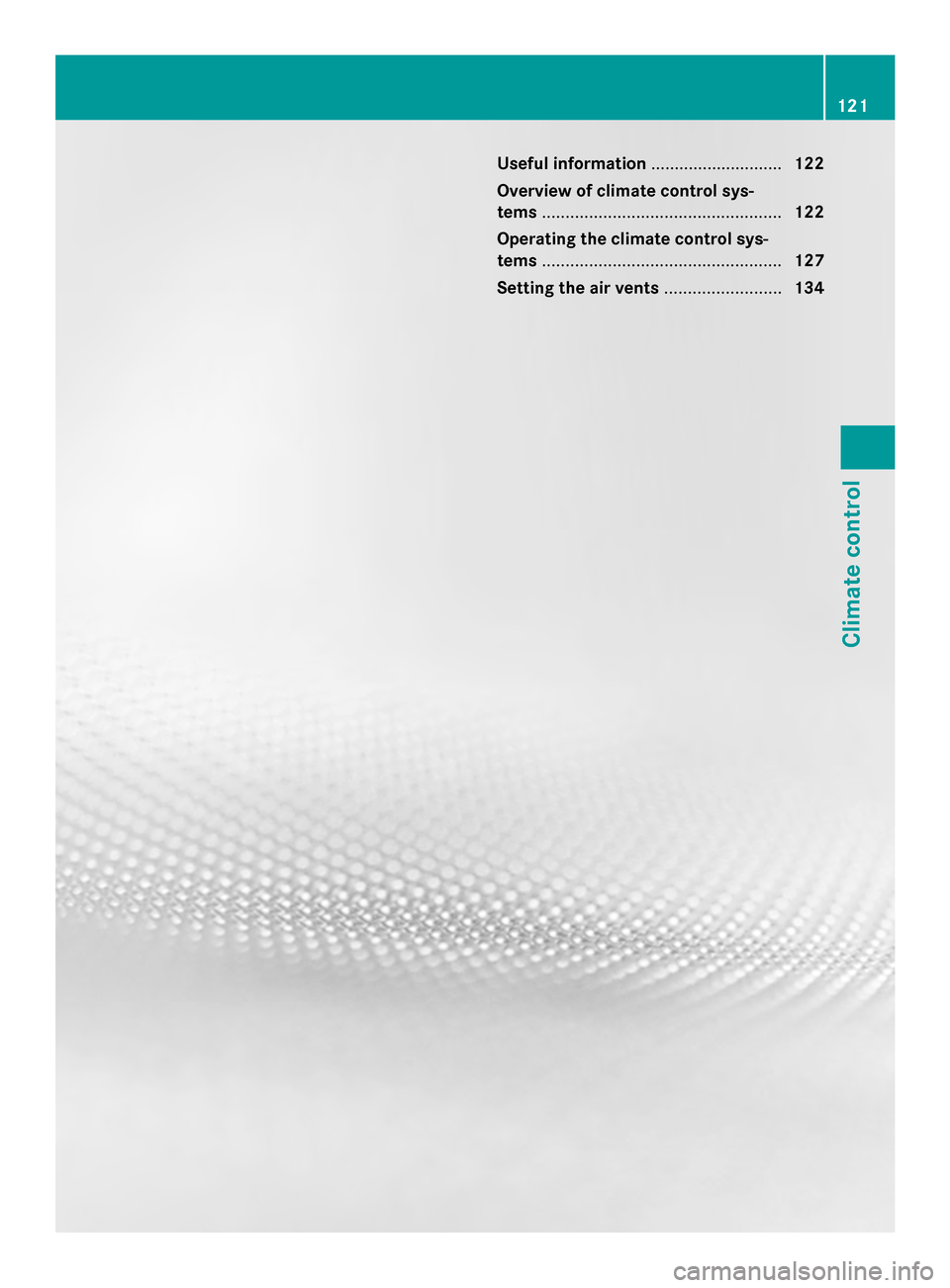

Useful information
............................122
Overview of climate control sys-
tems ................................................... 122
Operating the climate control sys-
tems ................................................... 127
Setting the air vents .........................134 121Climate control

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 24).Overview of climate control systems
Important safety notes
Observe the settings recommended on the
following pages. The windows could
otherwise fog up.
To prevent the windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air
dehumidification function
R switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof
closed.
The residual heat function can only be
activated or deactivated with the ignition
switched off (Y page 133).
i When the weather is warm, ventilate the
vehicle for a brief period. This will speed up
the cooling process and the desired vehicle
interior temperature will be reached more
quickly. i
The integrated filter can filter out most
particles of dust, and completely filters out
pollen. A clogged filter reduces the amount
of air supplied to the vehicle interior. For
this reason, you should always observe the
interval for replacing the filter, which is
specified in the Maintenance Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance
Booklet. 122
Overview of climate control systemsClimate control

Air-conditioning system control panel
Canada only
0043
Sets the temperature (Y page 129)
0044 Activates/deactivates the residual heat function (Y page 133)
0087 Sets the air distribution (Y page 130)
0085 Defrosts the windshield (Y page 131)
0083 Activates/deactivates cooling with air dehumidification ( Ypage 127)
0084 Activates/deactivates air-recirculation mode (Y page 133)
006B Sets the airflow (Y page 130)
006C Switches the rear window defroster on/off (Y page 131)USA only
0043
Sets the temperature (Y page 129)
0044 Switches maximum cooling MAX COOL on/off (Y page 131) Overview of climate control systems
123Climate control

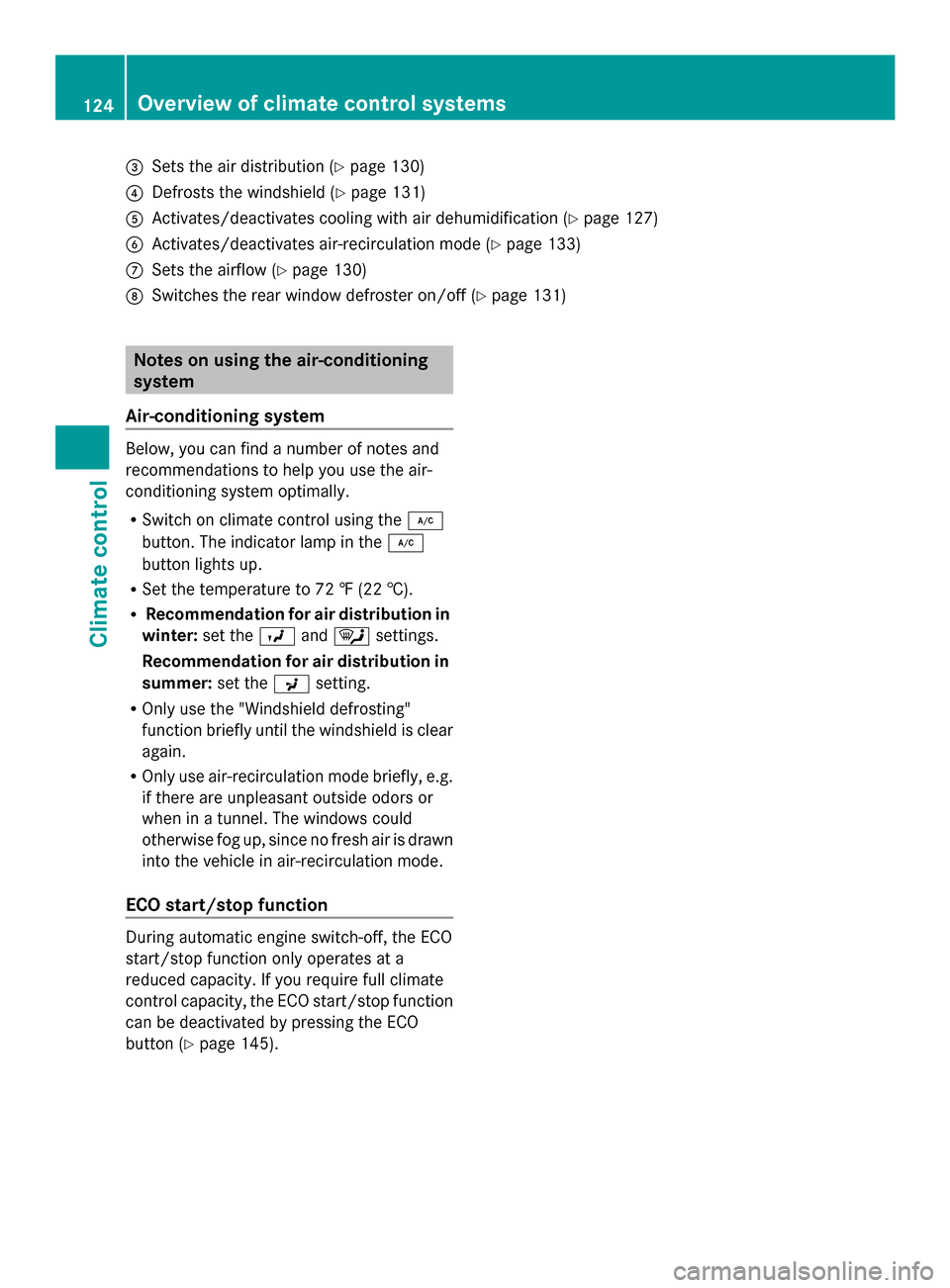

0087
Sets the air distribution (Y page 130)
0085 Defrosts the windshield (Y page 131)
0083 Activates/deactivates cooling with air dehumidification (Y page 127)
0084 Activates/deactivates air-recirculation mode (Y page 133)
006B Sets the airflow (Y page 130)
006C Switches the rear window defroster on/off (Y page 131)Notes on using the air-conditioning
system
Air-conditioning system Below, you can find a number of notes and
recommendations to help you use the air-
conditioning system optimally.
R Switch on climate control using the 005A
button. The indicator lamp in the 005A
button lights up.
R Set the temperature to 72 ‡ (22 †).
R Recommendation for air distribution in
winter: set the009Band0061 settings.
Recommendation for air distribution in
summer: set the009Csetting.
R Only use the "Windshield defrosting"
function briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
ECO start/stop function During automatic engine switch-off, the ECO
start/stop function only operates at a
reduced capacity. If you require full climate
control capacity, the ECO start/stop function
can be deactivated by pressing the ECO
button (Y page 145). 124
Overview of climate control systemsClimate control

Control panel for dual-zone automatic climate control
Canada only
0043
To set the temperature, left (Y page 129)
0044 To defrost the windshield (Y page 131)
0087 To switch the ZONE function on/off
0085 To switch cooling with air dehumidification on/off (Y page 127)
To switch the residual heat function on/off (Y page 133)
0083 To switch the rear window defroster on/off (Y page 131)
0084 To set the temperature, right (Y page 129)
006B To activate/deactivate air-recirculation mode (Y page 133)
006C To set the air distribution (Y page 130)
006D To increase the airflow (Y page 130)
006E To reduce the airflow (Y page 130)
006F To switch climate control on/off (Y page 127)
0070 To set climate control to automatic (Y page 129) Overview of climate control systems
125Climate control

USA only
0043
To set the temperature, left (Y page 129)
0044 To defrost the windshield (Y page 131)
0087 To switch maximum cooling on/off (Y page 131)
0085 To switch cooling with air dehumidification on/off (Y page 127)
0083 To switch the rear window defroster on/off (Y page 131)
0084 To set the temperature, right (Y page 129)
006B To activate/deactivate air-recirculation mode (Y page 133)
006C To set the air distribution (Y page 130)
006D To increase the airflow (Y page 130)
006E To reduce the airflow (Y page 130)
006F To switch climate control on/off (Y page 127)
0070 To set climate control to automatic (Y page 129)Information about using dual-zone
automatic climate control
Automatic climate control The following contains instructions and
recommendations to enable you to get the
most out of your automatic climate control.
R Activate climate control using the 0058and
005A buttons or the 0056button on the
control panel of the climate control. The
indicator lamps in the 0058and005A
buttons or the 0056button light up.
R Set the temperature to 72 ‡ (22 †). R
Only use the "Windshield defrosting"
function briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side as well. The
indicator lamp in the 00D6button goes out.
R Use the residual heat function if you want
to heat or ventilate the vehicle interior 126
Overview of climate control systemsClimate control

when the ignition is switched off. The
residual heat function can only be activated
or deactivated with the ignition switched
off.
ECO start/stop function During automatic engine switch-off, the ECO
start/stop function only operates at a
reduced capacity. If you require full climate
control capacity, the ECO start/stop function
can be deactivated by pressing the ECO
button (Y page 145). Operating the climate control
systems
Switching climate control on/off
General notes When the climate control is switched off, the
air supply and air circulation are also
switched off. The windows could fog up.
Therefore, switch off climate control only
briefly
i Activate climate control primarily using
the 0058 button (Y page 129).
Air-conditioning system X
Turn the SmartKey to position 2in the
ignition lock (Y page 139).
X To activate: turn airflow control 006B
clockwise to the desired position (except
position 0) (Ypage 123).
X To deactivate: turn airflow control 006B
counter-clockwise to position
0(Y page 123). Dual-zone automatic climate control X
Turn the SmartKey to position 2in the
ignition lock (Y page 139).
X To switch on: press the0058button.
The indicator lamp in the 0058button lights
up. Airflow and air distribution are set to
automatic mode.
or
X Press the 0078button.
The indicator lamp in the 0078button goes
out. The previously selected settings are
restored.
X To switch off: press the0078button.
The indicator lamp in the 0078button lights
up. Activating/deactivating cooling with
air dehumidification
General notes If you deactivate the "Cooling with air-
dehumidification" function, the air inside the
vehicle will not be cooled. The air inside the
vehicle will also not be dehumidified. The
windows can fog up more quickly. Therefore,
deactivate the cooling with air-
dehumidification function only briefly.
The "Cooling with air dehumidification"
function is only available when the engine is
running. The air inside the vehicle is cooled
and dehumidified according to the
temperature selected.
Condensation may drip from the underside of
the vehicle when it is in cooling mode. This is
normal and not a sign that there is a
malfunction.Operating the climate control systems
127Climate control

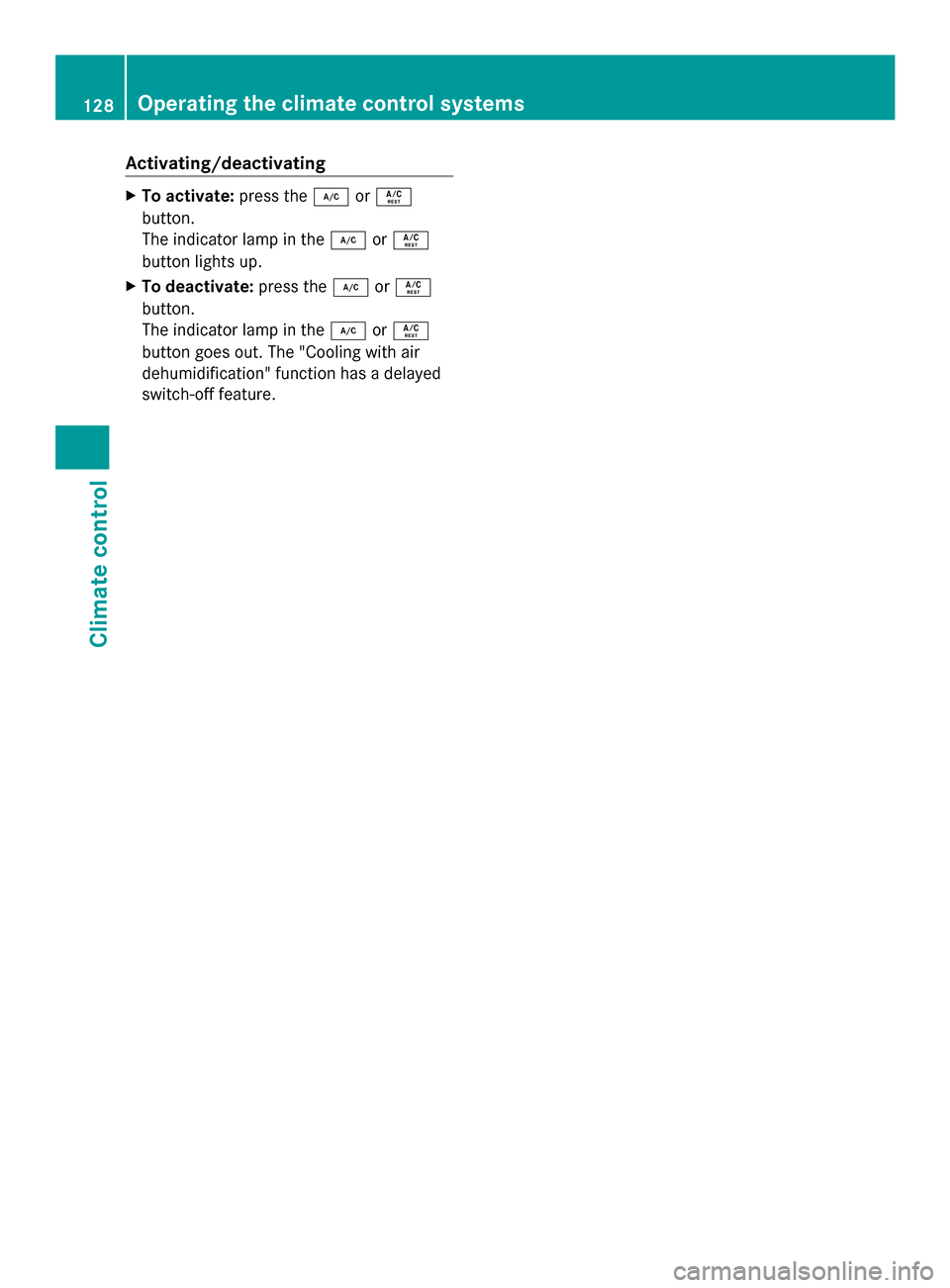

Activating/deactivating
X
To activate: press the005Aor0056
button.
The indicator lamp in the 005Aor0056
button lights up.
X To deactivate: press the005Aor0056
button.
The indicator lamp in the 005Aor0056
button goes out. The "Cooling with air
dehumidification" function has a delayed
switch-off feature. 128
