MERCEDES-BENZ SLK-CLASS ROADSTER 2016 Owner's Guide

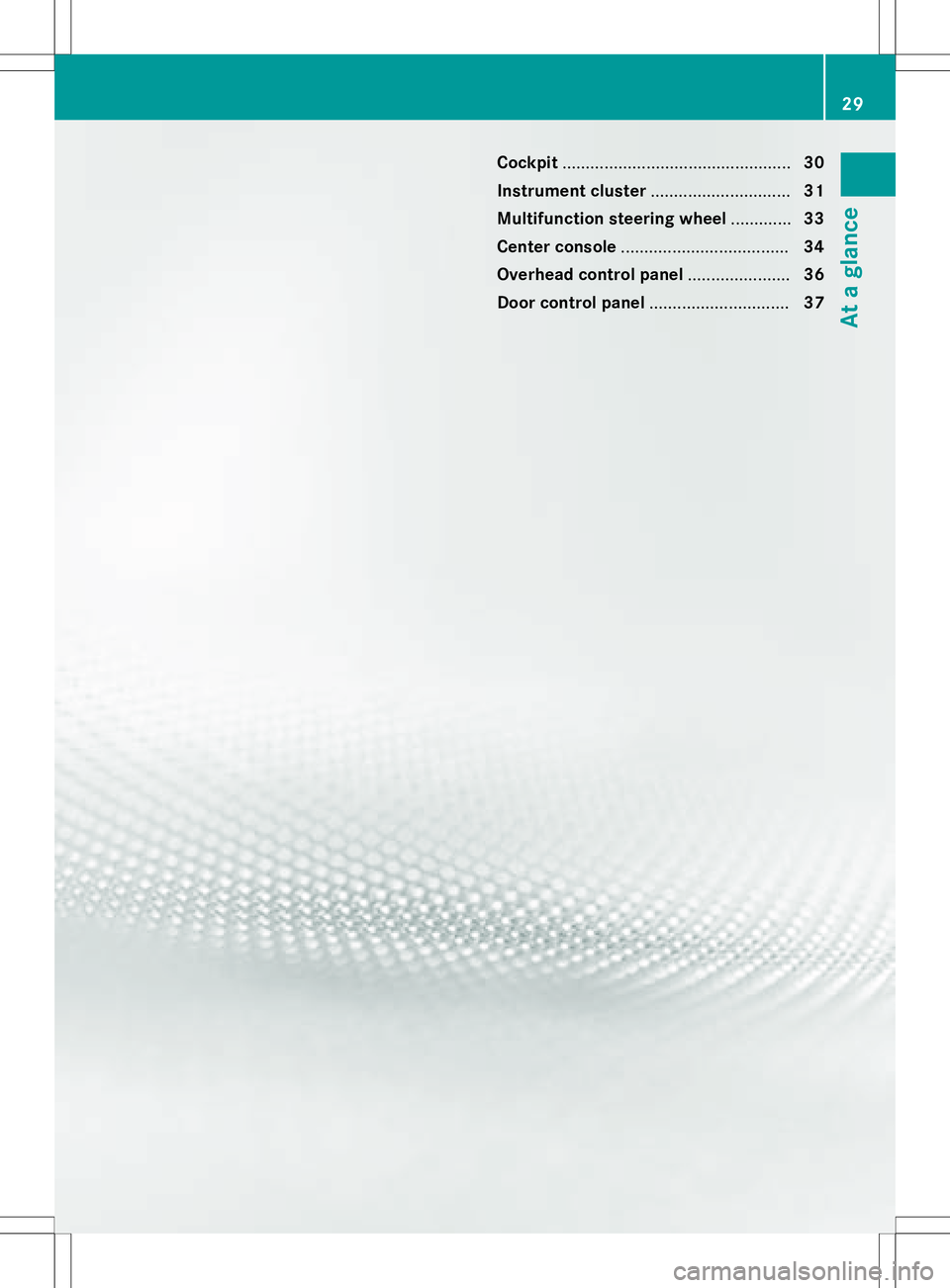

Cockpit................................................. 30
Instrument cluster ..............................31
Multifunction steering wheel .............33
Center console .................................... 34
Overhead control panel ......................36
Door control panel .............................. 37
29
At a glance

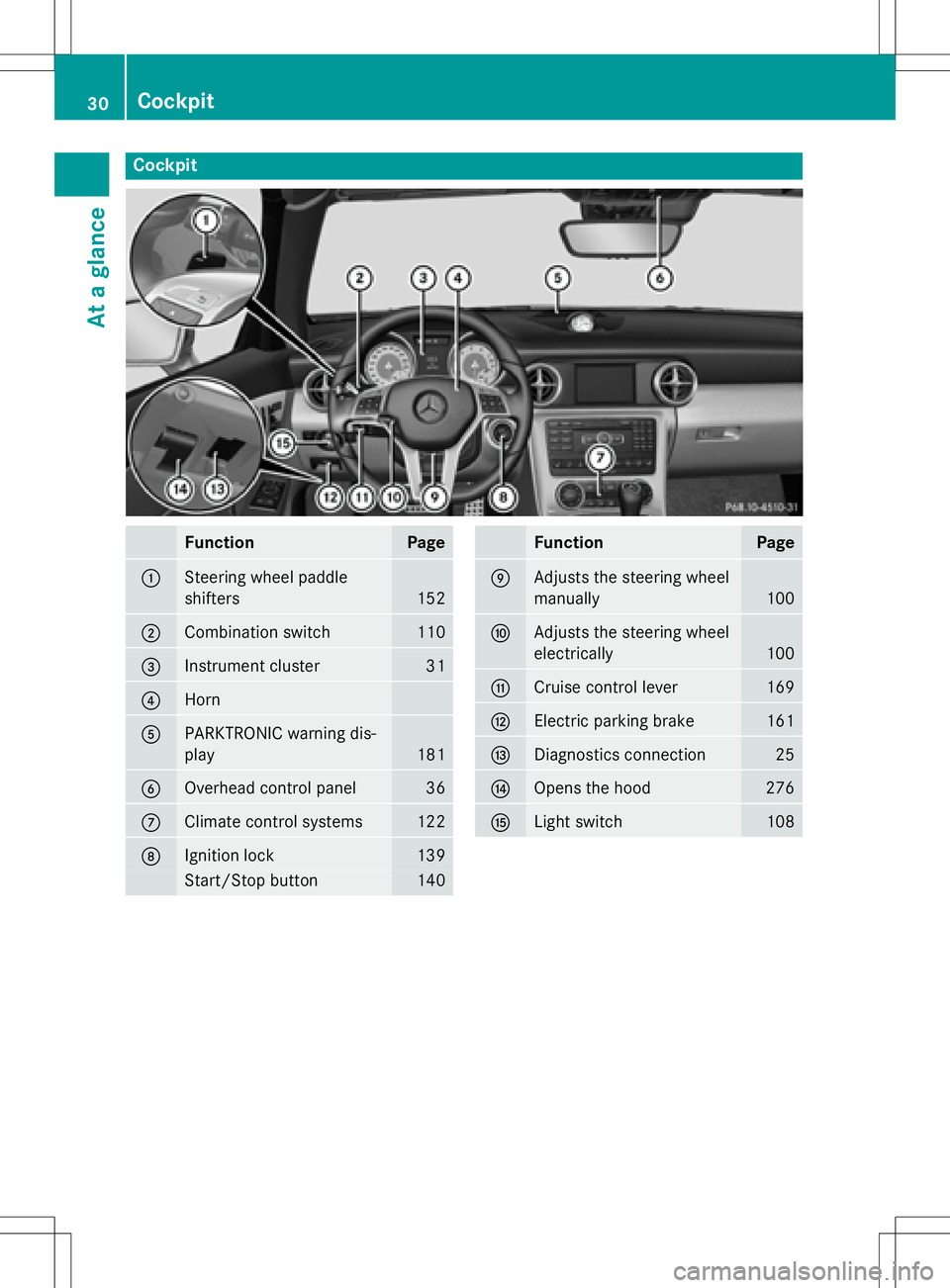

Cockpit
FunctionPage
:Steering wheel paddle
shifters
152
;Combination switch110
=Instrument cluster31
?Horn
APARKTRONIC warning dis-
play
181
BOverhead control panel36
CClimate control systems122
DIgnition lock139
Start/Stop button140
FunctionPage
EAdjusts the steering wheel
manually
100
FAdjusts the steering wheel
electrically
100
GCruise control lever169
HElectric parking brake161
IDiagnostics connection25
JOpens the hood276
KLight switch108
30Cockpit
At a glance

Instrument cluster
Displays and controls
FunctionPage
:Speedometer
Speedometer segments194
;Fuel gauge
Fuel filler flap location ind i-
cator 8: the fuel filler
cap ison the right-hand
side .
FunctionPage
=Tachometer195
?Coolant temperature195
AMultifunction display196
BInstrument cluster lighting194
iInformation on displaying the outside
temperature inthe multifunction display
can befound under "Outside temperature
disp lay" (
Ypage 195).
Instrument cluster31
At a glance

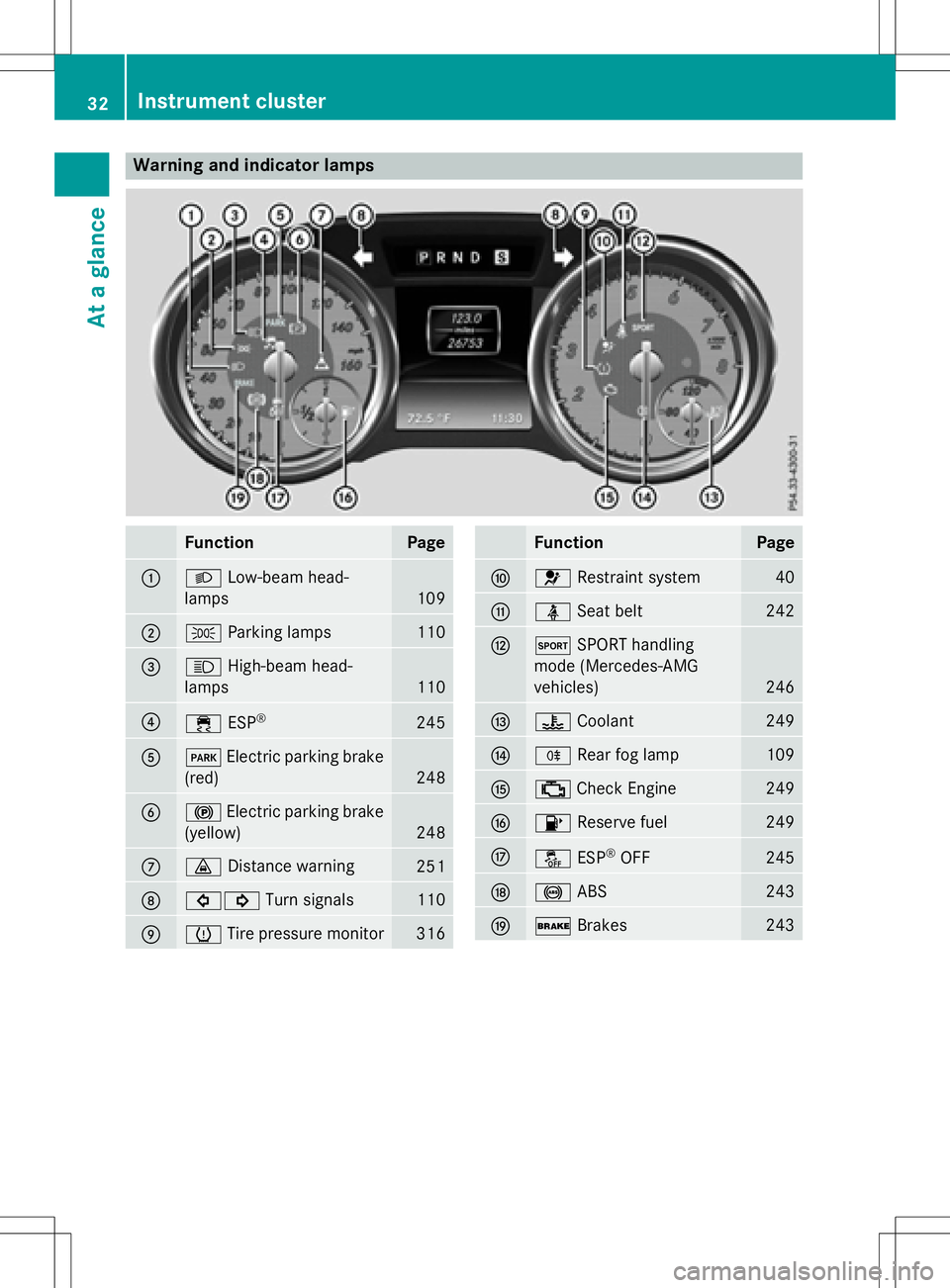

Warning and indicator lamps
FunctionPage
:LLow-beam head-
lamps
109
;T Parking lamps110
=KHigh-beam head-
lamps
110
?÷ ESP®245
AFElectric parking brake
(red)
248
B! Electric parking brake
(yellow)
248
C· Distance warning251
D#! Turn signals110
EhTire pressure monitor316
FunctionPage
F6 Restraint system40
GüSeat belt242
HMSPORT handling
mode (Mercedes-AMG
vehicles)
246
I? Coolant249
JRRear fog lamp109
K;Check Engine249
L8 Reserve fuel249
MåESP®OFF245
N!ABS243
O$Brakes243
32Instrument cluster
At a glance

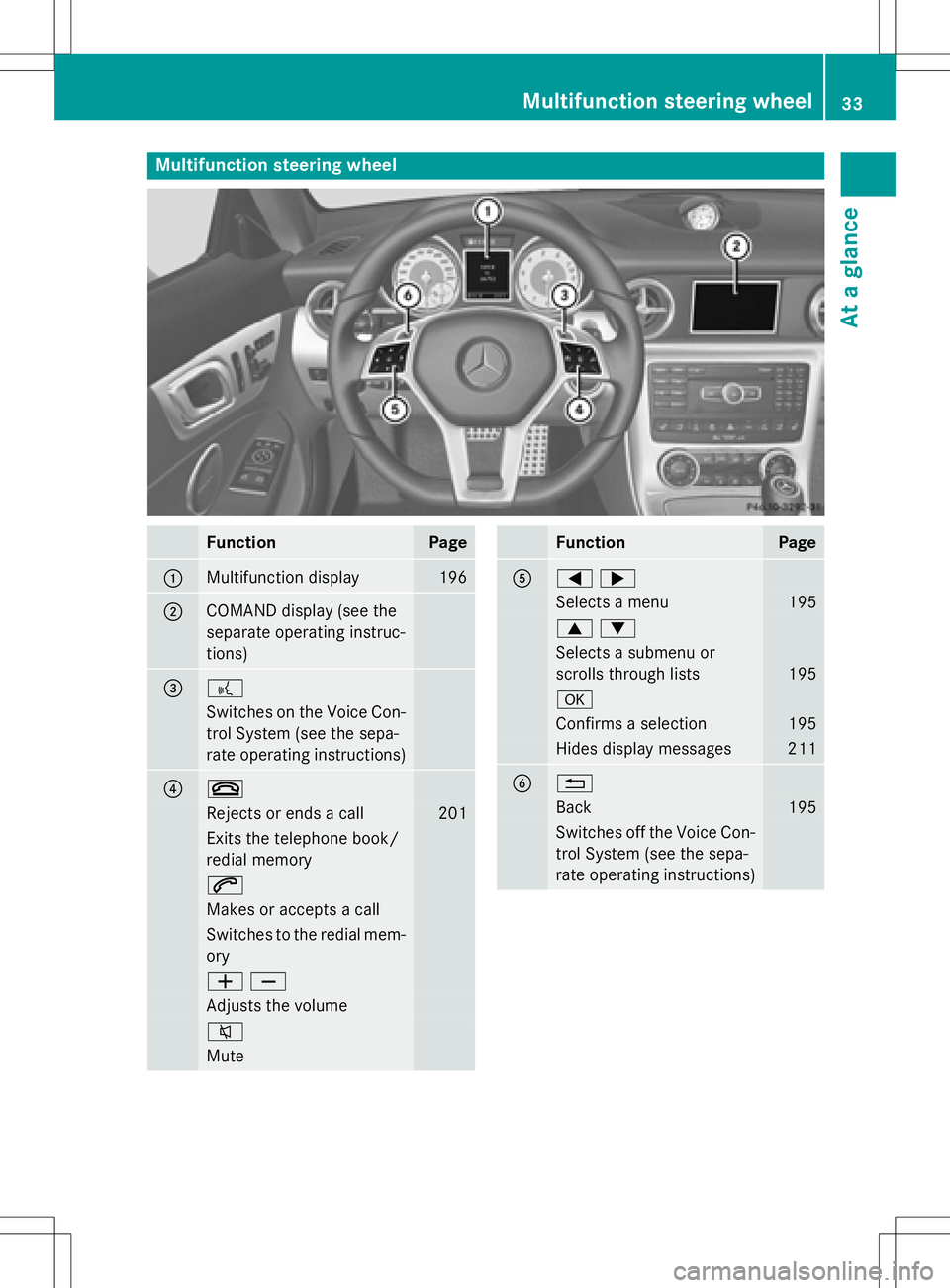

Multifunction steering wheel
FunctionPage
:Multifunction display196
;COMAND display (see the
separate operating instruc-
tions)
=?
Switches on the Voice Con-
trol System (see the sepa-
rate operating instructions)
?~
Rejects or ends a call201
Exits the telephone book/
redial memory
6
Makes or accepts a call
Switches to the redial mem-
ory
WX
Adjusts the volume
8
Mute
FunctionPage
A=;
Selects a menu195
9:
Selects a submenu or
scrolls through lists
195
a
Confirms a selection195
Hides display messages211
B%
Back195
Switches off the Voice Con-
trol System (see the sepa-
rate operating instructions)
Multifunction steering wheel33
At a glance

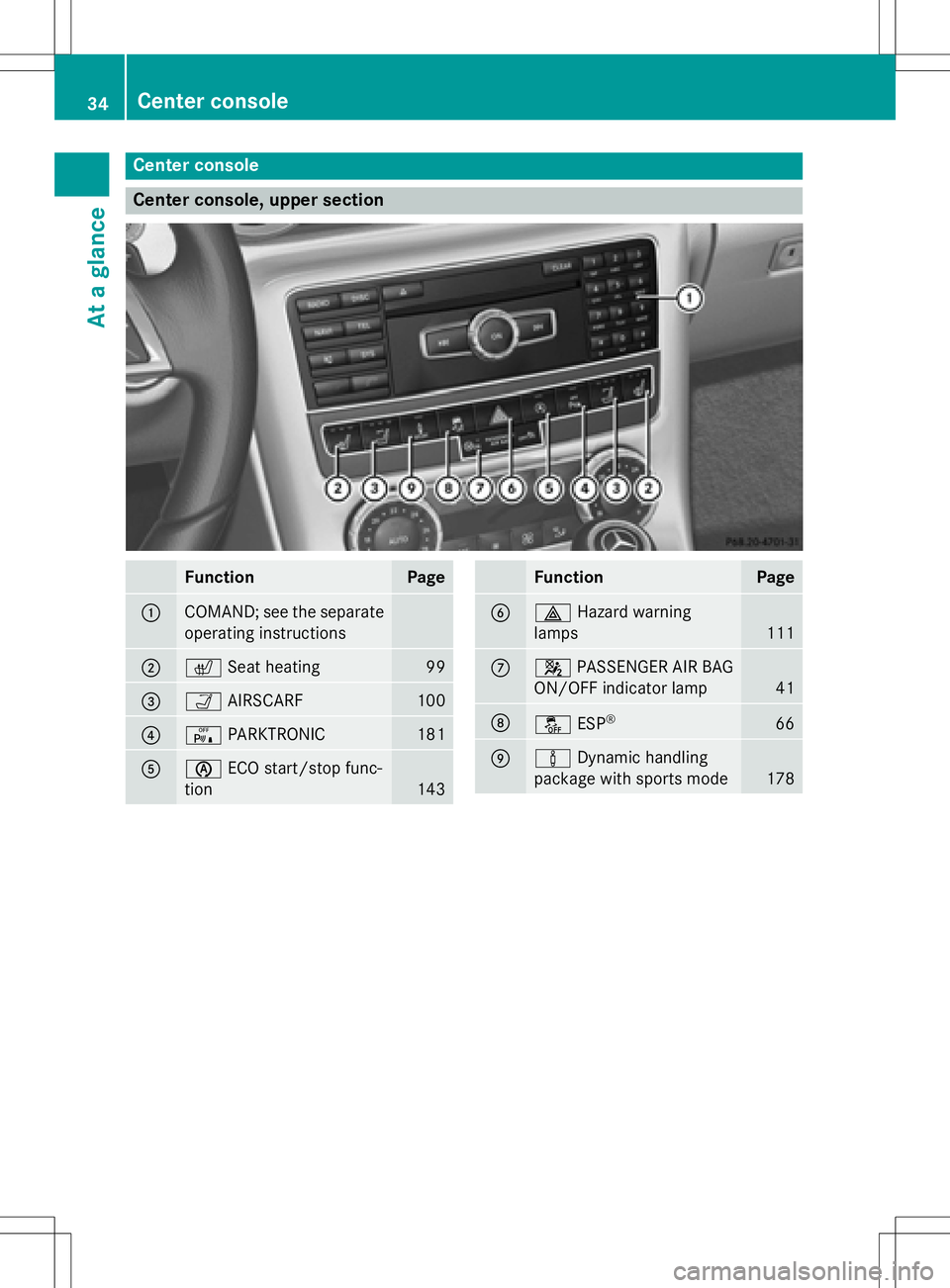

Center console
Center console, upper section
FunctionPage
:COMAND; see the separate
operating instructions
;cSeat heating99
=Ã’AIRSCARF100
?cPARKTRONIC181
AèECO start/stop func-
tion
143
FunctionPage
B£ Hazard warning
lamps
111
C4 PASSENGER AIR BAG
ON/OFF indicator lamp
41
Då ESP®66
EàDynamic handling
package with sports mode
178
34Center console
At a glance

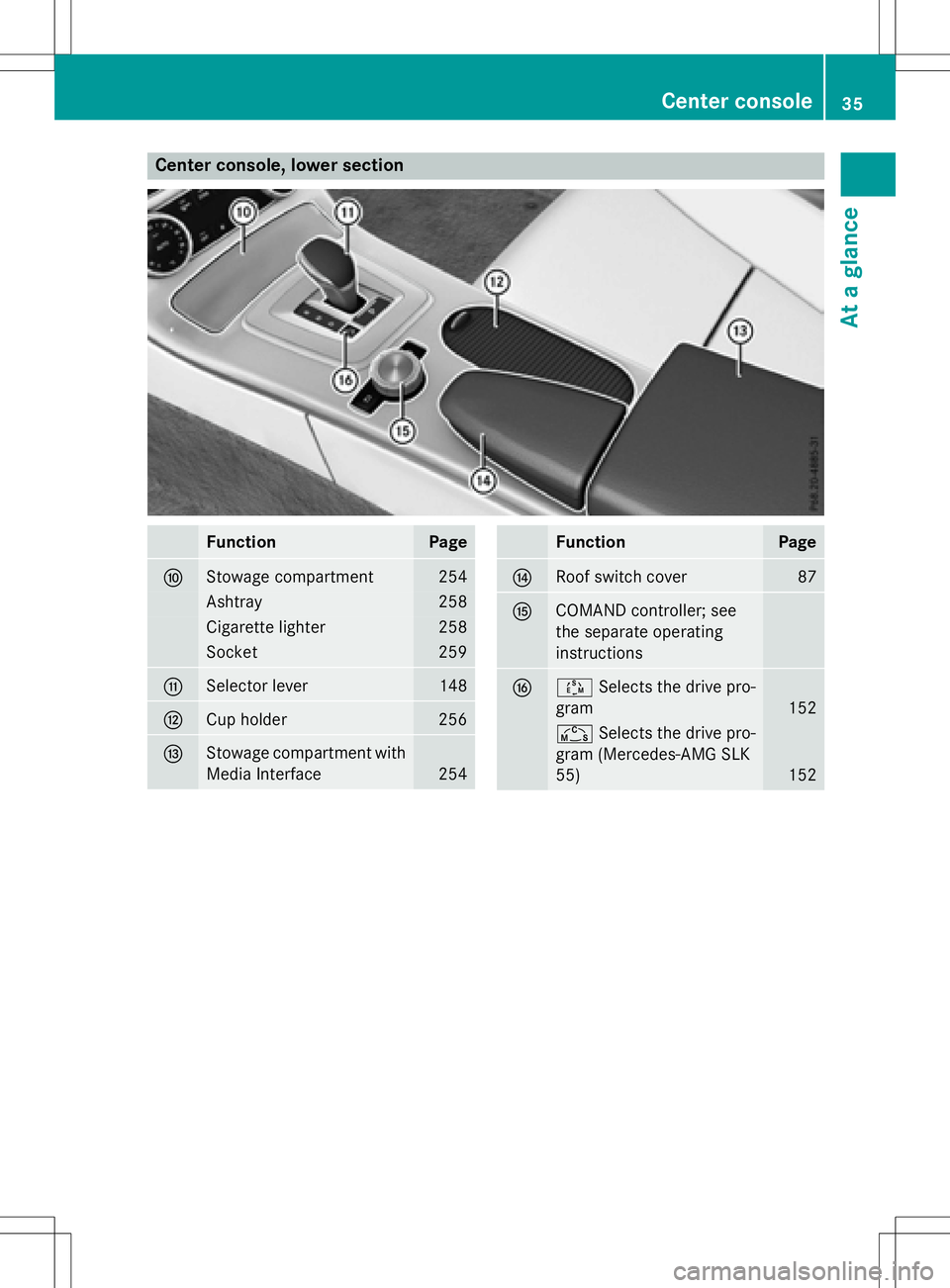

Center console, lower section
FunctionPage
FStowage compartment254
Ashtray258
Cigarette lighter258
Socket259
GSelector lever148
HCup holder256
IStowage compartment with
Media Interface
254
FunctionPage
JRoof switch cover87
KCOMAND controller; see
the separate operating
instructions
LÚSelects the drive pro-
gram
152
Ñ Selects the drive pro-
gram (Mercedes-AMG SLK
55)
152
Center console35
At a glance

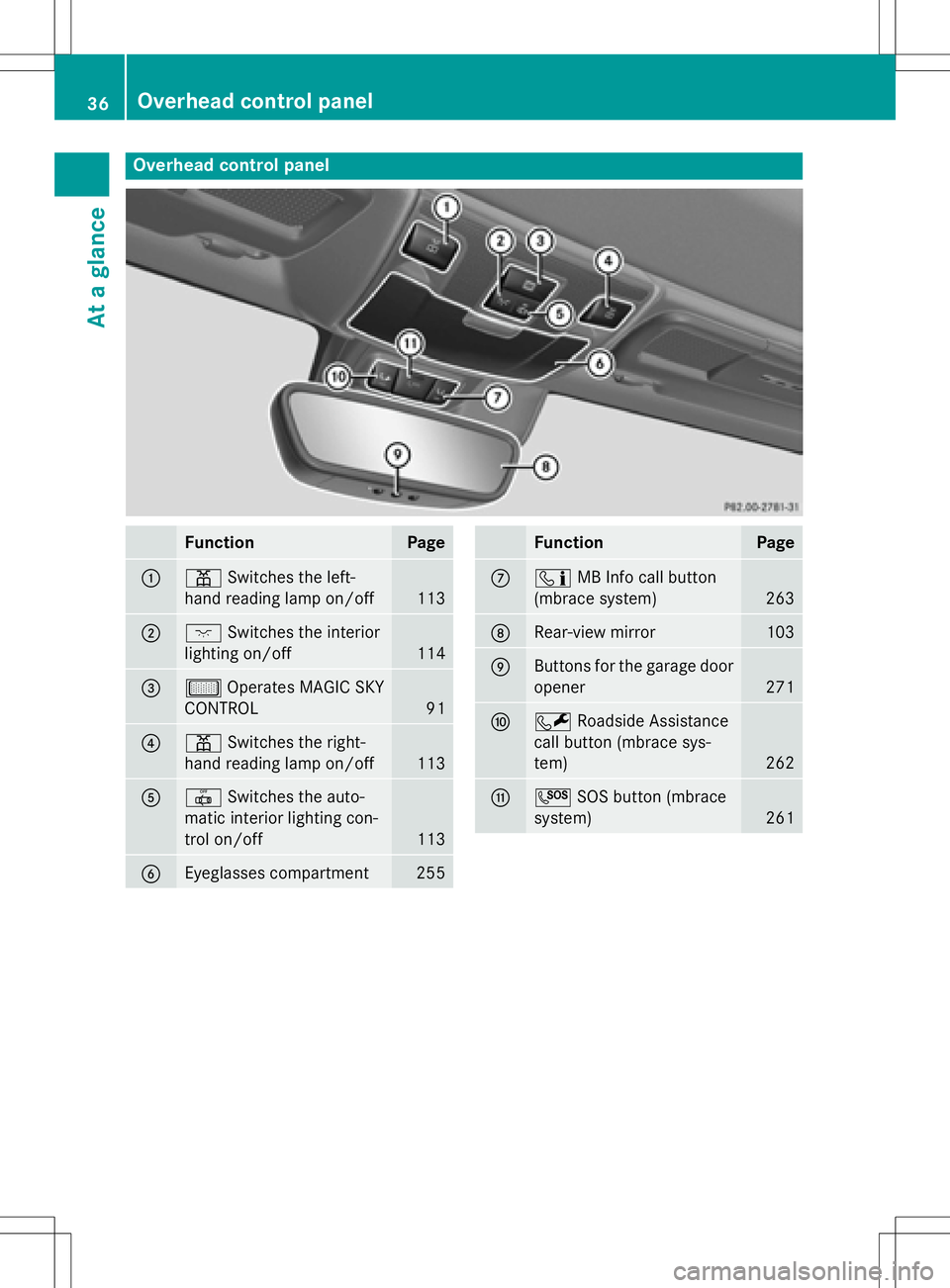

Overhead control panel
FunctionPage
:pSwitches the left-
hand reading lamp on/off
113
;c Switches the interior
lighting on/off
114
=µ Operates MAGIC SKY
CONTROL
91
?p Switches the right-
hand reading lamp on/off
113
A| Switches the auto-
matic interior lighting con-
trol on/off
113
BEyeglasses compartment255
FunctionPage
Cï MB Info call button
(mbrace system)
263
DRear-view mirror103
EButtons for the garage door
opener
271
FF Roadside Assistance
call button (mbrace sys-
tem)
262
GG SOS button (mbrace
system)
261
36Overhead control panel
At a glance

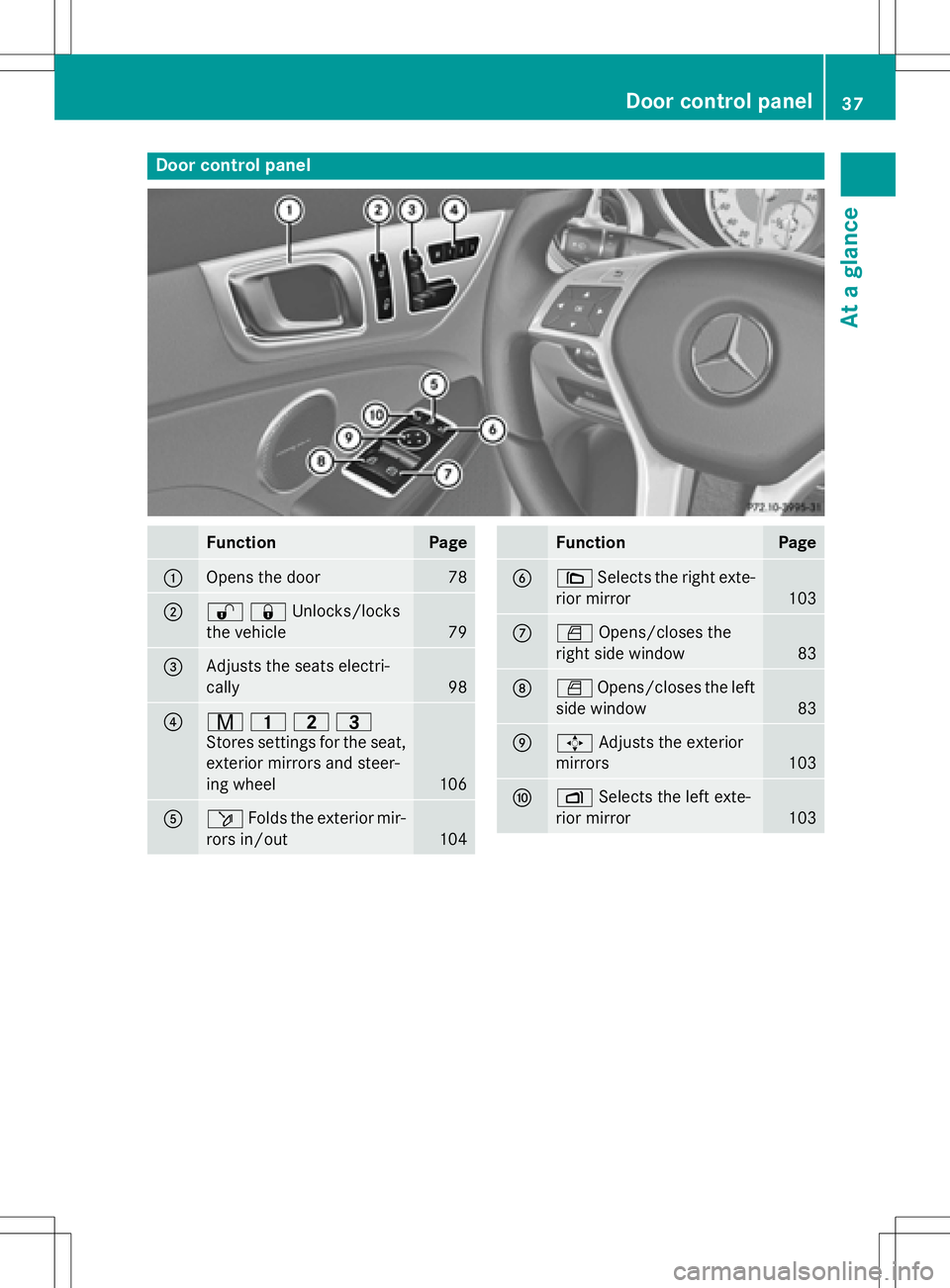

Door controlpanel
FunctionPage
:Opens th edoo r78
;%&Unlocks/locks
the vehicle
79
=Adjusts the seats electri-
cally
98
?r 45=
Stores settings for the seat,
exterior mirrors and steer-
ing wheel
106
Aö Folds the exterior mir-
rors in/out
104
FunctionPage
B\ Selects the right exte-
rior mirror
103
CW Opens/closes the
right side window
83
DW Opens/closes the left
side window
83
E7 Adjusts the exterior
mirrors
103
FZ Selects the left exte-
rior mirror
103
Door control panel37
At a glance
