18 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Center console 1AIRBAG OFF indicator lamp, see page 190
2Power window switch, see page 111
3Parking brake lever, see page 156
4Mirror adjustment switch, see page 66
5Hardtop operation switch, see page 122
6Lighter, see page 117
Storage compartment, see page 115
y y
y
y y
y
y
Page 22 of 290
19 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Overhead control panel 1Hands-free microphone for Tele Aid, telephone and
voice recognition system
2Interior lighting, see page 112
3Tele Aid (emergency call system), see page 132
4Garage door opener, see page 119
5Rear view mirror, see page 66
Page 23 of 290
20 Contents - Operation
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
OperationVehicle keys ...................................... 22
Remote control with
folding master key ...................... 22
Start lock-out .................................... 23
General notes on the
central locking system ............... 23
Central locking system ................... 24
Remote control ............................. 24
Panic button .................................. 26
Mechanical keys ........................... 27
Doors .................................................. 28
Central locking switch .................... 30
Automatic central locking .............. 31
Emergency unlocking in
case of accident ........................... 32
Trunk ................................................. 33Emergency release
for trunk lid ................................. 35
Antitheft alarm system ................... 35
Tow-away alarm ............................... 37
Seats .................................................. 38
Seat heater ........................................ 42
Seat belts and
integrated restraint system ....... 44
Seat belts .......................................... 44
Seat belt nonusage
warning system ............................ 45
BabySmart
TM airbag
deactivation system ....................51
Self-test BabySmart
TM without
special child seat installed ..........51
Supplemental restraint system
(SRS) ............................................. 52
Emergency tensioning retractor
(ETR) ............................................. 53Airbags .............................................. 54
Safety guidelines for the
seat belt, emergency
tensioning retractor
and airbag .................................... 61
Infant and
child restraint systems ............... 63
Adjusting telescoping
steering column .......................... 65
Rear view mirrors ............................ 66
Instrument cluster ........................... 70
Flexible service system (FSS) ........ 77
Checking engine oil level .............. 79
Engine oil consumption .................. 80
Exterior lamp switch ....................... 81
Headlamp cleaning system ............ 82
Combination switch ........................ 83
Hazard warning flasher switch ..... 85
Climate control ................................. 86
Page 24 of 290
21 Contents - Operation
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Rear window defroster .................... 90
Audio and telephone, operation .... 93
Power windows ................................ 111
Interior lighting ............................. 112
Night security illumination ......... 112
Sun visors with Vanity Mirror ......113Interior ............................................. 113
Cup holder and glove box ............. 114
Storage compartments ................... 115
Ashtrays ........................................... 116
Coin Holder ..................................... 116
Lighter .............................................. 117Parcel net in passenger footwell ..118
Shelf behind roll bars .....................118
Cellular telephone ..........................118
Garage door opener ........................119
Retractable hardtop ....................... 122
Wind screen .................................... 127
Luggage cover ................................. 128
Page 25 of 290
22 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

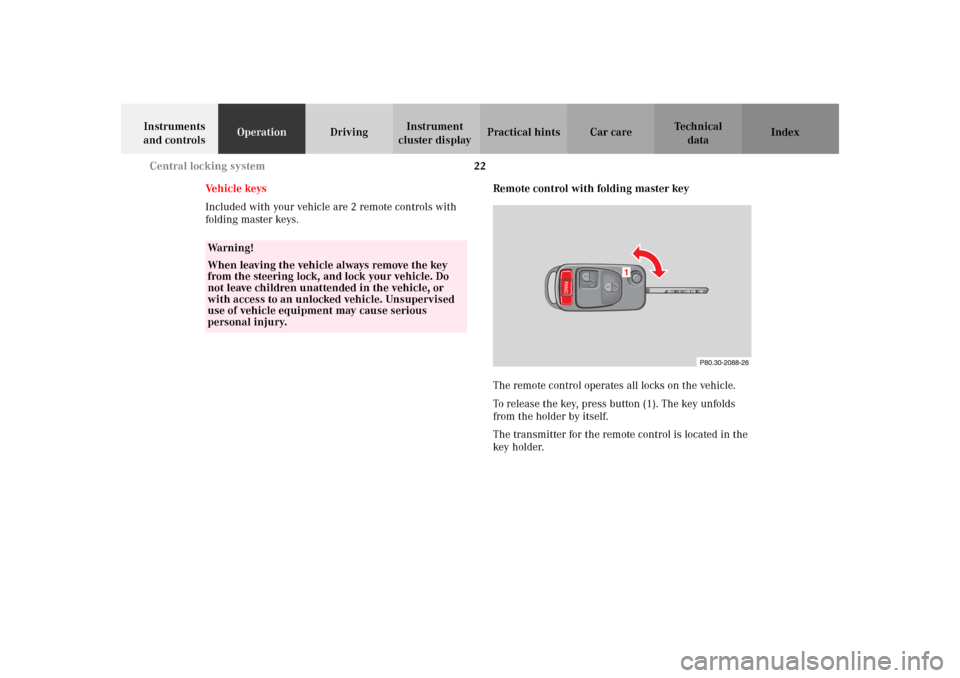

Ve h i c l e k e y s
Included with your vehicle are 2 remote controls with
folding master keys.Remote control with folding master key
The remote control operates all locks on the vehicle.
To release the key, press button (1). The key unfolds
from the holder by itself.
The transmitter for the remote control is located in the
key holder.
Wa r n i n g !
When leaving the vehicle always remove the key
from the steering lock, and lock your vehicle. Do
not leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause serious
personal injury.
1
Page 26 of 290
23 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Obtaining replacement keys
Your vehicle is equipped with a theft deterrent locking
system requiring a special key manufacturing process.
For security reasons, replacement keys can only be
obtained from your authorized Mercedes-Benz Center.
Start lock-out
Important!
Removing the key from the steering lock activates the
start lock-out. The engine cannot be started.
Turning the key in the steering lock to position 2
deactivates the start lock-out.
Note:
In case the engine cannot be started, and Á and
î are shown in the odometer display field, the
system is not operational. Contact an authorized
Mercedes-Benz Center or call 1-800-FOR-MERCedes (in
the USA), or 1-800-387-0100 (in Canada).General notes on the central locking system
If the key in the steering lock is in position 2, the
vehicle cannot be locked or unlocked with the remote
control.
If the vehicle cannot be locked or unlocked:
•Check the batteries of the remote control,
seepage236.
•Synchronize the remote control, see page 237.
Page 27 of 290
24 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Central locking system
Remote control
Due to the extended operational range of the remote
control, it could be possible to unintentionally lock or
unlock the vehicle by pressing the transmit button.
The vehicle doors, trunk, storage compartment in
armrest, and fuel filler flap can be centrally locked and
unlocked via remote control.

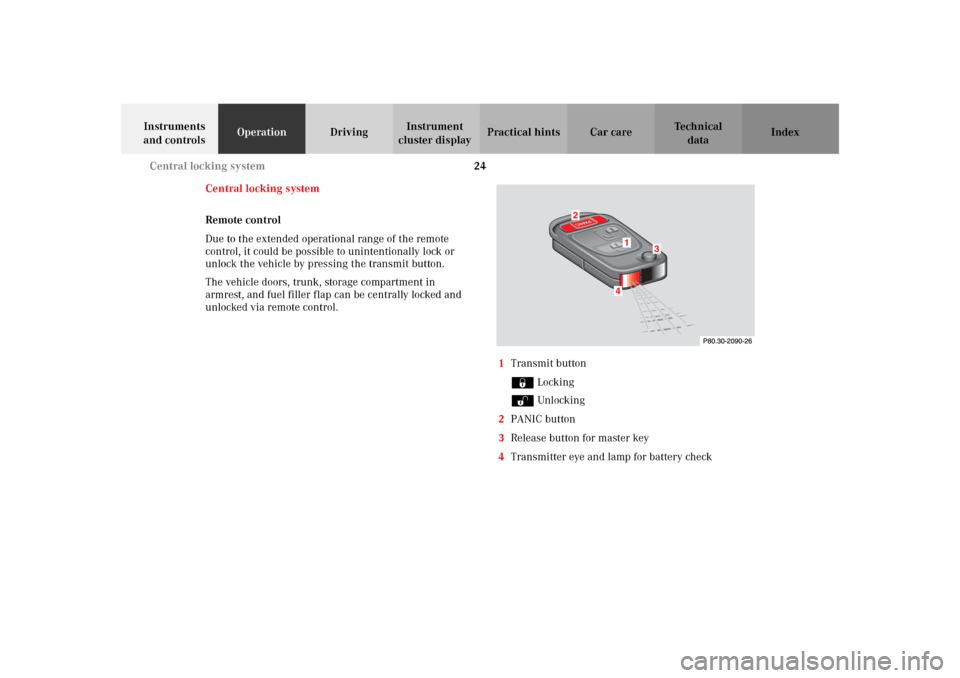

1Transmit button
‹ Locking
ΠUnlocking
2PANIC button
3Release button for master key
4Transmitter eye and lamp for battery check
Page 28 of 290
25 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Locking and unlocking with remote control
Unlocking:
Press transmit button Œ. All turn signal lamps blink
once to indicate that the vehicle is unlocked.
The remote control can be programmed for two kinds of
unlocking modes (see below):
Selective unlocking mode –
Press transmit button Œ once to unlock driver’s door,
storage compartment in armrest, and fuel filler flap.
Press transmit button Πtwice to unlock both doors,
storage compartment in armrest, fuel filler flap, and
trunk.
Global unlocking mode –
Press transmit button Πonce to unlock both doors,
storage compartment in armrest, fuel filler flap, and
trunk.
Notes:
The presently active unlocking mode (selective or
global) can only be determined by unlocking the vehicle
with the remote control (see below for changing mode).If within 40 seconds of unlocking with the remote
control, neither door is opened, the key is not inserted
in the steering lock, or the central locking switch is not
activated, the vehicle will automatically lock.
Locking:
Press transmit button ‹ once. All turn signal lamps
blink three times to indicate that the vehicle is locked.
If the turn signal lamps do not blink, a door or trunk is
not closed properly.
Note:
If the vehicle cannot be locked or unlocked by pressing
the transmit button, then it may be necessary to change
the batteries in the remote control (if ok, battery check
lamp in transmitter will light briefly when transmitting)
or to synchronize the remote control, see page 236
and 237.
Choosing global or selective mode on remote control
Press and hold transmit buttons ‹ and Œ
simultaneously for five seconds to reprogram the
remote control. Battery check lamp will blink two times
indicating the completed mode change.
Page 29 of 290
26 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Panic button
To activate press and hold button (1) for at least one
second. An audible alarm and blinking exterior lamps
will operate for approximately 3 minutes.
To deactivate press button (1) again, or turn key in
steering lock to position 2.Note:
For operation in the USA only: This device complies
with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Any unauthorized modification to this device could void
to the user’s authority to operate the equipment.
1
Page 30 of 290
27 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

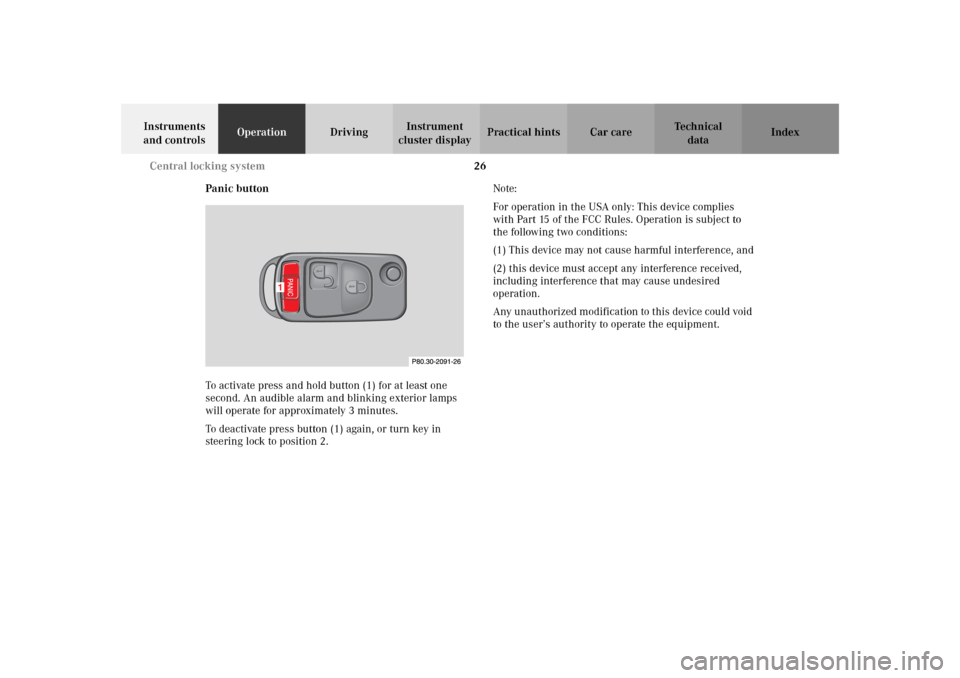

cluster displayPractical hints Car care Index Mechanical keys
The mechanical keys fit all locks on the vehicle.
Remove the protective cap from the driver’s door lock
before inserting the mechanical key into the lock.Notes:
Use of the key does not operate the central locking
system or arm or disarm the antitheft alarm system.
The alarm sounds when unlocking the door. Cancel
alarm by turning key in steering lock to position 1, or
with the remote control by pressing buttonŒ
or‹.
