brake fluid MERCEDES-BENZ SLK320 2003 R170 Owner's Manual
[x] Cancel search | Manufacturer: MERCEDES-BENZ, Model Year: 2003, Model line: SLK320, Model: MERCEDES-BENZ SLK320 2003 R170Pages: 304, PDF Size: 6.04 MB
Page 5 of 304
Contents
Pedals .......................................... 159
Power assistance ......................... 160
Brakes .......................................... 160
Driving off .................................... 161
Parking ......................................... 161
Tires ............................................. 162
Hydroplaning................................ 163
Tire traction ................................. 163
Tire speed rating .......................... 163
Winter driving instructions ........... 164
Standing water ............................. 165
Passenger compartment .............. 165
Driving abroad.............................. 165
Control and operation
of radio transmitter ...................... 166
Catalytic converter....................... 166
Emission control .......................... 167
Coolant temperature .................... 167
At the gas station .............................. 169
Check regularly and before
a long trip..................................... 170
Engine compartment ......................... 171
Hood ............................................ 171
Engine oil ..................................... 172
Transmission fluid level ................ 176
Coolant ........................................ 176Battery .......................................... 178
Windshield washer system and
headlamp cleaning system*.......... 179
Tires and wheels................................. 180
Important guidelines ..................... 180
Life of tire ..................................... 181
Direction of rotation...................... 181
Checking tire inflation pressure .... 181
Rotating wheels ............................ 182
Winter driving ..................................... 183
Winter tires ................................... 183
Block heater (Canada only) ........... 184
Snow chains.................................. 184
Maintenance....................................... 185
Clearing the service indicator ....... 185
Service term exceeded ................. 186
Calling up the service indicator..... 186
Resetting the service indicator ..... 186

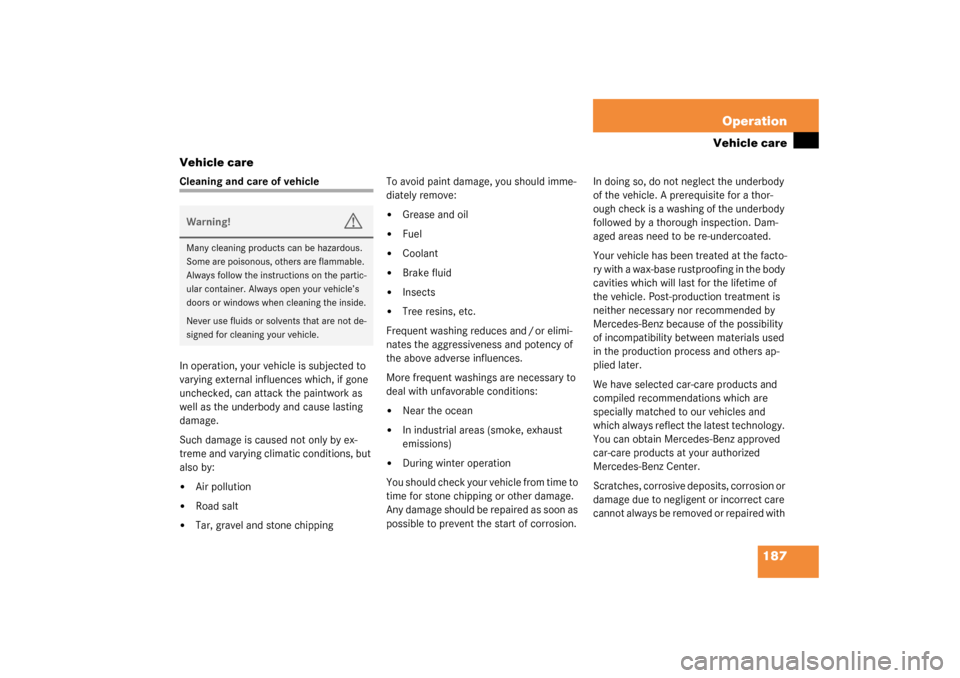

Vehicle care........................................ 187
Cleaning and care of vehicle ......... 187
Practical hints.................................. 193

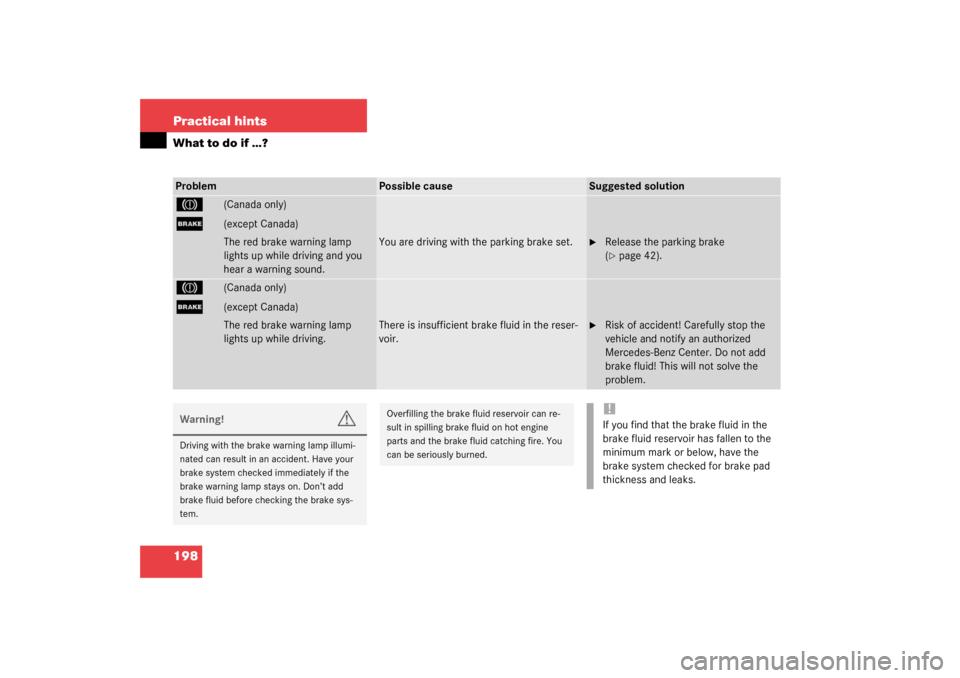

What to do if ...................................... 194
Lamps in instrument cluster ......... 194Additional indicators in the
speedometer display .................... 204
Lamp in center console ................ 205
Where will I find ...? ............................ 206
First aid kit.................................... 206
Vehicle tool kit.............................. 206
Unlocking/locking in an emergency... 210
Unlocking the vehicle ................... 210
Locking the vehicle ....................... 211
Changing batteries
in remote control .......................... 212
Synchronizing remote control ....... 213
Fuel filler flap ................................ 213
Manually unlocking the
transmission selector lever ........... 214
Opening/closing in an emergency ..... 215
Raising retractable hardtop
manually ....................................... 215
Replacing bulbs .................................. 221
Bulbs............................................. 221
Replacing bulbs for front lamps .... 223
Replacing bulbs for rear lamps ..... 225
Adjusting headlamp aim
(Halogen headlamps only) ............ 226
Replacing wiper blades ...................... 228
Removing ...................................... 228
Page 6 of 304
Contents
Installing....................................... 228
Flat tire .............................................. 229
Preparing the vehicle.................... 229
Sealing tires with TIREFIT kit 1 ..... 229
Sealing tires with TIREFIT kit 2 ..... 234
Mounting the spare wheel ............ 238
Battery ............................................... 245
Disconnecting the battery ............ 246
Removing the battery ................... 246
Charging and reinstalling battery . 246
Reconnecting the battery ............. 246
Jump starting ..................................... 247
Towing the vehicle ............................. 249
Towing eye ................................... 251
Installing towing eye bolt.............. 252
Fuses ................................................. 253
Main fuse box ............................... 253
Auxiliary fuse box ......................... 254
Technical data.................................. 255
Spare parts service ............................ 256
Warranty coverage ............................. 257
Loss of Service and Warranty
Information Booklet...................... 257
Identification labels............................ 258Layout of poly-V-belt drive ................. 259
SLK 230 Kompressor ................... 259
SLK 320 ....................................... 259
SLK 32 AMG................................. 259
Engine................................................ 260
Rims and Tires ................................... 261
Same size tires ............................. 262
Mixed size tires ............................ 263
Spare wheel with collapsible tire.. 265
Electrical system ............................... 266
Main Dimensions ............................... 267
Weights.............................................. 268

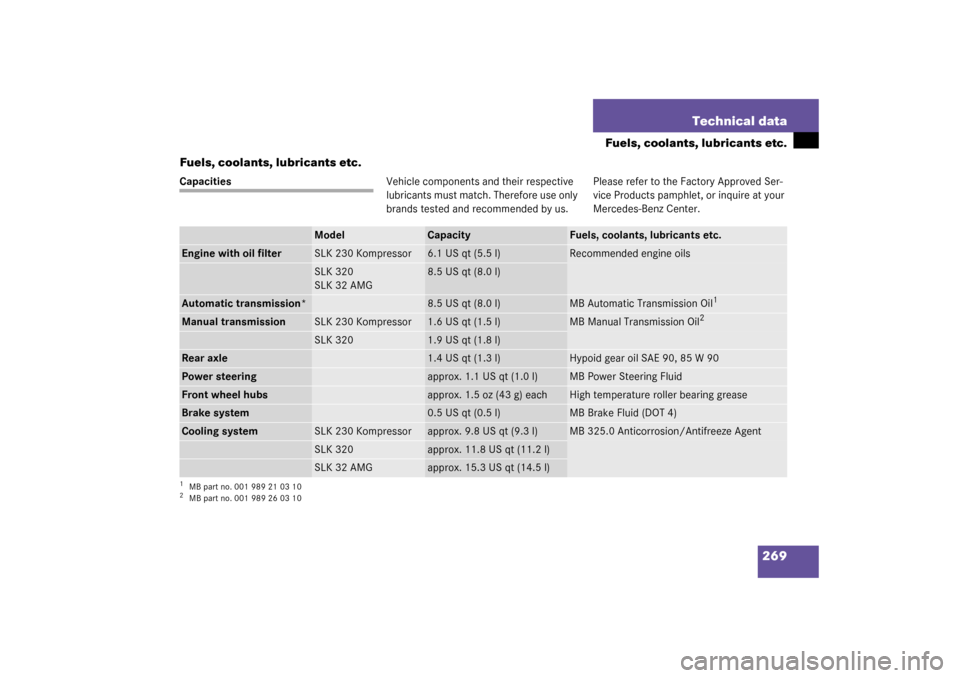

Fuels, coolants, lubricants etc. .......... 269
Capacities .................................... 269

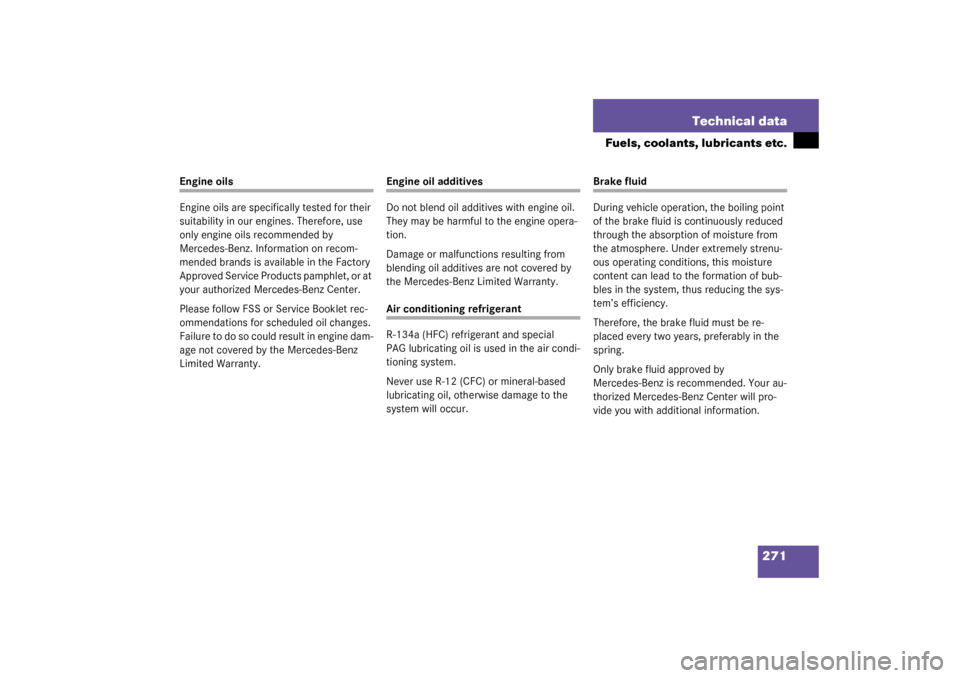

Engine oils.................................... 271
Engine oil additives ...................... 271
Air conditioning refrigerant .......... 271
Brake fluid .................................... 271
Premium unleaded gasoline ......... 272
Fuel requirements ........................ 272
Gasoline additives ........................ 272
Coolants....................................... 273
Windshield and headlamp*
washer system ............................. 275
Consumer information ....................... 276
Uniform tire quality grading ......... 276
Technical terms............................... 279Index................................................. 285
Page 21 of 304
21 At a glance
Instrument cluster
Item
Page
1
Left indicator lamps
with:W
Low windshield
washer and head-
lamp washer* sys-
tem fluid level
warning lamp
200
/
Low engine coolant
level warning lamp
201
N
Low engine oil level
warning lamp
200
1
Supplemental re-
straint system indi-
cator lamp
52,
197
2
Brake pad wear in-
dicator lamp
202
?
Engine malfunction
indicator lamp
199
_
Telescoping steer-
ing column warning
lamp*
200
Item
Page
2
Warning display with:D
Coolant tempera-
ture gauge
88
A
Fuel gauge with fuel
reserve warning
lamp
201
Outside temperature
indicator
90
3
Knob for:
Instrument cluster illu-
mination
88
Resetting trip odome-
ter
89
Activating Flexible Ser-
vice System (FSS) indi-
cator
185
4
Speedometer with:L
Turn signal
K
indicator lamps
v
Electronic Stability
Program (ESP)
warning lamp
68,
194
Trip odometer
89
Main odometer
5
Knob for:
Setting clock
90
6
Tachometer with:Selector lever position
41, 93
Digital clock
90
7
Right indicator lamps
with:$
Exterior lamp failure
indicator lamp
203
A
High beam head-
lamp indicator
43, 84
#
Charge indicator
lamp
202
Item
Page

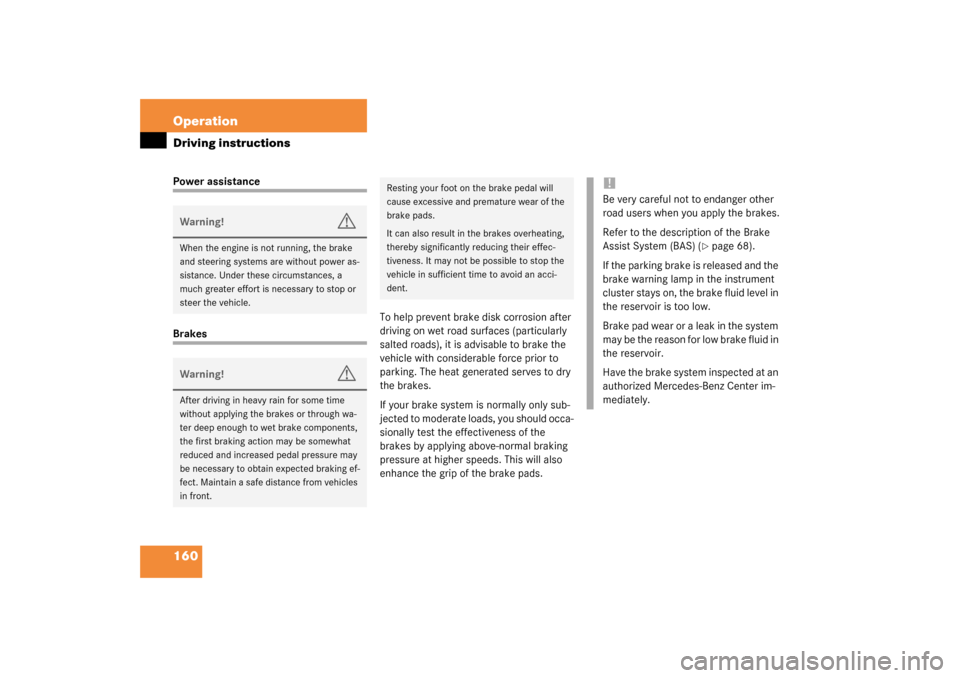

Page 160 of 304
160 OperationDriving instructionsPower assistanceBrakesTo help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only sub-
jected to moderate loads, you should occa-
sionally test the effectiveness of the
brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads.Warning!
G
When the engine is not running, the brake
and steering systems are without power as-
sistance. Under these circumstances, a
much greater effort is necessary to stop or
steer the vehicle.Warning!
G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components,
the first braking action may be somewhat
reduced and increased pedal pressure may
be necessary to obtain expected braking ef-
fect. Maintain a safe distance from vehicles
in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating,
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an acci-
dent.
!Be very careful not to endanger other
road users when you apply the brakes.
Refer to the description of the Brake
Assist System (BAS) (
page 68).
If the parking brake is released and the
brake warning lamp in the instrument
cluster stays on, the brake fluid level in
the reservoir is too low.
Brake pad wear or a leak in the system
may be the reason for low brake fluid in
the reservoir.
Have the brake system inspected at an
authorized Mercedes-Benz Center im-
mediately.

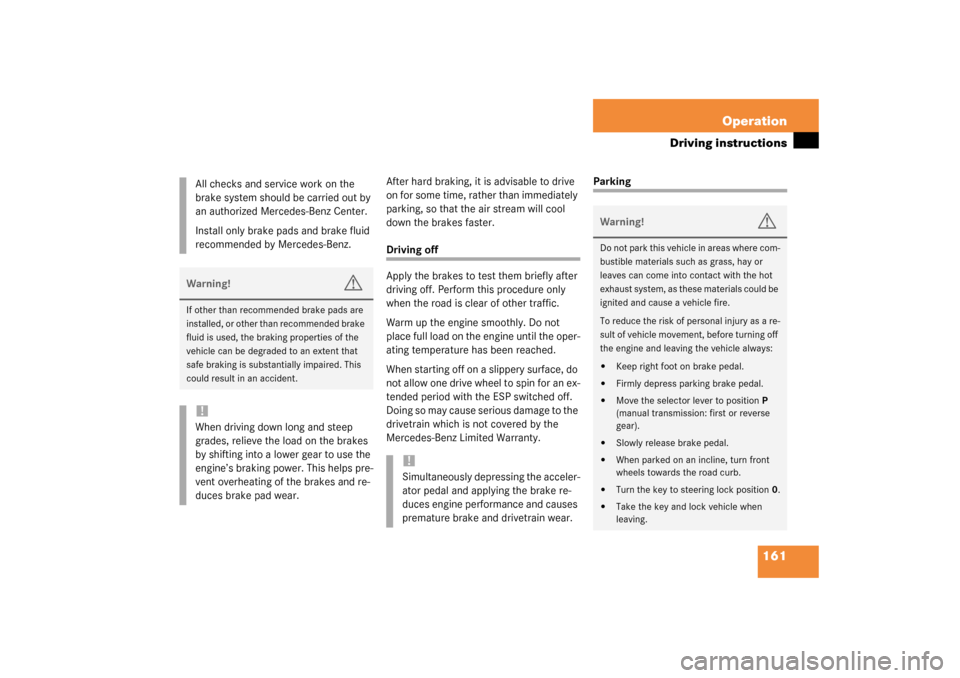

Page 161 of 304
161 Operation
Driving instructions
After hard braking, it is advisable to drive
on for some time, rather than immediately
parking, so that the air stream will cool
down the brakes faster.Driving off
Apply the brakes to test them briefly after
driving off. Perform this procedure only
when the road is clear of other traffic.
Warm up the engine smoothly. Do not
place full load on the engine until the oper-
ating temperature has been reached.
When starting off on a slippery surface, do
not allow one drive wheel to spin for an ex-
tended period with the ESP switched off.
Doing so may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
Parking
All checks and service work on the
brake system should be carried out by
an authorized Mercedes-Benz Center.
Install only brake pads and brake fluid
recommended by Mercedes-Benz.
Warning!
G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.!When driving down long and steep
grades, relieve the load on the brakes
by shifting into a lower gear to use the
engine’s braking power. This helps pre-
vent overheating of the brakes and re-
duces brake pad wear.
!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:
Keep right foot on brake pedal.
Firmly depress parking brake pedal.
Move the selector lever to positionP
(manual transmission: first or reverse
gear).
Slowly release brake pedal.
When parked on an incline, turn front
wheels towards the road curb.
Turn the key to steering lock position0.
Take the key and lock vehicle when
leaving.
Page 170 of 304
170 OperationAt the gas station
You will hear when the fuel cap is tight-
ened.
Close the fuel filler flap.
You should hear the latch close shut.
Check regularly and before a long trip1Windshield washer and headlamp
cleaning system*
More information on filling up the res-
ervoir can be found in the “Operation”
section (
page 179).
2Brake fluid
More information on brake fluid can be
found in the “Technical data” section
(
page 271).
3Coolant level
More information on coolant can be
found in the “Operation” section
(page 176).
4Engine oil level
More information on engine oil can be
found in the “Operation” section
(page 172).
Opening hood (
page 171).Coolant
For normal replenishing, use water (pota-
ble water quality). More information on
coolant can be found in the “Operation”
section (
page 176).
Exterior lamp switch (
page 83).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, refer
to page (
page 221) in the “Practical
hints” section.
Exterior lamp switch (
page 83).
Tire inflation pressure
More information on tire inflation pressure
can be found in the “Operation” section
(
page 181).
iLeaving the engine running and the fuel
cap open can cause the
?
lamp to
illuminate.
More information can be found in the
“Practical hints” section (
page 199).
Page 187 of 304
187 Operation
Vehicle care
Vehicle care
Cleaning and care of vehicle
In operation, your vehicle is subjected to
varying external influences which, if gone
unchecked, can attack the paintwork as
well as the underbody and cause lasting
damage.
Such damage is caused not only by ex-
treme and varying climatic conditions, but
also by:
Air pollution
Road salt
Tar, gravel and stone chippingTo avoid paint damage, you should imme-
diately remove:
Grease and oil
Fuel
Coolant
Brake fluid
Insects
Tree resins, etc.
Frequent washing reduces and / or elimi-
nates the aggressiveness and potency of
the above adverse influences.
More frequent washings are necessary to
deal with unfavorable conditions:
Near the ocean
In industrial areas (smoke, exhaust
emissions)
During winter operation
You should check your vehicle from time to
time for stone chipping or other damage.
Any damage should be repaired as soon as
possible to prevent the start of corrosion.In doing so, do not neglect the underbody
of the vehicle. A prerequisite for a thor-
ough check is a washing of the underbody
followed by a thorough inspection. Dam-
aged areas need to be re-undercoated.
Your vehicle has been treated at the facto-
ry with a wax-base rustproofing in the body
cavities which will last for the lifetime of
the vehicle. Post-production treatment is
neither necessary nor recommended by
Mercedes-Benz because of the possibility
of incompatibility between materials used
in the production process and others ap-
plied later.
We have selected car-care products and
compiled recommendations which are
specially matched to our vehicles and
which always reflect the latest technology.
You can obtain Mercedes-Benz approved
car-care products at your authorized
Mercedes-Benz Center.
Scratches, corrosive deposits, corrosion or
damage due to negligent or incorrect care
cannot always be removed or repaired with
Warning!
G
Many cleaning products can be hazardous.
Some are poisonous, others are flammable.
Always follow the instructions on the partic-
ular container. Always open your vehicle’s
doors or windows when cleaning the inside.
Never use fluids or solvents that are not de-
signed for cleaning your vehicle.
Page 198 of 304
198 Practical hintsWhat to do if …?Problem
Possible cause
Suggested solution
3
(Canada only)
;
(except Canada)The red brake warning lamp
lights up while driving and you
hear a warning sound.
You are driving with the parking brake set.
Release the parking brake
(page 42).
3
(Canada only)
;
(except Canada)The red brake warning lamp
lights up while driving.
There is insufficient brake fluid in the reser-
voir.
Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Don’t add
brake fluid before checking the brake sys-
tem.
Overfilling the brake fluid reservoir can re-
sult in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.
Page 269 of 304
269 Technical data
Fuels, coolants, lubricants etc.
Fuels, coolants, lubricants etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
brands tested and recommended by us.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
SLK 230 Kompressor
6.1 US qt (5.5 l)
Recommended engine oils
SLK 320
SLK 32 AMG
8.5 US qt (8.0 l)
Automatic transmission*
8.5 US qt (8.0 l)
MB Automatic Transmission Oil
1
1MB part no. 001 989 21 03 10Manual transmission
SLK 230 Kompressor
1.6 US qt (1.5 l)
MB Manual Transmission Oil
2
2MB part no. 001 989 26 03 10
SLK 320
1.9 US qt (1.8 l)
Rear axle
1.4 US qt (1.3 l)
Hypoid gear oil SAE 90, 85 W 90
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid
Front wheel hubs
approx. 1.5oz (43g) each
High temperature roller bearing grease
Brake system
0.5 US qt (0.5 l)
MB Brake Fluid (DOT 4)
Cooling system
SLK 230 Kompressor
approx. 9.8 US qt (9.3 l)
MB 325.0 Anticorrosion/Antifreeze Agent
SLK 320
approx. 11.8USqt (11.2l)
SLK 32 AMG
approx. 15.3USqt (14.5l)
Page 271 of 304
271 Technical data
Fuels, coolants, lubricants etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines. Therefore, use
only engine oils recommended by
Mercedes-Benz. Information on recom-
mended brands is available in the Factory
Approved Service Products pamphlet, or at
your authorized Mercedes-Benz Center.
Please follow FSS or Service Booklet rec-
ommendations for scheduled oil changes.
F ai lu re to d o s o could res ul t in engi ne da m -
age not covered by the Mercedes-Benz
Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may be harmful to the engine opera-
tion.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special
PAG lubricating oil is used in the air condi-
tioning system.
Never use R-12 (CFC) or mineral-based
lubricating oil, otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of bub-
bles in the system, thus reducing the sys-
tem’s efficiency.
Therefore, the brake fluid must be re-
placed every two years, preferably in the
spring.
Only brake fluid approved by
Mercedes-Benz is recommended. Your au-
thorized Mercedes-Benz Center will pro-
vide you with additional information.
