ContentsControls in detail............................... 73
Locking and unlocking ......................... 74
Keys ............................................... 74
Opening the doors from the inside . 77
Opening the trunk .......................... 77
Closing the trunk ............................ 78
Trunk lid emergency release .......... 78
Automatic central locking .............. 79
Locking and unlocking from the
inside ............................................. 80
Seats.................................................... 81
Removing and installing head
restraints ........................................ 81
Heated seats* ................................ 82
Lighting ................................................ 83
Exterior lamp switch ....................... 83
Combination switch........................ 85
Hazard warning flasher................... 86
Interior lighting ............................... 87
Instrument cluster ............................... 89
Instrument cluster illumination....... 89
Coolant temperature gauge............ 89
Trip odometer................................. 90
Tachometer .................................... 90
Outside temperature indicator ....... 91Setting clock .................................. 91
Manual transmission ........................... 92
Shifting into reverse ....................... 92
Automatic transmission* ..................... 93
One-touch gearshifting................... 94
Gear ranges.................................... 95
Gear selector lever position ........... 95
Program mode selector switch....... 97
Accelerator position ....................... 98
Emergency operation (Limp Home
Mode)............................................. 98
Good visibility ...................................... 99
Headlamp cleaning system* .......... 99
Rear view mirror............................. 99
Sun visors .................................... 100
Rear window defroster ................. 101
Climate control .................................. 102
Setting the temperature ............... 104
Adjusting air volume .................... 105
Adjusting air distribution .............. 105
Air recirculation mode .................. 106
Air conditioning ............................ 106
Residual heat ............................... 107
Basic settings............................... 108
Special settings............................ 109Deactivating the climate control
system ......................................... 110
Audio system ..................................... 111
Audio and telephone, operation ... 111
Operating safety .......................... 111
Operating and display elements... 112
Anti-theft system ......................... 114
Button and soft key operation...... 115
Operation ..................................... 115
Radio mode .................................. 116
Cassette mode............................. 118
CD mode ...................................... 121
Telephone* operation .................. 125
Power windows ................................. 128
Opening and closing the windows 128
Retractable hardtop........................... 130
Opening and closing the
retractable hardtop ...................... 130
Wind screen ................................. 135
Driving systems ................................. 136
Cruise control .............................. 136
Useful features .................................. 139
Interior storage spaces ................ 139
Ashtray ........................................ 142
Cigarette lighter ........................... 143
Telephone* .................................. 143
Page 5 of 314
Contents
Tele Aid ........................................ 144
Garage door opener ..................... 153
Operation......................................... 159
The first 1000 miles (1500 km) ......... 160
Driving instructions............................ 161
Drive sensibly – save fuel............. 161
Drinking and driving ..................... 161
Pedals .......................................... 161
Power assistance ......................... 162
Brakes .......................................... 162
Driving off .................................... 163
Parking......................................... 163
Tires ............................................. 164
Hydroplaning................................ 165
Tire traction ................................. 165
Tire speed rating .......................... 166
Winter driving instructions ........... 167
Standing water ............................. 168
Passenger compartment .............. 168
Driving abroad.............................. 168
Control and operation of radio
transmitter ................................... 168
Catalytic converter....................... 169
Emission control .......................... 170Coolant temperature..................... 170
At the gas station ............................... 171
Refueling....................................... 171
Check regularly and before a
long trip ........................................ 172
Engine compartment .......................... 174
Hood ............................................. 174
Engine oil ...................................... 175
Transmission fluid level................. 180
Coolant ......................................... 180
Battery .......................................... 183
Windshield washer system and
headlamp cleaning system*.......... 184
Tires and wheels................................. 185
Important guidelines ..................... 185
Life of tire ..................................... 186
Direction of rotation...................... 186
Checking tire inflation pressure .... 186
Rotating wheels ............................ 187
Winter driving ..................................... 188
Winter tires ................................... 188
Block heater (Canada only) ........... 189
Snow chains.................................. 189
Maintenance....................................... 190
Clearing the service indicator ....... 190
Service term exceeded ................. 191Calling up the service indicator .... 191
Resetting the service indicator ..... 191
Vehicle care ....................................... 192
Cleaning and care of vehicle ......... 192
Practical hints.................................. 199
What to do if … ................................... 200
Lamps in instrument cluster ......... 200
Additional indicators in the
speedometer display .................... 210
Lamp in center console ................ 211
Where will I find ...? ............................ 212
First aid kit.................................... 212
Vehicle tool kit, vehicle jack ......... 212
Spare wheel (SLK 230
Kompressor, SLK 320) .................. 213
TIREFIT kit (SLK 32 AMG only) ...... 214
Unlocking/locking in an emergency .. 216
Unlocking the vehicle ................... 216
Locking the vehicle ....................... 217
Changing batteries in remote
control .......................................... 218
Synchronizing remote control ....... 219
Fuel filler flap ................................ 219
Page 13 of 314
13 Introduction
Symbols
Symbols
The following symbols are found in this
Operator’s Manual:
* Optional equipment is identified
with an asterisk. Since standard
equipment varies between models,
the descriptions and illustrations in
this manual may differ slightly from
the actual equipment of your vehi-
cle.
This symbol points to instructions for
you to follow.
A number of these symbols appearing
in succession indicates a multiple-step
procedure.
Page This symbol tells you where to
look for further information on a
topic.
This continuation symbol marks
an interrupted procedure which
will be continued on the next
page.
-> In the glossary of technical
terms, this symbol is used to in-
dicate cross-references to term
definitions.
Display
Words appearing in the multi-
function display are printed in
the type shown here.
Warning!
G
Warning notices draw your attention to haz-
ards that may endanger your health or life,
or the health or life of others.!Highlights hazards that may result in
damage to your vehicle.iHelpful hints or further information you
may find useful.
Page 21 of 314
21 At a glance
Instrument cluster
Item
Page
1
Left indicator lamps
with:W
Low windshield
washer and head
lamp washer* sys-
tem fluid level warn-
ing lamp
206
/
Low engine coolant
level warning lamp
207
N
Low engine oil level
warning lamp
206
1
Supplemental Re-
straint System
(SRS) indicator
lamp
52,
203
2
Brake pad wear in-
dicator lamp
209
?
Engine malfunction
indicator lamp
205
_
Telescoping steer-
ing column warning
lamp
206
Item
Page
2
Display with:D
Coolant tempera-
ture gauge
89
A
Fuel gauge
207
Outside temperature
indicator
91
3
Knob for:
Instrument cluster illu-
mination
89
Resetting trip odome-
ter
90
Activating Flexible Ser-
vice System (FSS) indi-
cator
190
Item
Page
4
Speedometer with:L
Left turn signal indi-
cator lamp
K
Right turn signal in-
dicator lamp
v
Electronic Stability
Program (ESP)
warning lamp
68,
200
Trip odometer
90
Main odometer
5
Knob for:
Setting clock
91
6
Tachometer with:Selector lever position
41, 90
Clock
91
Page 89 of 314
89 Controls in detail
Instrument cluster
Instrument cluster
A full view illustration of the instrument
cluster can be found in the “At a glance”
section of this manual (
page 20).
The instrument cluster is activated when
you
open the driver’s door
turn the key in steering lock to
position2 (
page 29)
press left knob3 (
page 20)
Instrument cluster illumination
Instrument lamps
To brighten illumination
Turn knob3 (
page 20) clockwise.
The instrument lamps will brighten.
To dim illumination
Turn knob3 counterclockwise.
The instrument lamps will dim.
Display illumination
Press knob3.
With key removed or in steering lock
position0 or1 (
page 29), the display
is illuminated for a short time.
Coolant temperature gauge
Under normal driving conditions, the cool-
ant temperature may rise to 248°F
(120°C). The coolant temperature may
climb to the red marking:
at high outside temperatures
during stop-and-go traffic
when driving on hilly terrain
The engine should not be operated with
the coolant temperature in the red zone.
Doing so may cause serious engine dam-
age which is not covered by the
Mercedes-Benz Limited Warranty.
Page 91 of 314
91 Controls in detail
Instrument cluster
Outside temperature indicator
When moving the vehicle into colder ambi-
ent temperatures (e.g. when leaving your
garage), you will notice a delay before the
lower temperature is displayed.
A delay also occurs when ambient temper-
atures rise. This prevents inaccurate tem-
perature indications caused by heat
radiated from the engine during idling or
slow driving.
Setting clock
Hour
Pull out right knob5 in the instrument
cluster (
page 20) and turn it counter-
clockwise.
Minutes
Pull out right knob5 in the instrument
cluster and turn it clockwise.
Warning!
G
The outside temperature indicator is not de-
signed to serve as an ice-warning device and
is therefore unsuitable for that purpose.
Indicated temperatures just above the freez-
ing point do not guarantee that the road sur-
face is free of ice. The road may still be icy,
especially in wooded areas or on bridges.
iTo adjust the time by a single hour or a
few minutes, turn knob5 just a few
degrees in the direction indicated for
hours or minutes.
Page 93 of 314
93 Controls in detail
Automatic transmission*
Automatic transmission*
Information on driving with an automatic
transmission is found in the “Getting
started” section (
page 27).
Your vehicle’s transmission adapts its gear
shifting process to your individual driving
style by continually adjusting the shift
points up or down. These shift point adjust-
ments are performed based on current
operating and driving conditions.
If the operating conditions change, the
automatic transmission reacts by
adjusting its gear shift program.The automatic transmission selects indi-
vidual gears automatically, depending on:
the gear selector lever positionD with
gear ranges4, 3, 2, 1 (
page 95)
the selected shift program (W/S)
(page 97)
the position of the accelerator pedal
(page 98)
the vehicle speed
The current gear selector lever position
appears in the tachometer display see
“Getting started” (
page 27). When the gear selector lever is in
positionD, you can influence transmission
shifting by:
limiting the gear range
changing gears manually
iDuring the brief warm-up, transmission
upshifting is delayed. This allows the
catalytic converter to heat up more
quickly to operating temperature.
Warning!
G
It is dangerous to shift the gear selector
lever out ofP orN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
Page 94 of 314
94 Controls in detailAutomatic transmission*One-touch gearshifting
Even with an automatic transmission you
can change the gears manually when the
gear selector lever is in positionD.
Downshifting
Briefly press the gear selector lever to
the left in theD-direction.
The transmission will shift from the current
gear to the next lower gear. This action
simultaneously limits the gear range of the
transmission (
page 95).Upshifting
Briefly press the gear selector lever to
the right in theD+direction.
The transmission will shift from the current
gear to the next higher gear as permitted
by the shift program. This action simul-
taneously extends the gear range of the
transmission.Canceling gear range limit
Press and hold the gear selector lever
in theD+direction until
D reappears in
the tachometer display.
The transmission will shift from the current
gear range directly to gear rangeD.
Shifting into optimal gear range
Press and hold the gear selector lever
in theD-direction.
The transmission will automatically select
the gear range suited for optimal
acceleration and deceleration. This will
involve shifting down one or more gears.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.
iTo avoid overrevving the engine when
the gear selector lever is moved to
theD-direction, the transmission will
not shift to a lower gear if the engine’s
max. speed would be exceeded.
Page 95 of 314
95 Controls in detail
Automatic transmission*

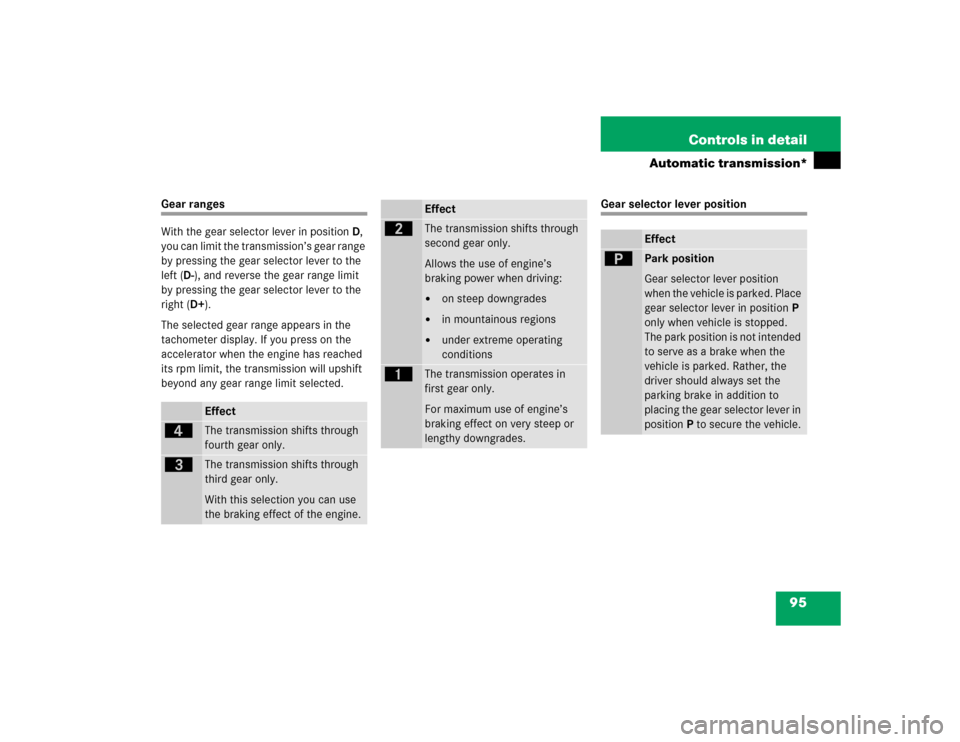

Gear ranges
With the gear selector lever in positionD,
you can limit the transmission’s gear range
by pressing the gear selector lever to the
left (D-), and reverse the gear range limit
by pressing the gear selector lever to the
right (D+).
The selected gear range appears in the
tachometer display. If you press on the
accelerator when the engine has reached
its rpm limit, the transmission will upshift
beyond any gear range limit selected.
Gear selector lever position
Effect
é
The transmission shifts through
fourth gear only.
è
The transmission shifts through
third gear only.
With this selection you can use
the braking effect of the engine.
Effect
ç
The transmission shifts through
second gear only.
Allows the use of engine’s
braking power when driving:
on steep downgrades
in mountainous regions
under extreme operating
conditions
æ
The transmission operates in
first gear only.
For maximum use of engine’s
braking effect on very steep or
lengthy downgrades.
Effect
ì
Park position
Gear selector lever position
when the vehicle is parked. Place
gear selector lever in positionP
only when vehicle is stopped.
The park position is not intended
to serve as a brake when the
vehicle is parked. Rather, the
driver should always set the
parking brake in addition to
placing the gear selector lever in
positionP to secure the vehicle.
