MERCEDES-BENZ SLK32AMG 2003 R170 Owner's Manual

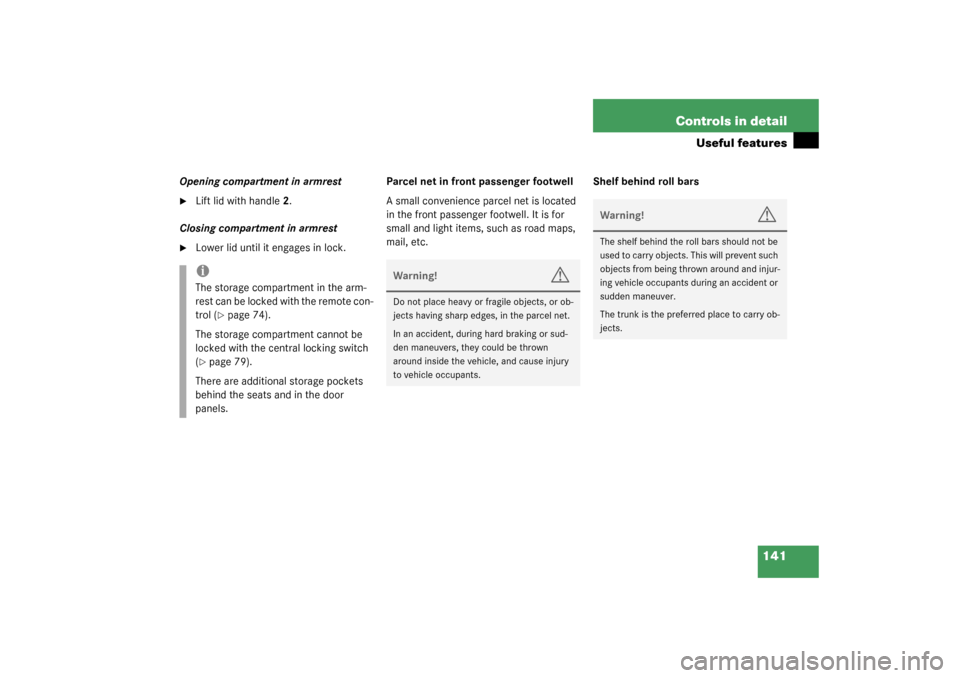

141 Controls in detail
Useful features
Opening compartment in armrest
Lift lid with handle2.
Closing compartment in armrest

Lower lid until it engages in lock.Parcel net in front passenger footwell
A small convenience parcel net is located
in the front passenger footwell. It is for
small and light items, such as road maps,
mail, etc.Shelf behind roll barsiThe storage compartment in the arm-
rest can be locked with the remote con-
trol (
page 74).
The storage compartment cannot be
locked with the central locking switch
(
page 79).
There are additional storage pockets
behind the seats and in the door
panels.
Warning!
G
Do not place heavy or fragile objects, or ob-
jects having sharp edges, in the parcel net.
In an accident, during hard braking or sud-
den maneuvers, they could be thrown
around inside the vehicle, and cause injury
to vehicle occupants.
Warning!
G
The shelf behind the roll bars should not be
used to carry objects. This will prevent such
objects from being thrown around and injur-
ing vehicle occupants during an accident or
sudden maneuver.
The trunk is the preferred place to carry ob-
jects.

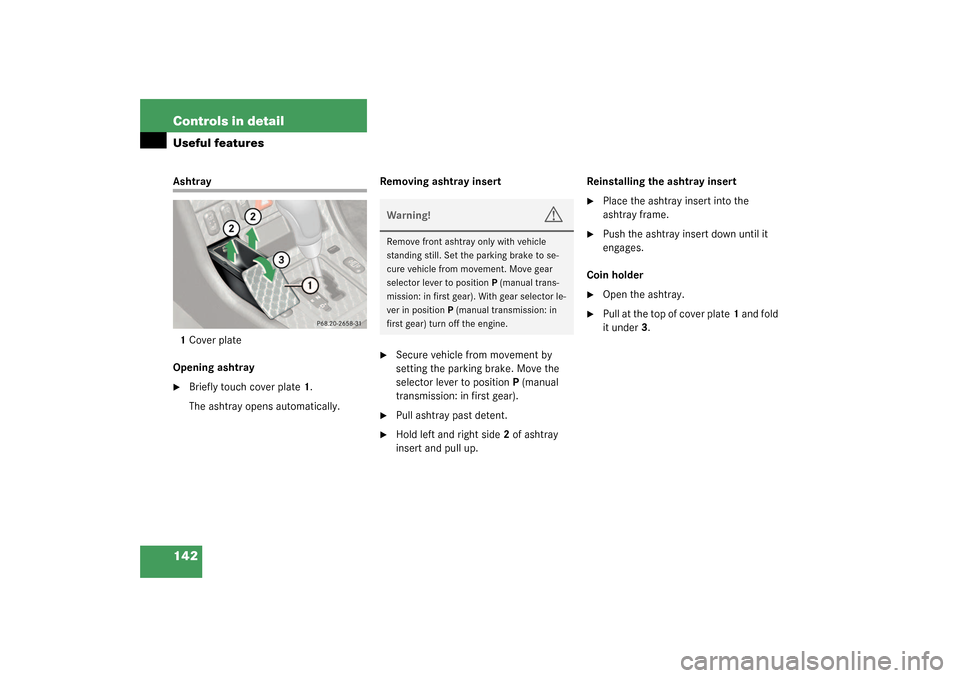

142 Controls in detailUseful featuresAshtray
1Cover plate
Opening ashtray
Briefly touch cover plate1.
The ashtray opens automatically.Removing ashtray insert

Secure vehicle from movement by
setting the parking brake. Move the
selector lever to positionP (manual
transmission: in first gear).

Pull ashtray past detent.

Hold left and right side2 of ashtray
insert and pull up.Reinstalling the ashtray insert

Place the ashtray insert into the
ashtray frame.

Push the ashtray insert down until it
engages.
Coin holder

Open the ashtray.

Pull at the top of cover plate1 and fold
it under3.
Warning!
G
Remove front ashtray only with vehicle
standing still. Set the parking brake to se-
cure vehicle from movement. Move gear
selector lever to positionP (manual trans-
mission: in first gear). With gear selector le-
ver in positionP (manual transmission: in
first gear) turn off the engine.

143 Controls in detail
Useful features
Cigarette lighter
1Cigarette lighter
2Cover
Turn key in the steering lock to
position1 or2 (
page 29).

Slide cover2 rearward.

Push in cigarette lighter1.
The cigarette lighter will pop out auto-
matically when hot.
Telephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Center for informa-
tion on the installation of an approved
external antenna. Refer to the radio trans-
mitter operation instructions regarding use
of an external antenna.
Warning!
G
Never touch the heating element or sides of
the cigarette lighter; they are extremely hot.
Hold the knob only.
When leaving the vehicle, always remove the
key from the steering lock, and lock your
vehicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.iThe cigarette lighter socket can be
used to accommodate electrical acces-
sories up to a maximum 85 W.
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or serious
personal injury.

144 Controls in detailUseful featuresSee separate operating manual for instruc-
tions on how to use the telephone.
Tele Aid
Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his /her primary focus when driving. For
your safety and the safety of others, we rec-
o m m e n d t h a t y o u p u l l o v e r t o a s a f e l o c a t i o n
and stop the vehicle before placing or taking
a telephone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is
covering a distance of approx. 44 feet (ap-
proximately 13.5 m) every second.
1Observe all legal requirements.
Warning!
G
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle. Whether or not prohibited by law, for
safety reasons, the driver should not use the
cellular telephone while the vehicle is in mo-
tion.
Stop the vehicle in a safe location before an-
swering or placing a call.
!The initial activation of the Tele Aid sys-
tem may only be performed by com-
pleting the subscriber agreement and
placing an acquaintance call using the
SOS button. Failure to complete either
of these steps will result in a system
that is not activated. If the system is
not activated, the indicator lamp in the
SOS button stays on after turning the
key in steering lock to position2.
If you have any questions regarding ac-
tivation, please call the Response
Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).

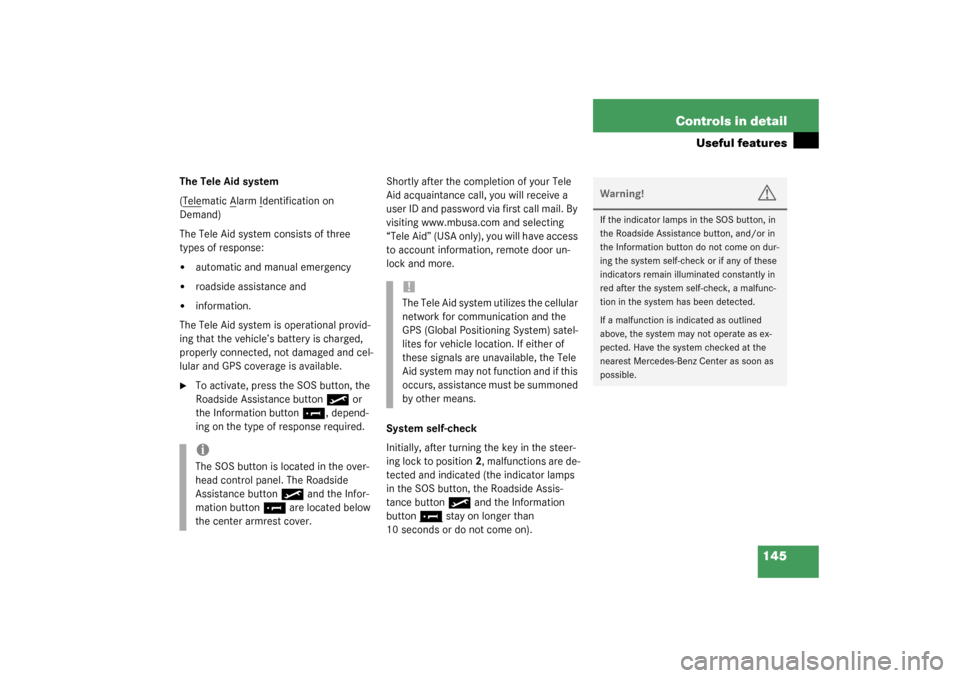

145 Controls in detail
Useful features
The Tele Aid system
(Tele
matic A
larm I
dentification on
Demand)
The Tele Aid system consists of three
types of response:


automatic and manual emergency


roadside assistance and


information.
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and cel-
lular and GPS coverage is available.

To activate, press the SOS button, the
Roadside Assistance button
•
or
the Information button
¡
, depend-
ing on the type of response required.Shortly after the completion of your Tele
Aid acquaintance call, you will receive a
user ID and password via first call mail. By
visiting www.mbusa.com and selecting
“Tele Aid” (USA only), you will have access
to account information, remote door un-
lock and more.
System self-check
Initially, after turning the key in the steer-
ing lock to position2, malfunctions are de-
tected and indicated (the indicator lamps
in the SOS button, the Roadside Assis-
tance button
•
and the Information
button
¡
stay on longer than
10 seconds or do not come on).
iThe SOS button is located in the over-
head control panel. The Roadside
Assistance button
•
and the Infor-
mation button
¡
are located below
the center armrest cover.
!The Tele Aid system utilizes the cellular
network for communication and the
GPS (Global Positioning System) satel-
lites for vehicle location. If either of
these signals are unavailable, the Tele
Aid system may not function and if this
occurs, assistance must be summoned
by other means.
Warning!
G
If the indicator lamps in the SOS button, in
the Roadside Assistance button, and/or in
the Information button do not come on dur-
ing the system self-check or if any of these
indicators remain illuminated constantly in
red after the system self-check, a malfunc-
tion in the system has been detected.
If a malfunction is indicated as outlined
above, the system may not operate as ex-
pected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.

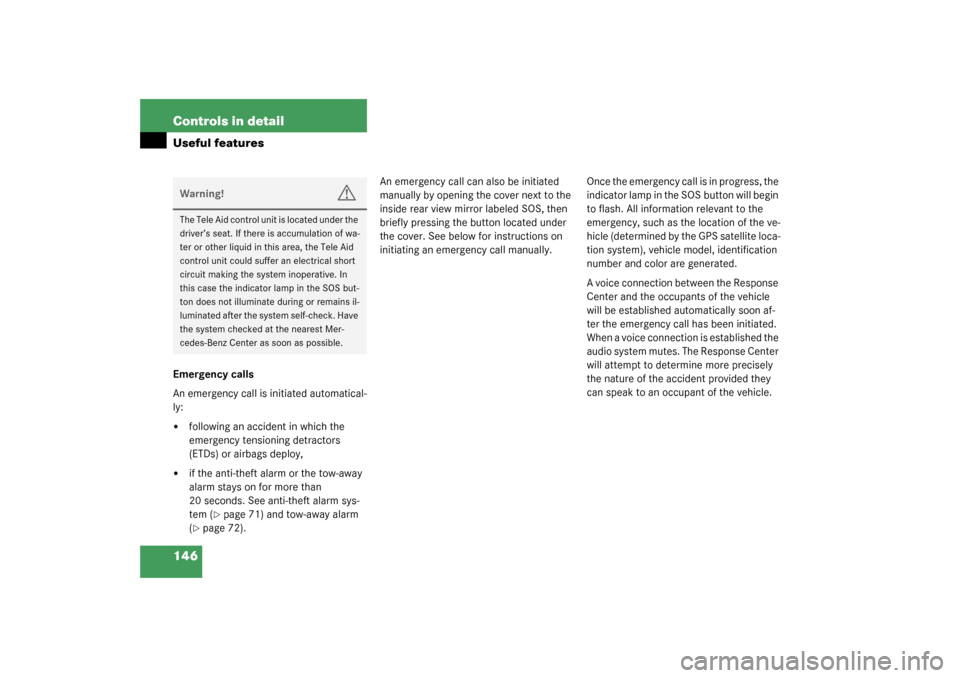

146 Controls in detailUseful featuresEmergency calls
An emergency call is initiated automatical-
ly:

following an accident in which the
emergency tensioning detractors
(ETDs) or airbags deploy,


if the anti-theft alarm or the tow-away
alarm stays on for more than
20 seconds. See anti-theft alarm sys-
tem (
page 71) and tow-away alarm
(
page 72).An emergency call can also be initiated
manually by opening the cover next to the
inside rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See below for instructions on
initiating an emergency call manually.Once the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. All information relevant to the
emergency, such as the location of the ve-
hicle (determined by the GPS satellite loca-
tion system), vehicle model, identification
number and color are generated.
A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
When a voice connection is established the
audio system mutes. The Response Center
will attempt to determine more precisely
the nature of the accident provided they
can speak to an occupant of the vehicle.
Warning!
G
The Tele Aid control unit is located under the
driver’s seat. If there is accumulation of wa-
ter or other liquid in this area, the Tele Aid
control unit could suffer an electrical short
circuit making the system inoperative. In
this case the indicator lamp in the SOS but-
ton does not illuminate during or remains il-
luminated after the system self-check. Have
the system checked at the nearest Mer-
cedes-Benz Center as soon as possible.

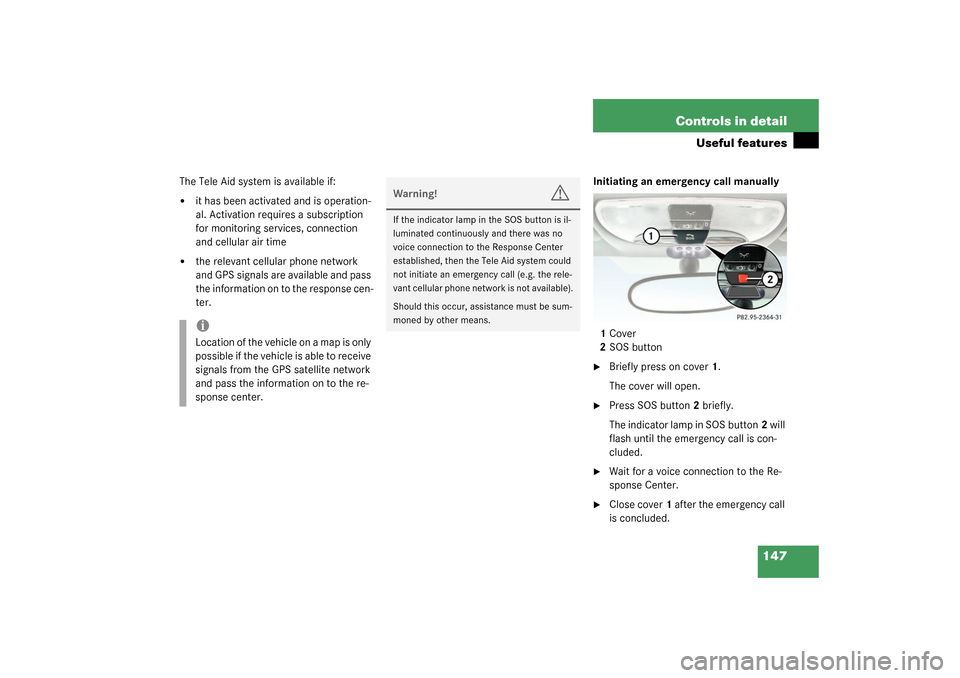

147 Controls in detail
Useful features
The Tele Aid system is available if:

it has been activated and is operation-
al. Activation requires a subscription
for monitoring services, connection
and cellular air time


the relevant cellular phone network
and GPS signals are available and pass
the information on to the response cen-
ter.Initiating an emergency call manually
1Cover
2SOS button

Briefly press on cover1.
The cover will open.

Press SOS button2 briefly.
The indicator lamp in SOS button2 will
flash until the emergency call is con-
cluded.

Wait for a voice connection to the Re-
sponse Center.

Close cover1 after the emergency call
is concluded.
iLocation of the vehicle on a map is only
possible if the vehicle is able to receive
signals from the GPS satellite network
and pass the information on to the re-
sponse center.
Warning!
G
If the indicator lamp in the SOS button is il-
luminated continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
Should this occur, assistance must be sum-
moned by other means.

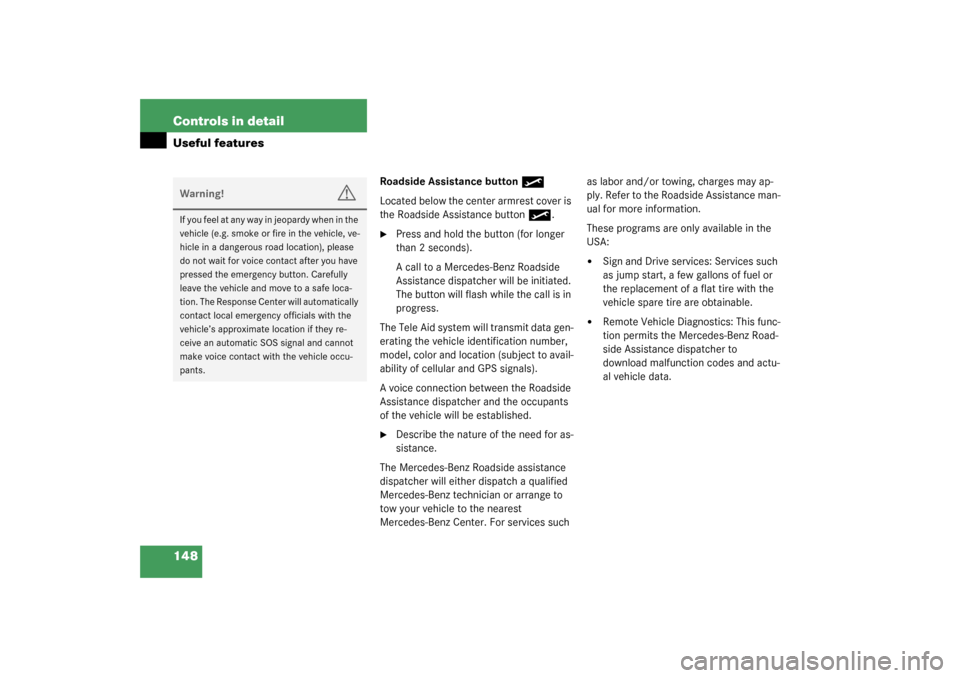

148 Controls in detailUseful features
Roadside Assistance button
•
Located below the center armrest cover is
the Roadside Assistance button
•
.

Press and hold the button (for longer
than 2 seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The button will flash while the call is in
progress.
The Tele Aid system will transmit data gen-
erating the vehicle identification number,
model, color and location (subject to avail-
ability of cellular and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.

Describe the nature of the need for as-
sistance.
The Mercedes-Benz Roadside assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Center. For services such as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance man-
ual for more information.
These programs are only available in the
USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.


Remote Vehicle Diagnostics: This func-
tion permits the Mercedes-Benz Road-
side Assistance dispatcher to
download malfunction codes and actu-
al vehicle data.
Warning!
G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle, ve-
hicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they re-
ceive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.

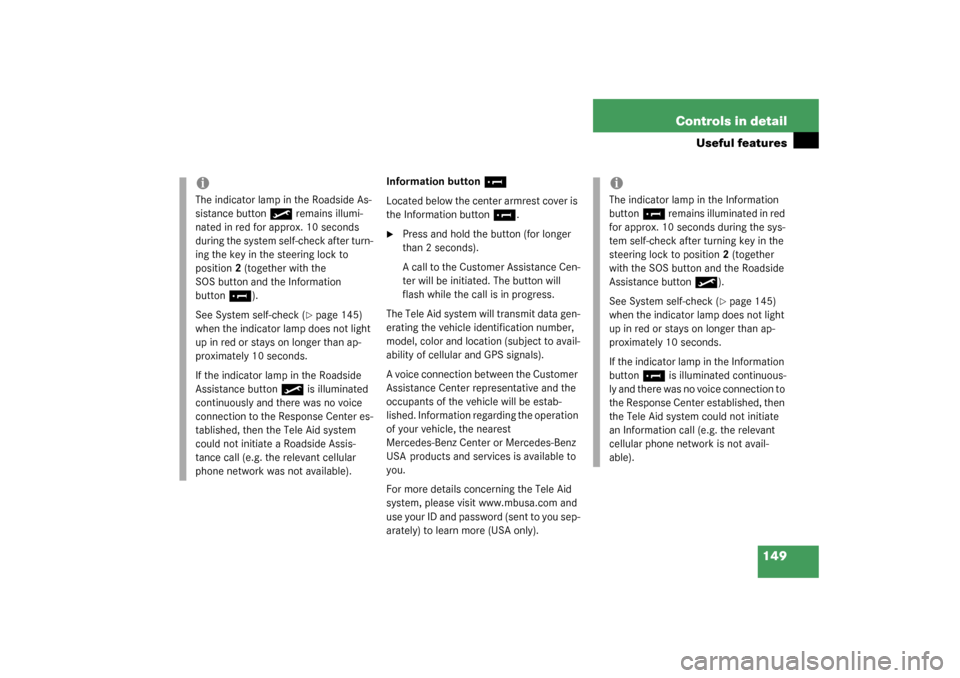

149 Controls in detail
Useful features
Information button
¡
Located below the center armrest cover is
the Information button
¡
.

Press and hold the button (for longer
than 2 seconds).
A call to the Customer Assistance Cen-
ter will be initiated. The button will
flash while the call is in progress.
The Tele Aid system will transmit data gen-
erating the vehicle identification number,
model, color and location (subject to avail-
ability of cellular and GPS signals).
A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be estab-
lished. Information regarding the operation
of your vehicle, the nearest
Mercedes-Benz Center or Mercedes-Benz
USA products and services is available to
you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you sep-
arately) to learn more (USA only).
iThe indicator lamp in the Roadside As-
sistance button
•
remains illumi-
nated in red for approx. 10 seconds
during the system self-check after turn-
ing the key in the steering lock to
position2 (together with the
SOS button and the Information
button
¡
).
See System self-check (
page 145)
when the indicator lamp does not light
up in red or stays on longer than ap-
proximately 10 seconds.
If the indicator lamp in the Roadside
Assistance button
•
is illuminated
continuously and there was no voice
connection to the Response Center es-
tablished, then the Tele Aid system
could not initiate a Roadside Assis-
tance call (e.g. the relevant cellular
phone network was not available).
iThe indicator lamp in the Information
button
¡
remains illuminated in red
for approx. 10 seconds during the sys-
tem self-check after turning key in the
steering lock to position2 (together
with the SOS button and the Roadside
Assistance button
•
).
See System self-check (page 145)
when the indicator lamp does not light
up in red or stays on longer than ap-
proximately 10 seconds.
If the indicator lamp in the Information
button
¡
is illuminated continuous-
ly and there was no voice connection to
the Response Center established, then
the Tele Aid system could not initiate
an Information call (e.g. the relevant
cellular phone network is not avail-
able).

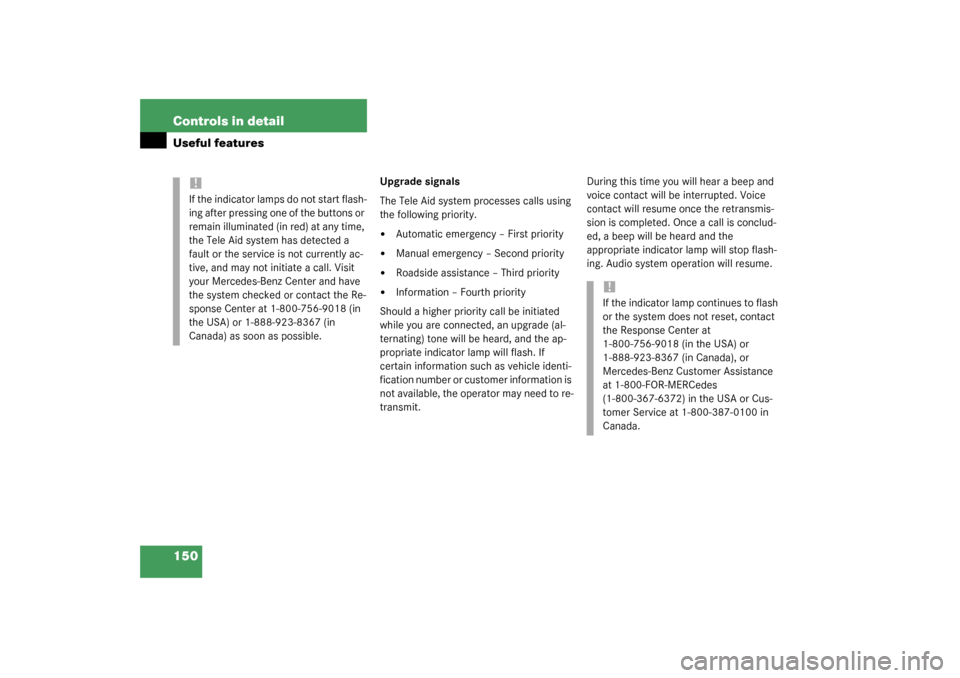

150 Controls in detailUseful features
Upgrade signals
The Tele Aid system processes calls using
the following priority.

Automatic emergency – First priority


Manual emergency – Second priority


Roadside assistance – Third priority


Information – Fourth priority
Should a higher priority call be initiated
while you are connected, an upgrade (al-
ternating) tone will be heard, and the ap-
propriate indicator lamp will flash. If
certain information such as vehicle identi-
fication number or customer information is
not available, the operator may need to re-
transmit.During this time you will hear a beep and
voice contact will be interrupted. Voice
contact will resume once the retransmis-
sion is completed. Once a call is conclud-
ed, a beep will be heard and the
appropriate indicator lamp will stop flash-
ing. Audio system operation will resume.
!If the indicator lamps do not start flash-
ing after pressing one of the buttons or
remain illuminated (in red) at any time,
the Tele Aid system has detected a
fault or the service is not currently ac-
tive, and may not initiate a call. Visit
your Mercedes-Benz Center and have
the system checked or contact the Re-
sponse Center at 1-800-756-9018 (in
the USA) or 1-888-923-8367 (in
Canada) as soon as possible.
!If the indicator lamp continues to flash
or the system does not reset, contact
the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada), or
Mercedes-Benz Customer Assistance
at 1-800-FOR-MERCedes
(1-800-367-6372) in the USA or Cus-
tomer Service at 1-800-387-0100 in
Canada.
