MERCEDES-BENZ SLK55AMG 2005 R171 Owner's Manual

401 Practical hints
Towing the vehicle
Towing the vehicle
Mercedes-Benz recommends that the vehi-
cle be transported with all wheels off the
ground using flatbed or appropriate wheel
lift/dolly equipment.When circumstances do not permit the
recommended towing methods, the vehi-
cle may be towed with all wheels on the
ground or front wheels raised only so far as
necessary to have the vehicle moved to a
safe location where the recommended
towing methods can be employed.
!Vehicles with automatic transmission*:
Do not tow-start vehicle.!Use flatbed or wheel lift/dolly equip-
ment with the SmartKey in the starter
switch in position0.
Do not tow with sling-type equipment.
Towing with sling-type equipment over
bumpy roads will damage radiator and
supports.
To prevent damage during transport,
do not tie down vehicle by its chassis or
suspension parts.
Switch off the tow-away alarm
(page 86) and the automatic central
locking (
page 97).
!To be certain to avoid a possibility of
damage to the transmission, however,
we recommend the drive shaft be dis-
connected at the rear axle drive flange
for any towing beyond a short tow to a
nearby garage.
!If the vehicle is towed with the front
axle raised, the engine must be shut off
(SmartKey in starter switch
position0or1). Otherwise, the ESP
will immediately be engaged and will
apply the rear wheel brakes.
When towing the vehicle with all wheels
on the ground, the gear selector lever*
must be in positionN (manual trans-
mission: gear shift lever in neutral posi-
tion) and the SmartKey must be in
starter switch position1.
When towing the vehicle with all wheels
on the ground or the front axle raised,
the vehicle may be towed only for dis-
tances up to 30 miles (50 km) and at a
speed not to exceed 30 mph
(50 km/h).

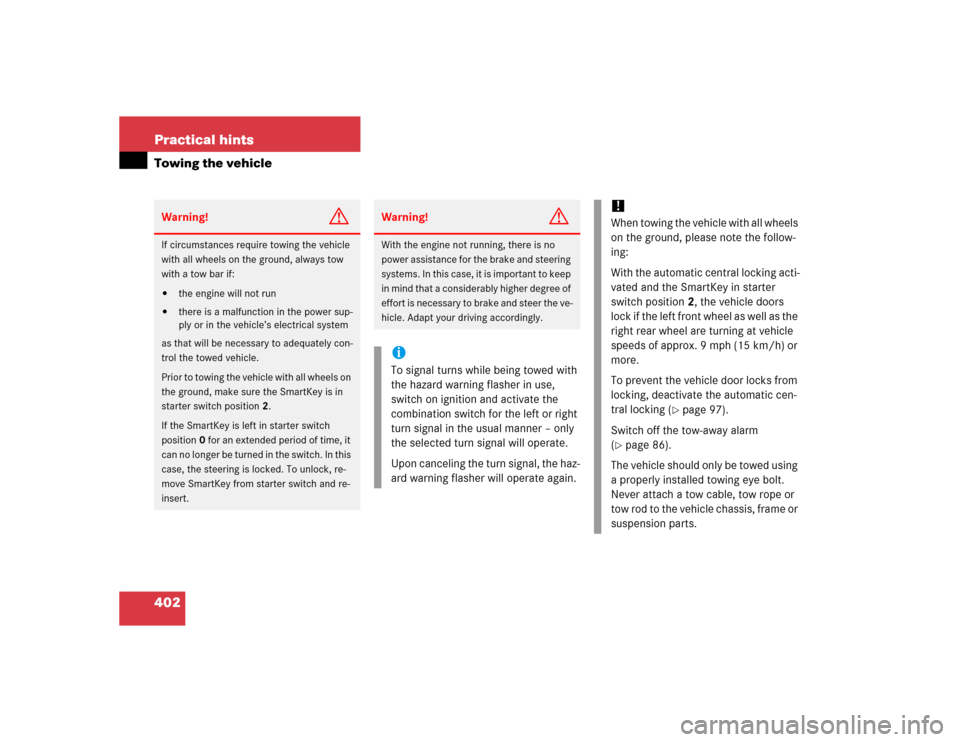

402 Practical hintsTowing the vehicleWarning!
G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run


there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
as that will be necessary to adequately con-
trol the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make sure the SmartKey is in
starter switch position2.
If the SmartKey is left in starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock, re-
move SmartKey from starter switch and re-
insert.

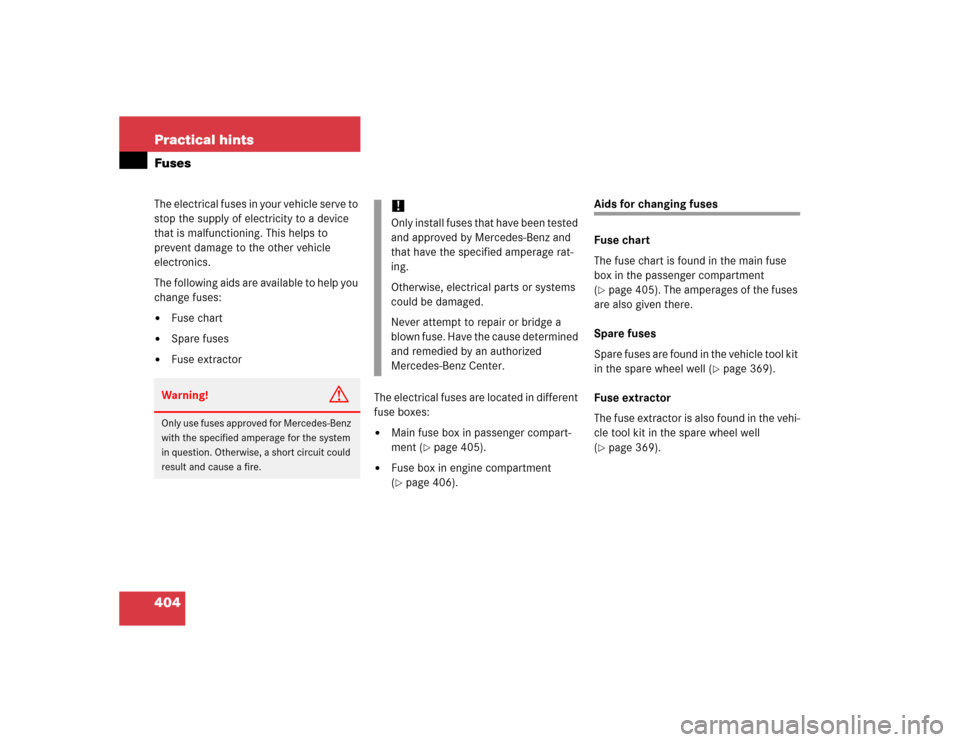

Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.iTo signal turns while being towed with
the hazard warning flasher in use,
switch on ignition and activate the
combination switch for the left or right
turn signal in the usual manner – only
the selected turn signal will operate.
Upon canceling the turn signal, the haz-
ard warning flasher will operate again.
!When towing the vehicle with all wheels
on the ground, please note the follow-
ing:
With the automatic central locking acti-
vated and the SmartKey in starter
switch position2, the vehicle doors
lock if the left front wheel as well as the
right rear wheel are turning at vehicle
speeds of approx. 9 mph (15 km/h) or
more.
To prevent the vehicle door locks from
locking, deactivate the automatic cen-
tral locking (
page 97).
Switch off the tow-away alarm
(
page 86).
The vehicle should only be towed using
a properly installed towing eye bolt.
Never attach a tow cable, tow rope or
tow rod to the vehicle chassis, frame or
suspension parts.

403 Practical hints
Towing the vehicle
Installing towing eye bolt
The towing eye bolt is supplied with the ve-
hicle tool kit, located in the compartment
underneath the trunk floor (
page 369).
The towing eyes are located on the passen-
ger side in the front and rear bumper.

Take vehicle tool kit out of trunk

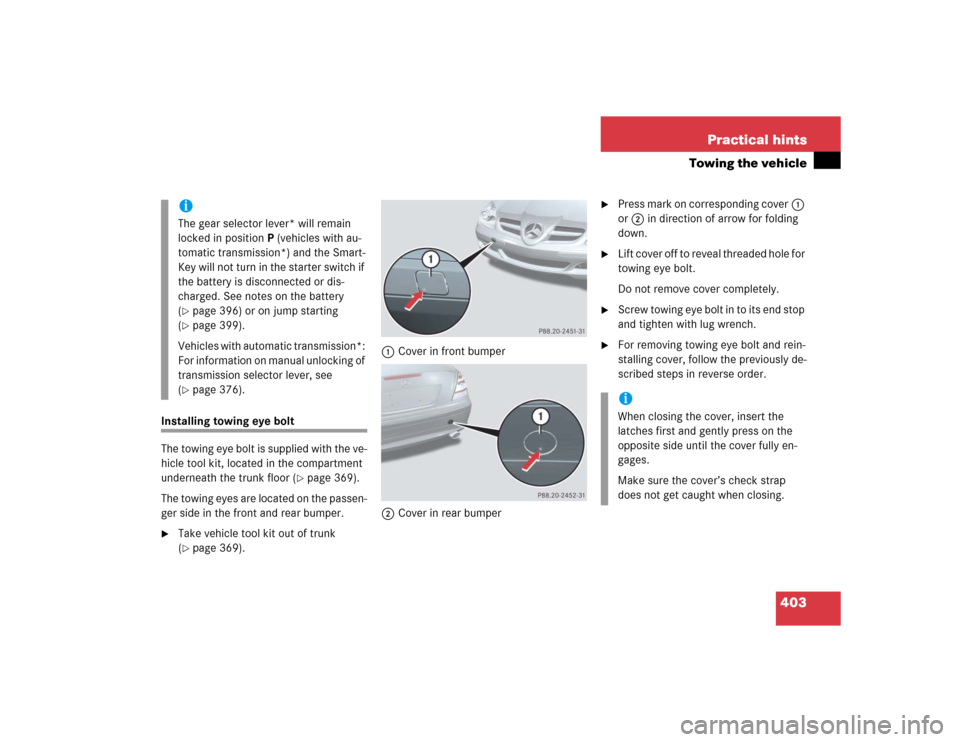

(page 369).1Cover in front bumper
2Cover in rear bumper

Press mark on corresponding cover1
or2 in direction of arrow for folding
down.

Lift cover off to reveal threaded hole for
towing eye bolt.
Do not remove cover completely.

Screw towing eye bolt in to its end stop
and tighten with lug wrench.

For removing towing eye bolt and rein-
stalling cover, follow the previously de-
scribed steps in reverse order.
iThe gear selector lever* will remain
locked in positionP (vehicles with au-
tomatic transmission*) and the Smart-
Key will not turn in the starter switch if
the battery is disconnected or dis-
charged. See notes on the battery
(page 396) or on jump starting
(page 399).
Vehicles with automatic transmission*:
For information on manual unlocking of
transmission selector lever, see
(page 376).
iWhen closing the cover, insert the
latches first and gently press on the
opposite side until the cover fully en-
gages.
Make sure the cover’s check strap
does not get caught when closing.

404 Practical hintsFusesThe electrical fuses in your vehicle serve to
stop the supply of electricity to a device
that is malfunctioning. This helps to
prevent damage to the other vehicle
electronics.
The following aids are available to help you
change fuses:

Fuse chart


Spare fuses


Fuse extractor
The electrical fuses are located in different
fuse boxes:


Main fuse box in passenger compart-
ment (
page 405).


Fuse box in engine compartment
(page 406).
Aids for changing fuses
Fuse chart
The fuse chart is found in the main fuse
box in the passenger compartment
(page 405). The amperages of the fuses
are also given there.
Spare fuses
Spare fuses are found in the vehicle tool kit
in the spare wheel well (
page 369).
Fuse extractor
The fuse extractor is also found in the vehi-
cle tool kit in the spare wheel well
(
page 369).
Warning!
G
Only use fuses approved for Mercedes-Benz
with the specified amperage for the system
in question. Otherwise, a short circuit could
result and cause a fire.
!Only install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage rat-
ing.
Otherwise, electrical parts or systems
could be damaged.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.

405 Practical hintsFuses

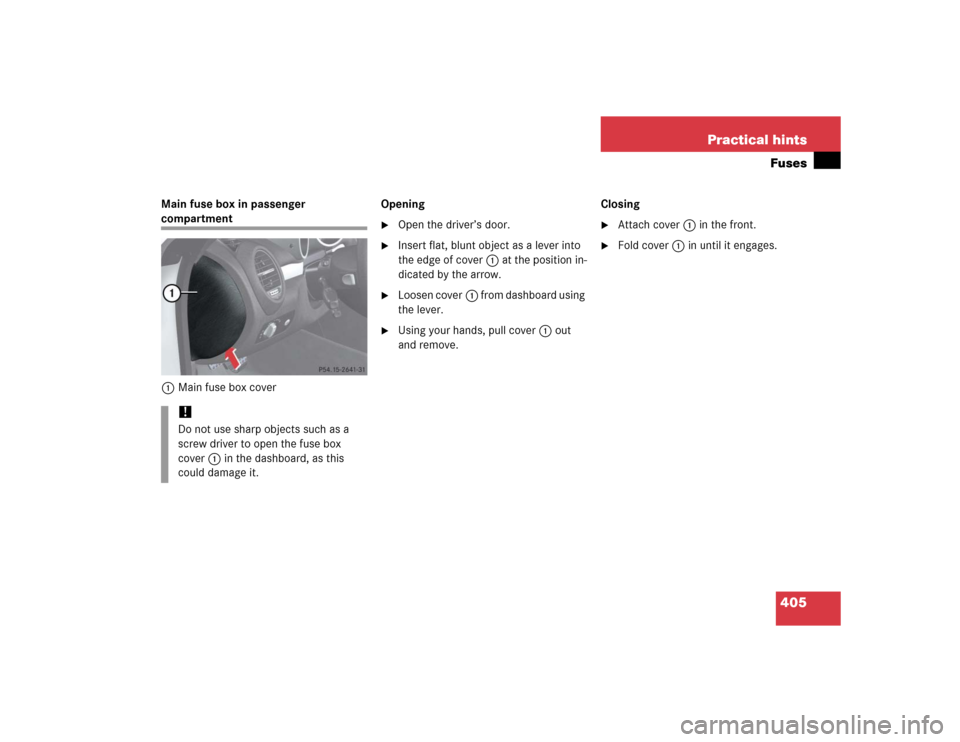

Main fuse box in passenger compartment
1Main fuse box coverOpening

Open the driver’s door.

Insert flat, blunt object as a lever into
the edge of cover1 at the position in-
dicated by the arrow.

Loosen cover1 from dashboard using
the lever.

Using your hands, pull cover1 out
and remove.Closing

Attach cover1 in the front.

Fold cover1 in until it engages.
!Do not use sharp objects such as a
screw driver to open the fuse box
cover1 in the dashboard, as this
could damage it.

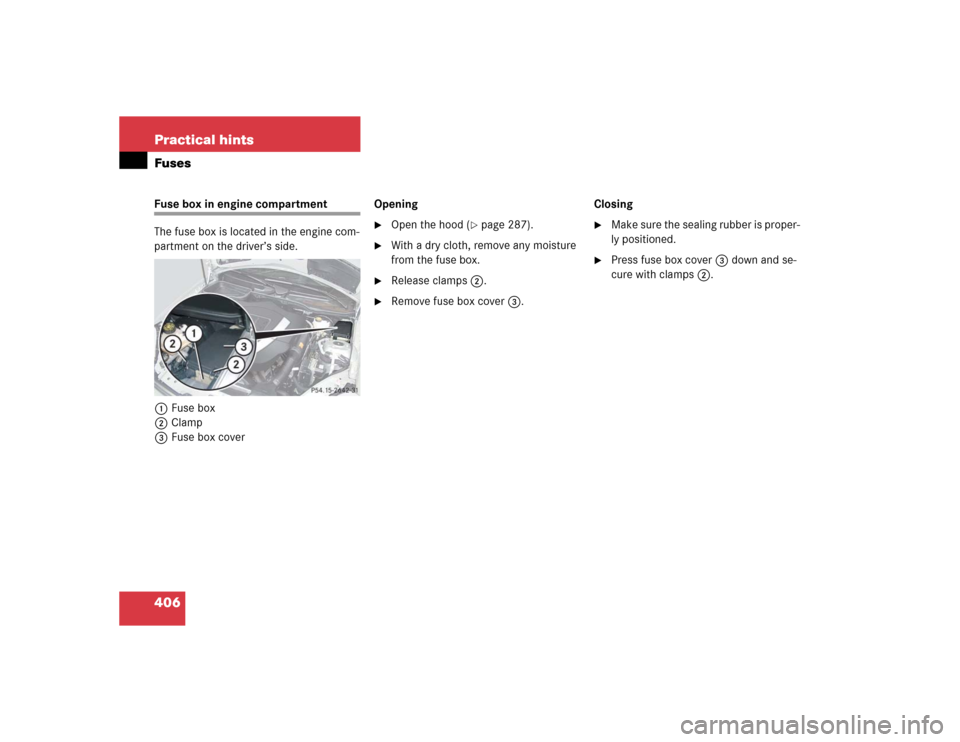

406 Practical hintsFusesFuse box in engine compartment
The fuse box is located in the engine com-
partment on the driver’s side.
1Fuse box
2Clamp
3Fuse box coverOpening

Open the hood (
page 287).

With a dry cloth, remove any moisture
from the fuse box.

Release clamps2.

Remove fuse box cover3.Closing

Make sure the sealing rubber is proper-
ly positioned.

Press fuse box cover3 down and se-
cure with clamps2.

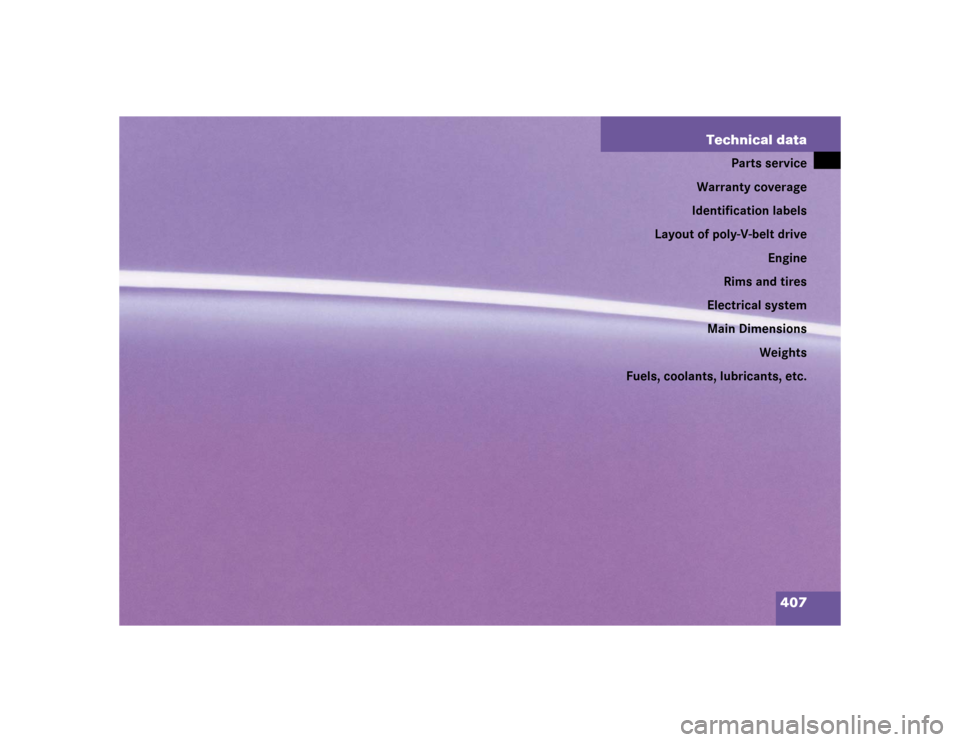

407 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants, etc.

408 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

409 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

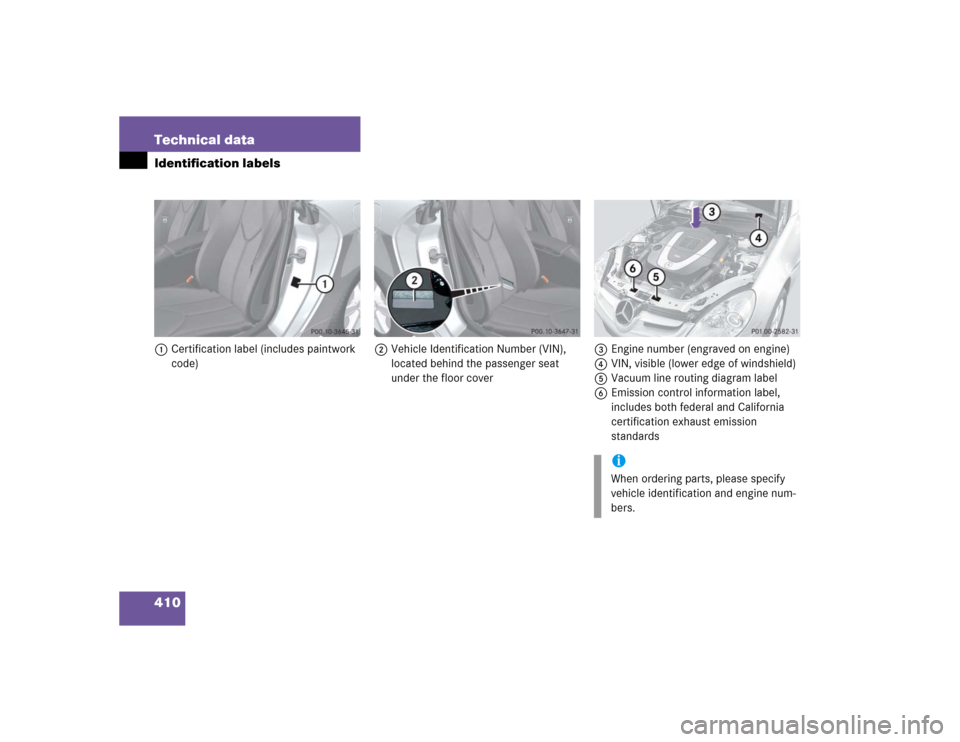

410 Technical dataIdentification labels1Certification label (includes paintwork
code)2Vehicle Identification Number (VIN),
located behind the passenger seat
under the floor cover3Engine number (engraved on engine)
4VIN, visible (lower edge of windshield)
5Vacuum line routing diagram label
6Emission control information label,
includes both federal and California
certification exhaust emission
standards
iWhen ordering parts, please specify
vehicle identification and engine num-
bers.
