MERCEDES-BENZ SLK55AMG 2006 R171 Owner's Manual

170 Controls in detailAutomatic transmission*The current gear selector lever position
and the selected program mode (
M/C/S)
are indicated in the multifunction display
(
page 158).Activating manual shift program

Press program mode selector
switch1 repeatedly until the
M for
manual program modeM appears in
the multifunction display.
The transmission switches to the
manual program modeM. Automatic
shifting is switched off. The gear range
is not limited.
You can change the gears manually when
the gear selector lever is in positionD. You
can upshift or downshift through the gears
in succession.Upshifting
iFor information on automatic program
modesC orS, see “Automatic shift
program” (
page 163), “Gear selector
lever one-touch gearshifting”
(
page 164), and “Steering wheel
gearshift control one-touch gearshift-
ing” (page 165).
iThe manual program modeM will not
be stored. When the engine is turned
off with the manual program modeM
selected, the transmission will go to
the automatic program mode (CorS)
when the engine is restarted.
!In the manual program modeM, the
transmission will not upshift, even if
the engine has reached its overrevving
range. Shift up to the next gear before
the engine has reached its overrevving
range. Make absolutely certain that the
engine speed does not reach the red
marking on the tachometer
(page 24). Otherwise the engine
could be damaged which is not covered
by the Mercedes-Benz Limited
Warranty.

171 Controls in detail
Automatic transmission*

Briefly press the gear selector lever to
the right in theD+direction.
or

Briefly press button2 on the right
side of the steering wheel
(page 167).
The transmission shifts to the next
higher gear.
If, instead of the manual program mode
symbolM, thep symbol appears in the
multifunction display (
page 158), shift to
the next higher gear. The fuel supply will
otherwise be interrupted to prevent the
engine from overrevving.Downshifting

Briefly press the gear selector lever to
the left in theD-direction.
or

Briefly press button1 on the left side
of the steering wheel (
page 167).
The transmission shifts to the next
lower gear.Kickdown
Using the kickdown when driving in the
manual program modeM is not possible.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.iWhen you brake or stop, the transmis-
sion shifts down to a gear from which
you can easily accelerate or take off.

172 Controls in detailAutomatic transmission*Deactivating manual shift program
Press the program mode selector
switch (
page 169) repeatedly
until
Cor
S appears in the multifunction
display.
or

Restart the engine.
The transmission will go to the
automatic program mode (C orS).
The manual program modeM is not
stored.Emergency operation
(Limp Home Mode)
If vehicle acceleration worsens or the
transmission no longer shifts, the trans-
mission is most likely operating in limp
home (emergency operation) mode. In this
mode only second gear and reverse gear
can be activated.
Stop the vehicle.

Move gear selector lever toP.

Turn off the engine.

Wait at least 10 seconds before
restarting.

Restart the engine.

Move gear selector lever to positionD
(for second gear) orR.

Have the transmission checked at an
authorized Mercedes-Benz Center as
soon as possible.

173 Controls in detail
Good visibility
Good visibility
For information on the windshield wipers,
see (
page 56).
Headlamp cleaning system*
The button is located on the left side of the
dashboard.
1Headlamp cleaning button
Switch on the ignition (
page 36).

Press button1.
The headlamps are cleaned with a
high-pressure water jet.For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 315).
Rear view mirrors
For more information on setting the rear
view mirrors, see “Mirrors” (
page 45).
Interior rear view mirror, antiglare
position

Tilt the mirror to the antiglare night
position by moving the lever towards
the windshield.
The interior rear view mirror is dimmed.
iThe headlamps will automatically be
cleaned when you have

switched on the headlamps
and


operated the windshield wipers
with windshield washer fluid
15 times
When you switch off ignition, the
counter resets.

174 Controls in detailGood visibilityAuto-dimming mirrors*
The reflection brightness of the exterior
rear view mirrors and the interior rear view
mirror will respond automatically to glare
when

ignition is switched on
and


incoming light from headlamps falls on
the sensor in the interior rear view
mirror
The rear view mirrors will not react if


reverse gearR is engaged


interior lighting is switched on
Warning!
G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the wind screen is in-
stalled.
Glare can endanger you and others.Warning!
G
In case of an accident, liquid electrolyte may
escape from the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or the respiratory sys-
tem. In case it does, immediately flush af-
fected area with water, and seek medical
help if necessary.
!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their
liquid state and by applying plenty of
water.Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
terior rear view mirror or glance over your
shoulder before changing lanes.

175 Controls in detail
Good visibility
Activating exterior rear view mirror
parking position*
Follow these steps to activate the mirror
parking position so that the passen-
ger-side exterior rear view mirror will be
turned downward during parking maneu-
vers to the stored position.
The switches are located on the lower part
of the center console.
1Driver-side exterior rear view mirror
2Adjustment switch
3Passenger-side exterior rear view
mirror

Switch on the ignition (
page 36).

Store a parking position* for the pas-
senger-side exterior rear view mirror
(page 108).

Switch the
Mirror adjustment
Parking aid function* in the
Convenience
submenu of the control
system to ON (page 148).

Press switch3 for the passenger-side
exterior rear view mirror.

Shift into reverse gearR.
The passenger-side exterior rear view
mirror turns downwards to the stored
position.The passenger-side exterior rear view mir-
ror returns to its previously stored driving
position:


10 seconds after you shifted out of re-
verse gearR


immediately once you exceed a vehicle
speed of approximately 6 mph
(10 km/h)


immediately when you press adjust-
ment switch2

176 Controls in detailGood visibilitySun visors
The sun visors protect you from sun glare
while driving.
1Mirror lamp*
2Mounting*
3Mirror cover
4Sun visor

Swing sun visors down when you expe-
rience glare.

To use mirror and switch on mirror
lamp*, lift up mirror cover3.Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
iIf sunlight enters through a side win-
dow, disengage sun visor from
mounting*2 and pivot it to the side.
You then can slide the sun visor along
the pivot arm to a different position if
so desired.
The mirror lamp*1 will switch off as
soon as sun visor is disengaged from
mounting*2.!Close mirror cover3 if open before
you disengage the sun visor4 from
mounting*2 and pivot it to the side.

177 Controls in detail
Good visibility
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear.
The defroster is automatically deactivated
after approximately 6 to 17 minutes of op-
eration depending on the outside tempera-
ture.Switching on

Press the rear window defroster
switchF in the control panel of the
climate control (
page 179) or the au-
tomatic climate control* (
page 192).
The indicator lamp on the rear window
defroster switchF comes on.Switching off

Press the rear window defroster
switchF again in the control panel
of the climate control or the automatic
climate control*.
The indicator lamp on the rear window
defroster switchF goes out.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.
!The rear window defroster cannot be
switched on when the retractable hard-
top is open. The indicator lamp starts
flashing if the hardtop is open.

Close the retractable hardtop first.
The rear window defroster can be
switched on again.
!If the rear window defroster switches
off too soon and the indicator lamp
starts flashing, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically turns itself back on.

178 Controls in detailClimate control

179 Controls in detail
Climate control

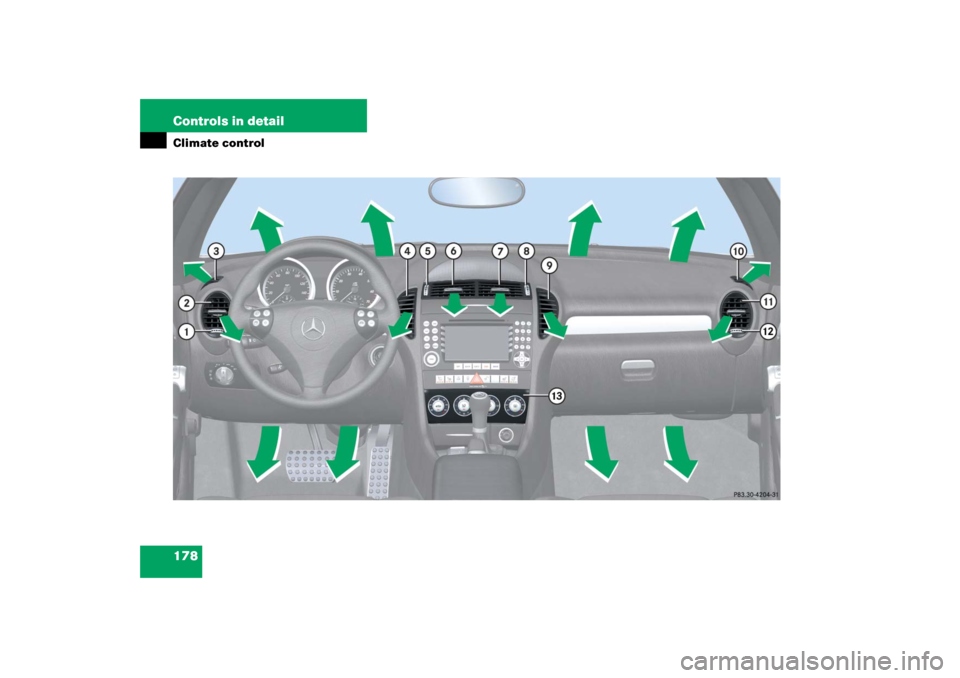

Item
1
Thumbwheel for air volume control
for adjustable left side air vent
2
Left side air vent, adjustable
3
Fixed air vent for defrosting left side
window
4
Left center air vent, fixed
5
Thumbwheel for air volume control
for fixed/adjustable left center air
vents
6
Left center air vent, adjustable
7
Right center air vent, adjustable
8
Thumbwheel for air volume control
for fixed/adjustable right center air
vents
9
Right center air vent, fixed
a
Fixed air vent for defrosting right
side window
b
Right side air vent, adjustable
c
Thumbwheel for air volume control
for adjustable right side air vent
d
Climate control paneliWhen you turn the thumbwheels5
and8 upwards to the first stop, the
fixed center air vents4 and9 and
the adjustable center air vents6
and7 are open.
When you turn the thumbwheels com-
pletely upwards, only the adjustable
center air vents6 and7 are open.
For draft-free ventilation, move the slid-
ers for the center air vents6 and7
to the middle position.Item
Item
1
Temperature control, left side
2
Air volume control, climate control
on/off
3
Air distribution control
4
Temperature control, right side
5
FRear window defroster
(page 177)
6
PFront defroster
7
9AC cooling on/off,
Residual heat/ventilation
8
,Air recirculation
