MERCEDES-BENZ SLK55AMG 2008 R171 Owner's Manual

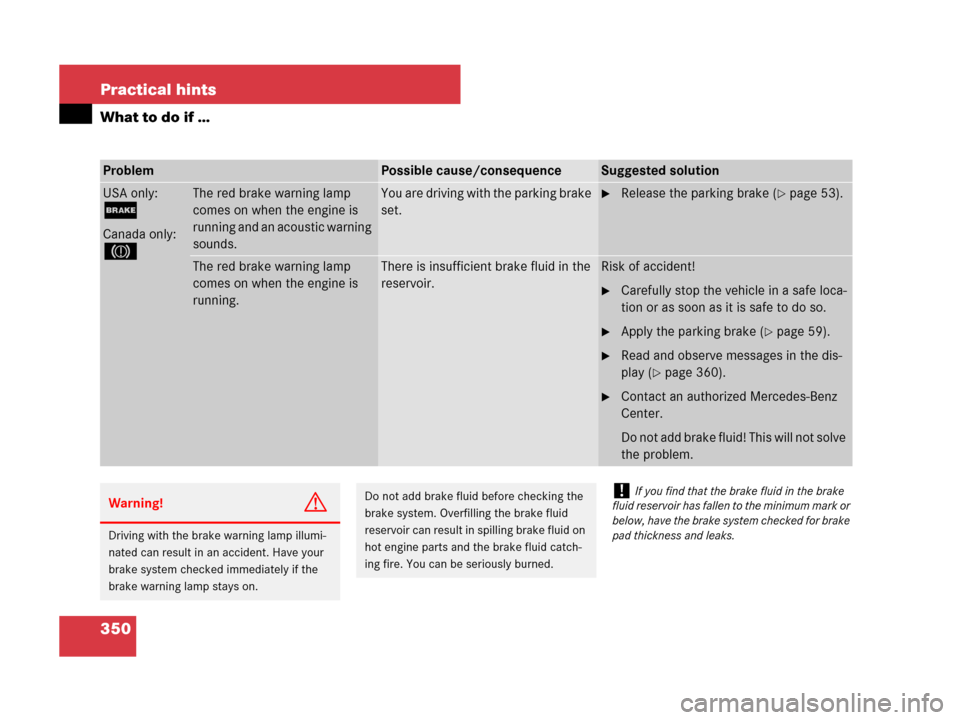

350 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
USA only:
;
Canada only:
3
The red brake warning lamp
comes on when the engine is
running and an acoustic warning
sounds.You are driving with the parking brake
set.Release the parking brake (page 53).
The red brake warning lamp
comes on when the engine is
running.There is insufficient brake fluid in the
reservoir.Risk of accident!
Carefully stop the vehicle in a safe loca-
tion or as soon as it is safe to do so.
Apply the parking brake (page 59).
Read and observe messages in the dis-
play (
page 360).
Contact an authorized Mercedes-Benz
Center.
Do not add brake fluid! This will not solve
the problem.
Warning!G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on.
Do not add brake fluid before checking the
brake system. Overfilling the brake fluid
reservoir can result in spilling brake fluid on
hot engine parts and the brake fluid catch-
ing fire. You can be seriously burned.!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.

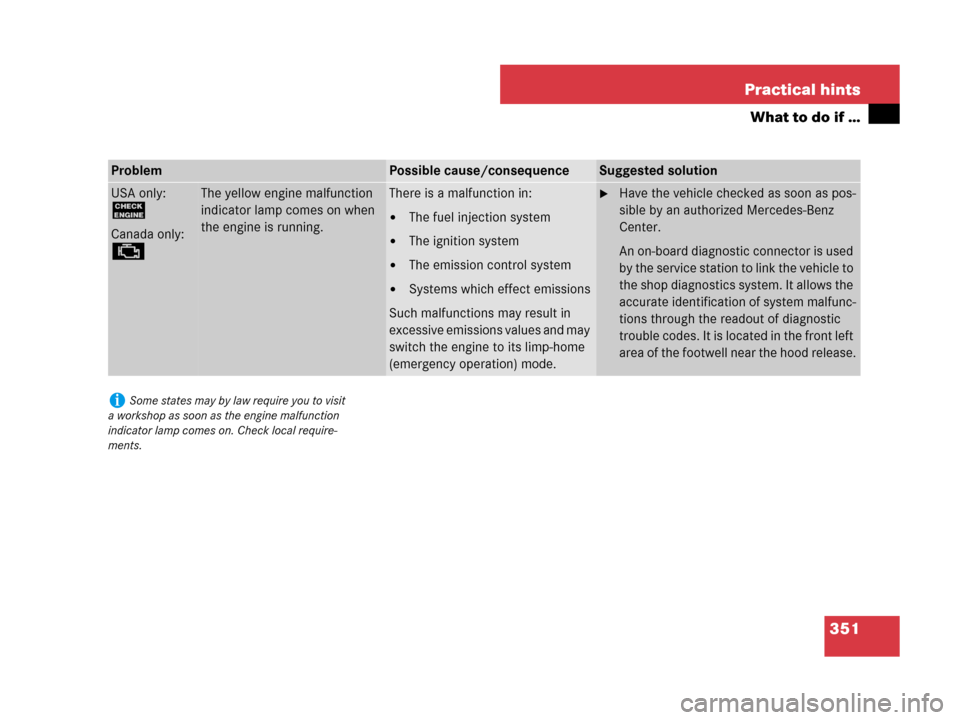

351 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
USA only:
?
Canada only:
±
The yellow engine malfunction
indicator lamp comes on when
the engine is running.There is a malfunction in:

The fuel injection system

The ignition system

The emission control system

Systems which effect emissions
Such malfunctions may result in
excessive emissions values and may
switch the engine to its limp-home
(emergency operation) mode.
Have the vehicle checked as soon as pos-
sible by an authorized Mercedes-Benz
Center.
An on-board diagnostic connector is used
by the service station to link the vehicle to
the shop diagnostics system. It allows the
accurate identification of system malfunc-
tions through the readout of diagnostic
trouble codes. It is located in the front left
area of the footwell near the hood release.
iSome states may by law require you to visit
a workshop as soon as the engine malfunction
indicator lamp comes on. Check local require-
ments.

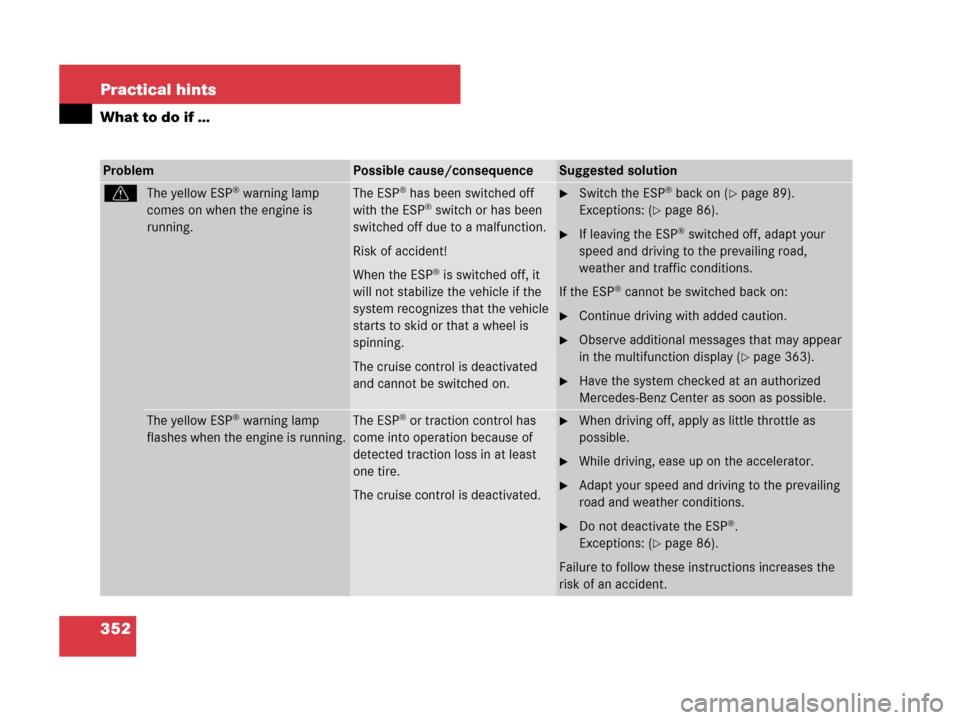

352 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
vThe yellow ESP® warning lamp
comes on when the engine is
running.The ESP® has been switched off
with the ESP® switch or has been
switched off due to a malfunction.
Risk of accident!
When the ESP
® is switched off, it
will not stabilize the vehicle if the
system recognizes that the vehicle
starts to skid or that a wheel is
spinning.
The cruise control is deactivated
and cannot be switched on.
Switch the ESP® back on (page 89).
Exceptions: (
page 86).
If leaving the ESP® switched off, adapt your
speed and driving to the prevailing road,
weather and traffic conditions.
If the ESP
® cannot be switched back on:
Continue driving with added caution.
Observe additional messages that may appear
in the multifunction display (
page 363).
Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
The yellow ESP® warning lamp
flashes when the engine is running.The ESP® or traction control has
come into operation because of
detected traction loss in at least
one tire.
The cruise control is deactivated.When driving off, apply as little throttle as
possible.
While driving, ease up on the accelerator.
Adapt your speed and driving to the prevailing
road and weather conditions.
Do not deactivate the ESP®.
Exceptions: (
page 86).
Failure to follow these instructions increases the
risk of an accident.

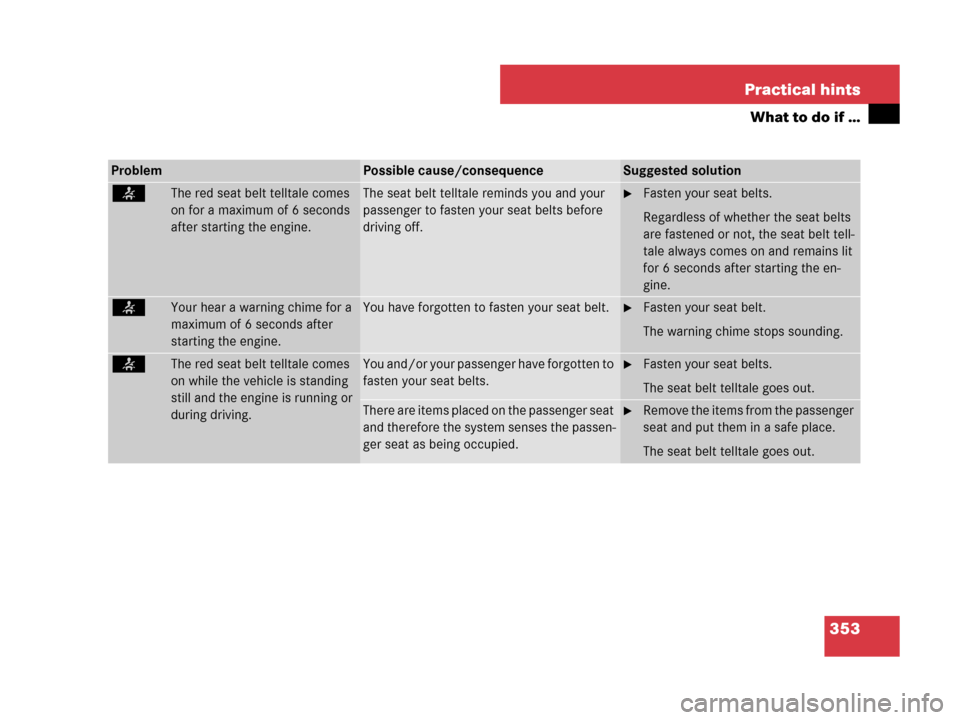

353 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
on for a maximum of 6 seconds
after starting the engine.The seat belt telltale reminds you and your
passenger to fasten your seat belts before
driving off.Fasten your seat belts.
Regardless of whether the seat belts
are fastened or not, the seat belt tell-
tale always comes on and remains lit
for 6 seconds after starting the en-
gine.
maximum of 6 seconds after
starting the engine.You have forgotten to fasten your seat belt.Fasten your seat belt.
The warning chime stops sounding.
on while the vehicle is standing
still and the engine is running or
during driving.You and/or your passenger have forgotten to
fasten your seat belts.Fasten your seat belts.
The seat belt telltale goes out.
There are items placed on the passenger seat
and therefore the system senses the passen-
ger seat as being occupied.Remove the items from the passenger
seat and put them in a safe place.
The seat belt telltale goes out.

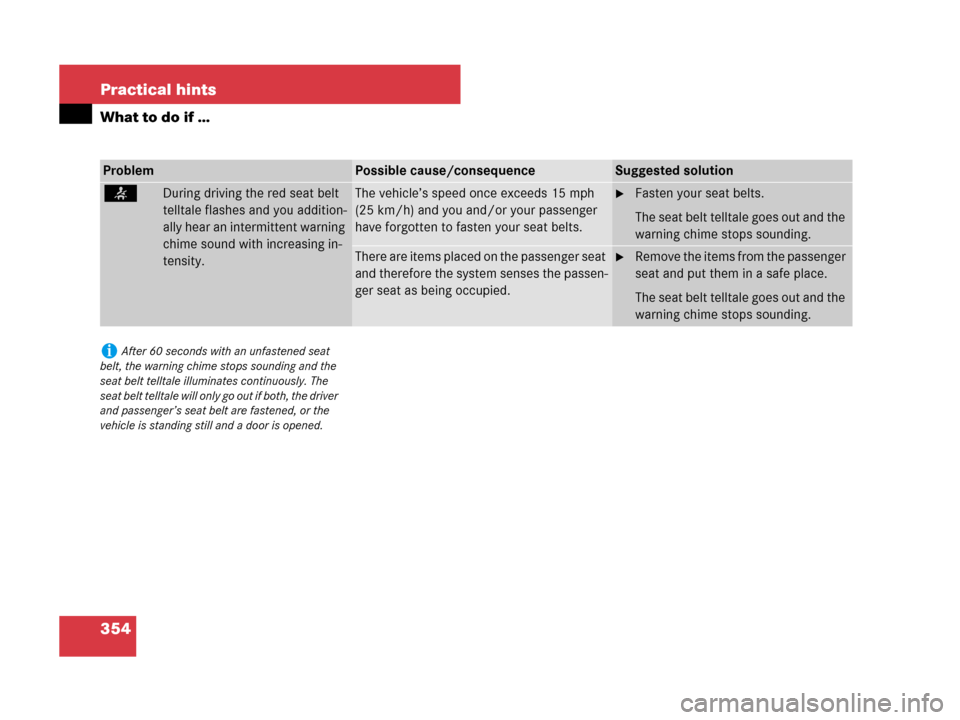

354 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
telltale flashes and you addition-
ally hear an intermittent warning
chime sound with increasing in-
tensity.The vehicle’s speed once exceeds 15 mph
(25 km/h) and you and/or your passenger
have forgotten to fasten your seat belts.Fasten your seat belts.
The seat belt telltale goes out and the
warning chime stops sounding.
There are items placed on the passenger seat
and therefore the system senses the passen-
ger seat as being occupied.Remove the items from the passenger
seat and put them in a safe place.
The seat belt telltale goes out and the
warning chime stops sounding.
iAfter 60 seconds with an unfastened seat
belt, the warning chime stops sounding and the
seat belt telltale illuminates continuously. The
seat belt telltale will only go out if both, the driver
and passenger’s seat belt are fastened, or the
vehicle is standing still and a door is opened.

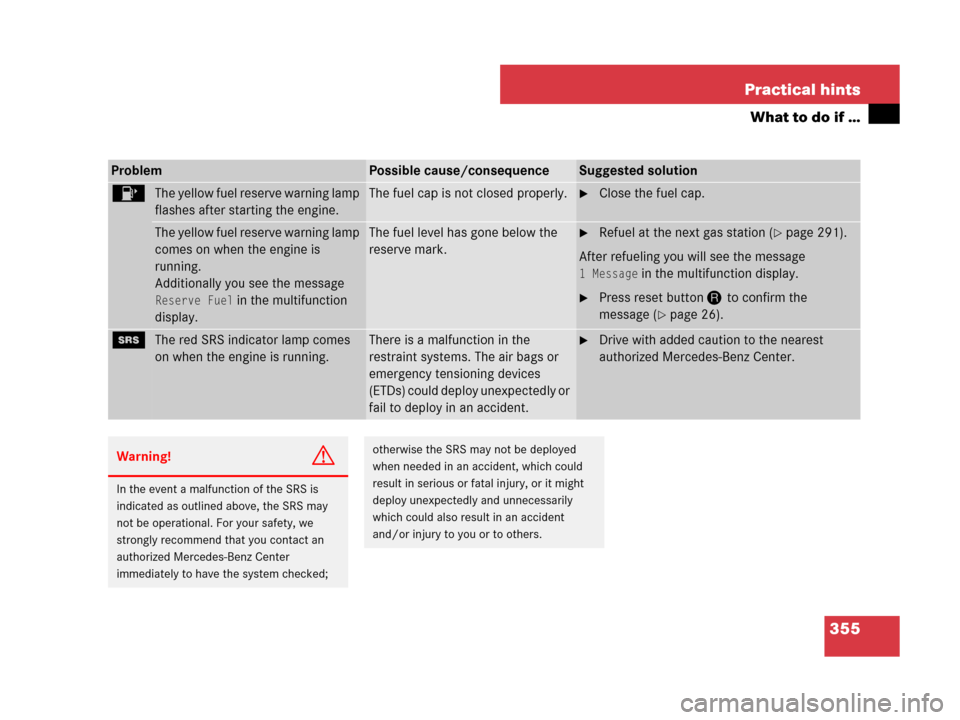

355 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
4The yellow fuel reserve warning lamp
flashes after starting the engine.The fuel cap is not closed properly.Close the fuel cap.
The yellow fuel reserve warning lamp
comes on when the engine is
running.
Additionally you see the message
Reserve Fuel in the multifunction
display.
The fuel level has gone below the
reserve mark.Refuel at the next gas station (page 291).
After refueling you will see the message
1 Message in the multifunction display.
Press reset buttonJto confirm the
message (
page 26).
1The red SRS indicator lamp comes
on when the engine is running.There is a malfunction in the
restraint systems. The air bags or
emergency tensioning devices
(ETDs) could deploy unexpectedly or
fail to deploy in an accident.Drive with added caution to the nearest
authorized Mercedes-Benz Center.
Warning!G
In the event a malfunction of the SRS is
indicated as outlined above, the SRS may
not be operational. For your safety, we
strongly recommend that you contact an
authorized Mercedes-Benz Center
immediately to have the system checked;
otherwise the SRS may not be deployed
when needed in an accident, which could
result in serious or fatal injury, or it might
deploy unexpectedly and unnecessarily
which could also result in an accident
and/or injury to you or to others.

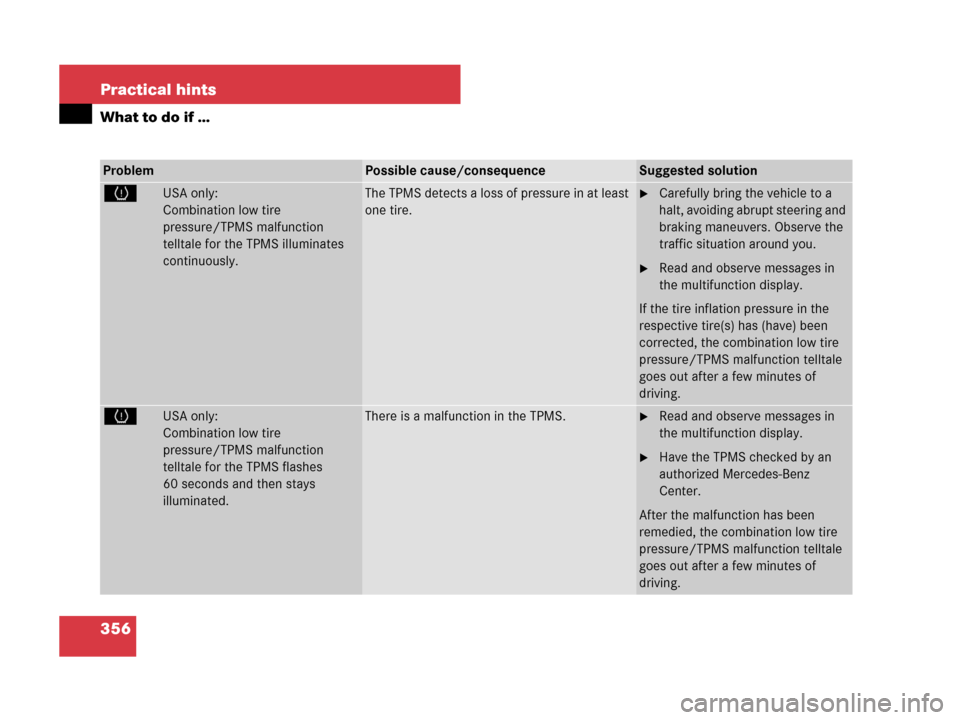

356 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
HUSA only:
Combination low tire
pressure/TPMS malfunction
telltale for the TPMS illuminates
continuously.The TPMS detects a loss of pressure in at least
one tire.Carefully bring the vehicle to a
halt, avoiding abrupt steering and
braking maneuvers. Observe the
traffic situation around you.
Read and observe messages in
the multifunction display.
If the tire inflation pressure in the
respective tire(s) has (have) been
corrected, the combination low tire
pressure/TPMS malfunction telltale
goes out after a few minutes of
driving.
HUSA only:
Combination low tire
pressure/TPMS malfunction
telltale for the TPMS flashes
60 seconds and then stays
illuminated.There is a malfunction in the TPMS.Read and observe messages in
the multifunction display.
Have the TPMS checked by an
authorized Mercedes-Benz
Center.
After the malfunction has been
remedied, the combination low tire
pressure/TPMS malfunction telltale
goes out after a few minutes of
driving.

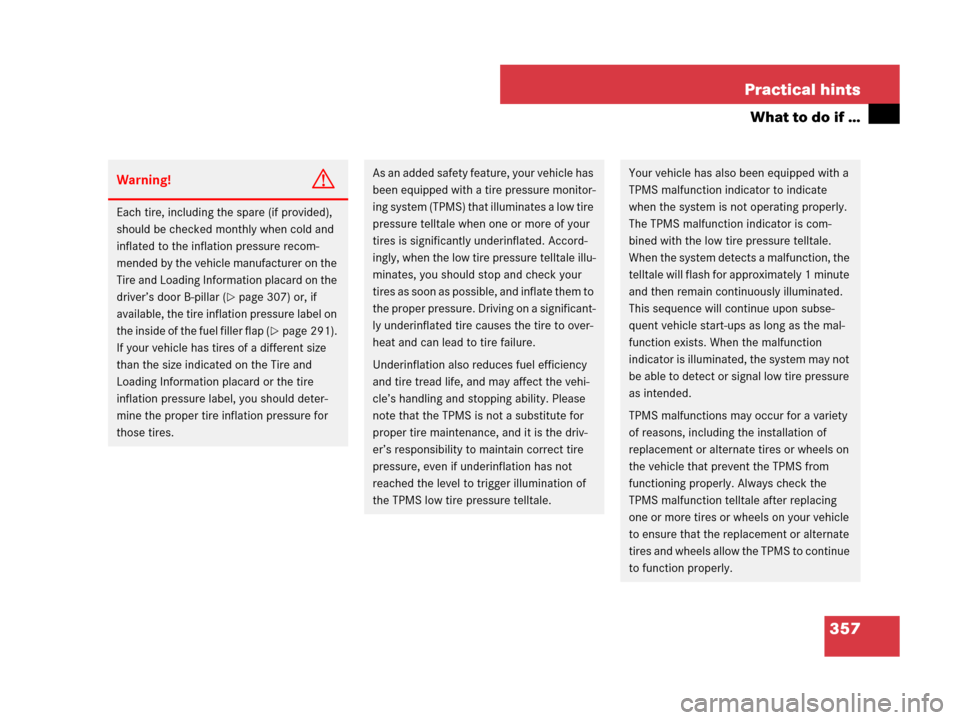

357 Practical hints
What to do if …
Warning!G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
Tire and Loading Information placard on the
driver’s door B-pillar (
page 307) or, if
available, the tire inflation pressure label on
the inside of the fuel filler flap (
page 291).
If your vehicle has tires of a different size
than the size indicated on the Tire and
Loading Information placard or the tire
inflation pressure label, you should deter-
mine the proper tire inflation pressure for
those tires.
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly underinflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your
tires as soon as possible, and inflate them to
the proper pressure. Driving on a significant-
ly underinflated tire causes the tire to over-
heat and can lead to tire failure.
Underinflation also reduces fuel efficiency
and tire tread life, and may affect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if underinflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction, the
telltale will flash for approximately 1 minute
and then remain continuously illuminated.
This sequence will continue upon subse-
quent vehicle start-ups as long as the mal-
function exists. When the malfunction
indicator is illuminated, the system may not
be able to detect or signal low tire pressure
as intended.
TPMS malfunctions may occur for a variety
of reasons, including the installation of
replacement or alternate tires or wheels on
the vehicle that prevent the TPMS from
functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your vehicle
to ensure that the replacement or alternate
tires and wheels allow the TPMS to continue
to function properly.

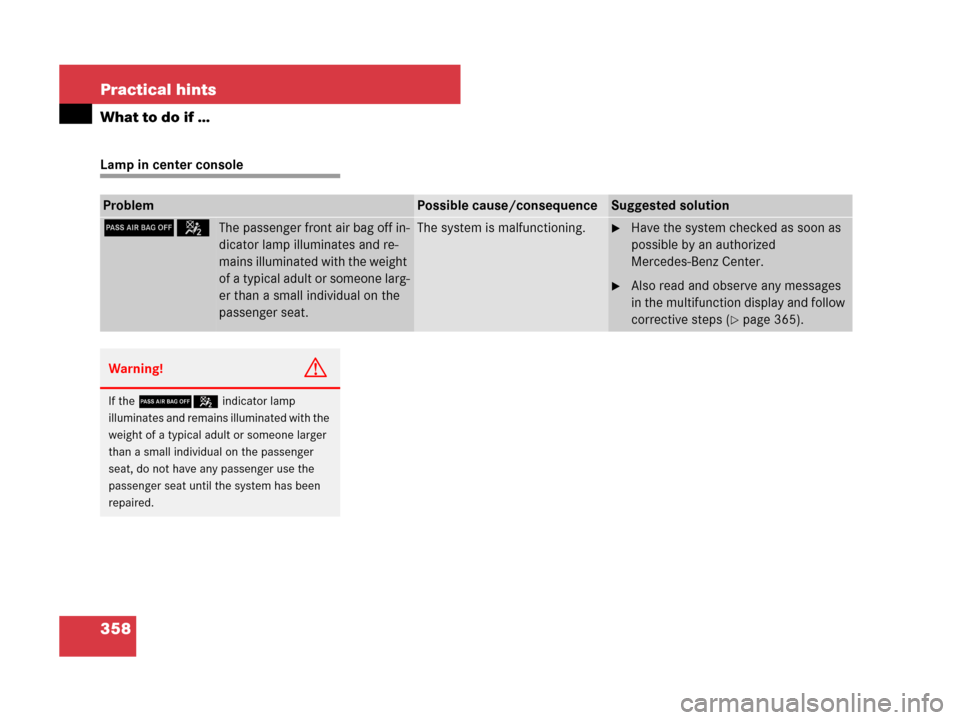

358 Practical hints
What to do if …
Lamp in center console
ProblemPossible cause/consequenceSuggested solution
75The passenger front air bag off in-
dicator lamp illuminates and re-
mains illuminated with the weight
of a typical adult or someone larg-
er than a small individual on the
passenger seat.The system is malfunctioning.Have the system checked as soon as
possible by an authorized
Mercedes-Benz Center.
Also read and observe any messages
in the multifunction display and follow
corrective steps (
page 365).
Warning!G
If the75indicator lamp
illuminates and remains illuminated with the
weight of a typical adult or someone larger
than a small individual on the passenger
seat, do not have any passenger use the
passenger seat until the system has been
repaired.

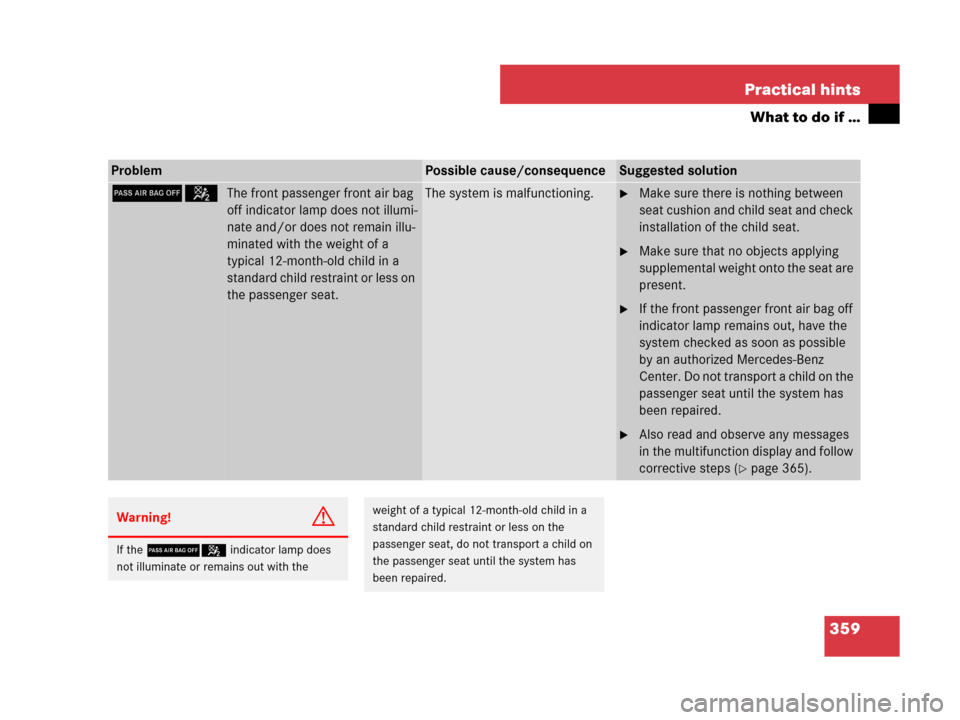

359 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
75The front passenger front air bag
off indicator lamp does not illumi-
nate and/or does not remain illu-
minated with the weight of a
typical 12-month-old child in a
standard child restraint or less on
the passenger seat.The system is malfunctioning.Make sure there is nothing between
seat cushion and child seat and check
installation of the child seat.
Make sure that no objects applying
supplemental weight onto the seat are
present.
If the front passenger front air bag off
indicator lamp remains out, have the
system checked as soon as possible
by an authorized Mercedes-Benz
Center. Do not transport a child on the
passenger seat until the system has
been repaired.
Also read and observe any messages
in the multifunction display and follow
corrective steps (
page 365).
Warning!G
If the75indicator lamp does
not illuminate or remains out with the
weight of a typical 12-month-old child in a
standard child restraint or less on the
passenger seat, do not transport a child on
the passenger seat until the system has
been repaired.
