Page 11 of 417
ContentsAt the gas station............................... 240
Refueling ...................................... 240
Check regularly and before
a long trip ..................................... 241
Engine compartment.......................... 243
Hood ............................................ 243
Engine oil...................................... 246
Transmission fluid level ................ 248
Coolant......................................... 249
Trunk ................................................. 250
Batteries....................................... 250
Windshield washer system and
headlamp cleaning system ........... 251
Tires and wheels ................................ 253
Important guidelines .................... 253
Tire care and maintenance ........... 254
Direction of rotation ..................... 256
Loading the vehicle ...................... 256
Recommended tire inflation
pressure ....................................... 262
Checking tire inflation pressure ... 264
Tire labeling .................................. 268
Load identification........................ 272
DOT, Tire Identification Number
(TIN) ............................................. 273Maximum tire load ....................... 274
Maximum tire inflation pressure .. 275
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 276
Tire ply material ........................... 278
Tire and loading terminology ........ 278
Rotating tires ............................... 281
Anti-theft wheel nuts .................... 282
Winter driving .................................... 284
Winter tires* ................................ 284
Snow chains ................................. 285
Maintenance ...................................... 286
Clearing the maintenance
service indicator........................... 286
Maintenance service term
exceeded ..................................... 287
Calling up the service due date .... 287
Resetting the maintenance
service indicator........................... 288
Vehicle care ....................................... 289
Cleaning and care of the vehicle .. 289
Vehicle washing ........................... 290
Practical hints................................. 294
What to do if ... .................................. 296
Lamps in instrument cluster ........ 296
Lamp in center console................ 303
Vehicle status messages in the
multifunction display.................... 304
Symbol messages ........................ 309
Where will I find ...? ........................... 340
First aid kit ................................... 340
TIREFIT kit, electric air pump,
towing eye bolt and vehicle
literature portfolio ........................ 340
Locking/unlocking in an emergency . 342
Unlocking the vehicle................... 342
Replacing SmartKey batteries ........... 344
SmartKey ..................................... 345
Replacing bulbs ................................. 346
Front lamps.................................. 347
Rear lamps ................................... 347
Replacing the wiper blades................ 348
Removing wiper blades ................ 348
Installing wiper blades ................. 348

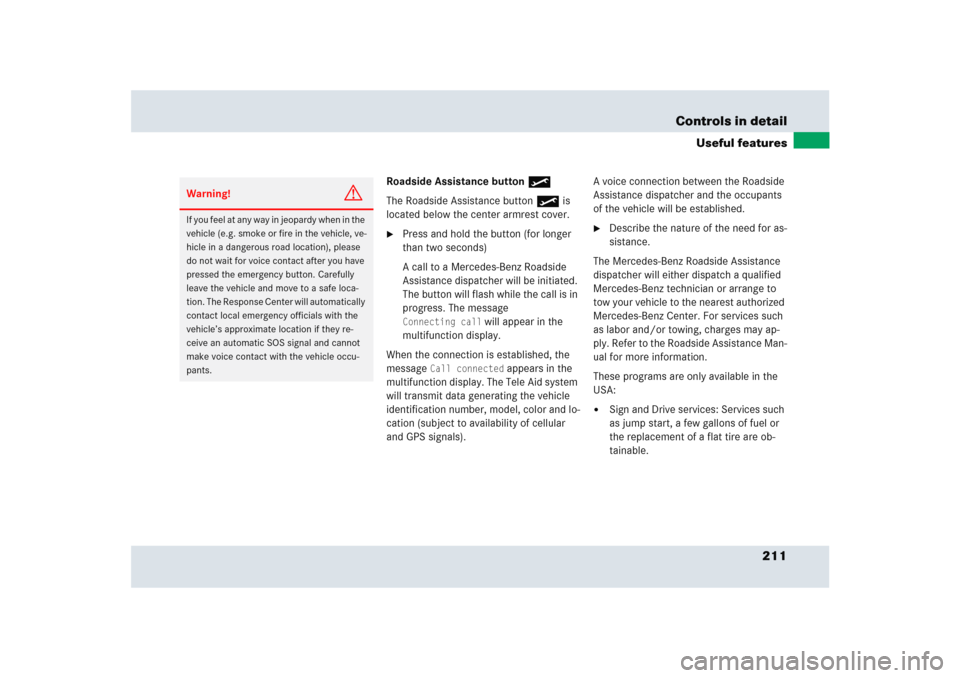

Page 212 of 417
211 Controls in detail
Useful features
Roadside Assistance button •
The Roadside Assistance button• is
located below the center armrest cover.
Press and hold the button (for longer
than two seconds)
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message Connecting call
will appear in the
multifunction display.
When the connection is established, the
message
Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.
Describe the nature of the need for as-
sistance.
The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest authorized
Mercedes-Benz Center. For services such
as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance Man-
ual for more information.
These programs are only available in the
USA:
Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire are ob-
tainable.
Warning!
G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle, ve-
hicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they re-
ceive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.

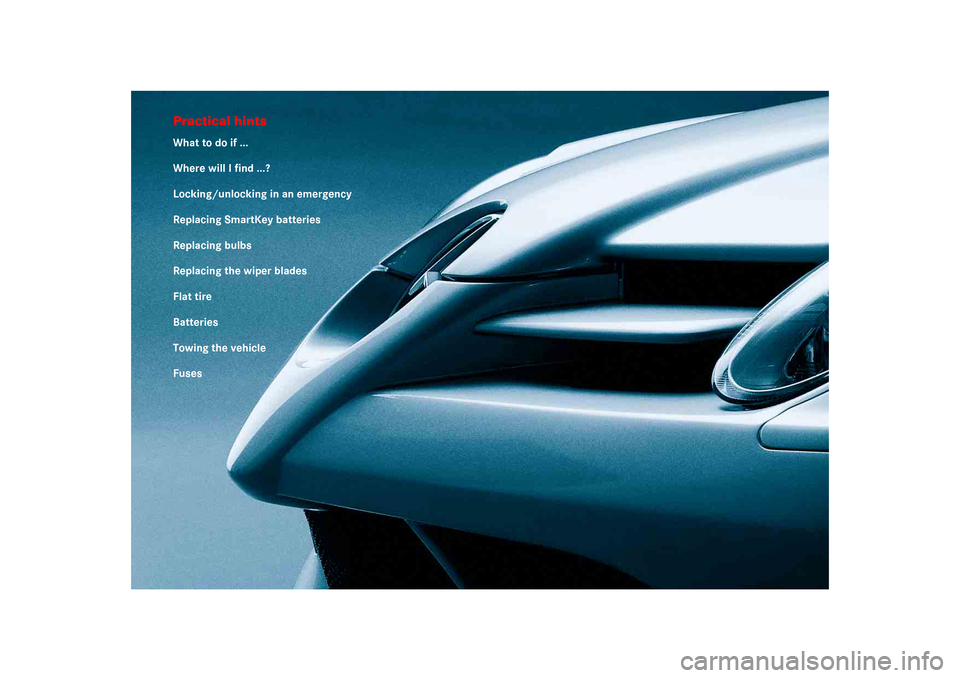

Page 295 of 417
Practical hintsWhat to do if ...
Where will I find ...?
Locking/unlocking in an emergency
Replacing SmartKey batteries
Replacing bulbs
Replacing the wiper blades
Flat tire
Batteries
Towing the vehicle
Fuses

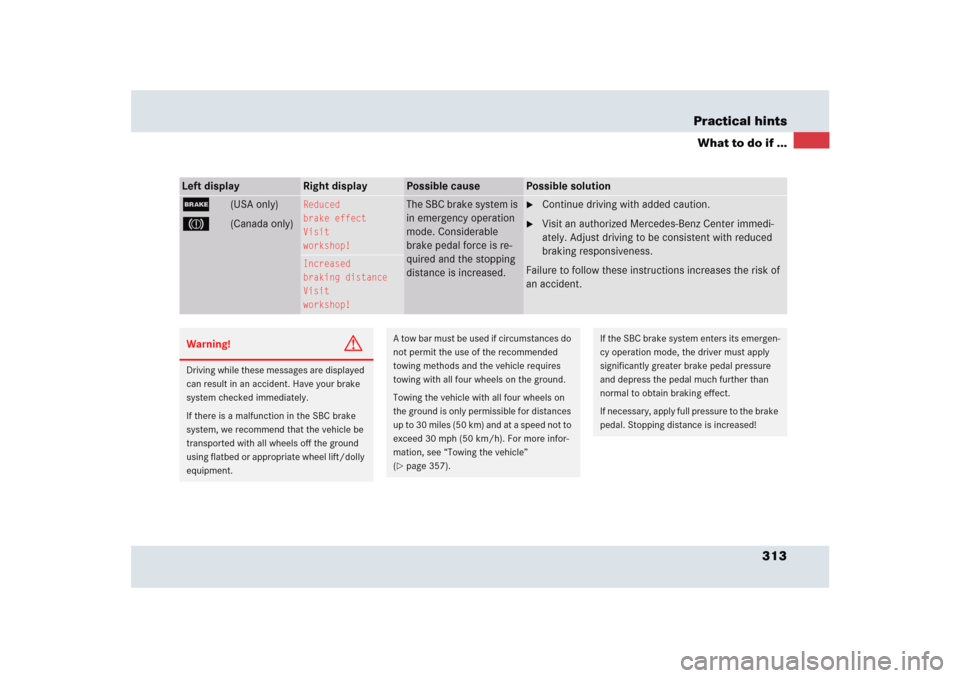

Page 314 of 417
313 Practical hints
What to do if ...
Left display
Right display
Possible cause
Possible solution
;
(USA only)
3
(Canada only)
Reduced
brake effect
Visit
workshop!
The SBC brake system is
in emergency operation
mode. Considerable
brake pedal force is re-
quired and the stopping
distance is increased.
Continue driving with added caution.
Visit an authorized Mercedes-Benz Center immedi-
ately. Adjust driving to be consistent with reduced
braking responsiveness.
Failure to follow these instructions increases the risk of
an accident.
Increased
braking distance
Visit
workshop!
Warning!
G
Driving while these messages are displayed
can result in an accident. Have your brake
system checked immediately.
If there is a malfunction in the SBC brake
system, we recommend that the vehicle be
transported with all wheels off the ground
using flatbed or appropriate wheel lift/dolly
equipment.
A tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
up to 30 miles (50 km) and at a speed not to
exceed 30 mph (50 km/h). For more infor-
mation, see “Towing the vehicle”
(page 357).
If the SBC brake system enters its emergen-
cy operation mode, the driver must apply
significantly greater brake pedal pressure
and depress the pedal much further than
normal to obtain braking effect.
If necessary, apply full pressure to the brake
pedal. Stopping distance is increased!

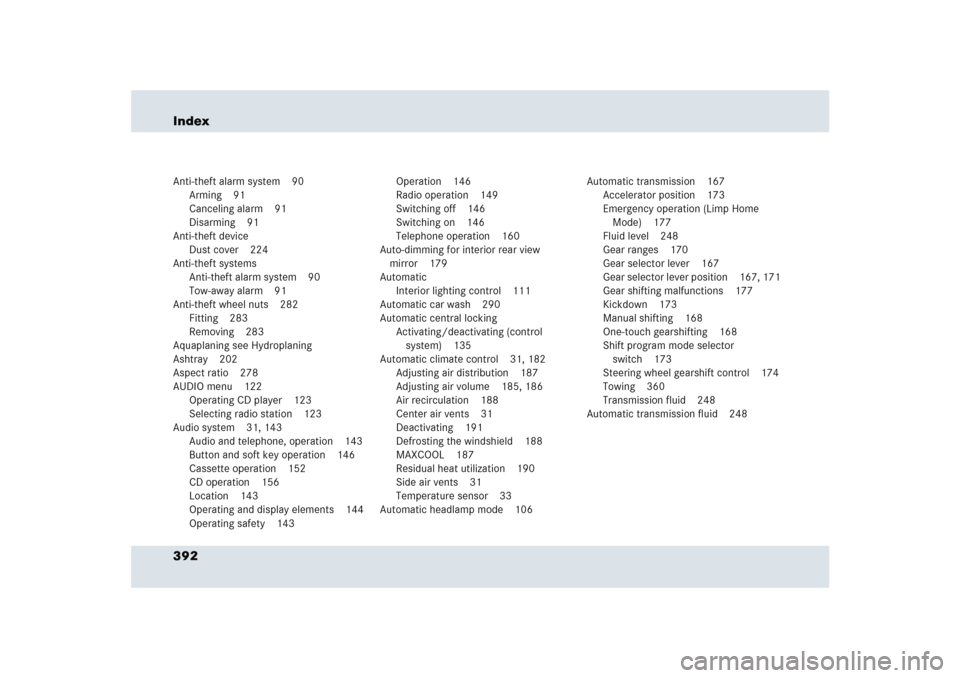

Page 393 of 417
392 IndexAnti-theft alarm system 90
Arming 91
Canceling alarm 91
Disarming 91
Anti-theft device
Dust cover 224
Anti-theft systems
Anti-theft alarm system 90
Tow-away alarm 91
Anti-theft wheel nuts 282
Fitting 283
Removing 283
Aquaplaning see Hydroplaning
Ashtray 202
Aspect ratio 278
AUDIO menu 122
Operating CD player 123
Selecting radio station 123
Audio system 31, 143
Audio and telephone, operation 143
Button and soft key operation 146
Cassette operation 152
CD operation 156
Location 143
Operating and display elements 144
Operating safety 143Operation 146
Radio operation 149
Switching off 146
Switching on 146
Telephone operation 160
Auto-dimming for interior rear view
mirror 179
Automatic
Interior lighting control 111
Automatic car wash 290
Automatic central locking
Activating/deactivating (control
system) 135
Automatic climate control 31, 182
Adjusting air distribution 187
Adjusting air volume 185, 186
Air recirculation 188
Center air vents 31
Deactivating 191
Defrosting the windshield 188
MAXCOOL 187
Residual heat utilization 190
Side air vents 31
Temperature sensor 33
Automatic headlamp mode 106Automatic transmission 167
Accelerator position 173
Emergency operation (Limp Home
Mode) 177
Fluid level 248
Gear ranges 170
Gear selector lever 167
Gear selector lever position 167, 171
Gear shifting malfunctions 177
Kickdown 173
Manual shifting 168
One-touch gearshifting 168
Shift program mode selector
switch 173
Steering wheel gearshift control 174
Towing 360
Transmission fluid 248
Automatic transmission fluid 248

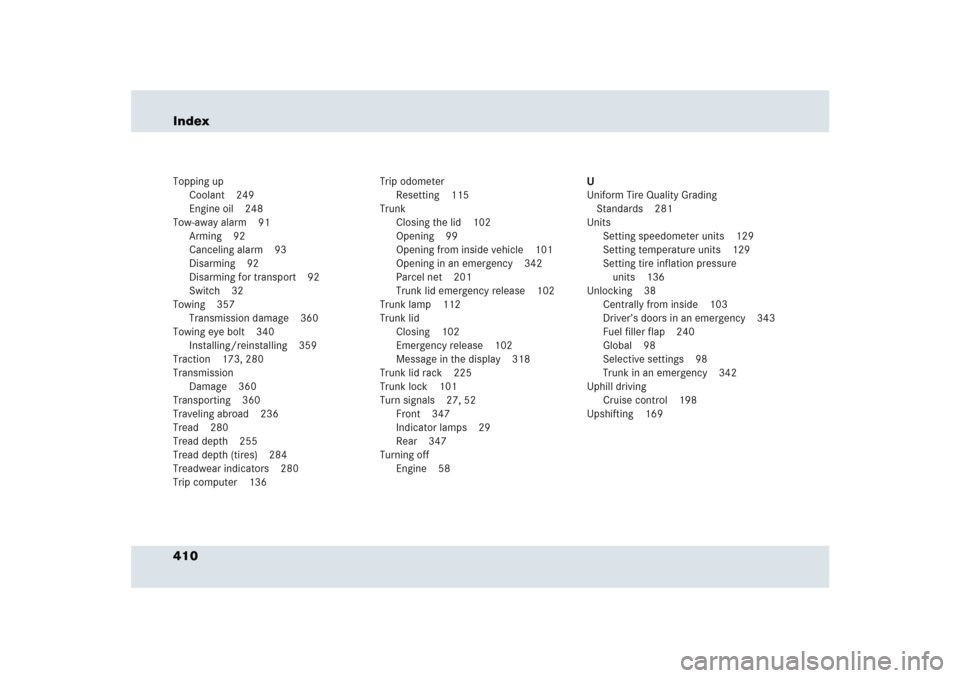

Page 411 of 417
410 IndexTopping up
Coolant 249
Engine oil 248
Tow-away alarm 91
Arming 92
Canceling alarm 93
Disarming 92
Disarming for transport 92
Switch 32
Towing 357
Transmission damage 360
Towing eye bolt 340
Installing/reinstalling 359
Traction 173, 280
Transmission
Damage 360
Transporting 360
Traveling abroad 236
Tread 280
Tread depth 255
Tread depth (tires) 284
Treadwear indicators 280
Trip computer 136Trip odometer
Resetting 115
Trunk
Closing the lid 102
Opening 99
Opening from inside vehicle 101
Opening in an emergency 342
Parcel net 201
Trunk lid emergency release 102
Trunk lamp 112
Trunk lid
Closing 102
Emergency release 102
Message in the display 318
Trunk lid rack 225
Trunk lock 101
Turn signals 27, 52
Front 347
Indicator lamps 29
Rear 347
Turning off
Engine 58U
Uniform Tire Quality Grading
Standards 281
Units
Setting speedometer units 129
Setting temperature units 129
Setting tire inflation pressure
units 136
Unlocking 38
Centrally from inside 103
Driver’s doors in an emergency 343
Fuel filler flap 240
Global 98
Selective settings 98
Trunk in an emergency 342
Uphill driving
Cruise control 198
Upshifting 169

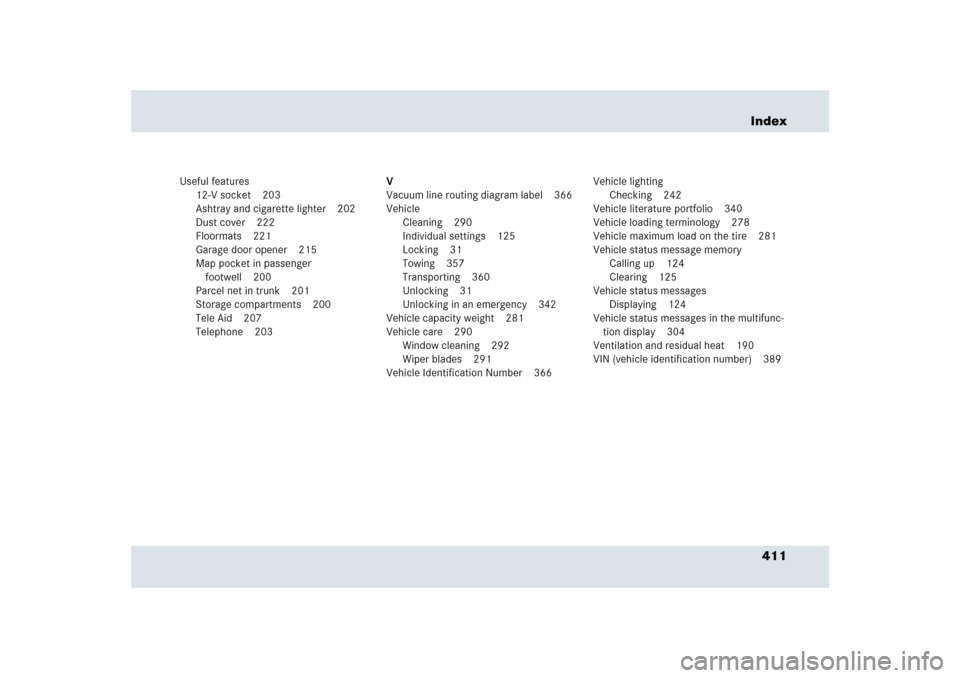

Page 412 of 417
411 Index
Useful features
12-V socket 203
Ashtray and cigarette lighter 202
Dust cover 222
Floormats 221
Garage door opener 215
Map pocket in passenger
footwell 200
Parcel net in trunk 201
Storage compartments 200
Tele Aid 207
Telephone 203V
Vacuum line routing diagram label 366
Vehicle
Cleaning 290
Individual settings 125
Locking 31
Towing 357
Transporting 360
Unlocking 31
Unlocking in an emergency 342
Vehicle capacity weight 281
Vehicle care 290
Window cleaning 292
Wiper blades 291
Vehicle Identification Number 366Vehicle lighting
Checking 242
Vehicle literature portfolio 340
Vehicle loading terminology 278
Vehicle maximum load on the tire 281
Vehicle status message memory
Calling up 124
Clearing 125
Vehicle status messages
Displaying 124
Vehicle status messages in the multifunc-
tion display 304
Ventilation and residual heat 190
VIN (vehicle identification number) 389
