service indicator MERCEDES-BENZ SLR 2005 R199 Owner's Manual

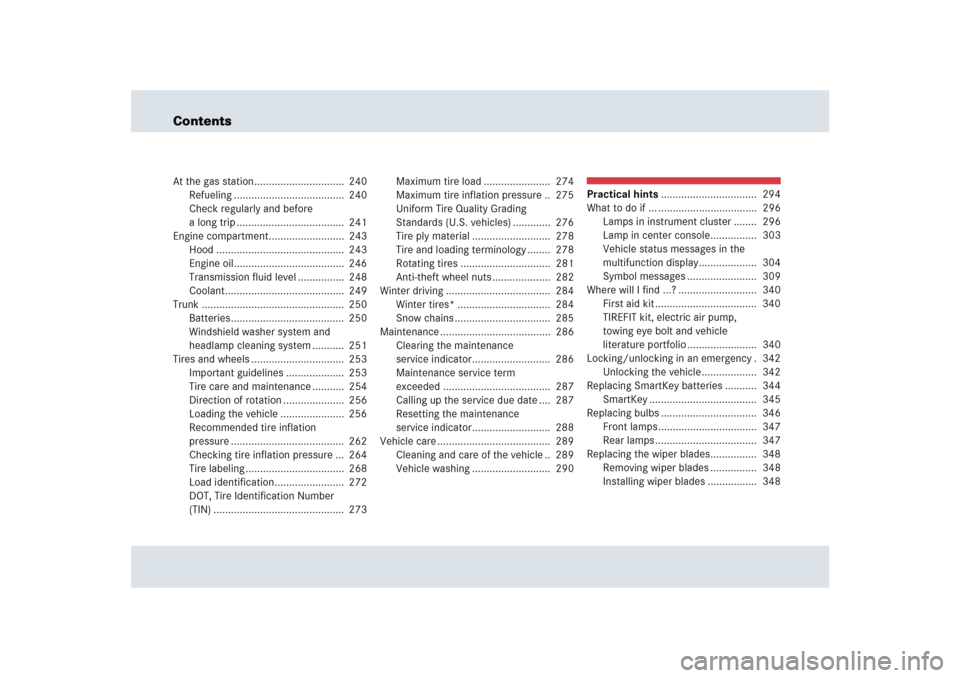

ContentsAt the gas station............................... 240
Refueling ...................................... 240

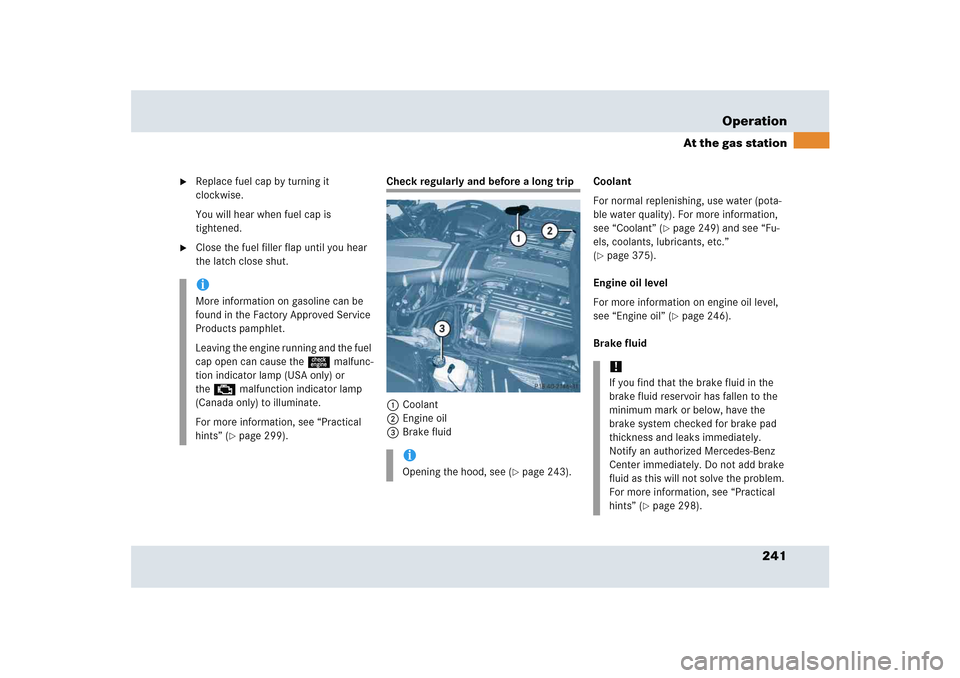

Check regularly and before
a long trip ..................................... 241
Engine compartment.......................... 243
Hood ............................................ 243
Engine oil...................................... 246
Transmission fluid level ................ 248
Coolant......................................... 249
Trunk ................................................. 250
Batteries....................................... 250
Windshield washer system and
headlamp cleaning system ........... 251
Tires and wheels ................................ 253
Important guidelines .................... 253
Tire care and maintenance ........... 254
Direction of rotation ..................... 256
Loading the vehicle ...................... 256
Recommended tire inflation
pressure ....................................... 262
Checking tire inflation pressure ... 264
Tire labeling .................................. 268
Load identification........................ 272
DOT, Tire Identification Number
(TIN) ............................................. 273Maximum tire load ....................... 274
Maximum tire inflation pressure .. 275
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 276
Tire ply material ........................... 278
Tire and loading terminology ........ 278
Rotating tires ............................... 281
Anti-theft wheel nuts .................... 282
Winter driving .................................... 284
Winter tires* ................................ 284
Snow chains ................................. 285
Maintenance ...................................... 286

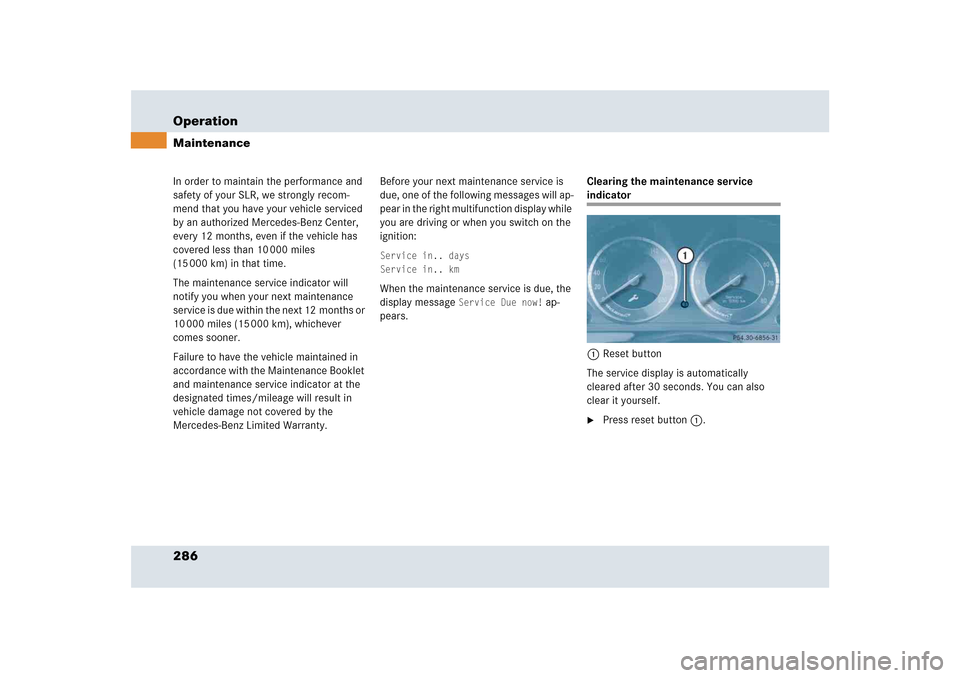

Clearing the maintenance
service indicator........................... 286

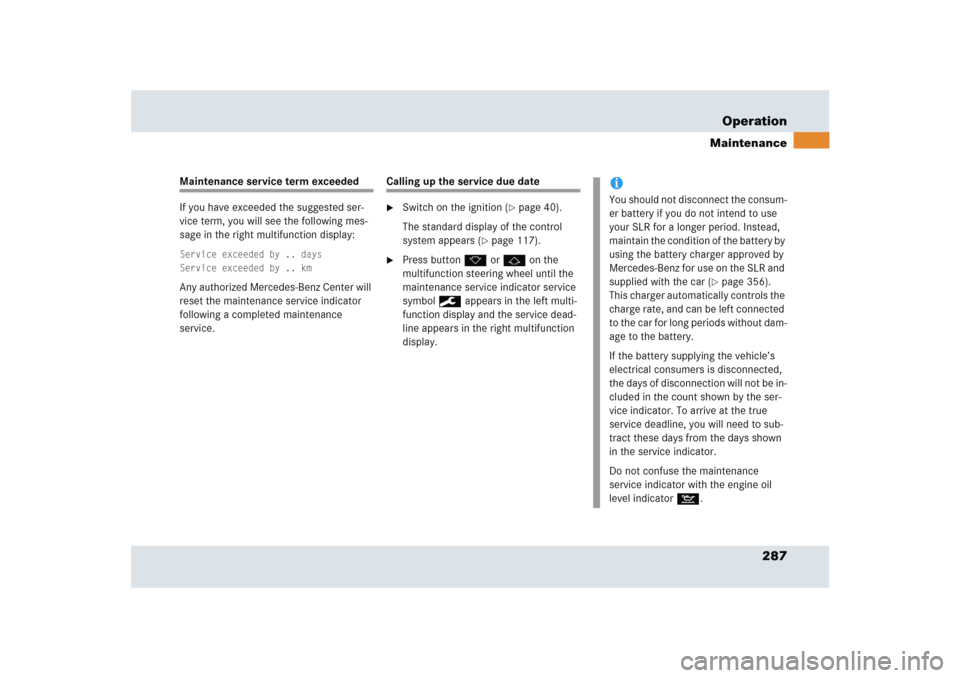

Maintenance service term
exceeded ..................................... 287
Calling up the service due date .... 287
Resetting the maintenance
service indicator........................... 288
Vehicle care ....................................... 289
Cleaning and care of the vehicle .. 289
Vehicle washing ........................... 290
Practical hints................................. 294
What to do if ... .................................. 296
Lamps in instrument cluster ........ 296
Lamp in center console................ 303
Vehicle status messages in the
multifunction display.................... 304
Symbol messages ........................ 309
Where will I find ...? ........................... 340
First aid kit ................................... 340
TIREFIT kit, electric air pump,
towing eye bolt and vehicle
literature portfolio ........................ 340
Locking/unlocking in an emergency . 342
Unlocking the vehicle................... 342
Replacing SmartKey batteries ........... 344
SmartKey ..................................... 345
Replacing bulbs ................................. 346
Front lamps.................................. 347
Rear lamps ................................... 347
Replacing the wiper blades................ 348
Removing wiper blades ................ 348
Installing wiper blades ................. 348

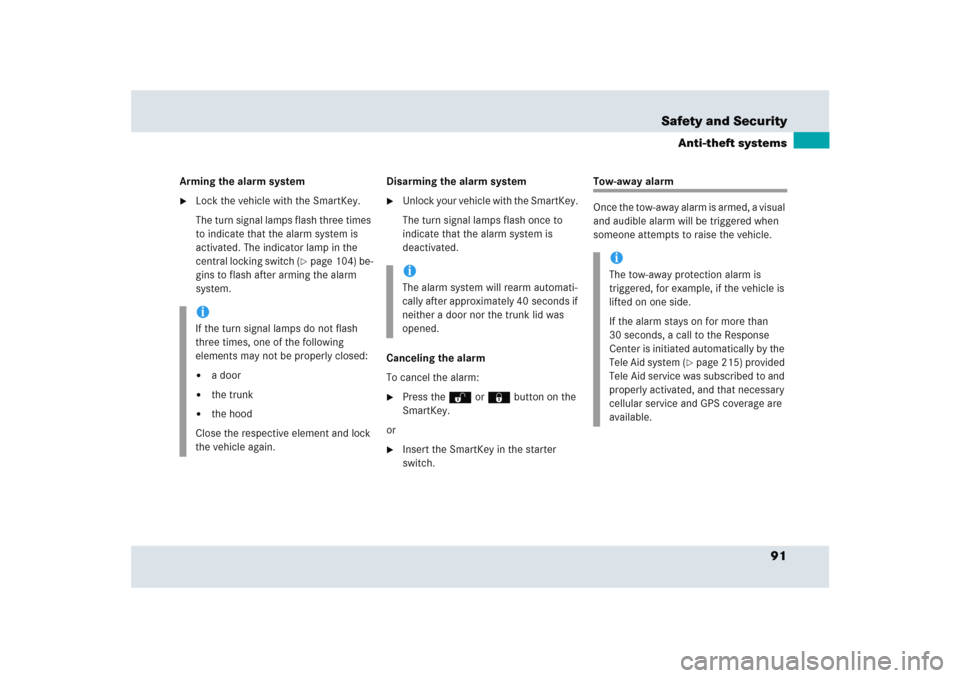

91 Safety and Security
Anti-theft systems
Arming the alarm system
Lock the vehicle with the SmartKey.
The turn signal lamps flash three times
to indicate that the alarm system is
activated. The indicator lamp in the
central locking switch (
page 104) be-
gins to flash after arming the alarm
system.Disarming the alarm system

Unlock your vehicle with the SmartKey.
The turn signal lamps flash once to
indicate that the alarm system is
deactivated.
Canceling the alarm
To cancel the alarm:

Press theŒ or‹ button on the
SmartKey.
or

Insert the SmartKey in the starter
switch.
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
iIf the turn signal lamps do not flash
three times, one of the following
elements may not be properly closed:

a door


the trunk


the hood
Close the respective element and lock
the vehicle again.
iThe alarm system will rearm automati-
cally after approximately 40 seconds if
neither a door nor the trunk lid was
opened.
iThe tow-away protection alarm is
triggered, for example, if the vehicle is
lifted on one side.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 215) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.

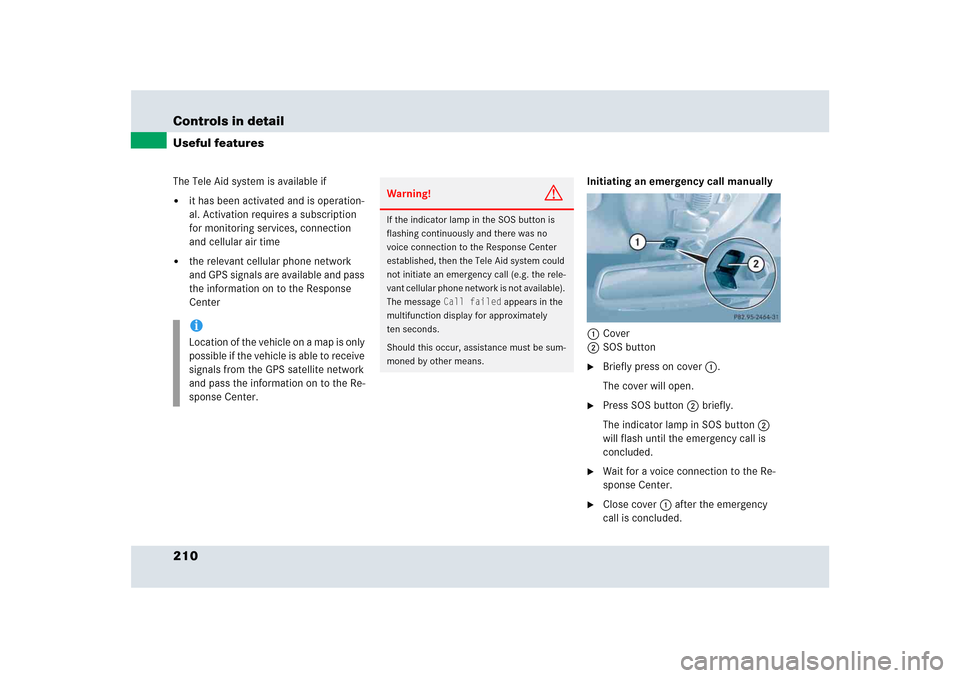

210 Controls in detailUseful featuresThe Tele Aid system is available if

it has been activated and is operation-
al. Activation requires a subscription
for monitoring services, connection
and cellular air time


the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
CenterInitiating an emergency call manually
1Cover
2SOS button

Briefly press on cover1.
The cover will open.

Press SOS button2 briefly.
The indicator lamp in SOS button2
will flash until the emergency call is
concluded.

Wait for a voice connection to the Re-
sponse Center.

Close cover1 after the emergency
call is concluded.
iLocation of the vehicle on a map is only
possible if the vehicle is able to receive
signals from the GPS satellite network
and pass the information on to the Re-
sponse Center.
Warning!
G
If the indicator lamp in the SOS button is
flashing continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
Call failed
appears in the
multifunction display for approximately
ten seconds.
Should this occur, assistance must be sum-
moned by other means.

212 Controls in detailUseful features

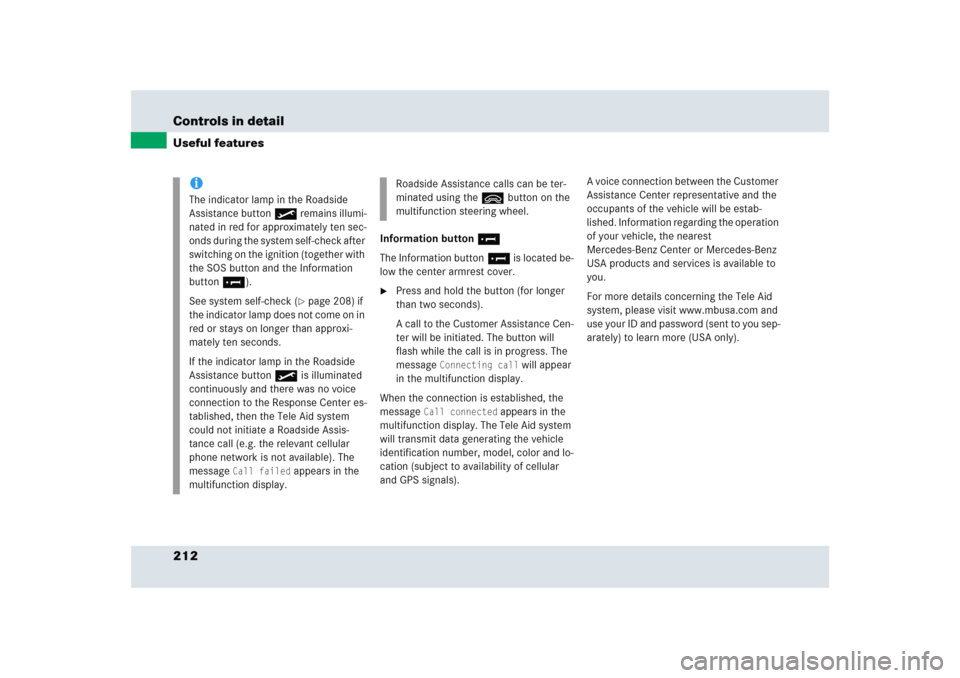

Information button ¡
The Information button¡ is located be-
low the center armrest cover.
Press and hold the button (for longer
than two seconds).
A call to the Customer Assistance Cen-
ter will be initiated. The button will
flash while the call is in progress. The
message
Connecting call
will appear
in the multifunction display.
When the connection is established, the
message
Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be estab-
lished. Information regarding the operation
of your vehicle, the nearest
Mercedes-Benz Center or Mercedes-Benz
USA products and services is available to
you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you sep-
arately) to learn more (USA only).
iThe indicator lamp in the Roadside
Assistance button• remains illumi-
nated in red for approximately ten sec-
onds during the system self-check after
switching on the ignition (together with
the SOS button and the Information
button¡).
See system self-check (
page 208) if
the indicator lamp does not come on in
red or stays on longer than approxi-
mately ten seconds.
If the indicator lamp in the Roadside
Assistance button• is illuminated
continuously and there was no voice
connection to the Response Center es-
tablished, then the Tele Aid system
could not initiate a Roadside Assis-
tance call (e.g. the relevant cellular
phone network is not available). The
message
Call failed
appears in the
multifunction display.
Roadside Assistance calls can be ter-
minated using the ìbutton on the
multifunction steering wheel.

213 Controls in detail
Useful features

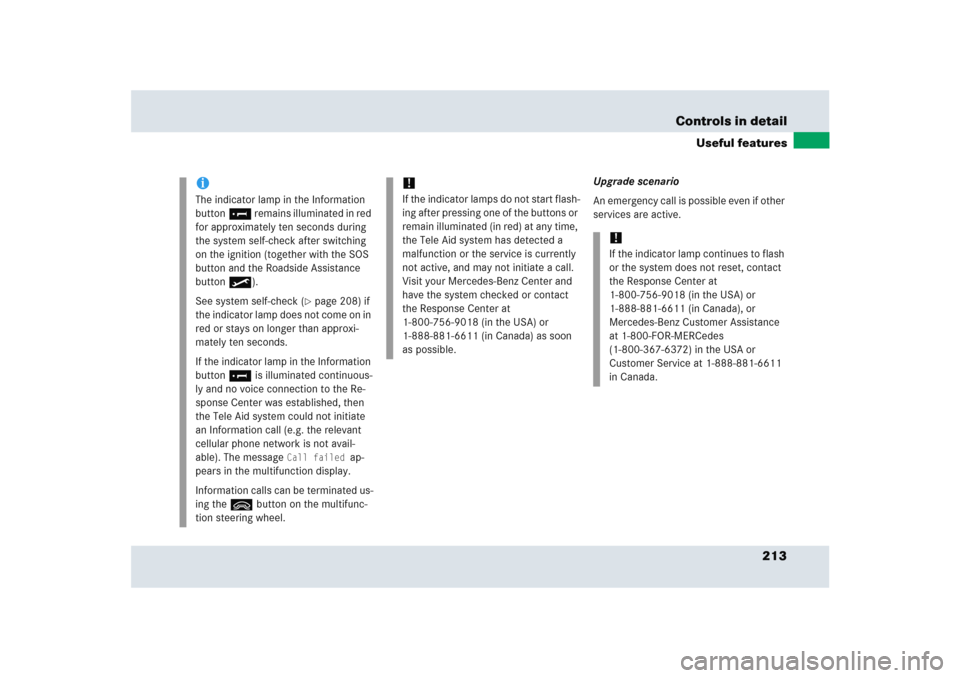

Upgrade scenario
An emergency call is possible even if other
services are active.
iThe indicator lamp in the Information
button¡ remains illuminated in red
for approximately ten seconds during
the system self-check after switching
on the ignition (together with the SOS
button and the Roadside Assistance
button•).
See system self-check (
page 208) if
the indicator lamp does not come on in
red or stays on longer than approxi-
mately ten seconds.
If the indicator lamp in the Information
button¡ is illuminated continuous-
ly and no voice connection to the Re-
sponse Center was established, then
the Tele Aid system could not initiate
an Information call (e.g. the relevant
cellular phone network is not avail-
able). The message
Call failed
ap-
pears in the multifunction display.
Information calls can be terminated us-
ing the ìbutton on the multifunc-
tion steering wheel.
!If the indicator lamps do not start flash-
ing after pressing one of the buttons or
remain illuminated (in red) at any time,
the Tele Aid system has detected a
malfunction or the service is currently
not active, and may not initiate a call.
Visit your Mercedes-Benz Center and
have the system checked or contact
the Response Center at
1-800-756-9018 (in the USA) or
1-888-881-6611 (in Canada) as soon
as possible.
!If the indicator lamp continues to flash
or the system does not reset, contact
the Response Center at
1-800-756-9018 (in the USA) or
1-888-881-6611 (in Canada), or
Mercedes-Benz Customer Assistance
at 1-800-FOR-MERCedes
(1-800-367-6372) in the USA or
Customer Service at 1-888-881-6611
in Canada.

215 Controls in detail
Useful features

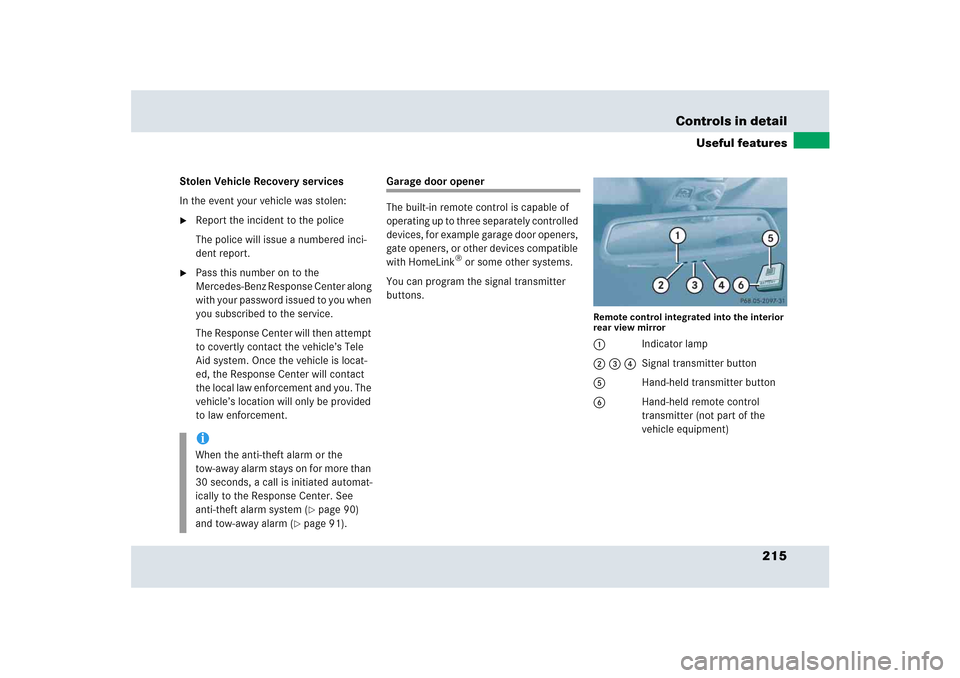

Stolen Vehicle Recovery services
In the event your vehicle was stolen:
Report the incident to the police
The police will issue a numbered inci-
dent report.

Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s Tele
Aid system. Once the vehicle is locat-
ed, the Response Center will contact
the local law enforcement and you. The
vehicle’s location will only be provided
to law enforcement.
Garage door opener
The built-in remote control is capable of
operating up to three separately controlled
devices, for example garage door openers,
gate openers, or other devices compatible
with HomeLink
® or some other systems.
You can program the signal transmitter
buttons.
Remote control integrated into the interior
rear view mirror1Indicator lamp
2 3 4Signal transmitter button
5Hand-held transmitter button
6Hand-held remote control
transmitter (not part of the
vehicle equipment)
iWhen the anti-theft alarm or the
tow-away alarm stays on for more than
30 seconds, a call is initiated automat-
ically to the Response Center. See
anti-theft alarm system (
page 90)
and tow-away alarm (
page 91).

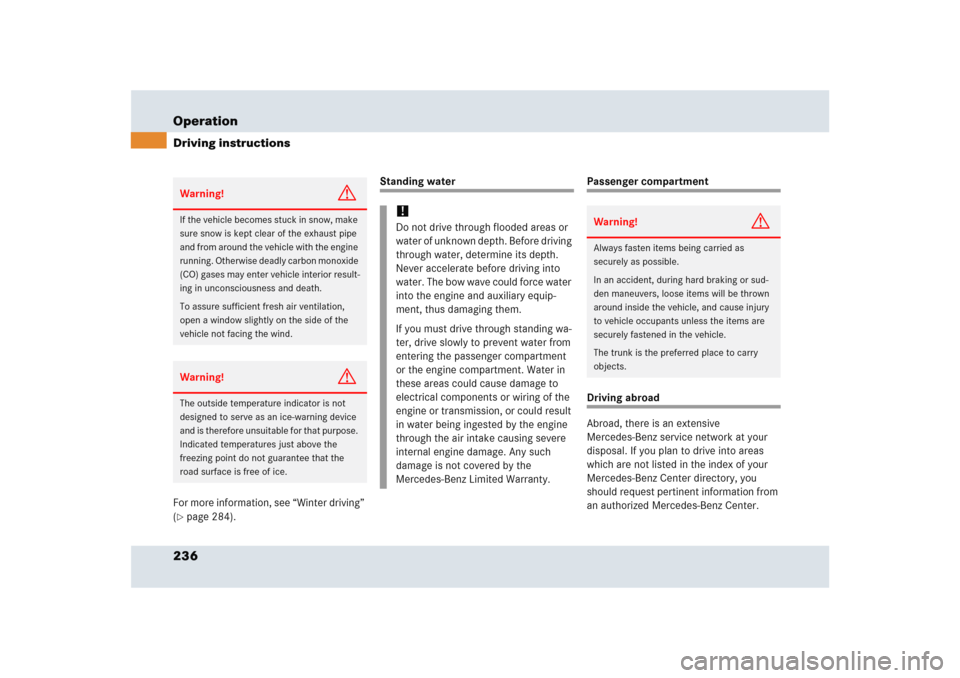

236 OperationDriving instructionsFor more information, see “Winter driving”
(page 284).
Standing water
Passenger compartmentDriving abroad
Abroad, there is an extensive
Mercedes-Benz service network at your
disposal. If you plan to drive into areas
which are not listed in the index of your
Mercedes-Benz Center directory, you
should request pertinent information from
an authorized Mercedes-Benz Center.
Warning!
G
If the vehicle becomes stuck in snow, make
sure snow is kept clear of the exhaust pipe
and from around the vehicle with the engine
running. Otherwise deadly carbon monoxide
(CO) gases may enter vehicle interior result-
ing in unconsciousness and death.
To assure sufficient fresh air ventilation,
open a window slightly on the side of the
vehicle not facing the wind.Warning!
G
The outside temperature indicator is not
designed to serve as an ice-warning device
and is therefore unsuitable for that purpose.
Indicated temperatures just above the
freezing point do not guarantee that the
road surface is free of ice.
!Do not drive through flooded areas or
water of unknown depth. Before driving
through water, determine its depth.
Never accelerate before driving into
water. The bow wave could force water
into the engine and auxiliary equip-
ment, thus damaging them.
If you must drive through standing wa-
ter, drive slowly to prevent water from
entering the passenger compartment
or the engine compartment. Water in
these areas could cause damage to
electrical components or wiring of the
engine or transmission, or could result
in water being ingested by the engine
through the air intake causing severe
internal engine damage. Any such
damage is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Always fasten items being carried as
securely as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
The trunk is the preferred place to carry
objects.

241 Operation
At the gas station

Replace fuel cap by turning it
clockwise.
You will hear when fuel cap is
tightened.

Close the fuel filler flap until you hear
the latch close shut.
Check regularly and before a long trip
1Coolant
2Engine oil
3Brake fluidCoolant
For normal replenishing, use water (pota-
ble water quality). For more information,
see “Coolant” (
page 249) and see “Fu-
els, coolants, lubricants, etc.”
(
page 375).
Engine oil level
For more information on engine oil level,
see “Engine oil” (
page 246).
Brake fluid
iMore information on gasoline can be
found in the Factory Approved Service
Products pamphlet.
Leaving the engine running and the fuel
cap open can cause theú malfunc-
tion indicator lamp (USA only) or
the± malfunction indicator lamp
(Canada only) to illuminate.
For more information, see “Practical
hints” (
page 299).
iOpening the hood, see (
page 243).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately.
Notify an authorized Mercedes-Benz
Center immediately. Do not add brake
fluid as this will not solve the problem.
For more information, see “Practical
hints” (
page 298).

286 OperationMaintenanceIn order to maintain the performance and
safety of your SLR, we strongly recom-
mend that you have your vehicle serviced
by an authorized Mercedes-Benz Center,
every 12 months, even if the vehicle has
covered less than 10 000 miles
(15 000 km) in that time.
The maintenance service indicator will
notify you when your next maintenance
service is due within the next 12 months or
10 000 miles (15 000 km), whichever
comes sooner.
Failure to have the vehicle maintained in
accordance with the Maintenance Booklet
and maintenance service indicator at the
designated times/mileage will result in
vehicle damage not covered by the
Mercedes-Benz Limited Warranty.Before your next maintenance service is
due, one of the following messages will ap-
pear in the right multifunction display while
you are driving or when you switch on the
ignition:
Service in.. days
Service in.. km

When the maintenance service is due, the
display message Service Due now!
ap-
pears.Clearing the maintenance service
indicator
1Reset button
The service display is automatically
cleared after 30 seconds. You can also
clear it yourself.
Press reset button 1.

287 Operation
Maintenance
Maintenance service term exceeded
If you have exceeded the suggested ser-
vice term, you will see the following mes-
sage in the right multifunction display:Service exceeded by .. days
Service exceeded by .. kmAny authorized Mercedes-Benz Center will
reset the maintenance service indicator
following a completed maintenance
service.
Calling up the service due date
Switch on the ignition (
page 40).
The standard display of the control
system appears (
page 117).

Press button k or j on the
multifunction steering wheel until the
maintenance service indicator service
symbol 9 appears in the left multi-
function display and the service dead-
line appears in the right multifunction
display.
iYou should not disconnect the consum-
er battery if you do not intend to use
your SLR for a longer period. Instead,
maintain the condition of the battery by
using the battery charger approved by
Mercedes-Benz for use on the SLR and
supplied with the car (
page 356).
This charger automatically controls the
charge rate, and can be left connected
to the car for long periods without dam-
age to the battery.
If the battery supplying the vehicle’s
electrical consumers is disconnected,
the days of disconnection will not be in-
cluded in the count shown by the ser-
vice indicator. To arrive at the true
service deadline, you will need to sub-
tract these days from the days shown
in the service indicator.
Do not confuse the maintenance
service indicator with the engine oil
level indicator:.
