MERCEDES-BENZ SLR 2007 R199 Owner's Manual

110 Controls in detail
Lighting
Rear fog lamp (driver’s side only)
Switch on the low beam headlamps
(
page 106).
Pull out the exterior lamp switch to
second stop.
The front fog lamps and rear fog lamp
switch on.
The yellow indicator lamp† in the
exterior lamp switch comes on.
Push in the exterior lamp switch to first
stop.
The rear fog lamp switches off.
The yellow indicator lamp† in the
exterior lamp switch goes out.
The front fog lamps remain lit.
Combination switch
The combination switch is located on the
left of the steering column.
1High beam
2High beam flasherHigh beam
USA only: Turn the exterior lamp switch
to positionB orU
(
page 106).
Canada only: Turn the exterior lamp
switch to positionB (
page 106).
Push the combination switch in
direction of arrow1 to switch on the
high beam.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 29).
Pull the combination switch in direction
of arrow2 to its original position to
switch off the high beam.
The high beam headlamp indicator
lampA in the instrument cluster
goes out.
High beam flasher
Pull the combination switch briefly in
direction of arrow2.

111 Controls in detail
Lighting
Hazard warning flasher
The hazard warning flasher can be
switched on at all times, even with the
SmartKey removed from the starter
switch.
The hazard warning flasher switches on
automatically when an air bag deploys.
The hazard warning flasher switch is
located on the upper part of the center
console.
1Hazard warning flasher switchSwitching on hazard warning flasher
Press hazard warning flasher
switch1.
All turn signals are flashing.Switching off hazard warning flasherPress hazard warning flasher switch1
again.
iWith the hazard warning flasher activated
and the combination switch set for either left or
right turn, only the respective turn signals will
operate when the ignition is switched on.
iIf the hazard warning flasher has been
activated automatically, press hazard warning
flasher switch1 once to switch it off.

112 Controls in detail
Lighting
Interior lighting
The controls are located in the overhead
control panel.
1Left-hand reading lamp on/off
2Right-hand reading lamp on/off
3Interior lighting on/off
4Automatic control on/offAutomatic control
Deactivating
Slide switch4 to the right.
The interior lighting and the entry/exit
lamps remain switched off in darkness,
even when you

unlock the vehicle

open a door

remove the SmartKey from the
starter switchActivating
Slide switch 4 to the left.
Interior lamps switches on in darkness
when you

unlock the vehicle

open a door

remove the SmartKey from the
starter switch
In addition, the entry/exit lamps in the
door come on when you open a door.
The interior lighting switches off auto-
matically following a preset time delay.
For more information, see “Setting in-
terior lighting delayed switch-off”
(
page 137).
!An interior lamp switched on manually does
not go out automatically.
Leaving an interior lamp switch in the ON posi-
tion for extended periods of time with the engine
turned off could result in a discharged battery.
iThe interior lighting is factory-set to
automatic mode.
iIf a door remains open, the interior lamps
switch off automatically after approximately
5minutes.

113 Controls in detail
Lighting
Manual control
Switching interior lighting on
Press switch3.
The interior lighting switches on.
Switching interior lighting off
Press switch3 again.
The interior lighting switches off.
Reading lamps
The reading lamps are integrated into the
interior rear view mirror.
Press reading lamp switch1or2 to
switch on the desired reading lamp.
Press reading lamp switch1or2
again to switch off the respective
reading lamp.
Courtesy lighting
For better orientation in the dark, courtesy
lamps will illuminate the interior of your
vehicle.
When you open a door:

the driver’s and passenger’s footwells
If the SmartKey is in starter switch
position1:

the center console
Trunk lamp
The trunk lamp switches on if the trunk is
opened.
If you leave the trunk open for an extended
period of time, the trunk lamp will switch
off automatically after approximately
10 minutes.
iThe center console is lit from the interior
rear view mirror.
iThe setting selected for the interior lighting
is used for the trunk lighting as well.

114 Controls in detail
Instrument cluster
For a full view illustration of the instrument
cluster, see “Instrument cluster”
(
page 28).
1Reset button
The instrument cluster is activated when
you

open a door

switch on the ignition

press the reset button1

switch on exterior lampsOpening a door will activate the instrument
cluster only for about 30 seconds.
You can change the instrument cluster
settings in the Instrument cluster submenu
of the control system (
page 132).Adjusting instrument cluster
illumination
Use the reset button1 to adjust the illu-
mination brightness for the instrument
cluster and the switches on the center
console.
To brighten illumination
Turn the reset button1 clockwise.
The instrument cluster illumination will
brighten.
To dim illumination
Turn the reset button1 counterclock-
wise.
The instrument cluster illumination will
dim.
Warning!G
No messages will be displayed if either the
instrument cluster or the multifunction
display is inoperative.
As a result, you will not be able to see infor-
mation about your driving conditions, such
as speed or outside temperature, warn-
ing/indicator lamps, malfunction/warning
messages or the failure of any systems.
Driving characteristics may be impaired.
If you must continue to drive, do so with
added caution. Visit an authorized
Mercedes-Benz Center as soon as possible.
iThe instrument cluster illumination is
dimmed or brightened to suit ambient light
conditions.

115 Controls in detail
Instrument cluster
Coolant temperature gaugeResetting trip odometer
Press buttonè orÿ repeatedly
until you see the standard display in
the multifunction display (
page 117).
Press buttonk orj until the
trip odometer appears in the right
multifunction display.
Press and hold the reset button1
(
page 114) until the trip odometer is
reset.
Warning!G

Driving when your engine is overheated
can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously
burned.

Steam from an overheated engine can
cause serious burns which can occur
just by opening the hood. Stay away
f r o m t h e e n g i n e i f y o u s e e o r h e a r s t e a m
coming from it.
Stop the vehicle in a safe location away from
other traffic. Turn off the engine, get out of
the vehicle and do not stand near the vehicle
until the engine has cooled down.
!Excessive coolant temperature triggers the
coolant temperature warning lamp (
page 306)
and a warning in the multifunction display
(
page 335).
The engine should not be operated with the cool-
ant temperature above 248°F (120°C). Doing so
may cause serious engine damage which is not
covered by the Mercedes-Benz Limited
Warranty.
iDuring severe operating conditions, e.g.
stop-and-go traffic, the coolant temperature may
rise close to 248°F (120°C).

116 Controls in detail
Instrument cluster
Tachometer
The red marking on the tachometer
(
page 29) denotes excessive engine
speed.
To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.
Outside temperature indicator
The outside temperature is displayed in
the left or right multifunction display
(
page 117), depending on the setting for
the standard display (
page 132). The temperature sensor is located in the
front bumper area. Due to its location, the
sensor can be affected by road or engine
heat during idling or slow driving. There-
fore, the accuracy of the displayed temper-
ature can only be verified by comparison to
a thermometer placed next the sensor, not
by comparison to external displays, e.g.
bank signs, etc.
When moving the vehicle into colder ambi-
ent temperatures (e.g. when leaving your
garage), you will notice a delay before the
lower temperature is displayed.
A delay also occurs when ambient temper-
atures rise. This prevents inaccurate tem-
perature indications caused by heat
radiated from the engine during idling or
slow driving.
!Avoid driving at excessive engine speeds, as
it may result in serious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.
Warning!G
The outside temperature indicator is not de-
signed to serve as an ice-warning device and
is therefore unsuitable for that purpose.
Indicated temperatures just above the freez-
ing point do not guarantee that the road sur-
face is free of ice. The road may still be icy,
especially in wooded areas or on bridges.

117 Controls in detail
Control system
Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position1. The control system
enables you to

call up information about your vehicle

change vehicle settings
For example, you can use the control sys-
tem to find out when your vehicle is next
due for service, to set the language for
messages in the instrument cluster
display, and much more.
The control system relays information to
the multifunction display.
Multifunction display
The multifunction display consists of the
display fields in the speedometer and the
tachometer. In its default state, the left
display field shows the outside tempera-
ture and main odometer, while the trip
odometer and the clock appears in the
right display field. This default setting is
referred to as the standard display.
Standard display
1Main odometer
2Outside temperature (
page 132)
3Current gear selector lever
position/gear range
4Trip odometer
5Automatic transmission shift program
mode
6Clock
Warning!G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
For your safety and the safety of others, se-
lecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions
permit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.

118 Controls in detail
Control system

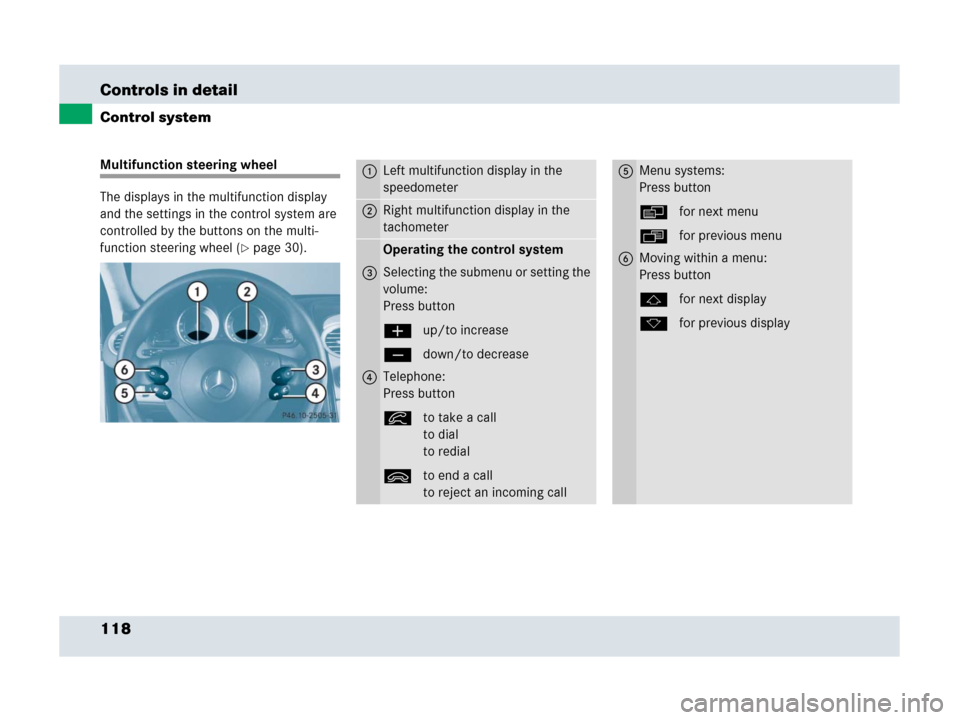

Multifunction steering wheel
The displays in the multifunction display
and the settings in the control system are
controlled by the buttons on the multi-
function steering wheel (
page 30).
1Left multifunction display in the
speedometer
2Right multifunction display in the
tachometer
Operating the control system
3Selecting the submenu or setting the
volume:
Press button
æup/to increase
çdown/to decrease
4Telephone:
Press button
íto take a call
to dial
to redial
ìto end a call
to reject an incoming call
5Menu systems:
Press button
èfor next menu
ÿfor previous menu
6Moving within a menu:
Press button
jfor next display
kfor previous display

119 Controls in detail
Control system
Depending on the selected menu, pressing
the buttons on the multifunction steering
wheel will alter what appears in the
multifunction display.
The information available in the multifunc-
tion display is arranged in menus, each
containing a number of functions or
submenus.
The individual functions are then found
within the relevant menu (radio or CD op-
erations under
AUDIO, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.It is helpful to think of the menus, and the
functions within each menu, as being
arranged in a circular pattern.

If you press buttonè orÿ
repeatedly, you will pass through each
menu one after the other.

If you press buttonk orj
repeatedly, you will pass through each
function display, one after the other, in
the current menu.In the
Settings menu, instead of functions
you will find a number of submenus for
calling up and changing settings. For
instructions on using these submenus, see
“Settings menu” (
page 129).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.
The menus are described on the following
pages.
