230 Controls in detail
Useful features
Roof and trunk lid racks
Warning!G
This vehicle has not been designed to
accommodate any type of roof or trunk lid
rack. Therefore do not fit such accessories.
Otherwise the rack could fall off and this
could result in an accident and/or serious
personal injury.
!Do not use any type of roof or trunk lid rack.
Otherwise you will damage the bodywork or
paintwork of your SLR.

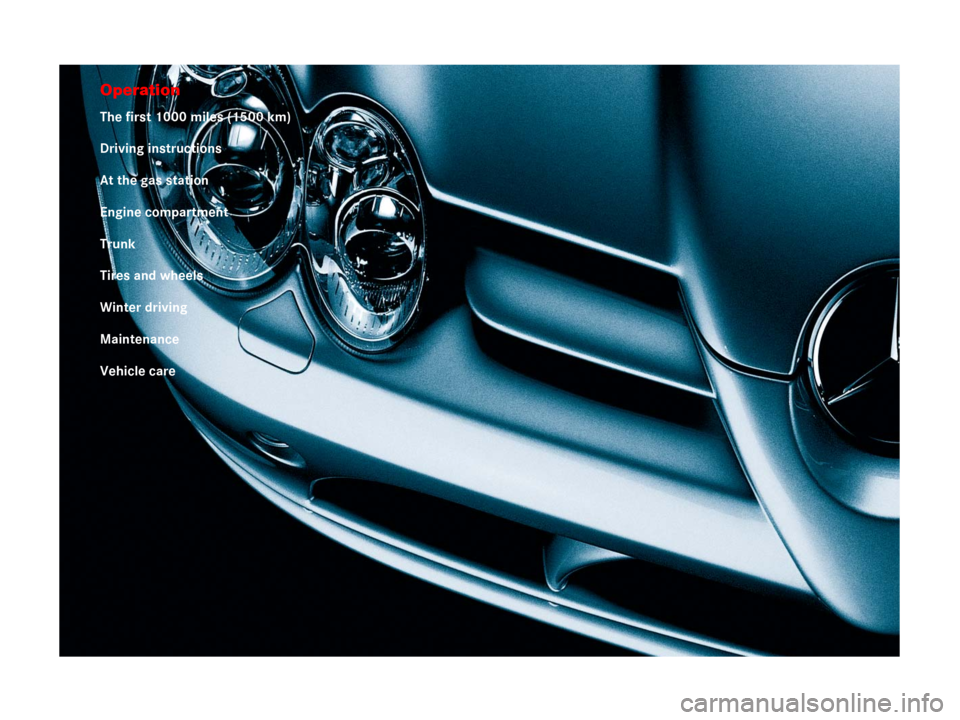

231

Operation
The first 1000 miles (1500 km)
Driving instructions
At the gas station
Engine compartment
Trunk
Tires and wheels
Winter driving
Maintenance
Vehicle care

234 Operation
In the “Operation” section you will find
detailed information on operating, main-
taining and caring for your vehicle.
The first 1000 miles (1500 km)
The more cautiously you treat your vehicle
during the break-in period, the more satis-
fied you will be with its performance later
on. You should therefore observe the fol-
lowing for the first 1000 miles (1500 km):

Drive at varying but moderate road and
engine speeds.

Do not drive faster than 150 mph
(240 km/h).

Break in new tires for the first
100 miles (160 km), therefore avoid
high-speed cornering. Do not exceed a
speed of 125 mph (200 km/h).

Do not drive at engine speeds above
4500 rpm.

Try to avoid heavy load on the engine
(driving at full throttle) and driving at
high engine speeds (maximum of
2/3
of top speed of each gear) during this
break-in period.

Avoid accelerating by kick-down.

Change gears in good time.

Do not attempt to slow the vehicle
down by shifting to a lower gear using
the gear selector lever.

Select positions3,2 or1 only when
driving at moderate speeds (for hill
driving).
After 1000 miles (1500 km), you may grad-
ually bring the vehicle up to full road and
engine speed.
All of the above instructions also apply
when driving the first 1000 miles
(1500 km) after the engine or the rear
differential has been replaced.
iAlways obey applicable speed limits.

235 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent,
depends on driving habits and operating
conditions.
To save fuel you should:

Keep tires at the recommended tire
inflation pressures.

Remove unnecessary loads.

Allow engine to warm up under low
load use.

Avoid frequent acceleration and
deceleration.

Have all maintenance work performed
at the intervals specified in the
Maintenance Booklet and as required
by the maintenance service display.
Contact an authorized Mercedes-Benz
Center.
Fuel consumption is also increased by
driving in cold weather, in stop-and-go
traffic, on short trips and in hilly area.
Drinking and drivingPedals
Warning!G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgment.
The possibility of a serious or even fatal
accident are greatly increased when you
drink or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate. This could lead to accidents
and/or injury.

236 Operation
Driving instructions
Power assistanceBrakes
Warning!G
The brake system requires electrical energy
for operation.
A malfunction in the vehicle’s power supply
or electrical system may impair brake sys-
tem operation and switch it into its emer-
gency operation mode. In such a case, the
red brake warning lamp (
page 303) and
warning messages (
page 314) in the in-
strument cluster come on while driving. To
brake, the driver must then apply signifi-
cantly greater brake pedal pressure and de-
press the pedal much further to obtain the
expected braking effect. If necessary, apply
full pressure to the brake pedal. Brakes are
only applied to the front wheels. Stopping
distance is increased! If there is a malfunc-
tion in the electro-hydraulic brake system,
we recommend that the vehicle be trans-
ported with all wheels off the ground using
flatbed or appropriate wheel lift/dolly
equipment.
A tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
up to 30 miles (50 km) and at a speed not to
exceed 30 mph (50 km/h). For more infor-
mation, see “Towing the vehicle”
(
page 370).
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle.
Warning!G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components,
the first braking action may be somewhat
reduced and increased pedal pressure may
be necessary to obtain expected braking
effect. Maintain a safe distance from
vehicles in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an
accident.

237 Operation
Driving instructions
To help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
Refer to the description of the Brake Assist
System (BAS) (
page 83).If the parking brake is released and the red
brake warning lamp in the instrument clus-
ter stays on, there is a malfunction in the
electro-hydraulic brake system
(
page 303) or the brake fluid level in the
reservoir is too low.
Brake pad wear or a leak in the system may
be the reason for low brake fluid in the
reservoir.
The brake fluid level in the reservoir may
be too low if the brake warning lamp in the
instrument cluster comes on and a warn-
ing sounds although the parking brake is
released (
page 303). Observe additional
messages that may appear in the
multifunction display (
page 330).
Have the brake system inspected
immediately. Contact an authorized
Mercedes-Benz Center.
All checks and service work on the brake
system should be carried out by qualified
technicians only. Contact an authorized
Mercedes-Benz Center.
!Because the ESP® operates automatically,
the engine must be shut off (SmartKey in starter
switch position 0 or1) when

the parking brake is being tested on a brake
test dynamometer

the vehicle is towed with the front axle raised
Active braking action through the ESP
® may
otherwise seriously damage the brake system
which is not covered by the Mercedes-Benz
Limited Warranty.
iThe brake system is designed to decelerate
your SLR from high speeds at the best possible
rate. Depending on the applied brake force,
speed, and ambient conditions, the brake sys-
tem may produce a squeak-type noise when you
apply the brakes at a moderate rate, e.g. at city
traffic. If you experience this noise, you should
occasionally test the effectiveness of the brakes
by applying above-normal braking pressure at
high speeds. Please perform this braking proce-
dure three times. This will also enhance the grip
of the brake pads. If the noise continuous,
contact an authorized Mercedes-Benz Center.
Warning!G
Make sure not to endanger any other road
users when carrying out these braking
maneuvers.

238 Operation
Driving instructions
Only install brake pads and brake fluid
recommended by Mercedes-Benz.
After hard braking, it is advisable to drive
on for some time, rather than to park im-
mediately, so the air stream will cool down
the brakes faster.High performance driving
The rate of wear of individual brake system
components, such as brake pads or disks,
depends on your driving style and the con-
ditions under which you operate the vehi-
cle.
It is therefore not possible to give a gener-
ally applicable service life. High perfor-
mance driving, such as driving on closed
circuit race tracks or an aggressive driving
style, will cause the brakes to wear more
quickly.
Warning!G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.
Be certain to read and observe the warning
notices on brake pad replacement
(
page 88).
!When driving down long and steep grades,
relieve the load on the brakes by shifting into a
lower gear to use the engine’s braking power.
This helps prevent overheating of the brakes and
reduces brake pad wear.
iPlease contact your PLM or any authorized
Mercedes-Benz Center before operating the
vehicle under such demanding operating condi-
tions for more information.
Warning!G
Repetitive excessive load on the brake
system may particularly cause the brake
system to overheat and can thus reduce the
braking power, or even cause brake system
components to fail due to increased wear.
You could lose control of the vehicle and
cause an accident. Installation and examina-
tion of brake system assemblies requires
specialist knowledge. Therefore, after high
performance driving, have the brake system
checked and maintained by an authorized
Mercedes-Benz Center.

239 Operation
Driving instructions
Driving off
Apply the brakes to test them briefly after
driving off. Perform this procedure only
when the road is clear of other traffic.
Warm up the engine smoothly. Do not
place full load on the engine until the
operating temperature has been reached
(
page 307).
Parking
!When driving off on a slippery surface, do
not allow a drive wheel to spin for an extended
period with the ESP
® switched off. Doing so may
cause serious damage to the drivetrain which is
not covered by the Mercedes-Benz Limited
Warranty.
!Simultaneously depressing the accelerator
pedal and applying the brakes reduces engine
performance and causes premature brake and
drivetrain wear.
Warning!G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury or
damage to the vehicle drivetrain as a result
of vehicle movement, before turning off the
engine and leaving the vehicle always:

Keep right foot on brake pedal.

Pull the parking brake lever up as many
notches as possible.

Move the gear selector lever to park
positionP.

Slowly release brake pedal.

When parked on an incline, turn front
wheels towards the road curb.

Turn the SmartKey in the starter switch
to position0 and remove.

Take the SmartKey with you and lock
vehicle when leaving.
