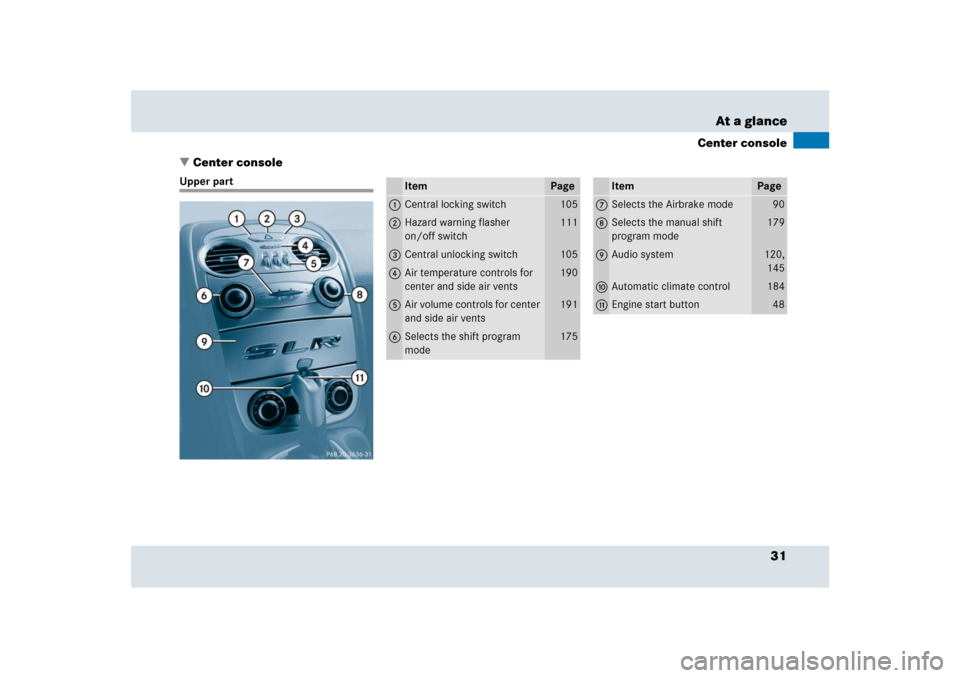

Page 31 of 426
31 At a glance
Center console
Center console
Upper part
Item
Page
1
Central locking switch
105
2
Hazard warning flasher
on/off switch
111
3
Central unlocking switch
105
4
Air temperature controls for
center and side air vents
190
5
Air volume controls for center
and side air vents
191
6
Selects the shift program
mode
175
Item
Page
7
Selects the Airbrake mode
90
8
Selects the manual shift
program mode
179
9
Audio system
120,
145
a
Automatic climate control
184
b
Engine start button
48

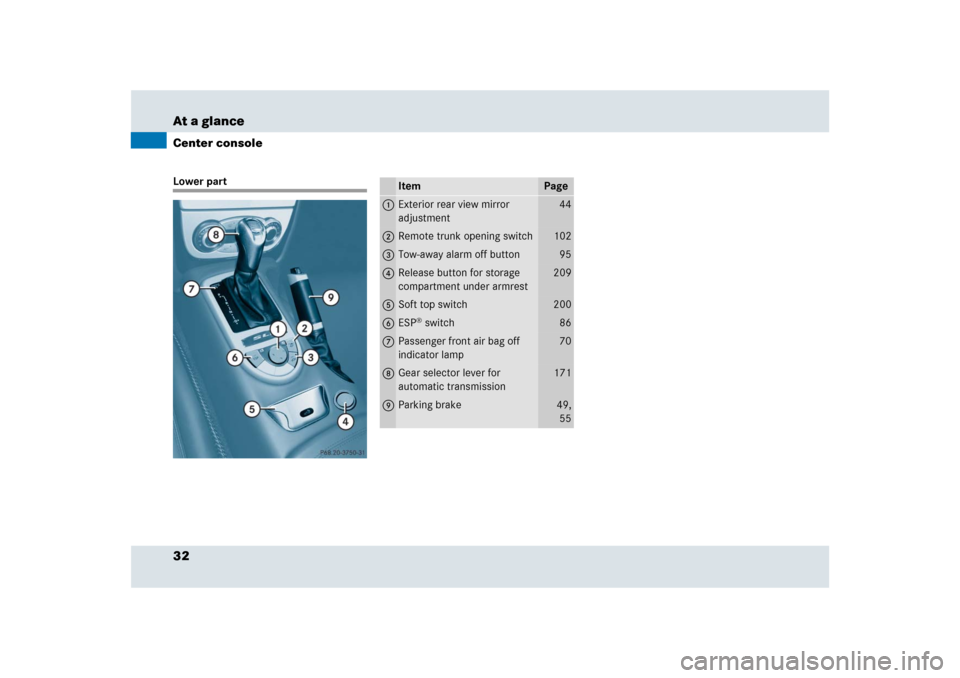

Page 32 of 426
32 At a glanceCenter consoleLower part
Item
Page
1
Exterior rear view mirror
adjustment
44
2
Remote trunk opening switch
102
3
Tow-away alarm off button
95
4
Release button for storage
compartment under armrest
209
5
Soft top switch
200
6
ESP
® switch
86
7
Passenger front air bag off
indicator lamp
70
8
Gear selector lever for
automatic transmission
171
9
Parking brake
49,
55

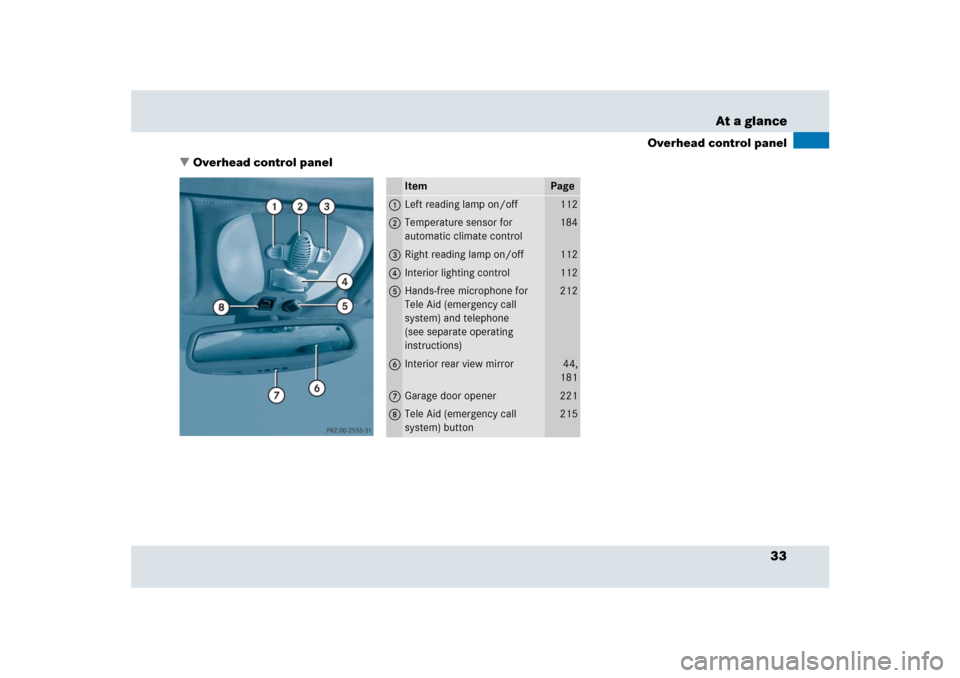

Page 33 of 426
33 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Left reading lamp on/off
112
2
Temperature sensor for
automatic climate control
184
3
Right reading lamp on/off
112
4
Interior lighting control
112
5
Hands-free microphone for
Tele Aid (emergency call
system) and telephone
(see separate operating
instructions)
212
6
Interior rear view mirror
44,
181
7
Garage door opener
221
8
Tele Aid (emergency call
system) button
215

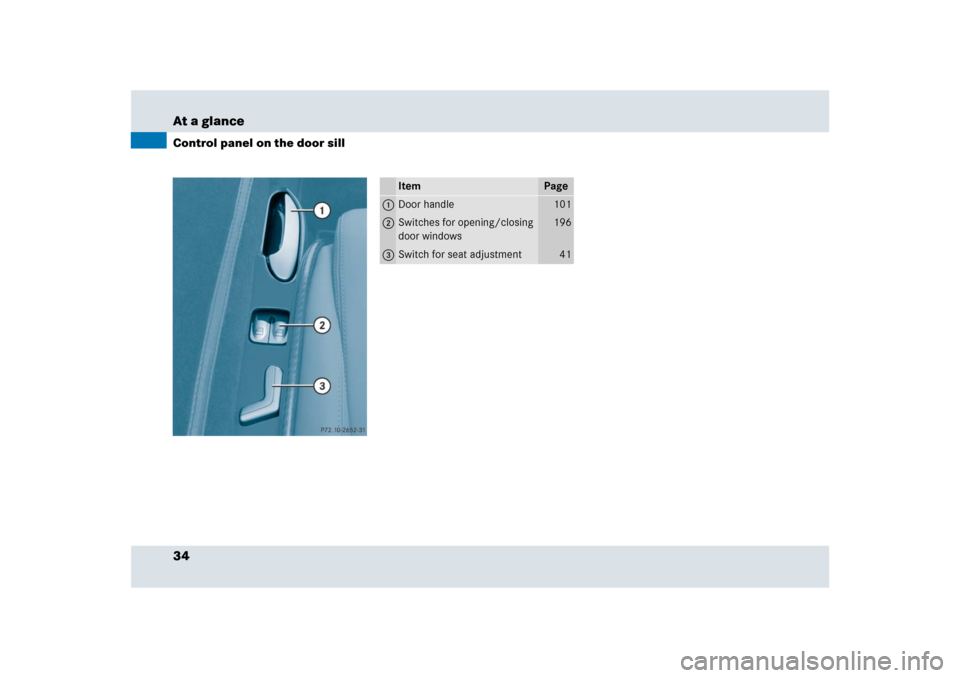

Page 34 of 426
34 At a glanceControl panel on the door sill
Item
Page
1
Door handle
101
2
Switches for opening/closing
door windows
196
3
Switch for seat adjustment
41
Page 35 of 426
35

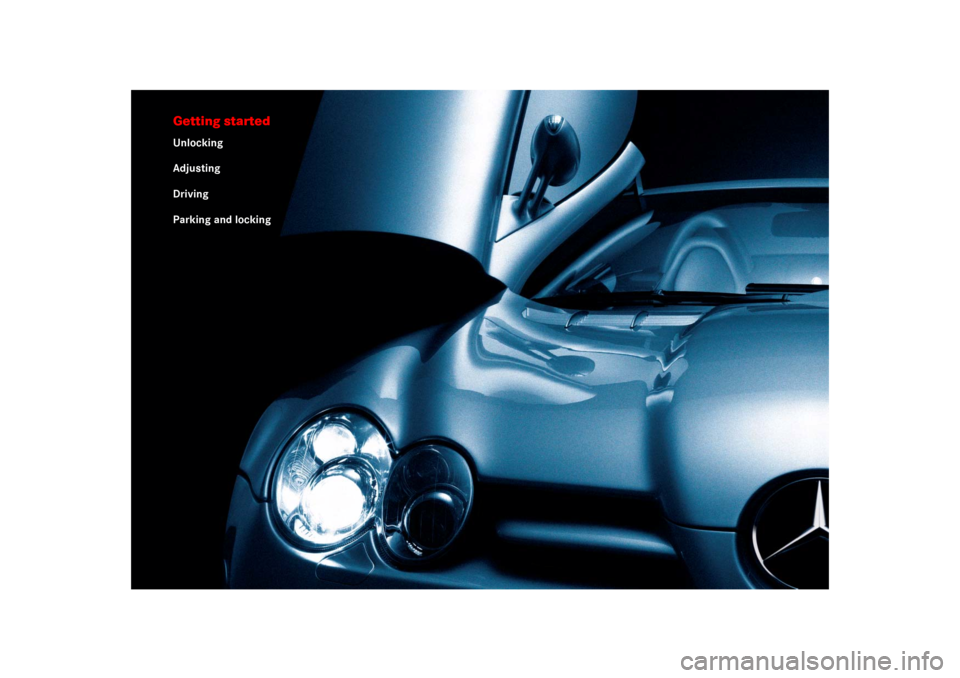

Page 36 of 426
Getting startedUnlocking
Adjusting
Driving
Parking and locking

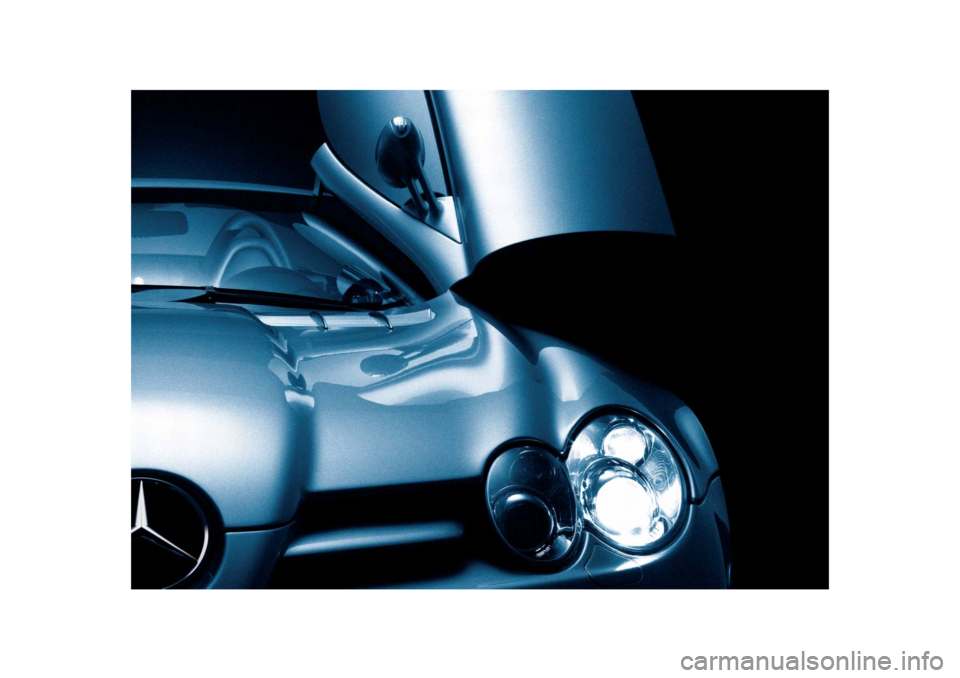

Page 37 of 426
Page 38 of 426
38 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.Unlocking
SmartKey with remote control1‹Lock button
2ŠUnlock button for trunk
3ŒUnlock button
4ÂPanic button (
page 81)
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
Page 39 of 426
39 Getting started
Unlocking
Press unlock buttonŒ on the
SmartKey.
All turn signal lamps flash once. The
anti-theft alarm system is disarmed.
5Door handle
Press the front part of the door
handle5.
The door swings outwards and
upwards automatically.
Opening a door causes the door win-
dows on that side of the vehicle to
open slightly. They will return to the up
position when the door is closed.
Enter the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 98).
i
The electro-hydraulic brake system is
activated.Warning!
G
Always stand to the rear of the door before
opening it, otherwise the opening action
may cause injury. Outside temperature may
affect door opening speed.!
Ensure sufficient side- and overhead
clearance prior to opening the doors, see “Main
dimensions” (
page 391).
Warning!
G
Only Mercedes-Benz SLR McLaren Roadster
722 S:
Because of the carbon fiber the footwell
could be slippery when wet. Be careful when
entering the vehicle with wet shoe soles,
you could slip on it.!
The door windows will not open or close if
the battery is discharged or the door windows
are impeded by ice. In this case open or close
the door with increased caution. Do not attempt
to force the door opened or closed. Doing so
may damage the door seals or the side window.
Page 40 of 426
40 Getting startedUnlockingStarter switch positions
Starter switch0For removing SmartKey
1Power supply for some consumers
2Ignition (power supply for all consum-
ers) and drive position. All lamps (ex-
cept high-beam headlamp indicator
lamp and turn signal indicator lamps
unless activated) in the instrument
cluster come on. If a lamp in the instru-
ment cluster fails to come on when the
ignition is switched on, have it checked
and replaced if necessary. If a lamp in
the instrument cluster remains on after
starting the engine or comes on while
driving, see “Lamps in instrument clus-
ter” (
page 304).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
i
When you switch on the ignition, the
indicator and warning lamps (except high-beam
headlamp indicator lamp and turn signal indica-
tor lamps unless activated) in the instrument
cluster come on. The indicator and warning
lamps (except high-beam headlamp indicator
lamp and turn signal indicator lamps if activated)
should go out when the engine is running. This
indicates that the respective systems are
operational.
!
If the SmartKey is left in the starter switch
position0 for an extended period of time, it can
no longer be turned in the starter switch.
Remove the SmartKey from the starter
switch and reinsert.
If the SmartKey can still not be turned in the
starter switch, the starter battery may not be
sufficiently charged.
Have the starter battery checked and
charged if necessary (
page 371). Contact
an authorized Mercedes-Benz Center.
To prevent accelerated battery discharge and a
possible dead battery, always remove the Smart-
Key from the starter switch when the engine is
not in operation.
