170 Controls in detailAutomatic transmissionGear ranges
With the gear selector lever in positionD,
you can limit the transmission’s gear range
by pressing the gear selector lever to the
left (D-), and reverse the gear range limit
by pressing the gear selector lever to the
right (D+).
The selected gear range appears in the
right multifunction display (
page 117). If
you press on the accelerator when the en-
gine has reached its rpm limit, the trans-
mission will upshift beyond any gear range
limit selected.
iIf, when driving in shift program mode
C and S the maximum engine speed for
the gear range has been reached, the
transmission shifts up automatically,
even if the gear range is restricted. In
shift program MAN the transmission
will not shift up automatically.
Effect
é
The transmission shifts through
fourth gear only.
è
The transmission shifts through
third gear only.With this selection you can use the
braking effect of the engine.
Effect
ç
The transmission shifts through
second gear only.
Allows the use of engine’s braking
power when driving:

on steep downgrades


in mountainous regions


under extreme operating con-
ditions
æ
The transmission operates in the
first gear only.
For maximum use of engine’s
braking effect on very steep or
lengthy downgrades.

171 Controls in detail
Automatic transmission

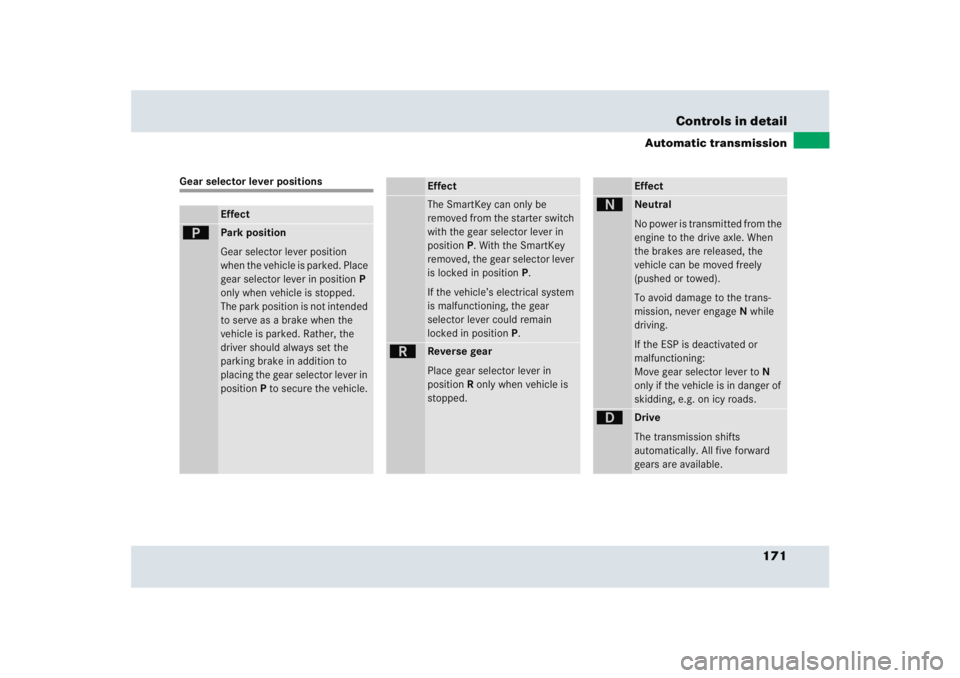

Gear selector lever positions
Effect
ì
Park position
Gear selector lever position
when the vehicle is parked. Place
gear selector lever in positionP
only when vehicle is stopped.
The park position is not intended
to serve as a brake when the
vehicle is parked. Rather, the
driver should always set the
parking brake in addition to
placing the gear selector lever in
positionP to secure the vehicle.
EffectThe SmartKey can only be
removed from the starter switch
with the gear selector lever in
positionP. With the SmartKey
removed, the gear selector lever
is locked in positionP.
If the vehicle’s electrical system
is malfunctioning, the gear
selector lever could remain
locked in positionP.
í
Reverse gear
Place gear selector lever in
positionR only when vehicle is
stopped.
Effect
ë
Neutral
No power is transmitted from the
engine to the drive axle. When
the brakes are released, the
vehicle can be moved freely
(pushed or towed).
To avoid damage to the trans-
mission, never engageN while
driving.
If the ESP is deactivated or
malfunctioning:
Move gear selector lever toN
only if the vehicle is in danger of
skidding, e.g. on icy roads.
ê
Drive
The transmission shifts
automatically. All five forward
gears are available.

172 Controls in detailAutomatic transmission
!
Coasting the vehicle, or driving for any
other reason with gear selector lever
inN can result in transmission damage
that is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Getting out of your vehicle with the gear
selector lever not fully engaged in positionP
is dangerous. Also, positionP alone is not
intended to or capable of preventing your
vehicle from moving, possibly hitting people
or objects.
Always set the parking brake in addition to
shifting to positionP (
page 56).
When parked on an incline, turn the front
wheels towards the road curb.
Do not park this vehicle in areas where
combustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could move the gear selector lever from
positionP, which could result in an accident
and/or serious personal injury.

173 Controls in detail
Automatic transmission
Shift program mode selector switch
1Program mode selector switch
C Comfort For comfort driving
MAN Manual For manual gearshift
program
S Sport For standard driving

Turn the program selector switch to the
desired setting.
Select C for comfort operation:

The vehicle starts out in second
gear for gentler starts. This does
not apply if full throttle is applied or
gear range1 is selected.


Traction and driving stability are
improved on icy roads.


Upshifts occur earlier even when
you give more gas. The engine then
operates at lower rpms and the
wheels are less likely to spin.
Select MAN for the manual gearshift pro-
gram. This program allows you to perform
manual gearshifts (
page 175).
Driving tips
Accelerator position
Your driving style influences the
transmission’s shifting behavior:
Less throttle Earlier upshifting
More throttle Later upshifting
Kickdown
Use kickdown when you want maximum
acceleration.
Press the accelerator past the point of
resistance.
The transmission shifts into a lower
gear.

Ease on the accelerator when you have
reached the desired speed.
The transmission shifts up again.

174 Controls in detailAutomatic transmissionStopping
When you stop briefly, e.g. at traffic lights:
Leave the transmission in gear.

Hold the vehicle with the brake.
When you stop longer with the engine
idling or on an uphill gradient:

Move the gear selector lever to
positionP.

Set the parking brake.Maneuvering
When you maneuver in tight areas,
e.g. when pulling into a parking space:

Control the vehicle speed by gradually
releasing the brakes.

Accelerate gently.

Never abruptly step on the accelerator.
Working on the vehicle
Steering wheel gearshift control
You can change the gears manually on the
steering wheel or by using the gear
selector lever (
page 168).
The steering wheel gearshift buttons are
located on the left and right side of the
steering wheel.
1Left button: downshift
2Right button: upshift
Warning!
G
When working on the vehicle, set the
parking brake and move gear selector lever
to positionP. Otherwise the vehicle could
roll away.

175 Controls in detail
Automatic transmission
Downshifting

Press button1 on the left side of the
steering wheel.
The transmission shifts to the next low-
er gear.
The current gear selector position ap-
pears in the right multifunction display
(page 117).
The gear range (
page 170) is limited
when you are not driving in the manual
gearshift program modeM (
page 175).
Upshifting

Press button2 on the right side of the
steering wheel.
The transmission shifts to the next
higher gear.
The current gear selector position ap-
pears in the right multifunction display
(page 117).
The gear range (
page 170) is extended
when you are not driving in the manual
gearshift program modeM (
page 175).
Manual gearshift program
In the manual gearshift programM you can
change the gears manually on the steering
wheel (
page 174) or by using the gear
selector lever (
page 168).
Activating manual gearshift program

Turn program mode selector switch1
(page 173) to the MAN setting.
The transmission switches to the
manual program modeM. The letter
M
appears in the right multifunction dis-
play and the lamp in program mode se-
lector switch3 (
page 176) comes
on. Automatic shifting is switched off.
The gear range is not limited.
iYou can change gears using the steer-
ing wheel gearshift buttons indepen-
dent of the currently selected gearshift
program (C/MAN/S).
You cannot shift with the steering
wheel gearshift buttons when the gear
selector lever is in positionP,N orR.Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.

176 Controls in detailAutomatic transmissionSelecting manual gearshift program
3Program selector switch for the manual
gearshift program
I Sport For sporty driving
II Super Sport For very sporty driving
III Race For racing-like driving
1
The individual shifting programs differ with
regard to spontaneity, response time, and
shifting smoothness.

Turn program selector switch3 to the
desired setting (I, II or III).
Downshifting

Press the button1 (
page 174) on
the left side of the steering wheel.
or

Briefly press the gear selector lever to
the left in theD-direction.
The transmission shifts to the next low-
er gear.
The current gear selector position ap-
pears in the right multifunction display
(page 117).
1Please always drive carefully and obey applicable
speed limits.
iThe currently selected manual gear-
shift program (I, II or III) does not ap-
pear in the right multifunction display.
The current setting is indicated only on
the program mode selector switch 3.Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.
iWhen you brake or stop, the transmis-
sion shifts down to a gear from which
you can easily accelerate or take off.

177 Controls in detail
Automatic transmission
Upshifting

Press the button2 (
page 174) on
the right side of the steering wheel.
or

Briefly press the gear selector lever to
the right in theD+direction.
The transmission shifts to the next
higher gear.
The current gear selector position ap-
pears in the right multifunction display
(page 117).
If the red gearshift indicator lamp>
comes on in the speedometer display
(
page 29), shift to the next higher gear.
The fuel supply will otherwise be interrupt-
ed to prevent the engine from overrevving.
Deactivating manual gearshift program

Turn program mode selector switch1
(page 173) to the C or S setting.
The selected gearshift program ap-
pears in the right multifunction display.Emergency operation
(Limp Home Mode)
If vehicle acceleration worsens or the
transmission no longer shifts, the trans-
mission is most likely operating in limp
home (emergency operation) mode. In this
mode only second gear and reverse gear
can be activated.
Stop the vehicle.

Move gear selector lever toP.

Turn off the engine.

Wait at least ten seconds before
restarting.

Restart the engine.

Move gear selector lever to positionD
(for second gear) orR.

Have the transmission checked at an
authorized Mercedes-Benz Center as
soon as possible.
!In the manual program modeM, the
transmission will not upshift, even if
the engine has reached its overrevving
range. Shift up to the next gear before
the engine has reached its overrevving
range. Make absolutely certain that the
engine speed does not reach the red
marking on the tachometer
(page 28). Otherwise the engine
could be damaged which is not covered
by the Mercedes-Benz Limited
Warranty.

178 Controls in detailGood visibilityFor information on the windshield wipers,
see (
page 53) and adjusting the mirrors,
see (page 43).
Headlamp cleaning system
The switch is located on the left side of the
dashboard.
1To clean the headlamps

Switch on the ignition (
page 40).

Press switch 1.
The headlamps are cleaned with a
high-pressure water jet.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 251).

179 Controls in detail
Good visibility
Rear view mirrors
For more information on setting the rear
view mirrors, see “Mirrors” (
page 43).
Auto-dimming mirror
The reflection brightness of the interior
rear view mirror will respond automatically
to glare when


the ignition is switched on
and


incoming light from headlamps falls on
the sensor in the interior rear view
mirror.
The rear view mirror will not react if


reverse gearR is engaged


the interior lighting is turned on
Warning!
G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
Glare can endanger you and others.Warning!
G
In the case of an accident liquid electrolyte
may escape from the mirror housing if the
mirror glass breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state and by applying plenty of
water.Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.
