MERCEDES-BENZ SLR CLASS 2005 Owners Manual

250 OperationTrunkBatteries
Your vehicle is equipped with two batter-
ies.

Starter battery in the trunk


Consumer battery in the trunk
These batteries should always be suffi-
ciently charged in order to achieve its rat-
ed service life. A flat battery must be fully
recharged. Refer to Maintenance Booklet
for battery maintenance intervals.
If you use your vehicle mostly for
short-distance trips, you will need to have
the battery charge checked more
frequently.
When replacing batteries, always use bat-
teries approved by Mercedes-Benz. Have
this work only carried out by an authorized
Mercedes-Benz Center.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.For more information on battery mainte-
nance, see “Batteries” (
page 354).
G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clean
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator’s Manual.
!You must not jump start the vehicle,
otherwise the vehicle electrical sys-
tems could be damaged.

251 OperationTrunk
Windshield washer system and head-lamp cleaning system
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approximately
7.4USqt(7l).
During all seasons, add MB Windshield
Washer Concentrate “S” to water. Premix
the windshield washer fluid in a suitable
container.
Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed
windshield washer solvent/antifreeze,
depending on ambient temperatures).
Always use washer solvent/antifreeze
where temperatures may fall below the
freezing point. Failure to do so could
result in damage to the washer
system/reservoir.The washer fluid reservoir is located in the
trunk underneath the floor on the left hand
side.
1Quick-release fasteners
2Loop

Lift up the interior floor panel by
loop2.

Turn the quick-release fasteners
counterclockwise1 and remove the
cover.
!Only use washer fluid which is suitable
for plastic lenses. Improper washer
fluid can damage the plastic lenses of
the headlamps.Warning!
G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.

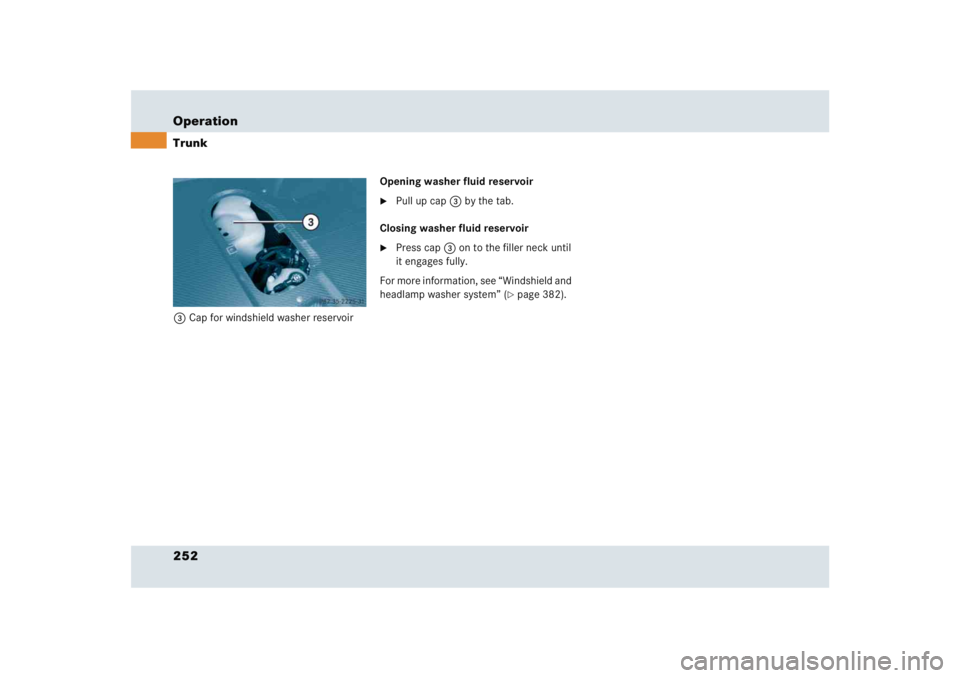

252 OperationTrunk3Cap for windshield washer reservoirOpening washer fluid reservoir

Pull up cap3 by the tab.
Closing washer fluid reservoir

Press cap3 on to the filler neck until
it engages fully.
For more information, see “Windshield and
headlamp washer system” (
page 382).

253 Operation

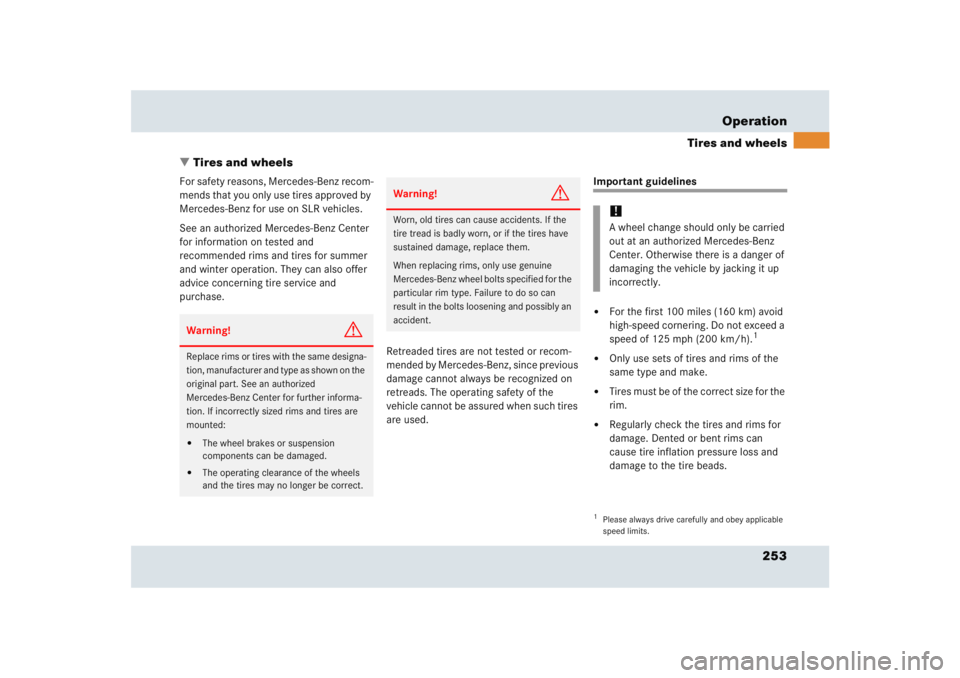

Tires and wheels
Tires and wheels
For safety reasons, Mercedes-Benz recom-
mends that you only use tires approved by
Mercedes-Benz for use on SLR vehicles.
See an authorized Mercedes-Benz Center
for information on tested and
recommended rims and tires for summer
and winter operation. They can also offer
advice concerning tire service and
purchase.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. The operating safety of the
vehicle cannot be assured when such tires
are used.
Important guidelines

For the first 100 miles (160 km) avoid
high-speed cornering. Do not exceed a
speed of 125 mph (200 km/h).
1


Only use sets of tires and rims of the
same type and make.


Tires must be of the correct size for the
rim.


Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire inflation pressure loss and
damage to the tire beads.
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See an authorized
Mercedes-Benz Center for further informa-
tion. If incorrectly sized rims and tires are
mounted:

The wheel brakes or suspension
components can be damaged.


The operating clearance of the wheels
and the tires may no longer be correct.
Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can
result in the bolts loosening and possibly an
accident.
!A wheel change should only be carried
out at an authorized Mercedes-Benz
Center. Otherwise there is a danger of
damaging the vehicle by jacking it up
incorrectly.
1Please always drive carefully and obey applicable
speed limits.

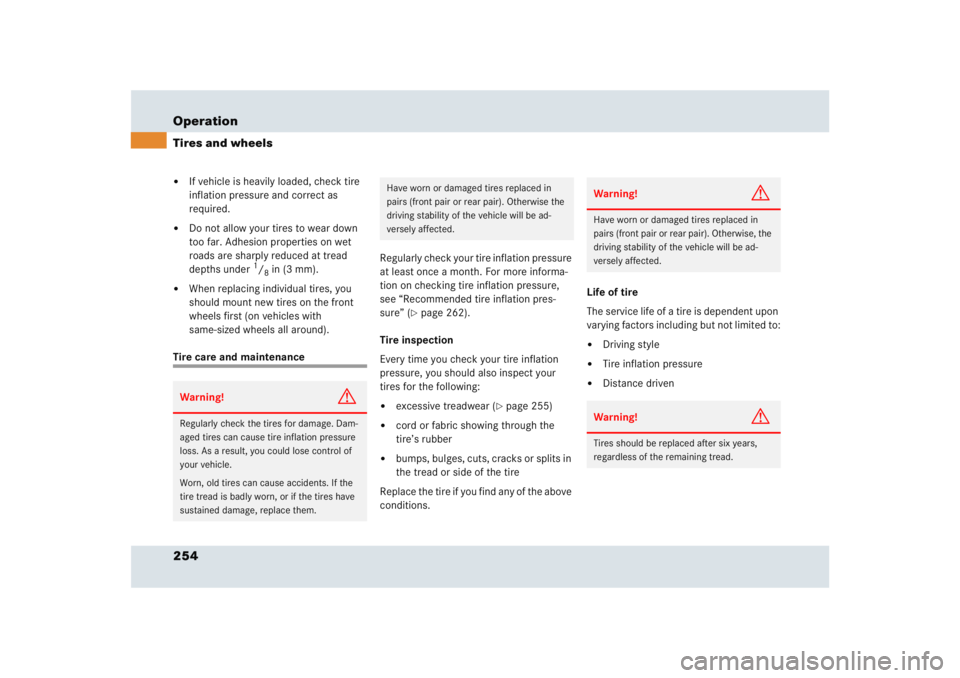

254 OperationTires and wheels

If vehicle is heavily loaded, check tire
inflation pressure and correct as
required.


Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).


When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Tire care and maintenanceRegularly check your tire inflation pressure
at least once a month. For more informa-
tion on checking tire inflation pressure,
see “Recommended tire inflation pres-
sure” (
page 262).
Tire inspection
Every time you check your tire inflation
pressure, you should also inspect your
tires for the following:


excessive treadwear (
page 255)


cord or fabric showing through the
tire’s rubber


bumps, bulges, cuts, cracks or splits in
the tread or side of the tire
Replace the tire if you find any of the above
conditions.Life of tire
The service life of a tire is dependent upon
varying factors including but not limited to:


Driving style


Tire inflation pressure


Distance driven
Warning!
G
Regularly check the tires for damage. Dam-
aged tires can cause tire inflation pressure
loss. As a result, you could lose control of
your vehicle.
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
Have worn or damaged tires replaced in
pairs (front pair or rear pair). Otherwise the
driving stability of the vehicle will be ad-
versely affected.
Warning!
G
Have worn or damaged tires replaced in
pairs (front pair or rear pair). Otherwise, the
driving stability of the vehicle will be ad-
versely affected. Warning!
G
Tires should be replaced after six years,
regardless of the remaining tread.

255 Operation
Tires and wheels

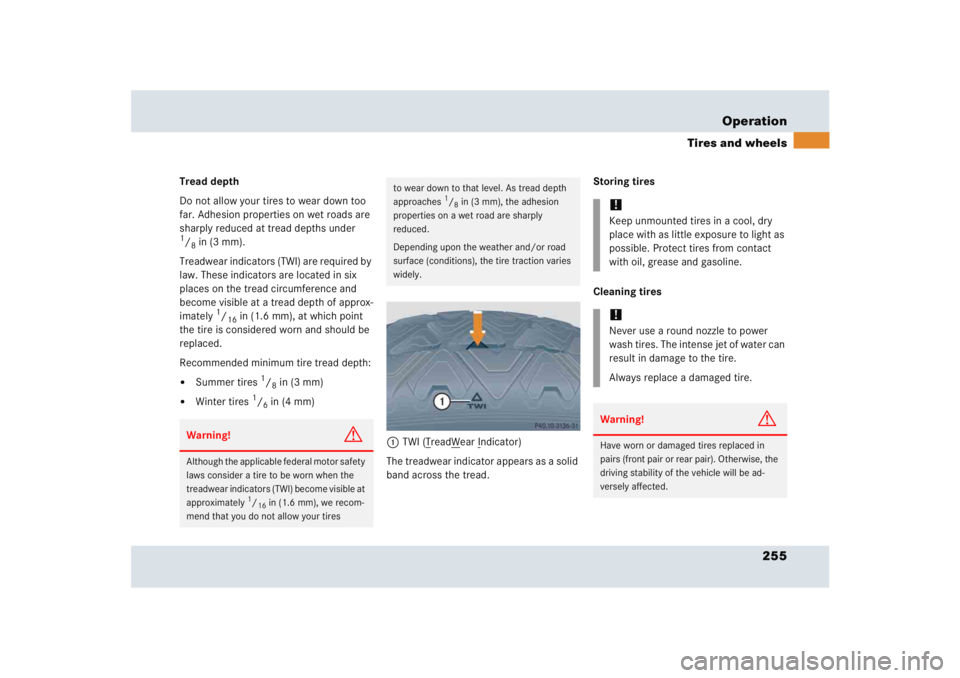

Tread depth
Do not allow your tires to wear down too
far. Adhesion properties on wet roads are
sharply reduced at tread depths under 1/8in (3 mm).
Treadwear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and
become visible at a tread depth of approx-
imately
1/16
in (1.6 mm), at which point
the tire is considered worn and should be
replaced.
Recommended minimum tire tread depth:


Summer tires
1/8in (3 mm)


Winter tires
1/6in (4 mm)
1TWI (T
readW
ear I
ndicator)
The treadwear indicator appears as a solid
band across the tread.Storing tires
Cleaning tires
Warning!
G
Although the applicable federal motor safety
laws consider a tire to be worn when the
treadwear indicators (TWI) become visible at
approximately
1/16in (1.6 mm), we recom-
mend that you do not allow your tires
to wear down to that level. As tread depth
approaches
1/8in (3 mm), the adhesion
properties on a wet road are sharply
reduced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.
!Keep unmounted tires in a cool, dry
place with as little exposure to light as
possible. Protect tires from contact
with oil, grease and gasoline.!Never use a round nozzle to power
wash tires. The intense jet of water can
result in damage to the tire.
Always replace a damaged tire.Warning!
G
Have worn or damaged tires replaced in
pairs (front pair or rear pair). Otherwise, the
driving stability of the vehicle will be ad-
versely affected.

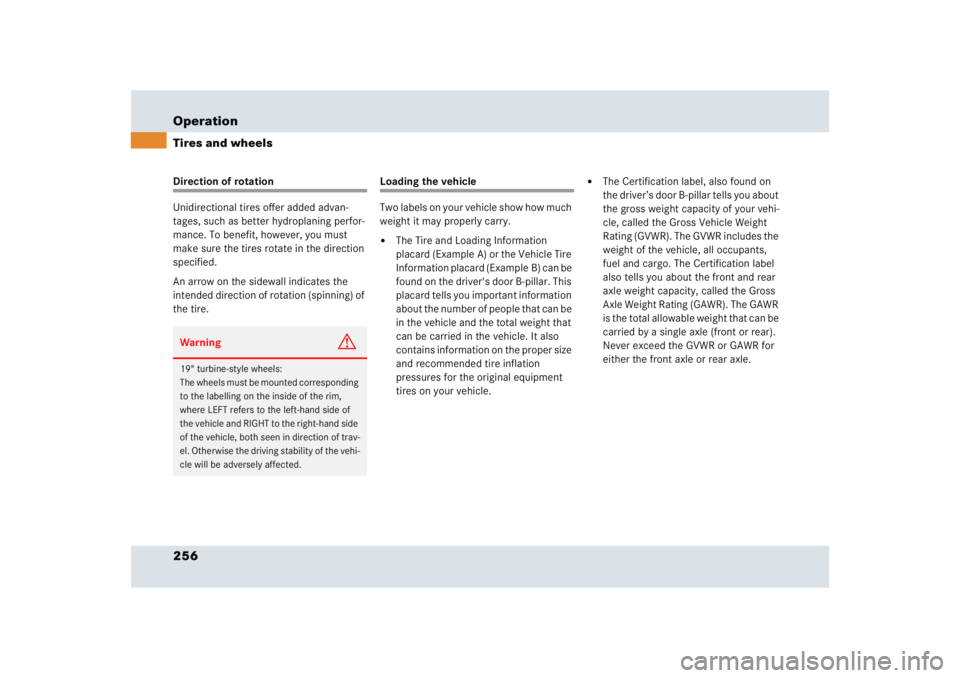

256 OperationTires and wheelsDirection of rotation
Unidirectional tires offer added advan-
tages, such as better hydroplaning perfor-
mance. To benefit, however, you must
make sure the tires rotate in the direction
specified.
An arrow on the sidewall indicates the
intended direction of rotation (spinning) of
the tire.
Loading the vehicle
Two labels on your vehicle show how much
weight it may properly carry.

The Tire and Loading Information
placard (Example A) or the Vehicle Tire
Information placard (Example B) can be
found on the driver's door B-pillar. This
placard tells you important information
about the number of people that can be
in the vehicle and the total weight that
can be carried in the vehicle. It also
contains information on the proper size
and recommended tire inflation
pressures for the original equipment
tires on your vehicle.


The Certification label, also found on
the driver’s door B-pillar tells you about
the gross weight capacity of your vehi-
cle, called the Gross Vehicle Weight
Rating (GVWR). The GVWR includes the
weight of the vehicle, all occupants,
fuel and cargo. The Certification label
also tells you about the front and rear
axle weight capacity, called the Gross
Axle Weight Rating (GAWR). The GAWR
is the total allowable weight that can be
carried by a single axle (front or rear).
Never exceed the GVWR or GAWR for
either the front axle or rear axle.
Warning
G
19" turbine-style wheels:
The wheels must be mounted corresponding
to the labelling on the inside of the rim,
where LEFT refers to the left-hand side of
the vehicle and RIGHT to the right-hand side
of the vehicle, both seen in direction of trav-
el. Otherwise the driving stability of the vehi-
cle will be adversely affected.

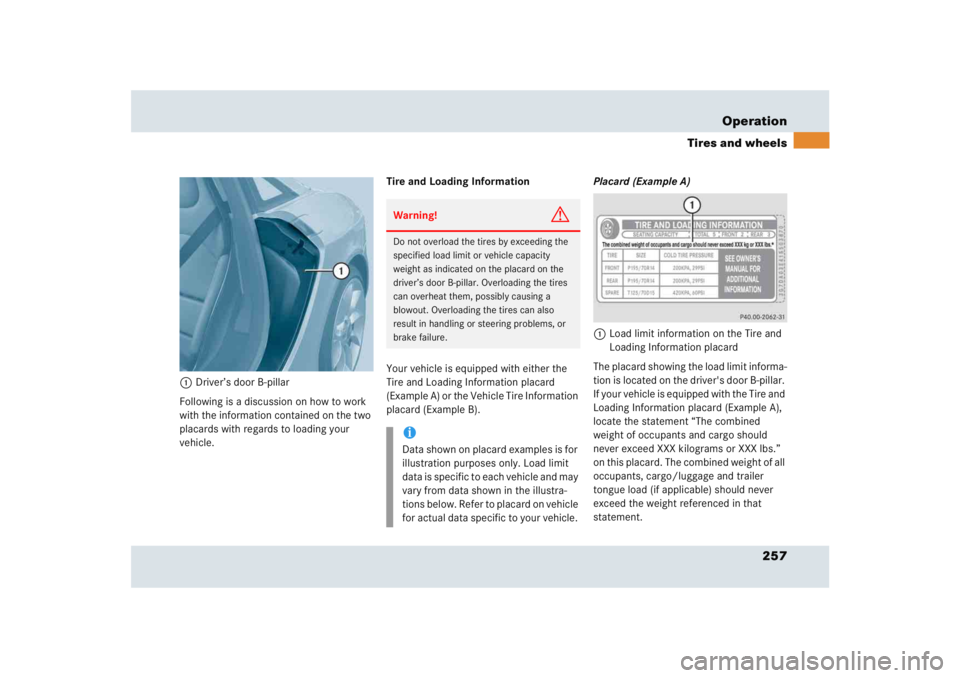

257 Operation
Tires and wheels
1Driver’s door B-pillar
Following is a discussion on how to work
with the information contained on the two
placards with regards to loading your
vehicle.Tire and Loading Information
Your vehicle is equipped with either the
Tire and Loading Information placard
(Example A) or the Vehicle Tire Information

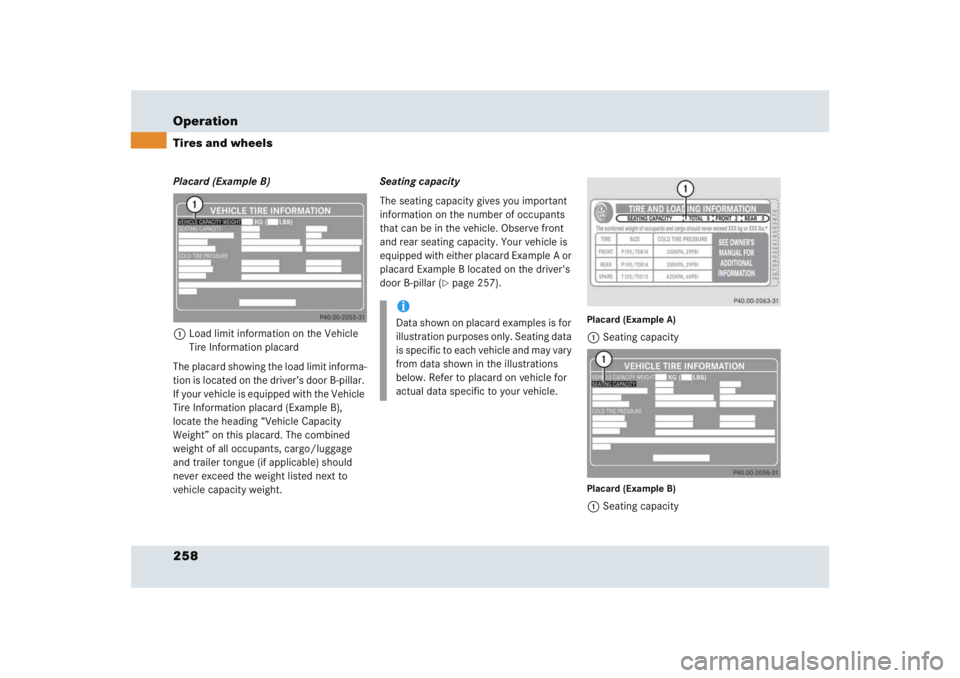

placard (Example B). Placard (Example A)
1Load limit information on the Tire and
Loading Information placard
The placard showing the load limit informa-
tion is located on the driver's door B-pillar.
If your vehicle is equipped with the Tire and
Loading Information placard (Example A),
locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kilograms or XXX lbs.”
on this placard. The combined weight of all
occupants, cargo/luggage and trailer
tongue load (if applicable) should never
exceed the weight referenced in that
statement.
Warning!
G
Do not overload the tires by exceeding the
specified load limit or vehicle capacity
weight as indicated on the placard on the
driver’s door B-pillar. Overloading the tires
can overheat them, possibly causing a
blowout. Overloading the tires can also
result in handling or steering problems, or
brake failure.iData shown on placard examples is for
illustration purposes only. Load limit
data is specific to each vehicle and may
vary from data shown in the illustra-
tions below. Refer to placard on vehicle
for actual data specific to your vehicle.

258 OperationTires and wheelsPlacard (Example B)
1Load limit information on the Vehicle
Tire Information placard
The placard showing the load limit informa-
tion is located on the driver’s door B-pillar.
If your vehicle is equipped with the Vehicle
Tire Information placard (Example B),
locate the heading “Vehicle Capacity
Weight” on this placard. The combined
weight of all occupants, cargo/luggage
and trailer tongue (if applicable) should
never exceed the weight listed next to
vehicle capacity weight.Seating capacity
The seating capacity gives you important
information on the number of occupants
that can be in the vehicle. Observe front
and rear seating capacity. Your vehicle is
equipped with either placard Example A or
placard Example B located on the driver's
door B-pillar (
page 257).
Placard (Example A)1Seating capacityPlacard (Example B)1Seating capacity
iData shown on placard examples is for
illustration purposes only. Seating data
is specific to each vehicle and may vary
from data shown in the illustrations
below. Refer to placard on vehicle for
actual data specific to your vehicle.

259 Operation
Tires and wheels

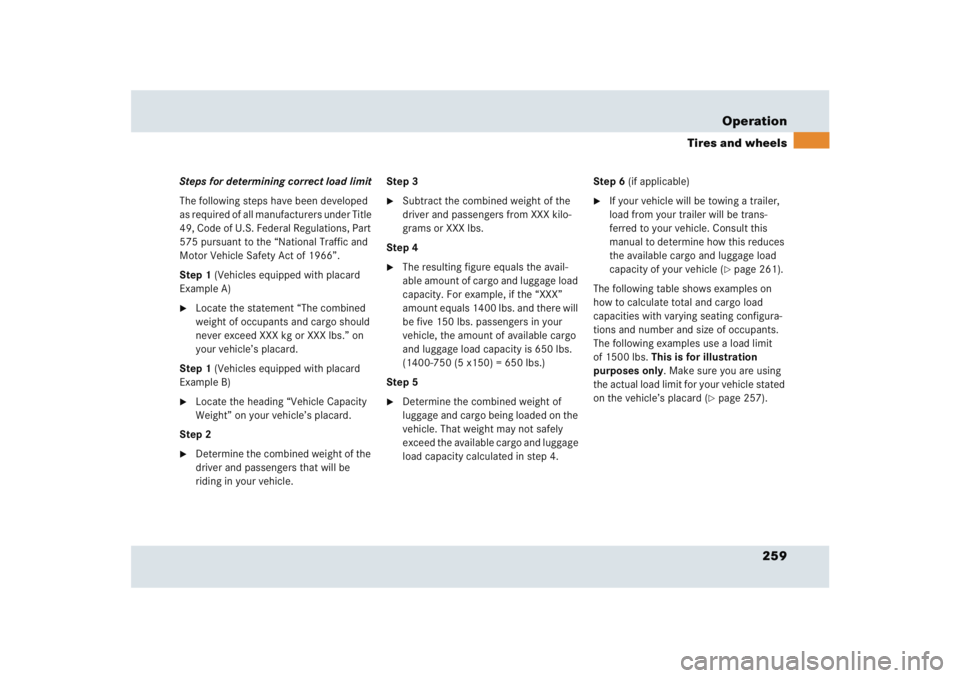

Steps for determining correct load limit
The following steps have been developed
as required of all manufacturers under Title
49, Code of U.S. Federal Regulations, Part
575 pursuant to the “National Traffic and
Motor Vehicle Safety Act of 1966”.
Step 1 (Vehicles equipped with placard
Example A)
Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs.” on
your vehicle’s placard.
Step 1 (Vehicles equipped with placard
Example B)

Locate the heading “Vehicle Capacity
Weight” on your vehicle’s placard.
Step 2

Determine the combined weight of the
driver and passengers that will be
riding in your vehicle.Step 3

Subtract the combined weight of the
driver and passengers from XXX kilo-
grams or XXX lbs.
Step 4

The resulting figure equals the avail-
able amount of cargo and luggage load
capacity. For example, if the “XXX”
amount equals 1400 lbs. and there will
be five 150 lbs. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400-750 (5 x150) = 650 lbs.)
Step 5

Determine the combined weight of
luggage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in step 4.Step 6 (if applicable)

If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this reduces
the available cargo and luggage load
capacity of your vehicle (
page 261).
The following table shows examples on
how to calculate total and cargo load
capacities with varying seating configura-
tions and number and size of occupants.
The following examples use a load limit
of 1500 lbs. This is for illustration
purposes only. Make sure you are using
the actual load limit for your vehicle stated
on the vehicle’s placard (
page 257).
