380 Technical data
Engine
ModelMercedes-Benz SLR McLaren
(199.376)1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
Mercedes-Benz SLR McLaren 722 Edition
(199.376)1
Engine155155
Mode of operation4-stroke engine, gasoline injection4-stroke engine, gasoline injection
No. of cylinders88
Bore3.82 in (97.00 mm)3.82 in (97.00 mm)
Stroke3.60 in (92.00 mm)3.60 in (92.00 mm)
Total piston displacement331.8 cu in (5439 cm3)331.8 cu in (5439 cm3)
Compression ratio8.8:18.8:1
Output acc. to SAE J 1349617 hp/6500 rpm2
(460 kW/6500 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
641 hp/6500 rpm2
(478 kW/6500 rpm)
Maximum torque acc. to SAE J 1349575 lb-ft/3250-5000 rpm
(780 Nm/3250-5000 rpm)605 lb-ft/4000 rpm
(820 Nm/4000 rpm)
Maximum engine speed7000 rpm7000 rpm
Firing order1-5-4-2-6-3-7-81-5-4-2-6-3-7-8
Poly-V-belt2415 mm/1244 mm2415 mm/1244 mm

381 Technical data
Rims and tires
Rims and tires
!For safety reasons, only use tires and rims
which have been tested and approved by
Mercedes-Benz for use on SLR vehicles. Tires
approved by Mercedes-Benz are developed to
provide best possible performance in conjunc-
tion with the driving safety systems on your
vehicle such as ABS or ESP
®.
!Using tires and rims other than those ap-
proved by Mercedes-Benz can have detrimental
effects, such as

Poor handling characteristics

Increased noise

Increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit dimen-
sional variations and different tire deformation
characteristics that could cause them to come
into contact with the vehicle body or axle parts.
This may result in damage to the tires or the
vehicle.
iFurther information on tires and rims is
available at any authorized Mercedes-Benz Cen-
ter. A placard with the recommended tire infla-
tion pressures is located on the driver’s door
B-pillar. Some vehicles may have supplemental
tire pressure information for driving at high
speeds (
page 268) or for vehicle loads less
than the maximum loaded vehicle condition. If
such information is provided, it can be found on
the placard located on the inside of the fuel filler
flap. The tire pressure should be checked regu-
larly and should only be adjusted on cold tires.
Follow tire manufacturer’s maintenance
recommendation included with vehicle.

382 Technical data
Rims and tires
Mixed size tires
Only Mercedes-Benz SLR McLaren:
Turbine-style10-spoke-style*
Front axle:
Rims (light alloy)9 J x 199 J x 18
Wheel offset1.83 in (46.5 mm)1.77 in (45 mm)
Summer tires (radial-ply tires)255/35 ZR19 (96Y) XL1245/40 ZR18 (93Y)
Rear axle:
Rims (light alloy)111/2 J x 19111/2 J x 18
Wheel offset1.73 in (44 mm)1.73 in (44 mm)
Summer tires (radial-ply tires)295/30 ZR19 (100Y) XL1295/35 ZR18 (99Y)1
1Must not be used with snow chains.
!Only use Michelin tires of the sizes and
types noted above. They are the only tires
approved for use on the Mercedes-Benz SLR
McLaren. Use of tires not specially approved for
the Mercedes-Benz SLR McLaren could result in
unanticipated performance characteristics. For
more information, contact an authorized
Mercedes-Benz Center.

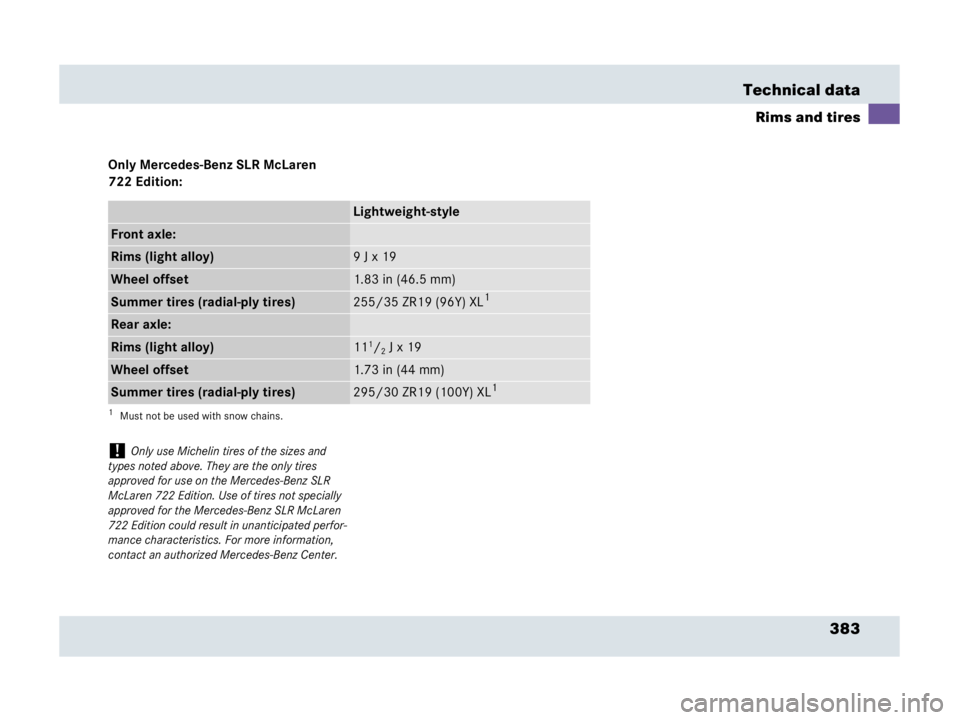

383 Technical data
Rims and tires
Only Mercedes-Benz SLR McLaren
722 Edition:
Lightweight-style
Front axle:
Rims (light alloy)9 J x 19
Wheel offset1.83 in (46.5 mm)
Summer tires (radial-ply tires)255/35 ZR19 (96Y) XL1
Rear axle:
Rims (light alloy)111/2 J x 19
Wheel offset1.73 in (44 mm)
Summer tires (radial-ply tires)295/30 ZR19 (100Y) XL1
1Must not be used with snow chains.
!Only use Michelin tires of the sizes and
types noted above. They are the only tires
approved for use on the Mercedes-Benz SLR
McLaren 722 Edition. Use of tires not specially
approved for the Mercedes-Benz SLR McLaren
722 Edition could result in unanticipated perfor-
mance characteristics. For more information,
contact an authorized Mercedes-Benz Center.

384 Technical data
Rims and tires
Winter tires*
Only Mercedes-Benz SLR McLaren:
Front axle:
Rims (light alloy)9 J x 18
Wheel offset1.77 in (45 mm)
Tires (radial-ply tires)245/40 R18 97V XL M+S.
Rear axle:
Rims (light alloy)9 J x 18
Wheel offset1.77 in (45 mm)
Tires (radial-ply tires)245/40 R18 97V XL M+S.
!Only use Michelin tires of the sizes and
types noted above. They are the only tires
approved for use on the SLR. Use of tires not
specially approved for the SLR could result in
unanticipated performance characteristics. For
more information, contact an authorized
Mercedes-Benz Center.

385 Technical data
Rims and tires
Only Mercedes-Benz SLR McLaren
722 Edition:
Front axle:
Rims (light alloy)9 J x 19
Wheel offset1.83 in (46.5 mm)
Tires (radial-ply tires)255/35 R19V 96 XL M+S.1
Rear axle:
Rims (light alloy)9 J x 19
Wheel offset1.83 in (46.5 mm)
Tires (radial-ply tires)255/35 R19V 96 XL M+S.1
1Must not be used with snow chains.
!Only use Dunlop tires of the sizes and types
noted above. They are the only tires approved for
use on the Mercedes-Benz SLR McLaren 722
Edition. Use of tires not specially approved for
the Mercedes-Benz SLR McLaren 722 Edition
could result in unanticipated performance char-
acteristics. For more information, contact an
authorized Mercedes-Benz Center.

386 Technical data
Electrical system
Mercedes-Benz SLR McLarenMercedes-Benz SLR McLaren 722 Edition
Generator (alternator)14 V/150 A14 V/150 A
Starter motor12 V/1.7 kW12 V/1.7 kW
Battery
Starter battery12 V/35 Ah12 V/35 Ah
Battery for electrical consumers12 V/70 Ah12 V/70 Ah
Spark plugsNGK ILFR6ANGK ILFR6A
Electrode gap0.031 in (0.8 mm)0.031 in (0.8 mm)
Tightening torque18 – 22 lb-ft (25 – 30 Nm)18 – 22 lb-ft (25 – 30 Nm)

387 Technical data
Main dimensions
Main dimensions
Mercedes-Benz SLR McLarenMercedes-Benz SLR McLaren 722 Edition
Overall vehicle length183.3 in (4656 mm)183.3 in (4656 mm)
Overall vehicle width75.1 in (1908 mm)75.1 in (1908 mm)
Overall vehicle width
(doors open - widest point)111.7 in (2838 mm)111.7 in (2838 mm)
Overall vehicle height49.6 in (1261 mm)49.3 in (1251 mm)
Overall vehicle height
(doors open - highest point)80.5 in (2045 mm)80.1 in (2035 mm)
Wheelbase106.3 in (2700 mm)106.3 in (2700 mm)
Track, front64.5 in (1638 mm)64.5 in (1638 mm)
Track, rear61.8 in (1569 mm)61.8 in (1569 mm)

388 Technical data
Weights
Mercedes-Benz SLR McLarenMercedes-Benz SLR McLaren 722 Edition
Trunk load max.220 lb (100 kg)220 lb (100 kg)

389 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by
Mercedes-Benz.
Please refer to the Factory Approved
Service Products pamphlet (USA only), or
inquire at an authorized Mercedes-Benz
Center.
Warning!G
Comply with all valid regulations with
respect to handling, storing and disposing of
service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent ser-
vice fluids from coming into direct contact
with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.
CapacityFuels, coolants, lubricants, etc.
Engine with oil filter9.0 US qt (8.5 l)Approved engine oils
Automatic transmission8.5 US qt (8.0 l)MB Automatic Transmission Fluid
Rear axle2.3 US qt (2.2 l)Hypoid gear oil SAE 75 W 85
Power steeringapprox. 1.15 US qt (1.1 l)MB Power Steering Fluid
(Pentosin CHF 11S)
Brake system1.6 US qt (1.5 l)MB Brake Fluid (DOT 4+)
