fuse box MERCEDES-BENZ SLS-CLASS 2013 Owners Manual

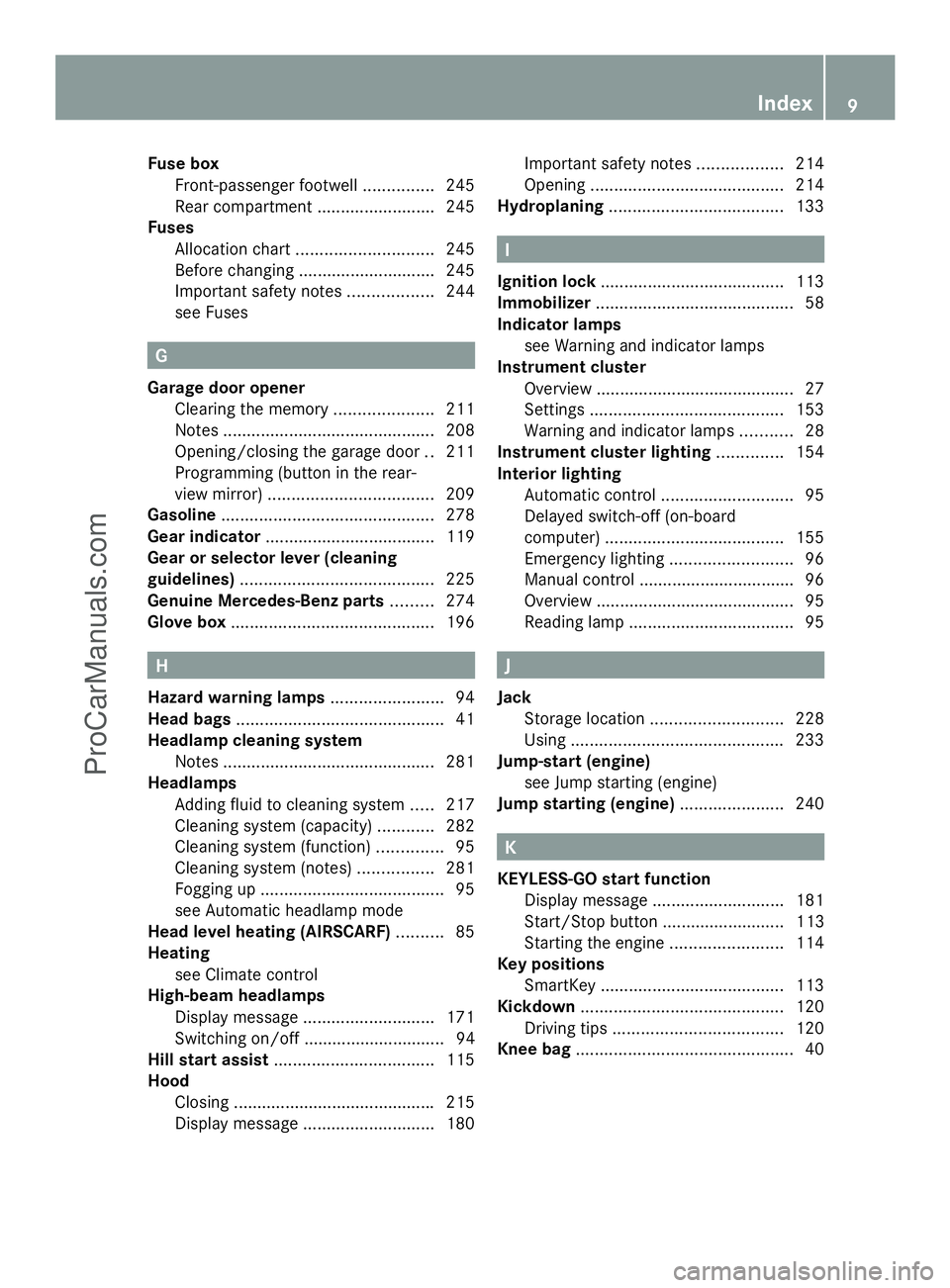

Fuse box
Front-passenger footwell ...............245
Rear compartment .........................245
Fuses
Allocation chart ............................. 245
Before changing ............................. 245
Important safety notes ..................244
see Fuses G
Garage door opener Clearing the memory .....................211
Notes ............................................. 208
Opening/closing the garage door ..211
Programming (button in the rear-
view mirror) ................................... 209
Gasoline ............................................. 278
Gear indicator .................................... 119
Gear or selector lever (cleaning
guidelines) ......................................... 225
Genuine Mercedes-Benz parts .........274
Glove box ........................................... 196H
Hazard warning lamps ........................94
Head bags ............................................ 41
Headlamp cleaning system Notes ............................................. 281
Headlamps
Adding fluid to cleaning system .....217
Cleaning system (capacity )............ 282
Cleaning system (function) ..............95
Cleaning system (notes) ................281
Fogging up ....................................... 95
see Automatic headlamp mode
Head level heating (AIRSCARF) ..........85
Heating see Climate control
High-beam headlamps
Display message ............................ 171
Switching on/off .............................. 94
Hill start assist .................................. 115
Hood Closing .......................................... .215
Display message ............................ 180Important safety notes
..................214
Opening ......................................... 214
Hydroplaning ..................................... 133 I
Ignition lock ....................................... 113
Immobilizer .......................................... 58
Indicator lamps see Warning and indicator lamps
Instrument cluster
Overview .......................................... 27
Settings ......................................... 153
Warning and indicator lamps ...........28
Instrument cluster lighting ..............154
Interior lighting Automatic control ............................ 95
Delayed switch-off (on-board
computer) ...................................... 155
Emergency lighting ..........................96
Manual control ................................ .96
Overview .......................................... 95
Reading lamp ................................... 95 J
Jack Storage location ............................ 228
Using ............................................. 233
Jump-start (engine)
see Jump starting (engine)
Jump starting (engine) ......................240 K
KEYLESS-GO start function Display message ............................ 181
Start/Stop button .......................... 113
Starting the engine ........................114
Key positions
SmartKey ....................................... 113
Kickdown ........................................... 120
Driving tips .................................... 120
Knee bag .............................................. 40 Index
9ProCarManuals.com

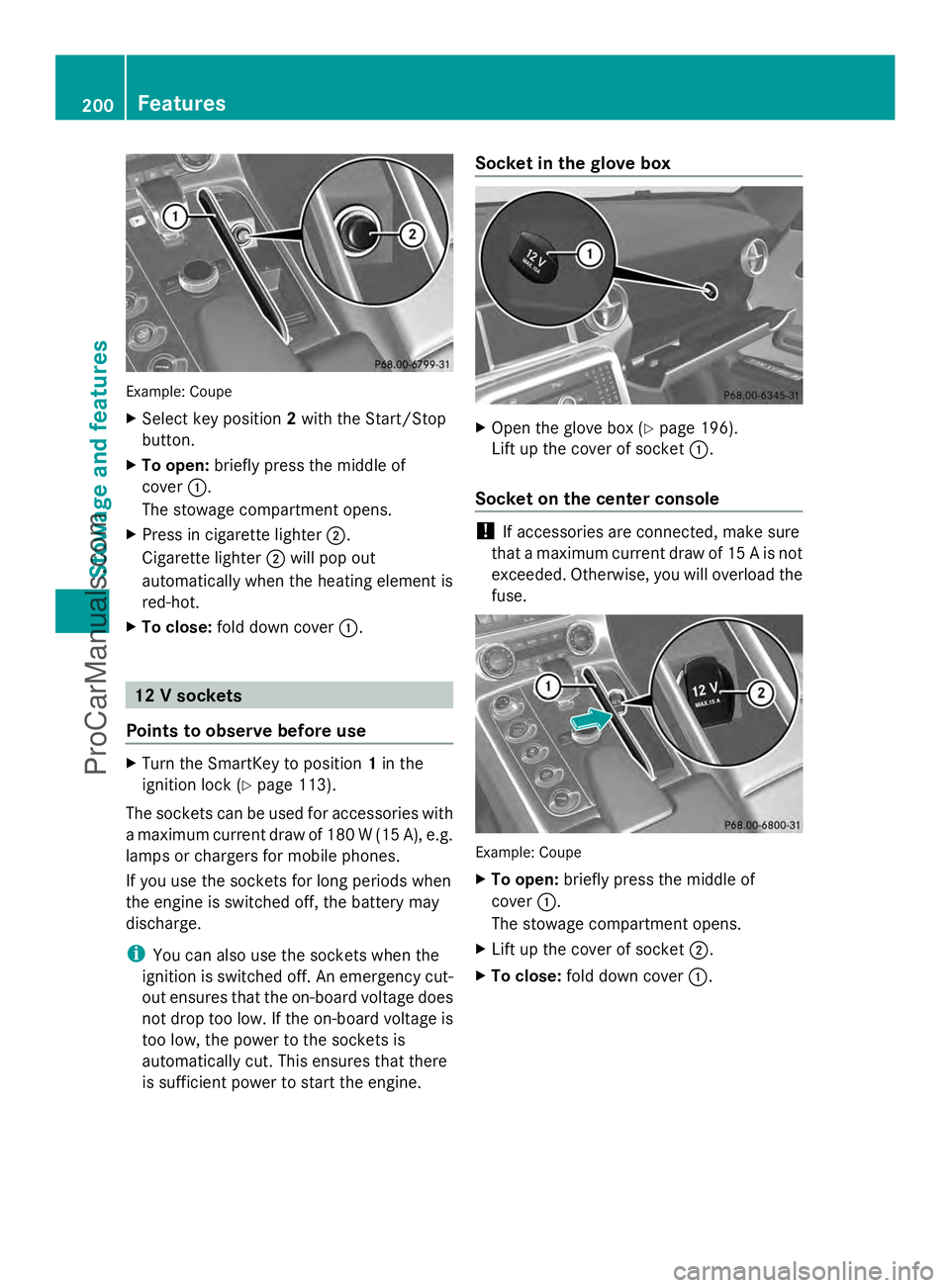

Example: Coupe
X
Select key position 2with the Start/Stop
button.
X To open: briefly press the middle of
cover :.
The stowage compartment opens.
X Press in cigarette lighter ;.
Cigarette lighter ;will pop out
automatically when the heating element is
red-hot.
X To close: fold down cover :. 12 V sockets
Points to observe before use X
Turn the SmartKey to position 1in the
ignition lock (Y page 113).
The sockets can be used for accessories with
a maximum current draw of 180 W (15 A), e.g.
lamps or chargers for mobile phones.
If you use the sockets for long periods when
the engine is switched off, the battery may
discharge.
i You can also use the sockets when the
ignition is switched off. An emergency cut-
out ensures that the on-board voltage does
not drop too low. If the on-board voltage is
too low, the power to the sockets is
automatically cut. This ensures that there
is sufficient power to start the engine. Socket in the glove box
X
Open the glove box (Y page 196).
Lift up the cover of socket :.
Socket on the center console !
If accessories are connected, make sure
that a maximum current draw of 15 A is not
exceeded. Otherwise, you will overload the
fuse. Example: Coupe
X
To open: briefly press the middle of
cover :.
The stowage compartment opens.
X Lift up the cover of socket ;.
X To close: fold down cover :.200
FeaturesSto
wage an d features
ProCarManuals.com

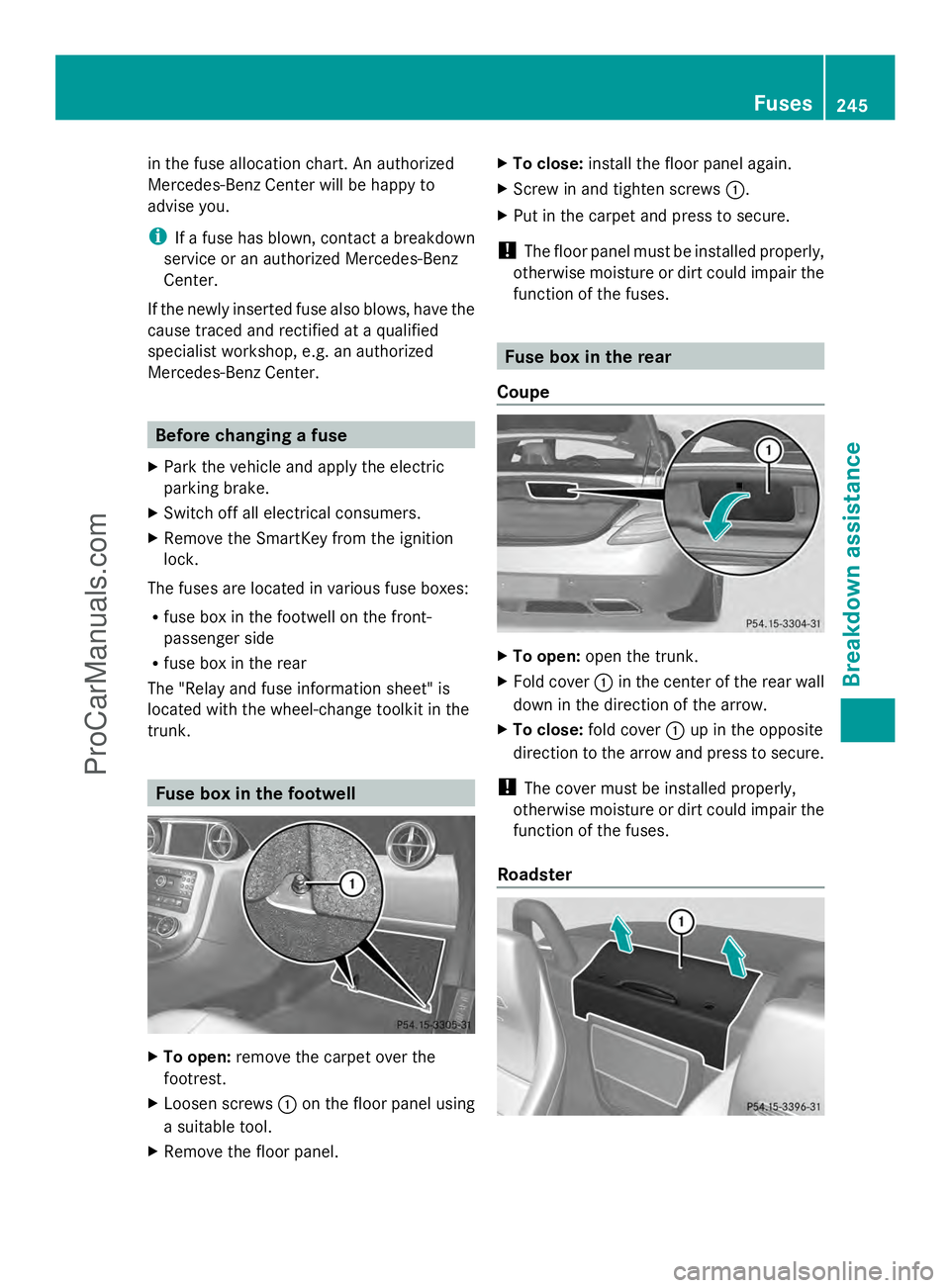

in the fuse allocation chart. An authorized
Mercedes-Benz Center will be happy to
advise you.
i If a fuse has blown, contact a breakdown
service or an authorized Mercedes-Benz
Center.
If the newly inserted fuse also blows, have the
cause traced and rectified at a qualified
specialist workshop, e.g. an authorized
Mercedes-Benz Center. Before changing a fuse
X Park the vehicle and apply the electric
parking brake.
X Switch off all electrical consumers.
X Remove the SmartKey from the ignition
lock.
The fuses are located in various fuse boxes:
R fuse box in the footwell on the front-
passenger side
R fuse box in the rear
The "Relay and fuse information sheet" is
located with the wheel-change toolkit in the
trunk. Fuse box in the footwell
X
To open: remove the carpet over the
footrest.
X Loosen screws :on the floor panel using
a suitable tool.
X Remove the floor panel. X
To close: install the floor panel again.
X Screw in and tighten screws :.
X Put in the carpet and press to secure.
! The floor panel must be installed properly,
otherwise moisture or dirt could impair the
function of the fuses. Fuse box in the rear
Coupe X
To open: open the trunk.
X Fold cover :in the center of the rear wall
down in the direction of the arrow.
X To close: fold cover :up in the opposite
direction to the arrow and press to secure.
! The cover must be installed properly,
otherwise moisture or dirt could impair the
function of the fuses.
Roadster Fuses
245Breakdown assistance Z
