climate settings MERCEDES-BENZ WAGON 2016 Owners Manual

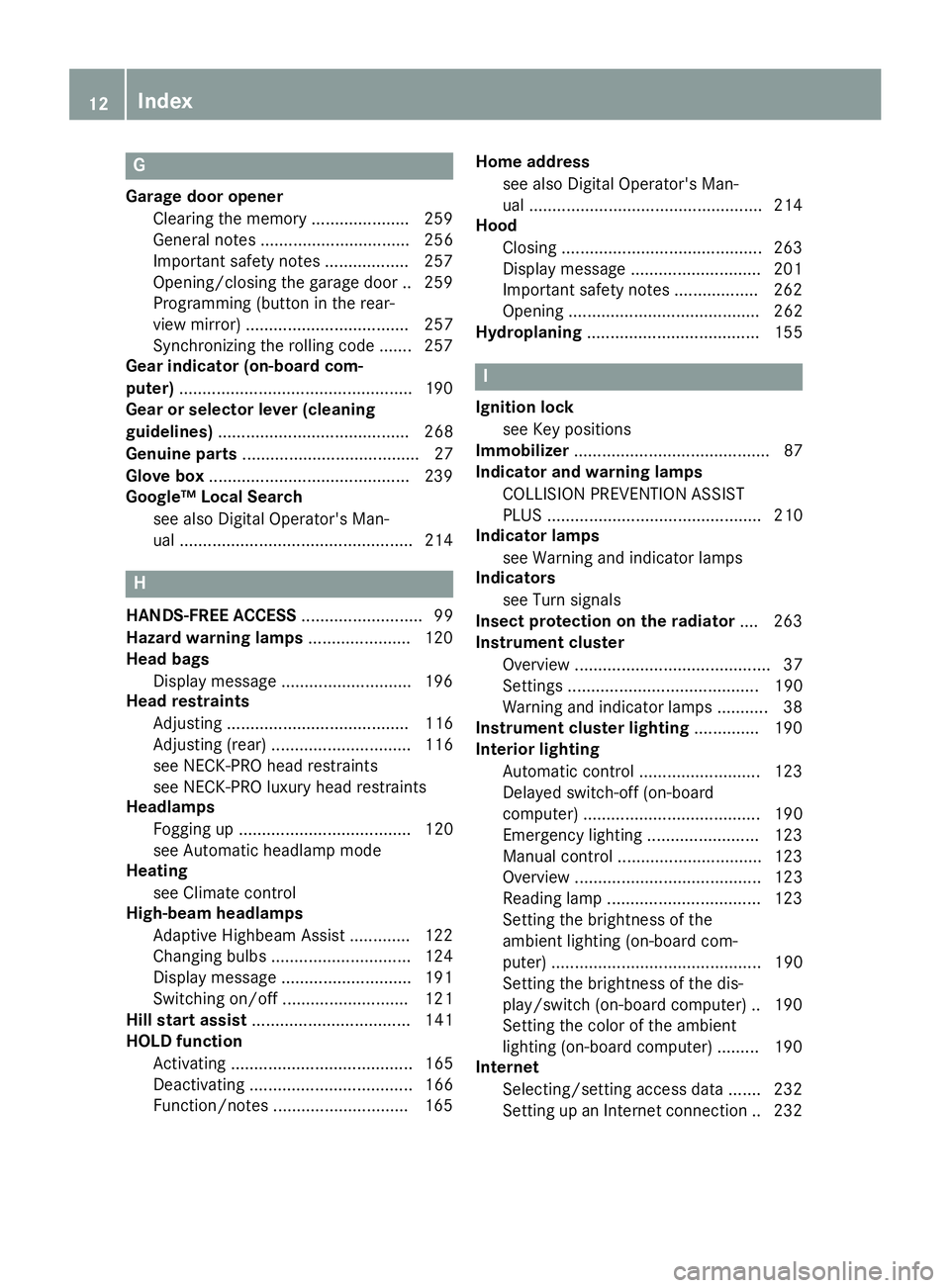

G
Garage door openerClearing the memory .....................2 59
General notes ................................ 256
Important safety notes .................. 257
Opening/closing the garage door .. 259
Programming (button in the rear-
view mirror) ................................... 257
Synchronizing the rolling code ....... 257
Gear indicator (on-board com-
puter) ..................................................1 90
Gear or selector lever (cleaning
guidelines) ......................................... 268
Genuine parts ...................................... 27
Glove box ...........................................2 39
Google™ Local Search
see also Digital Operator's Man-
ual ..................................................2 14
H
HANDS-FREE ACCESS.......................... 99
Hazard warning lamps ......................120
Head bags
Display message ............................ 196
Head restraints
Adjusting ....................................... 116
Adjusting (rear) .............................. 116
see NECK-PRO head restraints
see NECK-PRO luxury head restraints
Headlamps
Fogging up ..................................... 120
see Automatic headlamp mode
Heating
see Climate control
High-beam headlamps
Adaptive Highbeam Assist ............. 122
Changing bulbs .............................. 124
Display message ............................ 191
Switching on/off ........................... 121
Hill start assist .................................. 141
HOLD function
Activating ....................................... 165
Deactivating ................................... 166
Function/notes .............................1 65Home address
see also Digital Operator's Man-
ual ..................................................2 14
Hood
Closing ...........................................2 63
Display message ............................ 201
Important safety notes .................. 262
Opening ......................................... 262
Hydroplaning ..................................... 155
I
Ignition lock
see Key positions
Immobilizer .......................................... 87
Indicator and warning lamps
COLLISION PREVENTION ASSIST
PLUS .............................................. 210
Indicator lamps
see Warning and indicator lamps
Indicators
see Turn signals
Insect protection on the radiator .... 263
Instrument cluster
Overview .......................................... 37
Settings ......................................... 190
Warning and indicator lamps ........... 38
Instrument cluster lighting .............. 190
Interior lighting
Automatic control .......................... 123
Delayed switch-off (on-board
computer) ...................................... 190
Emergency lighting ........................ 123
Manual control ............................... 123
Overview ........................................ 123
Reading lamp ................................. 123
Setting the brightness of the
ambient lighting (on-board com-
puter) ............................................. 190
Setting the brightness of the dis-
play/switch (on-board computer) .. 190
Setting the color of the ambient
lighting (on-board computer) ......... 190
Internet
Selecting/setting access data ....... 232
Setting up an Internet connection .. 232
12Index

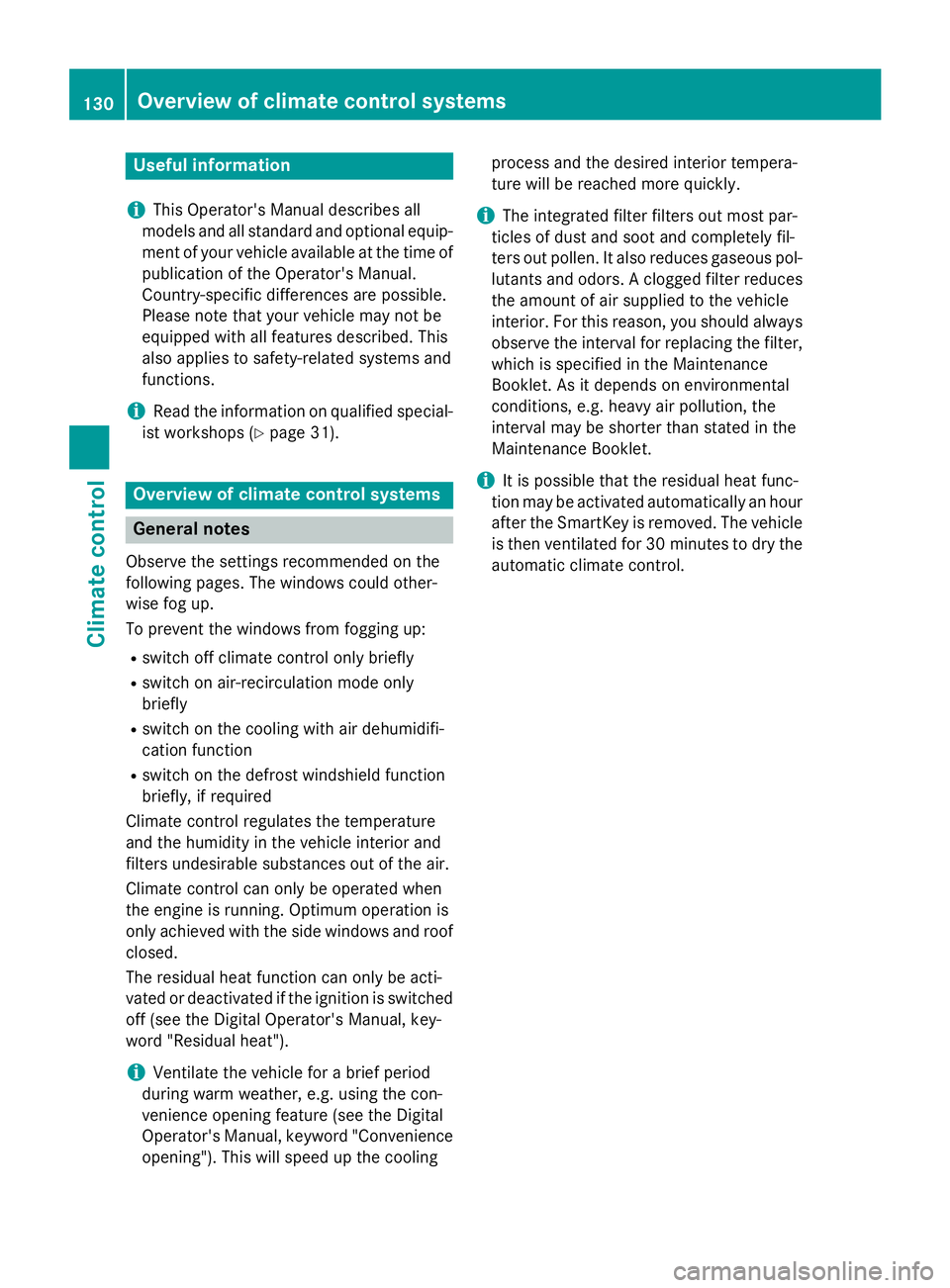

Useful information
i
This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
iRead the information on qualified special-
ist workshops (
Ypage 31).
Overview of climate control systems
General notes
Observe the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up:
Rswitch off climate control only briefly
Rswitch on air-recirculation mode only
briefly
Rswitch on the cooling with air dehumidifi-
cation function
Rswitch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof closed.
The residual heat function can only be acti-
vated or deactivated if the ignition is switched
off (see the Digital Operator's Manual, key-
word "Residual heat").
iVentilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature (see the Digital
Operator's Manual, keyword "Convenience
opening"). This will speed up the cooling process and the desired interior tempera-
ture will be reached more quickly.
iThe integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol-
lutants and odors. A clogged filter reduces
the amount of air supplied to the vehicle
interior. For this reason, you should always
observe the interval for replacing the filter,
which is specified in the Maintenance
Booklet. As it depends on environmental
conditions, e.g. heavy air pollution, the
interval may be shorter than stated in the
Maintenance Booklet.
iIt is possible that the residual heat func-
tion may be activated automatically an hour
after the SmartKey is removed. The vehicle
is then ventilated for 30 minutes to dry the
automatic climate control.
130Overview of climate control systems

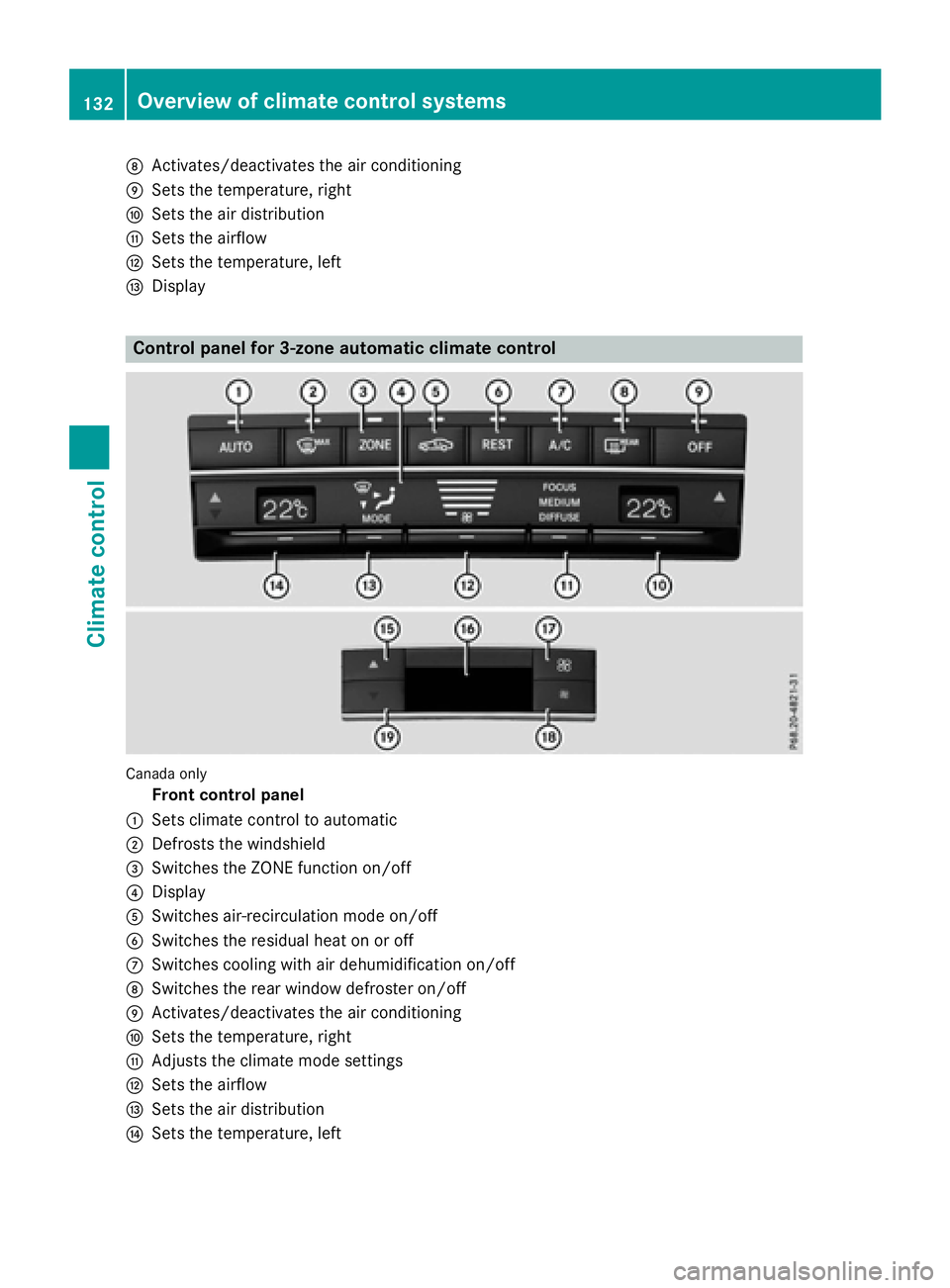

Climate control

DActivates/deactivates the air conditioning
ESets the temperature, right
FSets the air distribution
GSets the airflow
HSets the temperature, left
IDisplay
Control panel for 3-zone automatic climate control
Canada only
Front control panel
:Sets climate control to automatic
;Defrosts the windshield
=Switches the ZONE function on/off
?Display
ASwitches air-recirculation mode on/off
BSwitches the residual heat on or off
CSwitches cooling with air dehumidification on/off
DSwitches the rear window defroster on/off
EActivates/deactivates the air conditioning
FSets the temperature, right
GAdjusts the climate mode settings
HSets the airflow
ISets the air distribution
JSets the temperature, left
132Overview of climate control systems
Climate control

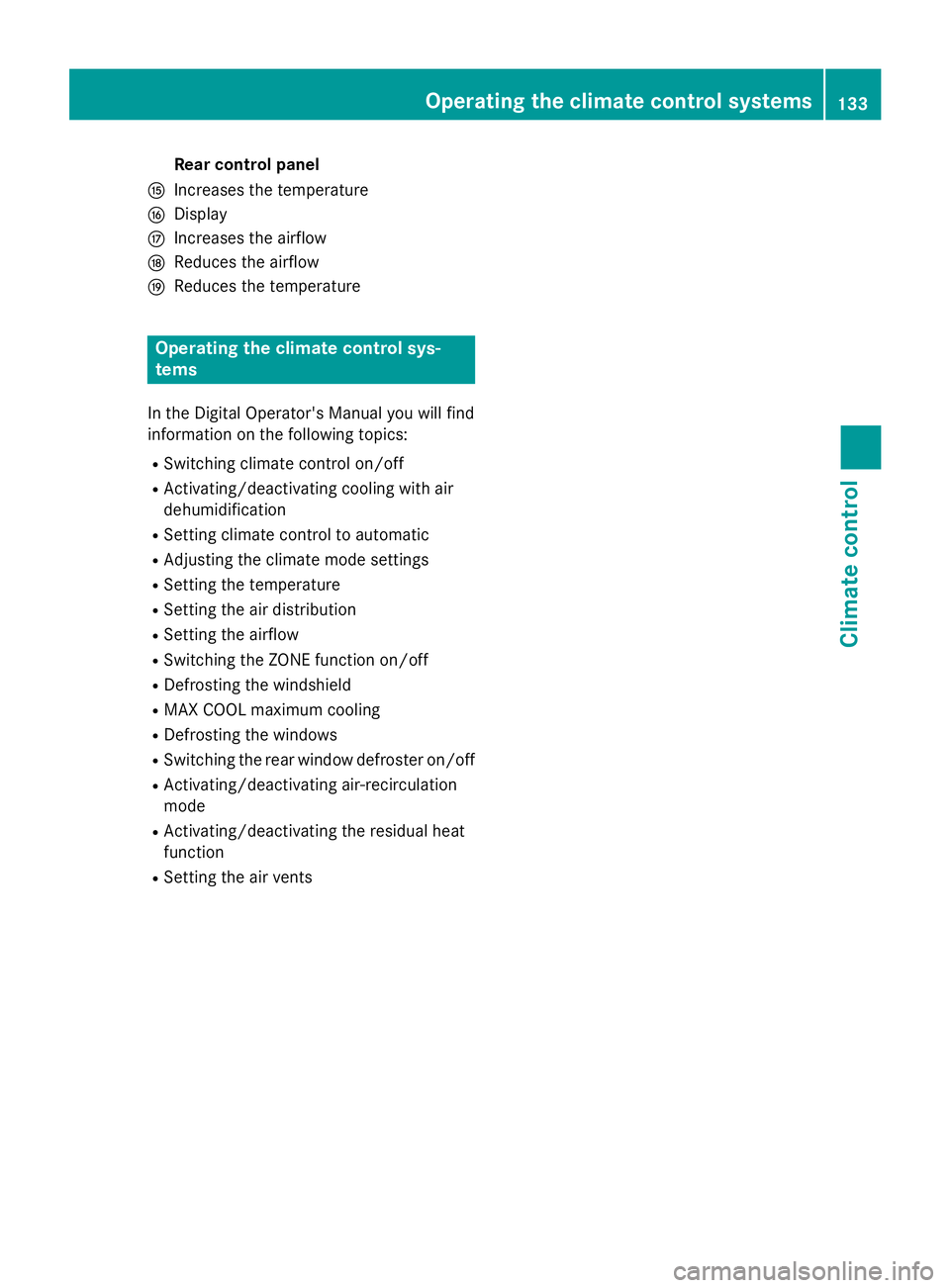

Rear control panel
KIncreases the temperature
LDisplay
MIncreases the airflow
NReduces the airflow
OReduces the temperature
Operating the climate control sys-
tems
In the Digital Operator's Manual you will find
information on the following topics:
RSwitching climate control on/off
RActivating/deactivating cooling with air
dehumidification
RSetting climate control to automatic
RAdjusting the climate mode settings
RSetting the temperature
RSetting the air distribution
RSetting the airflow
RSwitching the ZONE function on/off
RDefrosting the windshield
RMAX COOL maximum cooling
RDefrosting the windows
RSwitching the rear window defroster on/off
RActivating/deactivating air-recirculation
mode
RActivating/deactivating the residual heat
function
RSetting the air vents
Operating the climate control systems133
Climate control
