To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
4. Insert the new battery. Refer to
the diagram inside the remote entry
transmitter for the correct
orientation of the battery. Press the battery down to ensure that the
battery is fully seated in the battery housing cavity.
5. Snap the two halves back together.
Note:Replacement of the battery willnotcause the remote transmitter
to become deprogrammed from your vehicle. The remote transmitter
should operate normally after battery replacement.
Replacing lost transmitters
Take all your vehicle’s transmitters to your authorized dealer if service is
required.
If a remote transmitter has been lost and you would like to remove it
from the vehicle’s memory, or you would like to purchase additional
remote transmitters and have them programmed to your vehicle:
•Takeallyour vehicle’s transmitters to your authorized dealer for
programming, or
Locks and Security
80
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

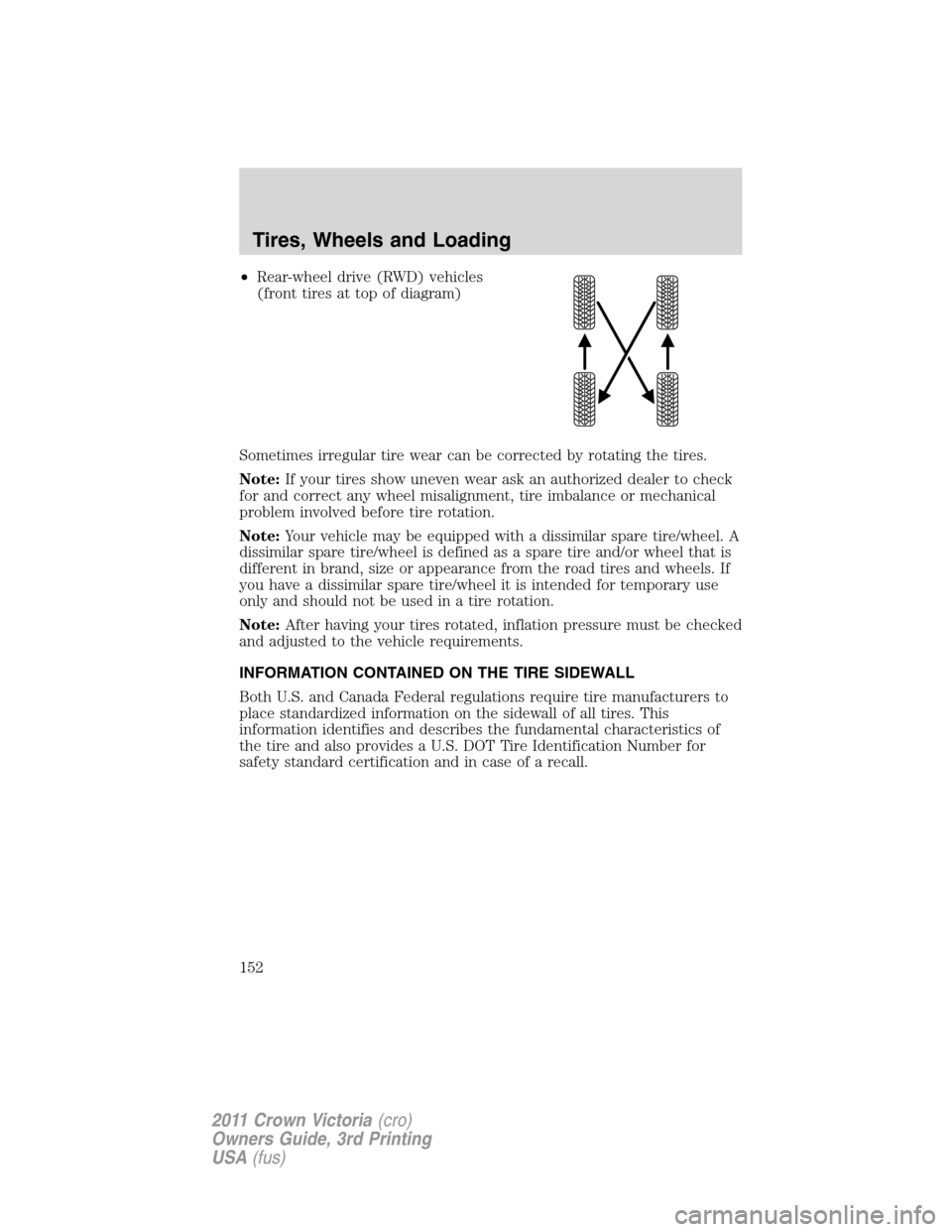

•Rear-wheel drive (RWD) vehicles
(front tires at top of diagram)
Sometimes irregular tire wear can be corrected by rotating the tires.
Note:If your tires show uneven wear ask an authorized dealer to check
for and correct any wheel misalignment, tire imbalance or mechanical
problem involved before tire rotation.
Note:Your vehicle may be equipped with a dissimilar spare tire/wheel. A
dissimilar spare tire/wheel is defined as a spare tire and/or wheel that is
different in brand, size or appearance from the road tires and wheels. If
you have a dissimilar spare tire/wheel it is intended for temporary use
only and should not be used in a tire rotation.
Note:After having your tires rotated, inflation pressure must be checked
and adjusted to the vehicle requirements.
INFORMATION CONTAINED ON THE TIRE SIDEWALL
Both U.S. and Canada Federal regulations require tire manufacturers to
place standardized information on the sidewall of all tires. This
information identifies and describes the fundamental characteristics of
the tire and also provides a U.S. DOT Tire Identification Number for
safety standard certification and in case of a recall.
Tires, Wheels and Loading
152
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

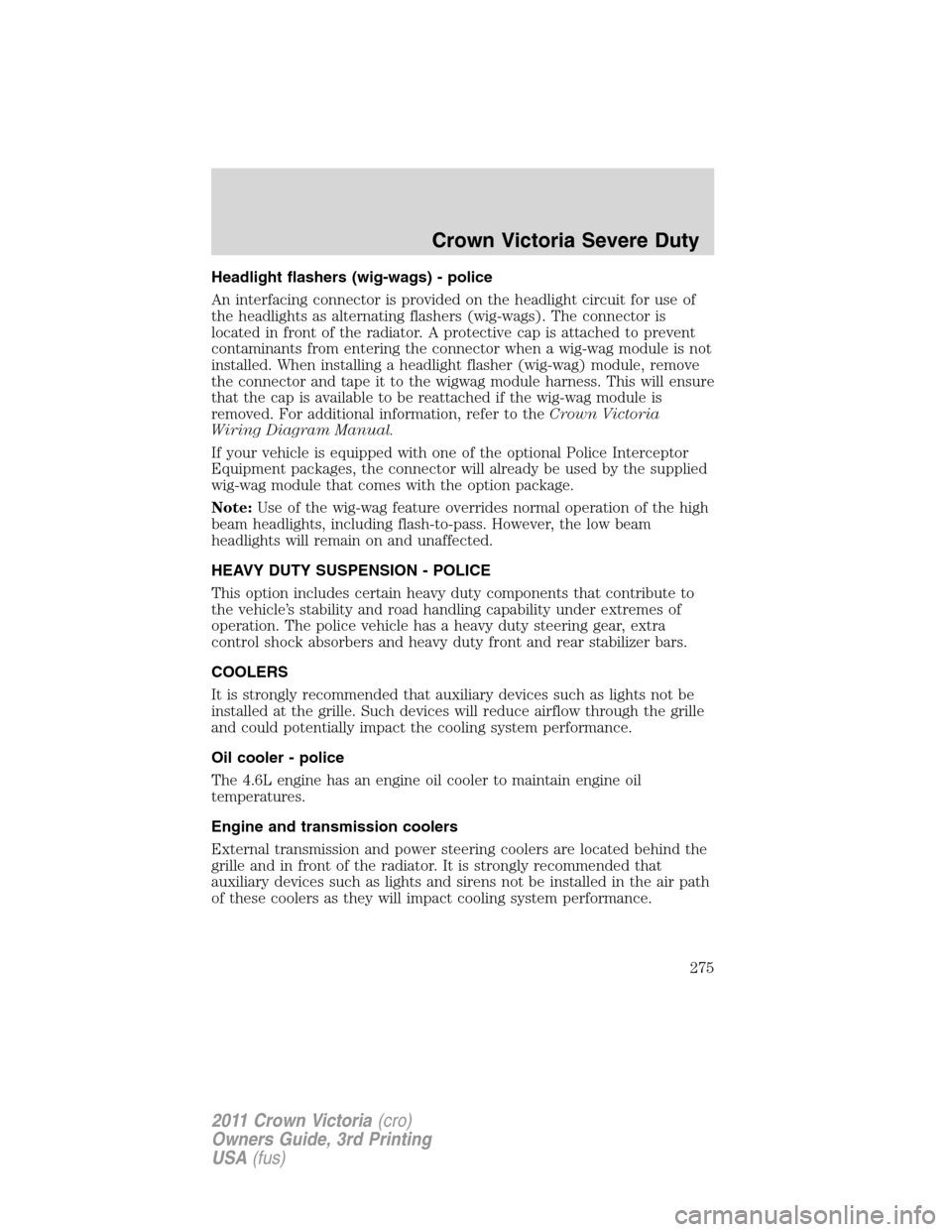

Headlight flashers (wig-wags) - police
An interfacing connector is provided on the headlight circuit for use of
the headlights as alternating flashers (wig-wags). The connector is
located in front of the radiator. A protective cap is attached to prevent
contaminants from entering the connector when a wig-wag module is not
installed. When installing a headlight flasher (wig-wag) module, remove
the connector and tape it to the wigwag module harness. This will ensure
that the cap is available to be reattached if the wig-wag module is
removed. For additional information, refer to theCrown Victoria
Wiring Diagram Manual.
If your vehicle is equipped with one of the optional Police Interceptor
Equipment packages, the connector will already be used by the supplied
wig-wag module that comes with the option package.
Note:Use of the wig-wag feature overrides normal operation of the high
beam headlights, including flash-to-pass. However, the low beam
headlights will remain on and unaffected.
HEAVY DUTY SUSPENSION - POLICE
This option includes certain heavy duty components that contribute to
the vehicle’s stability and road handling capability under extremes of
operation. The police vehicle has a heavy duty steering gear, extra
control shock absorbers and heavy duty front and rear stabilizer bars.
COOLERS
It is strongly recommended that auxiliary devices such as lights not be
installed at the grille. Such devices will reduce airflow through the grille
and could potentially impact the cooling system performance.
Oil cooler - police
The 4.6L engine has an engine oil cooler to maintain engine oil
temperatures.
Engine and transmission coolers
External transmission and power steering coolers are located behind the
grille and in front of the radiator. It is strongly recommended that
auxiliary devices such as lights and sirens not be installed in the air path
of these coolers as they will impact cooling system performance.
Crown Victoria Severe Duty
275
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

transceivers, garage door openers and other transmitters whose power
output is 5 watts or less will not ordinarily affect your vehicle’s
operation.)
Because we have no control over the installation, design or manufacture
of such systems, Ford cannot assume responsibility for any adverse
effects or damage that may result if you use this equipment.
Malfunction of aftermarket electronic equipment should be resolved by
the equipment manufacturer.
Aftermarket equipment installation
Ford has developed aPolice Interceptor Modifier Guideto assist the
vehicle modifier in safely installing police equipment into the vehicle.
The guide provides detailed information on the location of key vehicle
components that must be untouched and warnings for other areas where
caution must be exercised. The Modifier Guide is available for
downloading, free of charge, from www.fleet.ford.com.
When installing aftermarket equipment, avoid using fasteners that are too
long for the application or are in an area which might damage vehicle
components, including wiring, brake lines, fuel tank and lines, powertrain
components, exhaust system and suspension.
Also, do not make electrical connections to vehicle electrical systems not
specifically designed for aftermarket equipment installations. Refer to the
“Wiring Diagram Manual” for electrical system information.
Do not install any components into the powertrain control module
(PCM) or PCM harness. Connecting into this system may affect engine
and transmission operation.
As an example: connection of aftermarket electrical equipment into the
brake light circuit or any other circuit which is connected to the PCM,
anti-lock brake computer, airbag system or any other vehicle system
which will cause vehicle malfunction.
WARNING:Contact during a crash with aftermarket equipment
in a vehicle can result in a personal injury.
WARNING:Installation of prisoner barriers may increase the
risk of injury to front seat occupants if the vehicle is impacted
from the rear at high speeds. This risk should be balanced, by the law
enforcement agency, against the risk of injury to the Officer associated
with prisoner transport.
Crown Victoria Severe Duty
