Instrument Panel Controls
[IP00280( G )05/94]
full page art:0010102-H
Grand Marquis instrument panel
File:rcipg.ex
Update:Tue Jan 30 08:05:49 1996

88 [IP00400( ALL)05/95]The main controls for the climate control system,
clock, and radio are on the instrument panel.
%*
[IP00500( ALL)05/95]
NOTE: Any cleaner or polish that increases the
gloss (shine) of the upper part of the
instrument panel should be avoided.
The dull finish in this area is to help
protect the driver from undesirable
windshield reflection.
%
*
[IP00600( ALL)01/95]
The Climate Control Systems
[IP00700( ALL)03/91]
Your vehicle has one of two different climate
control systems. The two systems are:
[IP01200( BCGV)06/93]
q
a manual heating and air conditioning system
[IP01300( GV)03/94]
q
an electronic automatic temperature control
system
*
[IP01400( ALL)09/89]
If you are not sure which system your vehicle
has, see the diagrams on the following pages.
% [IP10700( BCGV)08/93]
The Manual Heating and Air Conditioning
System
[IP10800( BCGV)08/93]
You can heat the inside of your vehicle, defrost
the windshield, and turn on the air conditioning
with the three knobs in the center of the
instrument panel:
[IP10900( BCGV)08/93]
q
FAN
[IP11000( BCGV)08/93]
q
TEMP
[IP11100( BCGV)08/93]
q
SELECT
File:rcipg.ex
Update:Tue Jan 30 08:05:49 1996

90 [IP12600( GV)03/94]Fan speed can be reduced, after a comfortable
temperature has been reached, to provide quieter
system operation.
[IP12800( GV)05/94]
To cool your vehicle using outside air, move the
SELECT knob to NORM A/C, move the TEMP
knob to the end of the blue range (full
counterclockwise) and set the fan to the desired
speed. Cooling your vehicle in this way provides
quieter operation, but it is not as economical as
MAX A/C.
[IP13000( GV)03/92]
The instrument panel registers may be adjusted
to control the quantity and direction of air being
discharged. The thumbwheel controls the volume
of air and the knob in the center of the register
directs the air up and down or side to side.
[IP13200( GV)05/94]
When the SELECT knob is moved to OFF, the
system is off and the fan will not operate.
% [IP13300( BCGV)01/89]
Adjusting the panel register airflow
[IP13400( BCGV)03/92]
The instrument panel registers may be adjusted
to your comfort needs. The thumbwheel controls
the volume of air and the knob in the center of
the register controls direction up or down or
side to side.
%*
[IP15900( GV)04/95]
Electronic Automatic Temperature Control
System
*
[IP16000( GV)05/95]
The control for your Electronic Automatic
Temperature Control (EATC) is located at the
center of the instrument panel and operates only
when the key is in the ON position.
*
[IP16100( GV)05/95]
The EATC feature maintains the temperature
you select and automatically controls the airflow
for your comfort. It also allows you to override
the automatic operation with manual override
buttons.
File:rcipg.ex
Update:Tue Jan 30 08:05:49 1996

97
*
[IP18801( GV)02/95]
You can override the fan speed at any time. If
you use the thumbwheel to override the fan
speed, the EATC will continue to control the
temperature but you control the fan speed. To
return to auto fan control, press the
AUTOMATIC button. If you are operating in
one of the override functions (FLOOR, MAX
A/C, etc.), automatic fan control will continue
unless you rotate the fan thumbwheel. To return
to automatic fan control, press the AUTOMATIC
button. The EATC will return to Automatic
operation. If you want to return to any override
function, press the button for that function. The
fan speed will continue to be automatically
controlled.
*
[IP18901( GV)01/95]
Manual override buttons
*
[IP19001( GV)02/95]
Your EATC has six buttons which allow you to
make special selections. The buttons are located
along the bottom edge of the EATC control and
allow you to determine where the air will be
discharged. Pressing any override button
changes the air discharge location only. It does
not affect the ability of the system to control
temperature or the fan speed. Return to fully
Automatic operation by pushing the
AUTOMATIC button.
*
[IP19101( GV)01/95]
MAX A/C button
[IP19201( GV)05/94]
The MAX A/C feature allows for faster cooling
because air is drawn from inside the car. Using
inside air causes the fan to sound louder which
is normal for this selection. The Display window
will indicate MAX A/C under the selected
temperature. The airflow will be from the
instrument panel registers.
File:rcipg.ex
Update:Tue Jan 30 08:05:49 1996

98
*
[IP19301( GV)01/95]
NORM A/C button
*
[IP19400( GV)01/95]
When you push this button, you select air
conditioning using outside air. The Display
window will indicate A/C under the selected
temperature. The cooled air will flow from the
instrument panel registers. The fan speed will
continue on automatic.
%*
[IP19500( GV)01/95]
VENT button
[IP19600( GV)03/95]
Push this button to select outside air through the
instrument panel registers. The display window
will show the set temperature and VENT to the
lower right of the temperature. Your EATC will
heat the air if the temperature you have selected
is warmer than the outside air coming into the
vehicle. However, the air will NOT be cooled
regardless of the temperature setting. Airflow
will be from the instrument panel registers.
*
[IP19700( GV)02/95]
FLOOR button
*
[IP19800( GV)05/95]
Airflow will be to the floor when the FLOOR
button is pressed. The display window will
show the set temperature and FLR to the left of
the temperature. The air cannot be cooled in the
FLOOR position, only heated. Fan speed will be
automatic unless manually controlled. If you
override the fan speed and wish to return to
automatic fan control, push AUTOMATIC. Then,
again select FLOOR for airflow to the floor.
%*
[IP19900( GV)02/95]
FLR & DEF button
[IP20000( GV)03/95]
Push this button to get air to the floor and
windshield defrosters at the same time. The
display will show the set temperature, FLR and
the Defrost symbolVto indicate FLR-DEF has
been selected. If the outside temperature is about
50ÊF (10ÊC) andabove, the air will be
dehumidified to remove moisture. This will help
to prevent fogging in humid weather.
File:rcipg.ex
Update:Tue Jan 30 08:05:49 1996

101
*
[IP21400( GV)04/95]
Service
*
[IP21500( GV)04/95]
If your EATC is not operating as described here,
take it to your dealer to have it checked. System
diagnostics are built in which will allow your
dealer to readily identify problems that might
occur.
% [IP31800( GV)12/91]Rear Window Defroster
*
[IP32000( ALL)12/91]
The defroster for the rear window clears frost,
fog, or thin ice from both the inside and outside
of the rear window.
[IP32800( GV)03/94]
The button for the rear window defroster is
located on the left hand (driver's) side of the
instrument panel.
[IP32900( GV)05/94]
one third page art:0010191-F

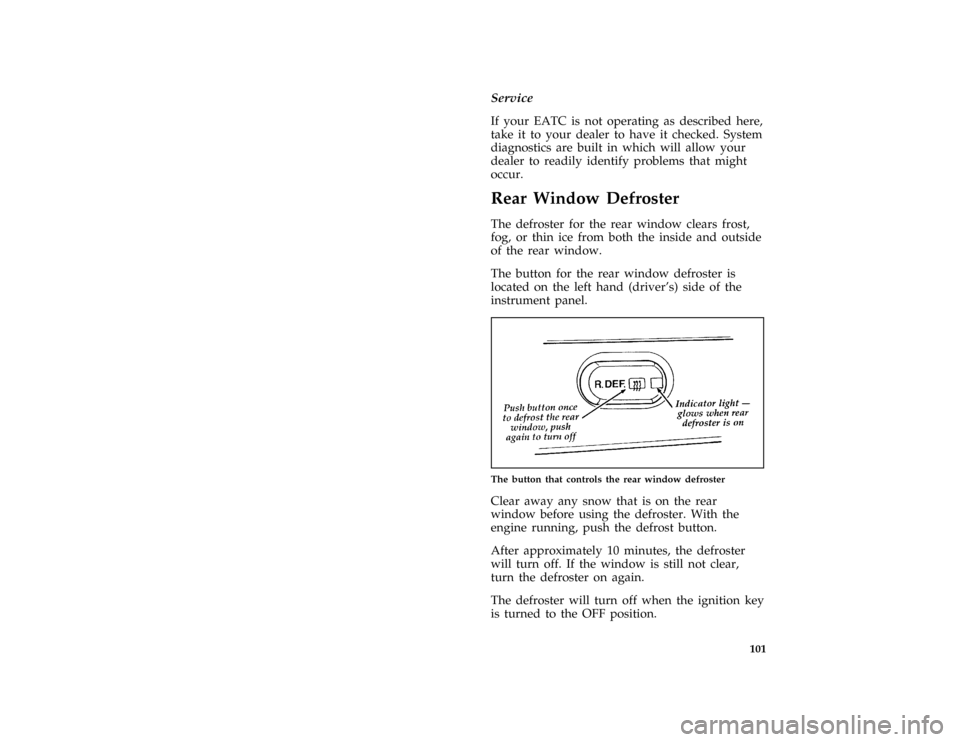

The button that controls the rear window defroster
[IP33000( ALL)12/94]
Clear away any snow that is on the rear
window before using the defroster. With the
engine running, push the defrost button.
[IP33100( ALL)12/94]
After approximately 10 minutes, the defroster
will turn off. If the window is still not clear,
turn the defroster on again.
[IP33200( ALL)12/94]
The defroster will turn off when the ignition key
is turned to the OFF position.
File:rcipg.ex
Update:Tue Jan 30 08:05:49 1996

105
*
[IP39275( BCGV)01/95]
Do not put any articles on top of the photocell
that is located in the top left corner of the
instrument panel. This photocell controls the
autolamp. If you cover it, the photocell reacts as
if it is nighttime, and the lamps turn on.
[IP39401( GV)05/95]
You can adjust the autolamp to keep the lamps
on after you leave your vehicle. The further you
move the headlamp knob to the left
(counterclockwise), the longer the lamps stay on.
*
[IP39500( BCGV)12/92]
You can set the autolamp so the lamps stay on
for up to three minutes after you turn your
vehicle off.
File:rcipg.ex
Update:Tue Jan 30 08:05:49 1996

106 %
*
[IP44500( ALL)01/95]
Lighting Up the Interior and Instrument
Panel
[IP45000( GV)05/95]
With the parking lamps or headlamps
illuminated, you can brighten or dim the lights
in the instrument panel. To do this, locate the
switch above the headlight control knob and
press it up (to brighten the lights) or down (to
dim the lights). To turn the interior lights on
and off, push the headlamp knob in.
[IP45200( GV)05/95]
one third page art:0011308-B
The knob controls the light on the instrument panel and
the interior light (autolamp feature shown Ð other models
similar)
File:rcipg.ex
Update:Tue Jan 30 08:05:49 1996

112 %
*
[SC02100( ALL)01/95]
Turn Signals
*
[SC02201( ALL)03/95]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
*
[SC02301( ALL)03/95]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
*
[SC02401( ALL)03/95]
For lane changes, move the lever far enough to
signal but not to latch. The lever will return to
the off position when you release it.
[SC02600( GV)07/93]
If your vehicle is equipped with cornering
lamps, they will automatically light on either the
right or left side (depending on the direction of
the turn), when the headlamps are ON.
%*
[SC02700( ALL)03/95]
High Beams
*
[SC02800( ALL)05/95]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
*
[SC02900( ALL)03/95]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
%*
[SC03200( ALL)05/95]
Flashing the Lights
*
[SC03300( ALL)05/95]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is in the on or off position.
File:rcscg.ex
Update:Tue Jan 30 08:04:51 1996
