Page 36 of 305
33 [IS28600( GV)12/95]
one inch art:0010520-C

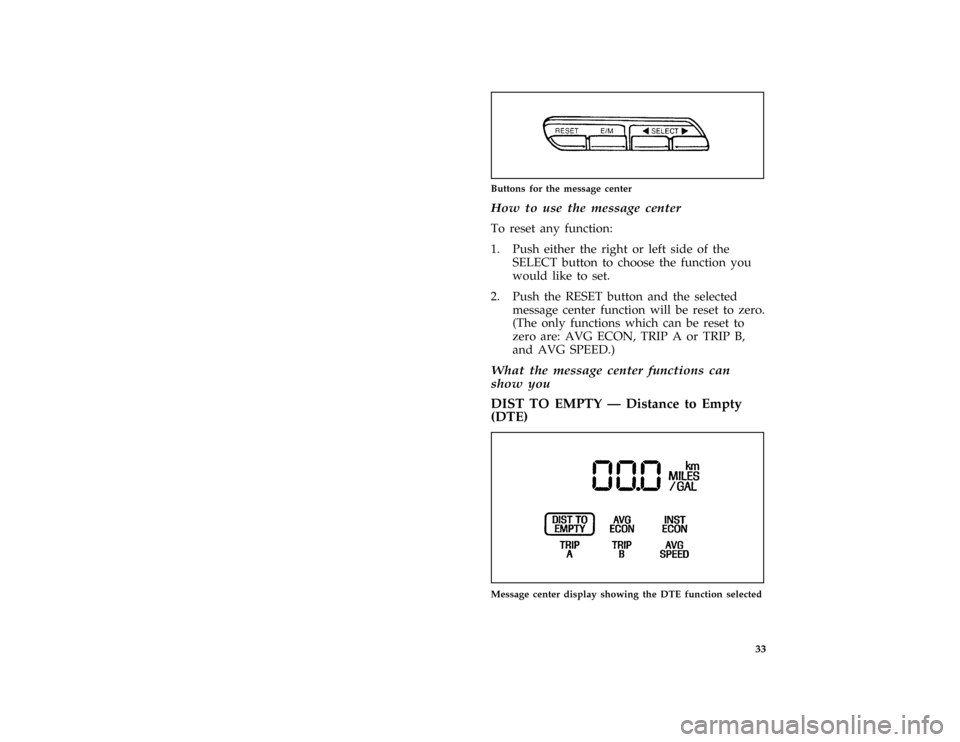

Buttons for the message center
[IS28700( GV)12/95]
How to use the message center
*
[IS28800( GV)12/95]
To reset any function:
*
[IS28900( GV)12/95]
1. Push either the right or left side of the
SELECT button to choose the function you
would like to set.
*
[IS29000( GV)12/95]
2. Push the RESET button and the selected
message center function will be reset to zero.
(The only functions which can be reset to
zero are: AVG ECON, TRIP A or TRIP B,
and AVG SPEED.)
[IS29100( GV)12/95]
What the message center functions can
show you
% [IS29200( GV)12/95]
DIST TO EMPTY Ð Distance to Empty
(DTE)
[IS29300( GV)12/95]
one third page art:0010519-C
Message center display showing the DTE function selected
File:03rcisg.ex
Update:Tue Jun 11 13:54:07 1996
Page 48 of 305
46
%*
[AS10319( GV)03/96]
Luxury Audio System
*
[AS10320( GV)03/96]
Using the Controls on Your New Radio
*
[AS10330( GV)03/96]
How to turn the radio on and off
*
[AS10340( GV)03/96]
Press the ªVOL/PUSH ONº knob to turn the
radio on. Press again to turn it off.
*
[AS10351( GV)03/96]
How to adjust the volume
[AS10352( GV)06/95]
Turn the ªVOL/PUSH ONº knob to the right to
increase the volume and to the left to decrease
the volume.
*
[AS10354( GV)03/96]
Selecting the AM or FM frequency band
[AS10355( GV)03/96]
Push the ªAM/FMº button to select the desired
frequency band. Pushing the ªAM/FMº button
causes the frequency band to switch from ªAMº
to ªFM1º to ªFM2º to ªAMº, changing one band
to the next each time the button is pressed.
These functions are used with the station
memory buttons described underHow to tune
radio stations.
%*
[AS10356( GV)03/96]
How to tune radio stations
*
[AS10357( GV)03/96]
There are four ways for you to tune in a
particular station. You can use the ªTUNEº,
ªSEEKº, ªSCANº or memory buttons.
*
[AS10358( GV)03/96]
q
Using the ªTUNEº function
[AS10359( GV)03/95]
You can change the frequency up or down
one increment at a time by pressing and
releasing either the left
bor right
aside of
the ªTUNEº button. To change frequencies
quickly, press and hold down either the right
or left side of the ªTUNEº button.
*
[AS10360( GV)03/96]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
File:04rcasg.ex
Update:Mon Sep 23 08:30:54 1996
Page 49 of 305
47
*
[AS10361( GV)04/96]
q
Using the ªSEEKº function
*
[AS10362( GV)03/96]
Press the right
aside of the ªSEEKº button
to select the next listenable station up the
frequency band. Press the left
bside of the
button to select the next listenable station
down the frequency band. By holding the
button down, listenable stations can be
passed over to reach the desired station.
*
[AS10363( GV)04/96]
q
Using the ªSCANº function
*
[AS10364( GV)03/96]
Pressing the ªSCANº button will begin the
scan mode up the frequency band, stopping
on each listenable station for approximately
five seconds.
*
[AS10365( GV)03/96]
To stop the scan mode on the presently
sampled station, press the ªSCANº button
again.
*
[AS10366( GV)03/96]
q
Setting the station MEMORY PRESET buttons
*
[AS10367( GV)03/96]
Your radio is equipped with 6 station
memory buttons. These buttons can be used
to select up to 6 preset AM stations and 12
FM stations (6 in FM1 and 6 in FM2)
*
[AS10368( GV)08/95]
Follow the easy steps below to set these buttons
to the desired frequencies:
*
[AS10369( GV)03/96]
1. Select a band, then select a frequency.
*
[AS10370( GV)10/95]
2. Press one of the memory preset buttons and
hold the button until the sound returns. That
station is now held in memory on that
button.
*
[AS10371( GV)10/95]
3. Follow the two steps above for each station
memory preset button you want to set.
File:04rcasg.ex
Update:Mon Sep 23 08:30:54 1996
Page 50 of 305
48
*
[AS10372( GV)03/96]
Using the Automatic Memory Store feature
(ªAUTOSETº)
*
[AS10373( GV)03/96]
If the memory buttons have been set, either by
using the Auto Memory Load feature or if you
have set them manually, the system is prepared
to let you use a convenient feature called
Automatic Memory Store.
*
[AS10374( GV)03/96]
With Auto Memory Store, you can continually
set strong stations into your memory buttons
without losing your originally set stations. Your
radio will automatically set your memory
buttons to the strong local stations.
*
[AS10375( GV)03/96]
Activate Auto Memory Store by pushing the
ªAUTOSETº button once. Your radio will set the
first six strong stations of the band you are in
(AM, FM1 or FM2) into the memory buttons.
The display will flash ªAUTOº and display the
autoset icon ªAº while the stations are being set
in the memory buttons.
[AS10376( GV)10/95]
NOTE: If there are fewer than six strong
stations in the frequency band, the
remaining unfilled buttons will store
the last strong station detected on the
band. After all stations have been
filled, the radio will begin playing the
station stored on memory button 1.
*
[AS10377( GV)03/96]
To deactivate the Auto Memory Store mode and
return to the manually-set memory button
stations, simply push the ªAUTOSETº button.
Display will show ªAUTOº then ªOFFº. The
next time Auto Memory Store is activated on
that band, the radio will store the next set of six
strong stations.
File:04rcasg.ex
Update:Mon Sep 23 08:30:54 1996
Page 57 of 305
55
[AS56240( G )05/95]
Electronic Search Cassette Radio
*
[AS56250( GV)03/96]
Using the Controls on Your New Radio
*
[AS56300( GV)03/96]
How to turn the radio on and off
*
[AS56350( GV)03/96]
Press the ªVOL/PUSH ONº knob to turn the
radio on. Press again to turn it off.
*
[AS56400( GV)03/96]
How to adjust the volume
[AS56450( GV)06/95]
Turn the ªVOL/PUSH ONº knob to the right to
increase the volume and to the left to decrease
the volume. Bars illuminate in the display to
show relative volume level.
*
[AS56460( GV)02/96]
NOTE: If the volume level is set above a
certain listening level when the
ignition switch is turned off, when the
ignition switch is turned back on, the
volume will come back to a ªnominalº
listening level. However, if the radio
power is turned off, the volume will
remain in the position it was set at
when radio power was switched off.
*
[AS56500( GV)03/96]
Selecting the AM or FM frequency band
*
[AS56550( GV)02/95]
Push the ªAM/FMº button to select the desired
frequency band or to stop/store cassette tape
(when in cassette mode). Pushing the button
more than once will alternate between AM, FM1
and FM2. These functions are used with the
station memory buttons described underHow to
tune radio stations.
File:04rcasg.ex
Update:Mon Sep 23 08:30:54 1996
Page 58 of 305
56 %
*
[AS56600( GV)03/96]
How to tune radio stations
*
[AS56650( GV)10/95]
There are four ways for you to tune in a
particular station. You can manually locate the
station using the ªSCAN/TUNEº button,
ªSEEKº the station, ªSCANº to the station or
select the station by using the memory buttons,
which you can set to any desired frequency.
These four methods are described below.
*
[AS56660( GV)03/96]
q
Using the ªTUNEº function
*
[AS56700( GV)03/96]
You can change the frequency up or down
one increment at a time by pressing and
releasing either the left
bor right
aside of
the ªTUNEº button.
*
[AS56750( GV)03/96]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
*
[AS56800( GV)04/96]
q
Using the ªSEEKº function
*
[AS56850( GV)05/96]
This feature on your radio allows you to
automatically select listenable stations up or
down the frequency band. Press the right
a
side of the ªSEEKº button to select the next
listenable station up the frequency band.
Press the left
bside of the button to select
the next listenable station down the
frequency band. By holding the button down,
listenable stations can be passed over to reach
the desired station.
File:04rcasg.ex
Update:Mon Sep 23 08:30:54 1996
Page 59 of 305
57
*
[AS56900( GV)04/96]
q
Using the ªSCANº function
*
[AS56950( GV)03/96]
Pressing the ªSCANº button will begin the
scan mode up the frequency band, stopping
on each listenable station for approximately
five seconds.
*
[AS57000( GV)03/96]
To stop the scan mode on the presently
sampled station, press the ªSCANº button
again.
*
[AS57050( GV)02/96]
q
Setting the Station Memory Preset buttons
*
[AS57100( GV)10/95]
Your radio is equipped with 6 station
memory buttons. These buttons can be used
to select up to 6 preset AM stations and 12
FM stations (6 in FM1 and 6 in FM2).
*
[AS57150( GV)08/95]
Follow the easy steps below to set these buttons
to the desired frequencies:
*
[AS57200( GV)03/96]
1. Select a band, then select a frequency.
*
[AS57300( GV)10/95]
2. Press one of the memory preset buttons and
hold the button until the sound returns. That
station is now held in memory on that
button.
*
[AS57350( GV)10/95]
3. Follow the two steps above for each station
memory preset button you want to set.
[AS57375( GV)09/95]
NOTE: If the vehicle's battery is disconnected
the station memory preset buttons will
need to be reset.
File:04rcasg.ex
Update:Mon Sep 23 08:30:54 1996
Page 70 of 305
69 [CF05200( GV)12/95]
If the inside of the vehicle is very warm, drive
for the first few minutes with the windows open
to force the hot, stale air out of the vehicle.
[CF05400( GV)12/95]
Fan speed can be reduced, after a comfortable
temperature has been reached, to provide quieter
system operation.
[CF05600( GV)12/95]
To cool your vehicle using outside air, move the
SELECT knob to NORM A/C, move the TEMP
knob to the end of the blue range (full
counterclockwise) and set the fan to the desired
speed. Cooling your vehicle in this way provides
quieter operation, but it is not as economical as
MAX A/C.
[CF05800( GV)12/95]
The instrument panel registers may be adjusted
to control the quantity and direction of air being
discharged. The thumbwheel controls the volume
of air and the knob in the center of the register
directs the air up and down or side to side.
[CF06000( GV)12/95]
When the SELECT knob is moved to OFF, the
system is off and the fan will not operate.
% [CF06100( BCGV)12/95]
Adjusting the panel register airflow
[CF06200( BCGV)04/96]
The instrument panel registers may be adjusted
to your comfort needs. The thumbwheel controls
the volume of air and the control in the center
of the register controls direction up or down or
side to side.
%*
[CF08700( GV)12/95]

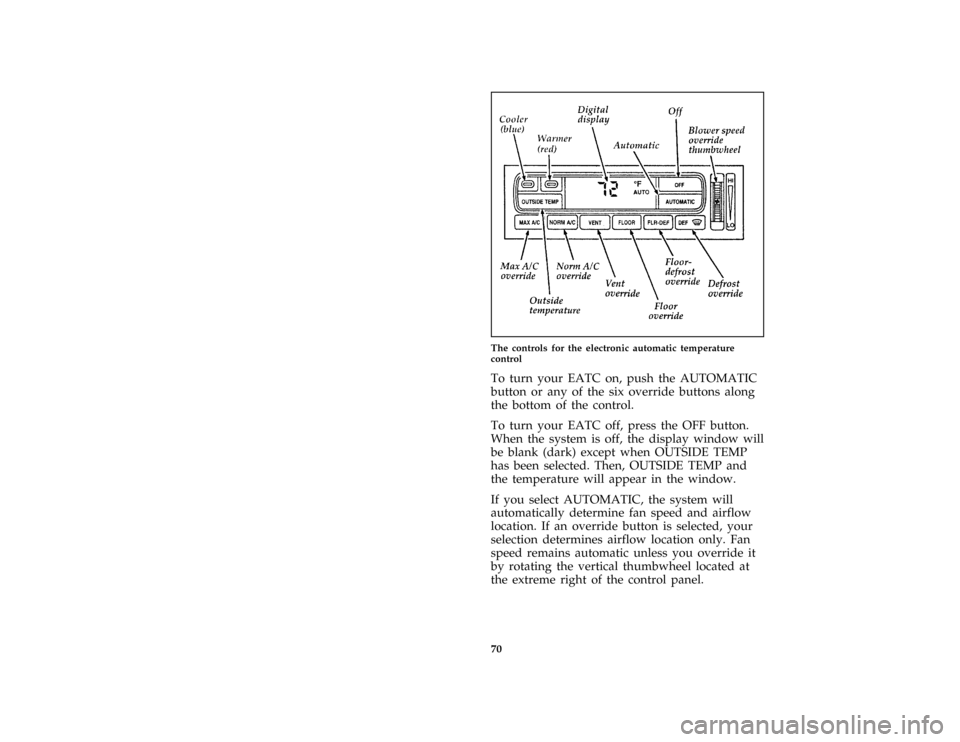

Electronic Automatic Temperature Control
System
*
[CF08800( GV)05/96]
The Electronic Automatic Temperature Control
(EATC) module is located at the center of the
instrument panel and operates only when the
key is in the ON position.
*
[CF08900( GV)12/95]
The EATC feature maintains the temperature
you select and automatically controls the airflow
for your comfort. It also allows you to override
the automatic operation with manual override
buttons.
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996
Page 71 of 305
70 [CF09000( GV)12/95]
half page art:0011299-EThe controls for the electronic automatic temperature
control
*
[CF09100( GV)01/96]
To turn your EATC on, push the AUTOMATIC
button or any of the six override buttons along
the bottom of the control.
*
[CF09200( GV)12/95]
To turn your EATC off, press the OFF button.
When the system is off, the display window will
be blank (dark) except when OUTSIDE TEMP
has been selected. Then, OUTSIDE TEMP and
the temperature will appear in the window.
*
[CF09300( GV)01/96]
If you select AUTOMATIC, the system will
automatically determine fan speed and airflow
location. If an override button is selected, your
selection determines airflow location only. Fan
speed remains automatic unless you override it
by rotating the vertical thumbwheel located at
the extreme right of the control panel.
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996
Page 72 of 305
71
*
[CF09400( GV)12/95]
To change the temperature in the display
window, select any temperature between65ÊF
(18ÊC) and 85ÊF (29ÊC)using the BLUE (cooler)
or RED (warmer) buttons. The Electronic
Automatic Temperature Control will do the rest.
*
[CF09500( GV)12/95]
If you want continuous maximum cooling, push
the BLUE button until60ÊF (16ÊC) isshown in
the display window. Your EATC will cool at
maximum and disregard the60ÊF (16ÊC)setting
until you select a warmer temperature with the
RED button. If you want continuous maximum
heating, push the RED button until90ÊF (32ÊC)
is shown in the display window. Your EATC
will provide maximum heat regardless of the
90ÊF (32ÊC)setting until you select a cooler
temperature with the BLUE button.
[CF09600( GV)12/95]
one third page art:0011300-B*
[CF09700( GV)01/96]
The display window tells you how the system is
operating. It will indicate the selected
temperature and the operating function you
have chosen; AUTO or one of the six manual
overrides. It will also indicate manual
(thumbwheel) control of the fan speed with the
Hsymbol. The display window with all possible
displays and their positions are shown here.
Normally not all are shown at the same time but
are included here to familiarize you with the
names and symbols.
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996
