Page 231 of 248
Item Ford part
nameFord part
numberFord
specification
Rear Axle
Lubricant
2Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Windshield
washer fluidUltra-clear
Windshield
Washer
ConcentrateZC-18–A ESR-M17P5-A
1Use only brake fluids certified to meet Ford specifications. DOT 3 fluid
is recommended. However, if DOT 3 is not available, DOT 4 fluid can be
used.
2Add 118 ml (4 oz.) of Additive Friction Modifier XL-2 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of
Traction-Lok rear axles.
3Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONand MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to your scheduled maintenance
guide to determine the correct service interval.
ENGINE DATA
Engine 4.6L V8 engine
Cubic inches 281
Required fuel 87 octane
Firing order 1-3-7-2-6-5-4-8
Spark plug gap 1.3-1.4 mm (0.052-0.056 inch)
Ignition system Coil on plug
Compression ratio 9.4:1
VEHICLE DIMENSIONS
Vehicle dimensions mm (in)
(1) Overall length 5 382 (211.9)
(2) Overall width 1 987 (78.2)
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
231
Page 232 of 248
Vehicle dimensions mm (in)
(3) Overall height 1 443 (56.8)
(4) Wheelbase 2 913 (114.7)
(5) Track - Front 1 611 (63.4)
(5) Track - Rear 1 666 (65.6)
1
4
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
232
Page 233 of 248

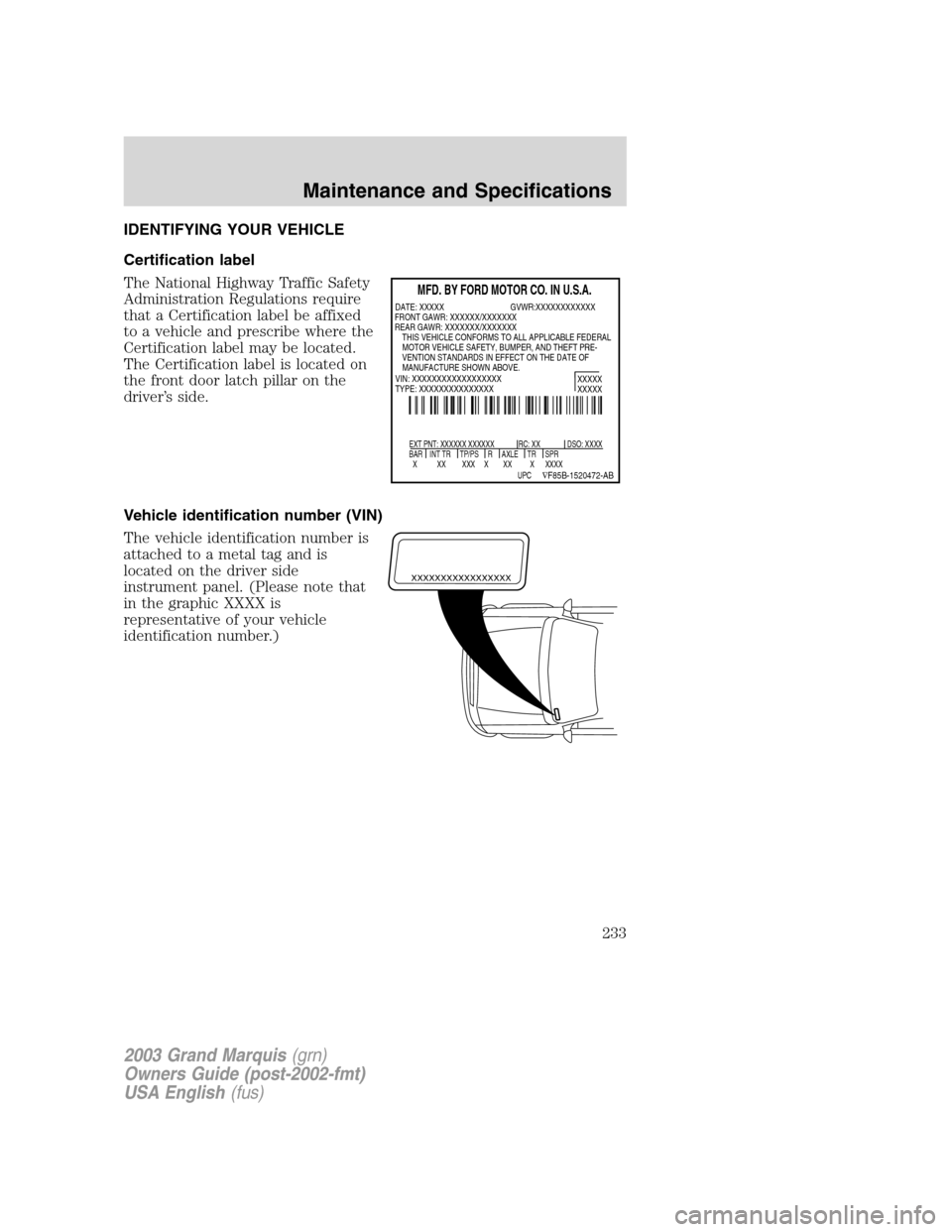

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT: XXXXXX XXXXXX RC: XX DSO: XXXX
BAR INT TR TP/PS R AXLE TR SPR
X XX XXX X XX X XXXX
XXXXX
XXXXX
UPC ∇F85B-1520472-AB
DATE: XXXXX GVWR:XXXXXXXXXXXX
VIN: XXXXXXXXXXXXXXXXXX
TYPE: XXXXXXXXXXXXXXX FRONT GAWR: XXXXXX/XXXXXXX
REAR GAWR: XXXXXXX/XXXXXXX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL
MOTOR VEHICLE SAFETY, BUMPER, AND THEFT PRE-
VENTION STANDARDS IN EFFECT ON THE DATE OF
MANUFACTURE SHOWN ABOVE.
XXXXXXXXXXXXXXXXX
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
233
Page 234 of 248
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
234
Page 235 of 248
FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford, Lincoln, Mercury or Ford of
Canada dealer. These quality accessories have been specifically
engineered to fulfill your automotive needs; they are custom designed to
complement the style and aerodynamic appearance of your vehicle. In
addition, each accessory is made from high quality materials and meets
or exceeds Ford’s rigorous engineering and safety specifications. Ford
Motor Company will repair or replace any properly dealer-installed Ford
accessory found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessory. The accessory will be warranted for
whichever provides you the greatest benefit:
•12 months or 20,000 km (12,000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 60,000 km (36,000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
Following is a list of several Ford Genuine Accessory products. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.mercuryaccessories.com.
Vehicle Security
Air bag anti-theft locks
Locking gas cap
Remote keyless entry
Styled wheel locks
Underbody security lighting
Vehicle security systems
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
Accessories
235
Page 236 of 248
Comfort and convenience
Cargo net
Cargo organizer
Electrochromic compass mirror
Electrochromic compass mirror with temperature display
Engine block heaters
Remote start system
Travel equipment
Daytime running lights (DRL)
Protection and appearance equipment
All-weather floor mats
Carpeted floor mats
Door edge guards
First aid kit
Flat splash guards
Front end covers
Full-vehicle cover
Highway safety kit
Molded splash guards
Side window deflectors
Styled hood deflector
Universal floor mats
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
236
Page 237 of 248
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
compliance certification label). Consult your dealer for specific weight
information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems - such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use or are not properly installed. When operated, such systems may
cause the engine to stumble or stall or cause the transmission to be
damaged or operate improperly. In addition, such systems may be
damaged or their performance may be affected by operating your
vehicle. (Citizens band [CB] transceivers, garage door openers and
other transmitters with outputs of five watts or less will not ordinarily
affect your vehicle’s operation.)
•Ford cannot assume responsibility for any adverse effects or damage
that may result from the use of such equipment.
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
237
Page 238 of 248
A
ABS (see Brakes) .....................147
Air bag supplemental
restraint system ................124, 128
and child safety seats ............126
description ......................124, 128
disposal ....................................131
driver air bag ..................126, 129
indicator light ...........13, 128, 130
operation .........................126, 129
passenger air bag ...........126, 129
side air bag ..............................128
Air cleaner filter ...............223, 228
Air conditioning ..........................48
manual heating and air
conditioning system .................46
Air suspension ...........................151
description ..............................151
warning light .............................14
Antifreeze
(see Engine coolant) ................204
Anti-lock brake system
(see Brakes) ..............................147
Audio system (see Radio) .........22
Automatic transmission
driving an automatic
overdrive .................................152
fluid, adding ............................220
fluid, checking ........................220
fluid, refill capacities ..............228
fluid, specification ..................231
Auxiliary power point .................73
Axle
lubricant specifications ..230–231
refill capacities ........................228
traction lok ..............................155
B
Battery .......................................202acid, treating emergencies .....202
charging system warning
light ............................................13
jumping a disabled battery ....175
maintenance-free ....................202
replacement, specifications ...228
servicing ..................................202
voltage gauge ............................19
BeltMinder .................................119
Brakes ................................146–147
anti-lock ...................................147
anti-lock brake system
(ABS) warning light .........12, 147
brake warning light ..................12
fluid, checking and adding ....220
fluid, refill capacities ..............228
fluid, specifications .........230–231
lubricant specifications ..230–231
parking ....................................148
shift interlock ..........................151
Bulbs ............................................57
C
Capacities for refilling fluids ....228
Cassette tape player ...................31
CD changer .................................40
CD-single premium .....................22
Cell phone use ............................90
Certification Label ....................233
Changing a tire .........................170
Child safety restraints ..............131
child safety belts ....................131
Child safety seats ......................134
attaching with tether straps ..138
in front seat ............................136
in rear seat ..............................136
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
Index
238
Page 239 of 248
Cleaning your vehicle
engine compartment ..............191
instrument panel ....................193
interior .............................193–194
interior trim ............................193
plastic parts ............................192
safety belts ..............................194
washing ....................................190
waxing .....................................190
wheels ......................................191
wiper blades ............................192
Climate control (see Air
conditioning or Heating) ......46, 48
Clock ......................................27, 36
Compass, electronic
set zone adjustment .................67
Console ........................................91
overhead ..............................64, 66
Controls
power seat ...............................108
steering column ........................81
Coolant
checking and adding ..............204
refill capacities ................207, 228
specifications ..................230–231
Cruise control
(see Speed control) ....................77
Customer Assistance ................161
Ford accessories for your
vehicle .....................................195
Ford Extended Service
Plan ..........................................183
Getting assistance outside the
U.S. and Canada .....................187
Getting roadside assistance ...161
Getting the service you
need .........................................181
Ordering additional owner’s
literature .................................188The Dispute Settlement
Board .......................................183
Utilizing the
Mediation/Arbitration
Program ...................................186
D
Daytime running lamps
(see Lamps) ................................53
Defrost
rear window ..............................52
Dipstick
automatic transmission
fluid ..........................................220
engine oil .................................198
Doors
lubricant specifications ..........230
Driving under special
conditions ..................................155
through water .........................155
E
Electronic message center .........86
Emergencies, roadside
jump-starting ..........................175
Emission control system ..........218
Engine ........................................231
check engine/service engine
soon light ..................................10
cleaning ...................................191
coolant .....................................204
fail-safe coolant ......................208
idle speed control ...................202
lubrication
specifications ..................230–231
refill capacities ........................228
service points ..........................197
starting after a collision .........162
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
239
Page 240 of 248
Engine block heater .................145
Engine oil ..................................198
change oil soon warning,
message center .......................198
checking and adding ..............198
dipstick ....................................198
filter, specifications ........201, 228
recommendations ...................201
refill capacities ........................228
specifications ..................230–231
Exhaust fumes ..........................146
F
Fail safe cooling ........................208
Floor mats ...................................91
Fluid capacities .........................228
Fuel ............................................210
calculating fuel
economy ............................69, 215
cap .....................................11, 212
capacity ...................................228
choosing the right fuel ...........213
comparisons with EPA fuel
economy estimates .................217
detergent in fuel .....................214
filling your vehicle
with fuel ..................210, 212, 215
filter, specifications ........214, 228
fuel pump shut-off switch .....162
gauge .........................................19
improving fuel economy ........215
low fuel warning light ..............14
octane rating ...................213, 231
quality ......................................214
running out of fuel .................214
safety information relating to
automotive fuels .....................210
Fuses ..................................163–164
G
Garage door opener ....................82Gas cap (see Fuel cap) ......11, 212
Gas mileage
(see Fuel economy) .................215
Gauges ...................................16–17
battery voltage gauge ...............19
engine coolant temperature
gauge .........................................17
engine oil pressure gauge ........18
fuel gauge ..................................19
odometer ...................................20
speedometer .............................20
trip odometer ............................21
GAWR (Gross Axle Weight
Rating) .......................................156
definition .................................156
driving with a heavy load ......156
location ....................................156
GVWR (Gross Vehicle Weight
Rating) .......................................156
calculating ...............................156
definition .................................156
driving with a heavy load ......156
location ....................................156
H
Hazard flashers .........................162
Head restraints .........................105
Headlamps ...................................53
aiming ..................................54–55
autolamp system .......................53
bulb specifications ....................57
daytime running lights .............53
flash to pass ..............................54
high beam ...........................15, 54
replacing bulbs .........................58
turning on and off ....................53
warning chime ..........................16
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
240
