Fuse and relays Mercury Grand Marquis 2003 Owner's Manuals

Seating and Safety Restraints 105
Seating 105
Safety restraints 109
Air bags 124
Child restraints 131
Driving 142
Starting 142
Brakes 146
Traction control 149
Air suspension 151
Transmission operation 151
Vehicle loading 156
Trailer towing 157
Roadside Emergencies 161
Getting roadside assistance 161
Hazard flasher switch 162
Fuel pump shut-off switch 162
Fuses and relays 163
Changing tires 170
Jump starting 175
Wrecker towing 180
Customer Assistance 181
Reporting safety defects (U.S. only) 189
Cleaning 190
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Table of Contents
2

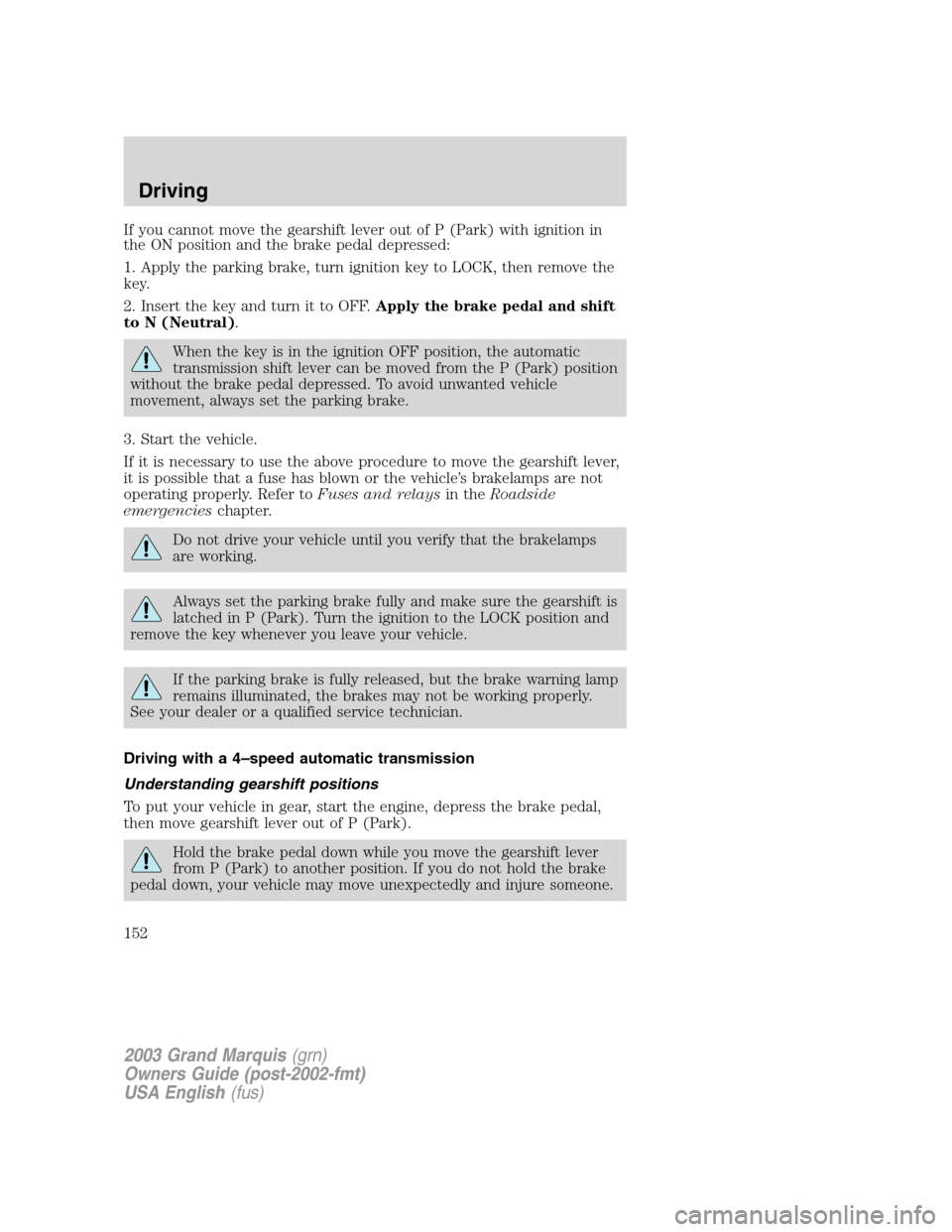

If you cannot move the gearshift lever out of P (Park) with ignition in
the ON position and the brake pedal depressed:
1. Apply the parking brake, turn ignition key to LOCK, then remove the
key.
2. Insert the key and turn it to OFF.Apply the brake pedal and shift
to N (Neutral).
When the key is in the ignition OFF position, the automatic
transmission shift lever can be moved from the P (Park) position
without the brake pedal depressed. To avoid unwanted vehicle
movement, always set the parking brake.
3. Start the vehicle.
If it is necessary to use the above procedure to move the gearshift lever,
it is possible that a fuse has blown or the vehicle’s brakelamps are not
operating properly. Refer toFuses and relaysin theRoadside
emergencieschapter.
Do not drive your vehicle until you verify that the brakelamps
are working.
Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn the ignition to the LOCK position and
remove the key whenever you leave your vehicle.
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your dealer or a qualified service technician.
Driving with a 4–speed automatic transmission
Understanding gearshift positions
To put your vehicle in gear, start the engine, depress the brake pedal,
then move gearshift lever out of P (Park).
Hold the brake pedal down while you move the gearshift lever
from P (Park) to another position. If you do not hold the brake
pedal down, your vehicle may move unexpectedly and injure someone.
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
152

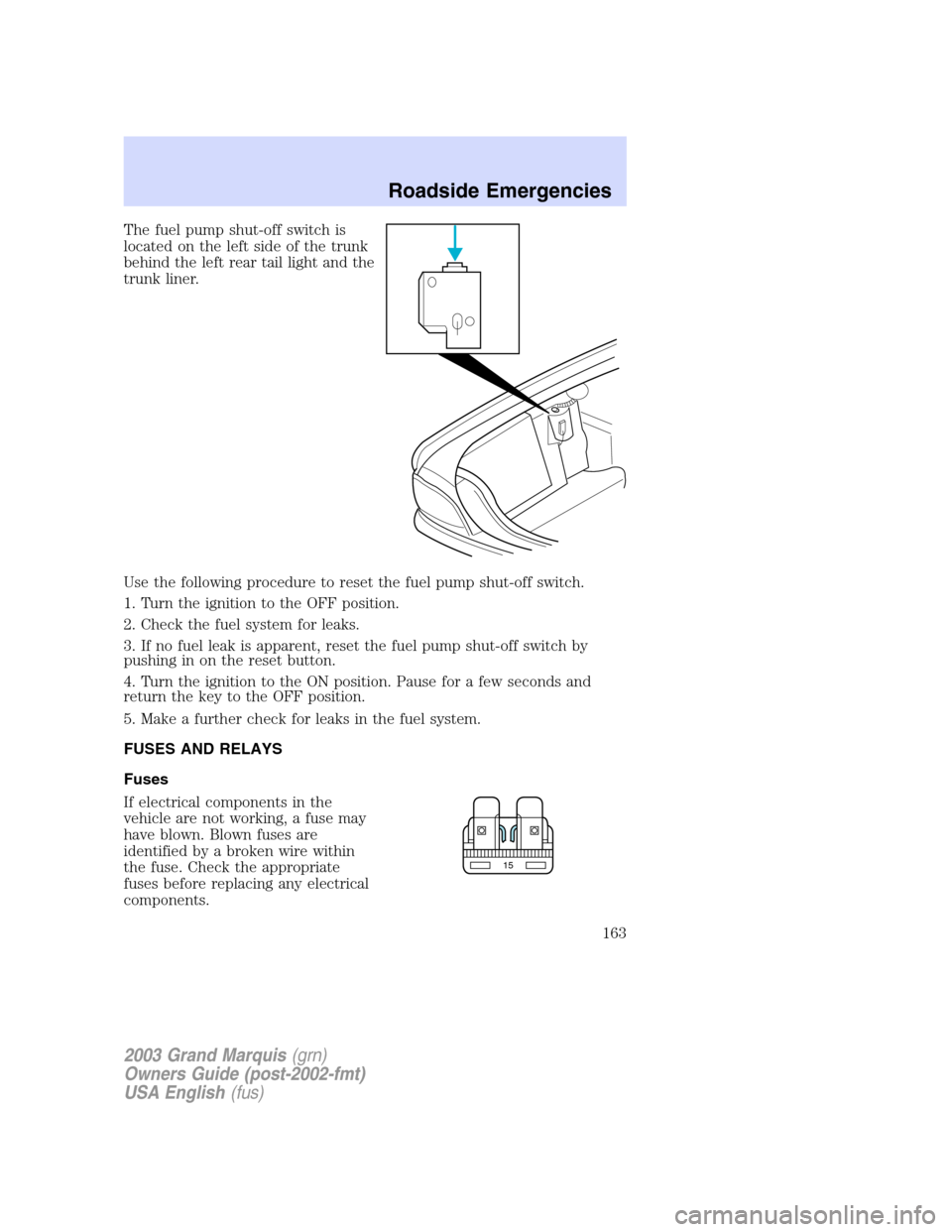

The fuel pump shut-off switch is
located on the left side of the trunk
behind the left rear tail light and the
trunk liner.
Use the following procedure to reset the fuel pump shut-off switch.
1. Turn the ignition to the OFF position.
2. Check the fuel system for leaks.
3. If no fuel leak is apparent, reset the fuel pump shut-off switch by
pushing in on the reset button.
4. Turn the ignition to the ON position. Pause for a few seconds and
return the key to the OFF position.
5. Make a further check for leaks in the fuel system.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
15
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
163

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
602 20A** Adjustable pedals, Power seat, Locks,
Decklid, Lumbar
* Mini fuse ** Circuit breaker/Maxi fuse
Relays
Relays are located in the power distribution box and should be replaced
by qualified technicians.
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
The use of tire sealants is not recommended and may
compromise the integrity of your tires.
Temporary spare tire information
Your vehicle may have a temporary or full-size spare tire. The temporary
spare tire for your vehicle is labeled as such. It is smaller than a regular
tire and is designed for emergency use only. Replace this tire with a
full-size tire as soon as possible.
If you use the temporary spare tire continuously or do not follow
these precautions, the tire could fail, causing you to lose control
of the vehicle, possibly injuring yourself or others.
When driving with the temporary spare tiredo not:
•exceed 80 km/h (50 mph) under any circumstances.
•load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label.
•tow a trailer.
•use tire chains.
•drive through an automatic car wash, because of the vehicle’s reduced
ground clearance.
•try to repair the temporary spare tire or remove it from its wheel.
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
170

Lubricant specifications ...230–231
Lumbar support, seats .............107
M
Message center ...........................86
reset button ..............................86
select button .............................87
Mirrors
automatic dimming rearview
mirror ........................................76
fold away ...................................76
heated ........................................75
side view mirrors (power) .......75
Moon roof ....................................81
Motorcraft parts ................214, 228
O
Octane rating ............................213
Odometer .....................................20
Oil (see Engine oil) ..................198
Overdrive .............................89, 153
P
Panic alarm feature, remote
entry system ................................96
Parking brake ............................148
Parts (see Motorcraft parts) ....228
Passenger Occupant
Classification Sensor .................111
Pedals (see Power adjustable
foot pedals) .................................76
Power adjustable foot pedals .....76
Power distribution box
(see Fuses) ...............................167
Power door locks ..................92, 98Power mirrors .............................75
Power point .................................73
Power steering ..................150–151
fluid, checking and adding ....219
fluid, refill capacity ................228
fluid, specifications .................230
Power Windows ...........................74
R
Radio ............................................22
Radio reception .....................44–45
Rear window defroster ...............52
Relays ................................163, 170
Remote entry system ...........94, 96
illuminated entry ......................98
locking/unlocking doors ...........95
opening the trunk .....................96
panic alarm ...............................96
replacement/additional
transmitters ...............................97
replacing the batteries .............96
Roadside assistance ..................161
S
Safety Belt Maintenance ..........123
Safety belts (see Safety
restraints) ............16, 109, 113–117
Safety defects, reporting ..........189
Safety restraints ........109, 113–117
belt minder .............................119
extension assembly ................123
for adults .........................114–116
for children .............................131
lap belt ....................................117
Occupant Classification
Sensor ......................................111
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
242
