Page 156 of 248
Once through the water, always try the brakes. Wet brakes do not stop
the vehicle as effectively as dry brakes. Drying can be improved by
moving your vehicle slowly while applying light pressure on the brake
pedal.
Driving through deep water where the transmission vent tube is
submerged may allow water into the transmission and cause
internal transmission damage. Have the fluid checked and, if
water is found, replace the fluid.
VEHICLE LOADING
Before loading a vehicle, familiarize yourself with the following terms:
•Base Curb Weight:Weight of the vehicle including any standard
equipment, fluids, lubricants, etc. It does not include occupants or
aftermarket equipment.
•Payload:Combined maximum allowable weight of cargo, occupants
and optional equipment. The payload equals the gross vehicle weight
rating minus base curb weight.
•GVW (Gross Vehicle Weight):Base curb weight plus payload
weight. The GVW is not a limit or a specification.
•GVWR (Gross Vehicle Weight Rating):Maximum permissible total
weight of the base vehicle, occupants, optional equipment and cargo.
The GVWR is specific to each vehicle and is listed on the Safety
Certification Label on the driver’s door pillar.
•GAWR (Gross Axle Weight Rating):Carrying capacity for each axle
system. The GAWR is specific to each vehicle and is listed on the
Safety Certification Label on the driver’s door pillar.
•GCW (Gross Combined Weight):The combined weight of the
towing vehicle (including occupants and cargo) and the loaded trailer.
•GCWR (Gross Combined Weight Rating):Maximum permissible
combined weight of the towing vehicle (including occupants and
cargo) and the loaded trailer.
•Maximum Trailer Weight Rating:Maximum weight of a trailer the
vehicle is permitted to tow. The maximum trailer weight rating is
determined by subtracting the vehicle curb weight for each
engine/transmission combination, any required option weight for trailer
towing and the weight of the driver from the GCWR for the towing
vehicle.
•Maximum Trailer Weight:Maximum weight of a trailer the loaded
vehicle (including occupants and cargo) is permitted to tow. It is
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
156
Page 207 of 248
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture (see
above), to within the “cold fill range” or the “cold full” level on the
reservoir. If you removed the radiator cap in an overflow system, fill the
radiator until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. (Cap must be tightly
installed to prevent coolant loss.)
After any coolant has been added, check the coolant concentration, refer
toChecking Engine Coolantsection. If the concentration is not 50/50
(protection to –34° F/–36° C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 liter (1.0 quart) of engine coolant per
month, have your dealer check the engine cooling system. Your cooling
system may have a leak. Operating an engine with a low level of coolant
can result in engine overheating and possible engine damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant in vehicles originally equipped with Motorcraft Premium Gold
Engine Coolant since a Ford-approved recycling process is not yet
available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toRefill capacitiesin this chapter.
Fill your engine coolant reservoir as outlined inAdding engine coolant
in this chapter.
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
207
Page 228 of 248
MOTORCRAFT PART NUMBERS
Component 4.6L SOHC V8 engine
Air filter element FA-1668
Fuel filter FG-986B
Battery-standard BXT-65–650
Battery-heavy duty BXT-65–750
Oil filter FL-820-S
PCV valve EV-258
Spark plugs* AWSF-32P
* Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
REFILL CAPACITIES
Fluid Ford Part Name Capacity
Engine oil (includes
filter change)
6Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)5.7L (6.0 quarts)
Brake fluid Motorcraft High
Performance DOT 3
Motor Vehicle Brake
Fluid
1
Fill to line on reservoir
Power steering fluid Motorcraft MERCON
AT FFill to line on reservoir
Transmission fluid
2Motorcraft
MERCONVATF13.2L (13.9 quarts)3
Engine coolant4Motorcraft Premium
Gold Engine Coolant
(yellow-colored)18.0L (19.0 quarts)
Fuel tank N/A 71.9L (19.0 gallons)
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
228

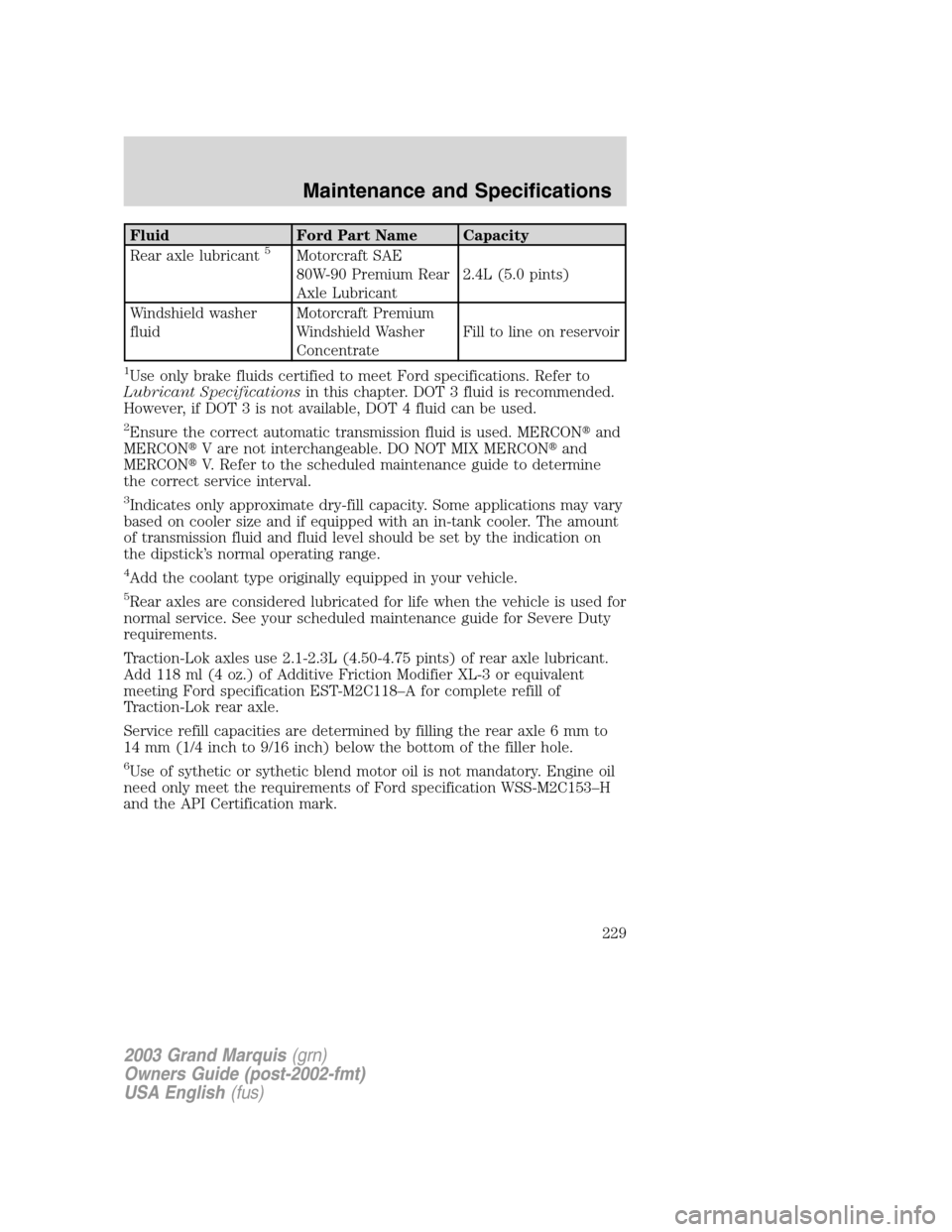

Page 229 of 248
Fluid Ford Part Name Capacity
Rear axle lubricant5Motorcraft SAE
80W-90 Premium Rear
Axle Lubricant2.4L (5.0 pints)
Windshield washer
fluidMotorcraft Premium
Windshield Washer
ConcentrateFill to line on reservoir
1Use only brake fluids certified to meet Ford specifications. Refer to
Lubricant Specificationsin this chapter. DOT 3 fluid is recommended.
However, if DOT 3 is not available, DOT 4 fluid can be used.
2Ensure the correct automatic transmission fluid is used. MERCONand
MERCONV are not interchangeable. DO NOT MIX MERCONand
MERCONV. Refer to the scheduled maintenance guide to determine
the correct service interval.
3Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
4Add the coolant type originally equipped in your vehicle.
5Rear axles are considered lubricated for life when the vehicle is used for
normal service. See your scheduled maintenance guide for Severe Duty
requirements.
Traction-Lok axles use 2.1-2.3L (4.50-4.75 pints) of rear axle lubricant.
Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118–A for complete refill of
Traction-Lok rear axle.
Service refill capacities are determined by filling the rear axle 6 mm to
14 mm (1/4 inch to 9/16 inch) below the bottom of the filler hole.
6Use of sythetic or sythetic blend motor oil is not mandatory. Engine oil
need only meet the requirements of Ford specification WSS-M2C153–H
and the API Certification mark.
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
229
Page 240 of 248
Engine block heater .................145
Engine oil ..................................198
change oil soon warning,
message center .......................198
checking and adding ..............198
dipstick ....................................198
filter, specifications ........201, 228
recommendations ...................201
refill capacities ........................228
specifications ..................230–231
Exhaust fumes ..........................146
F
Fail safe cooling ........................208
Floor mats ...................................91
Fluid capacities .........................228
Fuel ............................................210
calculating fuel
economy ............................69, 215
cap .....................................11, 212
capacity ...................................228
choosing the right fuel ...........213
comparisons with EPA fuel
economy estimates .................217
detergent in fuel .....................214
filling your vehicle
with fuel ..................210, 212, 215
filter, specifications ........214, 228
fuel pump shut-off switch .....162
gauge .........................................19
improving fuel economy ........215
low fuel warning light ..............14
octane rating ...................213, 231
quality ......................................214
running out of fuel .................214
safety information relating to
automotive fuels .....................210
Fuses ..................................163–164
G
Garage door opener ....................82Gas cap (see Fuel cap) ......11, 212
Gas mileage
(see Fuel economy) .................215
Gauges ...................................16–17
battery voltage gauge ...............19
engine coolant temperature
gauge .........................................17
engine oil pressure gauge ........18
fuel gauge ..................................19
odometer ...................................20
speedometer .............................20
trip odometer ............................21
GAWR (Gross Axle Weight
Rating) .......................................156
definition .................................156
driving with a heavy load ......156
location ....................................156
GVWR (Gross Vehicle Weight
Rating) .......................................156
calculating ...............................156
definition .................................156
driving with a heavy load ......156
location ....................................156
H
Hazard flashers .........................162
Head restraints .........................105
Headlamps ...................................53
aiming ..................................54–55
autolamp system .......................53
bulb specifications ....................57
daytime running lights .............53
flash to pass ..............................54
high beam ...........................15, 54
replacing bulbs .........................58
turning on and off ....................53
warning chime ..........................16
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
240
Page 242 of 248
Lubricant specifications ...230–231
Lumbar support, seats .............107
M
Message center ...........................86
reset button ..............................86
select button .............................87
Mirrors
automatic dimming rearview
mirror ........................................76
fold away ...................................76
heated ........................................75
side view mirrors (power) .......75
Moon roof ....................................81
Motorcraft parts ................214, 228
O
Octane rating ............................213
Odometer .....................................20
Oil (see Engine oil) ..................198
Overdrive .............................89, 153
P
Panic alarm feature, remote
entry system ................................96
Parking brake ............................148
Parts (see Motorcraft parts) ....228
Passenger Occupant
Classification Sensor .................111
Pedals (see Power adjustable
foot pedals) .................................76
Power adjustable foot pedals .....76
Power distribution box
(see Fuses) ...............................167
Power door locks ..................92, 98Power mirrors .............................75
Power point .................................73
Power steering ..................150–151
fluid, checking and adding ....219
fluid, refill capacity ................228
fluid, specifications .................230
Power Windows ...........................74
R
Radio ............................................22
Radio reception .....................44–45
Rear window defroster ...............52
Relays ................................163, 170
Remote entry system ...........94, 96
illuminated entry ......................98
locking/unlocking doors ...........95
opening the trunk .....................96
panic alarm ...............................96
replacement/additional
transmitters ...............................97
replacing the batteries .............96
Roadside assistance ..................161
S
Safety Belt Maintenance ..........123
Safety belts (see Safety
restraints) ............16, 109, 113–117
Safety defects, reporting ..........189
Safety restraints ........109, 113–117
belt minder .............................119
extension assembly ................123
for adults .........................114–116
for children .............................131
lap belt ....................................117
Occupant Classification
Sensor ......................................111
2003 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
242
