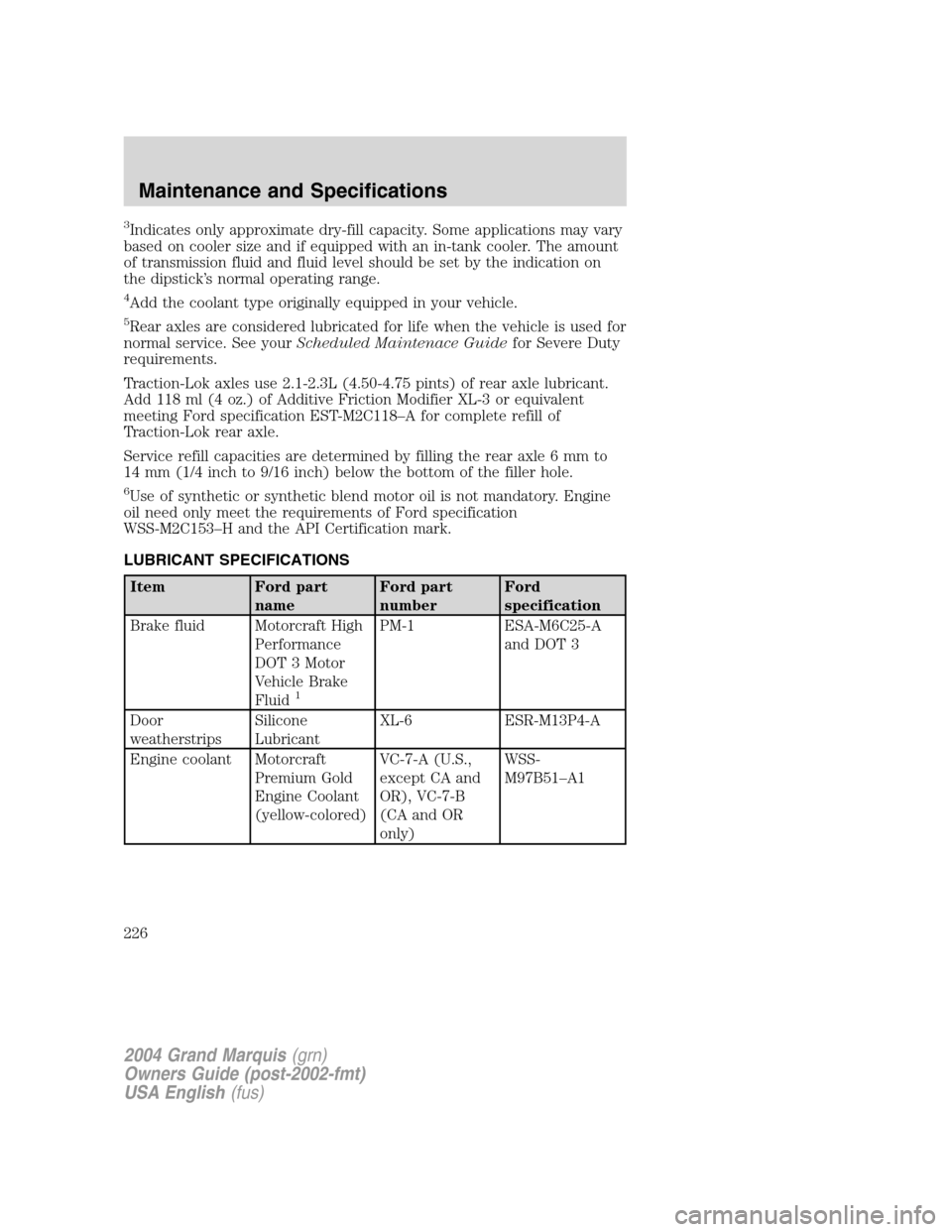

3Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
4Add the coolant type originally equipped in your vehicle.
5Rear axles are considered lubricated for life when the vehicle is used for
normal service. See yourScheduled Maintenace Guidefor Severe Duty
requirements.
Traction-Lok axles use 2.1-2.3L (4.50-4.75 pints) of rear axle lubricant.
Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118–A for complete refill of
Traction-Lok rear axle.
Service refill capacities are determined by filling the rear axle 6 mm to
14 mm (1/4 inch to 9/16 inch) below the bottom of the filler hole.
6Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C153–H and the API Certification mark.
LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid
1
PM-1 ESA-M6C25-A
and DOT 3
Door
weatherstripsSilicone
LubricantXL-6 ESR-M13P4-A
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA and
OR), VC-7-B
(CA and OR
only)WSS-
M97B51–A1
2004 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
226

Item Ford part
nameFord part
numberFord
specification
Engine oil Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–
LSP12 (Canada)WSS-M2C153-H
with API
Certification
Mark
Hinges, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseXG-4 or XL-5 ESB-M1C93-B
Lock cylinders Penetrating and
Lock LubricantMotorcraft XL-1 none
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
(4R70/75 E-W)Motorcraft
MERCONV
AT F
3
XT-5-QM
MERCONV
Rear Axle
Lubricant
2Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Windshield
washer fluidMotorcraft
Premuim
Windshield
Washer
ConcentrateZC-32-A WSB-M8B16–A2
1Use only brake fluids certified to meet Ford specifications. DOT 3 fluid
is recommended. However, if DOT 3 is not available, DOT 4 fluid can be
used.
2004 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
227

2Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of
Traction-Lok rear axles.
3Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONand MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to yourScheduled Maintenance
Guideto determine the correct service interval.
ENGINE DATA
Engine 4.6L V8 engine
Cubic inches 281
Required fuel 87 octane
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Compression ratio 9.4:1
VEHICLE DIMENSIONS (AT CURB MASS)
Vehicle dimensions mm (in)
(1) Overall length 5382 (211.9)
(2) Overall width 1987 (78.2)
(3) Overall height 1485 (58.5)
(4) Wheelbase 2911 (114.6)
(5) Track - Front 1611 (63.4)
(5) Track - Rear 1666 (65.6)
2004 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
228

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT: XXXXXX XXXXXX RC: XX DSO: XXXX
BAR INT TR TP/PS R AXLE TR SPR
X XX XXX X XX X XXXX
XXXXX
XXXXX
UPC ∇F85B-1520472-AB
DATE: XXXXX GVWR:XXXXXXXXXXXX
VIN: XXXXXXXXXXXXXXXXXX
TYPE: XXXXXXXXXXXXXXX FRONT GAWR: XXXXXX/XXXXXXX
REAR GAWR: XXXXXXX/XXXXXXX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL
MOTOR VEHICLE SAFETY, BUMPER, AND THEFT PRE-
VENTION STANDARDS IN EFFECT ON THE DATE OF
MANUFACTURE SHOWN ABOVE.
XXXXXXXXXXXXXXXXX
2004 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
230

Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
Transmission/Transaxle code designations
You can find a transmission/transaxle code on the vehicle certification
label which is located on the door pillar. The following table tells you
which transmission or transaxle each code represents.
Truck application:
Code Transmission Description
Manual transmission
M Manual 5–speed (AKK))
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
Y Automatic 4–speed overdrive (CD4E)
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
2004 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
231

MERCURY ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Mercury accessories are available for your
vehicle through your local authorized Mercury or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Mercury’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Mercury accessory found
to be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 20,000 km (12,000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that genuine Mercury accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 60,000 km (36,000 miles)(whichever occurs first). Contact your dealer for details and a copy of
the warranty.
Not all accessories are available for all models.
Following is a list of several Mercury Genuine Accessory products. Not
all accessories are available for all models. To find out what accessories
are available for your vehicle, please contact your dealer or visit our
online store at: www.mercuryaccessories.com.
Exterior style
Bug shields
Deflectors
Exterior trim kits
Front end covers
Grille inserts
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior mirrors
2004 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
Accessories
233

Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Speed control
Lifestyle
Bike racks
Cargo organization and management
Engine block heaters and blankets
Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Navigation systems
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your dealer for specific weight
information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems—such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
2004 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
234

A
ABS (see Brakes) .....................128
Air bag supplemental
restraint system ................104, 108
and child safety seats ............106
description ......................104, 108
disposal ....................................111
driver air bag ..................106, 109
indicator light .................108, 110
operation .........................106, 109
passenger air bag ...........106, 109
side air bag ..............................108
Air cleaner filter ...............210, 224
Air conditioning ..........................33
Air suspension ...........................132
description ..............................132
Antifreeze
(see Engine coolant) ................190
Anti-lock brake system
(see Brakes) ..............................128
Audio system
(see Radio) ......................20, 23, 26
Automatic transmission
driving an automatic
overdrive .................................134
fluid, adding ............................207
fluid, checking ........................207
fluid, refill capacities ..............225
fluid, specification ..................228
Auxiliary power point .................55
Axle
lubricant specifications ..226, 228
refill capacities ........................225
traction lok ..............................137
B
Battery .......................................188acid, treating emergencies .....188
jumping a disabled battery ....159
maintenance-free ....................188
replacement, specifications ...224
servicing ..................................188
BeltMinder ...................................99
Brakes ................................127–128
anti-lock ...................................128
anti-lock brake system
(ABS) warning light ...............129
fluid, checking and adding ....207
fluid, refill capacities ..............225
fluid, specifications .........226, 228
lubricant specifications ..226, 228
shift interlock ..........................133
Bulbs ............................................40
C
Capacities for refilling fluids ....225
CD changer .................................29
Cell phone use ............................71
Certification Label ....................230
Changing a tire .........................153
Child safety restraints ..............111
child safety belts ....................111
Child safety seats ......................114
attaching with tether straps ..118
in front seat ............................115
in rear seat ..............................115
Cigar lighter
Power Point ..............................55
Cleaning your vehicle
engine compartment ..............176
instrument panel ....................178
interior .....................................178
interior trim ............................178
plastic parts ............................177
Index
Index
235

washing ....................................175
waxing .....................................175
wheels ......................................176
wiper blades ............................177
Climate control (see Air
conditioning or Heating) ............33
Clock adjust
AM/FM/CD .................................24
AM/FM/Tape ..............................27
AM/FM/Tape/CD .......................22
Compass, electronic
set zone adjustment .................50
Console ........................................71
overhead ..............................48–49
Controls
power seat .................................89
steering column ........................62
Coolant
checking and adding ..............190
refill capacities ................194, 225
specifications ..................226, 228
Cruise control
(see Speed control) ....................59
Customer Assistance ................144
Ford accessories for your
vehicle .....................................180
Ford Extended Service Plan .168
Getting assistance
outside the U.S. and Canada .172
Getting roadside assistance ...144
Getting the service
you need .................................166
Ordering additional
owner’s literature ...................173
The Dispute Settlement
Board .......................................168
Utilizing the Mediation/
Arbitration Program ...............171D
Daytime running lamps
(see Lamps) ................................36
Defrost
rear window ..............................35
Dipstick
automatic transmission
fluid ..........................................207
engine oil .................................184
Doors
lubricant specifications ..........226
Driving under special
conditions ..................................137
through water .........................137
E
Electronic message center .........67
Emergencies, roadside
jump-starting ..........................159
Emission control system ..........204
Engine ........................................228
cleaning ...................................176
coolant .....................................190
fail-safe coolant ......................195
idle speed control ...................188
lubrication
specifications ..................226, 228
refill capacities ........................225
service points ..........................183
starting after a collision .........145
Engine block heater .................126
Engine oil ..................................184
change oil soon warning,
message center .......................184
checking and adding ..............184
dipstick ....................................184
filter, specifications ........187, 224
Index
236

positioning ...............................153
storage .....................................153
Jump-starting your vehicle ......159
K
Keyless entry system .................80
autolock .....................................79
keypad .......................................80
programming entry code .........80
Keys .................................72, 82–84
positions of the ignition .........123
L
Lamps
autolamp system .......................36
bulb replacement
specifications chart ..................40
daytime running light ...............36
headlamps .................................36
headlamps, flash to pass ..........37
instrument panel, dimming .....37
interior lamps .....................40–41
replacing bulbs ....... 40–41, 43–45
Lane change indicator
(see Turn signal) ........................39
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........129
Limited slip axle
(see Traction Loc) ....................137
Load limits .................................138
Locks
autolock .....................................79
childproof ..................................73
doors ..........................................72
Lubricant specifications ...226, 228
Lumbar support, seats ...............88
M
Message center ...........................67reset button ..............................67
select button .............................68
Mirrors .........................................47
automatic dimming rearview
mirror ........................................58
fold away ...................................58
heated ........................................57
side view mirrors (power) .......57
Moon roof ....................................62
Motorcraft parts ................201, 224
O
Octane rating ............................200
Oil (see Engine oil) ..................184
P
Panic alarm feature, remote
entry system ................................76
Parking brake ............................129
Parts (see Motorcraft parts) ....224
Pedals (see Power
adjustable foot pedals) ...............58
Power adjustable foot pedals .....58
Power distribution box
(see Fuses) ...............................150
Power door locks ..................72, 79
Power mirrors .............................57
Power Point
Cigar lighter ..............................55
Power steering ..................131–132
fluid, checking and adding ....206
fluid, refill capacity ................225
fluid, specifications .................226
Power Windows ...........................56
R
Radio ................................20, 23, 26
Index
238
